Y&H 1KW 2KW MPPT Solar Grid Tie Inverter AC110V/220V for Solar Panel/Battery On Grid Inverter With Limiter Sensor Support WiFi (Optional Wi-Fi module)

1000W 2000W Grid Tie Inverter converts DC power produced by Solar Panels to AC, connects to the grid and feed all of the power available from the panels to the AC load.Smart Micro inverter is synchronized and in-phase with the utility grid.The electric apparatus in the house will use power from the inverter first .If the Solar Panel is producing less power and the GTI cannot deliver all the power needed by the load, then power will be supplemented by the Grid.

The SUN series has VDE certification and all German stocks have relays.

Why we produced the GRID TIE INVERTER WITH LIMITER ?



It is in response to the overwhelming clamor from our customers for a product that can control the amount of power that the grid tie inverters (GTI) can generate so that the amount of excess power produced by the solar panels are reduced to insignificant levels, if not eliminated --- because in some countries,the producer pays for the excess power it gives to the distribution grid. This is because the electric power meters (the one provided by the electricity provider in the area) are not aware of the direction of power flow. In other words it only adds even if power is exported to the grid, thus, the consumers will be charged for power even if it is given to the grid, and this is the problem

Package including

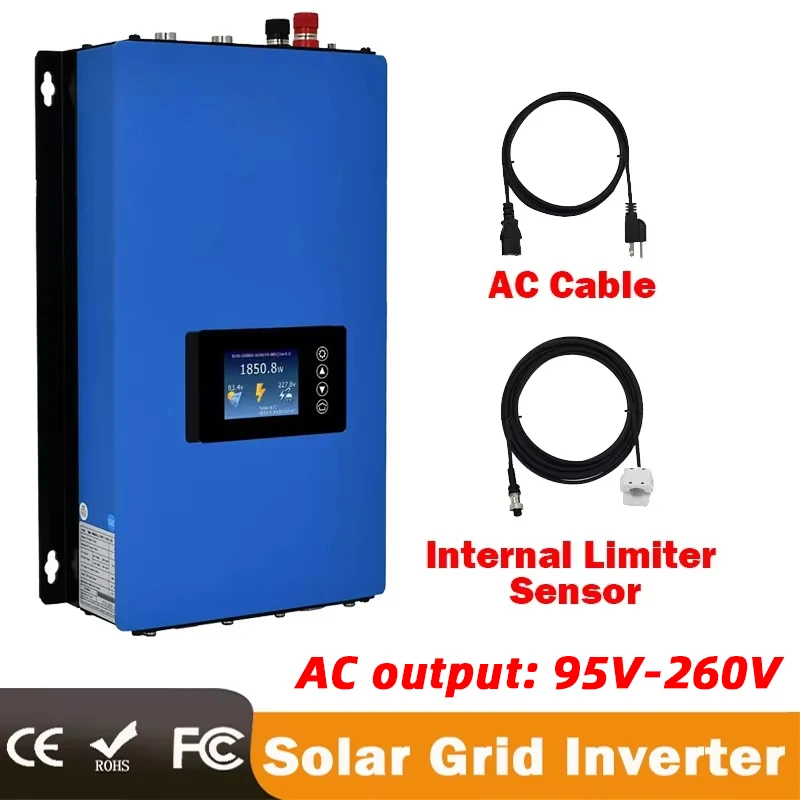

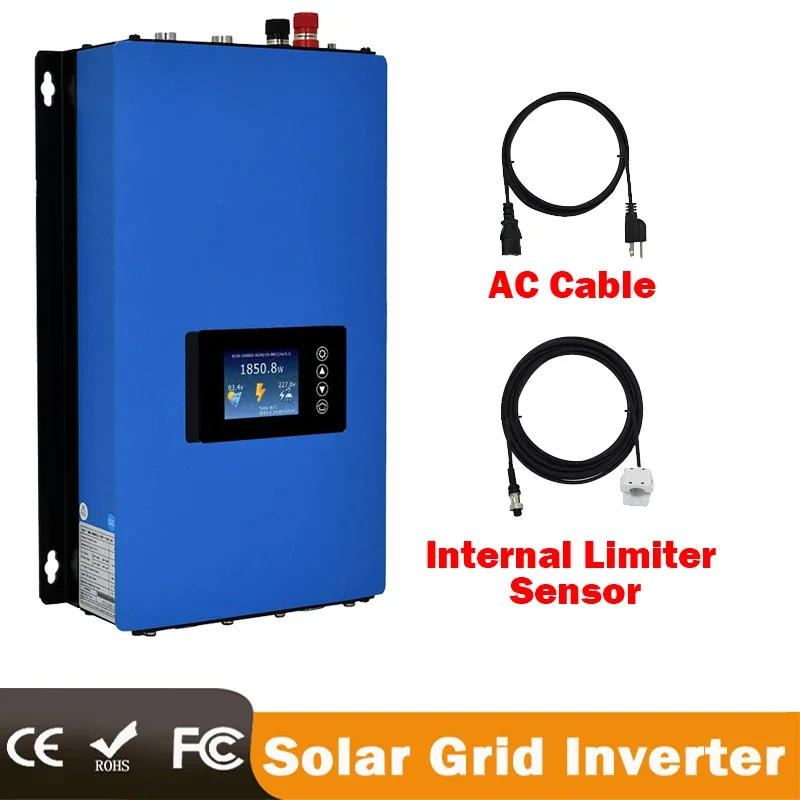

1 x Grid Tie Inverter with Limiter

1 x AC cable

1 x Internal type Limiter clamp with sensor & 2m cable

1 x English User Manual

Specification

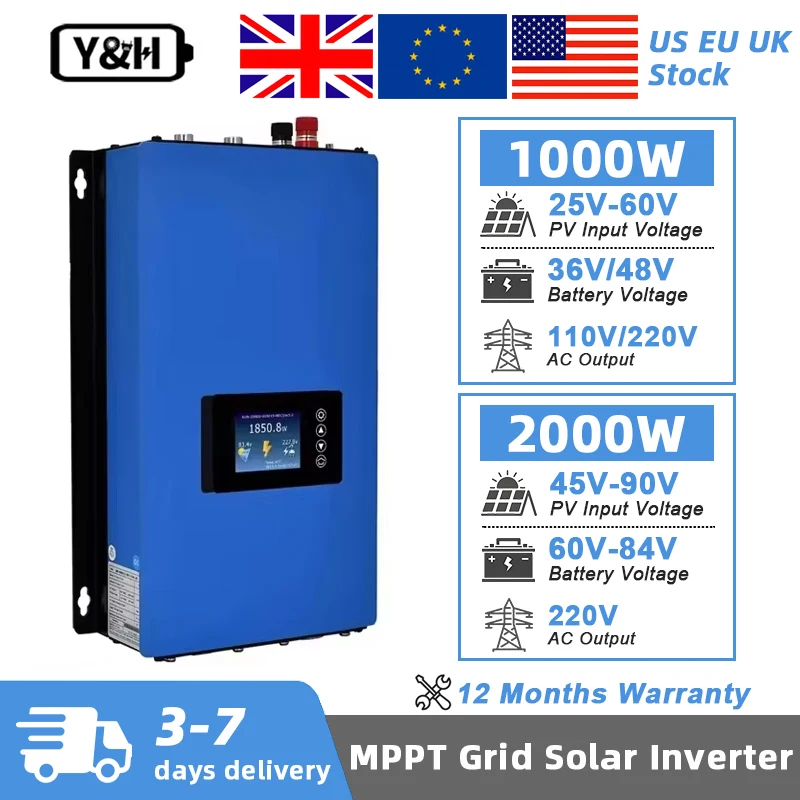

INPUT DATA(DC)	SUN-1000GTIL2-LCD	SUN-2000GTIL2-LCD
Input Voltage Range	22-65VDC/45-90VDC	45-90VDC
Maximum Input DC Voltage	65V/90V	90V
Peak Power Tracking Voltage	25V-60V/50V-90V	50V-90V
Operating DC Voltage Range	22V-65V	45V-90V
Start-up Voltage	25V/49V	49V
OUTPUT DATA(AC)
Maximum Output Power	1000W	2000W
Nominal Voltage	110VAC/230VAC	230VAC
Nominal Voltage Range	95-140V/185-265V	185-265V
Frequency Range	47.5-51.5 for 50gz,59.3-60.5 for 60hz
Power Factor	＞0.95
Output Waveform	Pure Sine Wave
CHARACTERISTIC DATA
MPPT Effeciency	99%
Over Current Protection	Yes
Over Temperature Protection	Yes
Reverse Polarity Protection	Yes
Anit- Island Protection	Yes

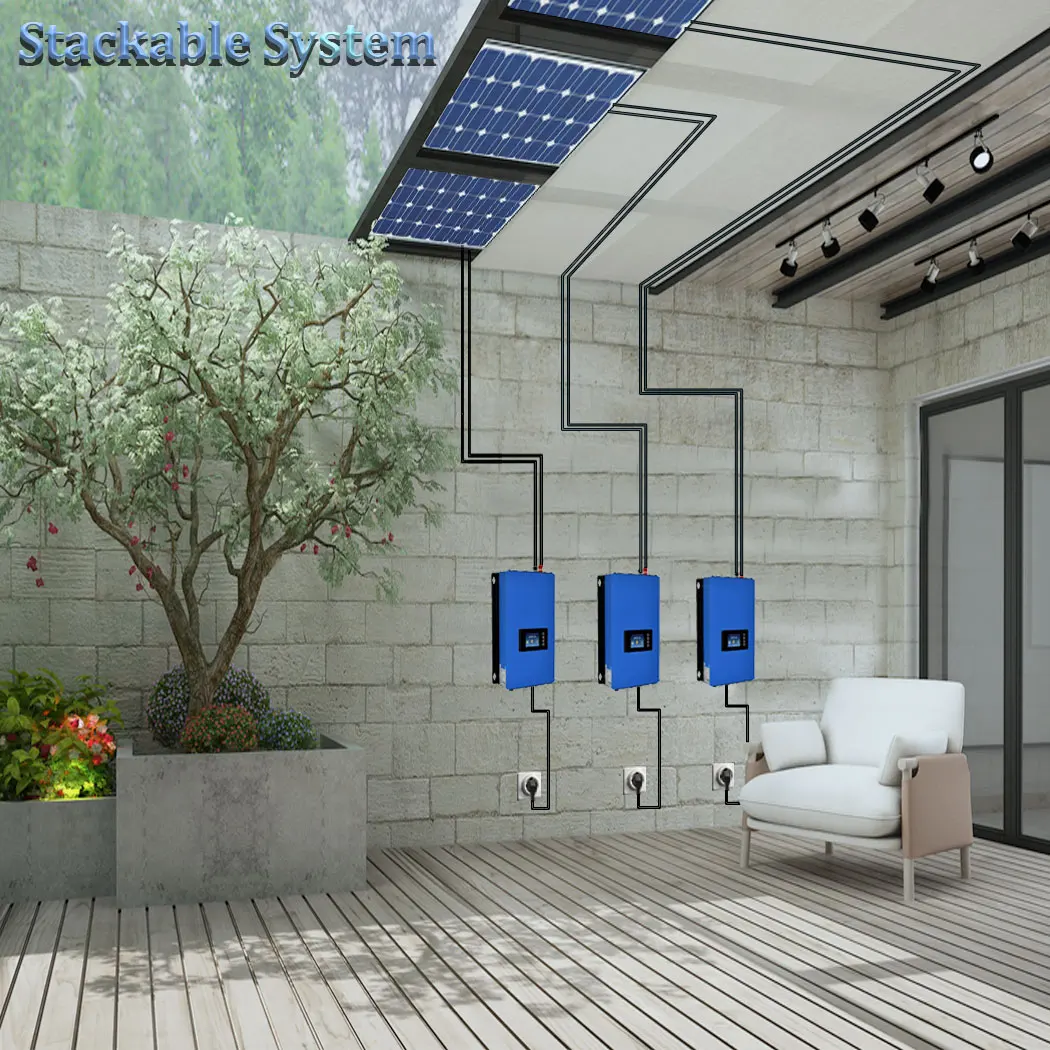

Stackable	Just for AC Output
Operating Temperature Range	-20℃~45℃
Storage Tmpeperature Range	-40℃~65℃
Current THD	＜5%
Voltage THD	＜5%
Standard	CE,EN50438
Efficiency	92%
Features
Net Weight	3.6KG	5.5KG
Gross Weight	5.0KG	6.5KG
Dimension(Package)	430*310*160mm	540*310*160mm

Optional Part

Wifi Port  for MPPT 1000W/2000W NEW SUN Solar Grid Tie Inverter
