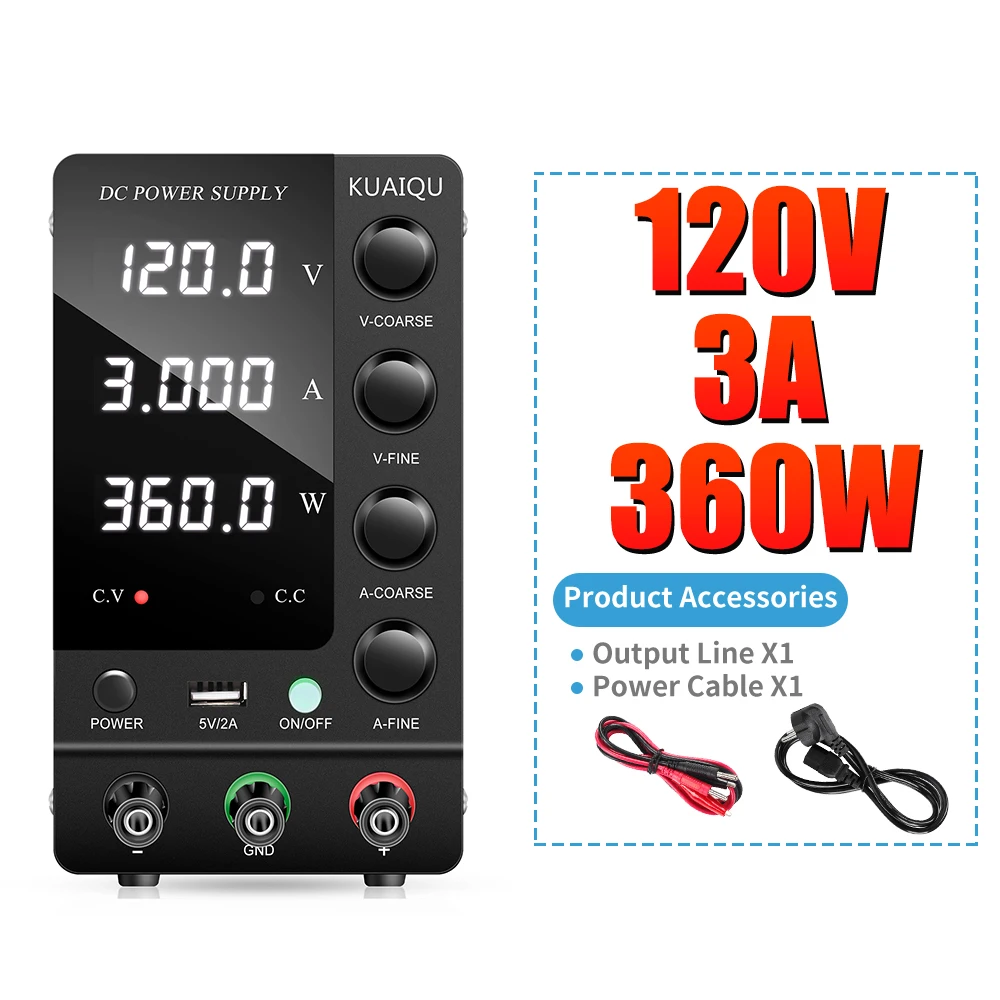

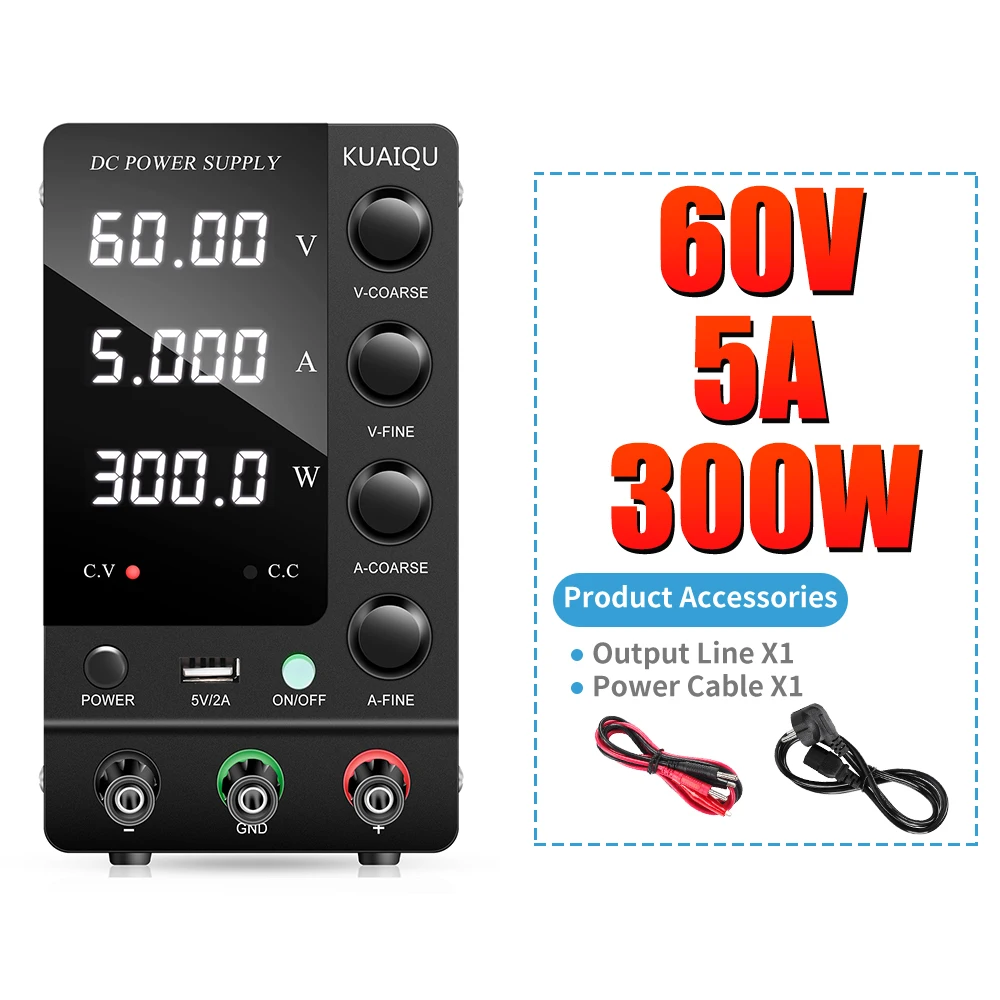

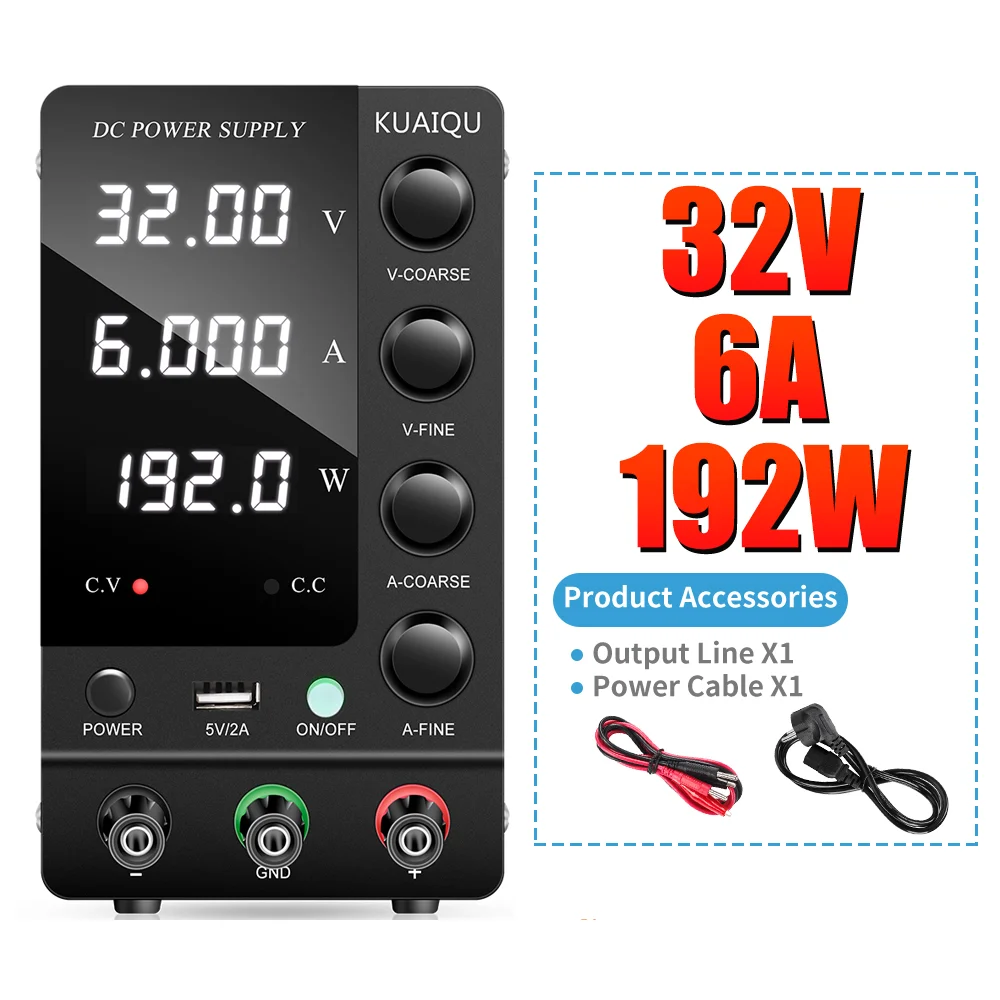

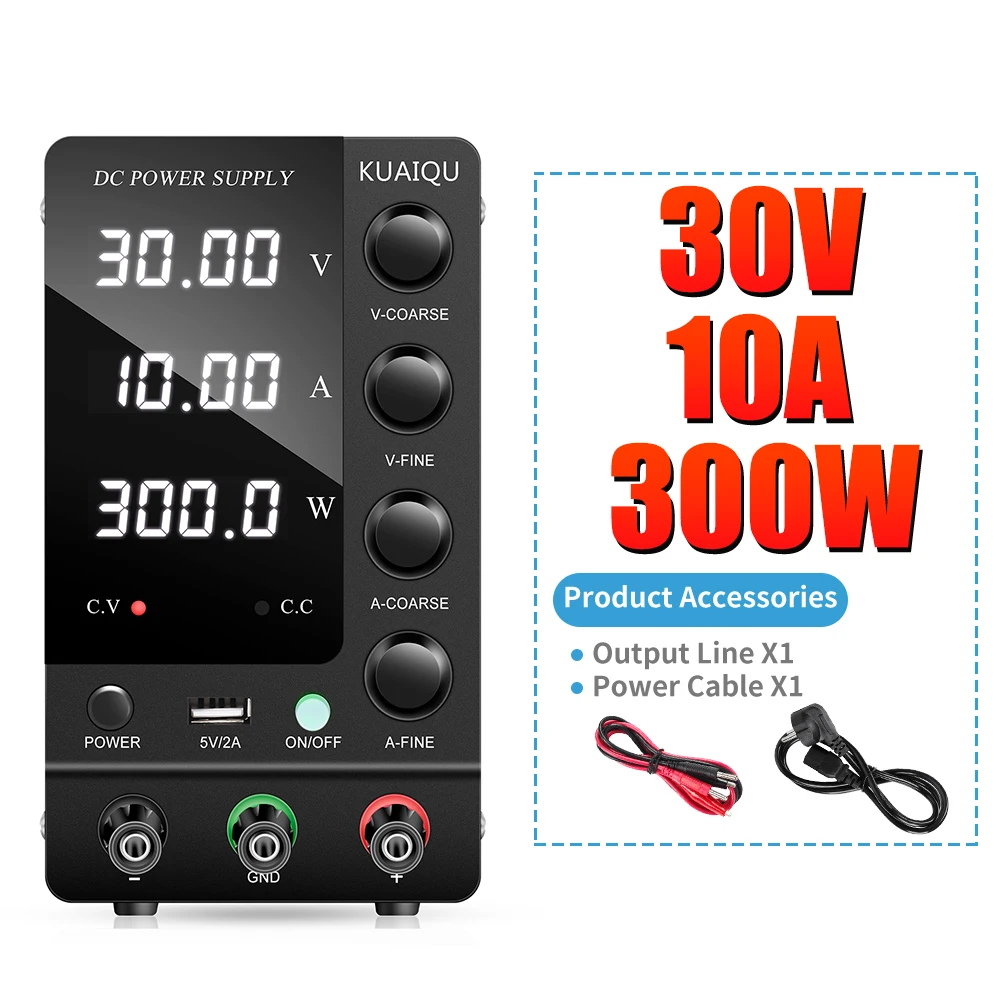

KUAIQU 30V 10A DC Power Supply Adjustable Digit Display Mini Laboratory Power Supplies Voltage Regulator 60V 5A 32V 6A SPS-C3010

KUAIQU Brand Product Recommendation

Note：  Our brand power supply has some stock in the BR/MX/PL/ES/US warehouse.

1. Ship from Poland and Spain warehouse , the dc power supply is AC 220V with EU plug.

2.Ship from US warehouse , the dc power supply is AC 110V with US plug.

3.Ship from Mexico warehouse , the dc power supply is AC 110V with US plug.

Video

If you need a large quantity, please contact us and we will provide you with the wholesale price.

About Item

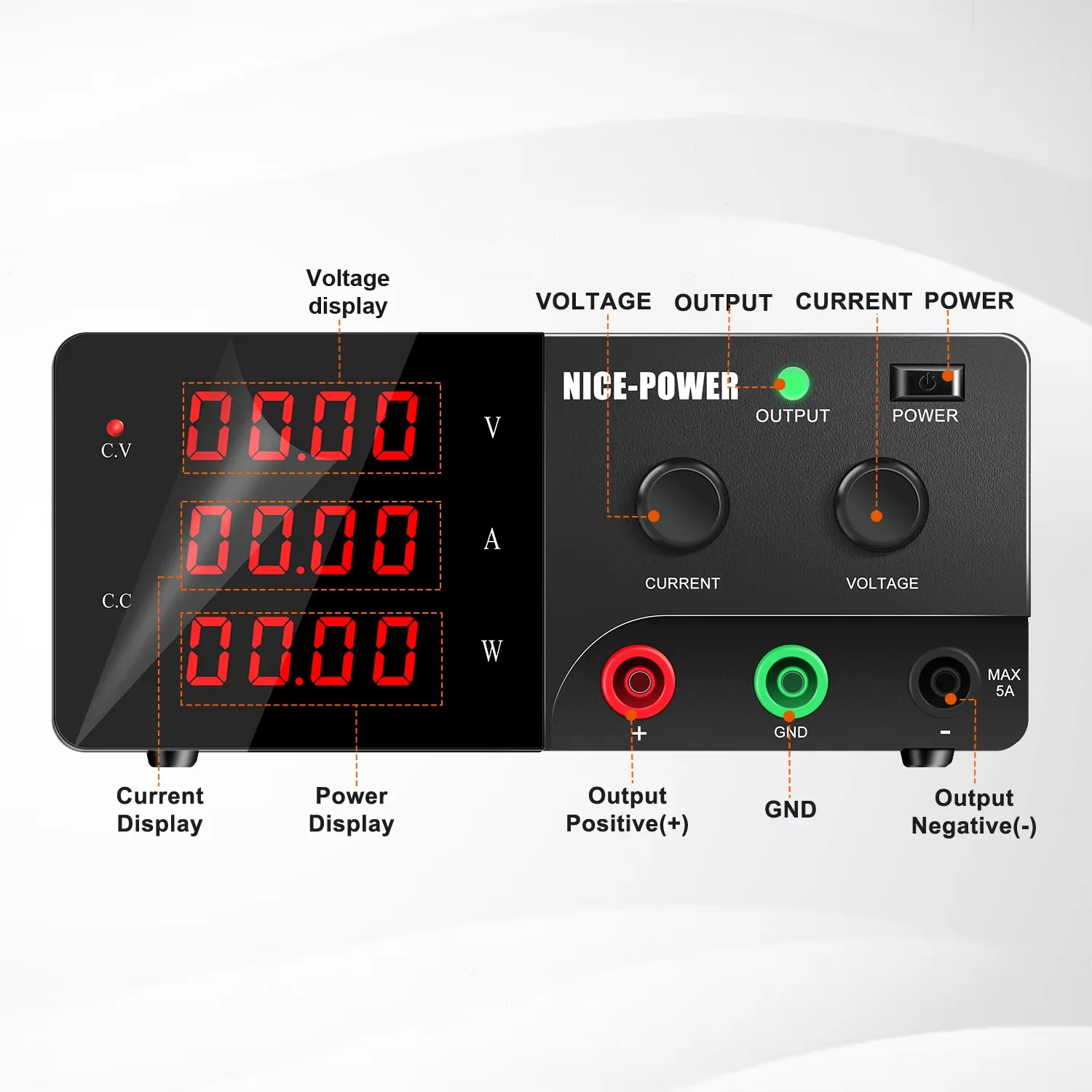

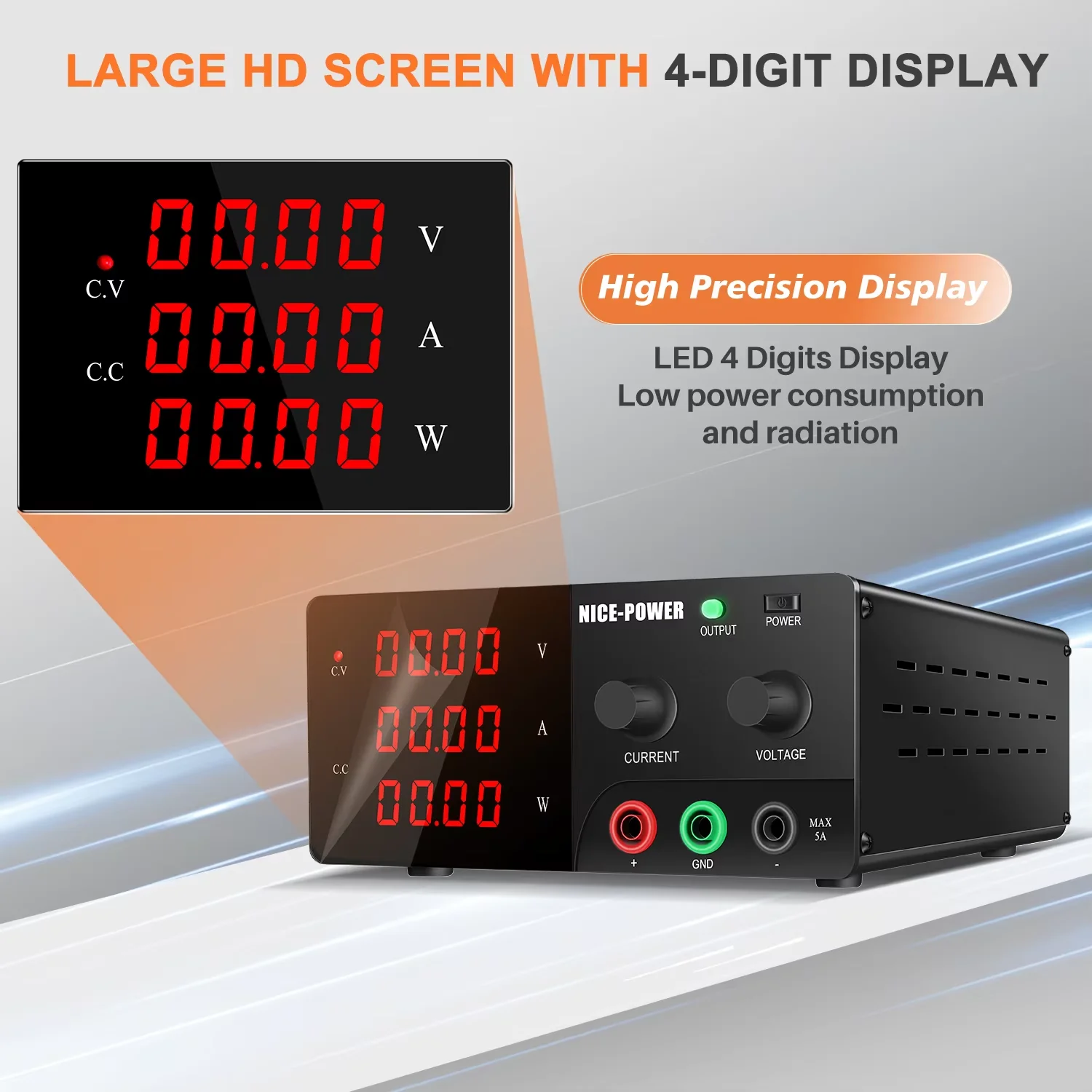

【High Precision, Low Ripple, Big LED Display, Output Switch Control】NICE-POWER 30V60V/120V 3A/5A/10A DC power supply is a professional power supply regulator with high accuracy of 0.01V and 0.001A, low ripple of DC power supply. The backlit 4-digits LED display has the advantage of high resolution, which can be easily viewed even if you are in low-light conditions . Adjust the required voltage and current through the output switch button without the actual output power, safer and more energy efficient.

【CE & FCC Certification, Multiple Protection, Various Application】Lab power supplies have passed CE & FCC Certification. DC power supply has multiple protections: overvoltage protection, overcurrent protection, overheating protection, over power protection, short circuit protection, leakage protection. DC power supply is suitable for LiFePO4 battery charging, arduino project, laboratories, schools, electronic maintenance , electrolysis, electroplating, lamp test, aging test, DIY, etc.

Front Power Switch , Stable Vertical Design, Lightweight and Portable】The front power switch is very convenient. Bench power supply adopts stable vertical design, DC power supply has shock absorber rubber feet at the bottom, so it will be safer and more stable during use. DC power supply is very light and portable, with a size of only 3.3 x 9.4 x 6.1 inches and a weight of only 2.6 pounds. You can easily take the DC power supply to work.

【5V/2A USB Port, Intelligent Cooling Fan, High-quality Materials】The DC power supply is equipped with a 5V/2A USB port, you can charge your mobile phone, tablet or other devices. When the working temperature of the DC power supply exceeds 122℉/50℃, the cooling fan is turned on intelligently, which can effectively dissipate heat. , Reduce working noise and prolong the service life of equipment. High-quality materials make our DC power supply more durable.

【Quality Check and Terms of Service】You will get DC Power Supply*1, Output Power Cord*1, Input Power Cord*1, User Manual*1 by purchasing DC power supply. We will inspect all DC power supply and accessories before shipment to ensure that the quality of the products received by each customer is good. We provide a 12-month warranty policy. If you have any questions about our DC power supply, please feel free to contact us, we will response back within 24 hours.

Product Features

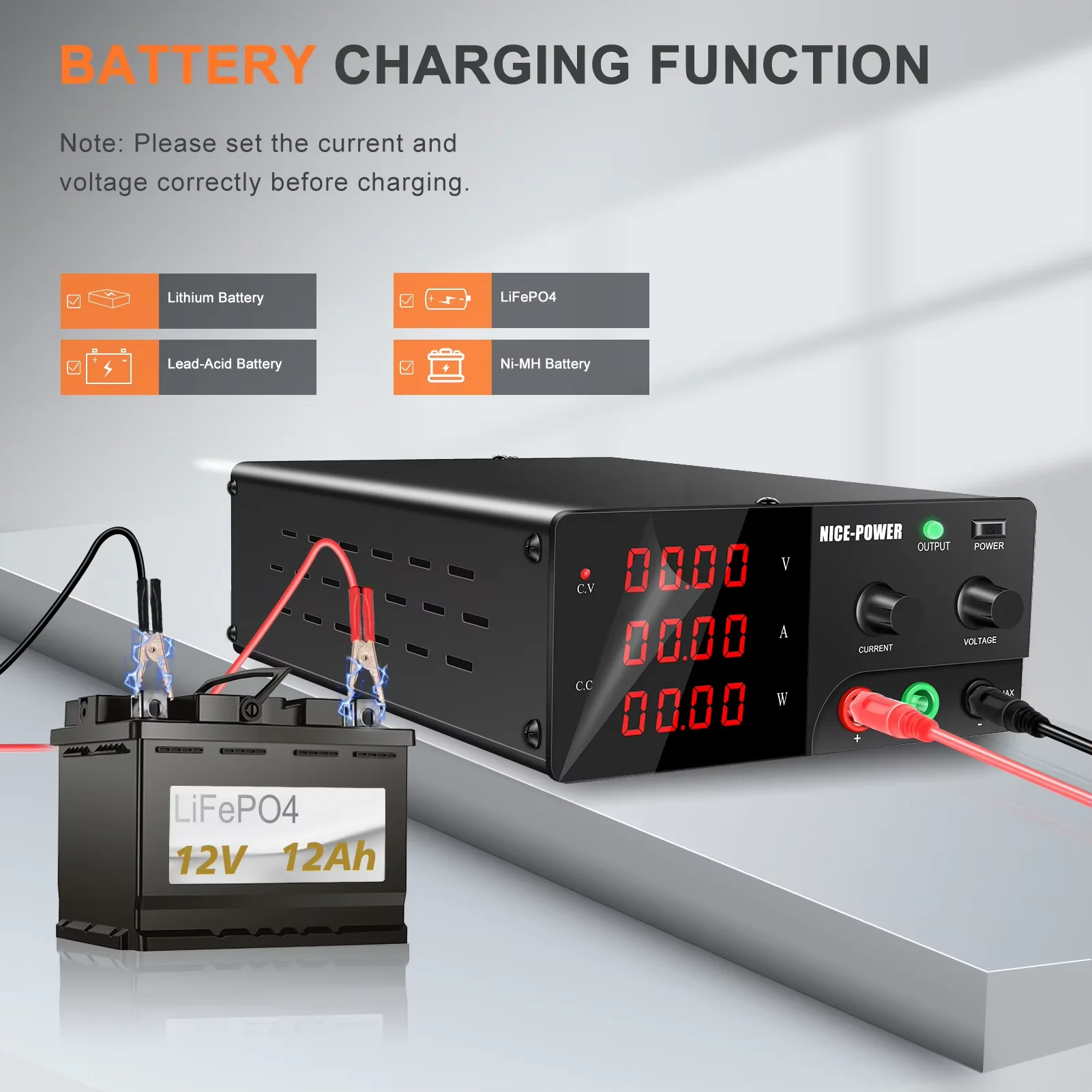

SPS-C Series Power Supply can be used as both a regulated power supply and a regulated current supply, especially suitable for LiFePO4 battery charging, arduino project, laboratory, electronic repair DIY, communication equipment maintenance, products line, scientific research and teaching units.

New Design: All-metal body and more compact size, light weight and portable, stable. You can easily carry the DC power supply variable.

Multiple Protection: Overvoltage protection, overcurrent protection, overheating protection, over power protection, short circuit protection, leakage protection.

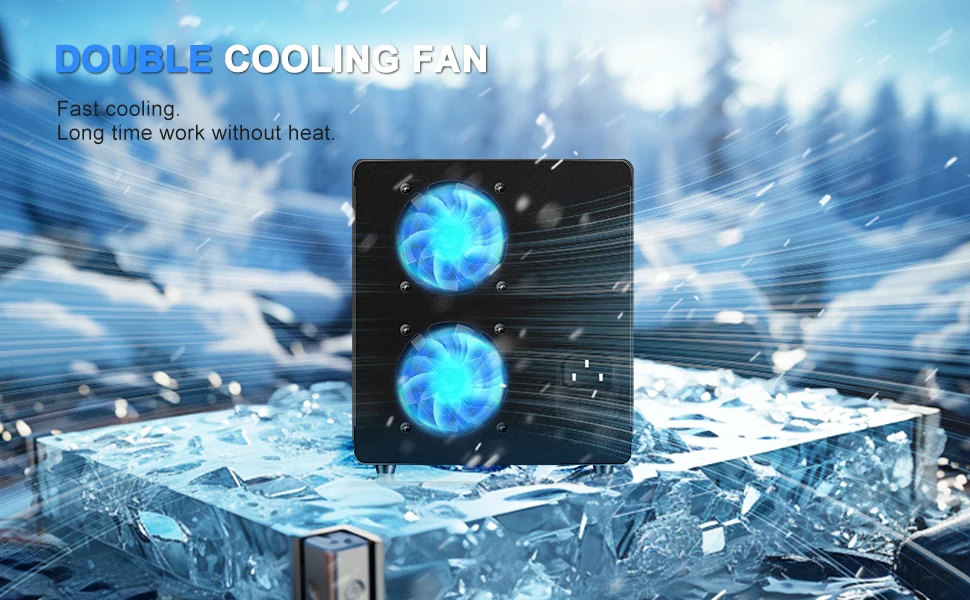

Intelligent Cooling Fan: Low noise; low consumption; When the temperature reaches 50°C the fan will automatically turn on.

5V/2A USB Port: The DC power supply is equipped with a 5V/2A USB port, you can charge your mobile phone, tablet or other devices.

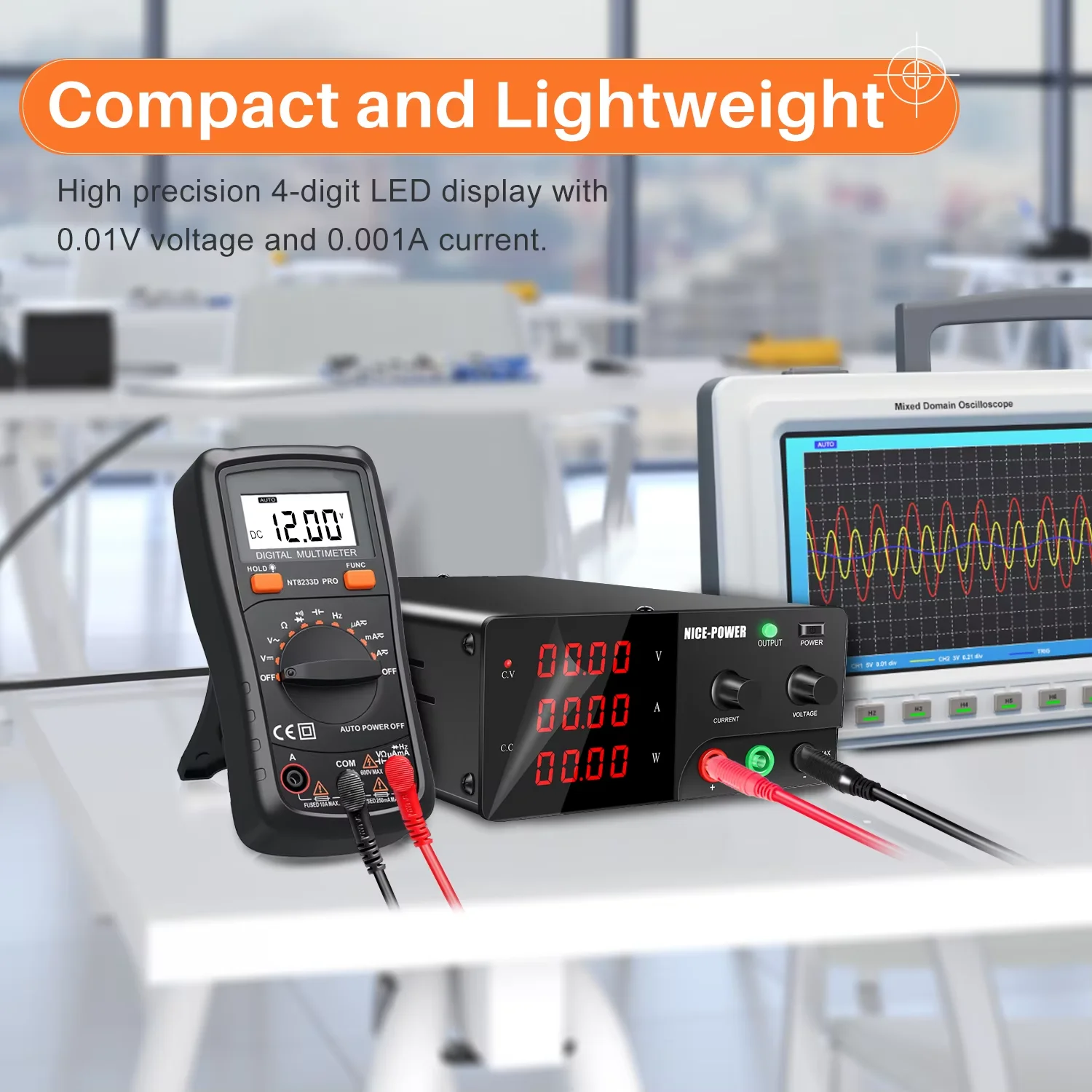

Lightweight and Portable

Bench power supply is very light and portable, with a size of only 3.3 x 8.4 x 5.5 inches and a weight of only 2.6 pounds. You can easily take the DC power supply to work.

High-quality Circuit Board

All accessories of the DC power supply are made of high-quality materials, so they are very durable.

Multiple Protection

DC power supply has multiple protection functions, which perfectly protects you and your device.

Accessories

You will get DC Power Supply*1, Output Power Cord*1, Input Power Cord*1, User Manual*1 by purchasing DC power supply.

DC Power Supply Variable Specification

Input Voltage 110V±10% 60Hz or 220V±10% 50Hz

Working Temperature 0 ℃-40℃; Relative Humidity: ＜80%RH

Storage Temperature -10 ℃-70℃; Relative Humidity: ＜70%RH

Constant Voltage State Voltage stability≤0.1%+3mV Low Voltage:0.2~0.3%+3mV Load stability≤0.5%+3mV Ripple noise≤30mVrms

Constant Current State Current stability≤0.2%+3mA Load stability≤0.2%+3mV Ripple noise≤20mArms

Display Accuracy 0.5%+2digits

Display Resolution Voltage: 000.1V / Current: 0.001A

Product Dimension 3.3 x 8.4 x 5.5 Inches

Product Weight 2.6 lb

Fuse Standard 5A

Note 1: The fan inside the power supply is intelligently temperature controlled. The fan will only rotate when the temperature inside the power supply is above 50 degrees Celsius. When the temperature inside the power supply is below 50 degrees Celsius, the fan will not rotate. This is to effectively save energy and reduce noise

Note2:There is a protective film on the screen of the power supply to protect the screen from scratches. You can remove the protective film before use.

SPS-C Series As Below

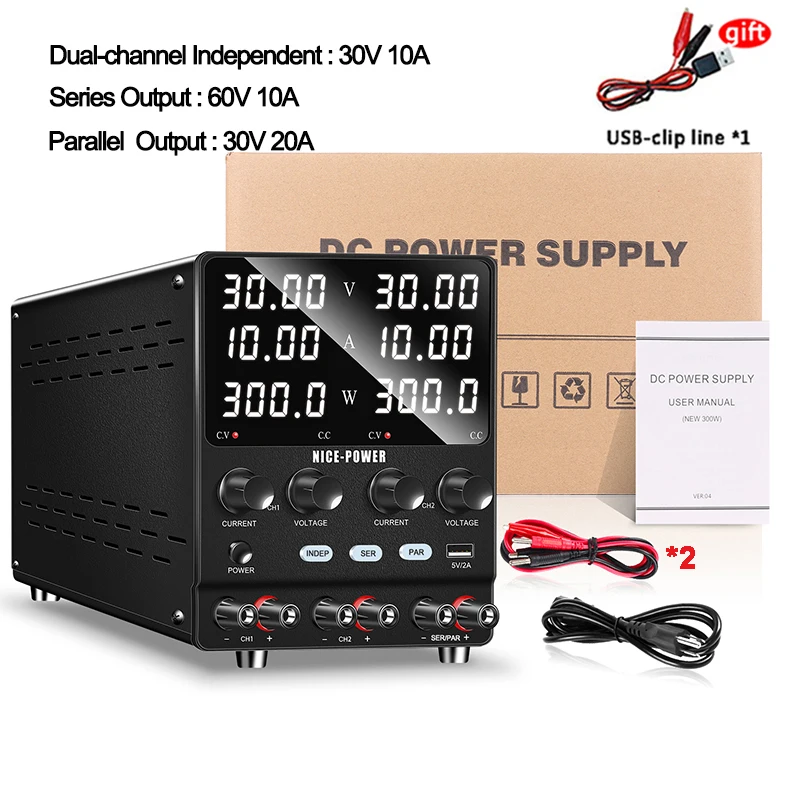

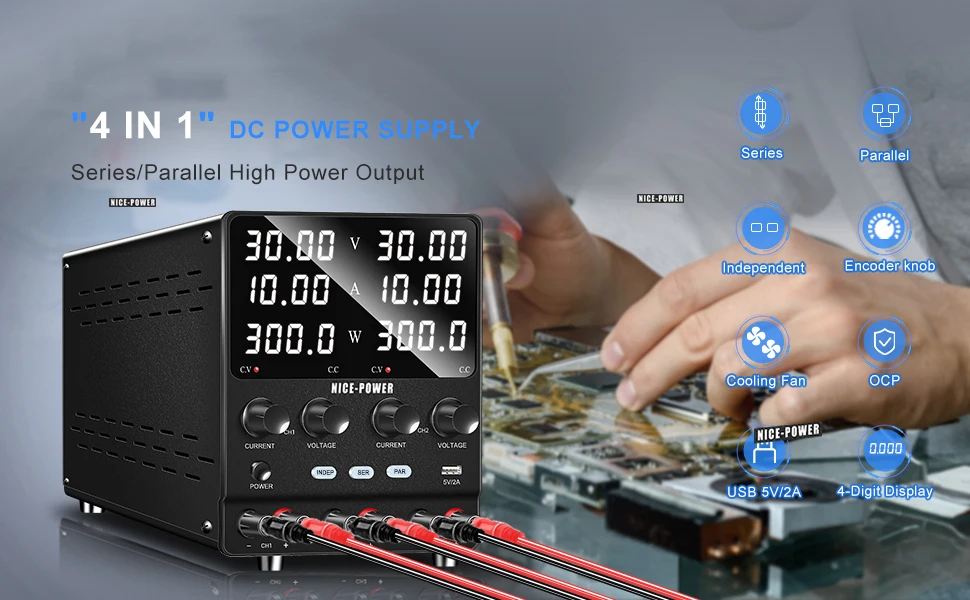

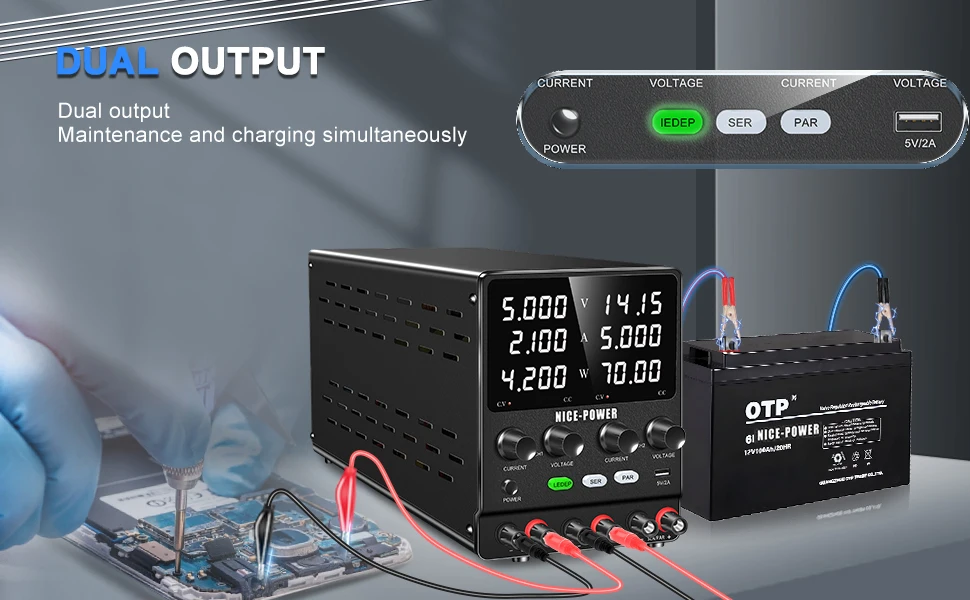

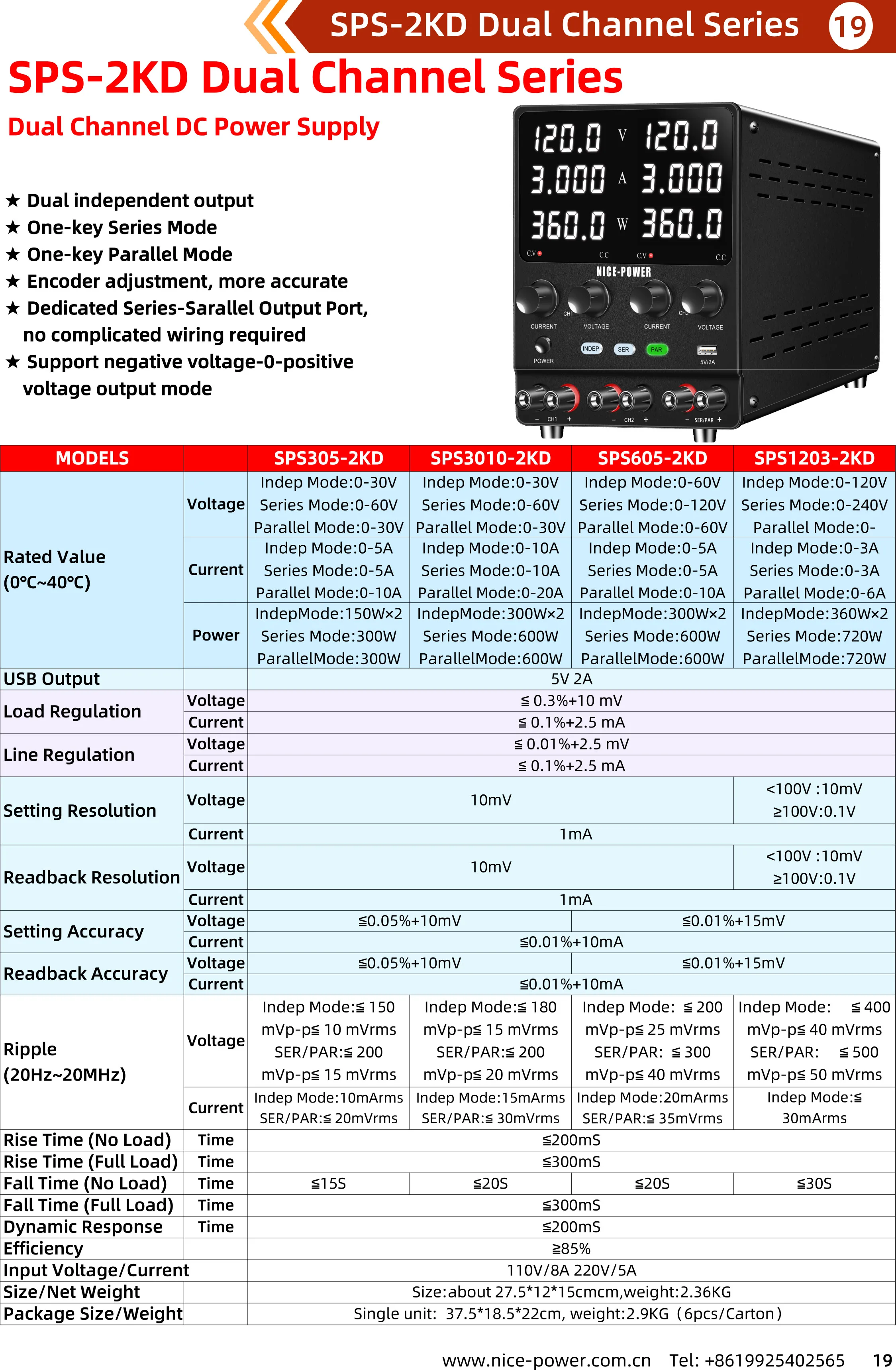

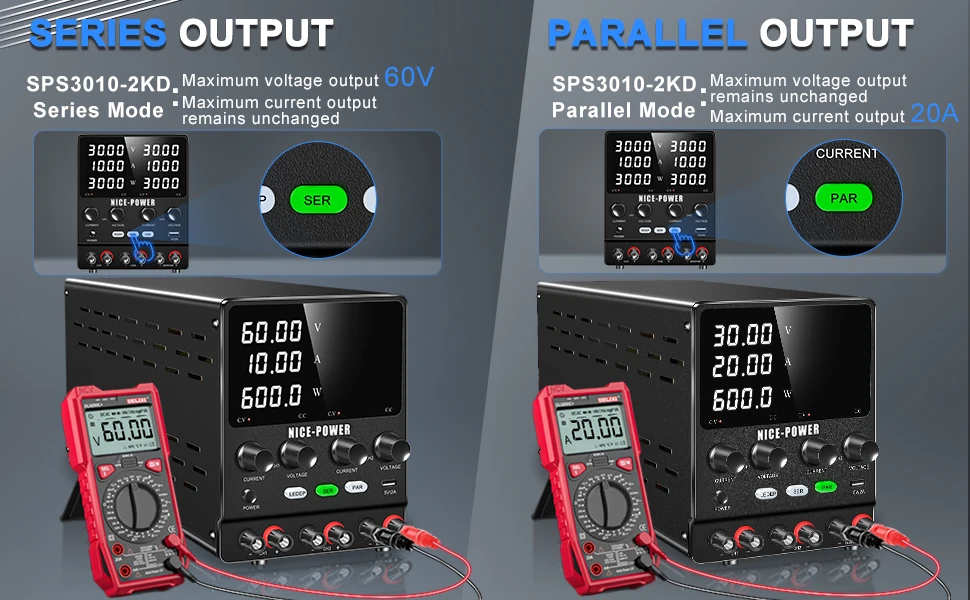

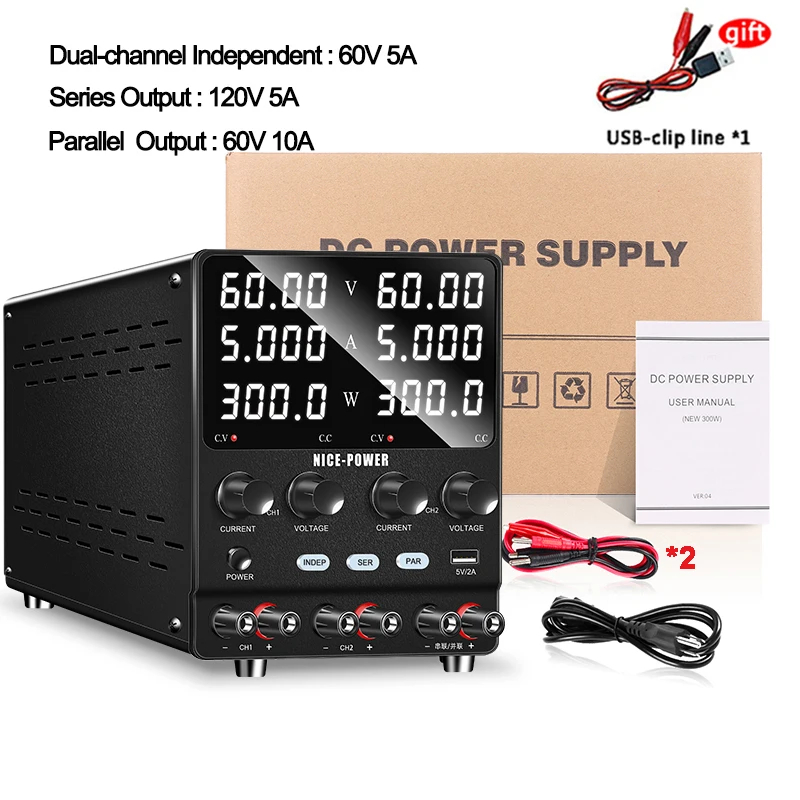

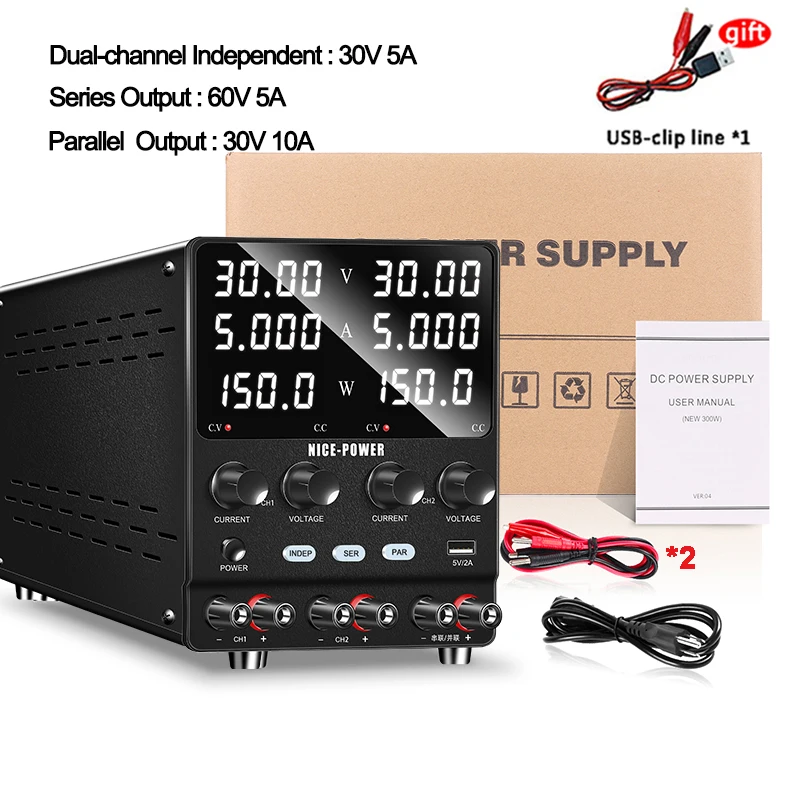

NICE-POWER SPS-2KD multiple channel dc power supply, support 1-key series and parallel

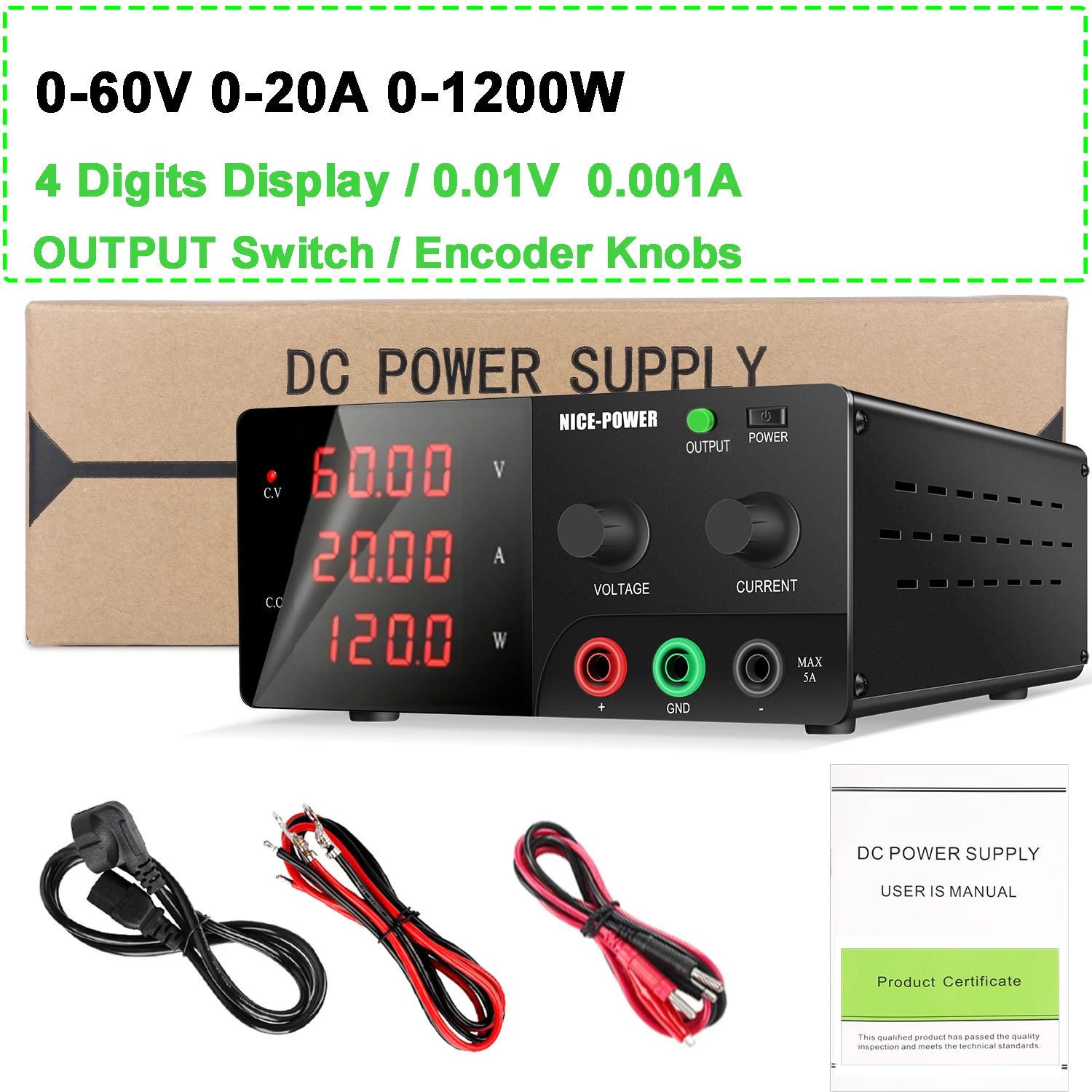

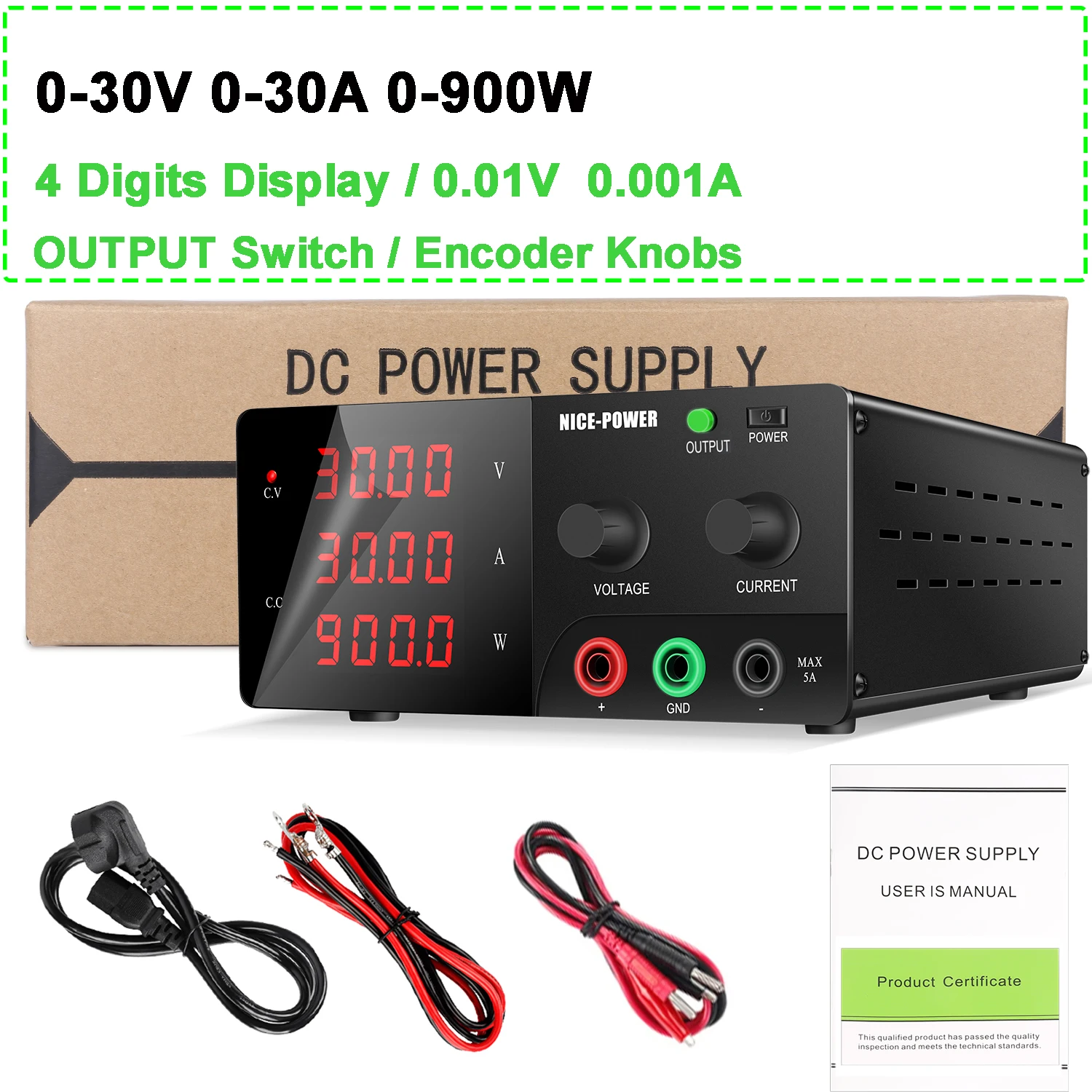

NICE-POWER 0-1200W High power dc power supply, 30V 30A, 60V 20A for products test, battery charging

1. Single output, high precision, high reliability, low ripple and noise

2. 4 LED digital display voltage and current values with mA

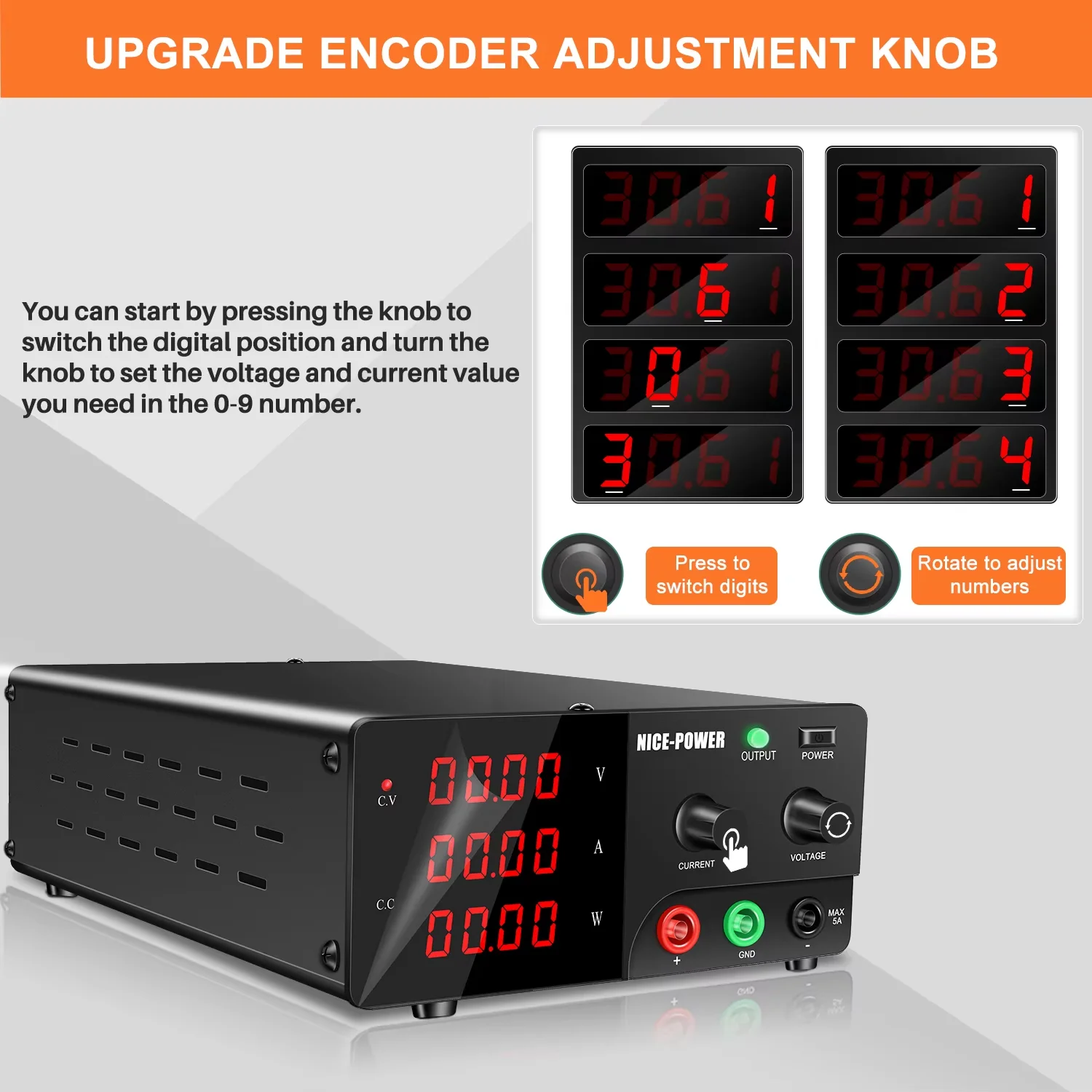

3. With voltage / current coarse adjustment knob, can adjust the voltage / current value accurately

4. Constant voltage constant current operation mode, can be automatically converted

5. With current limiting protection

6. Excellent quality

Application range

1. For teaching experiments, research

2. Testing and aging for electronic production line products

3. For the repair of communication equipment

4. Other areas that require DC regulated power supplies

Technical Parameters

Input voltage: AC110/220V±10% 50Hz

Working temperature: -10 ° C -40 ° C Relative humidity <90%

Storage temperature: -10 ° C -70 ° C Relative humidity <80%

Regulated state: Voltage stability ≤ 0.01% + 3mV

Load stability ≤ 0.01% + 5mV

Recovery time ≤100us

Ripple noise ≤1mVrms

Temperature coefficient ≤300PPM/°C

Steady flow state: Current stability ≤ 0.2% + 3mA

Load stability ≤ 0.2% + 3mA

Ripple noise ≤ 3mArms (effective value)

About KUAIQU

We are a manufacturer with 10 years of experience in the field of DC regulated power supply.

We are committed to providing precise service products for all kinds of production and life around the world.

Our products have passed the test of market and time.

We provide high-quality after-sales service and a service team with professional knowledge.

When did we start

We are a professional DC regulated power supply manufacturer established in 2012

What makes our products unique.

We have already launched new SPPS-D series, SPPS-A series,SPPS-B series,SPPS series,and we have R-SPS series,SPS series.

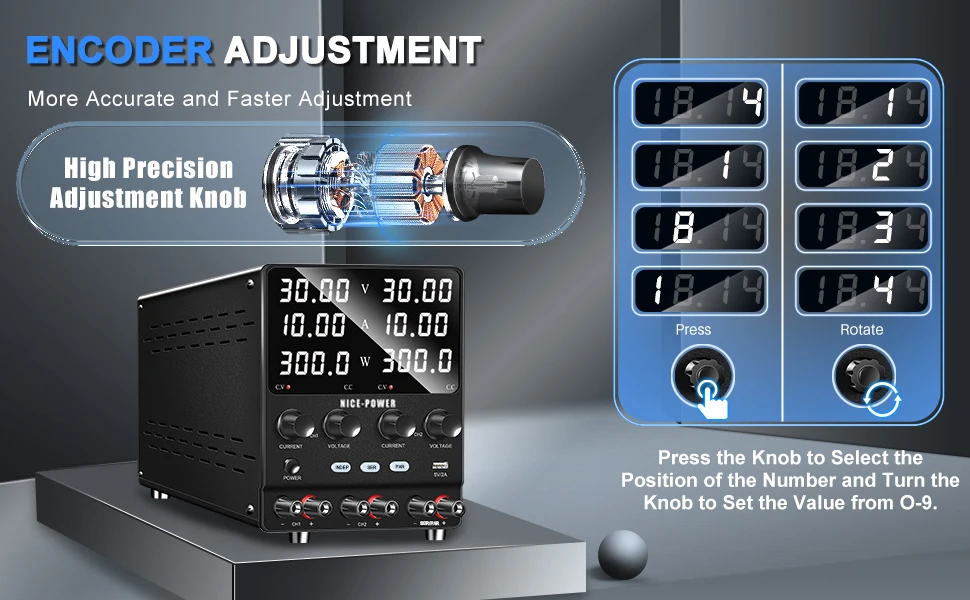

And more advanced DC regulated power supply will be introduced later. The product range covers precision measurement, memory storage, encoder switch, program control and other new designs.

Is the quality of our goods superior

Our products are equiped with a better materials and upgraded structure which makes it higher reliable and accurate.
