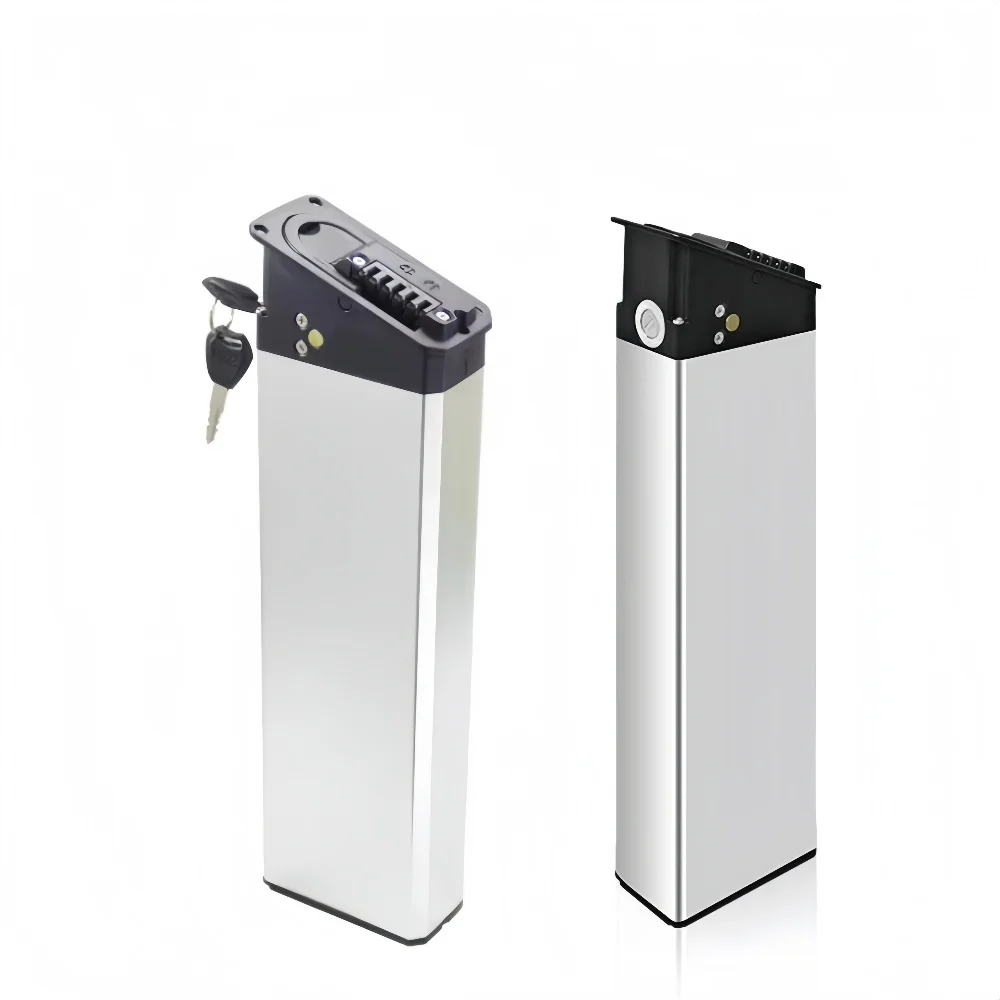

Replacement Batteries 48V 17Ah 16Ah 13Ah for Ridstar Winter H20 Folding Bike for MATE X Bike Replacement Battery DCH-009

The product is compatible with the following electric bikes:

Fit for:Mate X bike, Engwe Engine Pro (16 Ah Version) and Ep-2 Pro（13 Ah Version),

             CMACEWHEEL RX20, Lankeleisi x3000plus, Bezior XF200, Ridstar Winter, Ridstar DC-26,                  Ridstar H20, Ridstar H26 , Ridstar H26 pro ebike

Important Notice for Engwe Engine Pro, Engwe ep - 2, Engwe ep - 2 pro, and BEZIOR XF200 E - bikes:

Older models of these e - bikes are equipped with the DCH - 006 battery, which has dimensions of （430x103x430mm） and is relatively thinner.

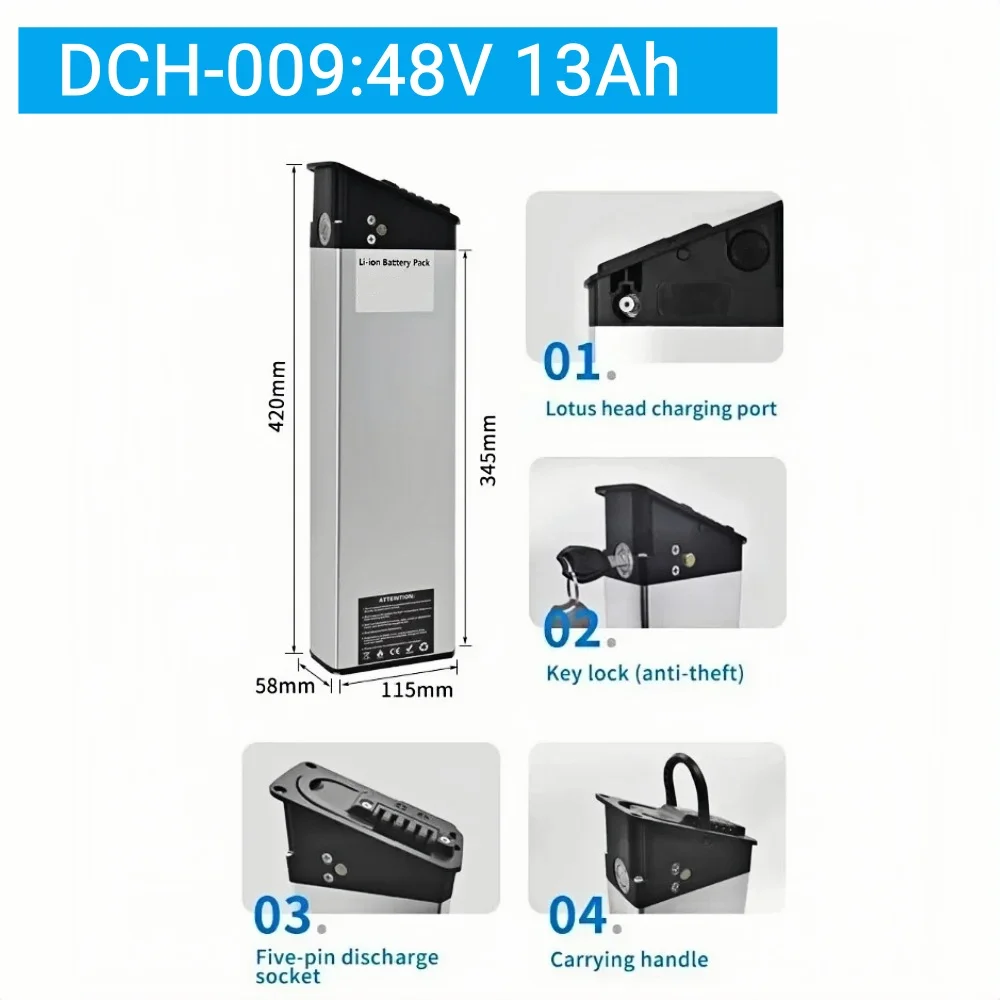

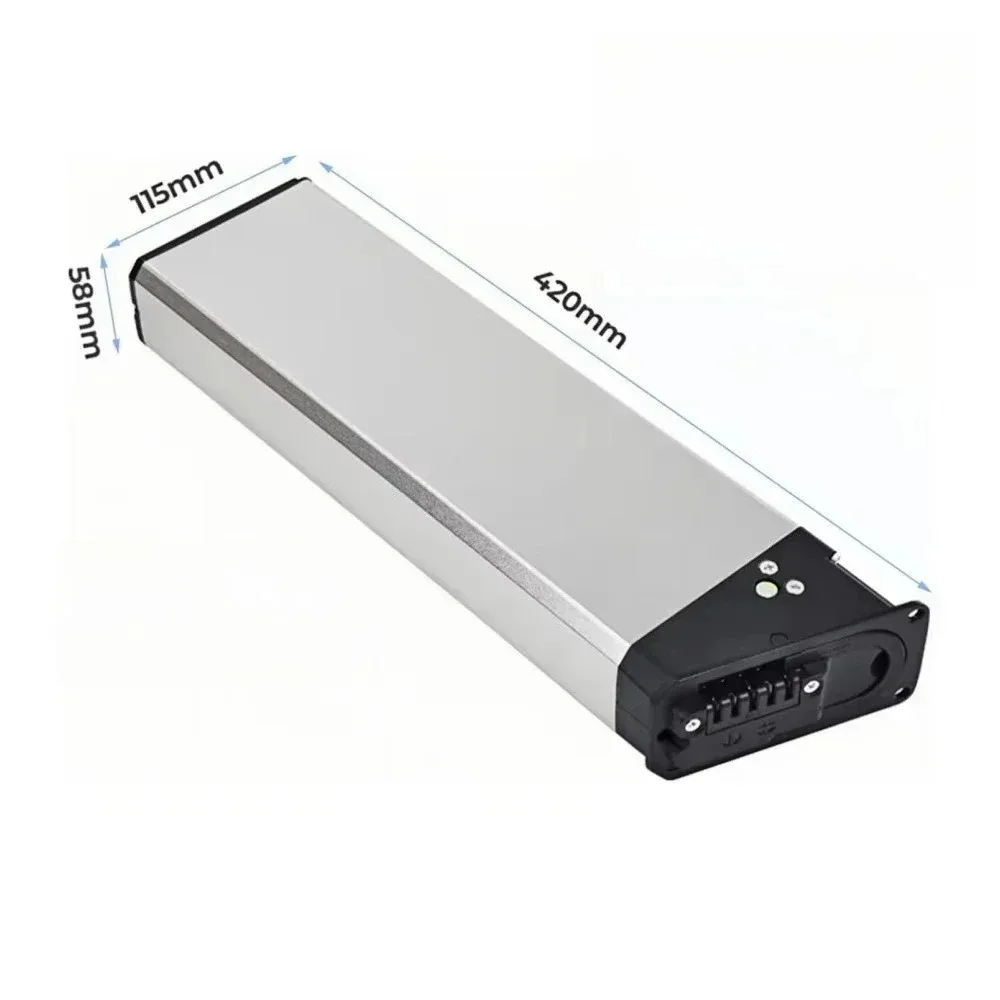

Newer models use the DCH - 009 battery, with dimensions of （420x115x58mm）fatter battery.

Compatible Ebike brand

Tesgo Hummer Pro(1000w 48v17.5ah)

Ginghma R7 Pro

Cmaceweel RX 20

Bezior X Plus(48v17.5ah)

Engwe Engine X(250W 48v13ah)

Engwe Engine Pro(48v17ah)

RIDSTAR MG01(1000w 48v14ah)

RIDSTAR H20(1000w 48v14ah)

Viribus Getaway Plus(48v12ah)

ENGWE EP-2 PRO

MATE X

Lankeleisi X3000 Plus

Lankeleisi T750 Plus(1000w 48v17.5ah)

Cyrusher XF690 maxs

2023 new RANDRIDE YX20

G-REX

BURCHDA R5 Pro

Polarna M5

Polarna M6(48v17.5ah)

Yamee Fat bear 750S(48v)

!!!Attention

The current link corresponds to item DCH - 009, not DCH - 006. Although they are similar models, they are not identical. There are differences in their sizes. When placing an order, please pay close attention to the size information to prevent incorrect orders.

Product Information:

NLK foldable electric bicycle battery parameter table
Nominal Voltage:	48V(Optional voltage)
Nominal Capacity:	13Ah 16Ah 17Ah (Customized capacity)
BMS:	20A-30A (350W to 1000W motor use)
BMS Function:	Over-Current ,Over-Discharge , Over-Charge ,Short-Circuit Protection, Balance act.
Size:	It is up to your battery needs
Discharge Cut-Off Voltage:	upon request(Please consult customer service)
Charge Voltage:	upon request(Please consult customer service)
Cycle Life:	80% capacity after 800 cycles
Battery Type:	LI(NiCoMn)O2 18650
Batteries:	Brand 18650 cells
Warranty:	12 months
Weight:	as required
Charging Working Temperature:	0~45°C
Discharge Working Temperature:	-20~60°C
Storage Temperature:	-10~40°C

      If you want to know more about our company informationPlease click and discussFAQQ: What type of this electric bike battery?A: It is Li-ion battery,Chemical is Li(NiCoMn)O2.
Q: What is the difference between Li-ion battery,Ni-Mn battery and Lead acid battery?A: E-bike Li-ion battery have longer cycle life,normal cycle life is 800-1000 times, and also with light weight,small size,No memory effect,Nontoxic, environmental friendly.Q: What's temperature range of charge and discharge?
A: Charge Temperature: 0 to 45°C and Discharge Temperature: -20 to 65°C
Q: What kind of cells used on this electric bicycle battery?
A: Different capacity with different cells, we make the battery with original A grade Brand and high quality domestic cells,all can be customized as your requests.Q: Do your e-bike battery come with charger?

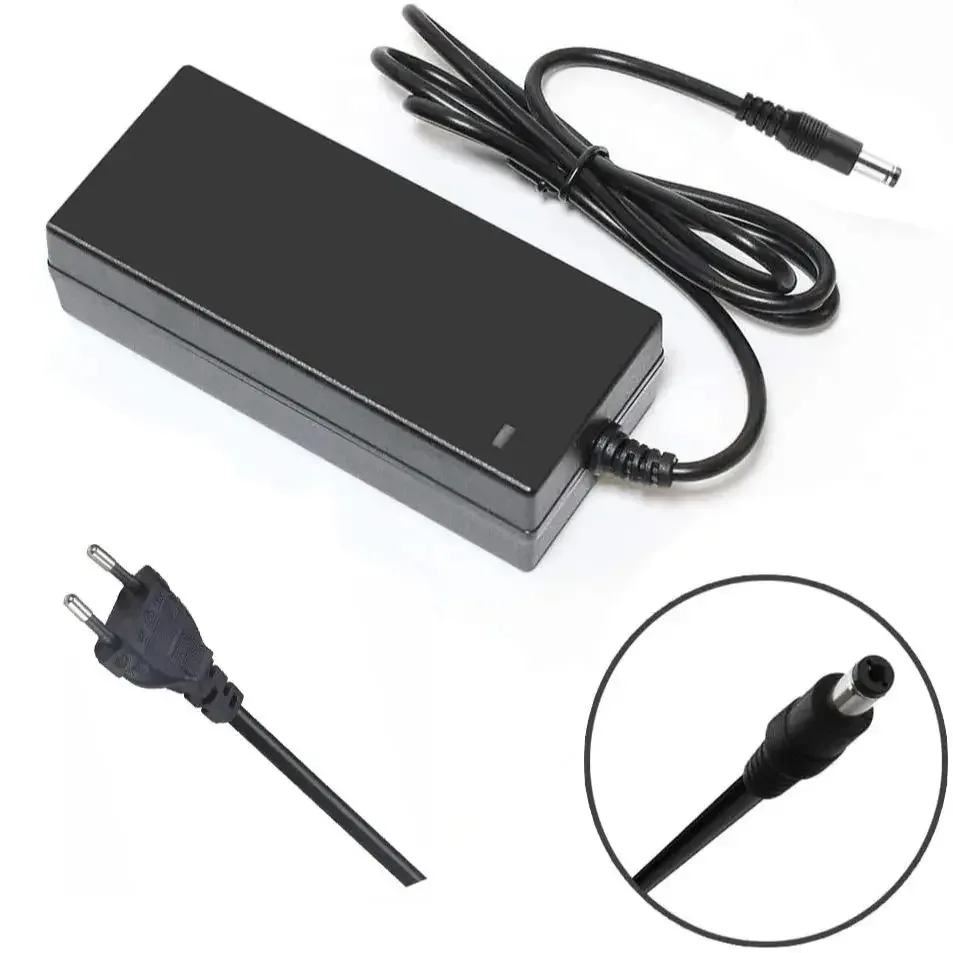

A: All of our e-bike batteries come with charger.We have normal charger and fast charger. If you need fast charger please contact with us.
Q: Do your electric bike batteries come with BMS?
A: Yes, Our batteries all with SEIKO IC BMS, with stable performance.Which can protect the battery avoid short circuit,Overcharged,Over discharge and Over current.
Q: Can you provide OEM and ODM service?
A: Yes, We are a professional Electric Bike Battery manufacture with factory, which produce all kind of high quality E-bike lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.
