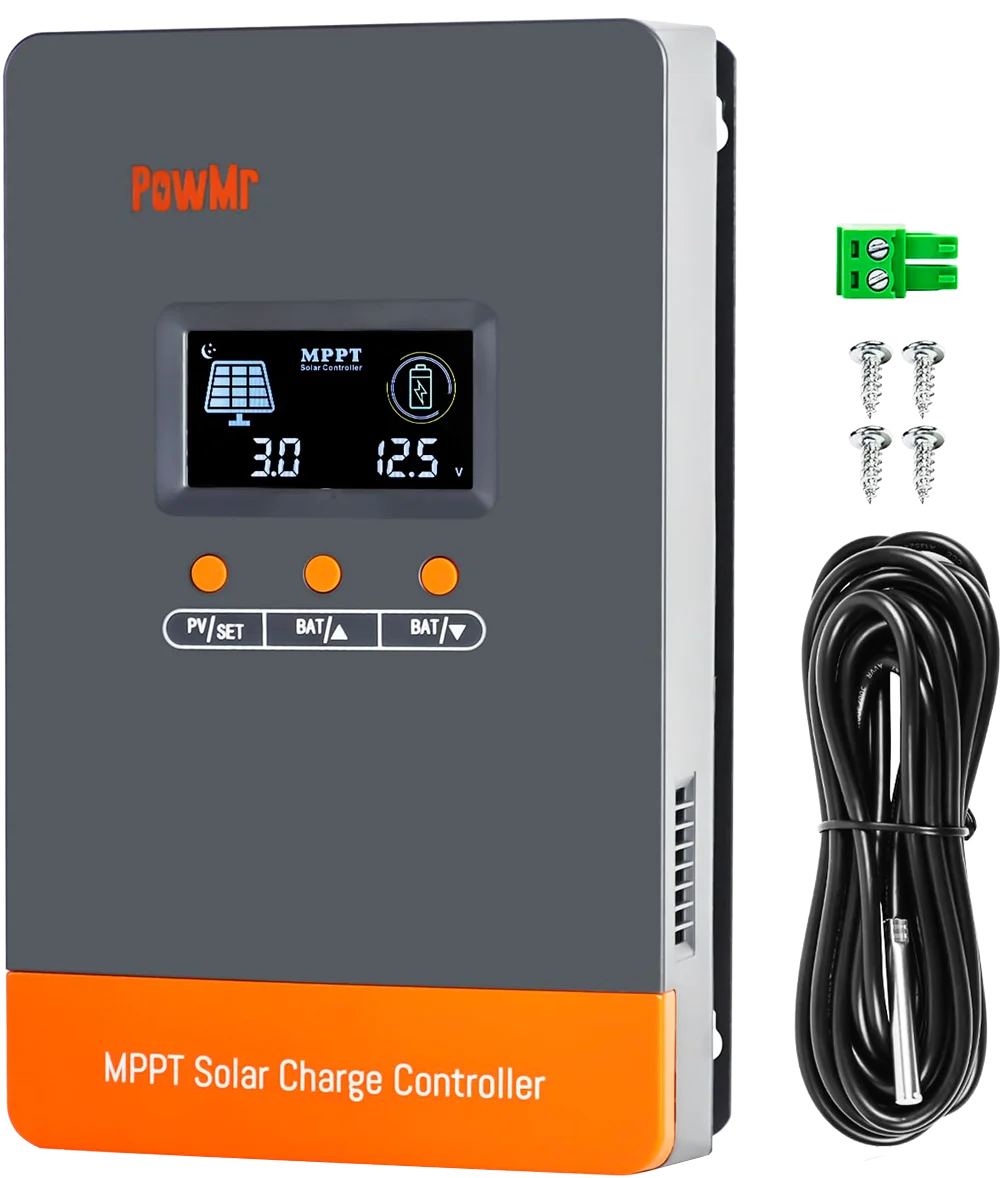

PowMr MPPT 100A 80A 60A 40A 30A 30A 20A Solar Charger Controller LCD Work With 12V 24V 36V 48V Lead-acid Lifepo4 Battery Solar Panel

Name: PowMr MPPT 100A 80A 60A 40A 30A 30A 20A Solar Charger Controller LCD Work With 12V 24V 36V 48V Lead-acid Lifepo4 Battery Solar Panel
Brand: PowMr
SKU: 3256807758879348
Price: 36.18 USD
Availability: InStock

Stock Disponible: 5148 unidades

SKU: 3256807758879348

Color

Cantidad

$54.36

Precio final con envío

Envío gratis

Desglose de costo

Precio del producto: $52.67
Fee de Servicio MiCyberCompras: $1.69
Costo de envío estimado: Gratis
Costo Final Garantizado:: $54.36

Envío EE.UU.: USPS / UPS Ground.
Costo Visible: Sin sorpresas ocultas.
Tracking Real: Alertas por SMS/Email.
Pago Seguro: Cifrado por Stripe.

¿Por qué elegir MiCyberCompras?

Costo total visible
Sin sorpresas ni comisiones ocultas antes de pagar.
Alertas proactivas
Te notificamos cada cambio de estado automáticamente.
Tracking real
Enlace oficial con número de guía verificado.
Devoluciones garantizadas
Política transparente de ajuste de precios y gestión de cambios.

Atributos del producto

Brand Name: PowMr, Model Number: Power Mr Solar Charge Controller, Maximum Current: 20A 30A 40A 60A 80A 100A, is_customized: Yes, Certification: CE, Is Smart Device: Yes, Origin: Mainland China, Application: Charger Controller, Application: Voltage Controller, Application: Lighting Controller, Application: Solar System Controller, Application: Solar Working Station, Local Shipping: 3-7 Days Delivery, Original Product: Stock in EU warehouse, Feature: No-VAT, No-TAX, Item: Power MPR MPPT Solar Charge Controller 60A 50A 40A 30A, Product: MPPT Solar Charge Controller, Battery Type: Vented/ Sealed / Gel / NiCd /Lead Acid/ Lithium Battery, Etc, Display: Backlight LCD Controller, Cooling way: Forced Air Cooling, Charging mode: MPPT Maximum Power Point Tracking Automatically, PV utilization: ≥99% for 100% MPPT technology, For home: Easy to install, with overcharge protection, PV input reverse polarity protection, and output current-limiting protection.

Tamaño del paquete

550×510×420 mm

Advantage

1. Ship from European store, delivery within 3-7 days.

2. No need to foot VAT.

Unsupported Delivery area

1. Spanish Island Region. The postal code start with "35" and "38".

2. Remoteas in France and area with transport restrictions.

MPPT 100A 80A 60A 40A 30A 30A 20A Solar Charger Controller LCD Work With 12V 24V 36V 48V Lead-acid Lifepo4 Battery Solar Panel

View

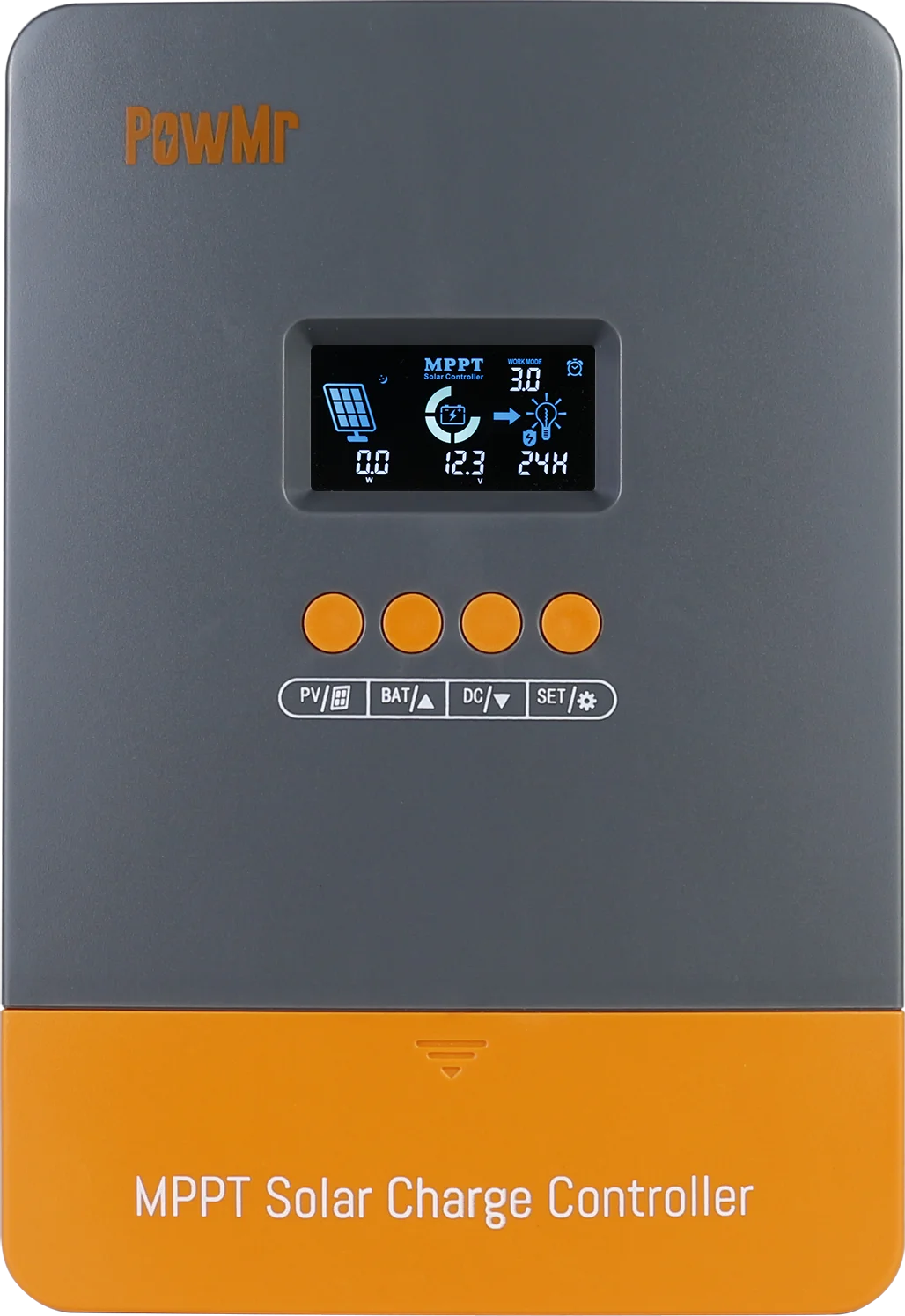

PowerMr 20/30/40/60/80/100Amps MPPT solar charge controller is based on an advanced maximum power point tracking(MPPT) technology developed, dedicated to the solar system, the charge controller conversion efficiency up to 97%.

Features

● MPPT 20A/30A/40A/60A/80A/100A solar charge controller
● 100% MPPT technology
● 0 Layer, easy installation, easy setup
● Built-in DSP controller with high performance
● Automatic switch for 12V/24V (20A/30A/40A/), 12V/24V/36V/48V (60A/80A/100A)battery bank
● 3-internship charging optimizes battery performance

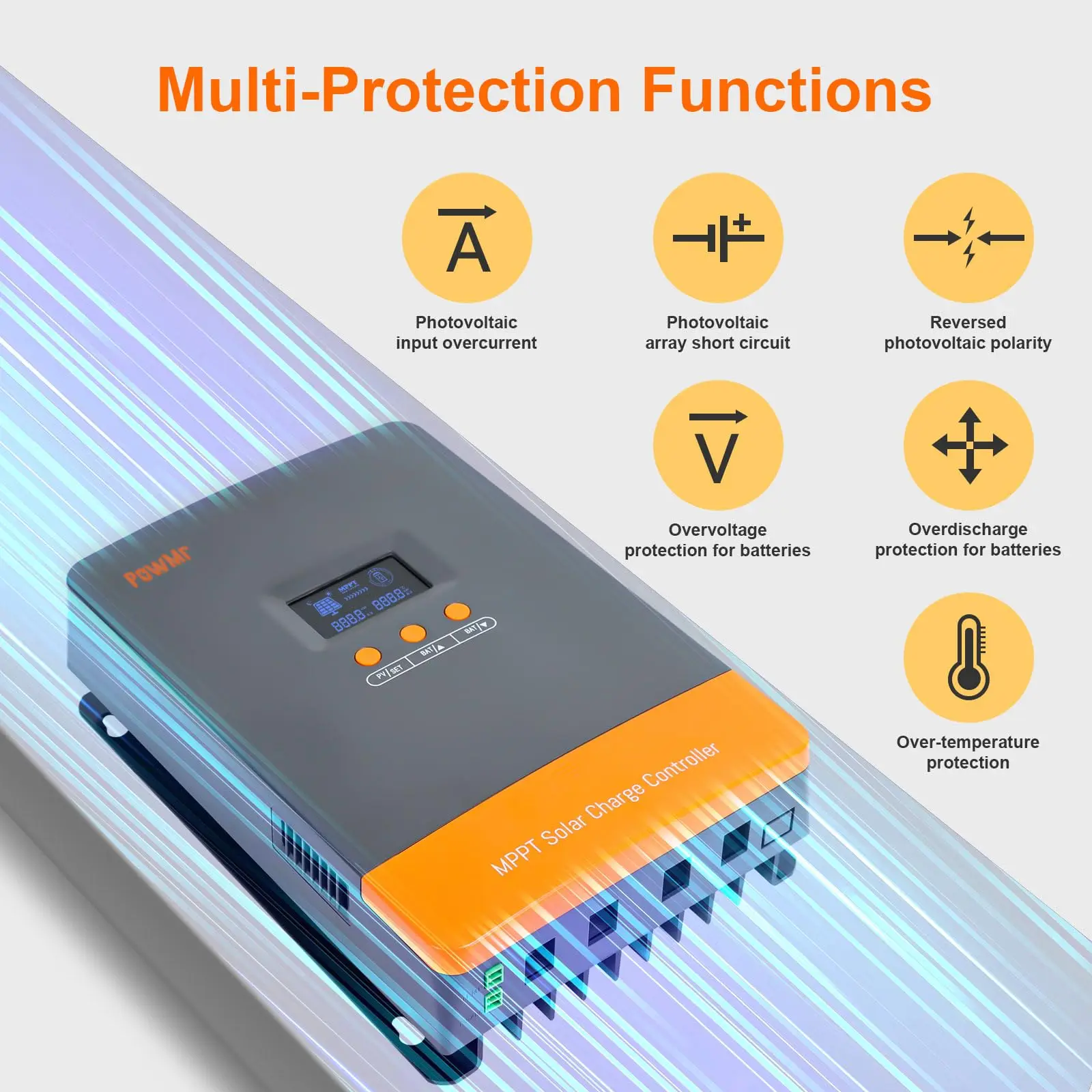

● Overcharge protection, Input PV polarity reverse protection, output limited current protection,
● Over-temperature protection
● Troubleshooting promotion function.

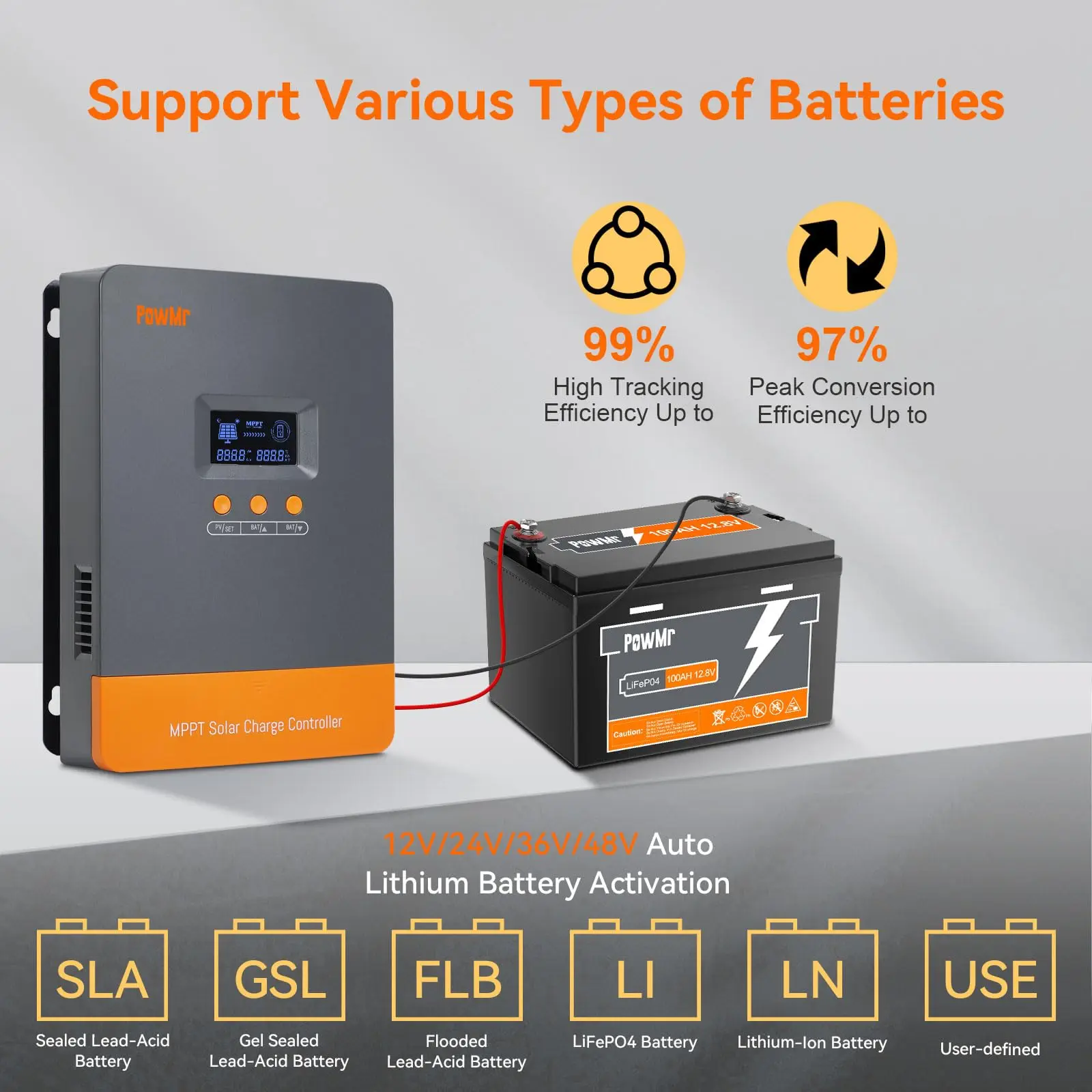

● Suitable for battery types such as sealed lead acid, venting gel, and lithium battery battery, etc
● Easy to be molted

Specification

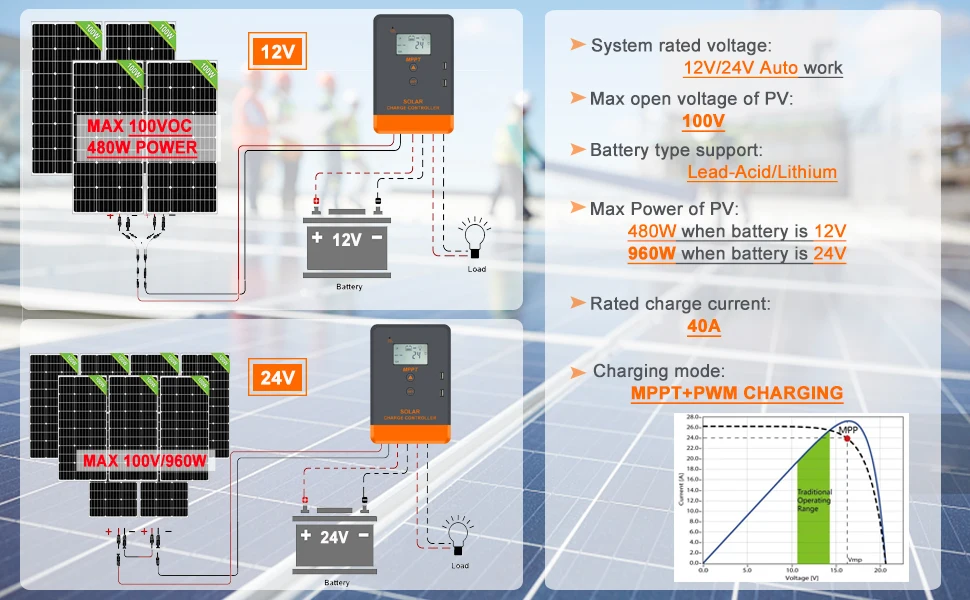

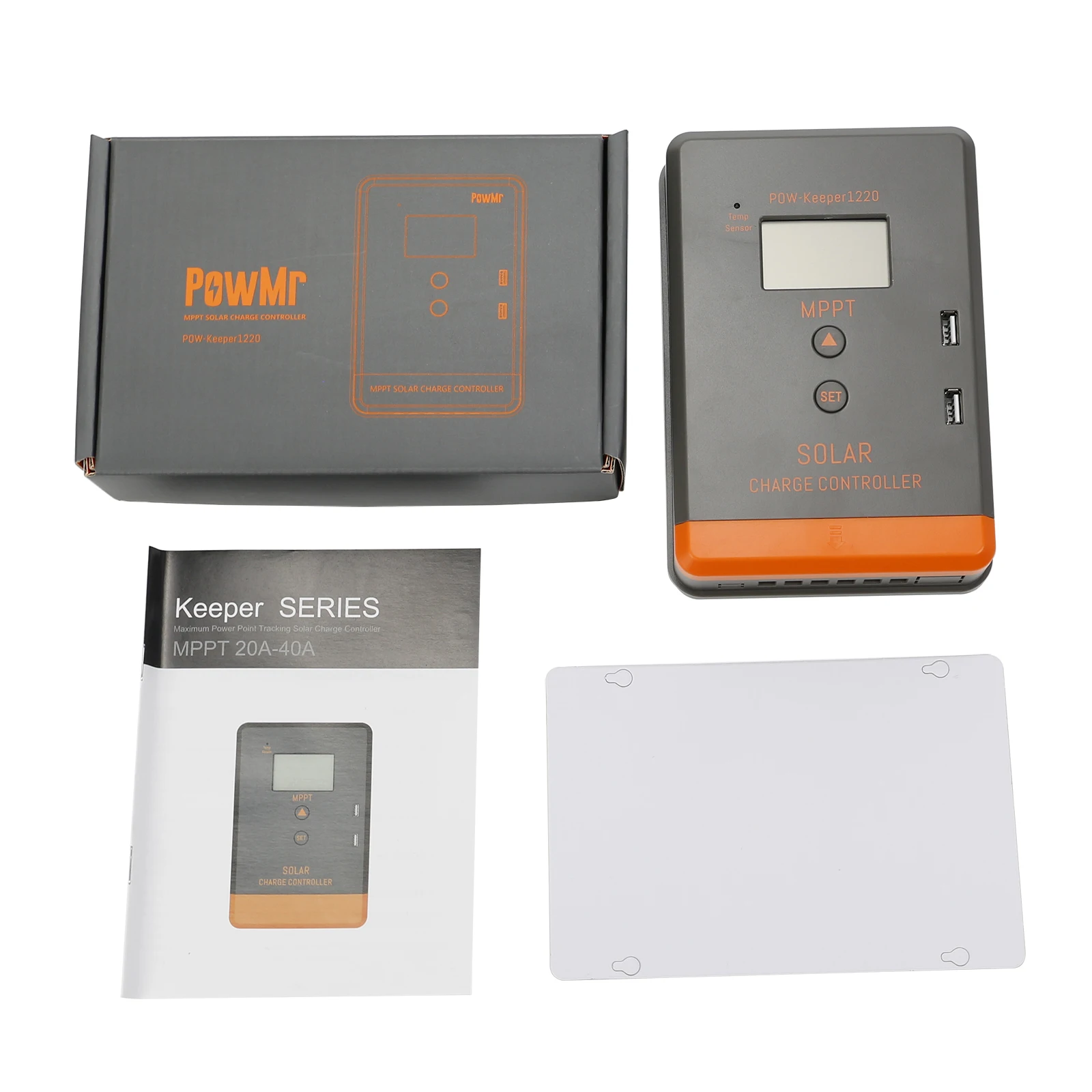

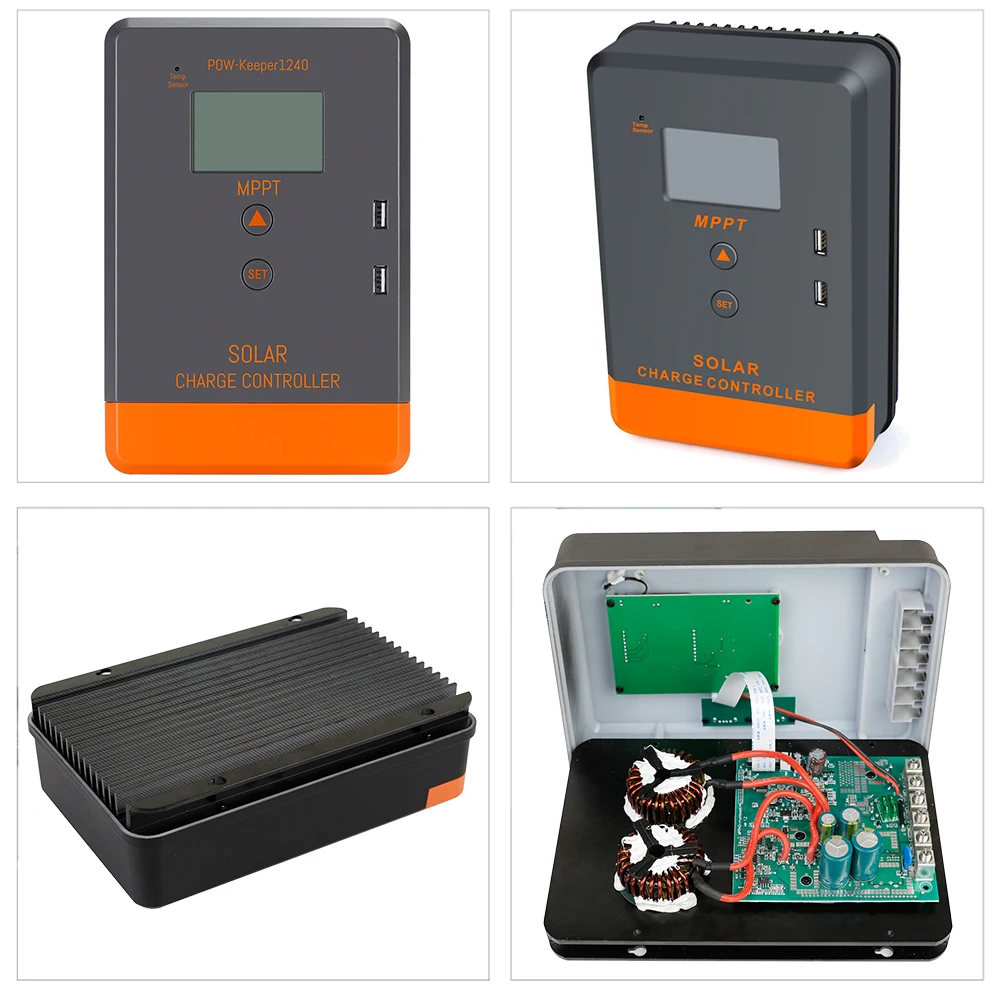

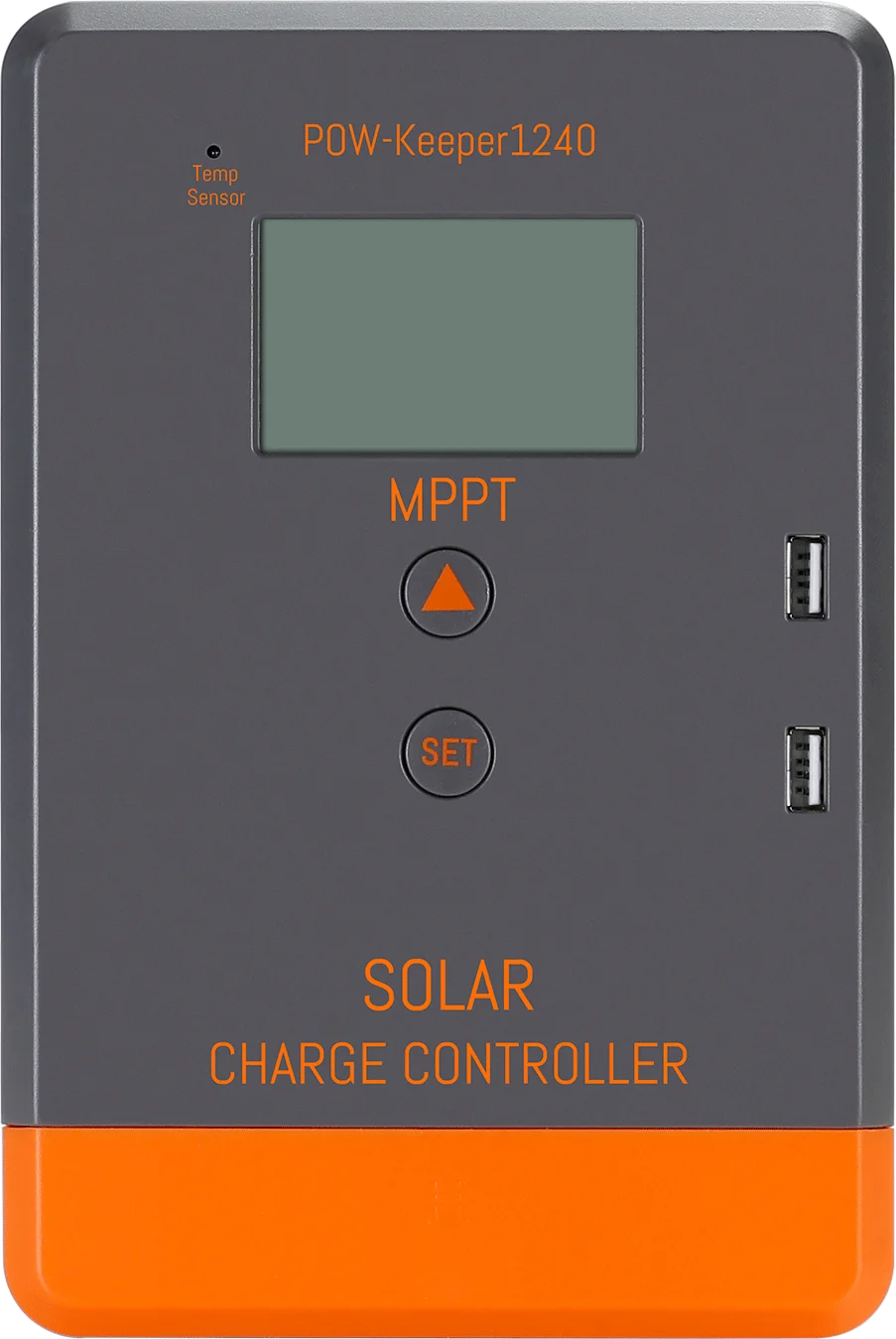

Model	POW-Keeper1220	POW-Keeper1230	POW-Keeper1240
Rated charge running	20A	30A	40A
System missed Volting	12V/24V Auto work
Please range of battery	8-32V
Max open Volting of PV module	55VDC	75VDC	100VDC
Battery type	User default, Sealed, Fcovered, GEL, LiFePO4
The maximum PV output power(Depend on battery 12V/24V)	240W(12V); 480W(24V)	360W(12V); 720W(24V)	480W(12V); 960W(24V)

Qualized charging voltage	Maintenance-Fee lead acid battery 14.6V, GEL: No: Lead acid flootered battery: 14.8V
Absorption charging voltage	Maintenance-Fee lead acid battery 14.4V,GEL: 14.2; Lead acid floed battery: 14.6V
Floating charging voltage	Maintenance-Fee lead acid battery,GEL, Lead acid floed battery: 13.8V
Low voltage re-connection (LVR)	Maintenance-Fee lead acid battery,GEL, Lead acid floed battery: 12.6V
Low voltage disconnection (LVD)	Maintenance-Fee lead acid battery,GEL, Lead acid floed battery: 10.8V
Static Lod	<9.2mA 12V; <11.7mA 24V
High Volage disconnection (HVD)	16V (24V x 2)
Duration of absorption charging	2 hours

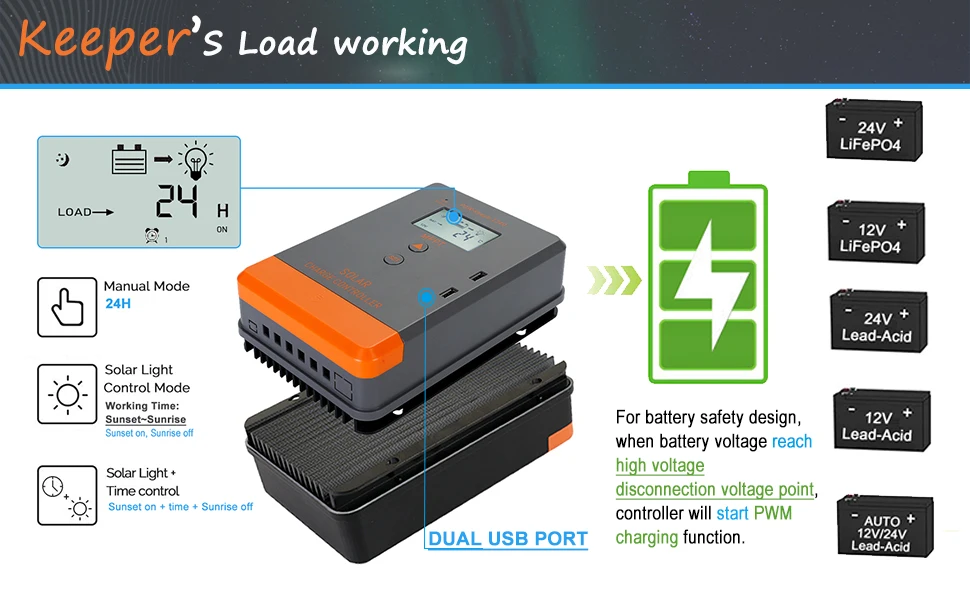

Light control Volting	5V
Loop power drop	<0.29V
LCD Temperature	-20 ℃ ~ + 70 ℃
Operating Temperature	-20 ℃-+ 55 ℃ (To run at full rated recurring continuously)
Working humidity	<95% No condensation
Class protection	IP30
Dimension (LxWxH) mm	123x178x48	135x202x55	150x220x67
Installation hole size(LxW)mm	108x120x5	116x140x5	132x130x5

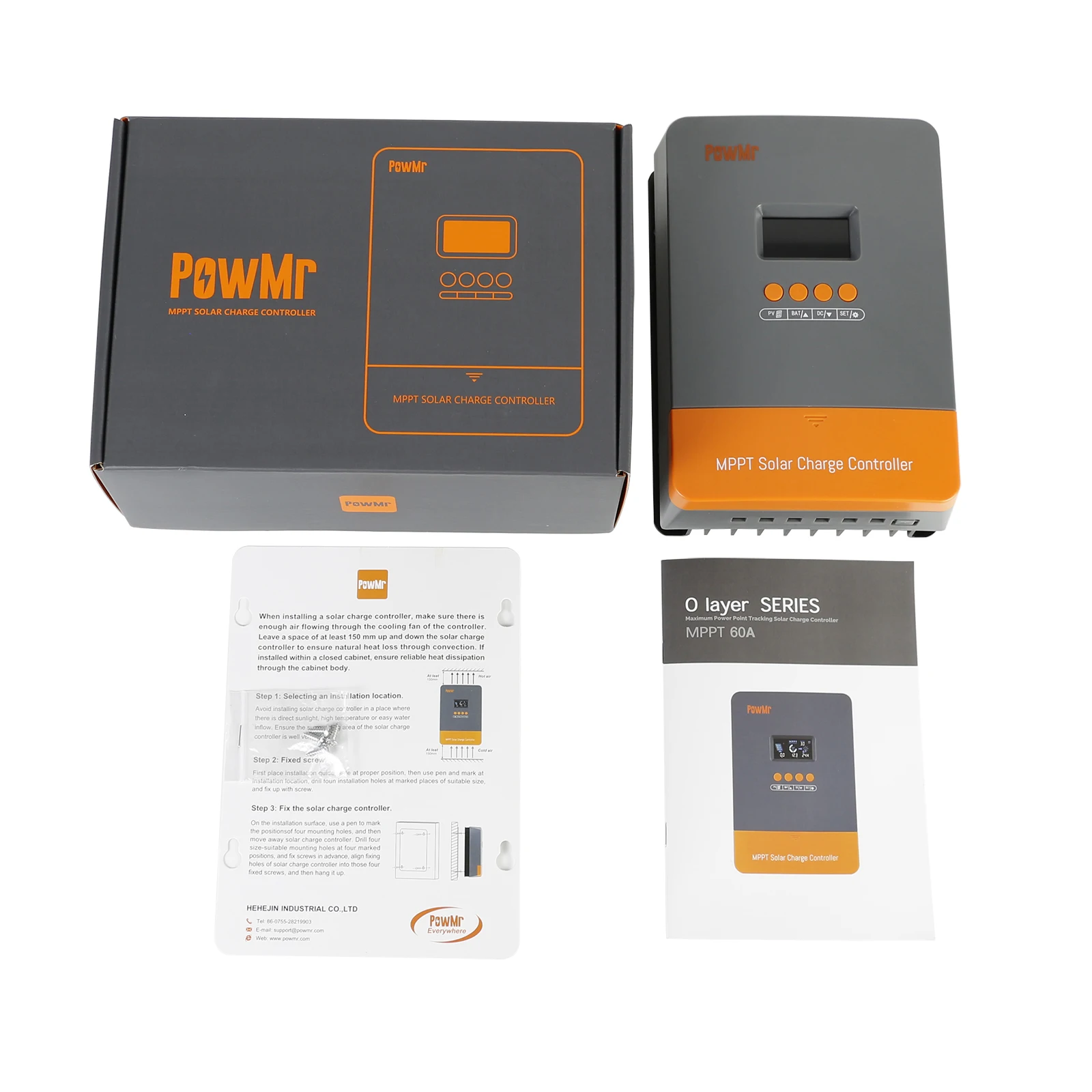

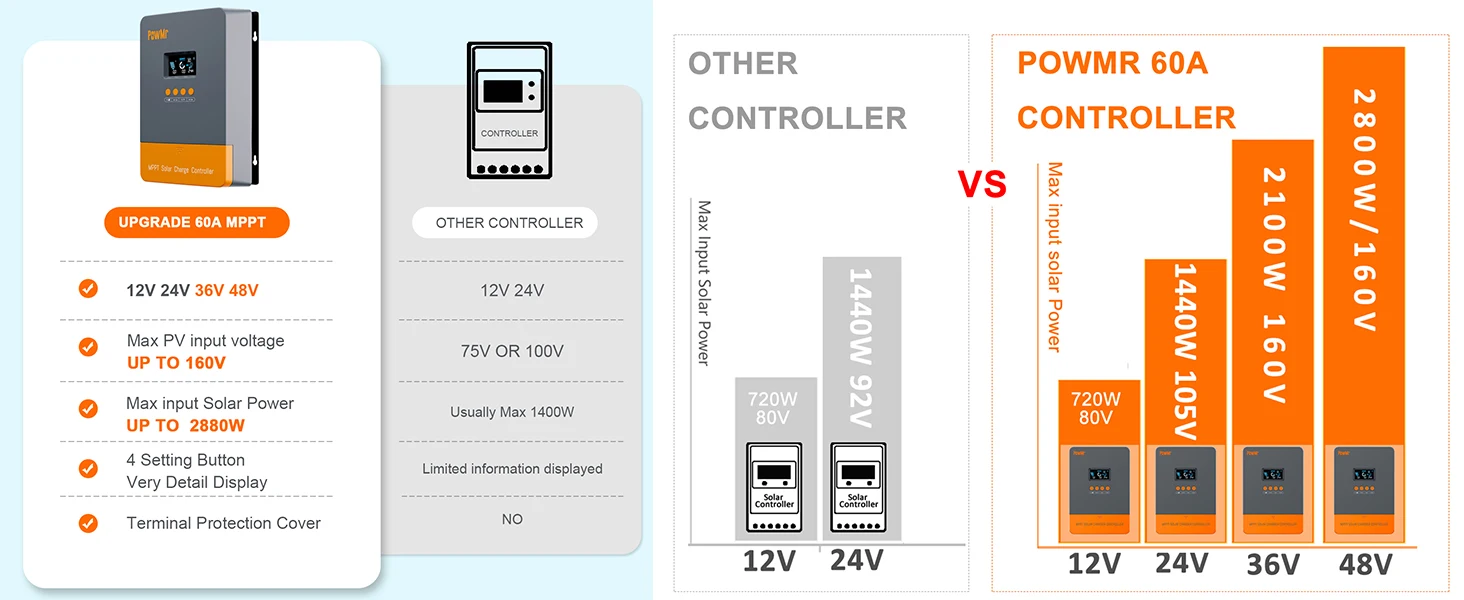

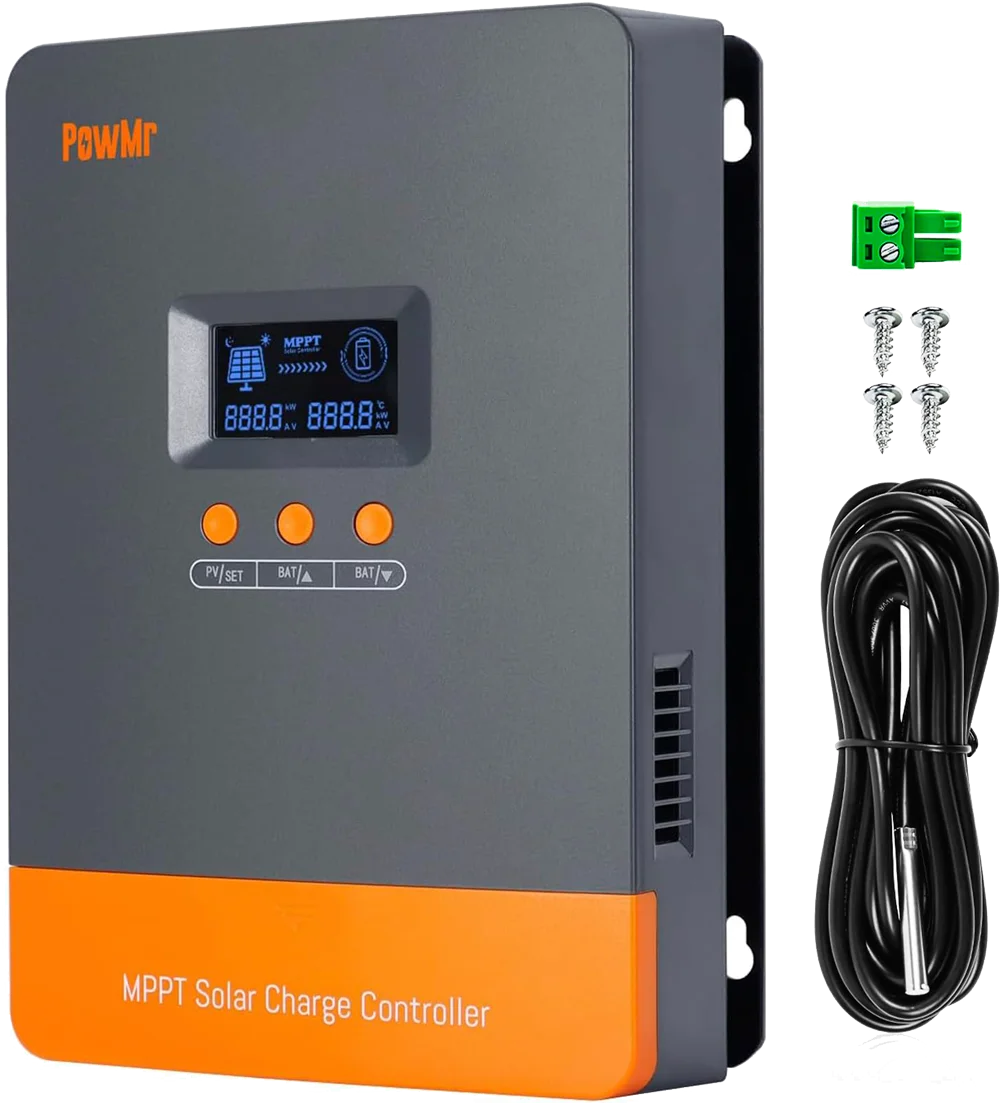

Model	HHJ-60A	POW-M60-PRO	POW-M80-PRO	POW-M100-PRO
Solar Output Specification

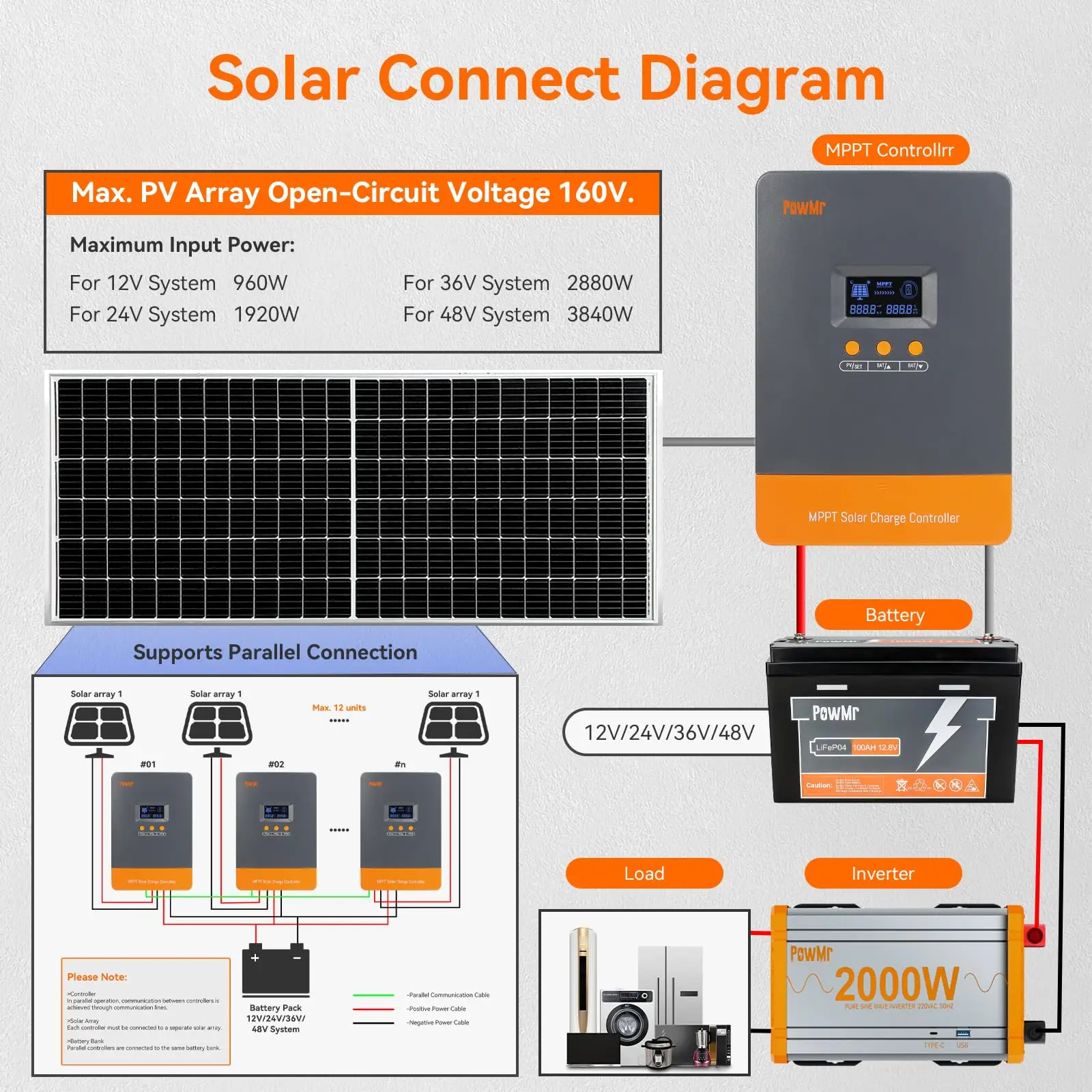

Max. Solar Array Open-Circuit Voltage	160V	160VDC	160V	160V
Maximum Entry Power
For 12V System	720W	720W	960W	960W
For 24V System	1440W	1440W	1920W	1920W
For 36V System	2100W	2100W	2880W	2880W
For 48V System	2800W	2800W	3840W	3840W
Battery Charding Specification
Charging Technology	MPPT	MPPT	MPPT	MPPT

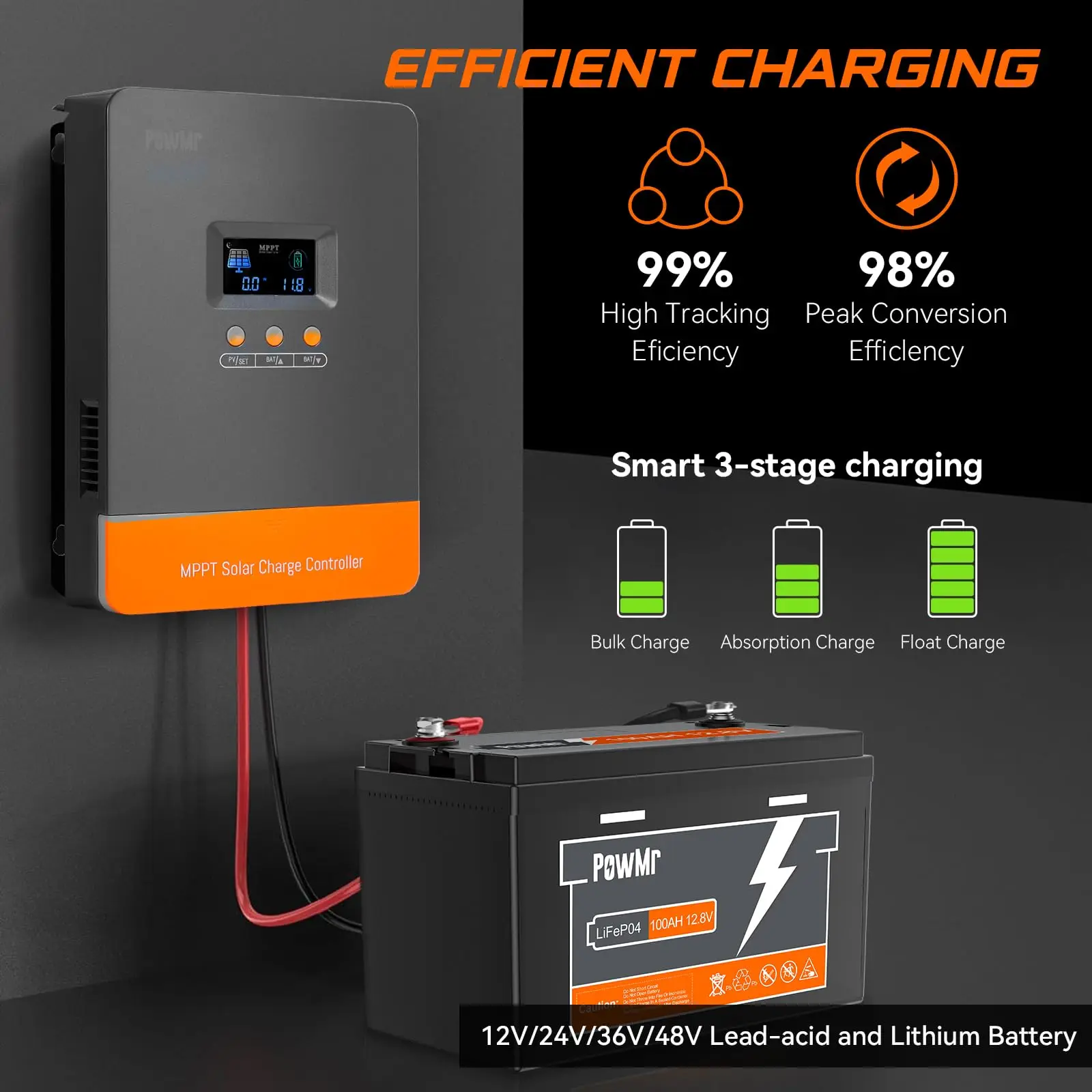

Charging Algorthm	3 Internships	3-Internship	3 Internships	3 Internships
Charging Algorthm	12V/24V/36V/48V	12V/24V/36V/48V	12V/24V/36V/48V	12V/24V/36V/48V
Battery Voltage Range	9 ~ 60V	9 ~ 70V	9 ~ 60V	9 ~ 60V
Rated Chargy Current	60A	60A	80A	100A
Maximum Efficiency	≥ 98. 1%	≤ 98%	≤ 98%	≤ 98%
MPPT Efficiency	≥ 99%	> 99%	> 99%	> 99%
Temperature Compensation	-3mV/°C/2V(default)	-3mV/°C/2V(default)	-3mV/°C/2V(default)	-3mV/°C/2V(default)
Self-Consumption	0.7W-1.2W	44mA/12V; 26mA/24V; 18mA/36V; 12mA/48V
Environment Specification
Opera Temperature range	-20 ℃ ~ + 55 ℃	-35 ℃ ~ + 45 ℃	-35 °C ~ + 45 °C	-35 °C ~ + 45 °C
Humidity Range	≤ 95%,Non-condensing	≤ 95%,Non-condensing	≤ 95%,Non-condensing	≤ 95%,Non-condensing
Altitude	<3000m	<3000m	<3000m	<3000m
General Specification
Level Protection	IP21	IP32	IP32	IP32
Dimensions	214x115x50mm	23016572mm	260x180x75mm	315x195x80mm
Net Weight	1.1kg	1.33kg	2kg	2.7kg
