Hot Sales Servo Motor 3.8kw 2.3kw 1500RPM 2500RPM 15Nm Servo Motor Kit Support 5V 24V Pulse Signal Analog 0-10V RS485 Modbus

Stock Disponible: 33 unidades

SKU: 3256808171460930

Speed
Cantidad
1

$391.52

Precio final con envío
Envío gratis

Desglose de costo

Precio del producto
$381.17
Fee de Servicio MiCyberCompras
$10.35
Costo de envío estimado
Gratis
Costo Final Garantizado:
$391.52

El impuesto, si aplica, se confirma en el checkout según tu dirección. Aquí ves producto, fee y envío.

  • Envío EE.UU.: USPS / UPS Ground.

  • Costo Visible: Sin sorpresas ocultas.

  • Tracking Real: Alertas por SMS/Email.

  • Pago Seguro: Cifrado por Stripe.

¿Por qué elegir MiCyberCompras?

Atributos del productoBrand Name: HLTNC, Does it include a Battery?: No, High-concerned chemical: none, Certification: CCC, Efficiency: IE 1, EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc, AC Voltage: 220v, Origin: Mainland China, Does it include wireless functionality?: No, Protect Feature: Totally Enclosed, Certification: CE, Certification: CCC, Model Number: 130SG-M15025, Frequency: 50/60HZ, Type: Servo Motor
Tamaño del paquete400×300×300 mm

Shipping Info

Warehouse: Poland Warehouse

3-7 working days delivery to all EU countries

Product Brief

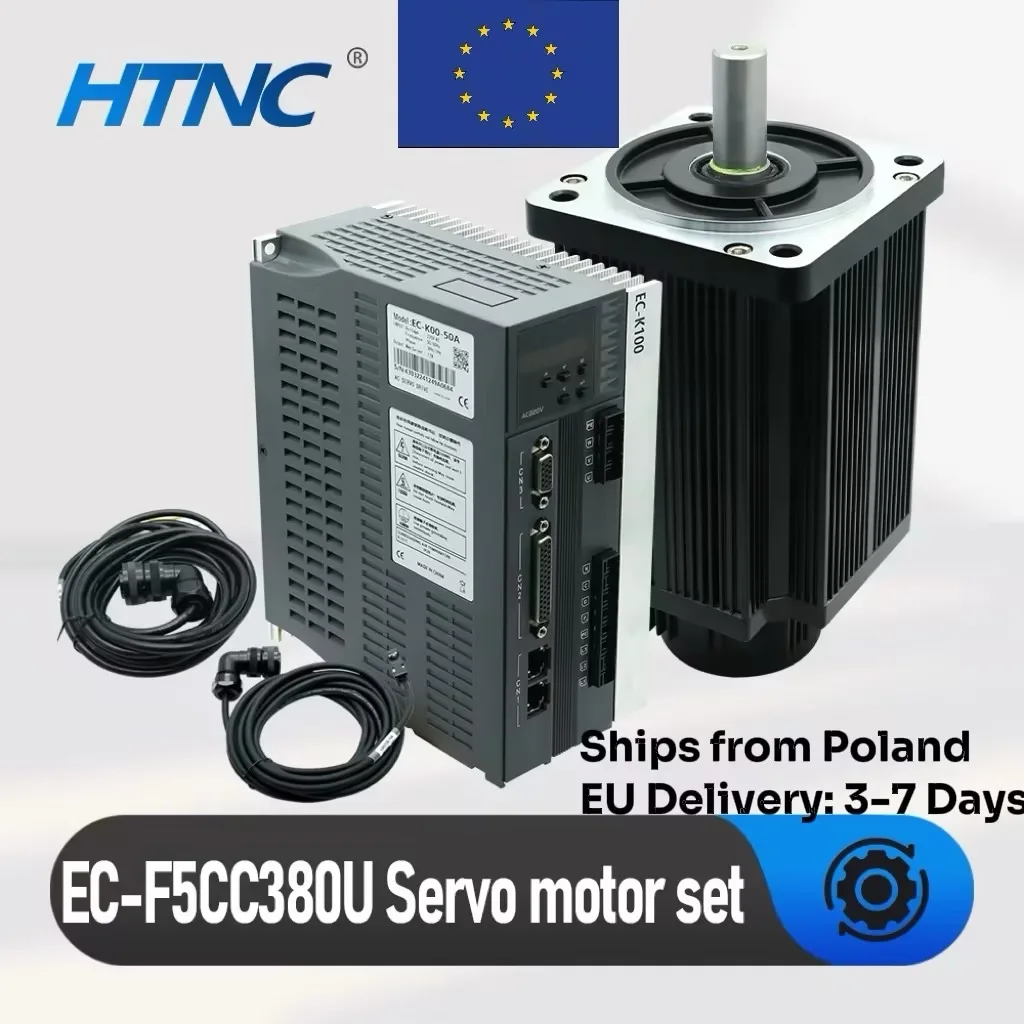

Complete servo set with EC-XP200 / XP300 driver and 2.3kw / 3.8kw servo motor, speed options 1500RPM / 2500RPM, max torque 15Nm. Equipped with 5m power cable and 5m encoder cable.

Appearance & Material

Black aluminum heat-dissipating housing, solid metal shaft, sturdy metal shell with good heat dissipation.

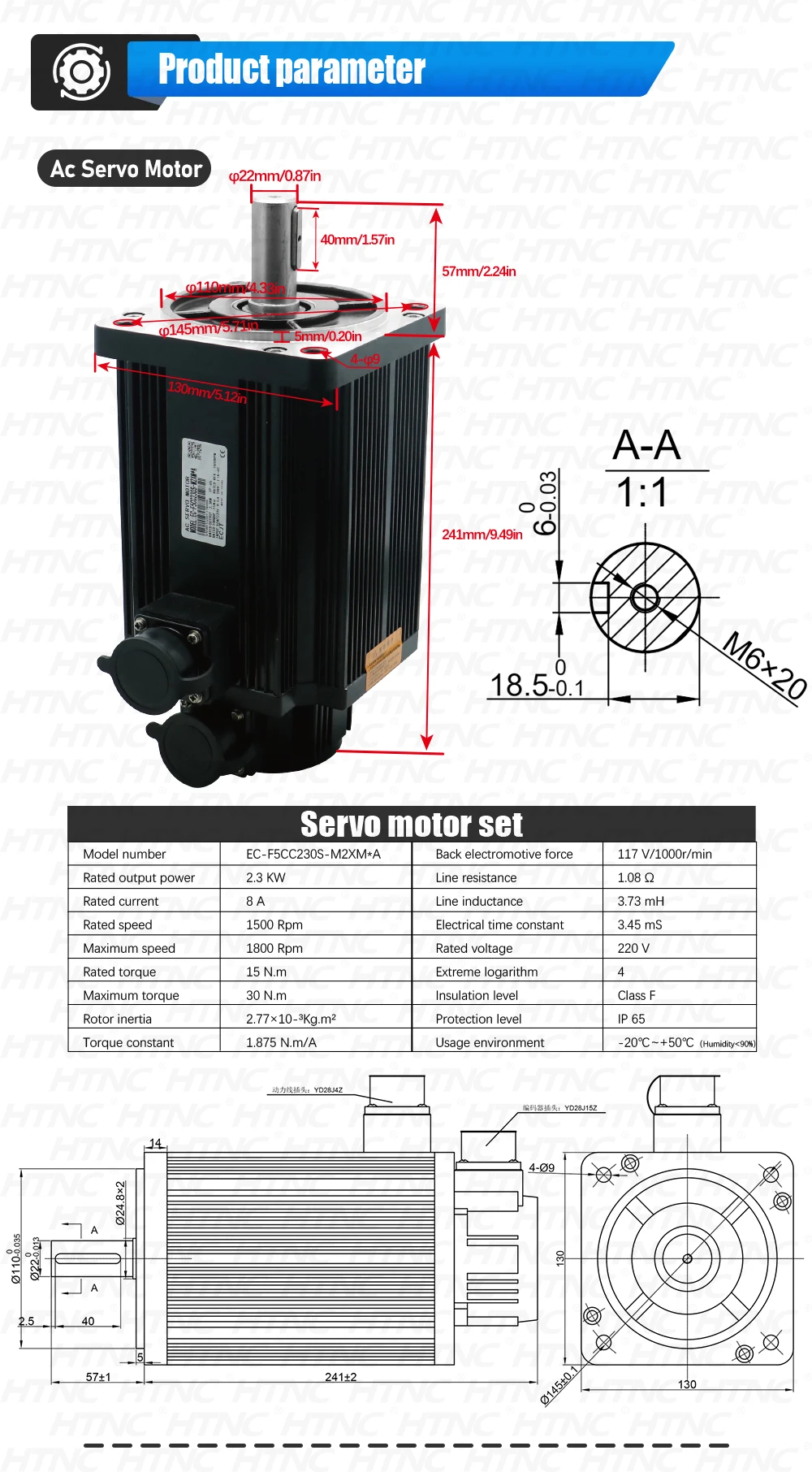

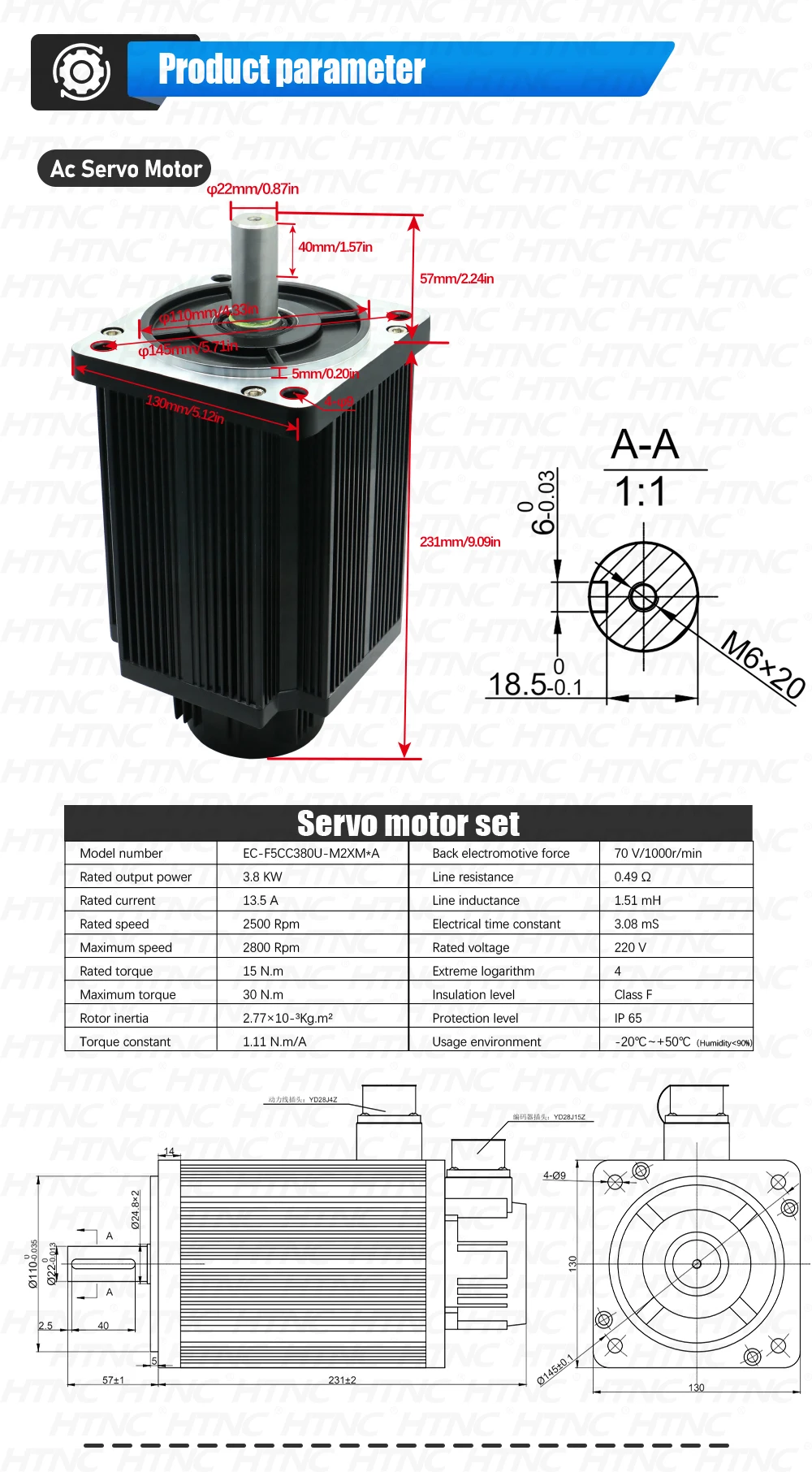

Core Parameters

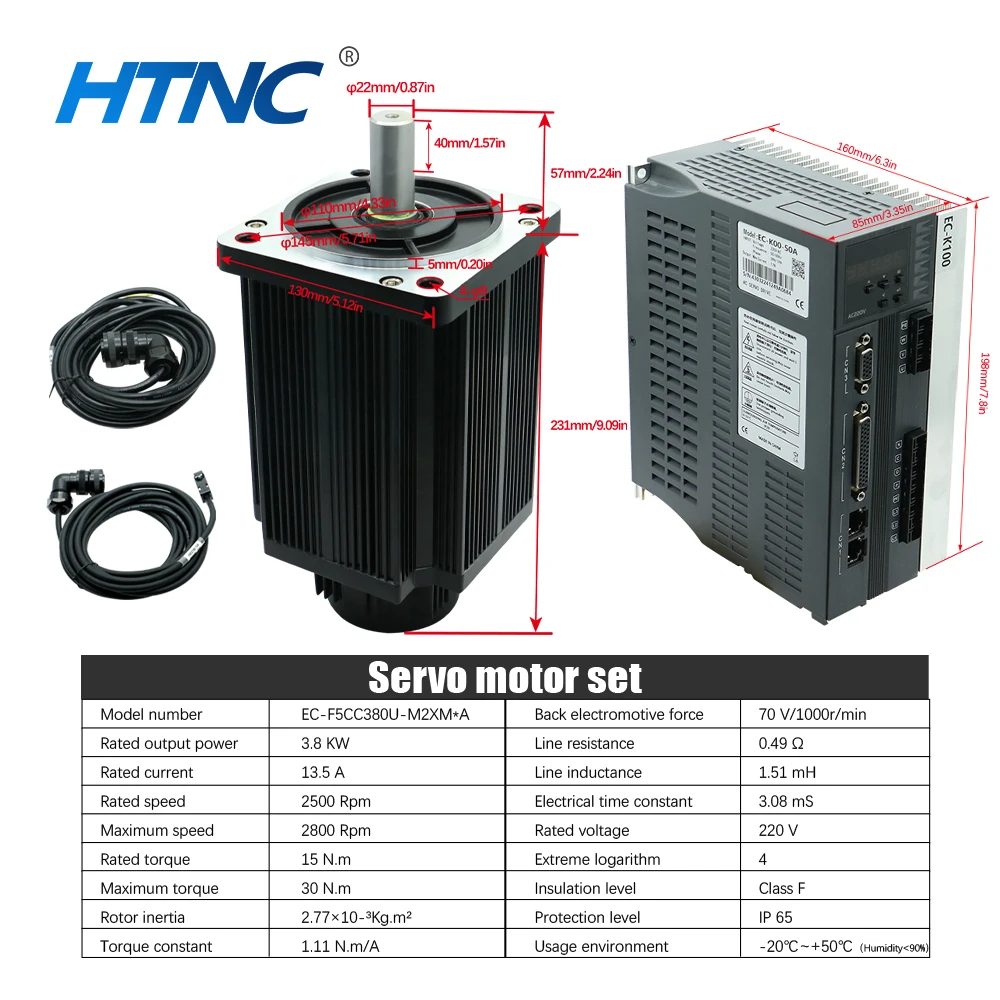

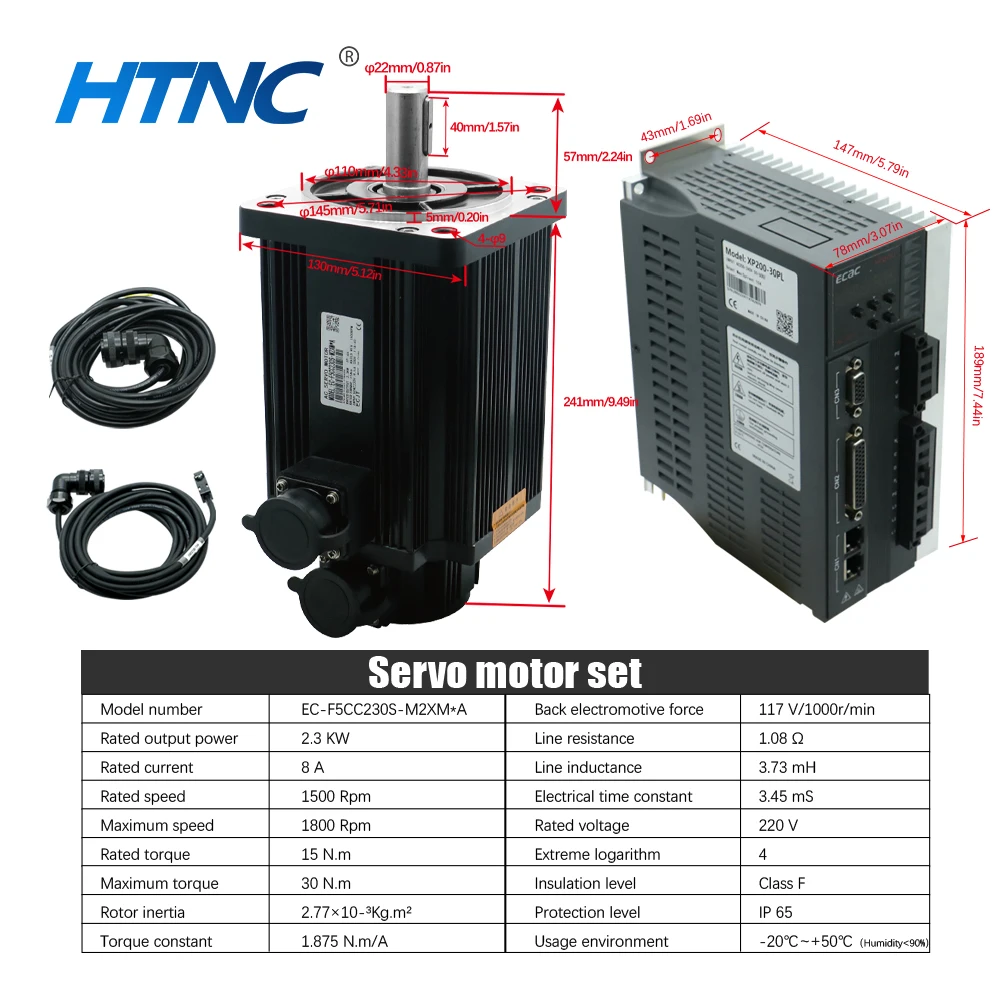

Power: 2.3KW / 3.8KW

Rated Speed: 1500RPM, 2500RPM

Max Torque: 15Nm

Control Modes: pulse 5V/24V, ±10V analog, RS485 Modbus

Compatible Equipment: CNC machines, PLC control systems

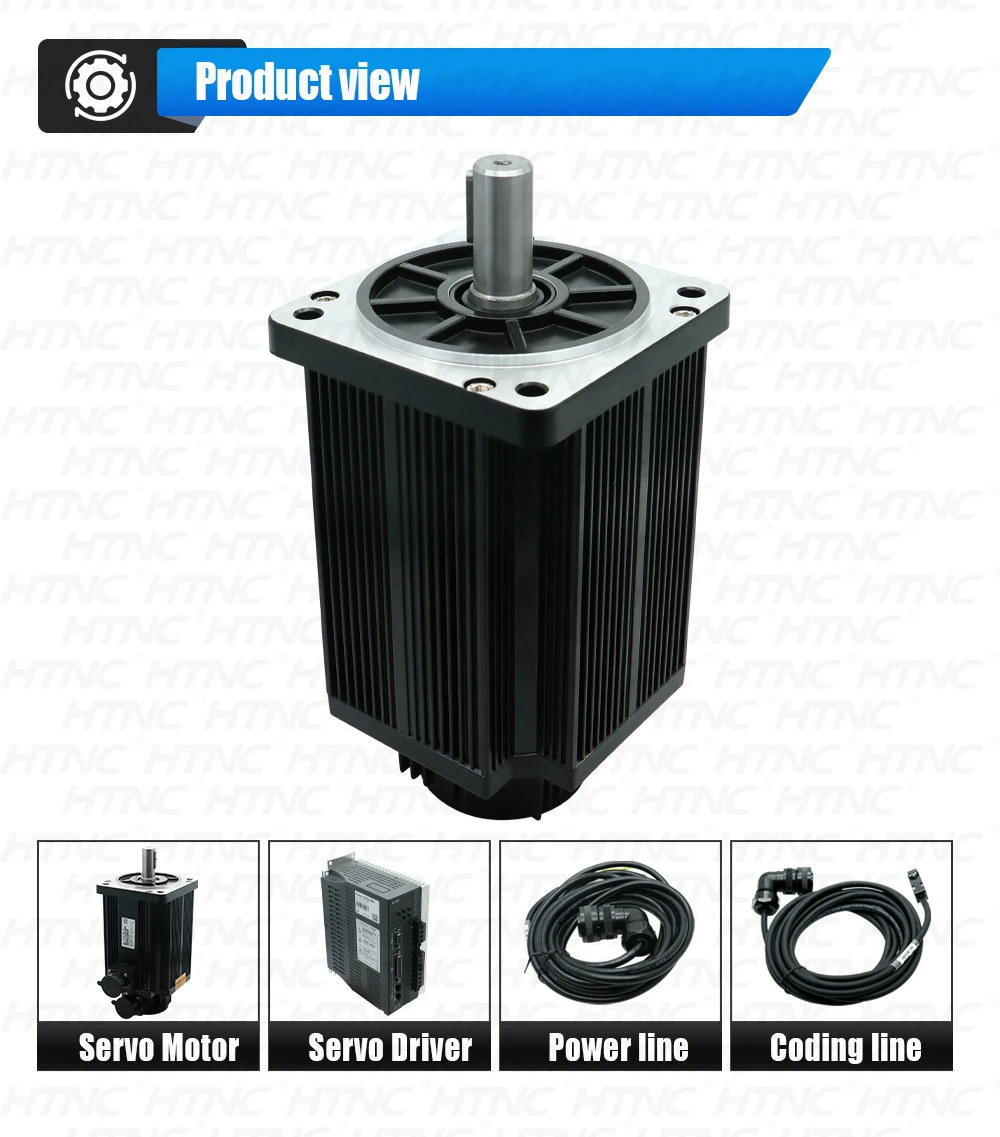

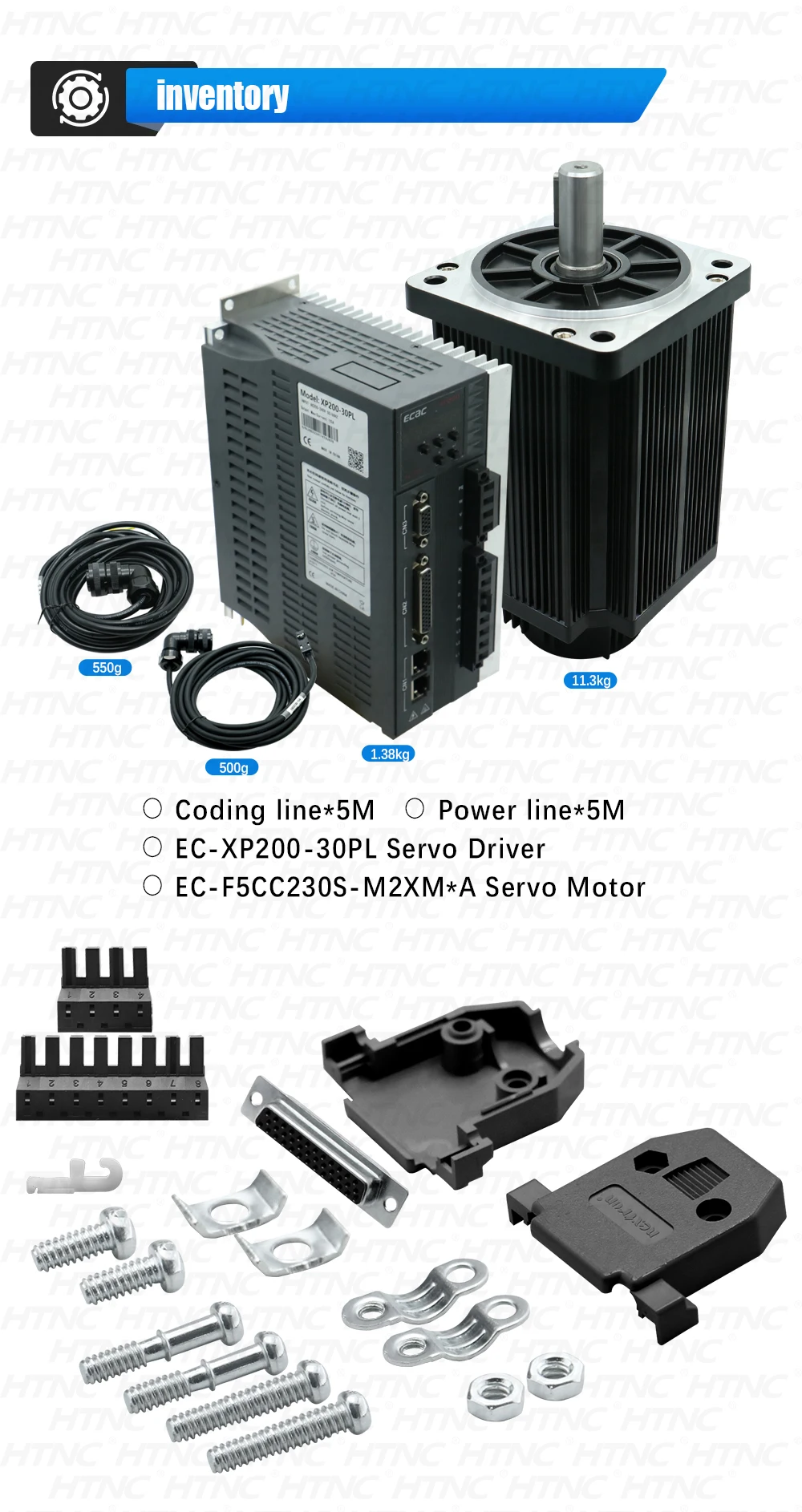

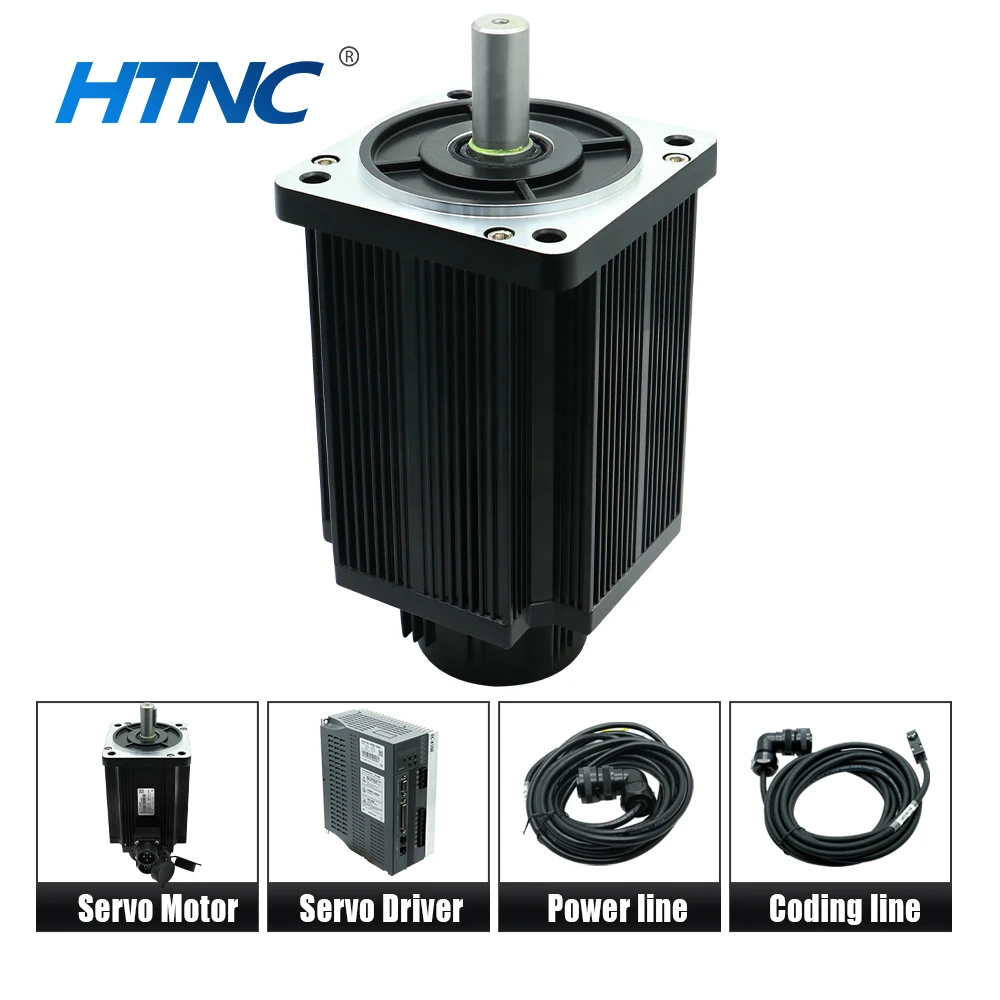

Package Includes: servo motor, XP200/XP300 driver, 5m coding wire, 5m power wire

Core Selling Points

It supports three control modes including 5V/24V pulse signal, 0-10V analog and RS485 Modbus communication, fully matches CNC and PLC systems, provides stable high-torque output with low noise, and all matching cables are included in the package.

Application

CNC engraving machine, milling machine, automation assembly equipment, cutting machinery

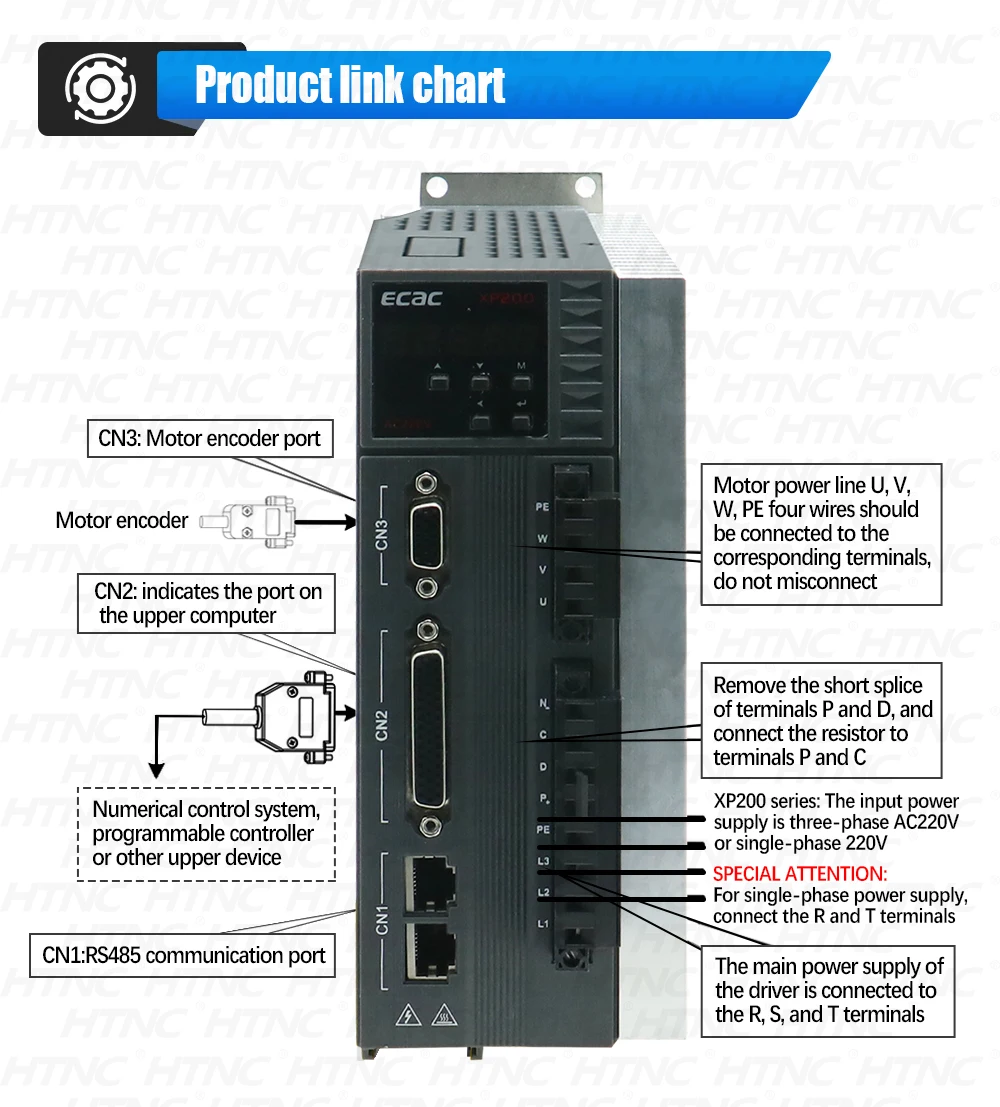

Driver Operation Guide

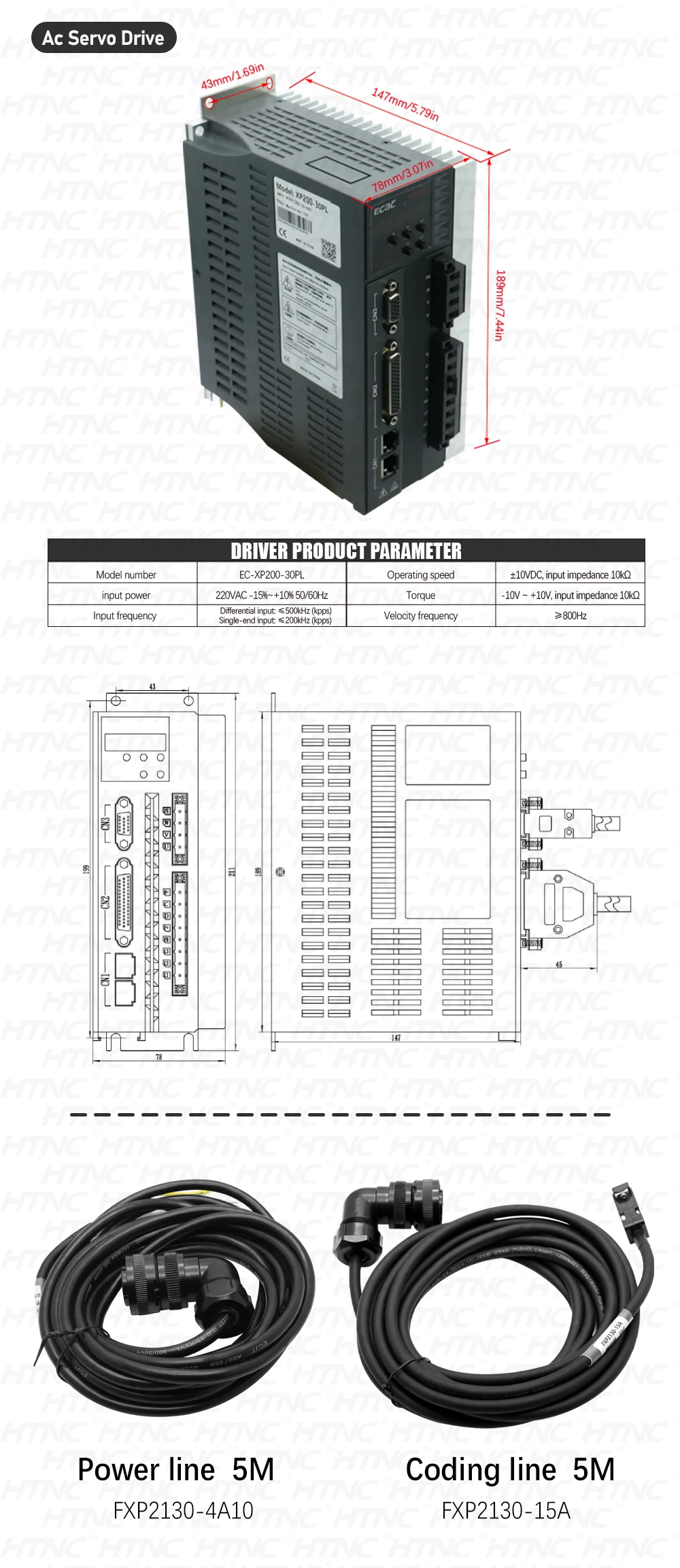

XP300 Driver Parameters

Factory Reset: Set P02.32=1

  1. Pulse Position Mode

P02.01=1 (position mode), P03.04=1 (enable), P05.08 for speed adjustment (higher value = faster speed)

  1. Analog Speed Mode (±10V)

P02.01=0, P03.04=1 (enable), P06.01=1

To reverse rotation under 0-10V analog signal: set P03.07=26

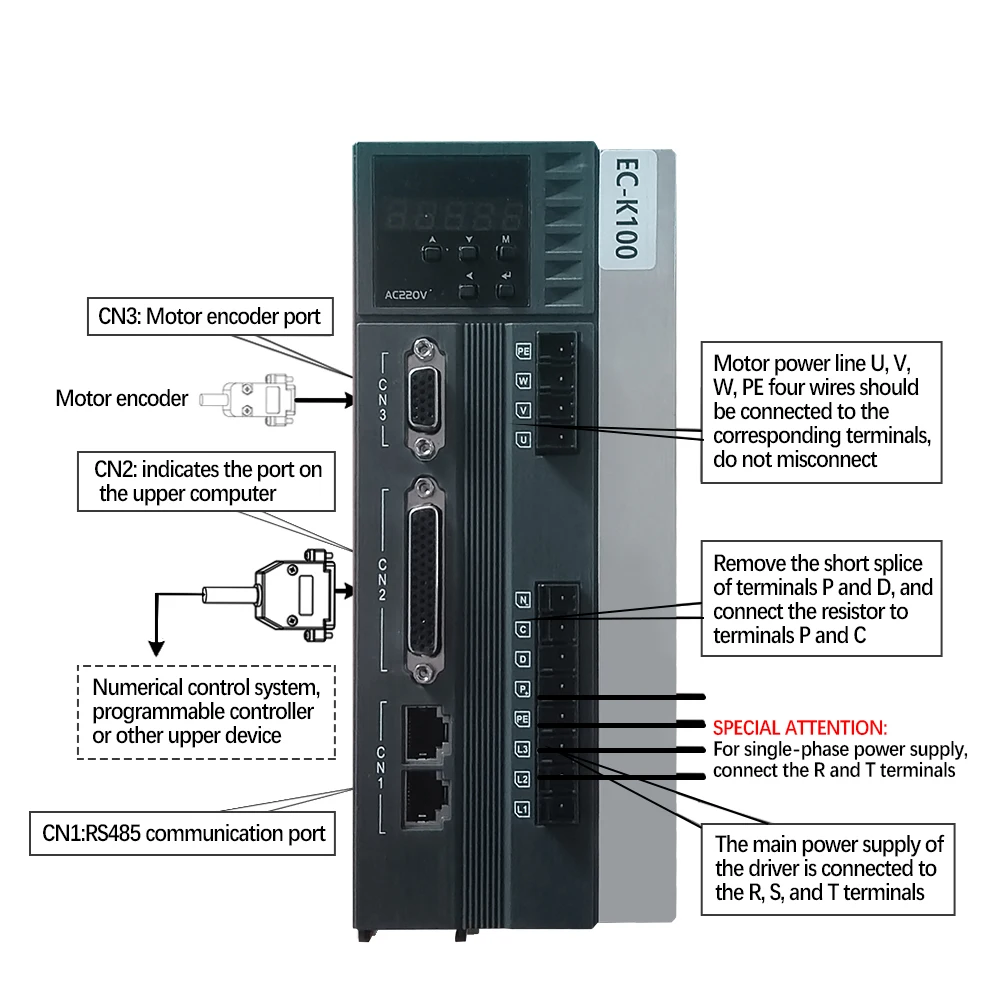

Pin definition: 24V → Pin16, 0V → Pin19

XP200 Driver Parameters

Factory Reset Steps: Disconnect encoder cable or cut power, set P000=316, long press Confirm key until "Done". Power off and restart, hold E-SEF button for 3 seconds till "Done", reboot again to save settings.

  1. Pulse Position Mode (5V/24V)

Pr000=0, Pr098=1 to enable; Pr029 controls running speed (larger number = faster)

  1. Analog ±10V Speed Mode

Pr000=1, Pr025=0, adjust speed via Pr046 (default speed: 300rpm)


If you need the manual, you can private message customer service.
