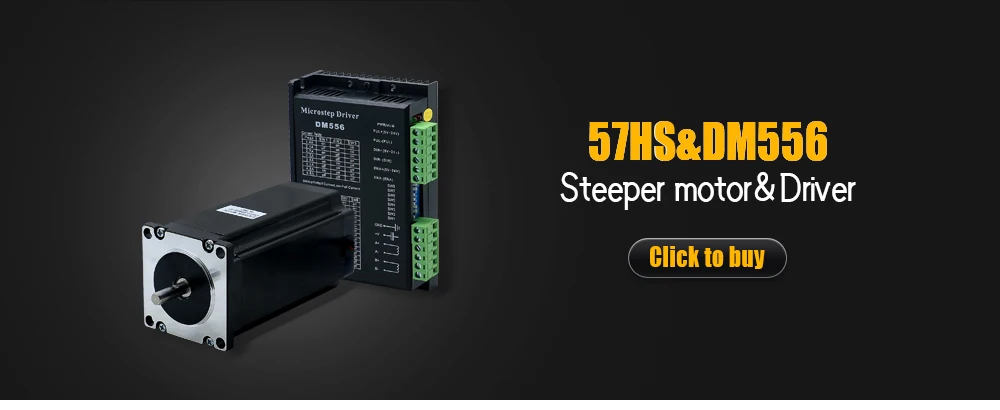

HLTNC Nema23 (57HS) Stepper Motor + DM556 Microstep Driver Kit

Brief Introduction

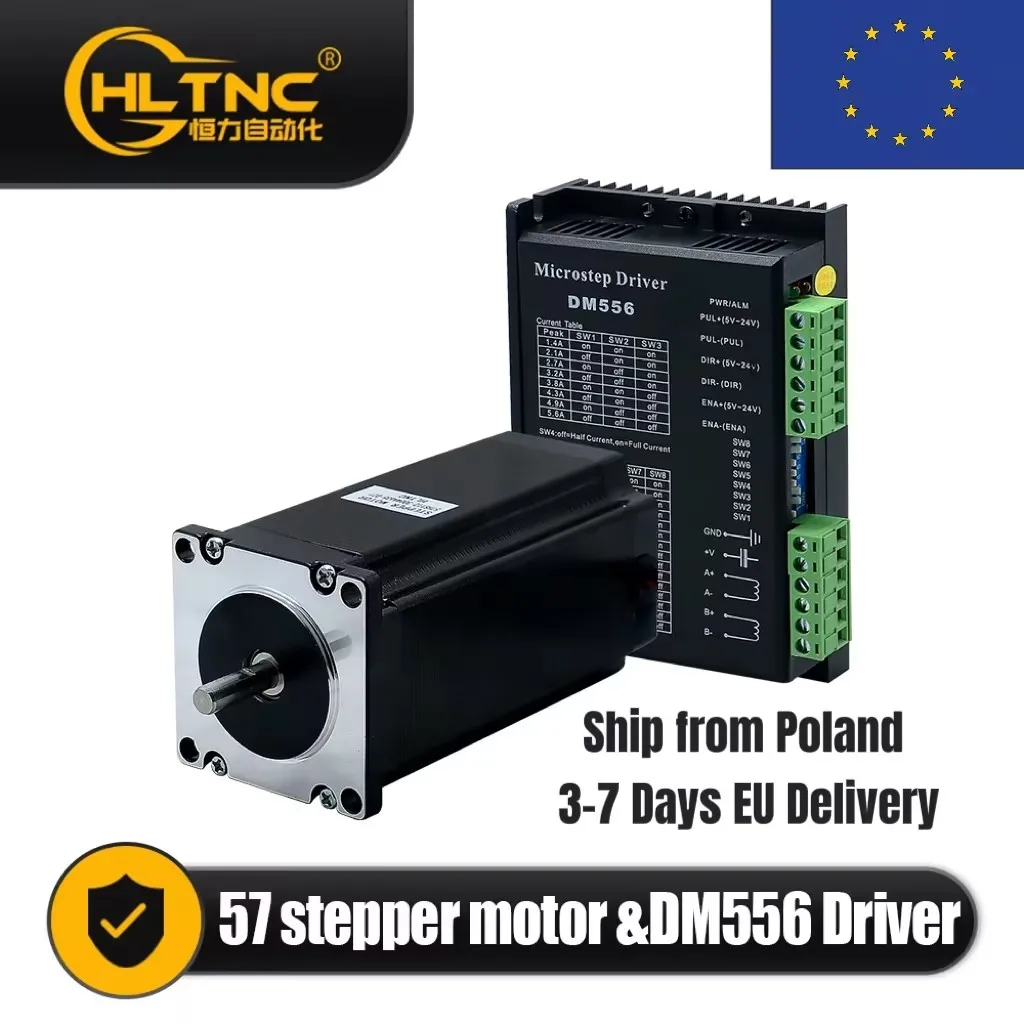

Complete matching set of Nema23 57 flange two-phase stepper motor and DM556 microstep driver. Available torque options: 1.2Nm / 2Nm / 2.2Nm / 2.5Nm / 3Nm, rated phase current 3A. The DM556 driver supports wide DC voltage input 20V–50V, multi-level adjustable microstep subdivision. Perfectly fits CNC engraving machines, DIY 3D printers and small automation equipment, shipped from Poland warehouse to all EU countries.

Shipping Information

Warehouse: Poland Overseas WarehouseDelivery: Deliver to all EU member countries within 3–7 working days, local stock fast delivery without long cross-border transit waiting.

Material & Specifications

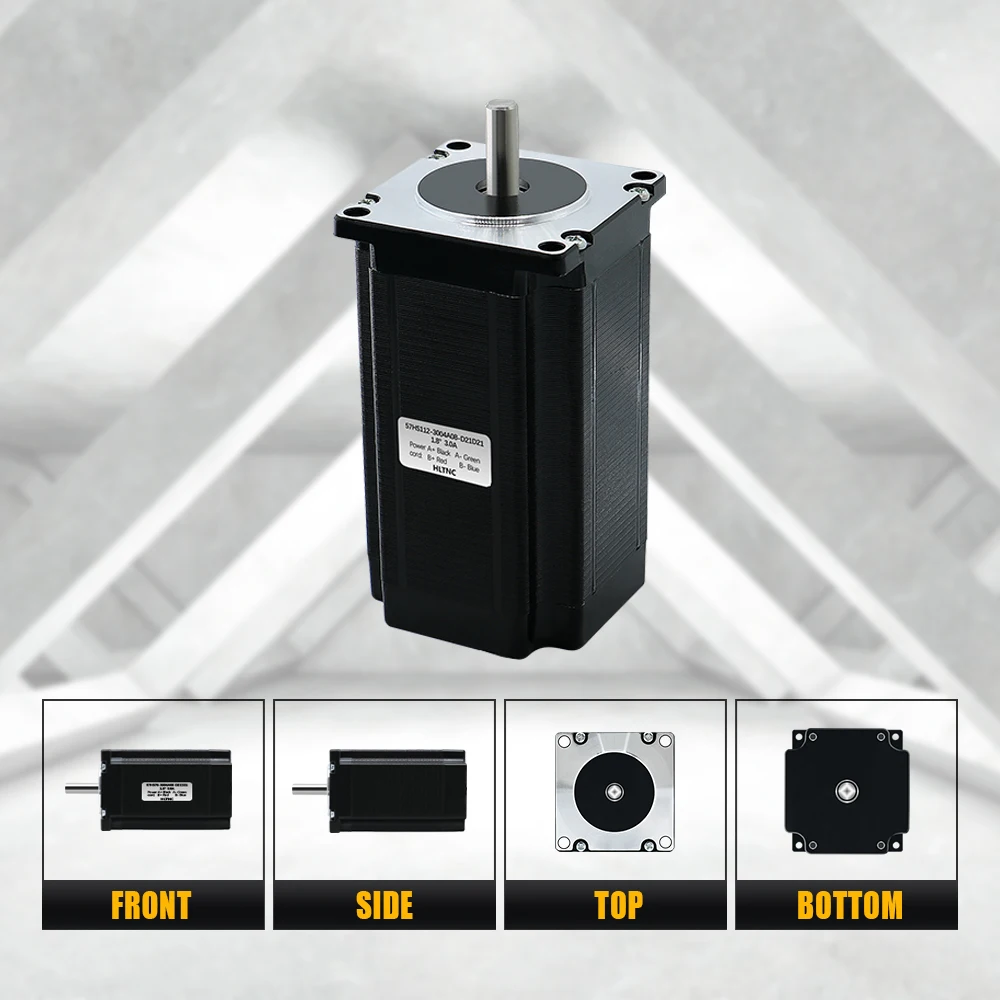

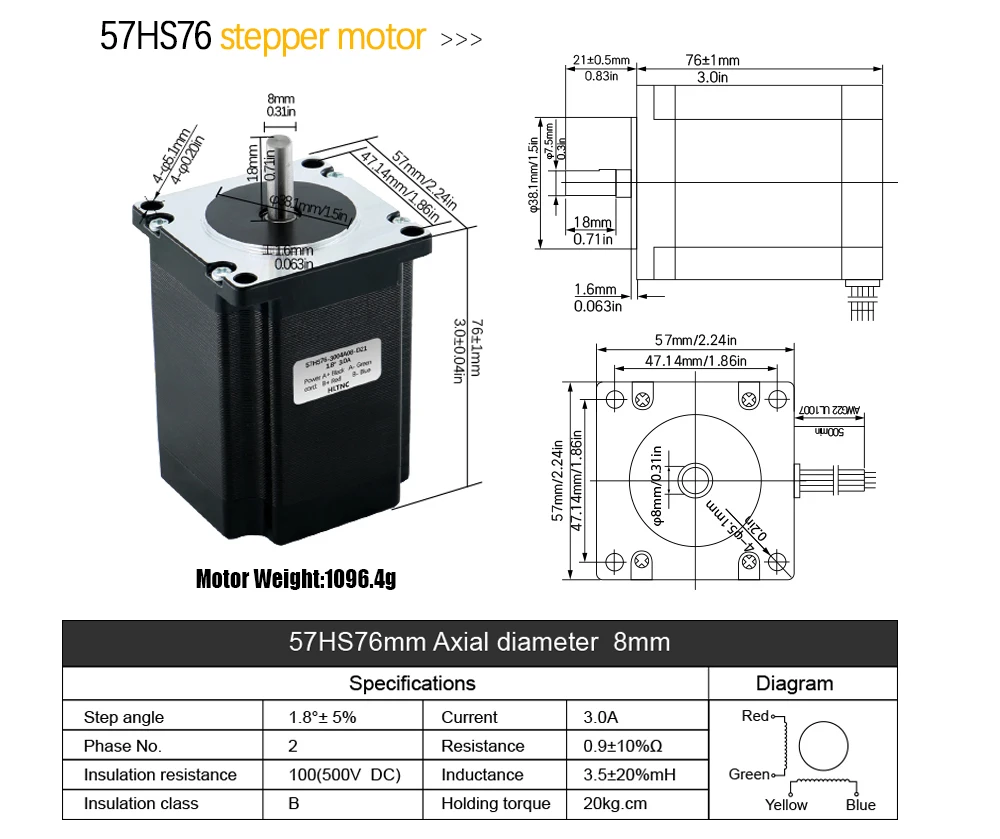

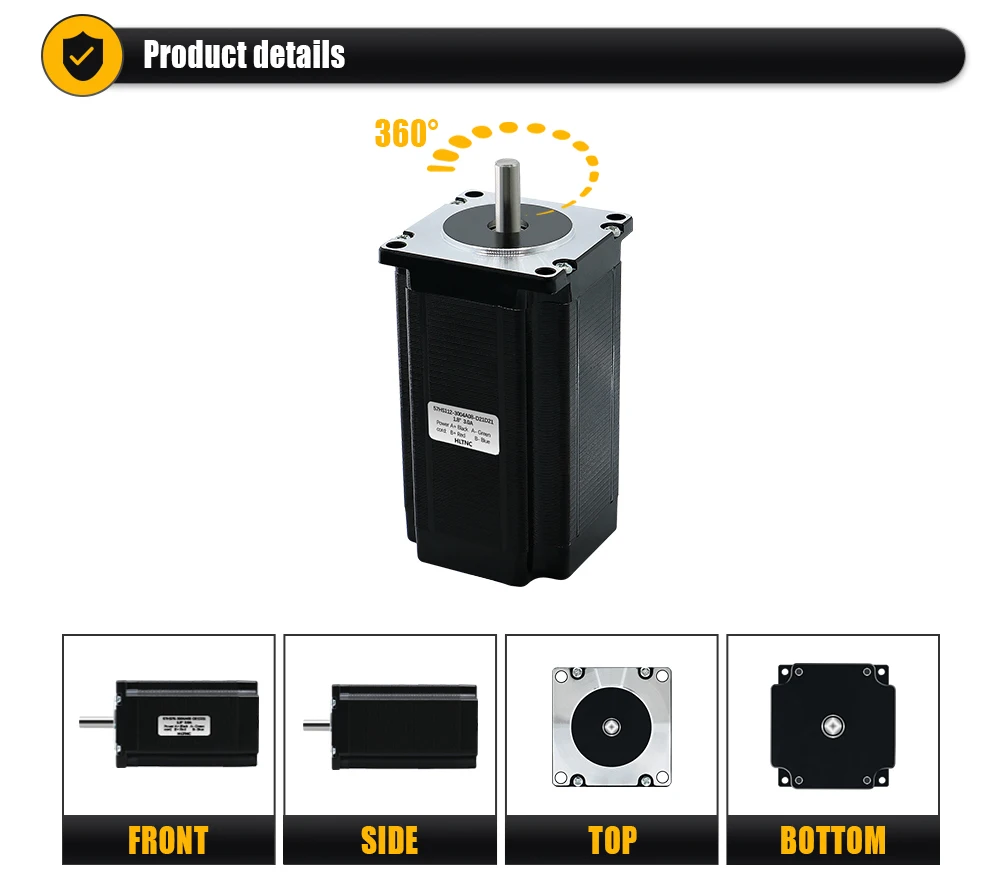

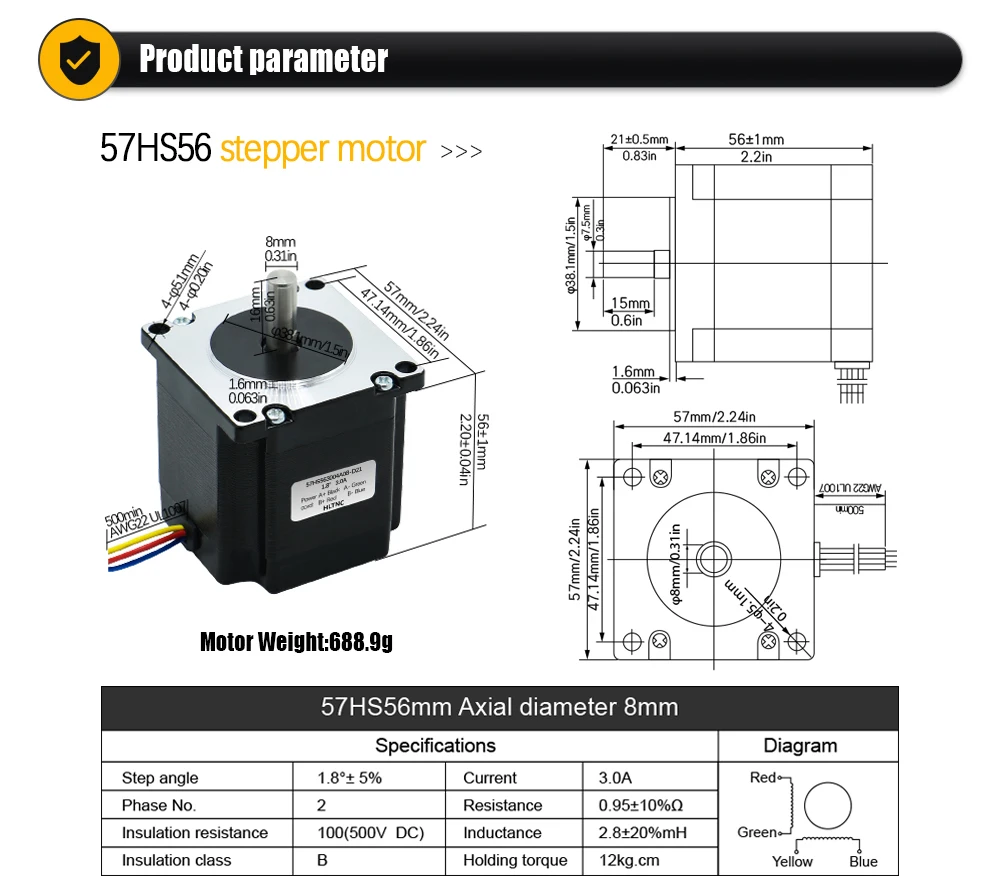

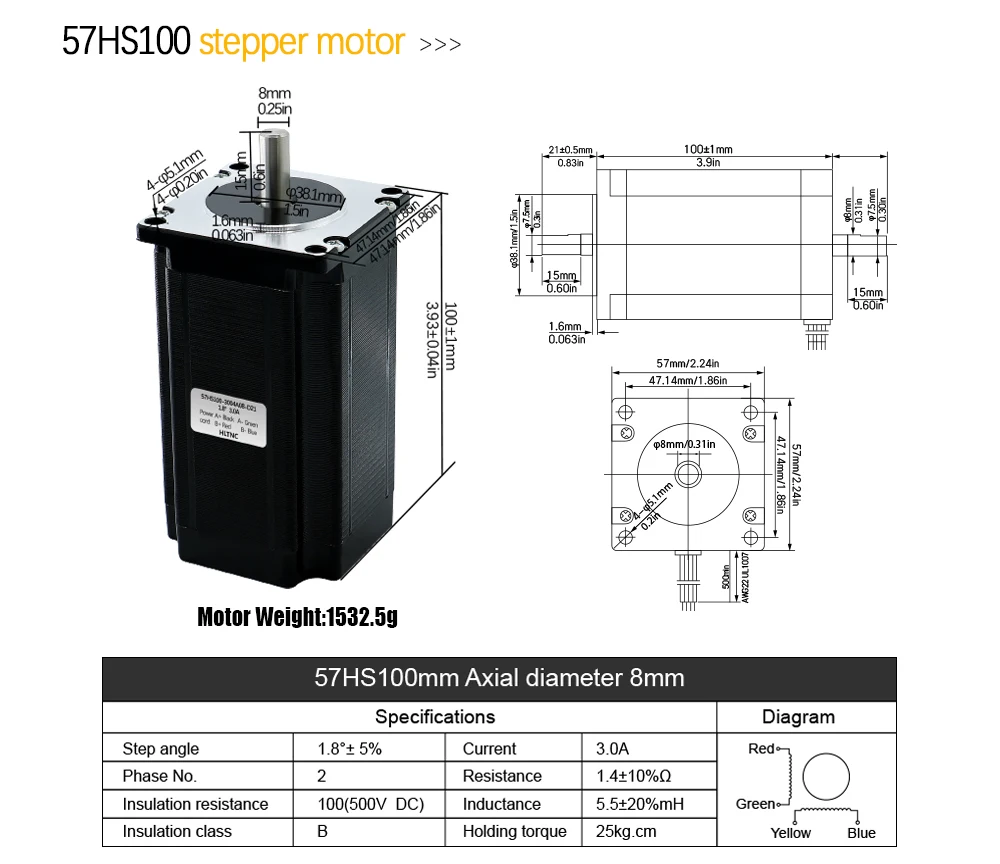

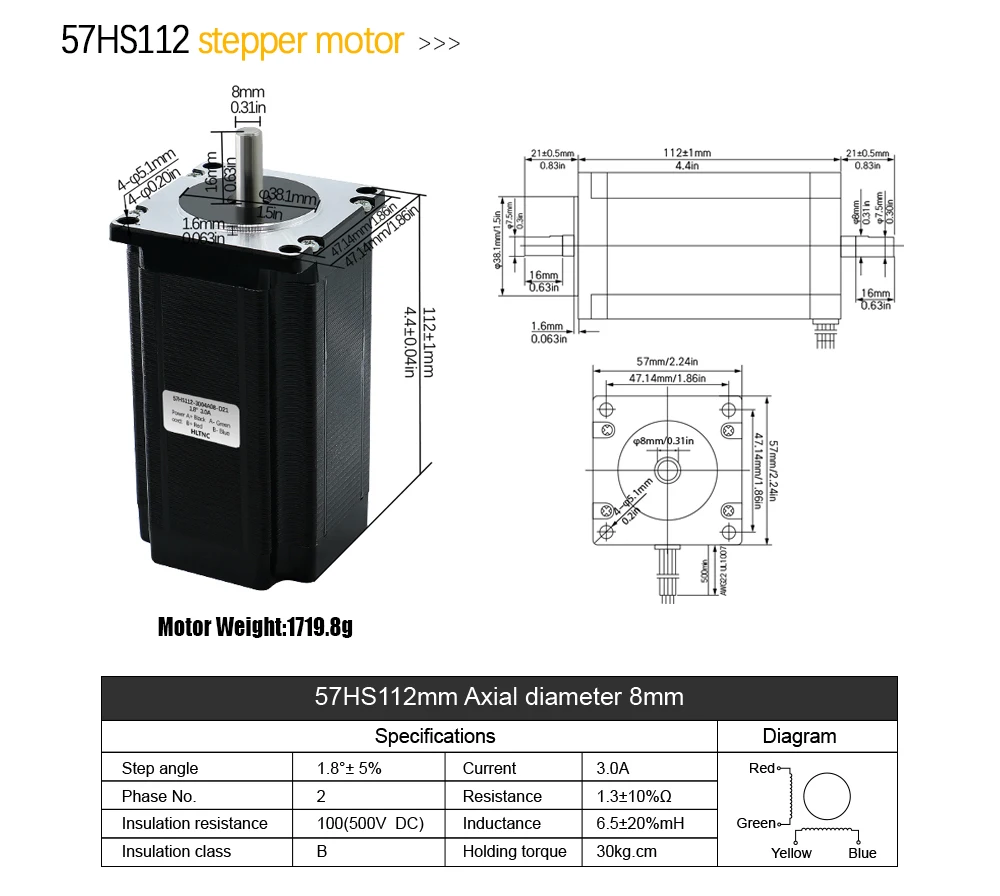

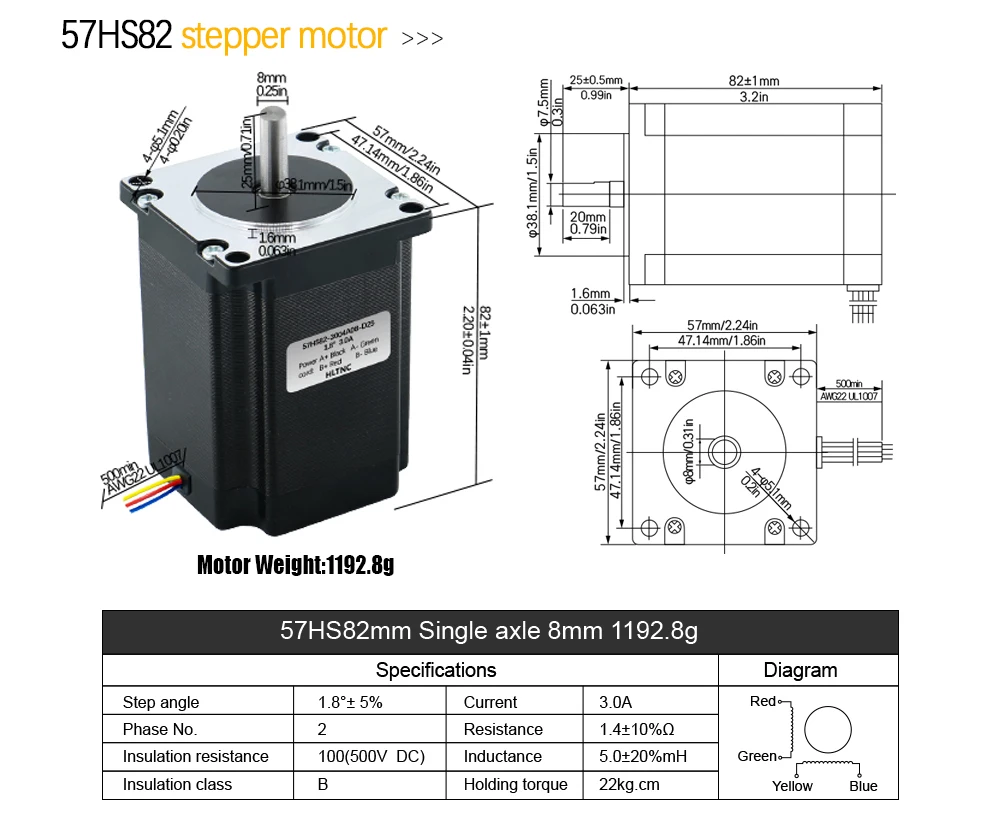

• Motor Model: Nema23 / 57HS two-phase hybrid stepper motor

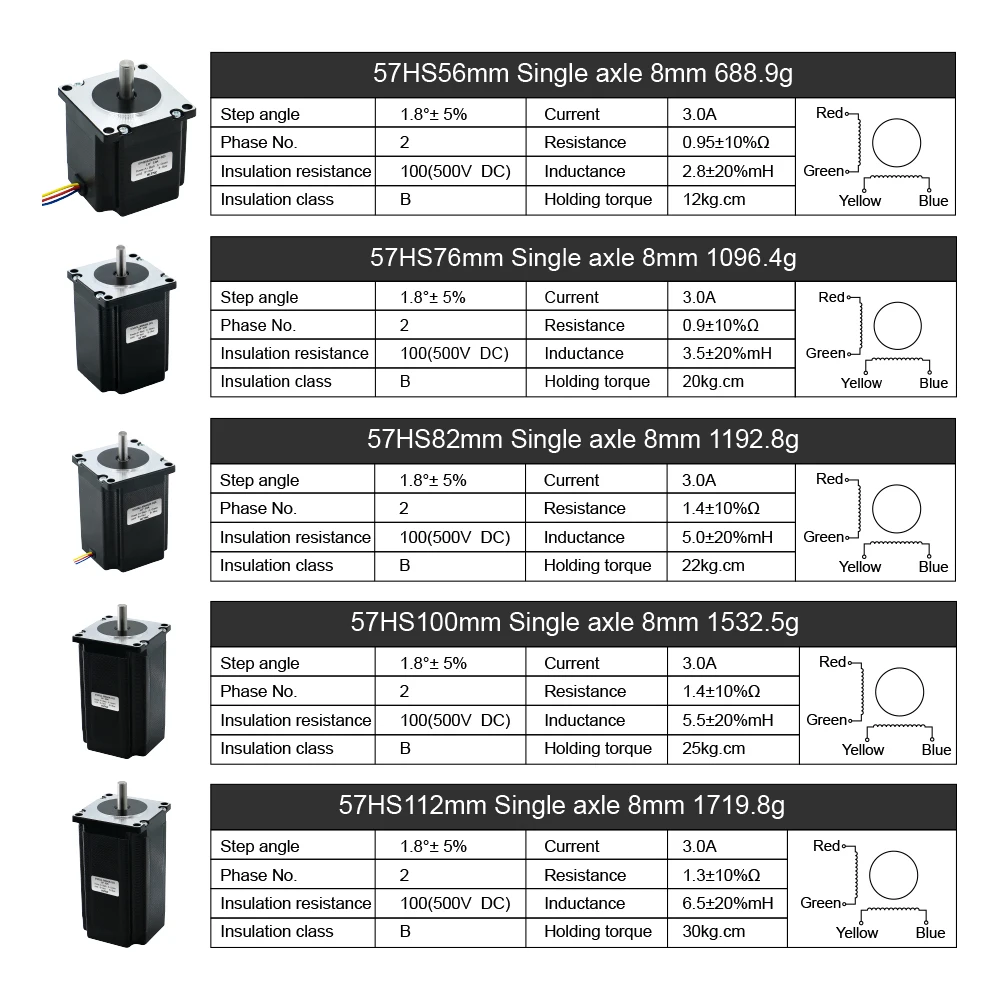

• Optional Holding Torque: 1.2Nm, 2Nm, 2.2Nm, 2.5Nm, 3Nm

• Rated Phase Current: 3A

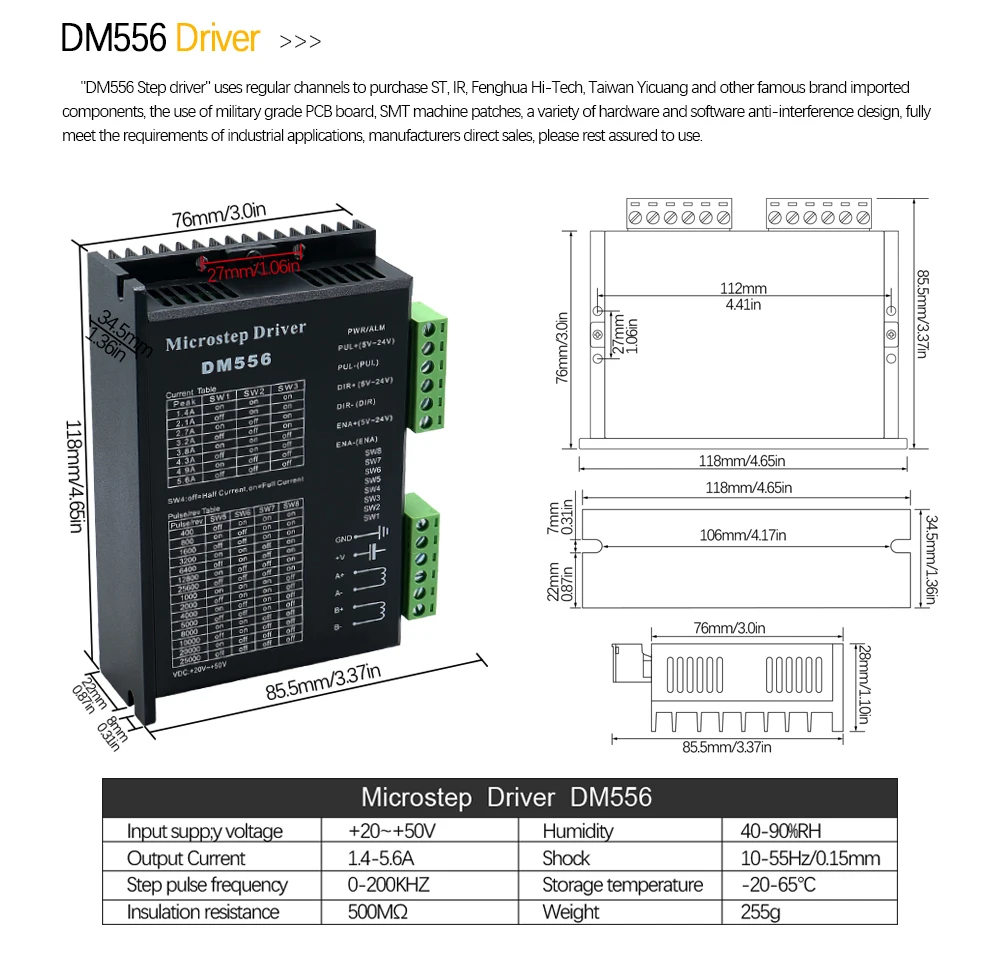

• Matching Driver: DM556 two-phase microstep stepper driver

• Driver Input Voltage: DC 20V–50V wide voltage range

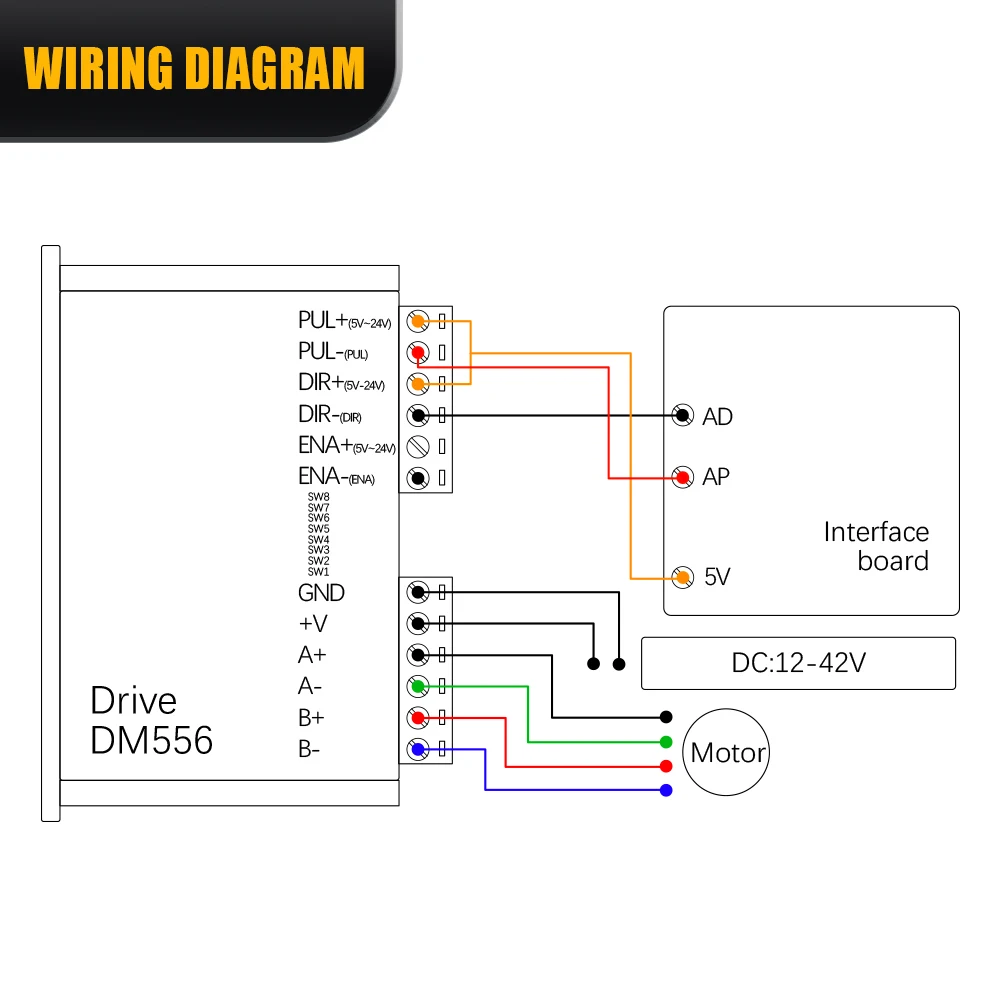

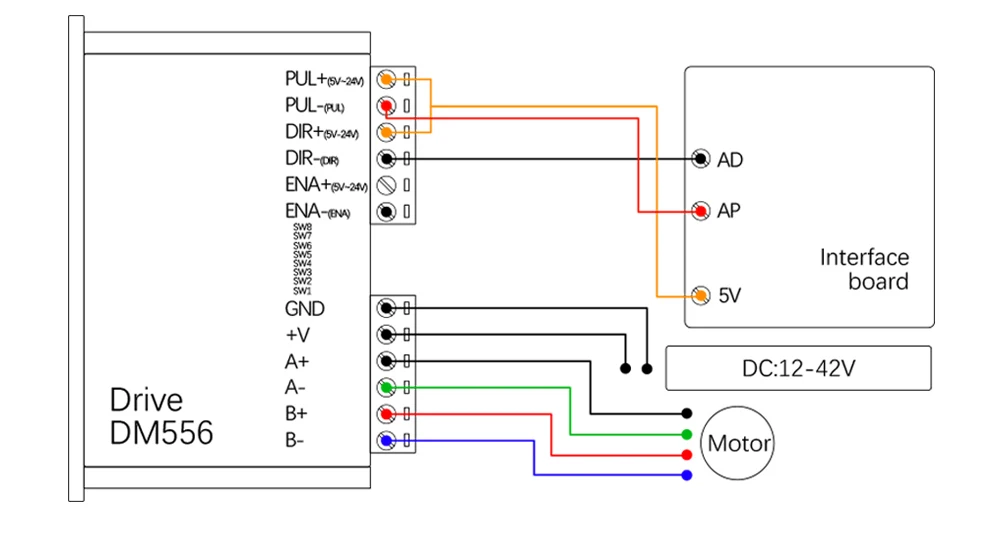

• Control Signal: Pulse / Direction / Enable signal, compatible with 5V & 24V controller level

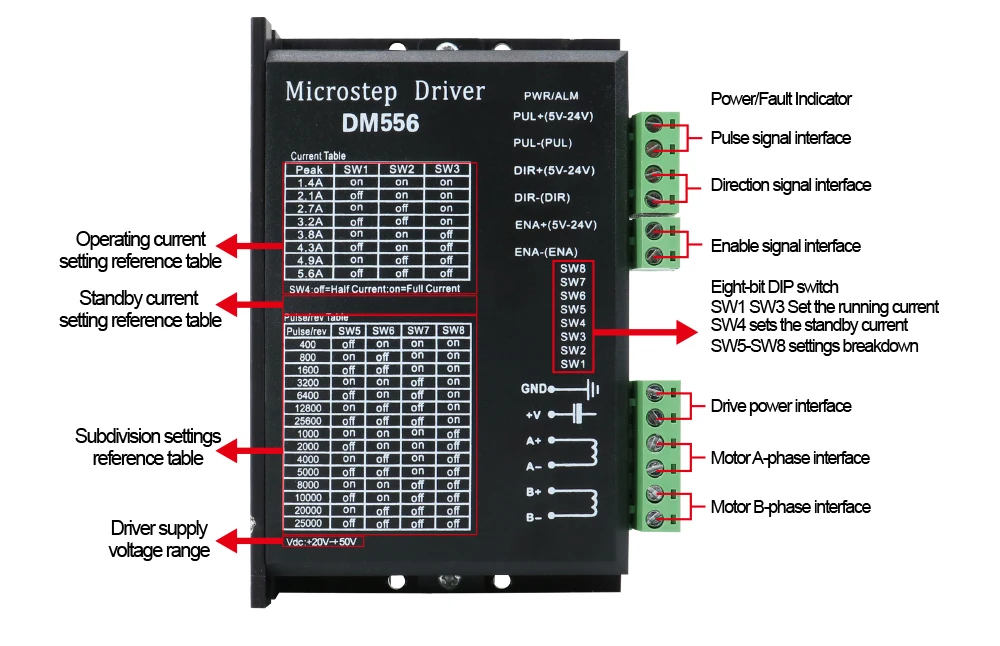

• Adjustment Mode: DIP switches for setting output current and microstep subdivision

• Driver Housing: Integrated aluminum alloy heat sink, efficient heat dissipation for long-hour operation

• Protection Functions: Over-current, over-temperature, short-circuit multi-protection circuit

Application Scenarios

CNC engraving routers, laser cutting equipment, desktop DIY 3D printers, automated linear sliding tables, packaging small machinery, textile automation equipment, miniature milling machines.

Core Selling Points

1. Multiple torque grades available, covering light and medium load machining demands of CNC and 3D printing equipment

2. DM556 driver wide DC 20–50V input, compatible with most industrial DC switching power supplies on the market

3. Adjustable multi microstep subdivisions, smoother motor movement and higher machining precision

4. 3A large current output driver, fully releases the full torque performance of Nema23 stepper motors

5. Large aluminum integrated heat sink on the driver, low temperature rise under continuous heavy load operation

6. Built-in multi-layer safety protection, effectively avoid equipment damage caused by overload, short circuit and overheating

7. Simple DIP switch parameter setting, convenient debugging without complicated operation

8. In stock at Poland warehouse, fast 3–7 day delivery to every EU region

Package Includes

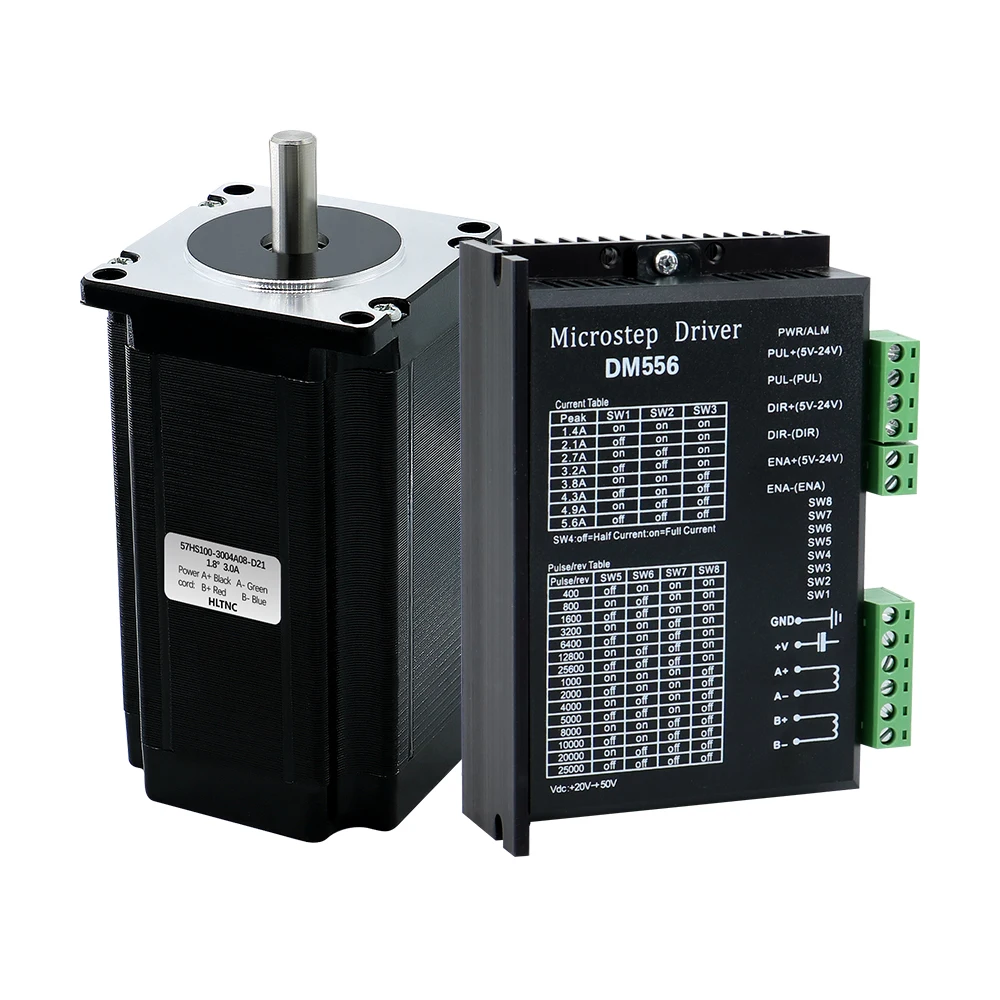

1 × Nema23 57HS Stepper Motor (torque optional)1 × DM556 Microstep Stepper Driver
