• Ship From Germany Local Warehouse, 3-7 working days delivery to all European countries.

• All-in-One Design : Motor and driver integrated into one unit, saving space and simplifying wiring

• High Performance : 3000 RPM rated speed, fast response and smooth operation

• Low Voltage Safety : DC 36V power supply, safe and reliable for industrial and DIY applications

• High Precision : Built-in encoder for accurate position and speed control

• Low Noise & Vibration : Advanced drive technology ensures quiet and stable running

• Easy Installation : Standard mounting dimensions, compatible with most mechanical systems

• Multiple Power Options : 100W/180W/200W/400W to meet different load requirements

• Wide Control Input : 3.3~24V signal input, compatible with various controllers

🔥 Product Highlights

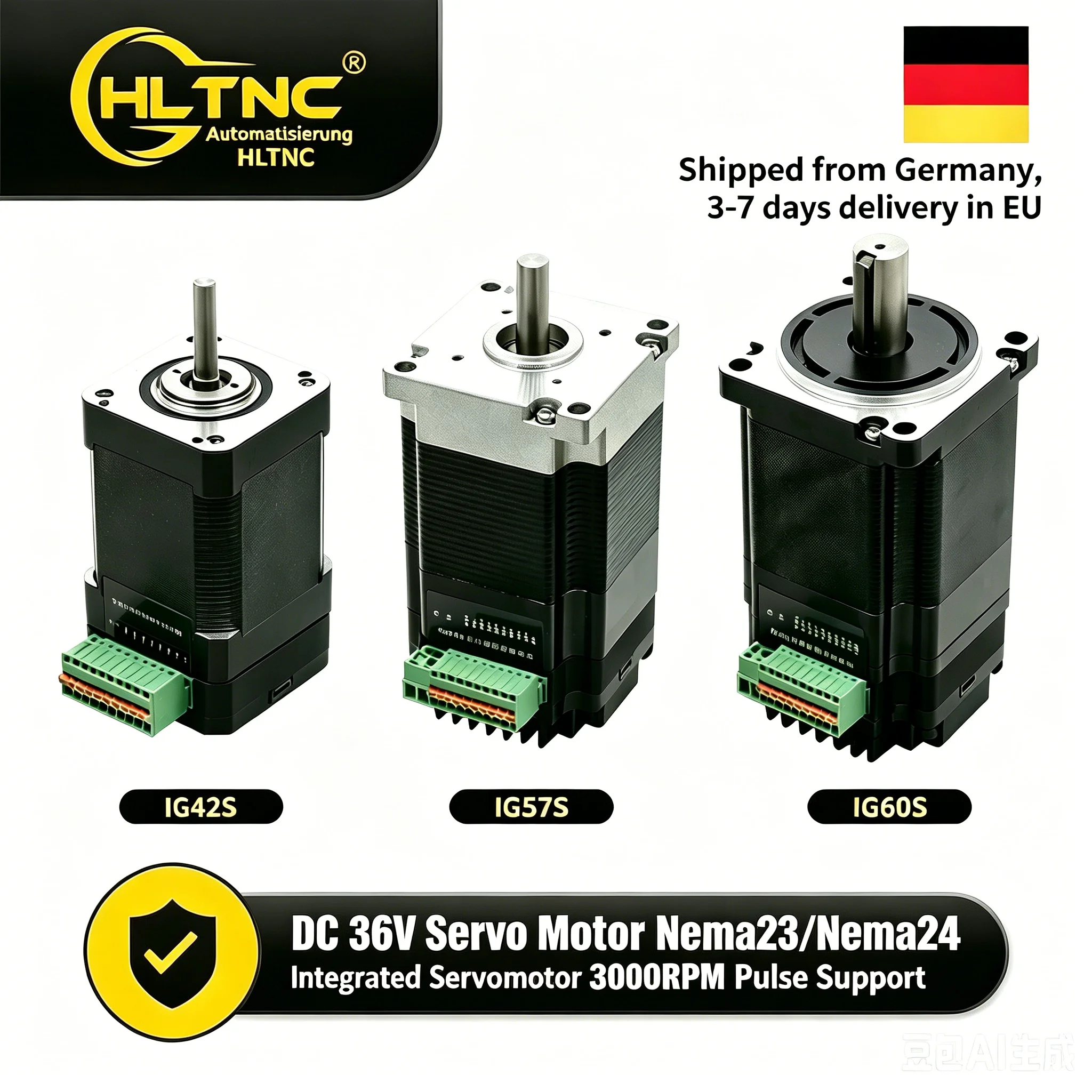

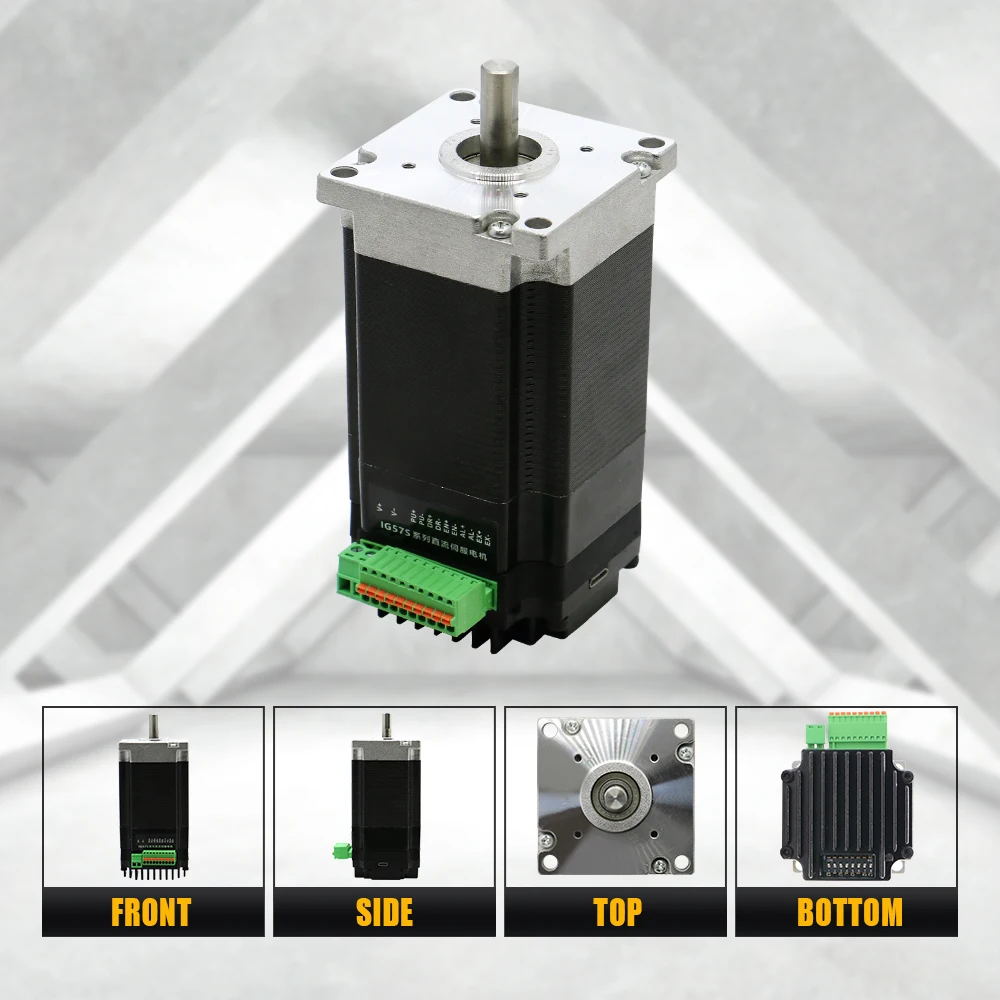

Integrated Low Voltage DC Servo Motor 36V 100W 180W 200W 400W 3000RPM All-in-One Servo Motor with Driver for CNC 3D Printer Robot

Model Number	IG57S-100W	IG57S-180W	IG60S-100W	IG60S-200W	IG60S-400W
Rated Voltage	DC 36V	DC 36V	DC 36V	DC 36V	DC 36V
Rated Current	2.8 A	5.0 A	2.0 A	4.0 A	8.0 A
Rated Torque	0.29 N.m	0.60 N.m	0.35 N.m	0.65 N.m	1.27 N.m
Rated Power	100 W	180 W	100 W	200 W	400 W
Rated Speed	3000 RPM	3000 RPM	3000 RPM	3000 RPM	3000 RPM
Control Input	3.3~24V	3.3~24V	3.3~24V	3.3~24V	3.3~24V
Encoder Output	30V 50MA	30V 50MA	30V 50MA	30V 50MA	30V 50MA
Weight	900g	1490g	885g	1305g	2130g

• Please confirm the model and specifications before purchasing

• The motor must be used with a DC 36V power supply (not included)

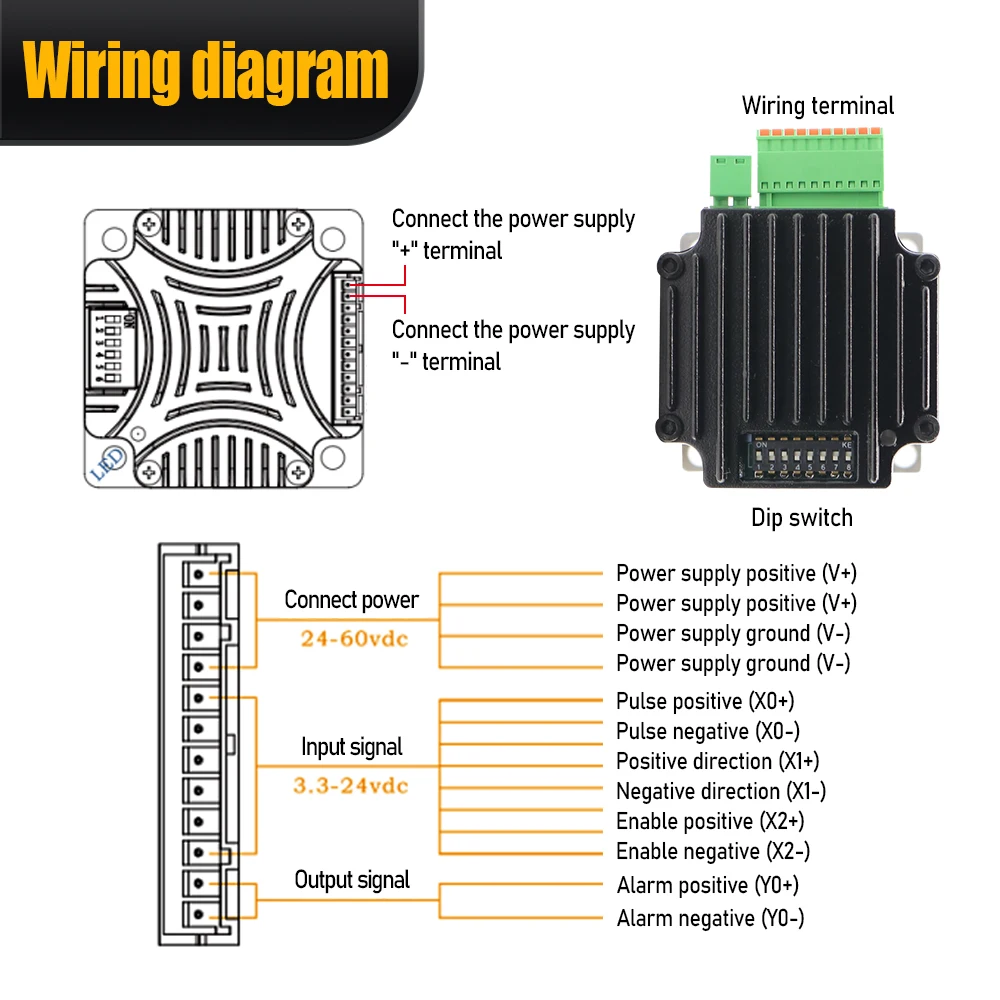

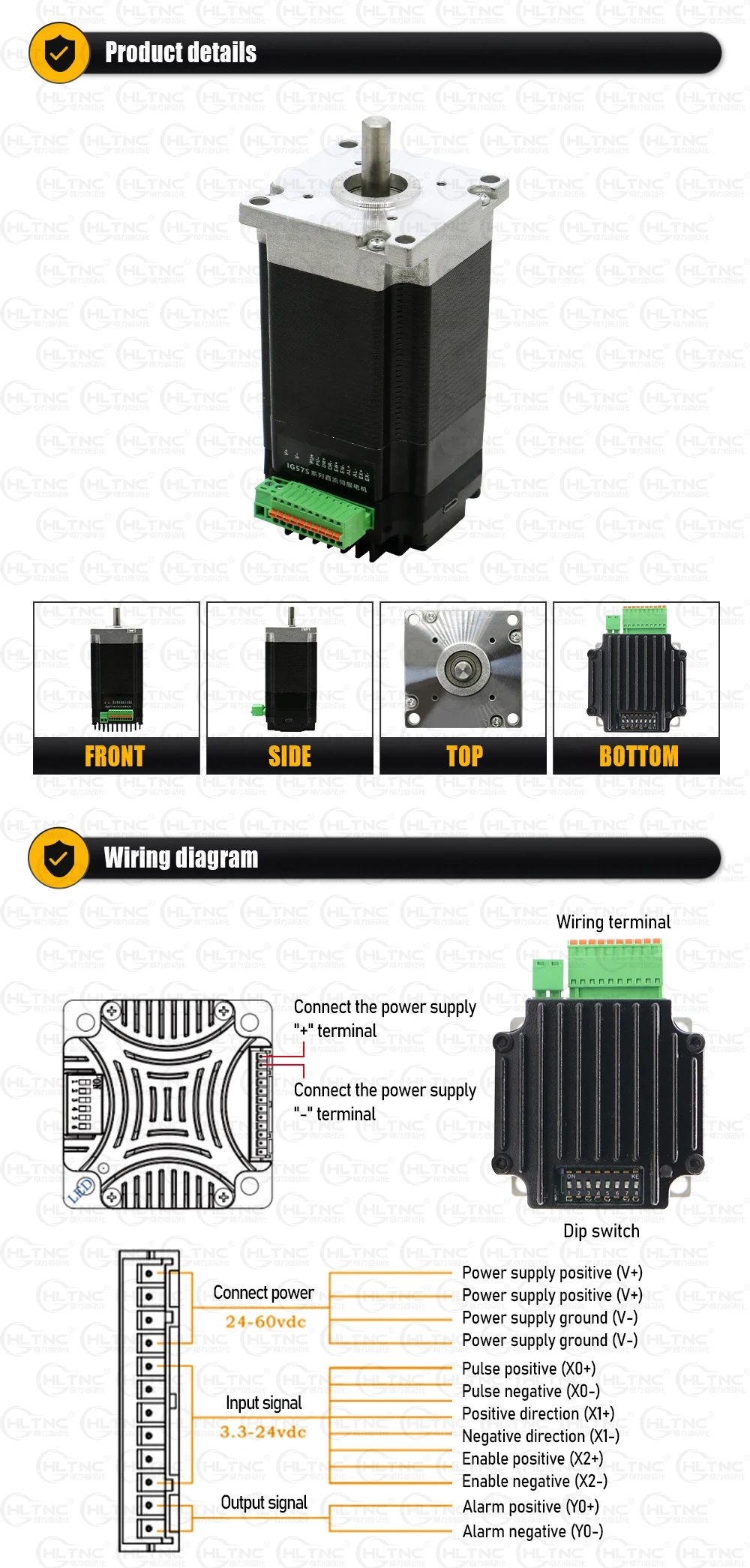

• Ensure proper wiring according to the instruction manual to avoid damage

• Do not overload the motor beyond its rated torque

• If you have any questions, please feel free to contact us, we will reply within 24 hours

⚠️ Important Notes

1 x Integrated Low Voltage DC Servo Motor (Model of your choice)

📦 Package Included

• CNC routers and engraving machines

• 3D printers and laser cutters

• Industrial robots and manipulators

• Automated production lines

• Medical equipment

• Textile machinery

• Packaging equipment

• DIY projects and hobbyist applications

🛠️ Wide Range of Applications

1. Space Saving : Eliminates the need for a separate driver, reducing installation space by 50%

2. Simplified Wiring : Only power and signal lines are required, reducing wiring errors and maintenance costs

3. High Reliability : Integrated design reduces connection points, improving system stability

4. Plug and Play : Pre-configured parameters, ready to use out of the box

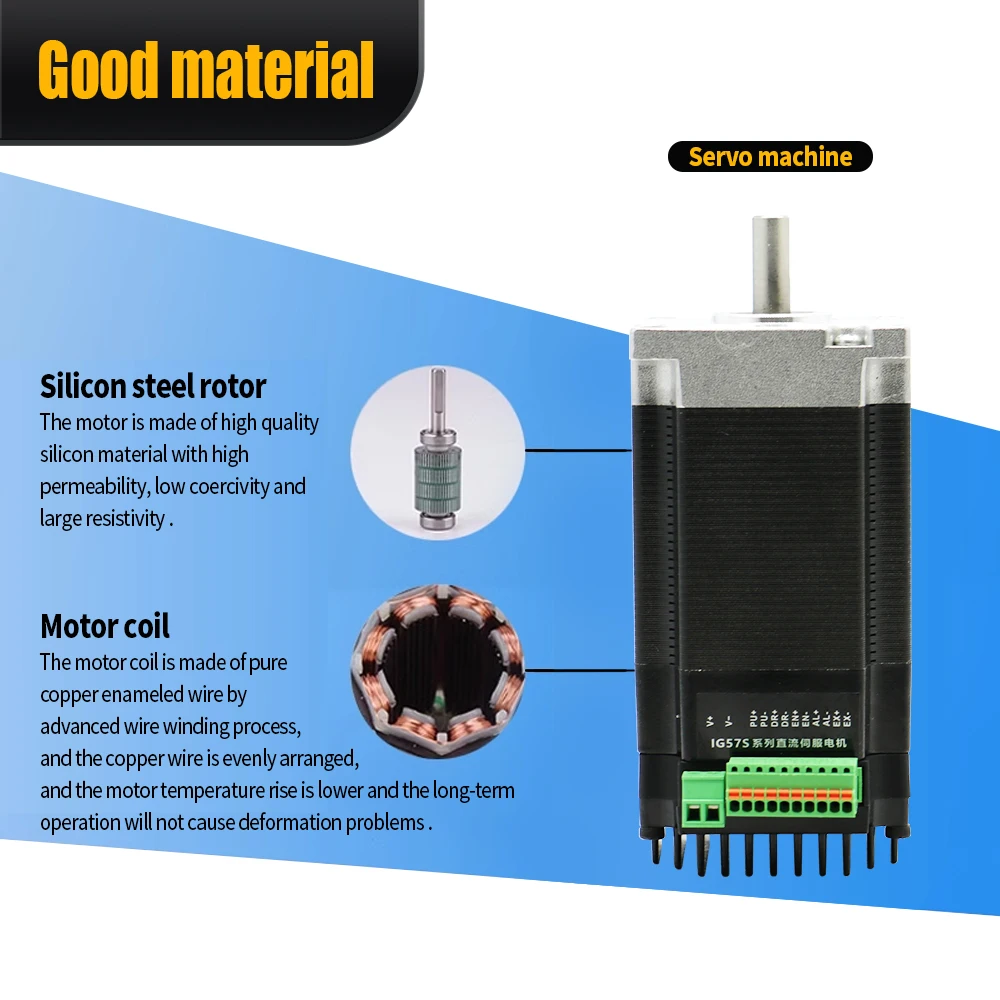

5. Excellent Heat Dissipation : Aluminum alloy housing with heat sink design for long-term stable operation

6. Overload Protection : Built-in over-current, over-voltage and over-temperature protection functions

💡 Why Choose Our Integrated Servo Motor?

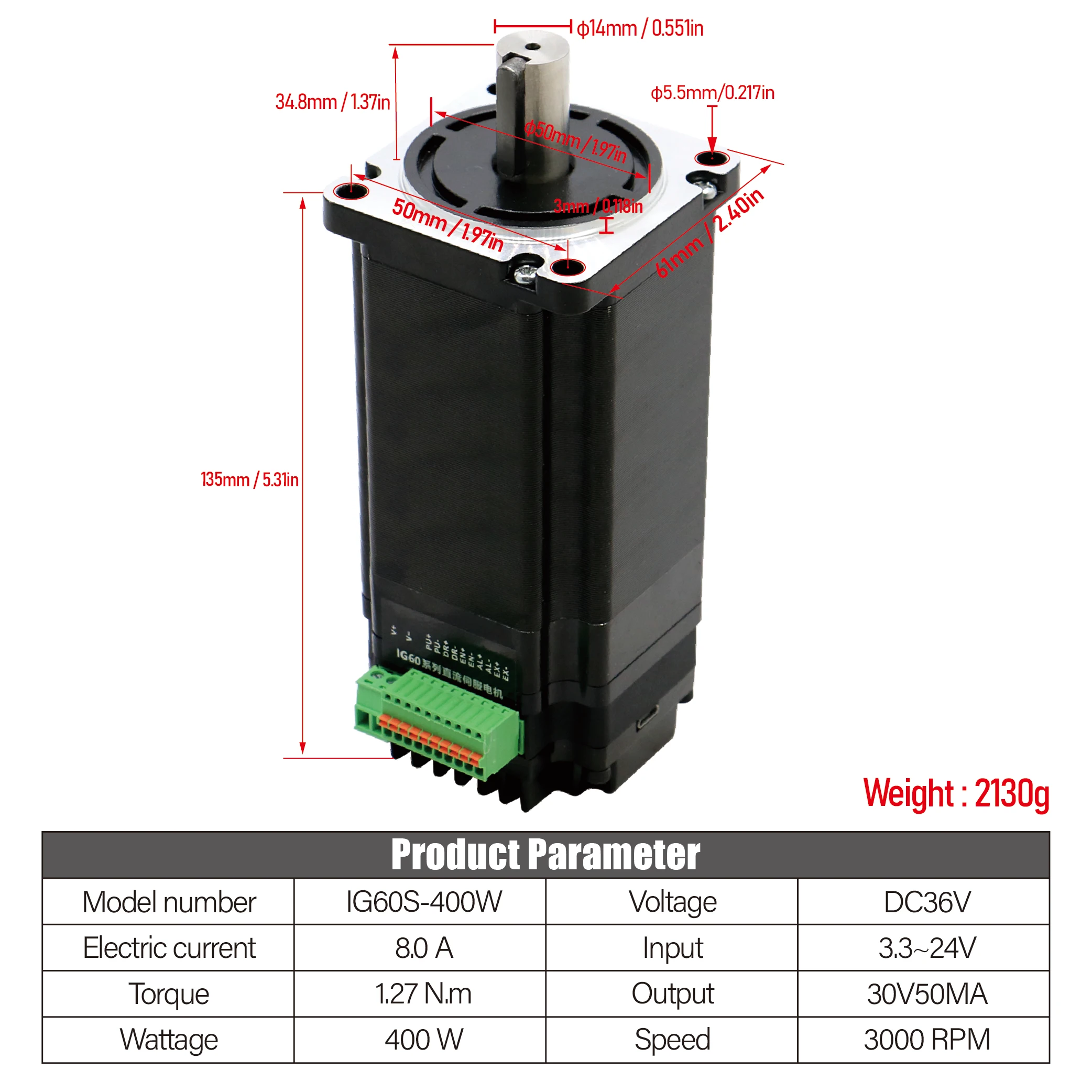

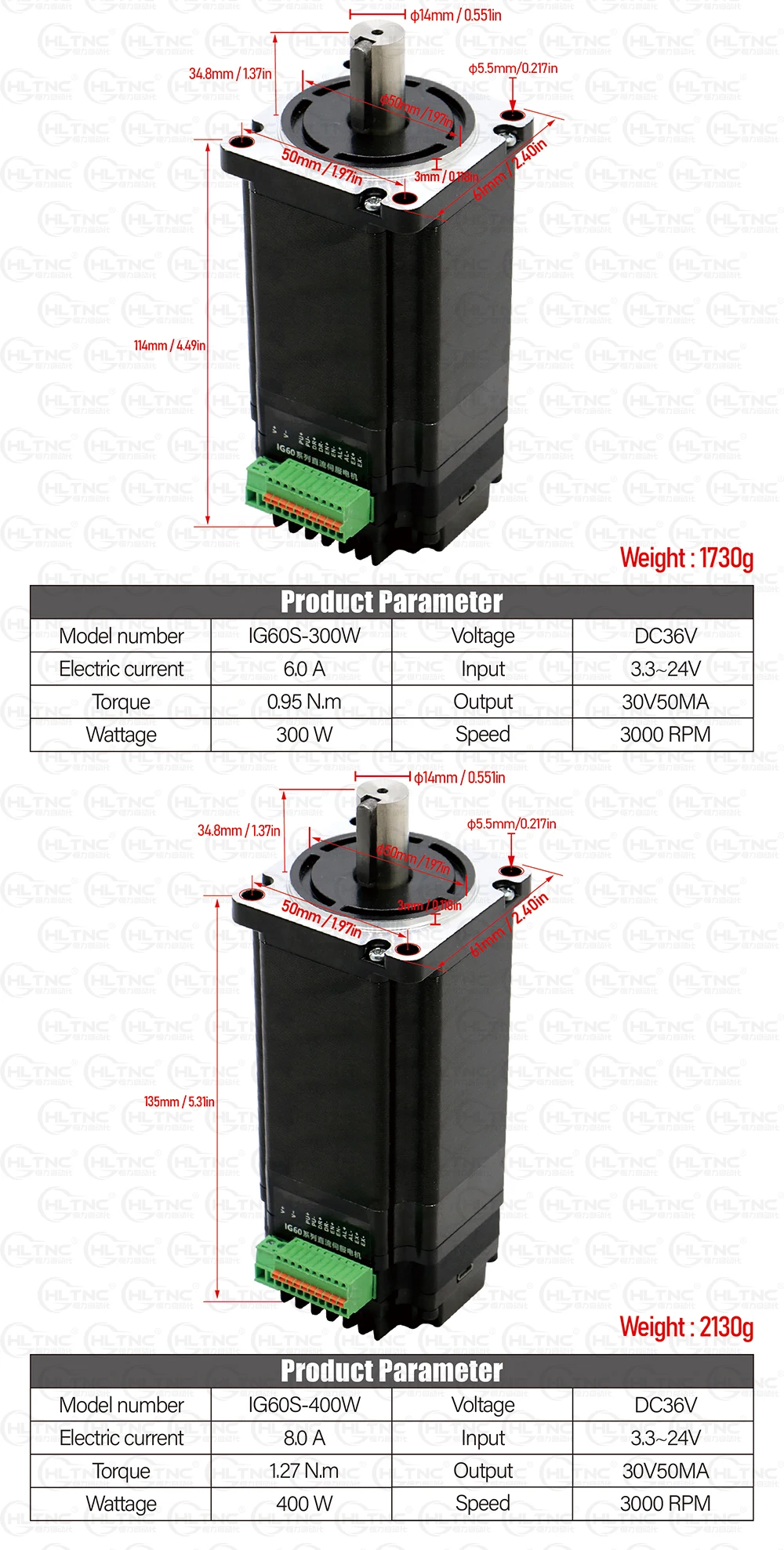

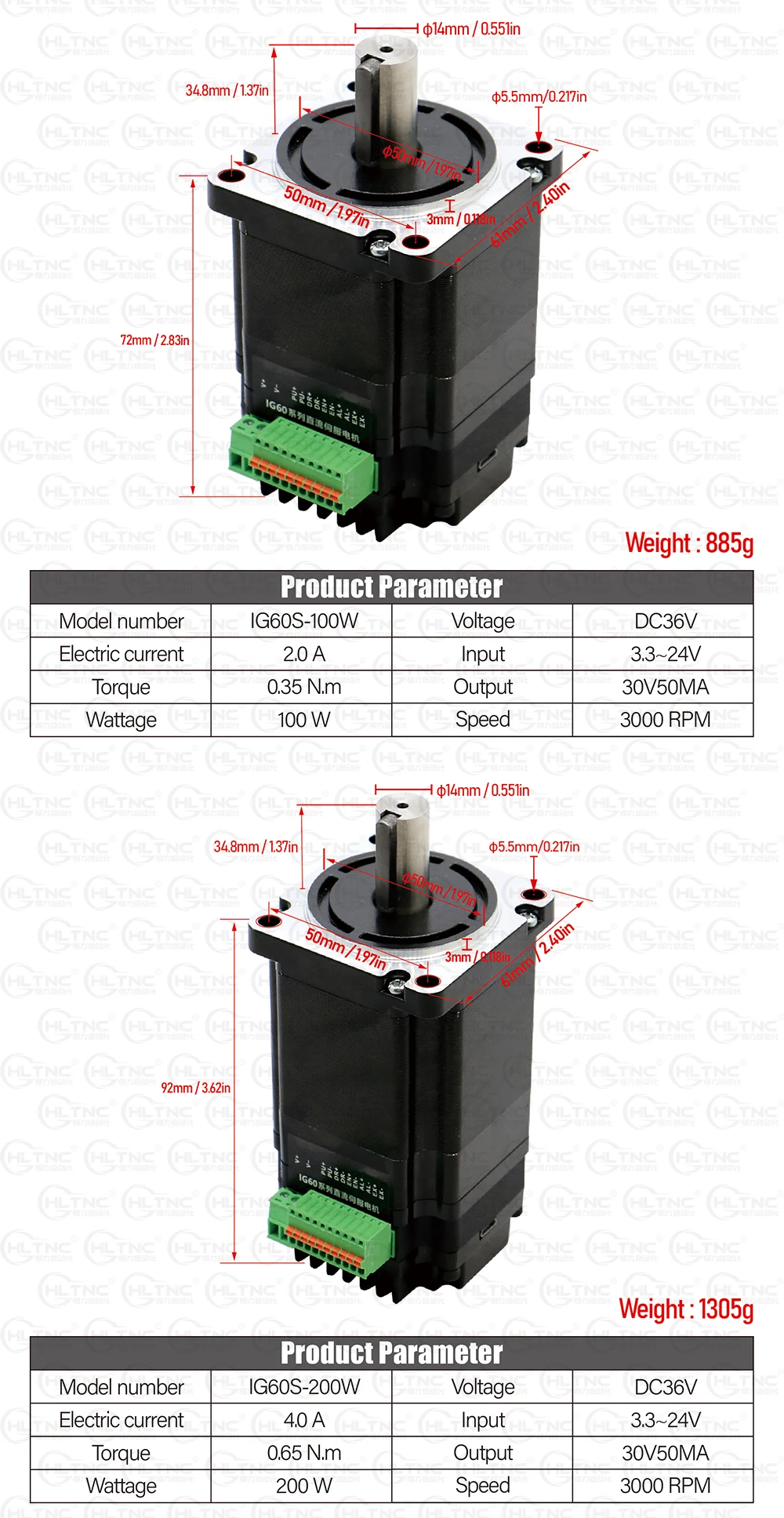

• Frame Size : 60 x 60 mm

• Shaft Diameter : φ14 mm (with keyway)

• Shaft Length : 34.8 mm

• Mounting Hole Spacing : 50 mm

• Mounting Hole Size : φ5.5 mm

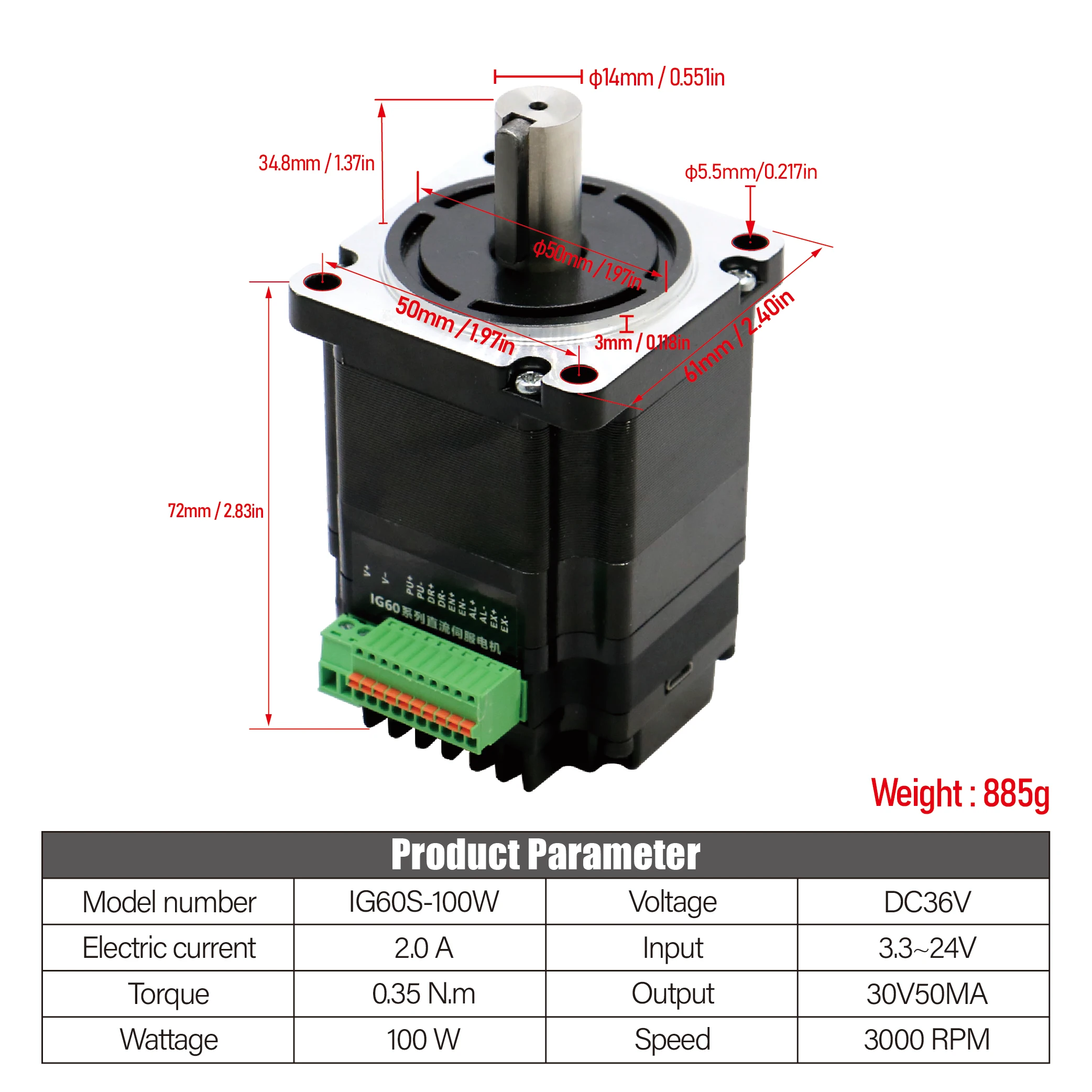

• IG60S-100W Total Length : 72 mm

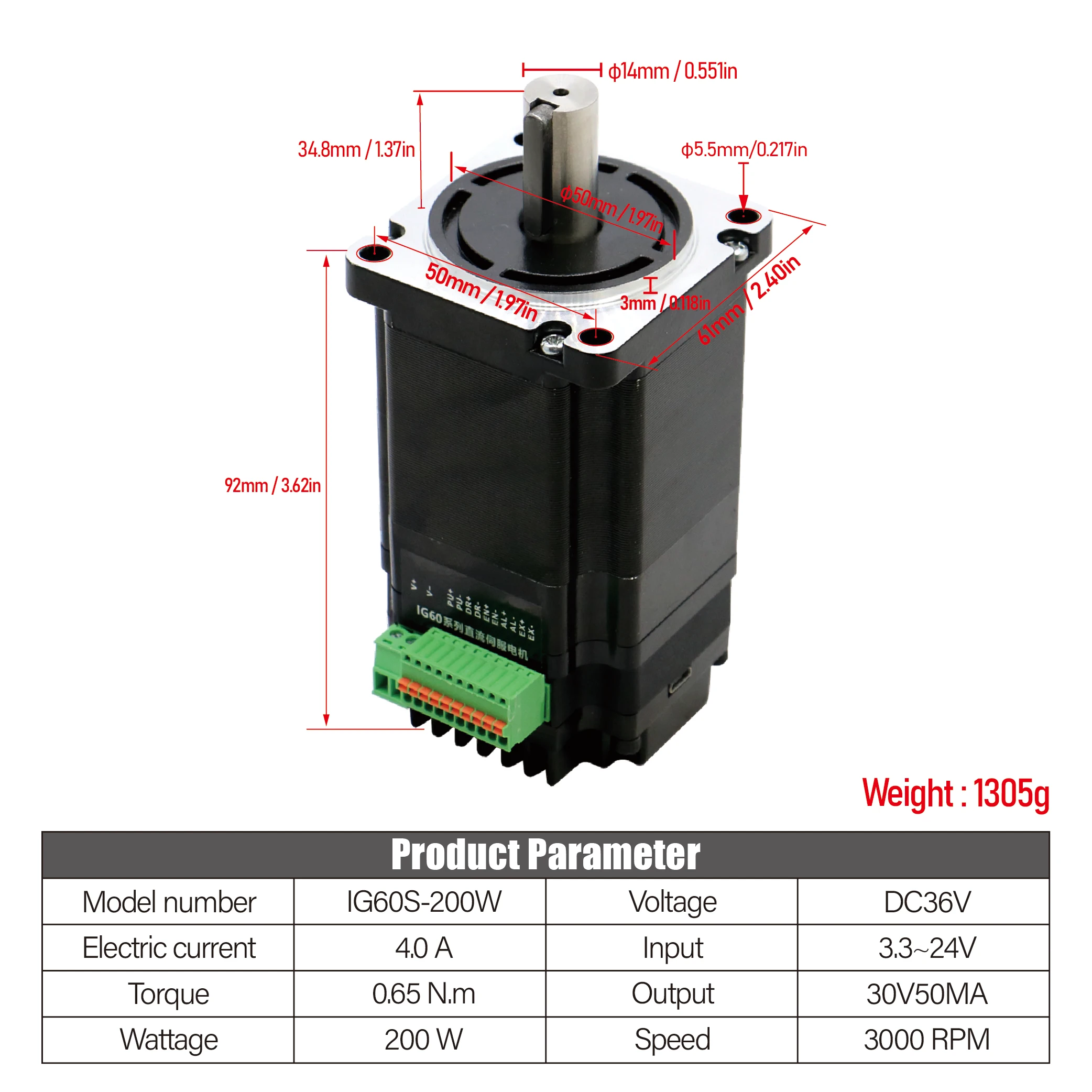

• IG60S-200W Total Length : 92 mm

• IG60S-400W Total Length : 135 mm

IG60S Series (60mm Frame)

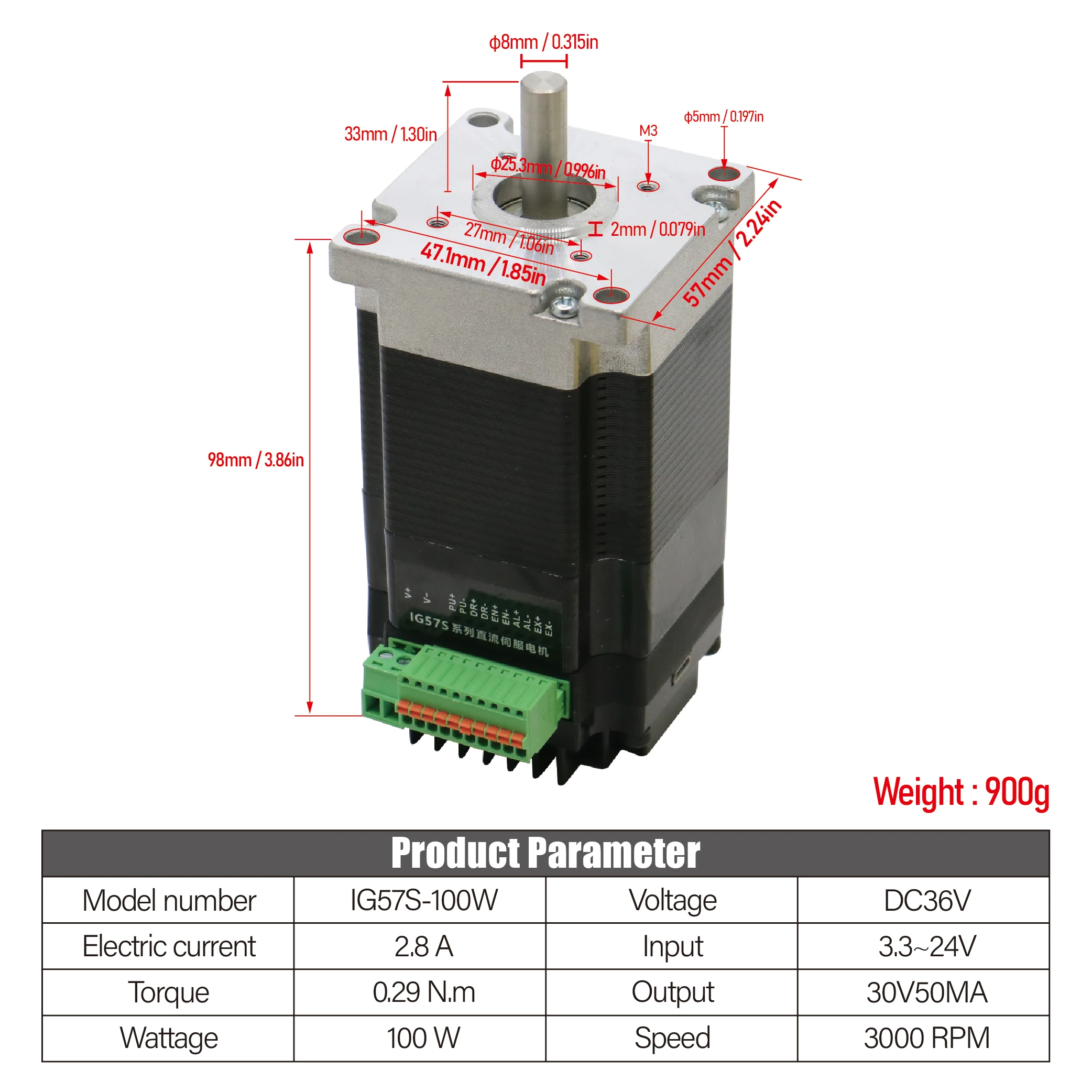

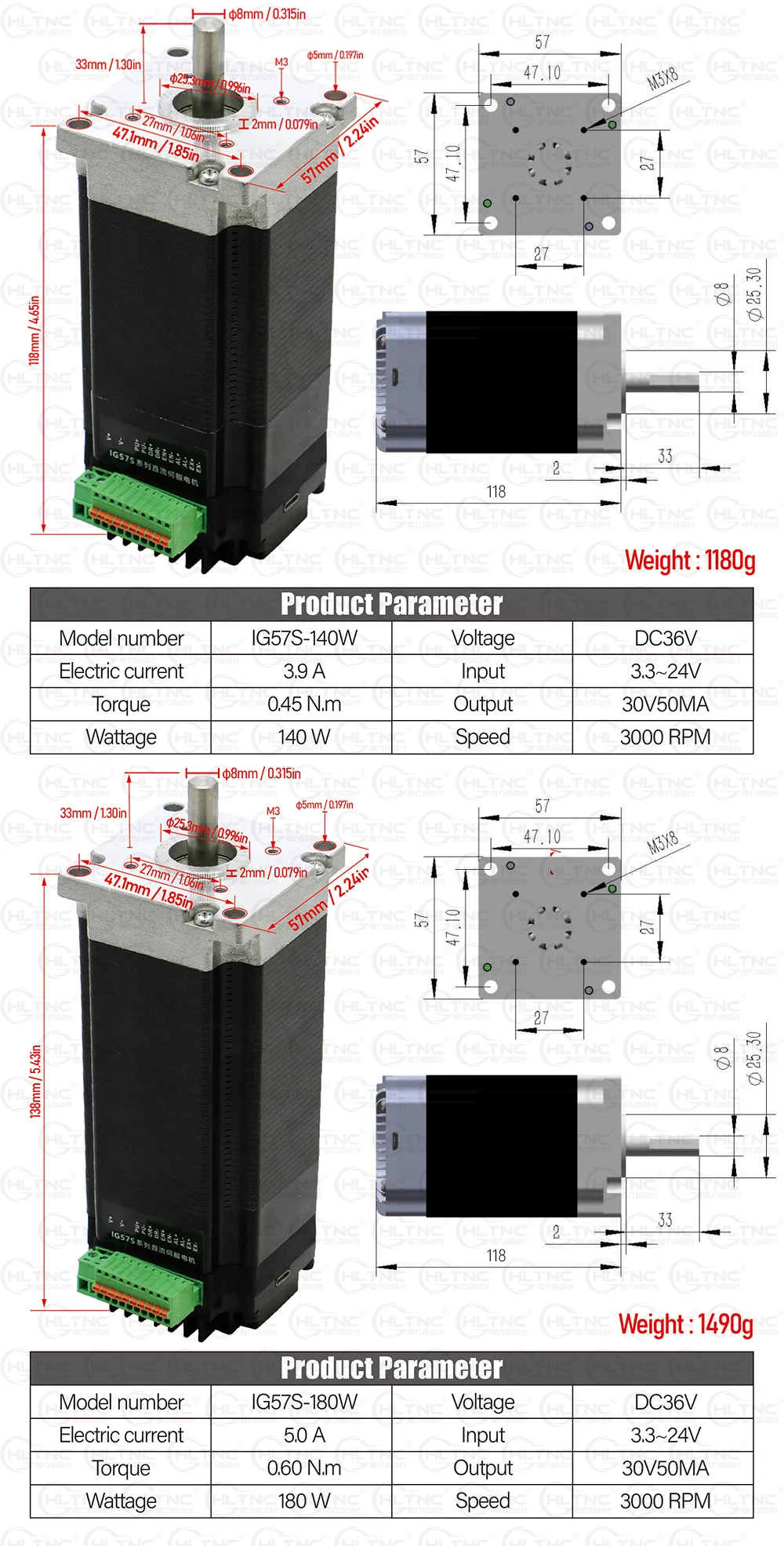

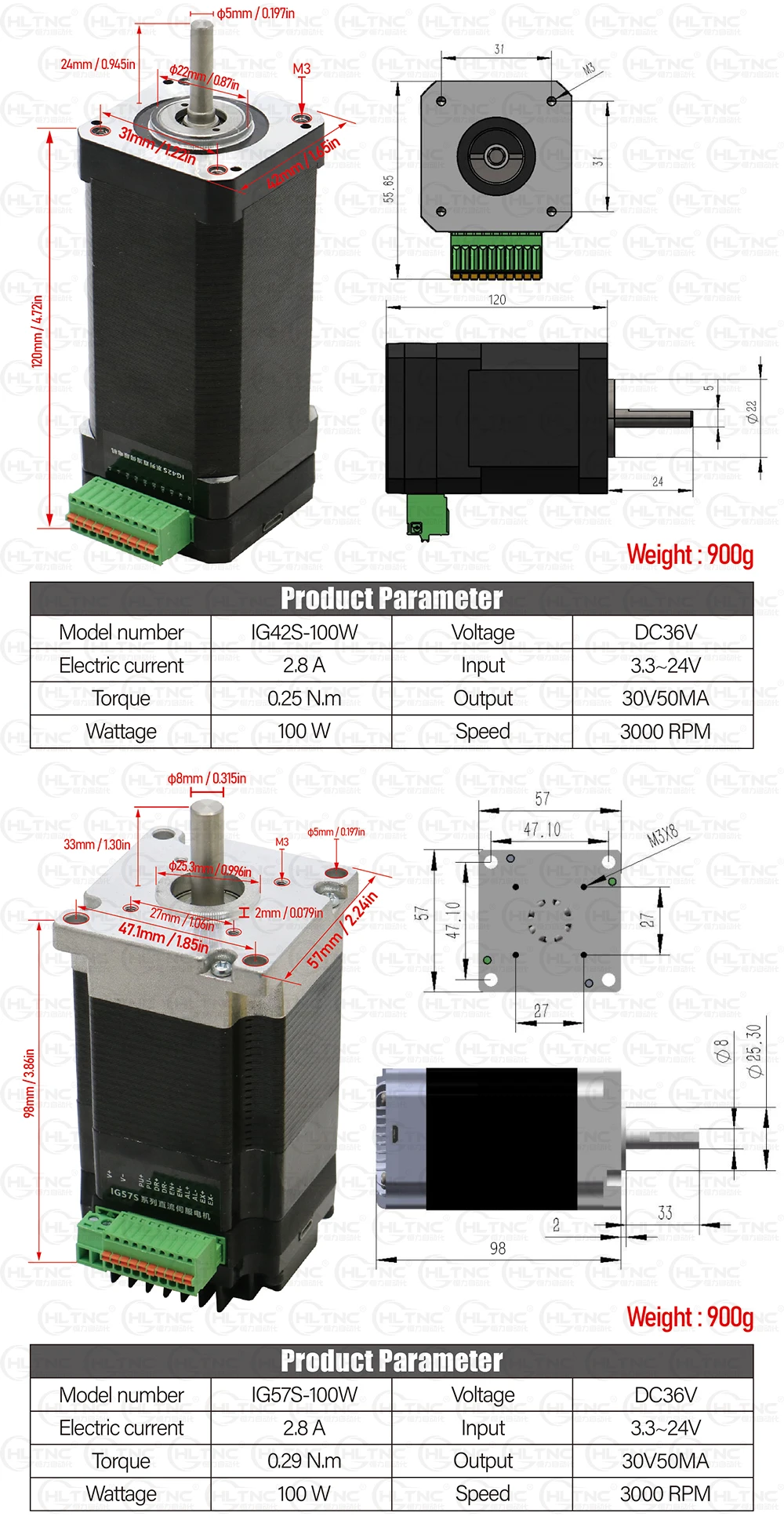

• Frame Size : 57 x 57 mm

• Shaft Diameter : φ8 mm

• Shaft Length : 25.3 mm

• Mounting Hole Spacing : 47.1 mm

• Mounting Hole Size : M3

• IG57S-100W Total Length : 98 mm

• IG57S-180W Total Length : 138 mm
