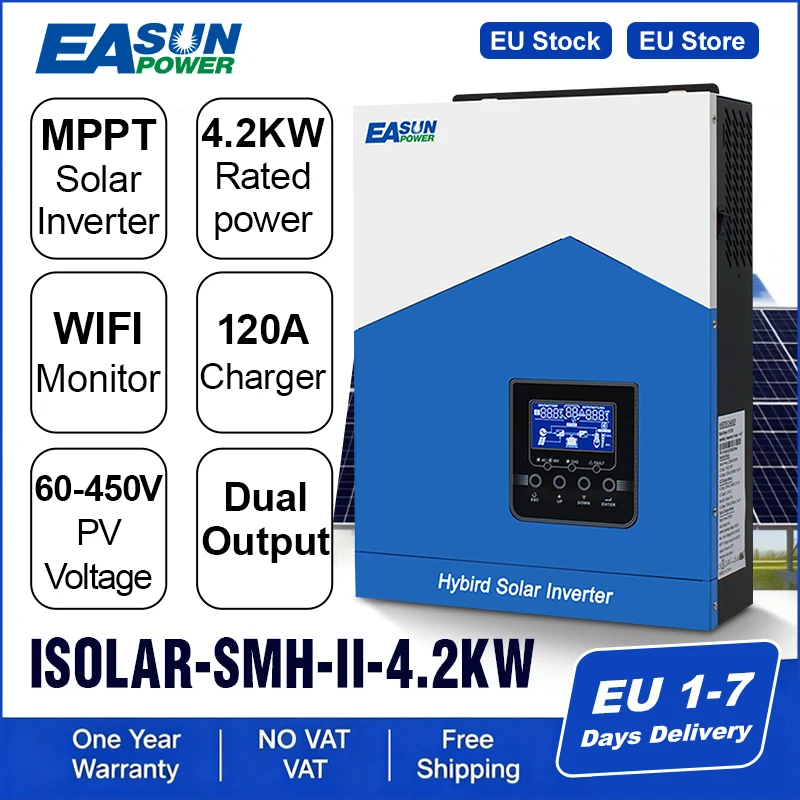

Easun Power 4200W 24V MPPT Solar Inverter Charger Hybrid Off-Grid Dual Output Pure Sine Wave 120A 230V 50/60Hz Charger Energy

Name: Easun Power 4200W 24V MPPT Solar Inverter Charger Hybrid Off-Grid Dual Output Pure Sine Wave 120A 230V 50/60Hz Charger Energy
Brand: EASUN POWER
SKU: 3256811380789533
Price: 310.73 USD
Availability: InStock

Stock Disponible: 43 unidades

SKU: 3256811380789533

Cantidad

$310.73

Precio final con envío

Envío gratis

Desglose de costo

Precio del producto: $302.46
Fee de Servicio MiCyberCompras: $8.27
Costo de envío estimado: Gratis
Costo Final Garantizado:: $310.73

Envío EE.UU.: USPS / UPS Ground.
Costo Visible: Sin sorpresas ocultas.
Tracking Real: Alertas por SMS/Email.
Pago Seguro: Cifrado por Stripe.

¿Por qué elegir MiCyberCompras?

Costo total visible
Sin sorpresas ni comisiones ocultas antes de pagar.
Alertas proactivas
Te notificamos cada cambio de estado automáticamente.
Tracking real
Enlace oficial con número de guía verificado.
Devoluciones garantizadas
Política transparente de ajuste de precios y gestión de cambios.

Atributos del producto

Brand Name: EASUN POWER, Origin: Mainland China, EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc, Certification: CE, Size: 44*38*36cm, Output Frequency: 50/60hz, Output Type: DUAL, EANCode: 6916986521231, is_customized: Yes, Output Current: 18.2A, Weight: 9.25KG, Is Smart Device: Yes, Model Number: ISOLAR-SMH-III-4.2KW, Solar Charger Type: MPPT, Type: Off grid inverter, Rated power: 4200W, Max PV Array Power: 6200W, Charging Current: 120A, MPPT Voltage Range: 60-450VDC, Maximum lnput Current: 18A, Wifi: included, for remotely monitor, Communication: RJ485, wifi, Dual Output: only in Battery Mode

Tamaño del paquete

440×380×360 mm

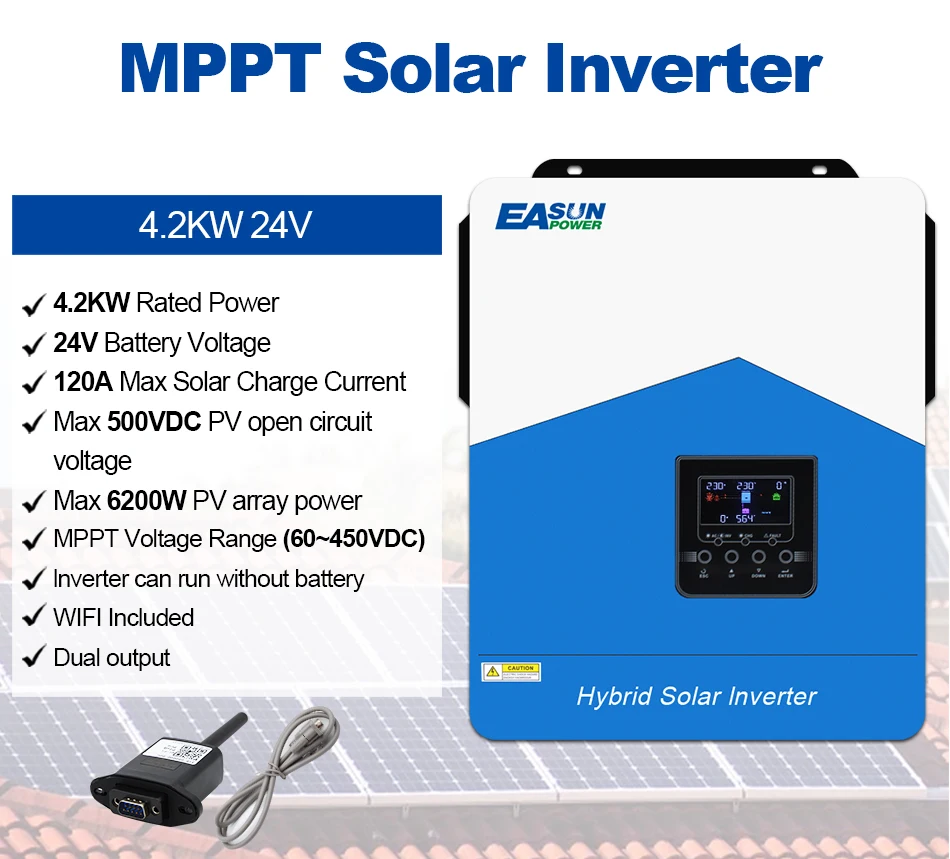

Easun Power 6200w/48v 4200w/24v MPPT Hybrid Off Grid Dual Output Pure Sine Wave 120a 230v 50/60hz Solar Inverter Charger

INTRODUCTION

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-confiqurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

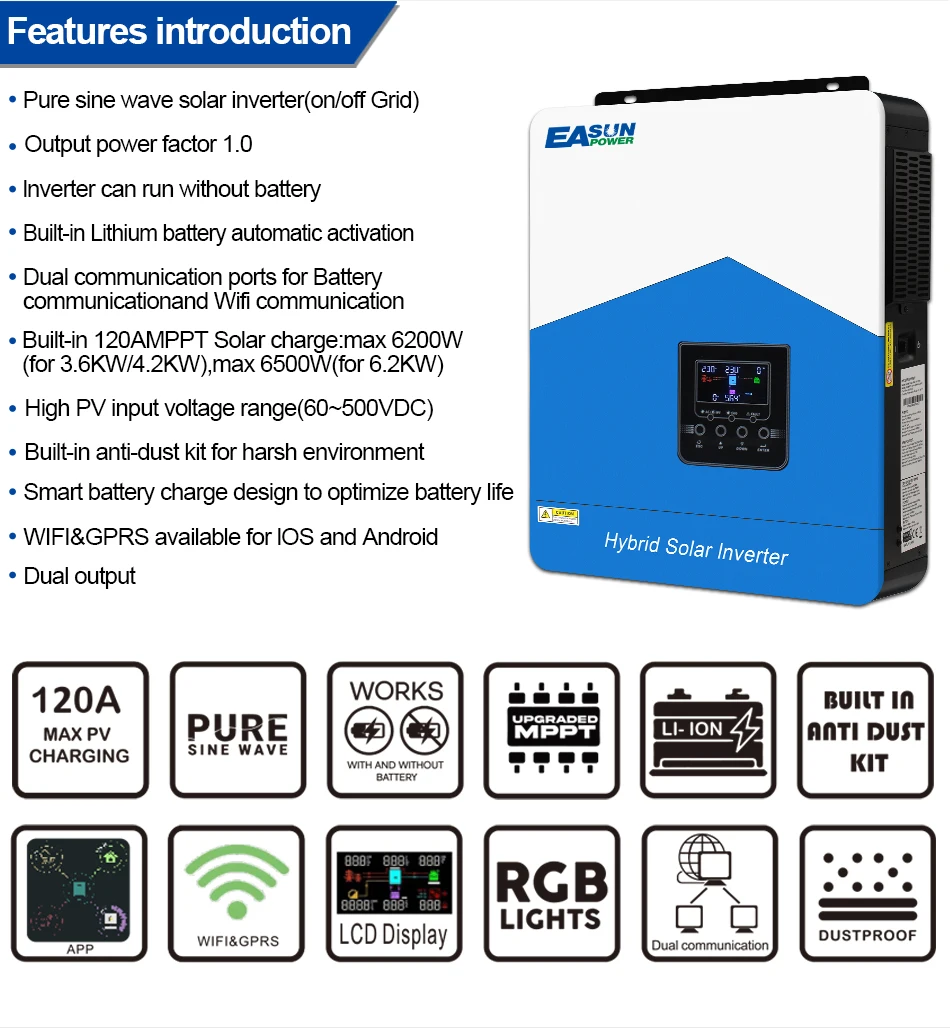

Features

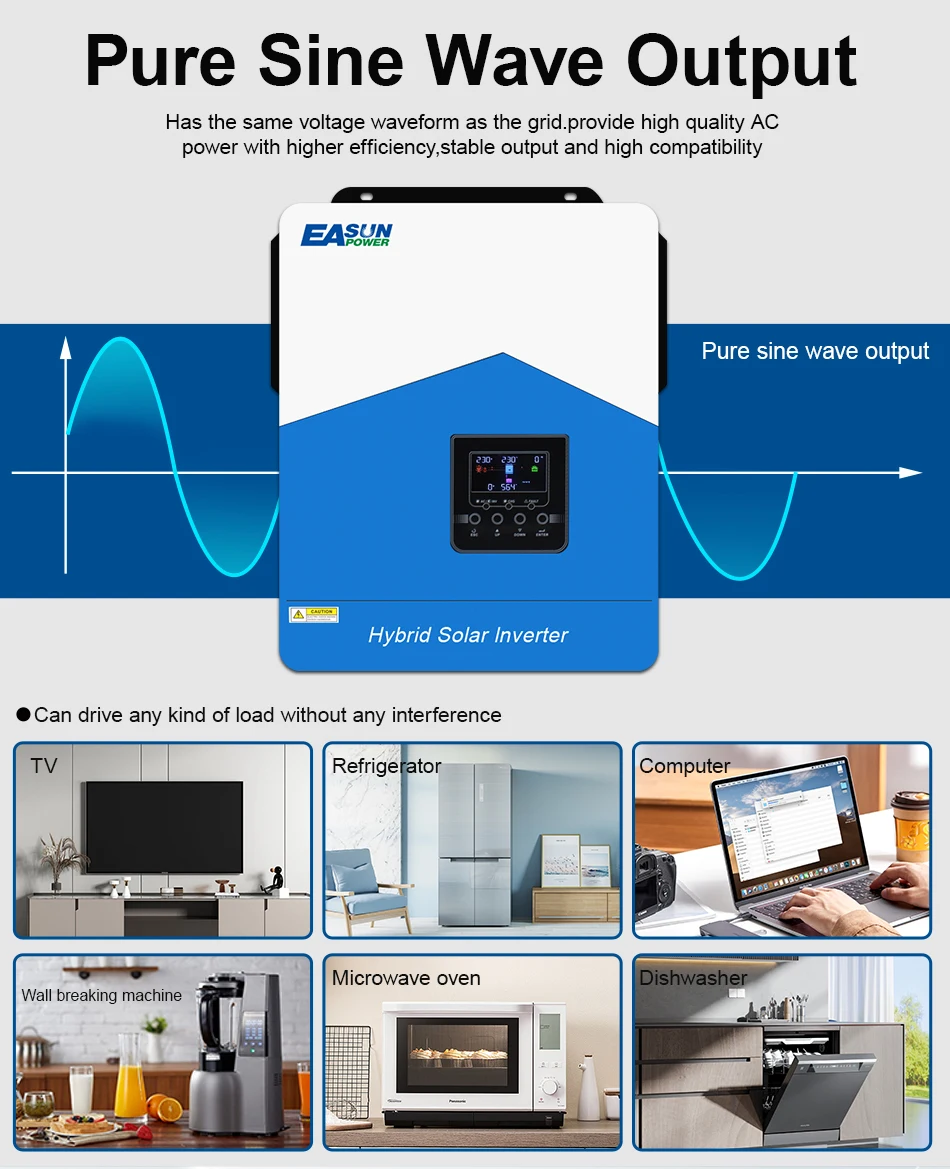

1. Pure sine wave inverter

2. Configurable input voltage range for home appliances and personal computers via LCD setting

3. Configurable battery charging current based on applications via LCD setting

4. Configurable AC/Solar Charger priority via LCD setting

5. Compatible to mains voltage or generator power

6. Auto restart while AC is recovering

7. Overload/Over temperature/ short circuit protection

8. Smart battery charger design for optimized battery performance

9. Cold start function

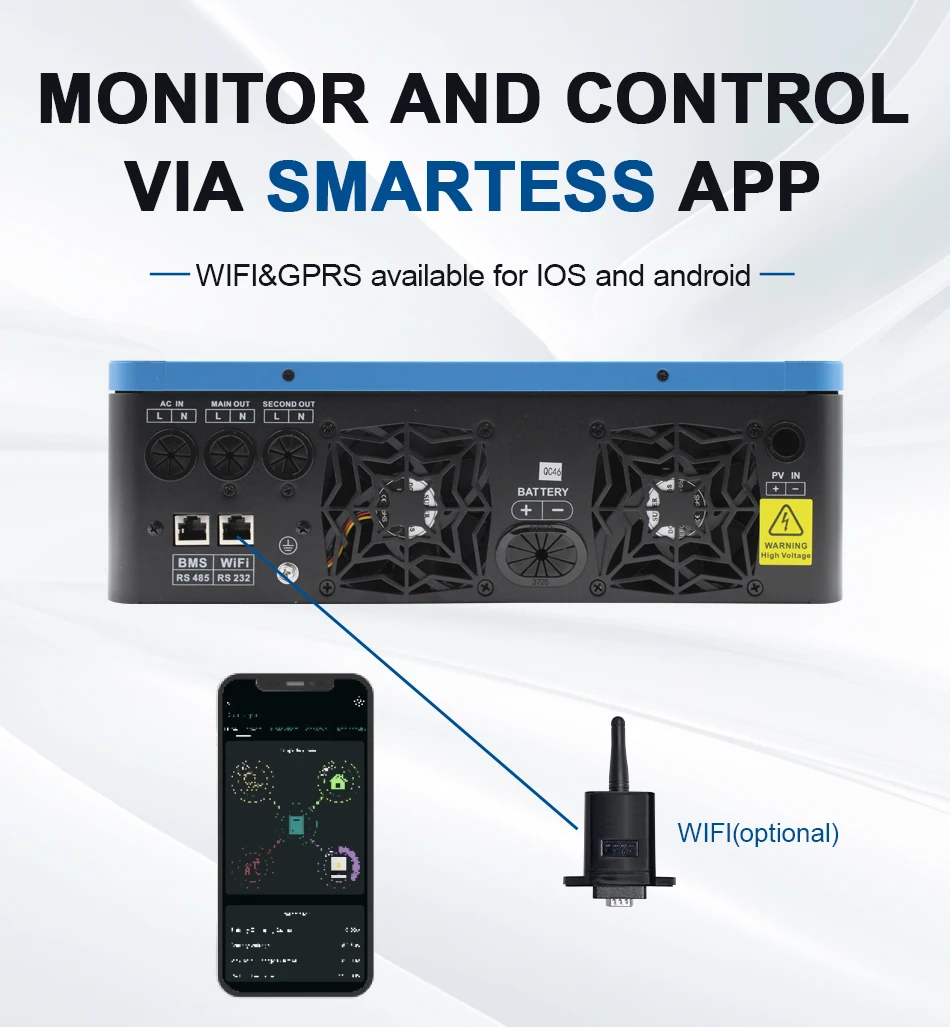

10. Wifi included for remotely monitor

MODEL	ISolar-SMH-III-4.2KW-WIFI	ISolar-SMH-III-6.2KW-WIFI
Phase	1-phase
Maximum PV lnput Power	6200W	6500W
Rated Output Power	4200W/4200VA	6200W/6200VA
Maximum Solar Charging Current	120A
GRID-TIE OPERATION

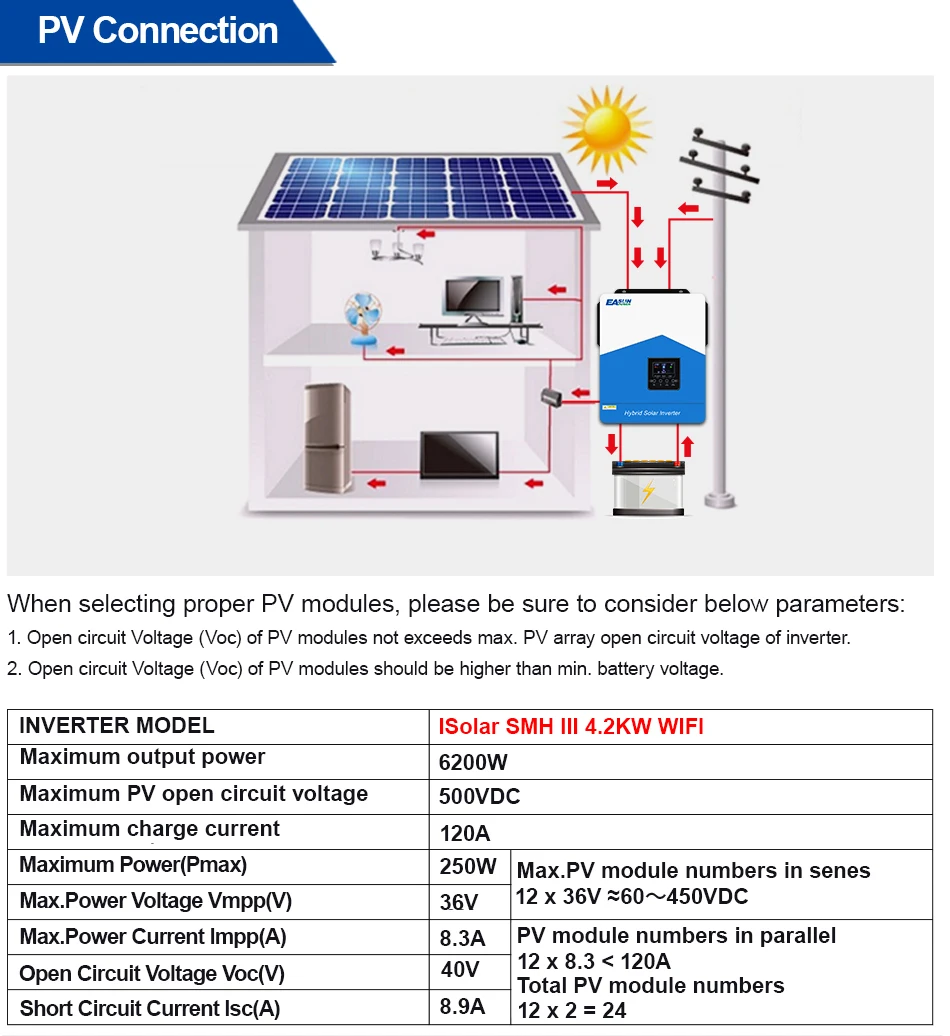

PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage	360/500VDC
Start-up Voltage/lnitial Feeding Voltage	60VDC/90VDC
MPPT Voltage Range	60-450VDC
Maximum Input Current	1/18A	1/22A
GRID OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	195-253VAC
Nominal Output Current	18.2A	27.0A
Power Factor	>0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)	98%
TWO LOAD OUTPUT POWER
Full Load	4200W	6200W
Maximum Main Load	4200W	6200W
Maximum Second Load (battery mode)	1400W	2067W
Maximum Load Cut Off Voltage	26VDC	52VDC
Maximum Load Return Voltage	27VDC	54VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage	120-140VAC/180VAC
Acceptablel Input Voltage Range	90-280VAC or 170-280VAC
Frequency Range	59-61±1Hz
Maximum AC input Current	24.7A	36.4A
PV INPUT (DC)
Nominal DC Voltage/Maximum DC Voltage	360/500VDC
MPPT Voltage Range	60-450VDC
Maximum Input Current	1/18A	1/22A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	220/230/240VAC
Output Wave Form	Pure sine wave
Efficiency(DC to AC)	94%
BATTERY&CHARGER

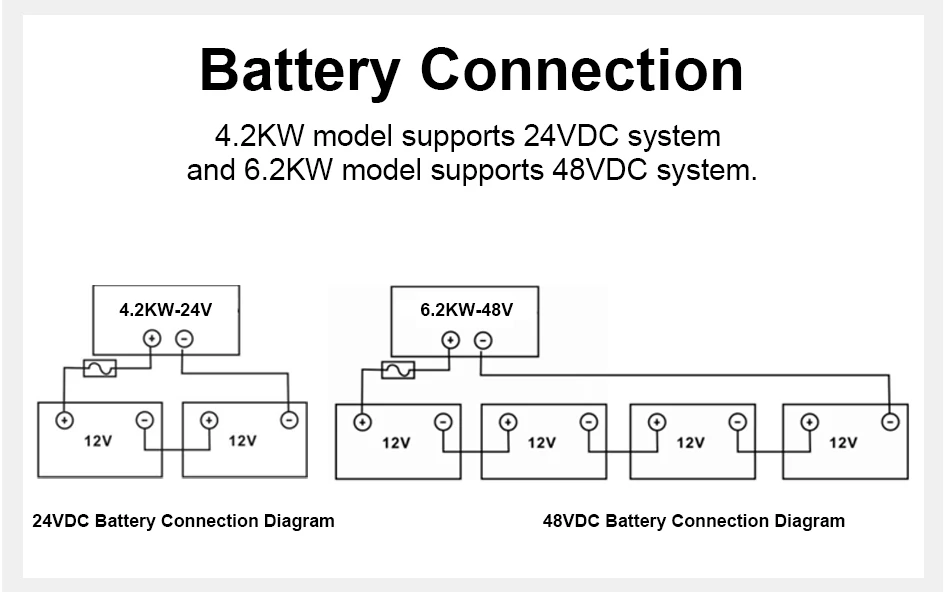

Nominal DC Voltage	24VDC	48VDC
Maximum Solar Charging Current	120A	120A
Maximum AC Charging Current	100A	100A
Maximum Sotar+AC Charging Current	120A	120A
HYBRID OPERATION
PV INPUT (DC)
Nominal DC Voltage/Maximum DC Voltage	360/500VDC
Start-up Voltage/lnitial Feeding Voltage	90VDC/120VDC
MPPT Voltage Range	60-450VDC
Maximum lnput Current	1/18A	1/22A
GRID OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	195-253VAC
Nominal Outpu tCurrent	18.2A	27A
AC INPUT
AC Start-up Voltage Auto Restart Voltage	120-140VAC/180VAC
Acceptable lnput Voltage Range	90-280VAC or 170-280VAC
Maximum AC Input Current	24.7A	36.4A
Maximum Charging Current	100A
GENERAL
PHYSICAL
Dimension,HWD(mm)	420350110
Cartoon Dimension,HWD(mm)	500415180
Net Weight(kgs)	8	8.9
Gross Weight(kgs)	9	10

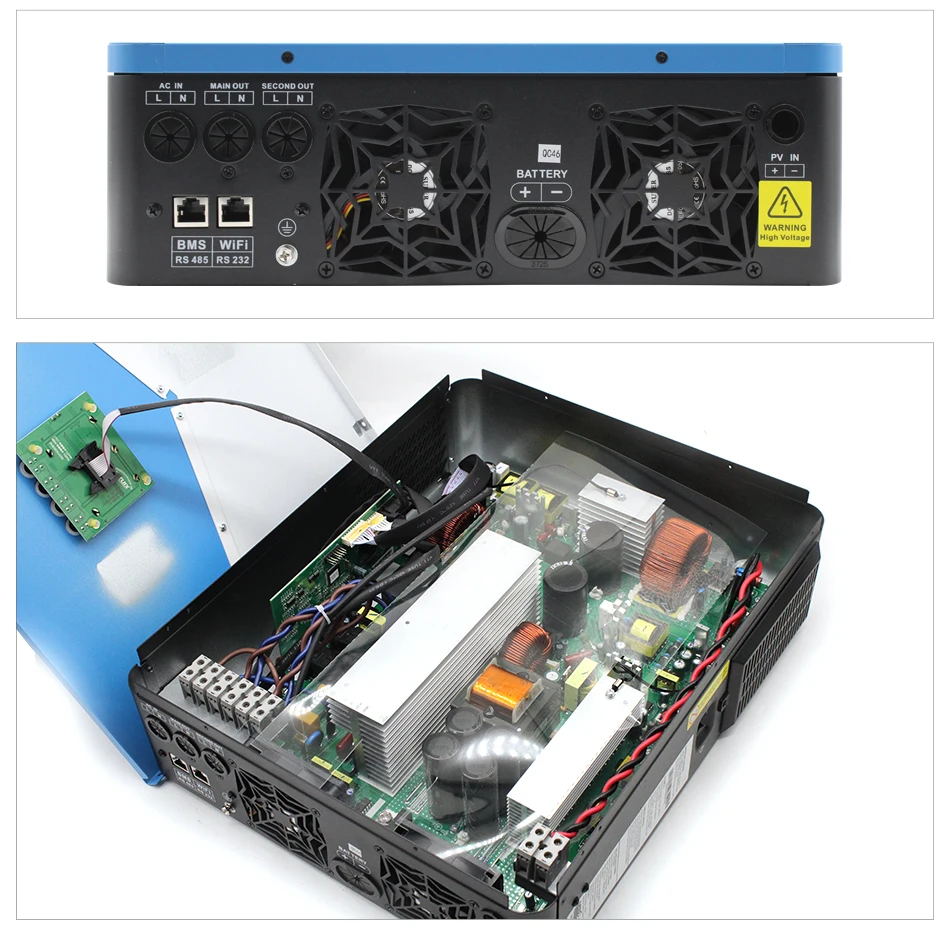

INTERACE
Communication Port	RS232/RS485/WIFI/GPRS/LITHIUM BATTERY
ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non~condensing)
Operating Temperature	-10℃～50℃
STANDARD
Compliance Safety	CE
