1000/2000/3000/5000W Voltage Transformer 220V to 110V AC Voltage Converter Home Power Supply US/EU/UK/JP Socket/Plug Transfer

1000/2000/3000/5000W Voltage Transformer

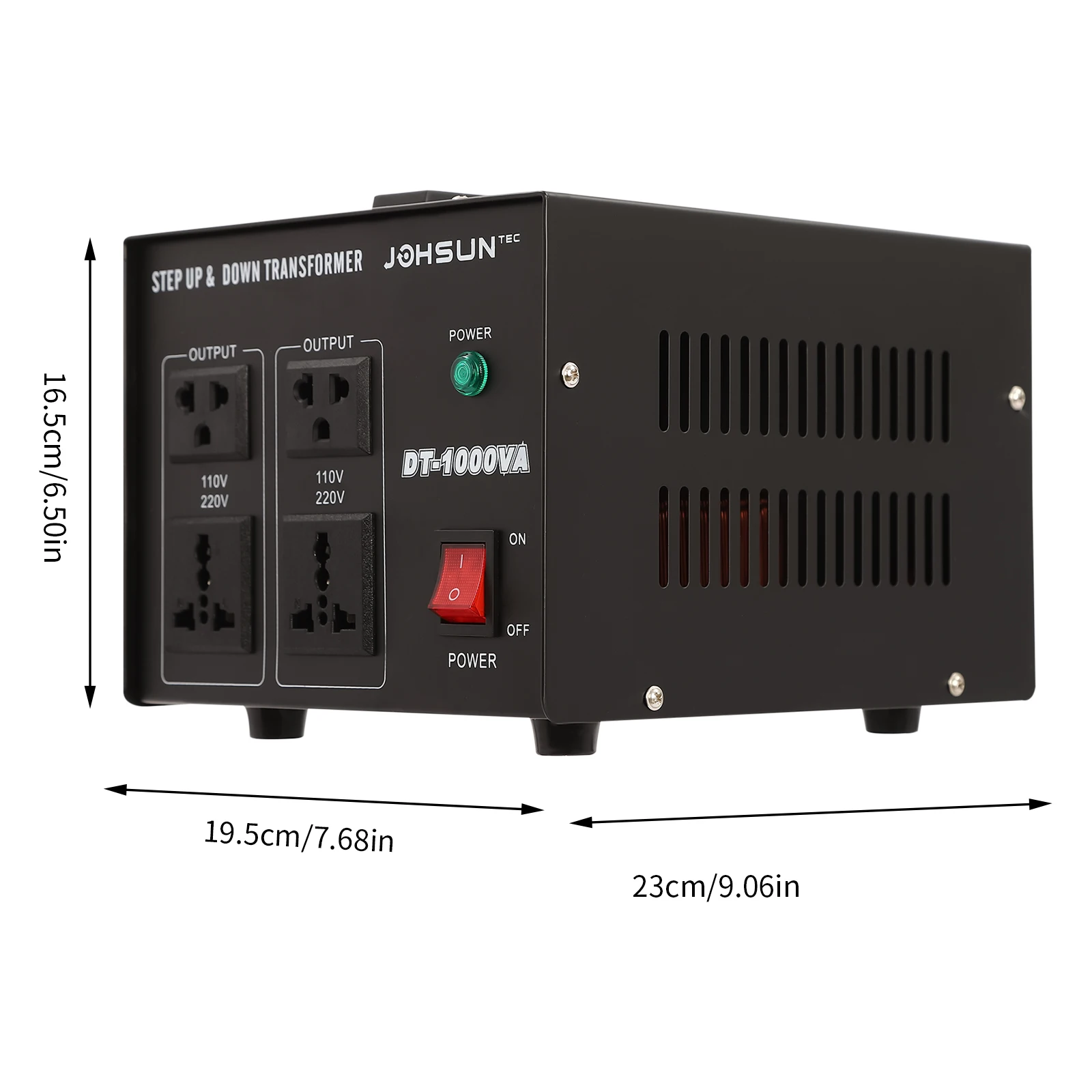

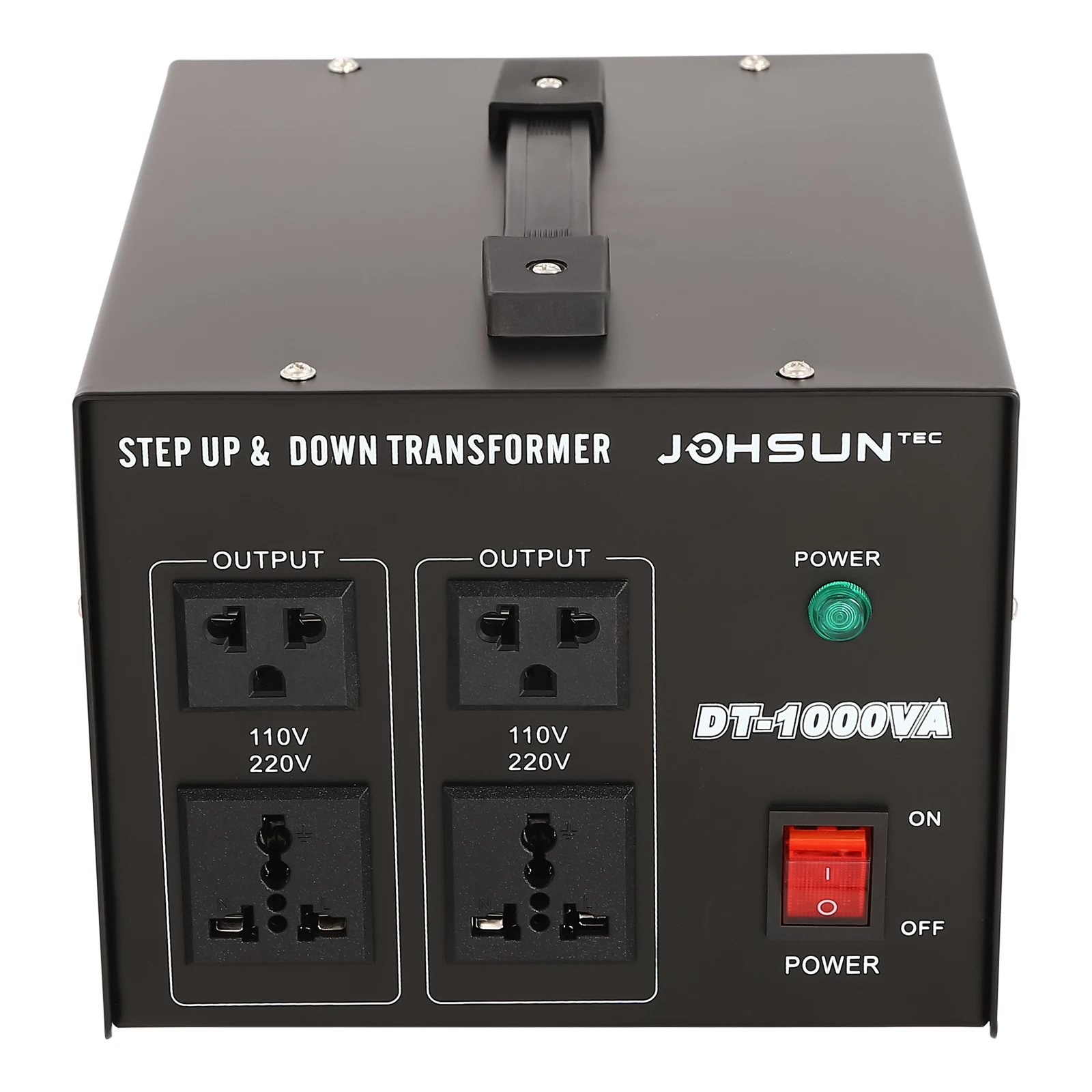

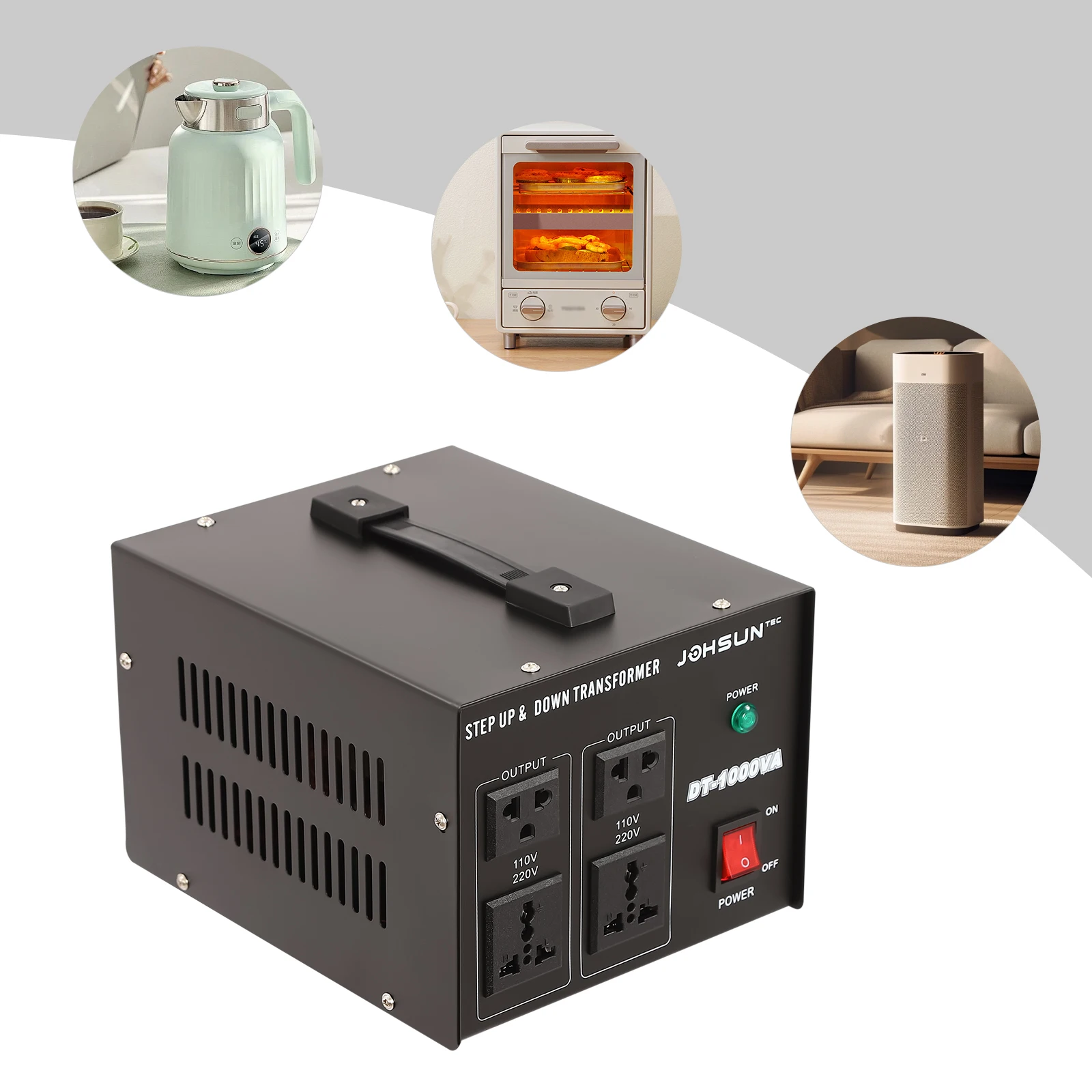

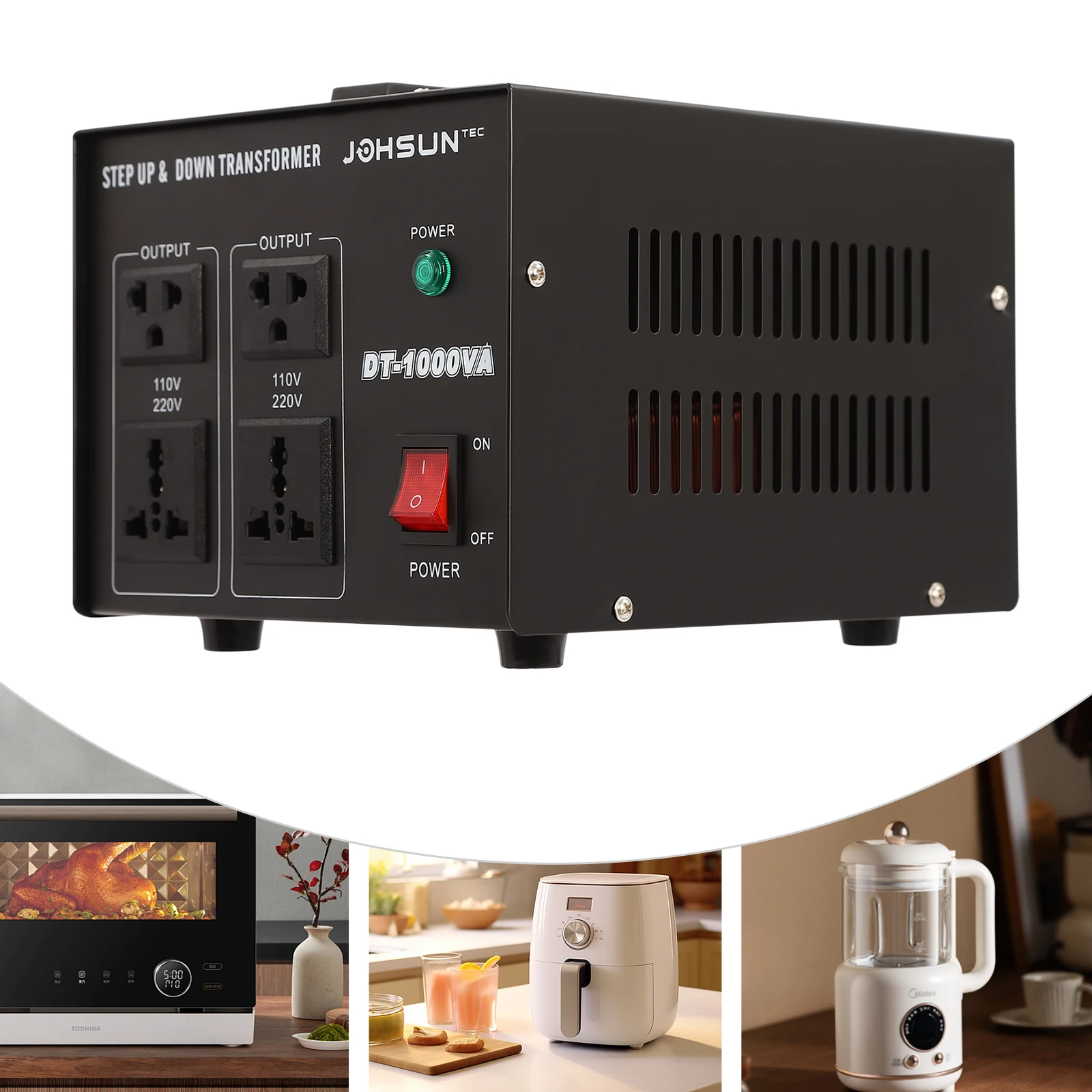

1000W Transformer Specification

Model No.: DT-1000VA

Shell Material: Iron

Protection Mode: Overload Protector

Rated Capacity: 1KVA

Rated Power: 800W

Output Voltage: 110V 220V

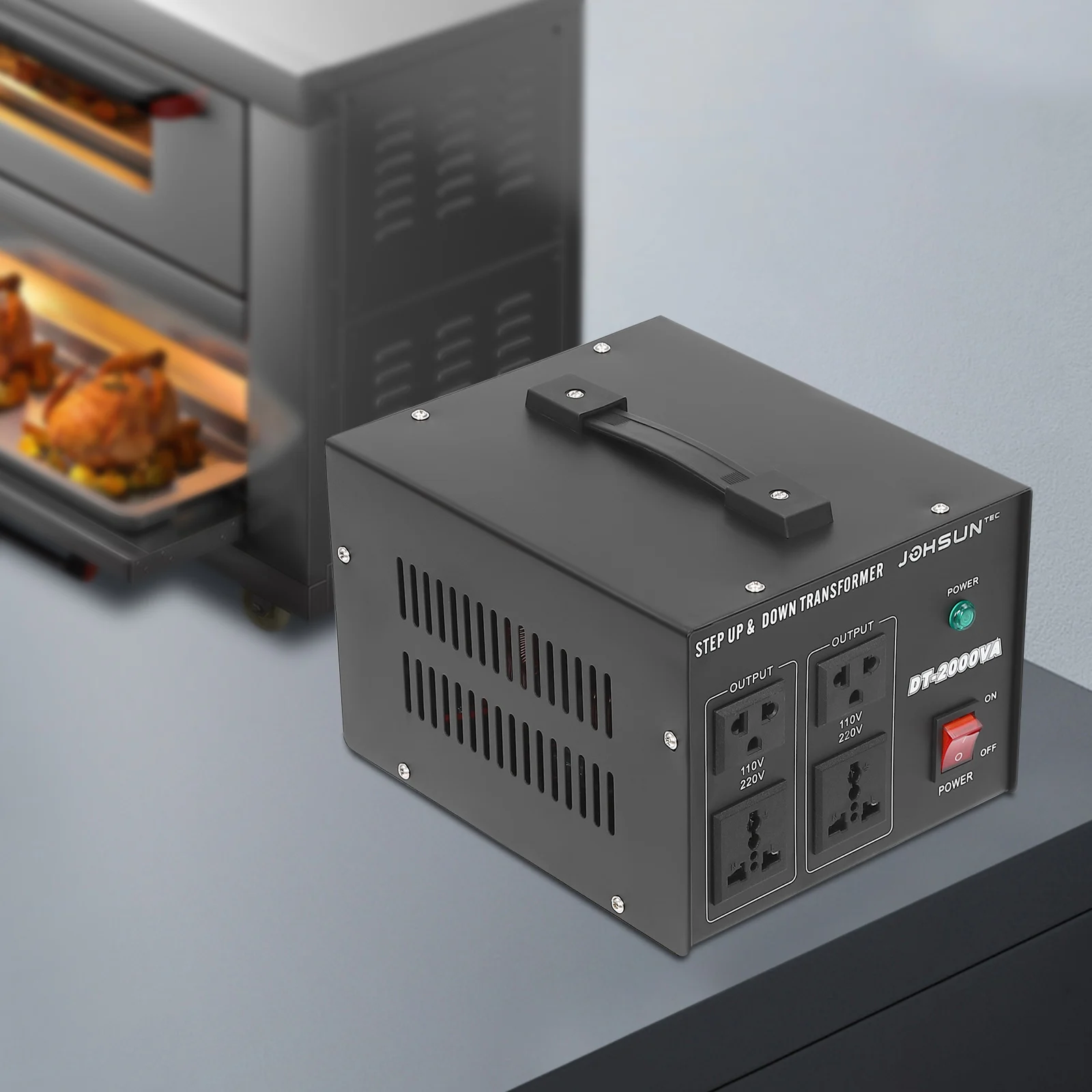

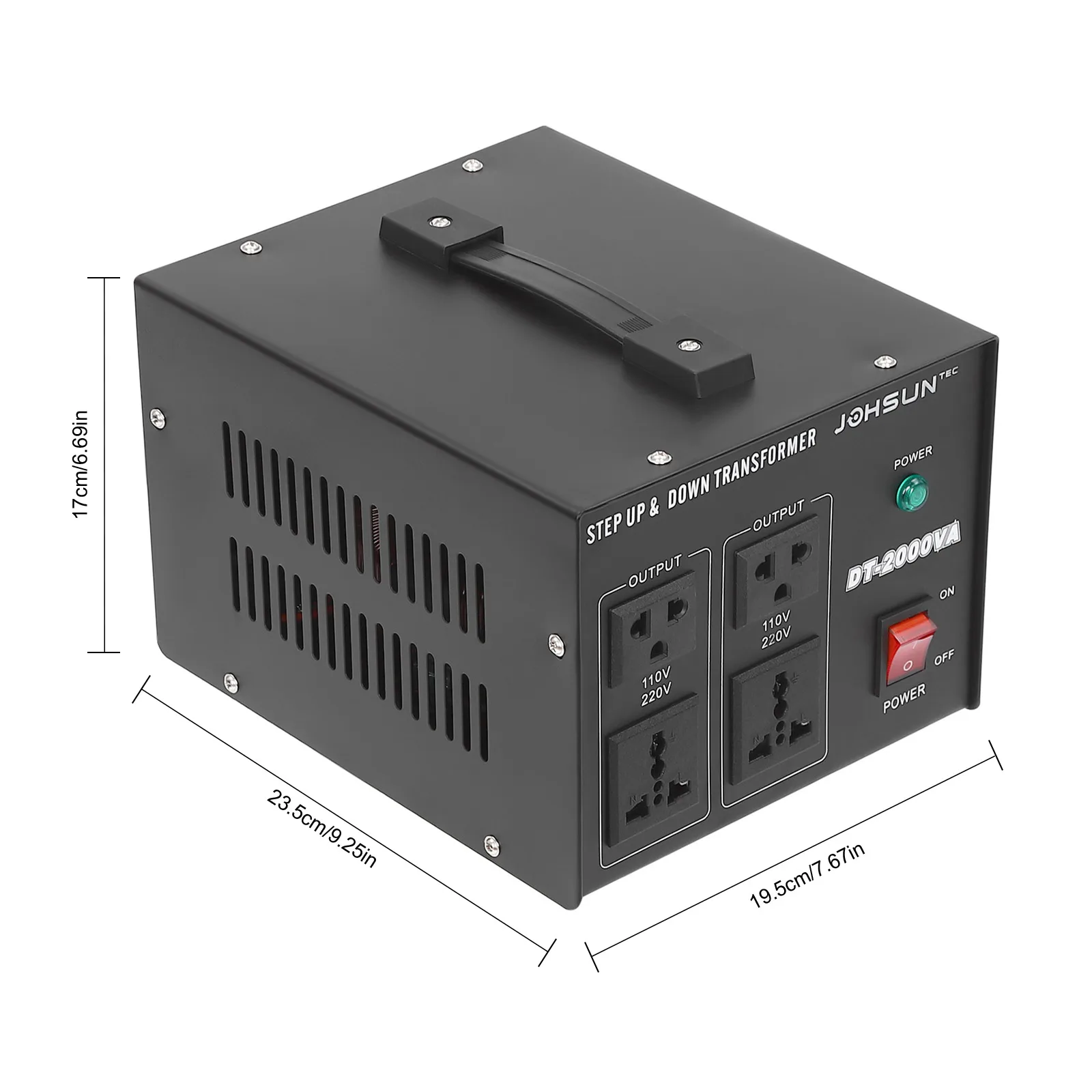

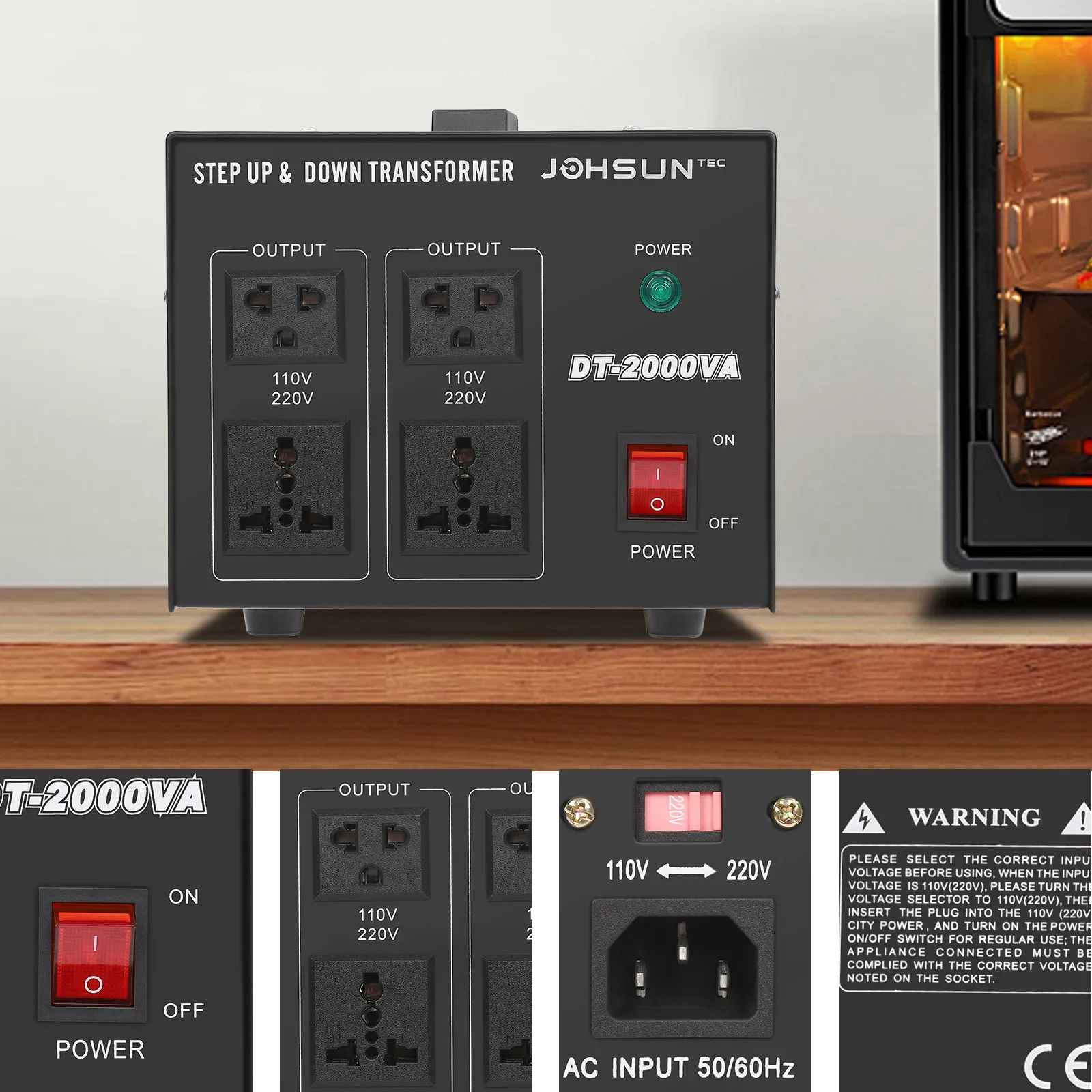

Product Size: 15.3*23*19.3cm/ 6.02*9.06*7.6in2000W Transformer Specification

Material: Metal

Product Type: Transformer

Model: DT-2000VA

Power: 2000W

Input and Output Voltage: 220V/110V

Current: 6.82A

Frequency: 50HZ-60HZ

Insulation Grade: B Grade

Operating Temperature: -5-400C

Short Circuit Protection: Yes

Temperature Protection: Yes

Power Phase: Single-phase

Efficiency: 95%

Cooling Mode: Natural Cooling

Cooling Form: Dry Type

Renewal Form: Auto Transfer

Intimate Form: Ring

Shape Structure: Horizontal

Plug: EU

Gross Weight: 7.15kg/15.76lbs

Net Weight: 6.8kg/14.99lbs

Package Size: 29*25*20cm/9.06*9.84*7.87''

Product Size：23*19.3*15.3cm/9.06*7.6*6.02''

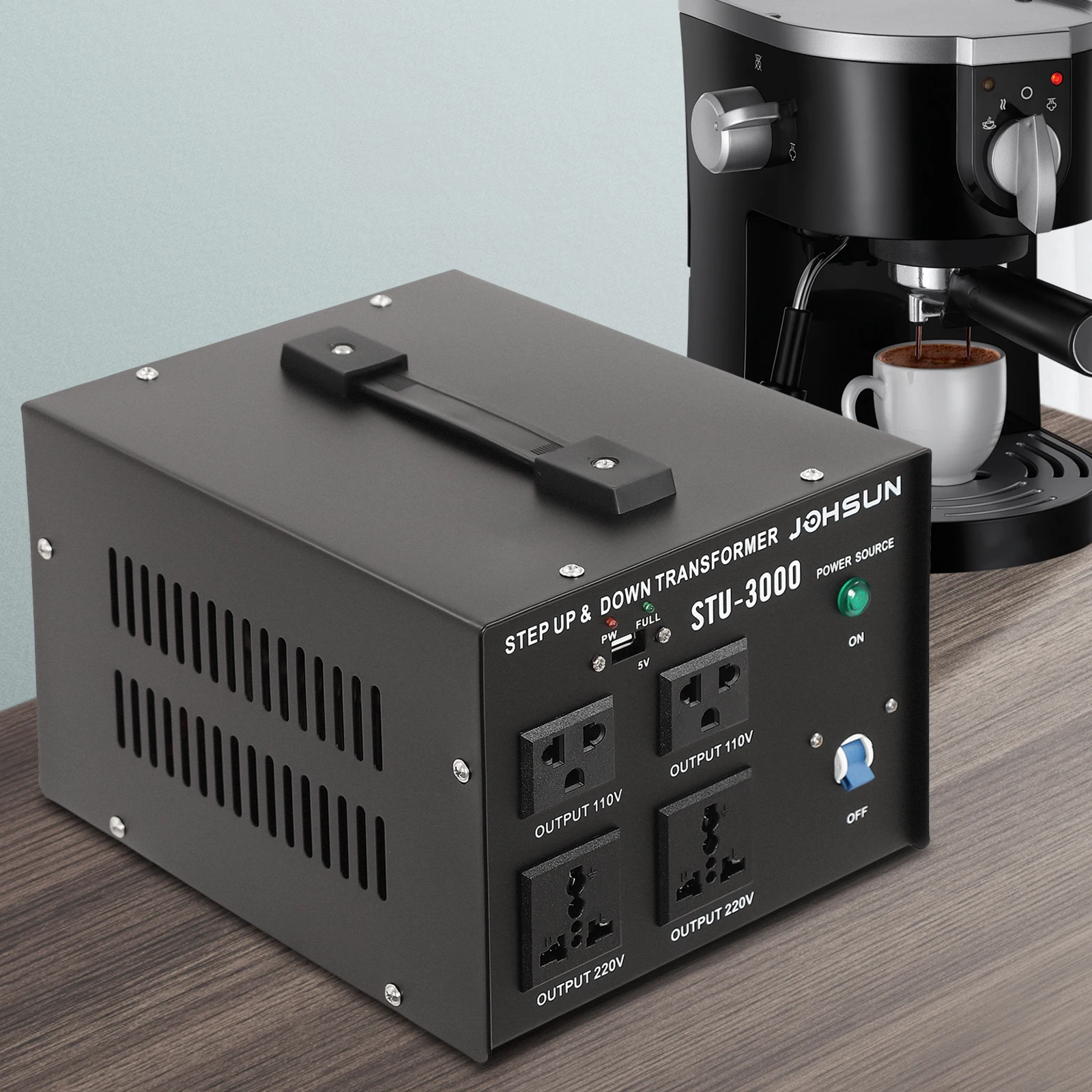

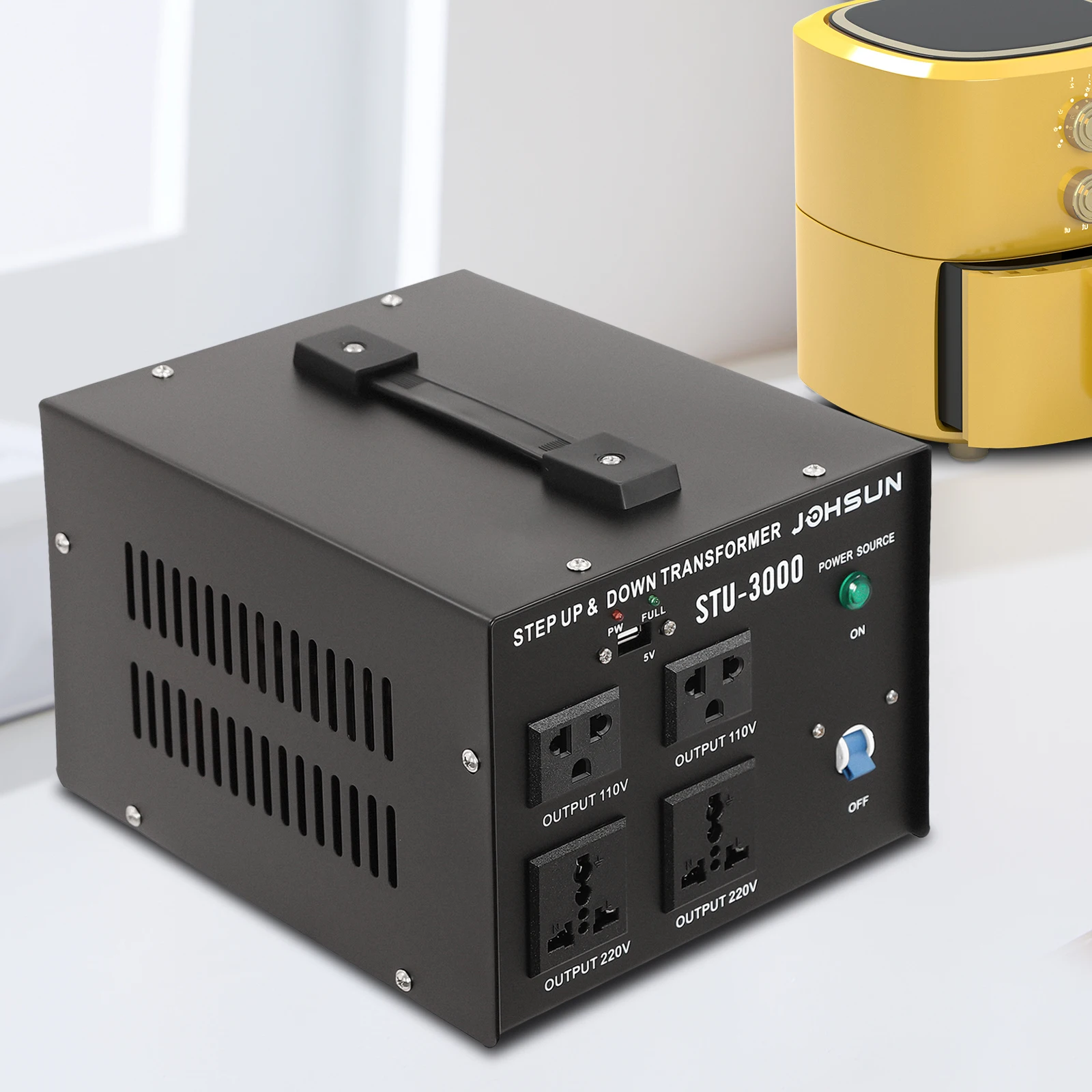

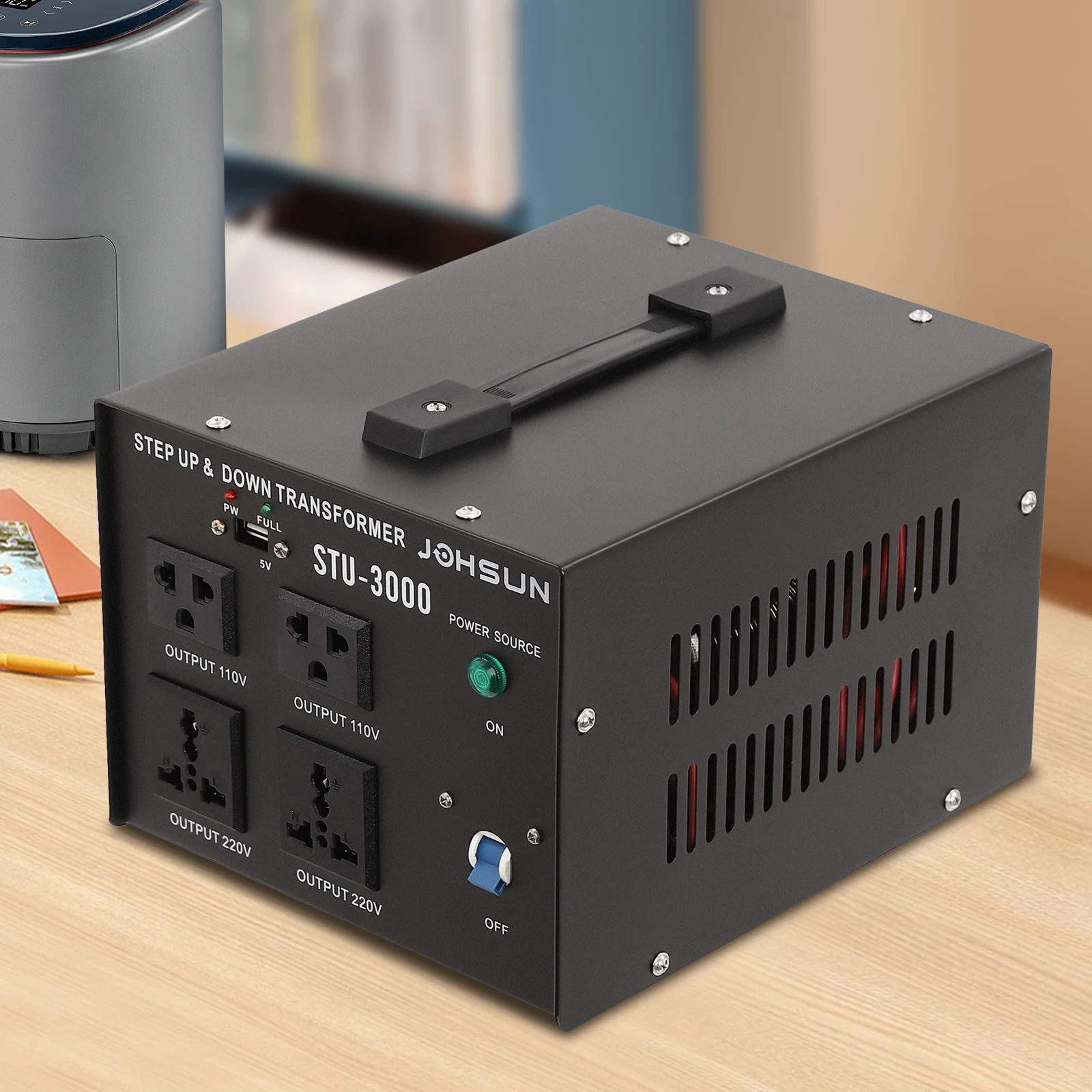

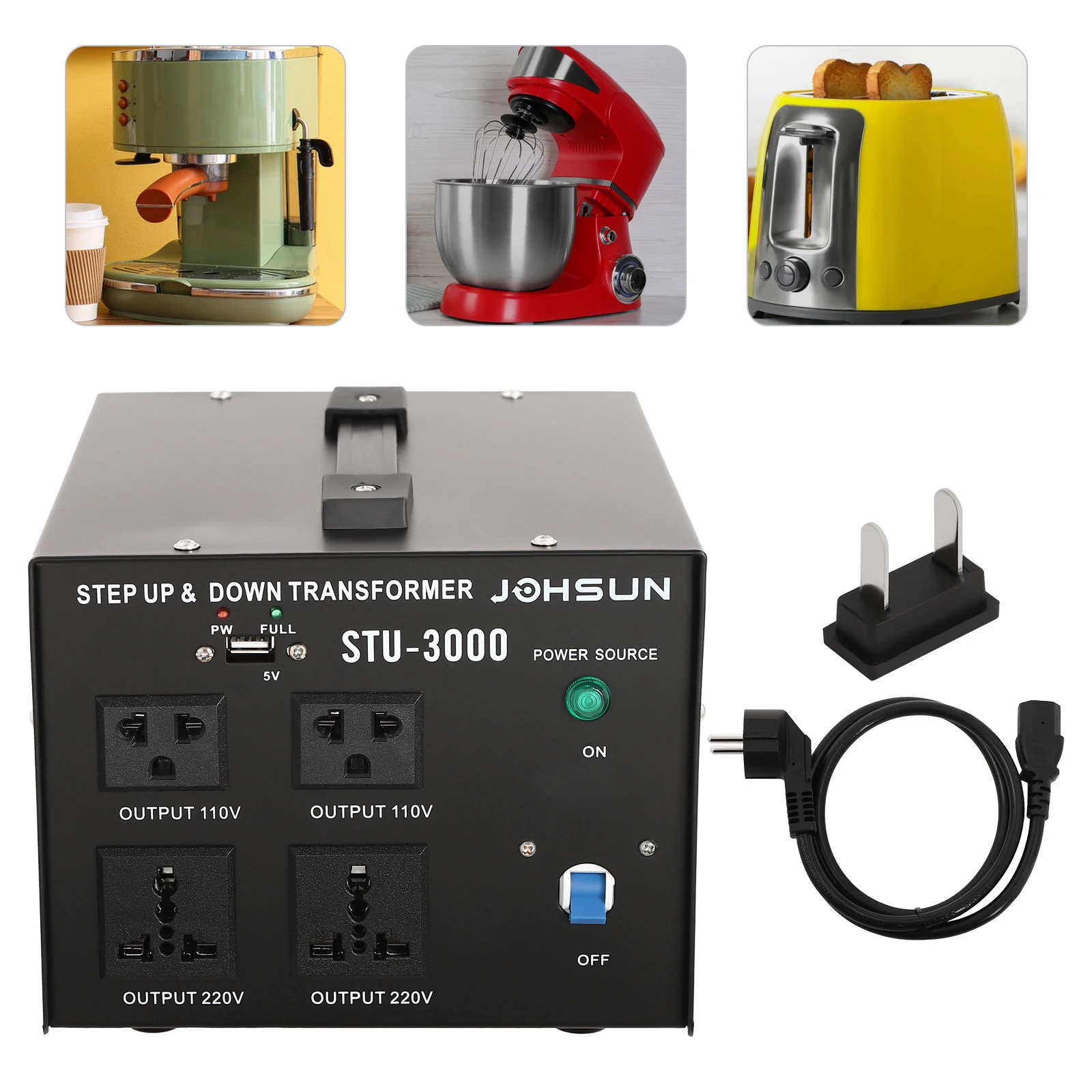

3000W Transformer Specification

Color: Black

Material: Iron, Copper, Aluminum and Silicon Steel Sheets

Shape: Rectangular

Model: STU-3000

Mounting Type: Floor Standing

Plug Type: EU Standard

Power Source: Corded Electric

Voltage Conversion: Step-Up & Down

Output Voltage: 110V, 220V

Input Voltage: 110V, 200V, 220V, 240V

Number of Sockets: 4(2 Universal Sockets, 2 US Standard Sockets)

Rated Capacity 3000VA

Power: 2400W

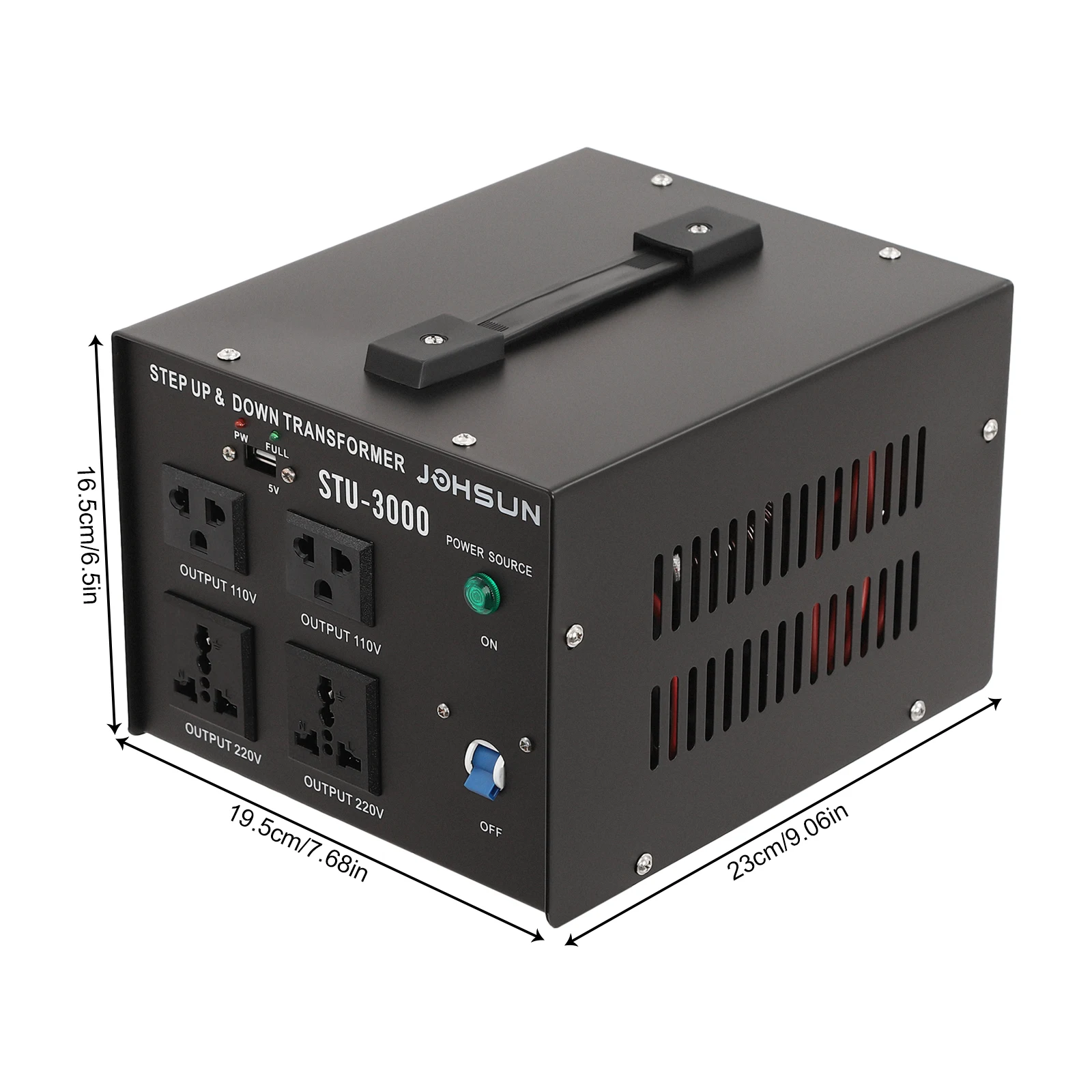

Product Size: 23*19.3*15.3cm/9.06*7.6*6.02inch

Package Size: 29*25*19cm/11.42*9.84*7.48in

Gross Weight: 8.15kg/17.97lbs

Net Weight: 7.74kg/17.06lbs

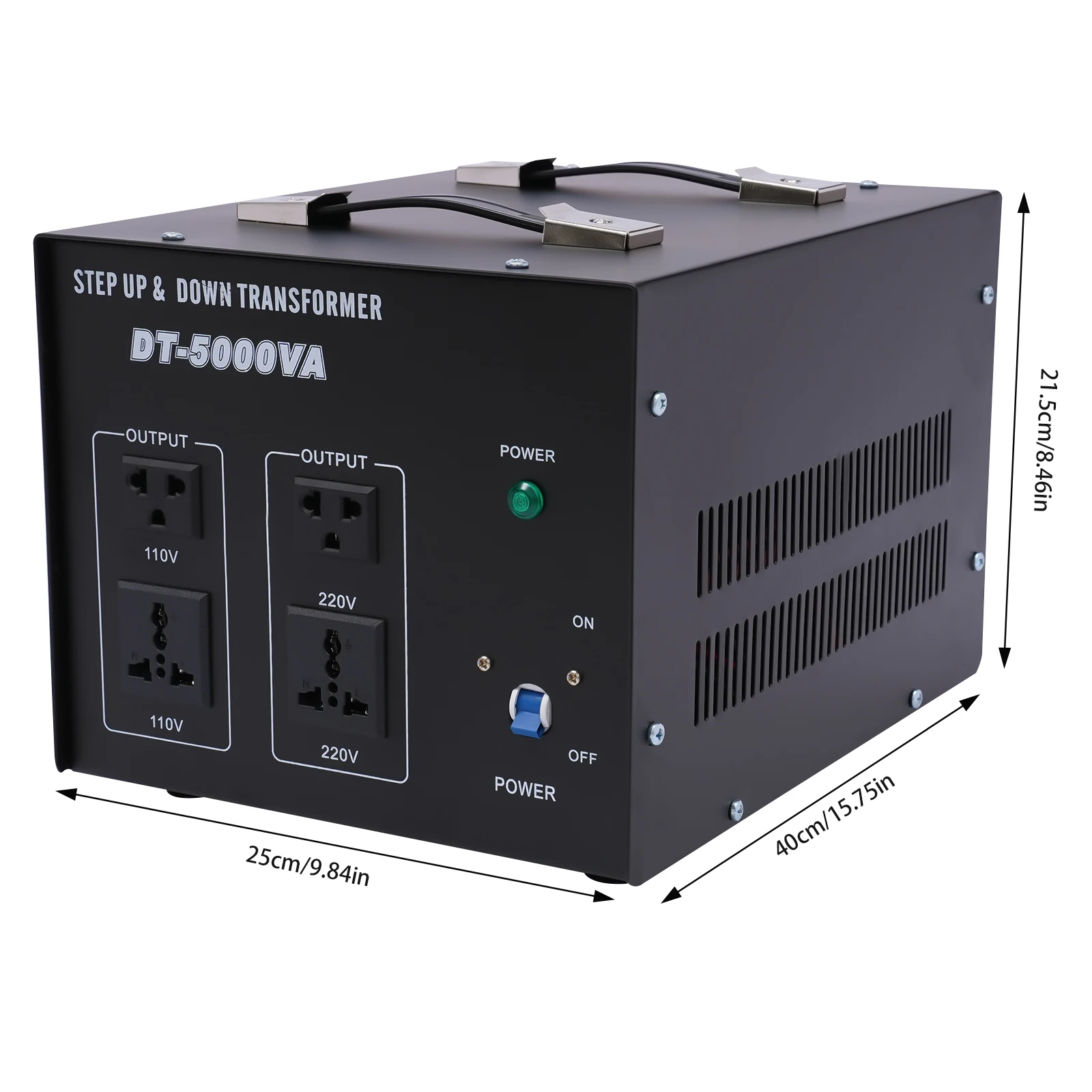

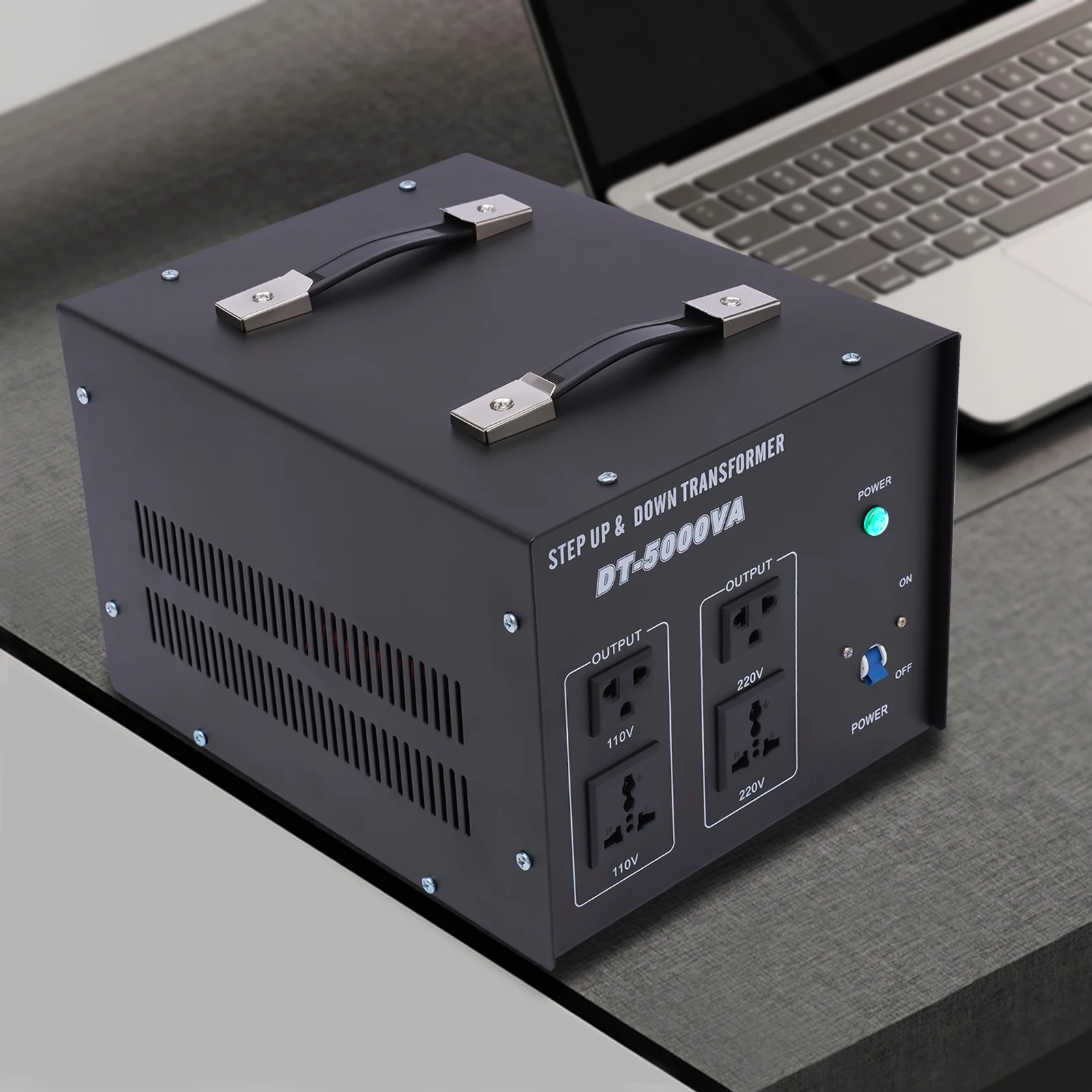

5000W Transformer Specification

Color: Black

Material: Iron, Copper, Silicon Steel, Plastic

Process: Spray Molding

Shape: Rectangular

Mounting Type: Free Standing

Plug Type: EU Standard

Power Source: Corded Electric

Voltage Conversion: Step-Up & Down

Outlets: 2 US Output Sockets+ 2 EU Output Sockets

Frequency: 50Hz/60Hz

Output Voltage: 220V+1-3%, 110V+1-3%

Power: 4500W

Boosting Voltage Range: 200V-240V

Voltage Reduction Range: 100V-120V

Product Capacity: 5KVA

Working Temperature: -15~45°C/5~113°F

Efficiency: 90%

Accuracy: +1-3%

Insulation Class: B

Operating Noise: ＜20dB

Power Cord Length: 1m/3.28ft

Product Size: 35*25*22cm/13.78*9.84*8.66in

Gross Weight: 13.5kg/29.76lbs

Net Weight: 12.83kg/28.29lbs

Package Size: 43.5*29*25.5cm/17.13*11.42*10.04in

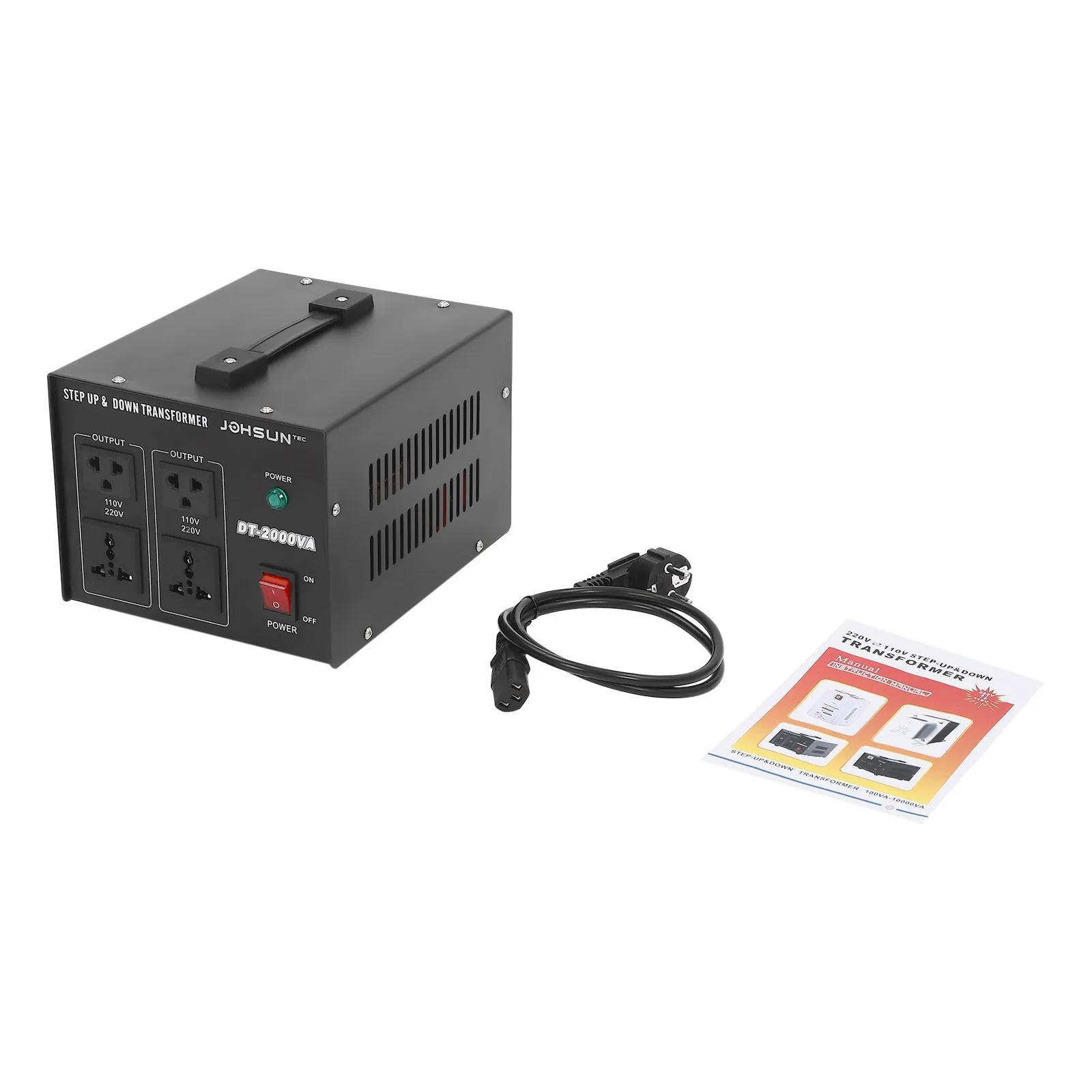

1000W/2000/3000/5000W TransformerPackage Included

1* Transformer

1* Power Cord

1* English Instruction Manual1000W Transformer Display2000W Transformer Display3000W Transformer Display5000W Transformer Display

Key Features

Step-up and Step-down: This voltage conversion transformer can step up the voltage from 110V to 220V or step down from 220V to 110V in a variety of ways for you to choose.

Convenient to Use: Switching power can start the device at once, reducing the standby loss and extending the service life. And this voltage conversion transformer contains the power plug, plug and play, convenient and fast.

Overload Protection: When using too much high-power equipment and exceeds the load capacity of the distribution line, the transformer will automatically stop working to prevent safety hazards.

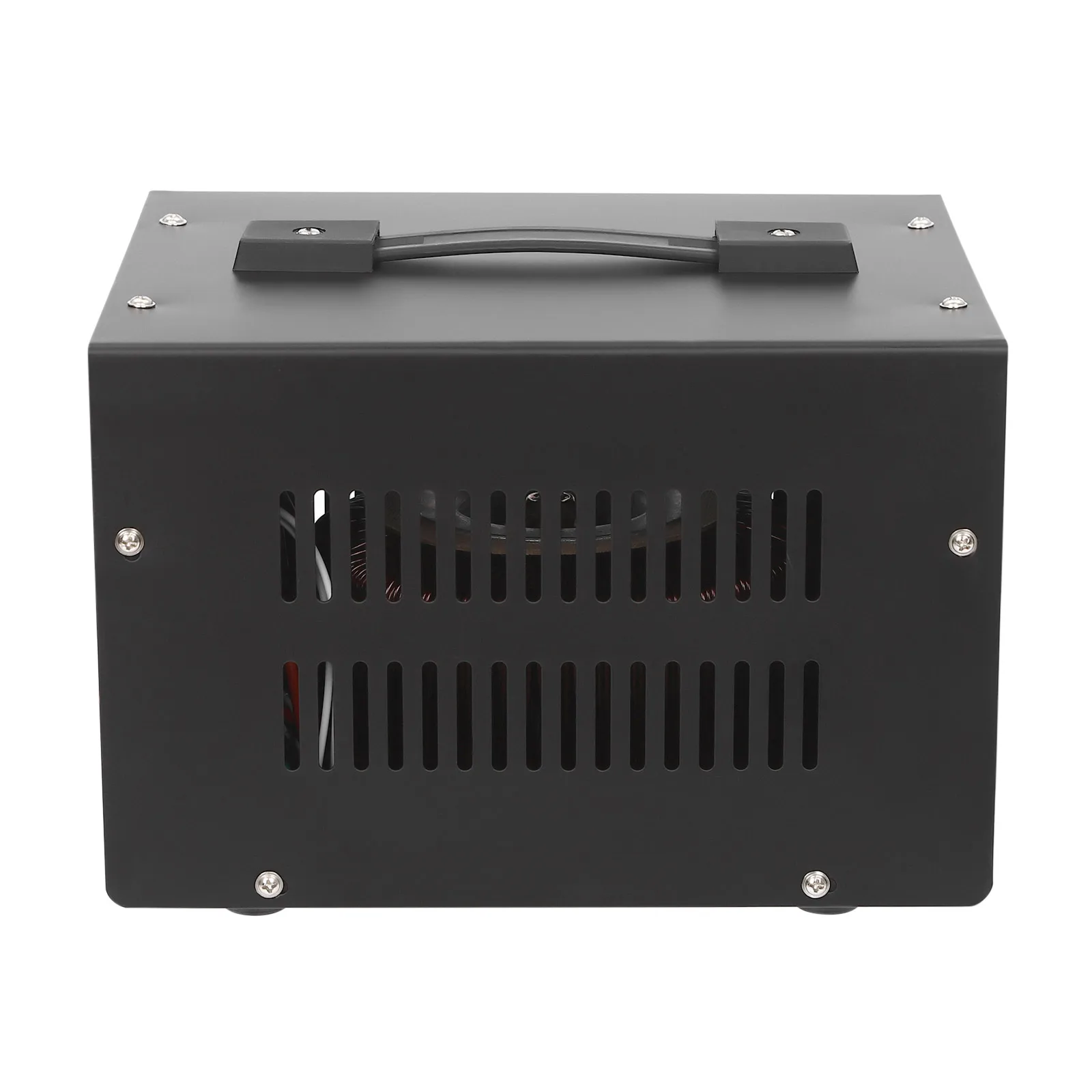

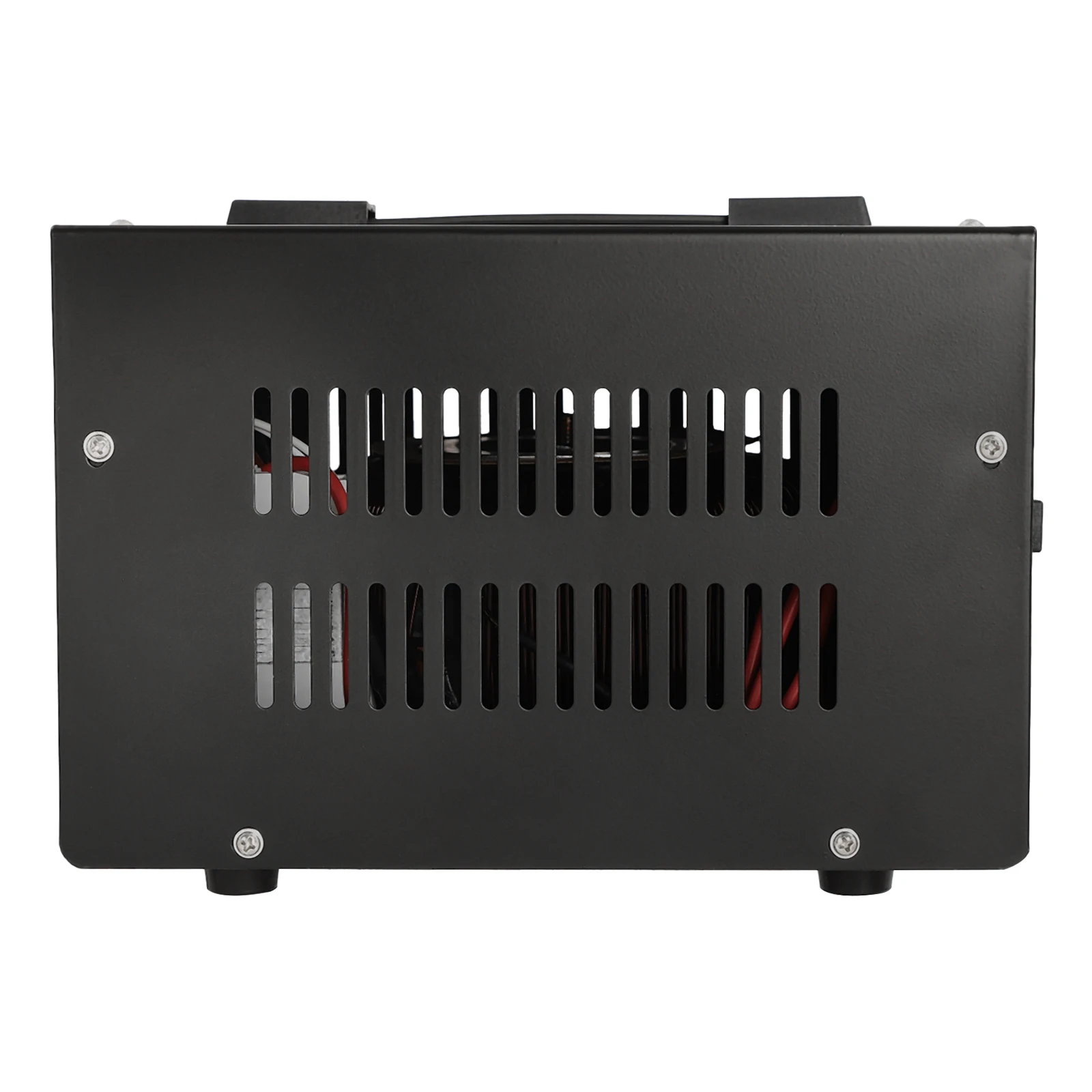

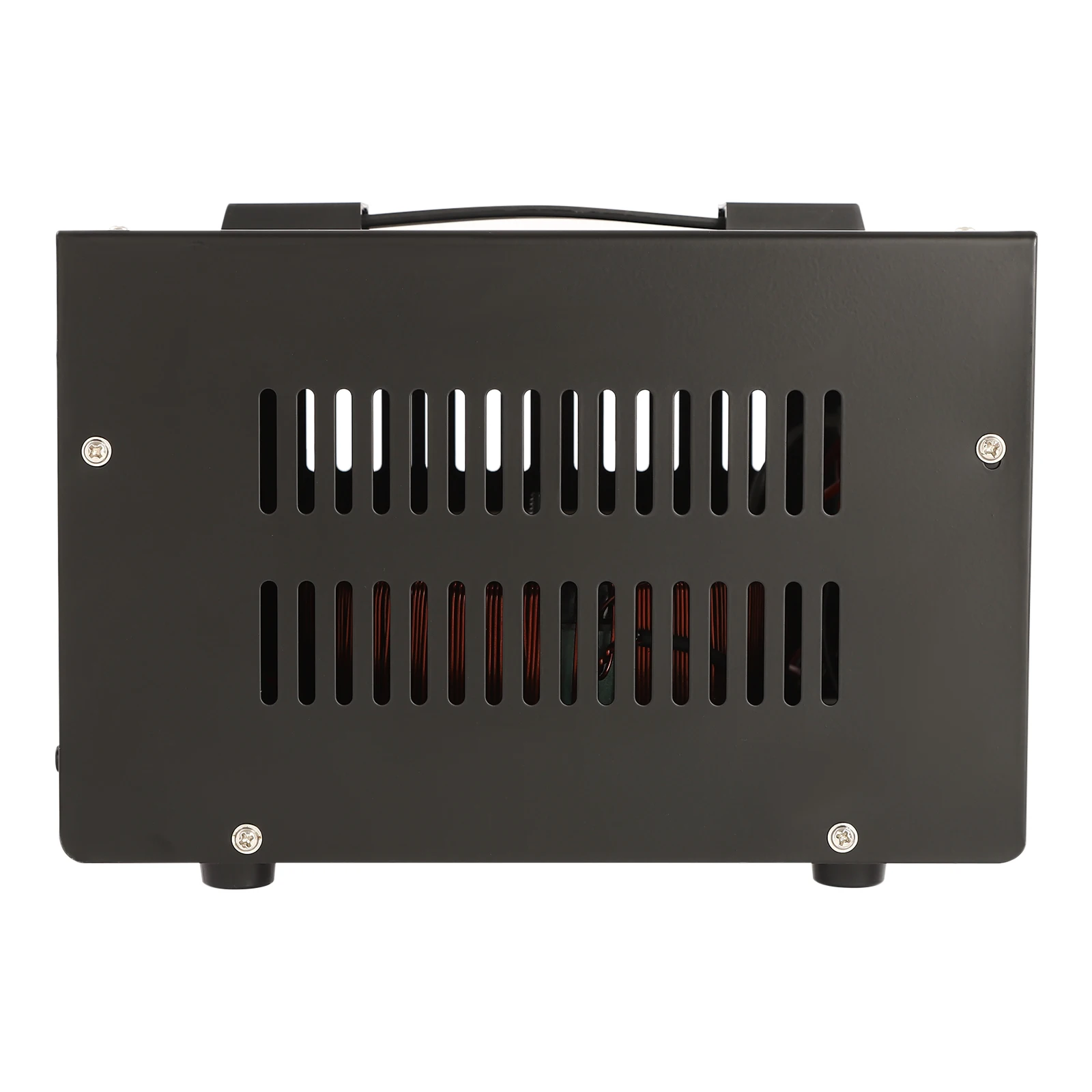

Heat Dissipation Performance : It is equipped with a large diameter bilateral fence type heat sink so that the transformer has a good heat dissipation effect and makes the machine more stable in operation.

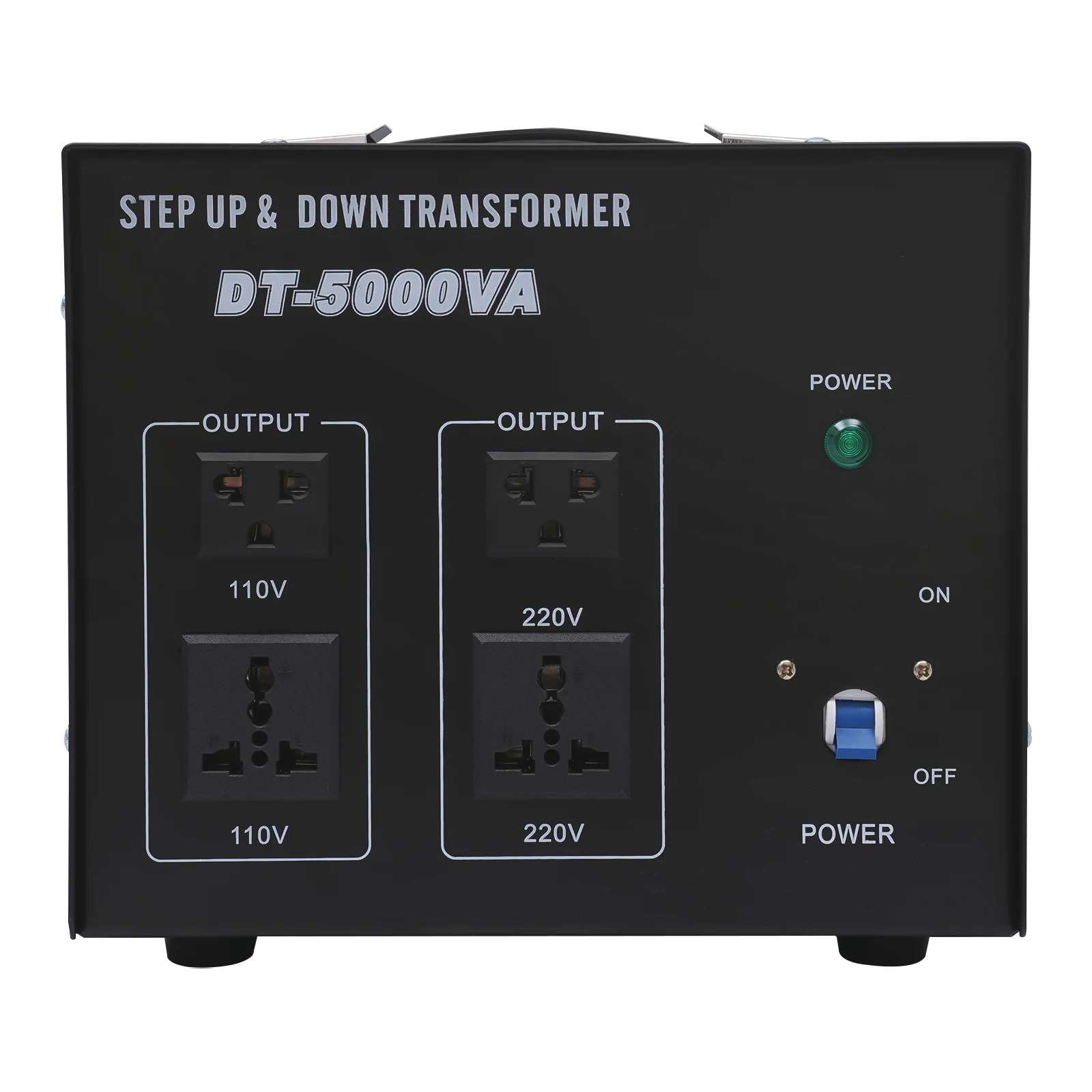

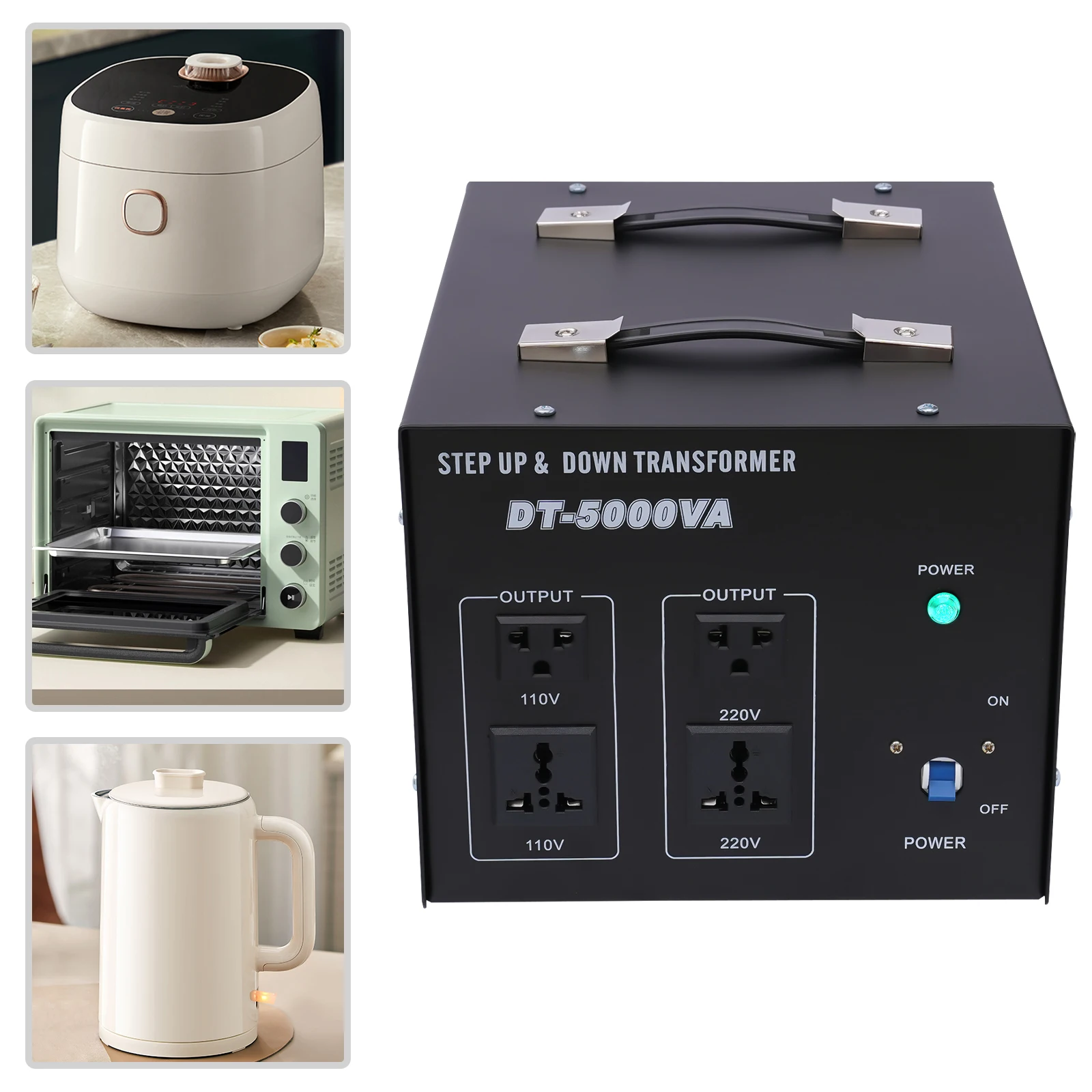

Four Conversion Jacks: It has a multi-country jack, two US standard sockets for 110-120V devices, and two universal sockets to accept all types of plugs except the large South African plug for 220-240V devices, such as US, EU, UK, and Japan. You don't have to worry that your appliances will not fit into this transformer.

Good Material: It is made of high-quality iron, which makes it crash and fall resistant, which will make it more durable and longer life.

Easy to Use: There is a portable carry handle on top of the product for easy access. When you need to start or stop the converter, just press the on/off button.

Customer Service: We aim to provide quality products and services. If you have any problems, please free to contact us. We will reply and solve the problem for you as soon as possible.

Details

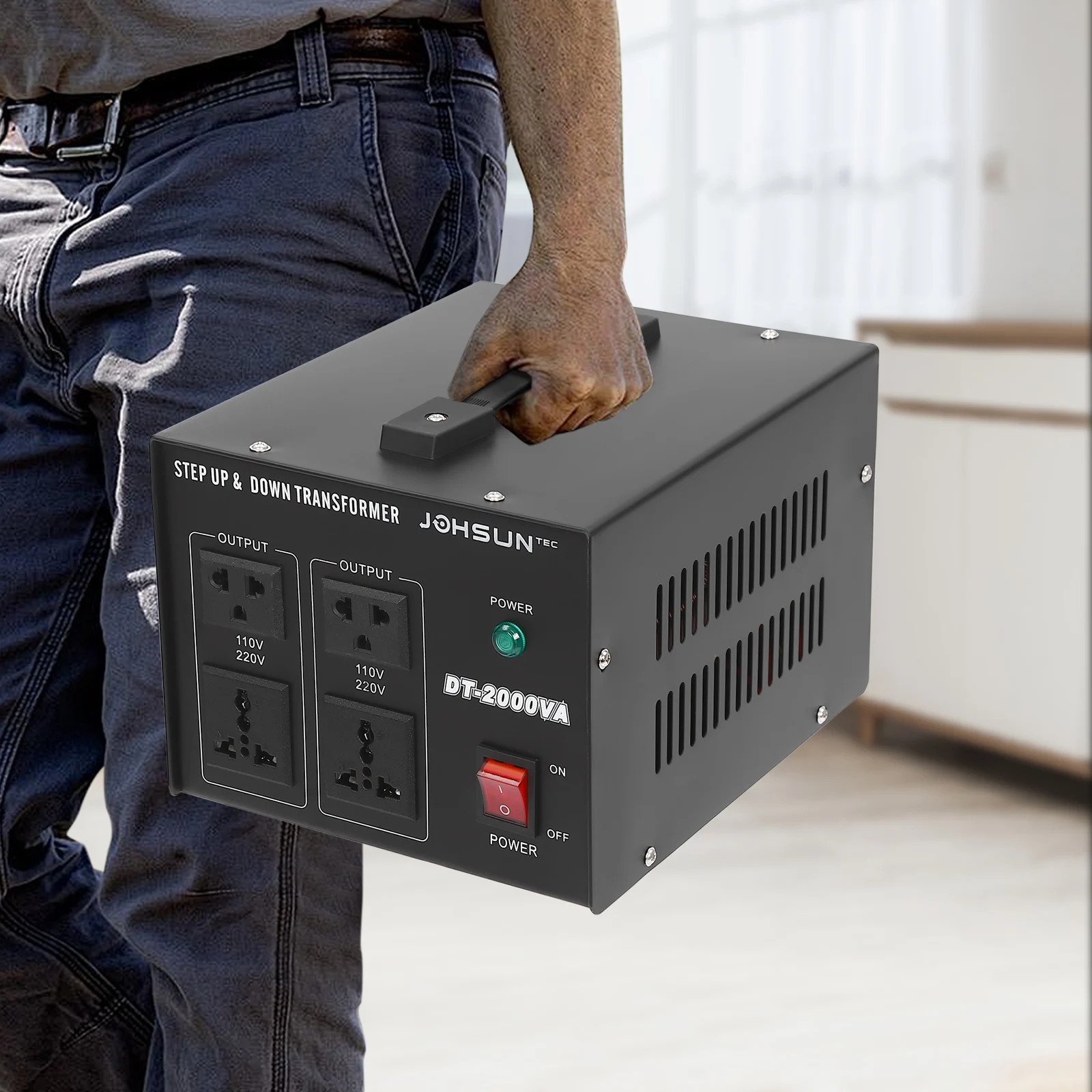

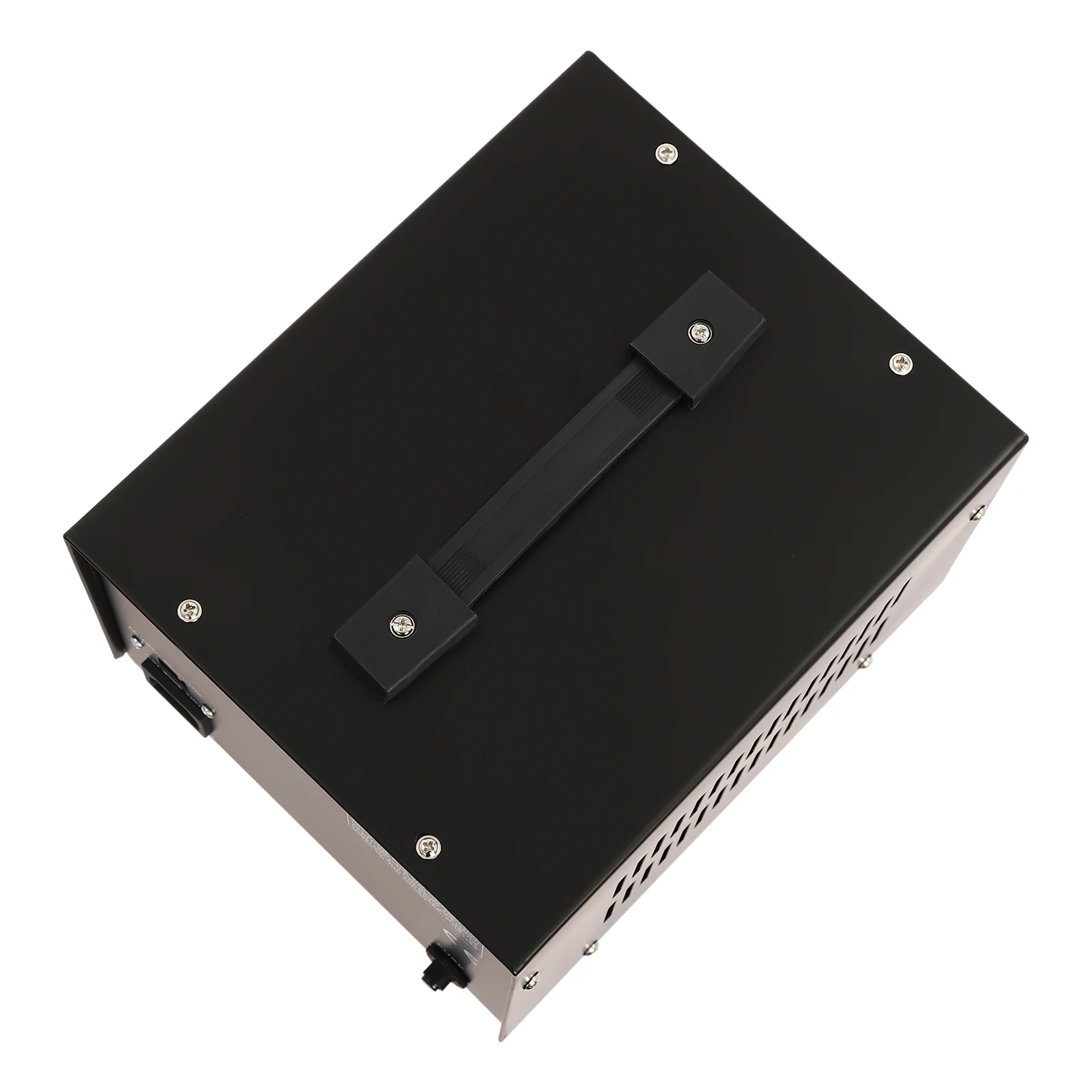

Carrying Handle: This transformer has a carrying handle on top, making it a portable type for your convenience.

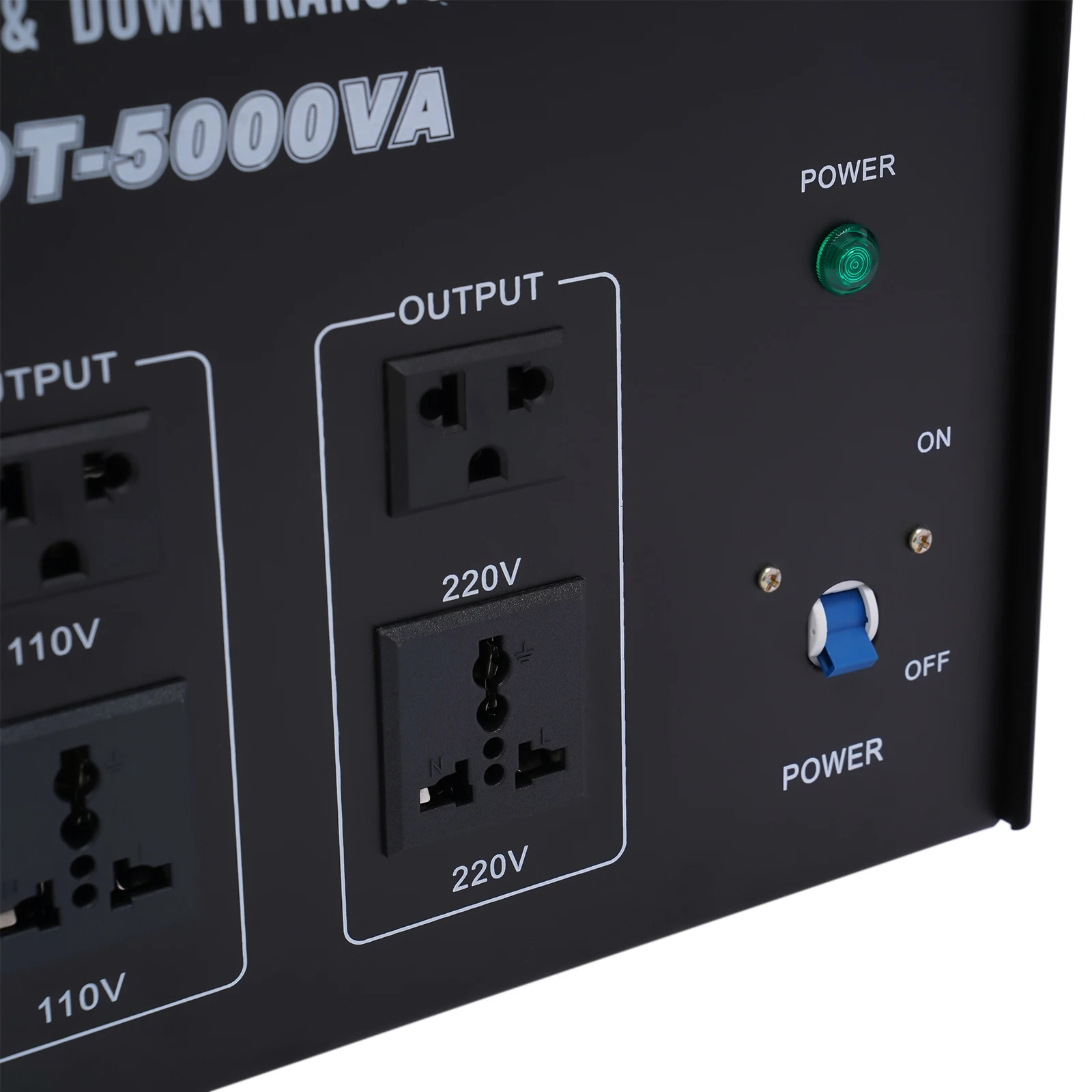

Visible on/off Light: When you turn on the transformer, the light showing power will light up, and the light will go out when you turn it off, which is clear and distinct.

Application

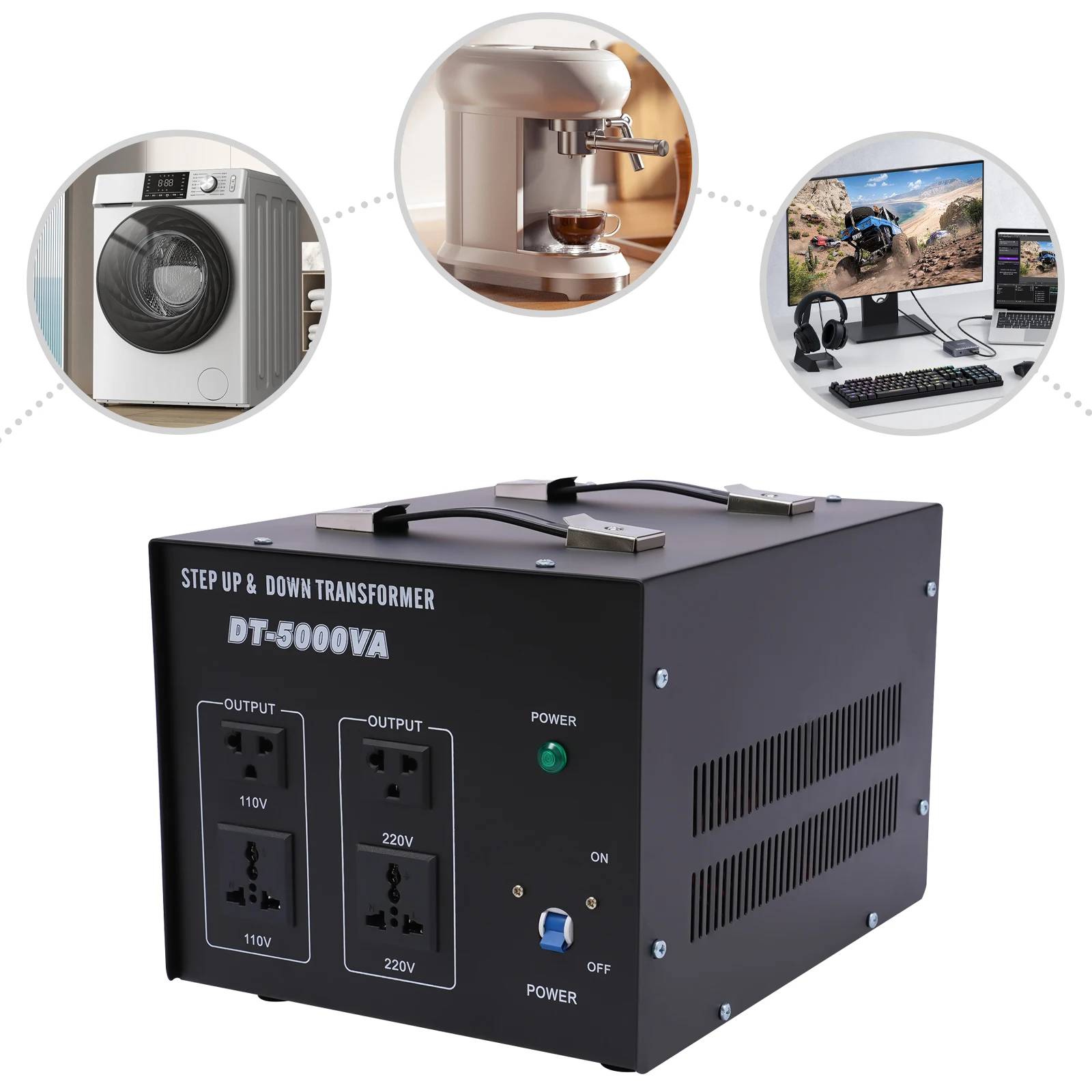

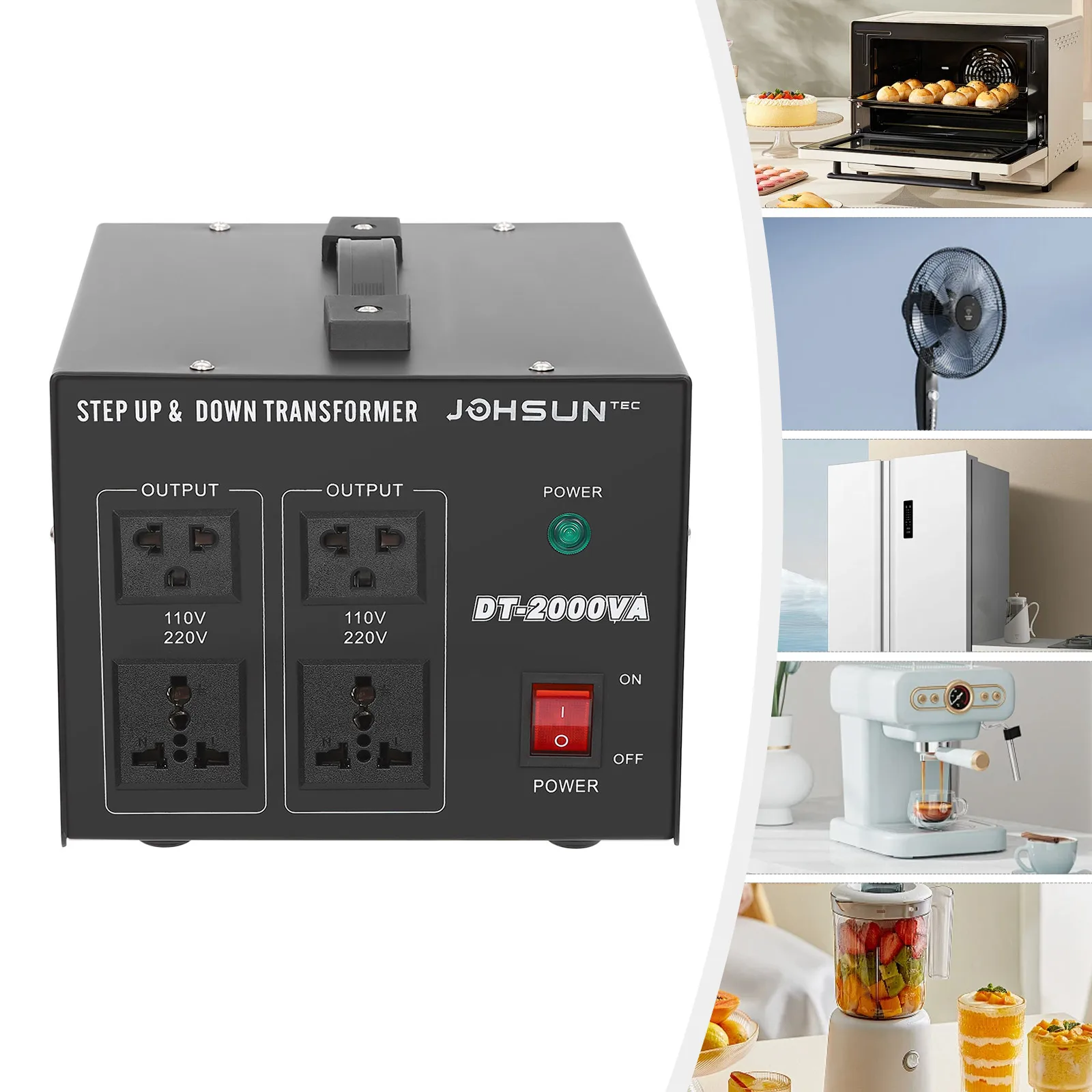

This transformer can be used for a wide range of imported appliances, including air conditioners, refrigerators, washing machines, computers, televisions, electric fans, etc.

How to Use

To convert 110 volts to 220 volts

1. Make sure the appliance to be plugged in uses fewer watts than the transformer's rating.

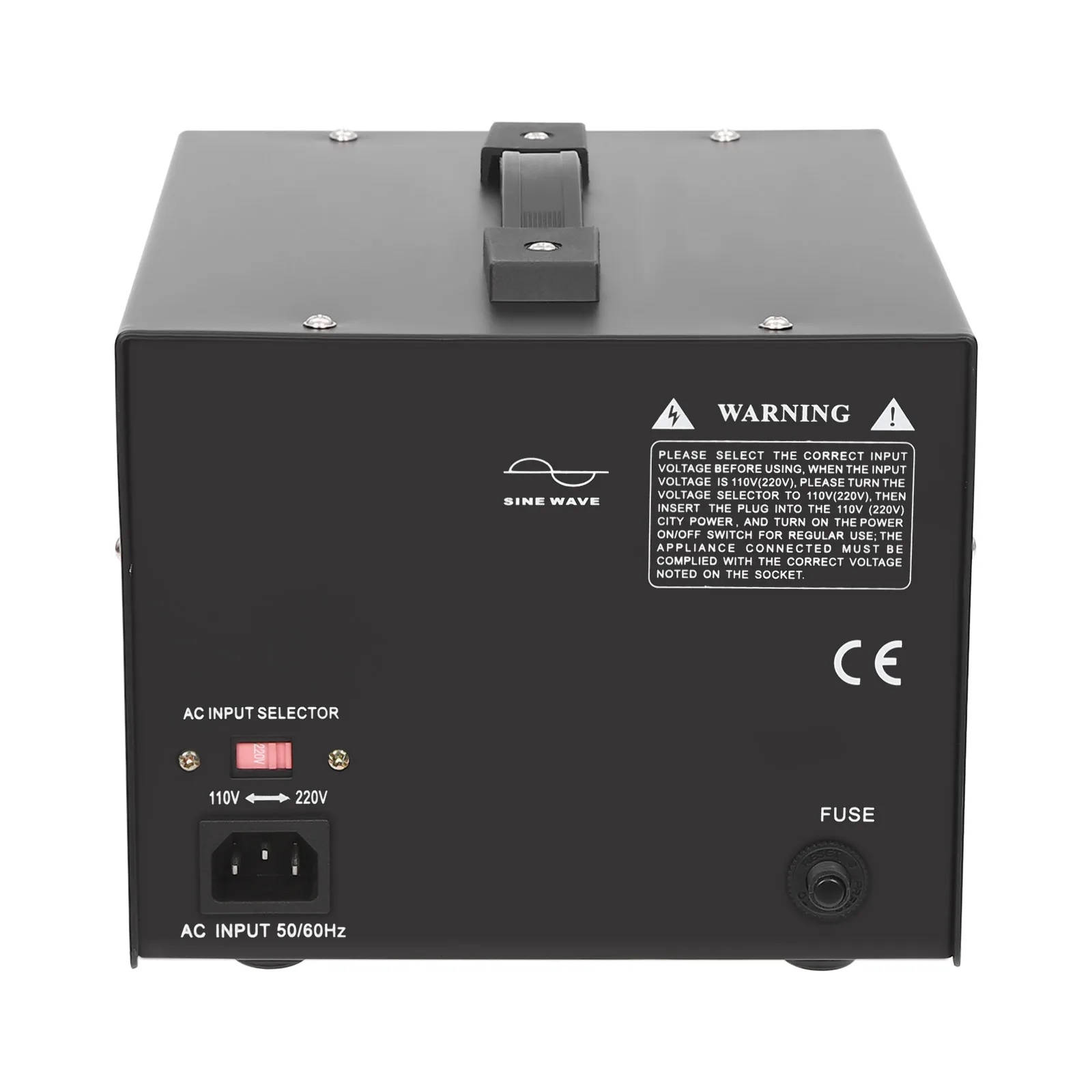

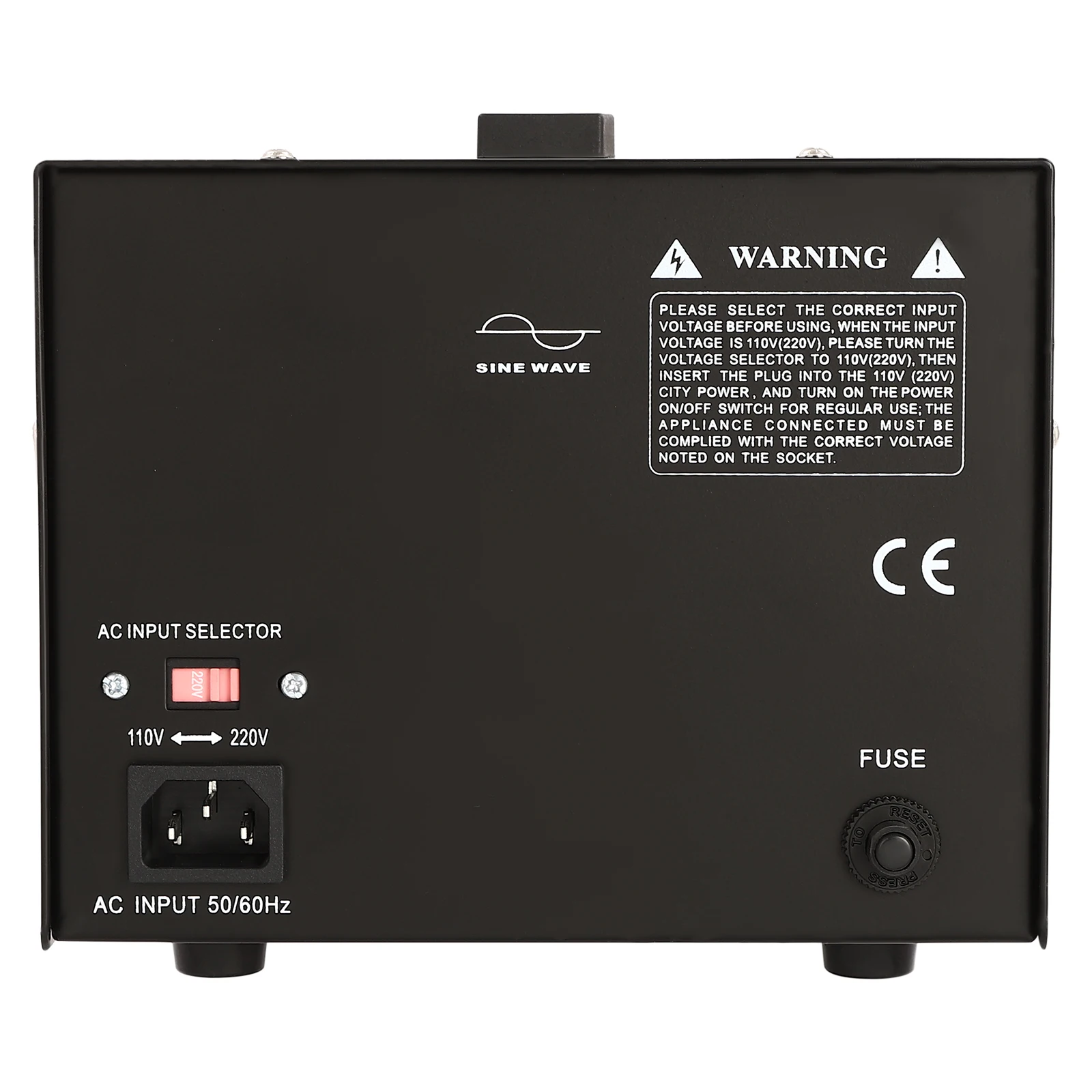

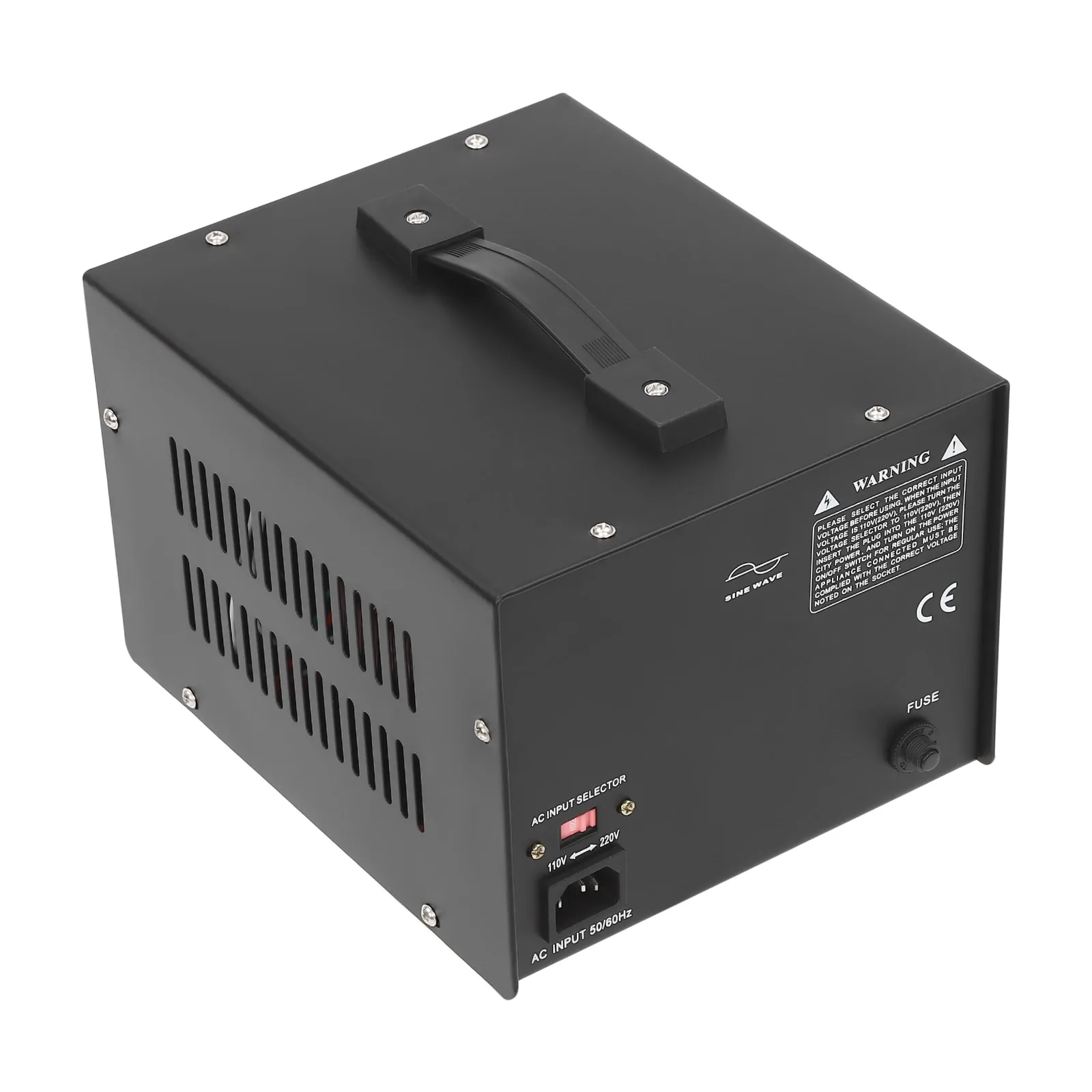

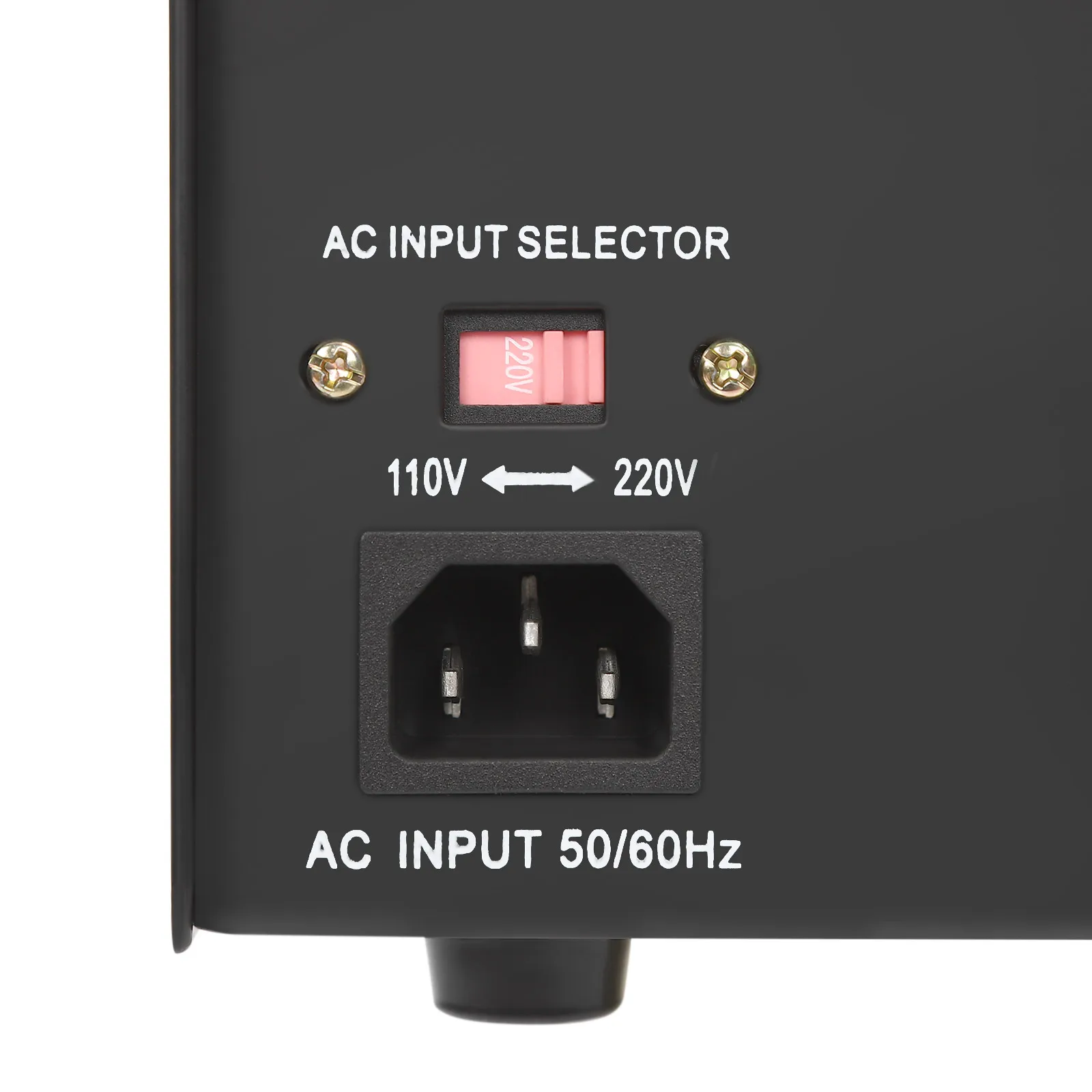

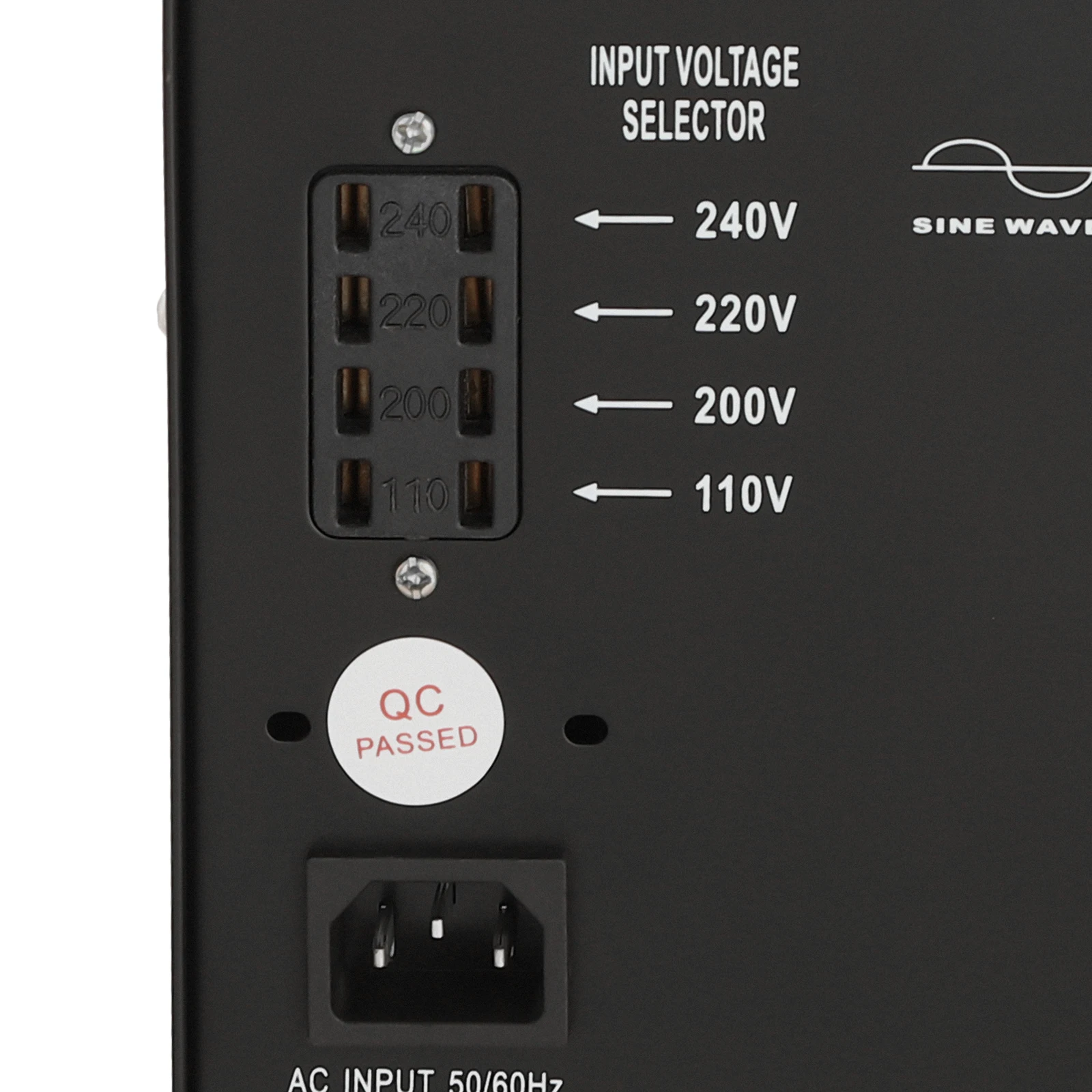

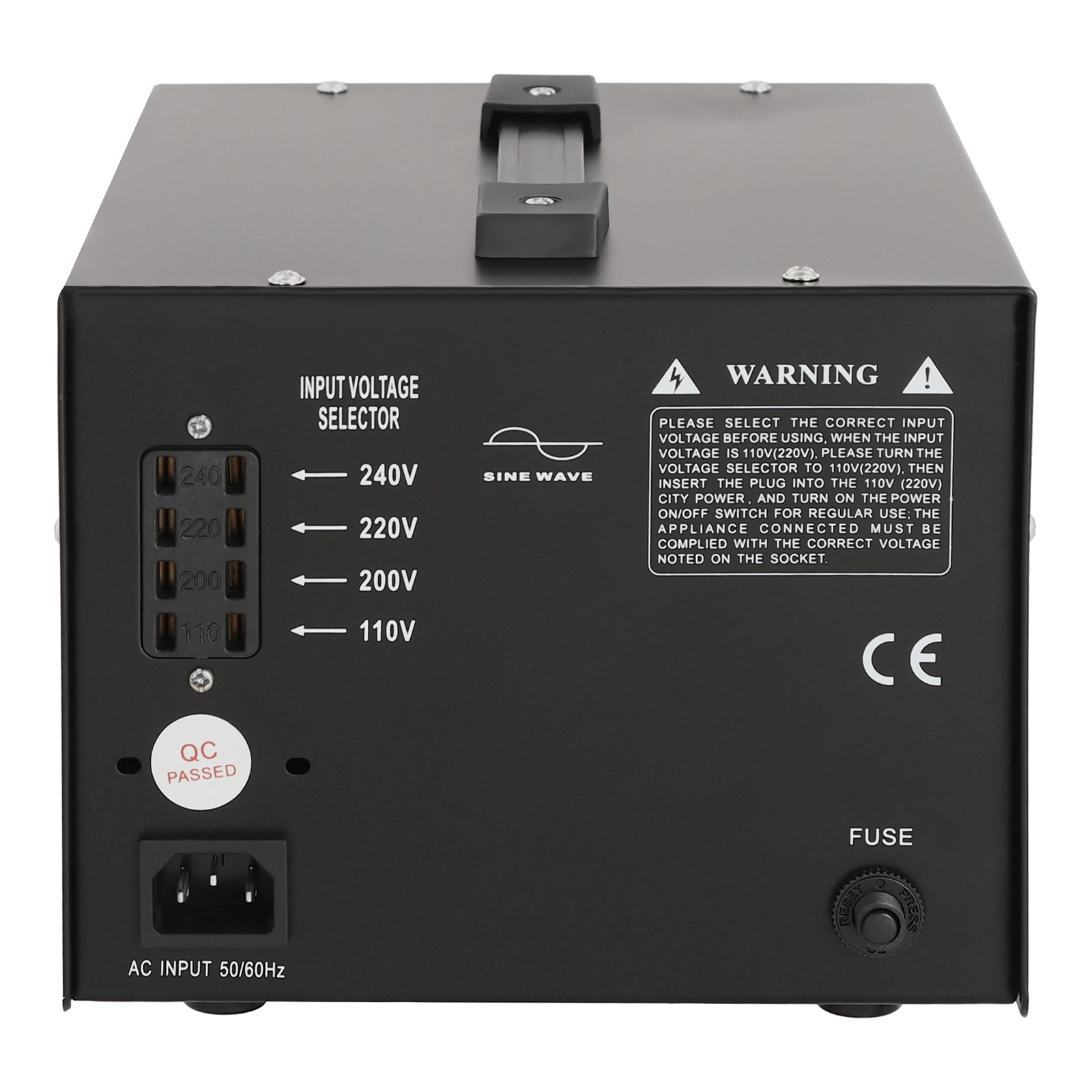

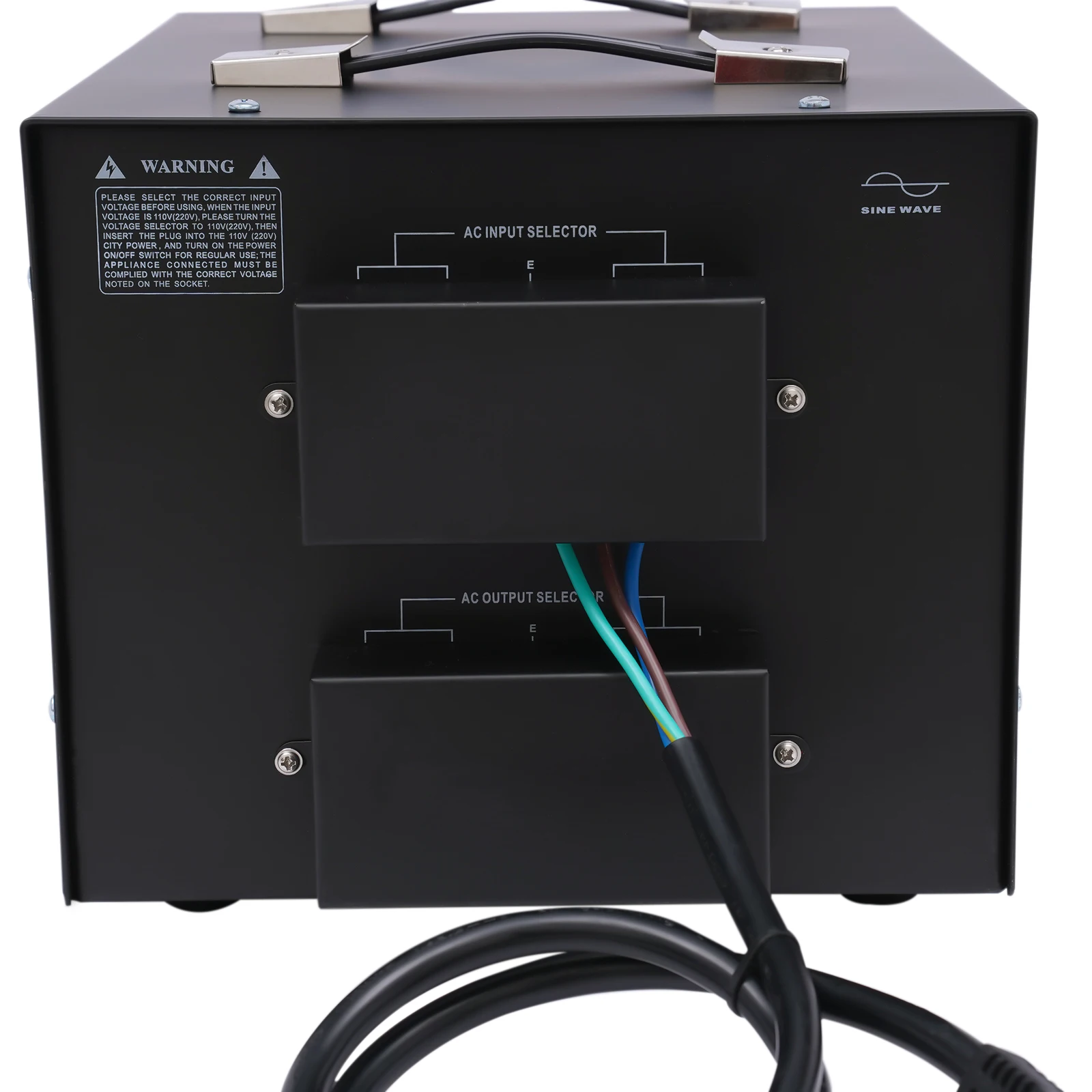

2. Insert the voltage tap plug (located on the rear of the transformer) into the pair of holes marked "110".

3. Plug the transformer's power cord into a source of 110 volts.

4. 220 volts will be available at the front panel outlet marked "220" volts when the power switch is turned on.

To convert 220 volts to 110 volts

1. Make sure the appliance to be plugged in uses fewer watts than the transformer's rating(80%).

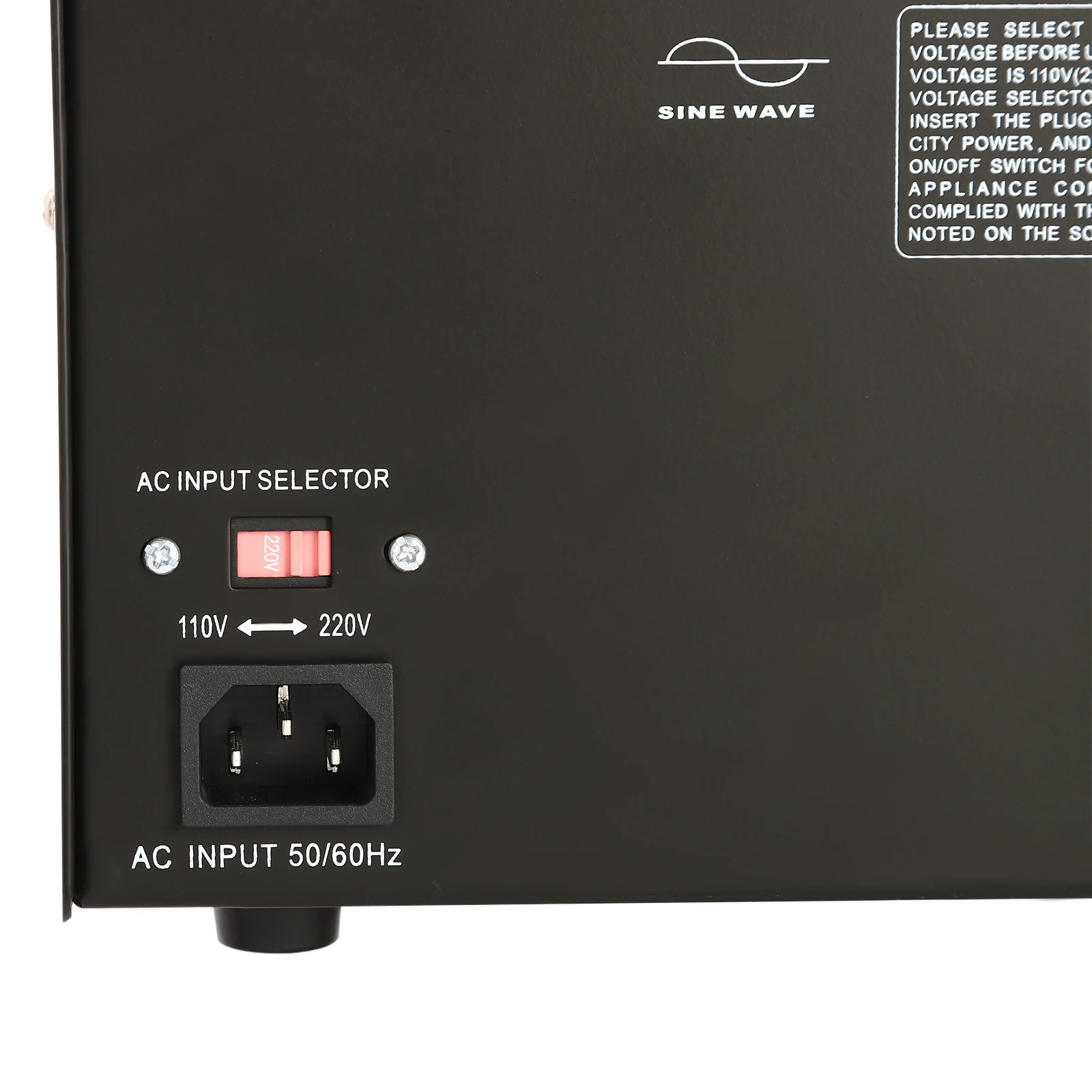

2. Insert the voltage tap plug (located on the rear of the transformer) into the pair of holes corresponding to the local voltage standard. Check carefully to be sure no error has been made.

Notes

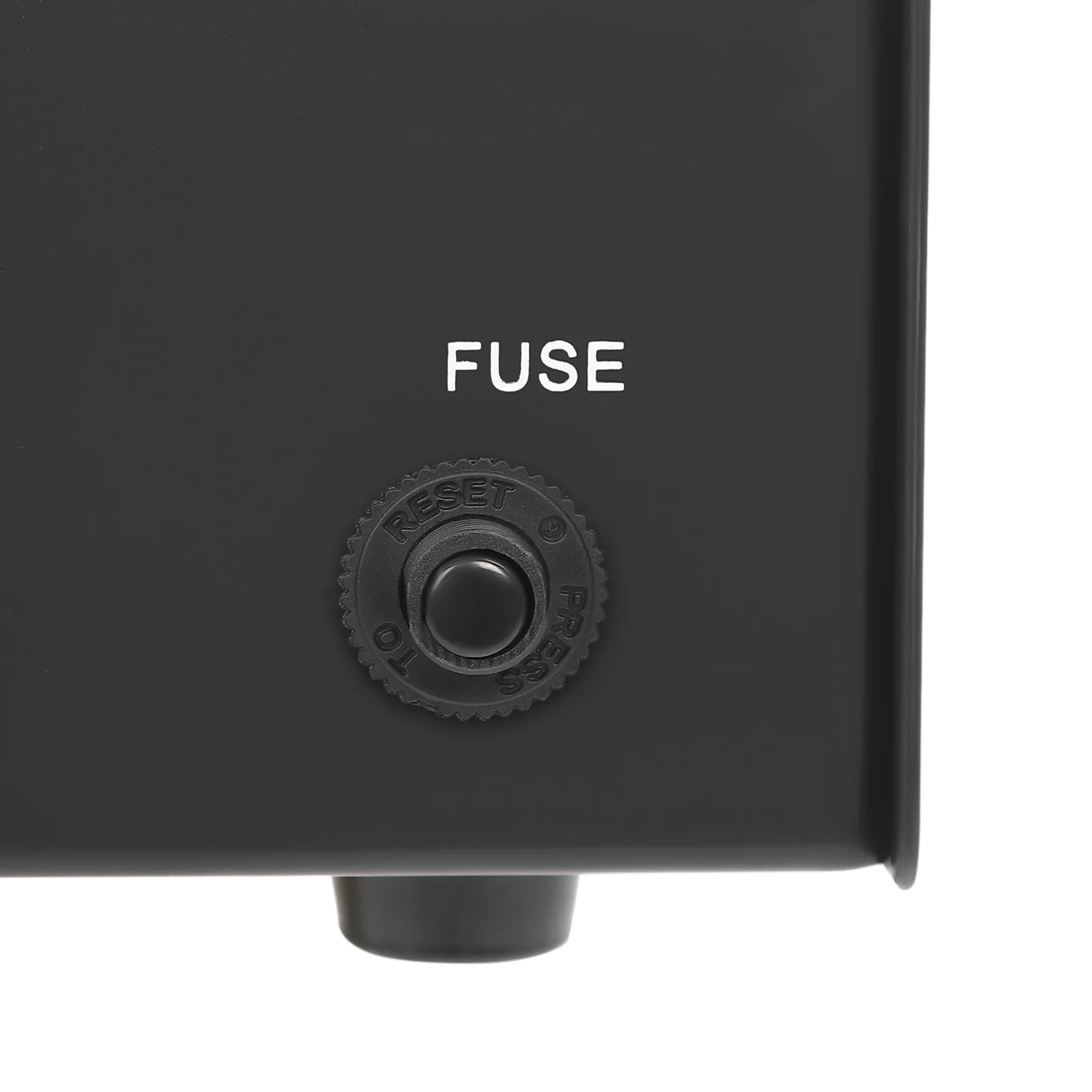

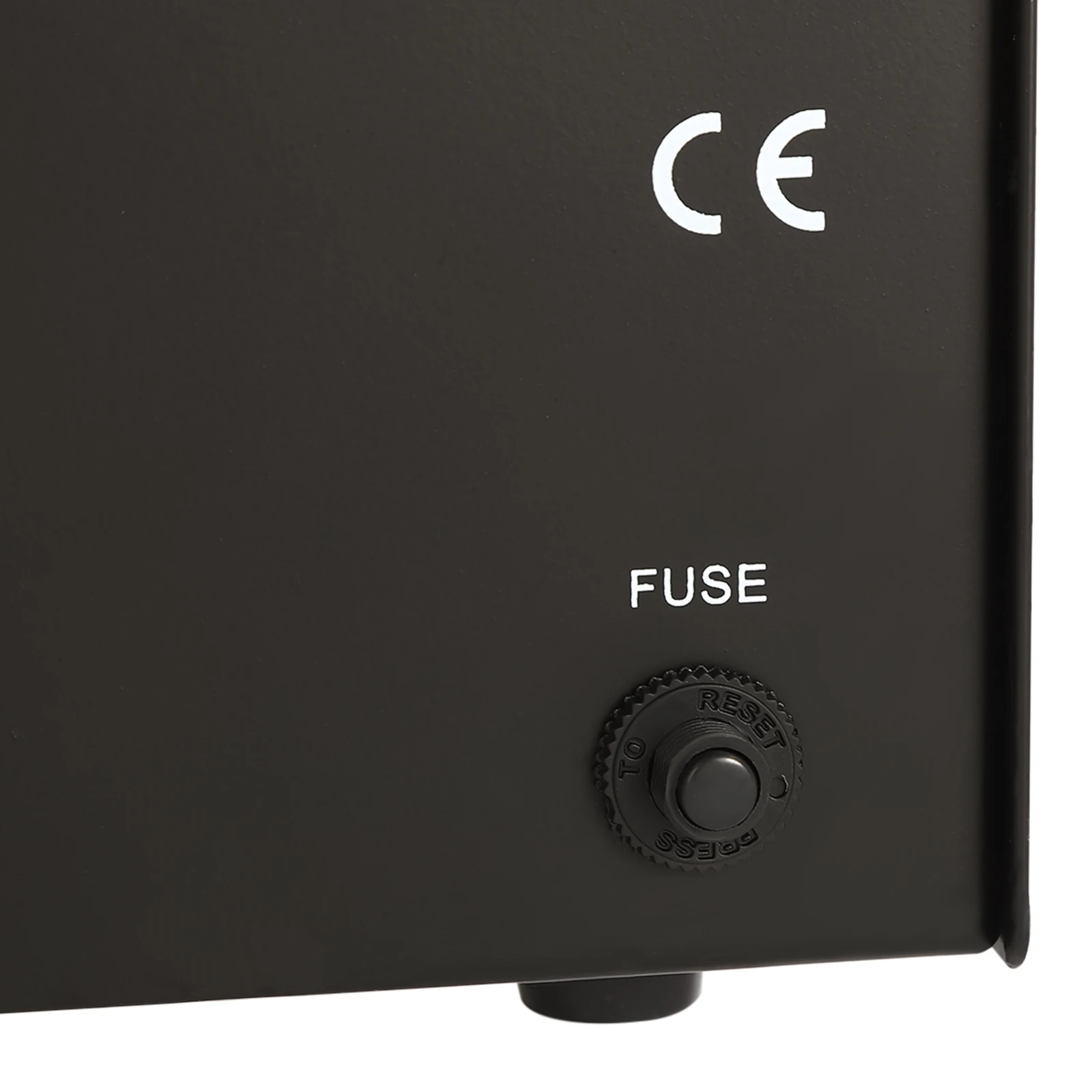

1. To prevent damage and possible fire hazards, the fuse should be replaced with a slow fuse (MDL) of the same amperage rating as the original fuse. If the fuse continues to blow, the transformer and/or the appliances connected to it may require service.

2. Please do not connect appliances that exceed the maximum power rating of the transformer to it. If the transformer is burned out due to exceeding the rating, we will not warranty it.

3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
