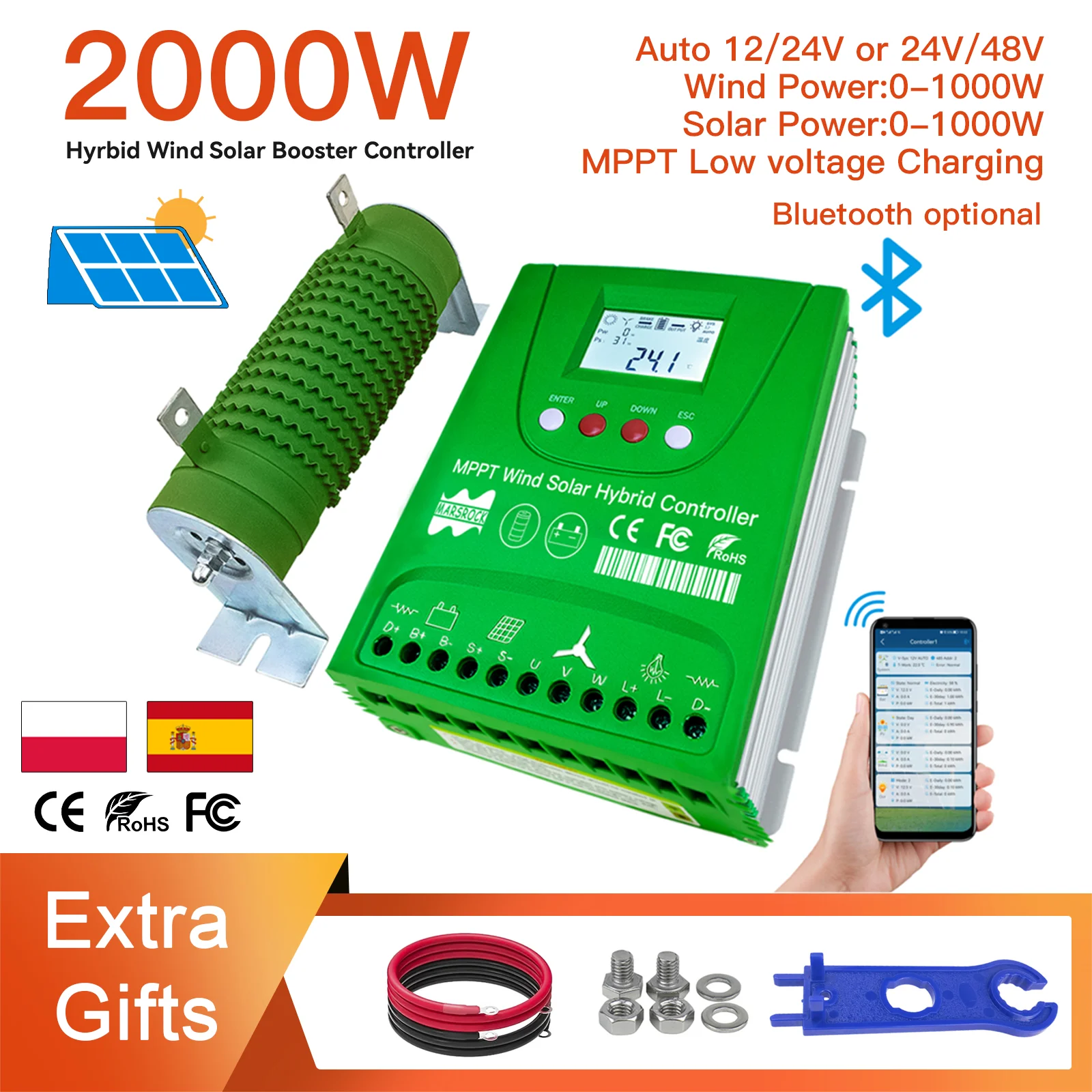

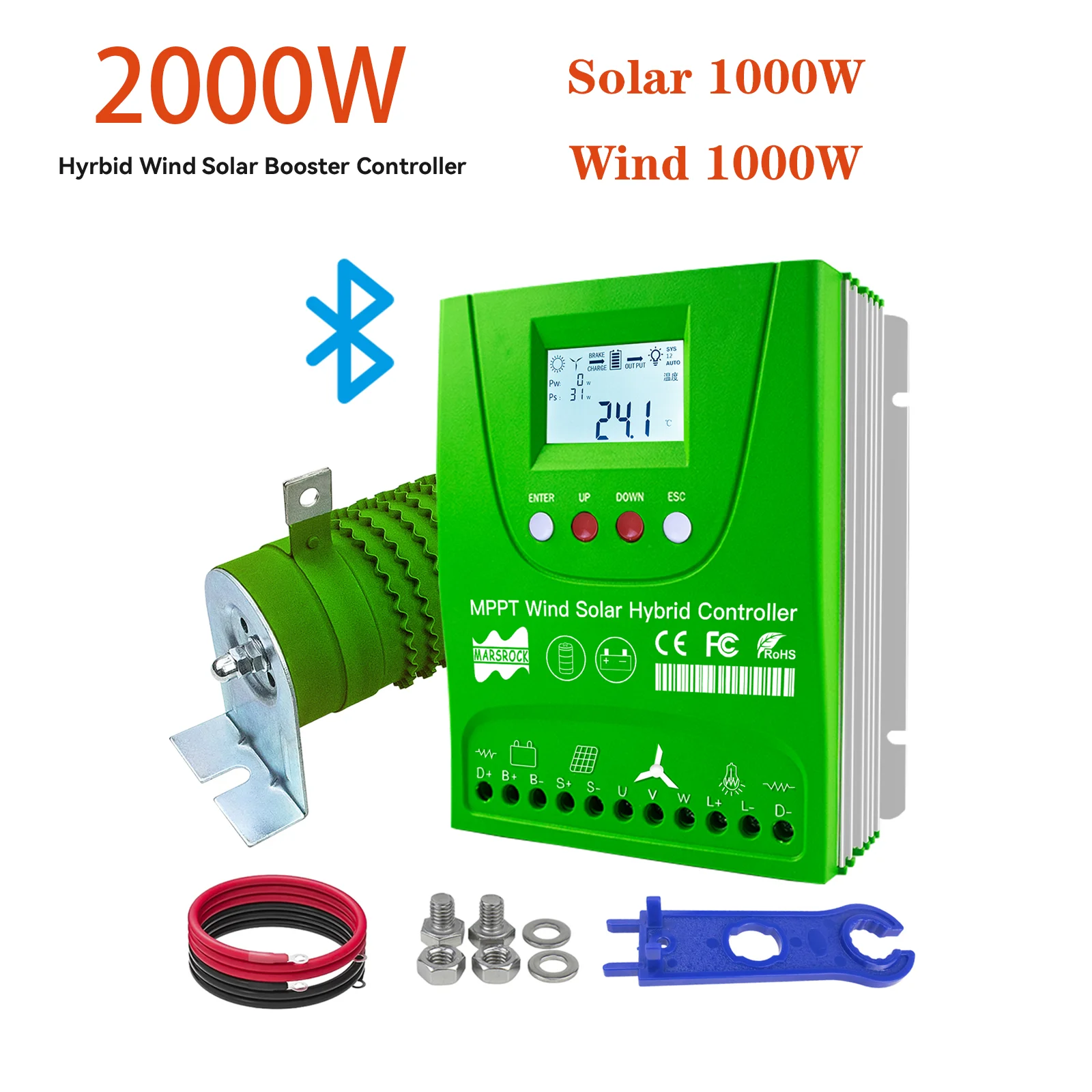

2000W Hybrid Wind Solar Charge Controller Auto12 24 48V MPPT Battery Equalizer For Lifepo4 Lithium Other Battery, with Bluetooth

Stock Disponible: 7908 unidades

SKU: 3256808689967238

Color
Current
Rated Voltage
Controller Type
Cantidad
1

$148.55

Precio final con envío
Envío gratis

Desglose de costo

Precio del producto
$144.44
Fee de Servicio MiCyberCompras
$4.11
Costo de envío estimado
Gratis
Costo Final Garantizado:
$148.55

El impuesto, si aplica, se confirma en el checkout según tu dirección. Aquí ves producto, fee y envío.

  • Envío EE.UU.: USPS / UPS Ground.

  • Costo Visible: Sin sorpresas ocultas.

  • Tracking Real: Alertas por SMS/Email.

  • Pago Seguro: Cifrado por Stripe.

¿Por qué elegir MiCyberCompras?

Atributos del productoBrand Name: VESDAS, High-concerned chemical: none, Origin: Mainland China, Model Number: 2000W Hybrid Controller, is_customized: Yes, Is Smart Device: Yes, Application: Solar System Controller, Protection Grade: IP30, Humidity (°C): 10% - 90% No condensation, Conversion Efficiency: >98%, Temperature: Working:-20℃ -55℃, DC Load Out Put Power: 0-480W, DC Load Rated Voltage: 48VDC, DC Load Max Current: 10A, Wind Turbine Workable Power: 0-1000W, Wind Turbine Charge Current: 14.9ADC, Wind Turbine Rated Current: 20.8A, Solar Module Workable Power: 0-1000W, Solar Module Charge Current: 16.7A
Tamaño del paquete370×270×130 mm

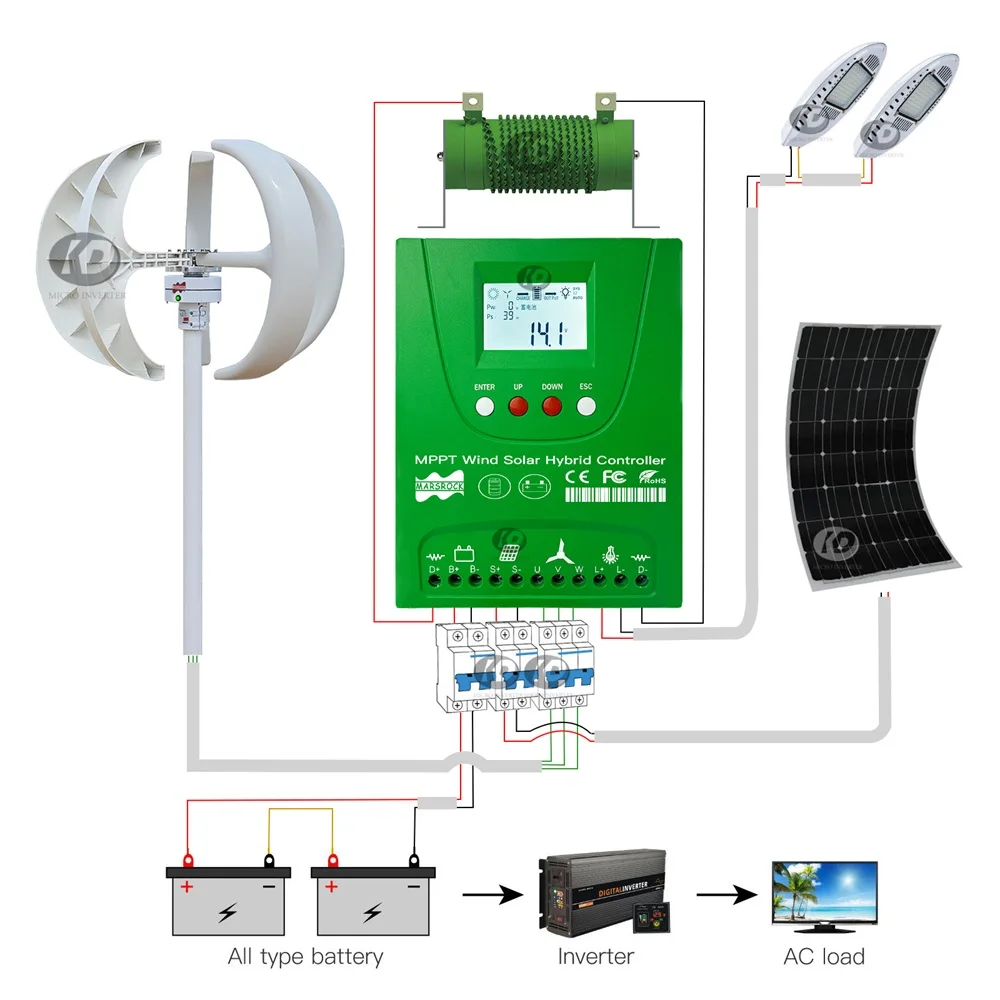

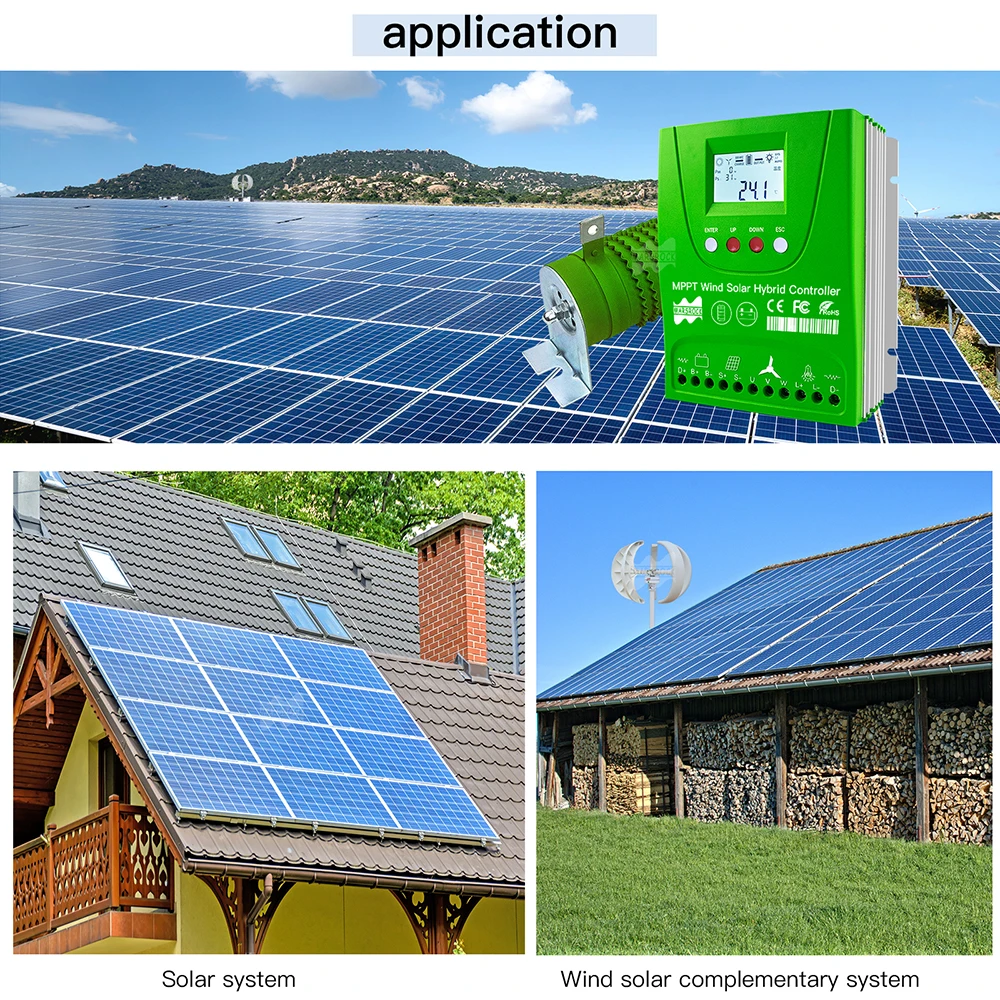

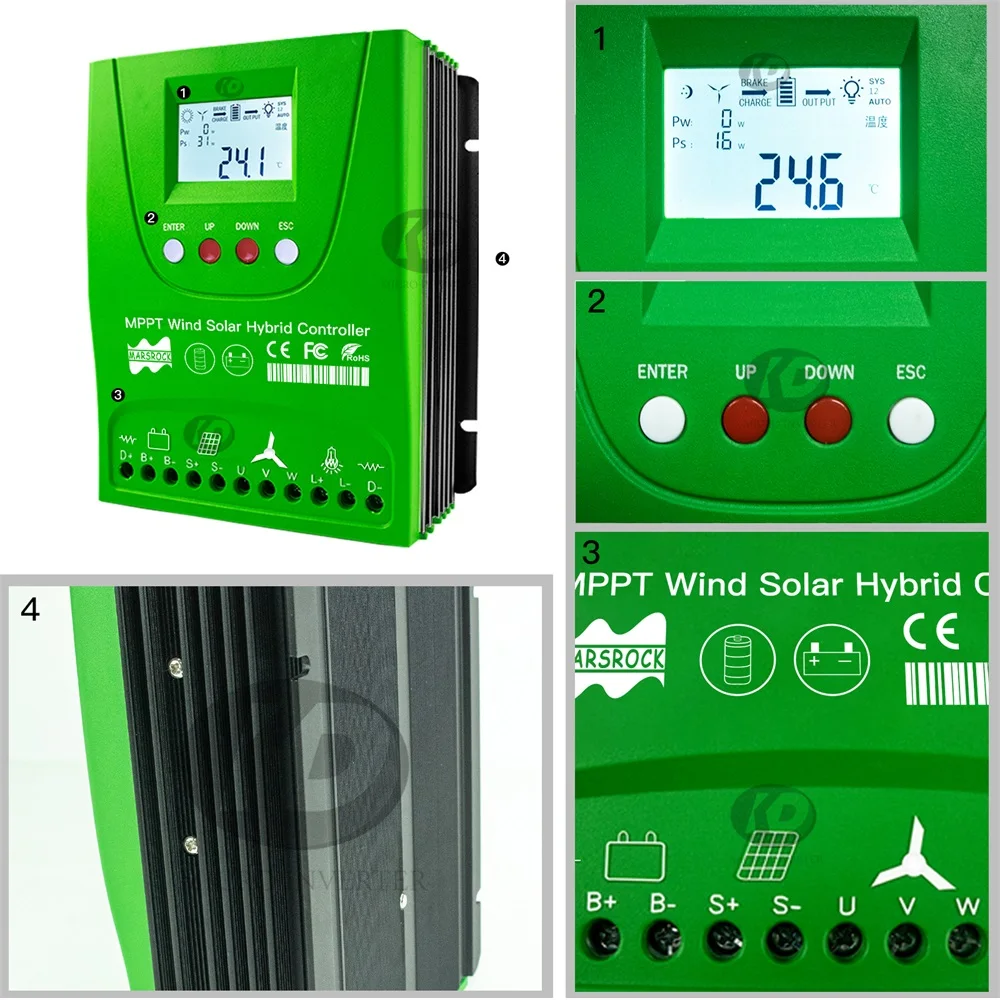

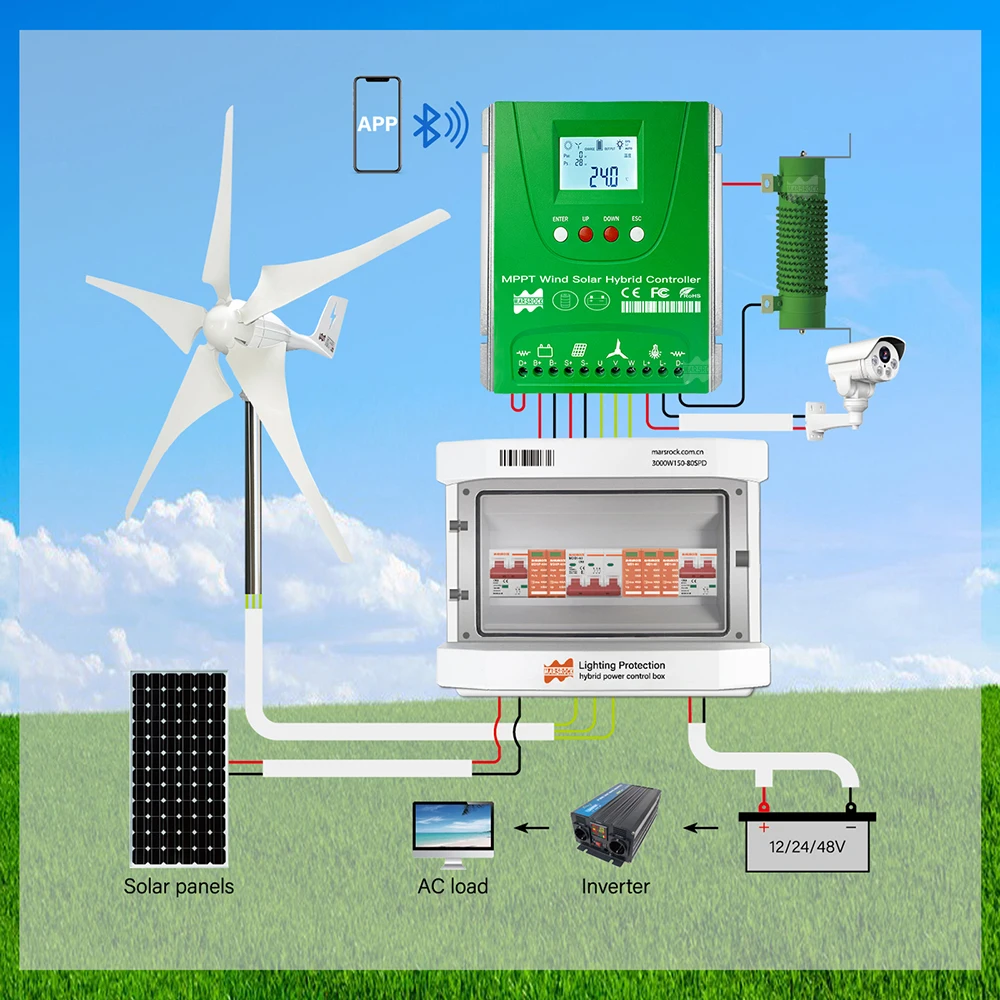

It is special designed for hybrid wind solar power system charge with full charge and discharge protection. Large size LCD screen is convenient for parameter query and adjustment but low power consumption. It can be flexibly installed in cruise ships, RVs, and land indoors. Powerful functions and light size but very good heat dissipation are its outstanding features.

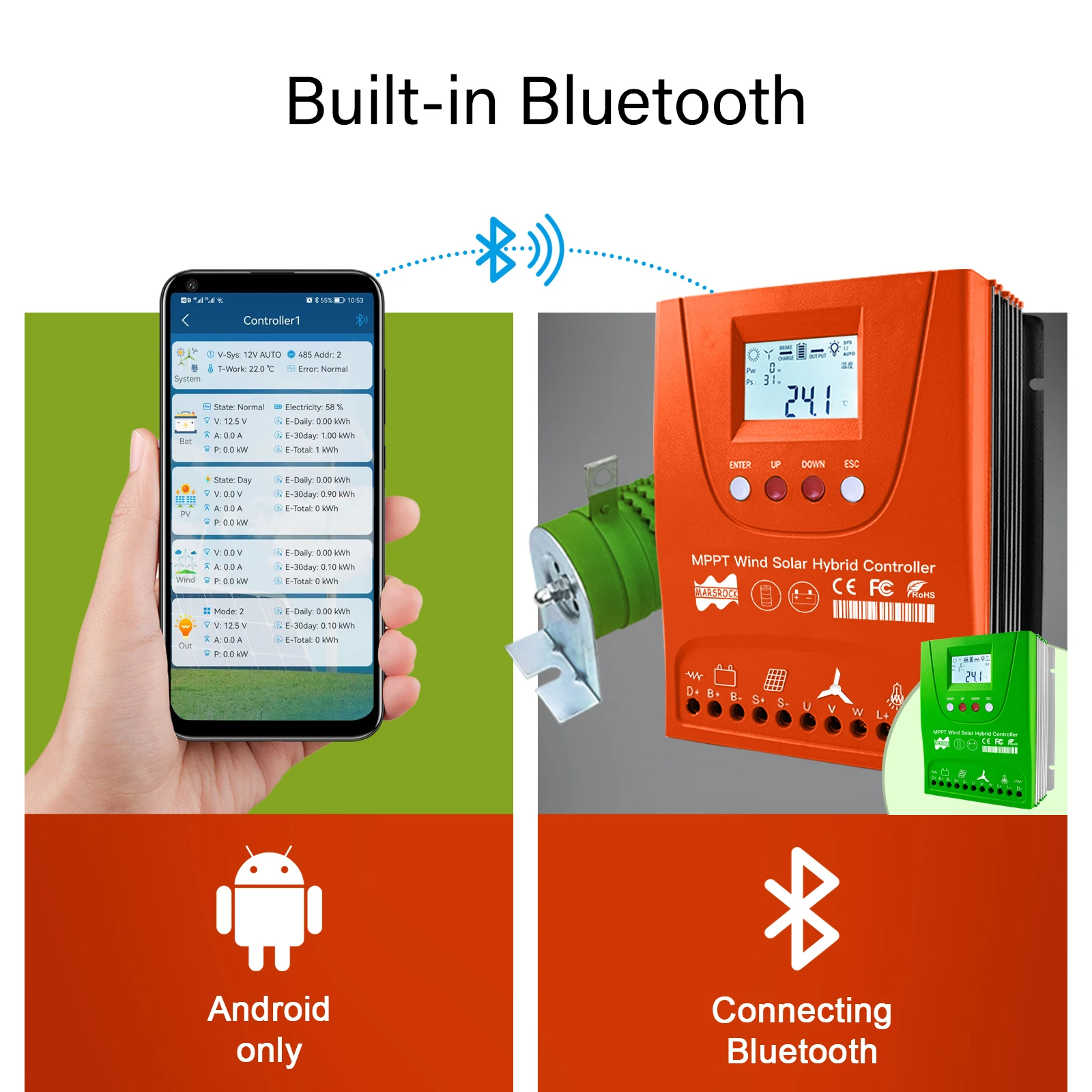

1Built-in Bluetooth device which supports real-time viewing of charging and dis-charging status through APP on Android smartphone. There is no need to access INTERNET, no need to access user’s home router, no need to enter an account and password, as long as the mobile phone Bluetooth matches. Simple and easy to operate

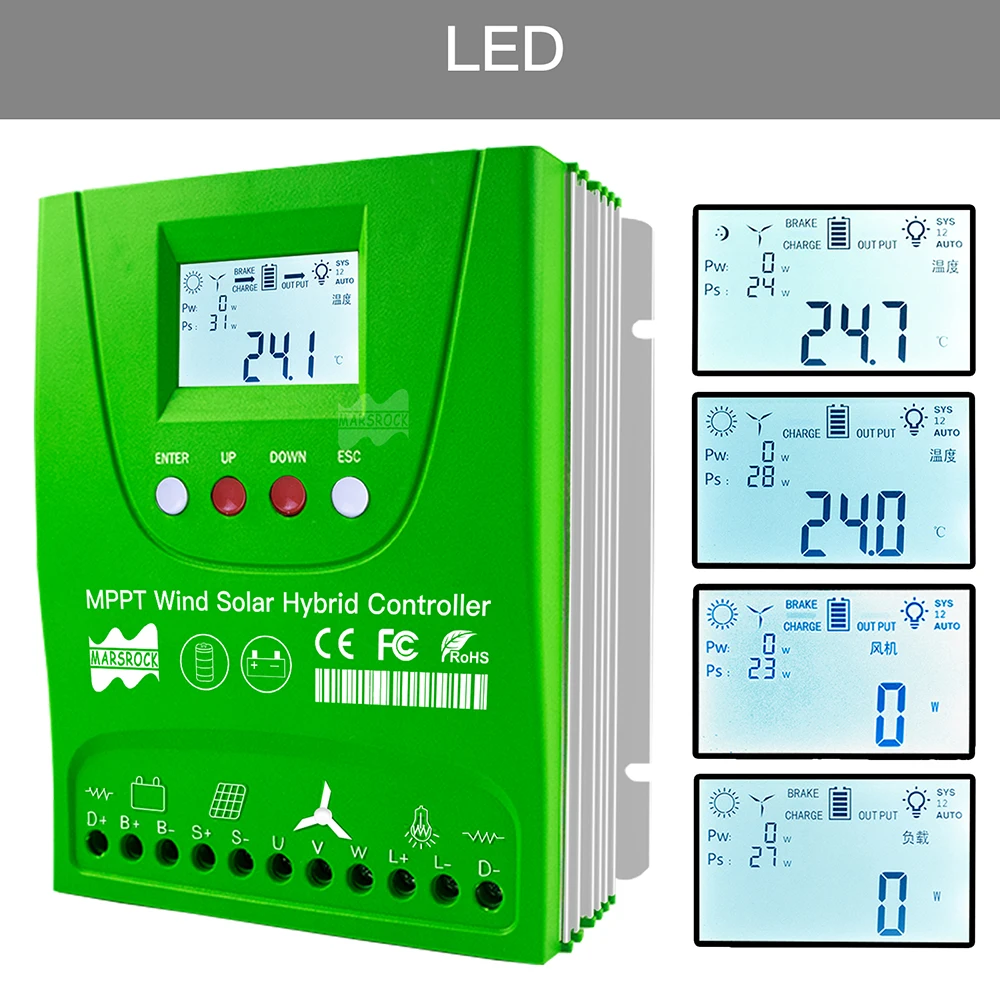

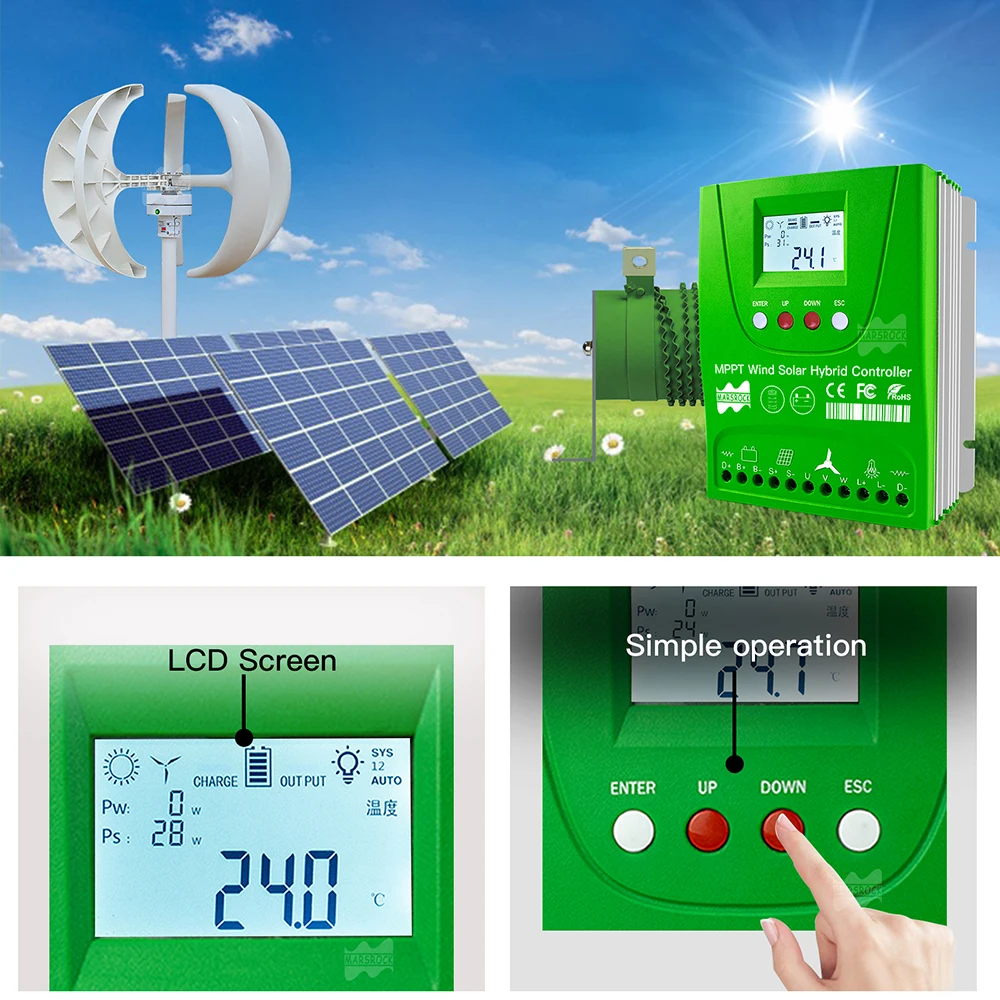

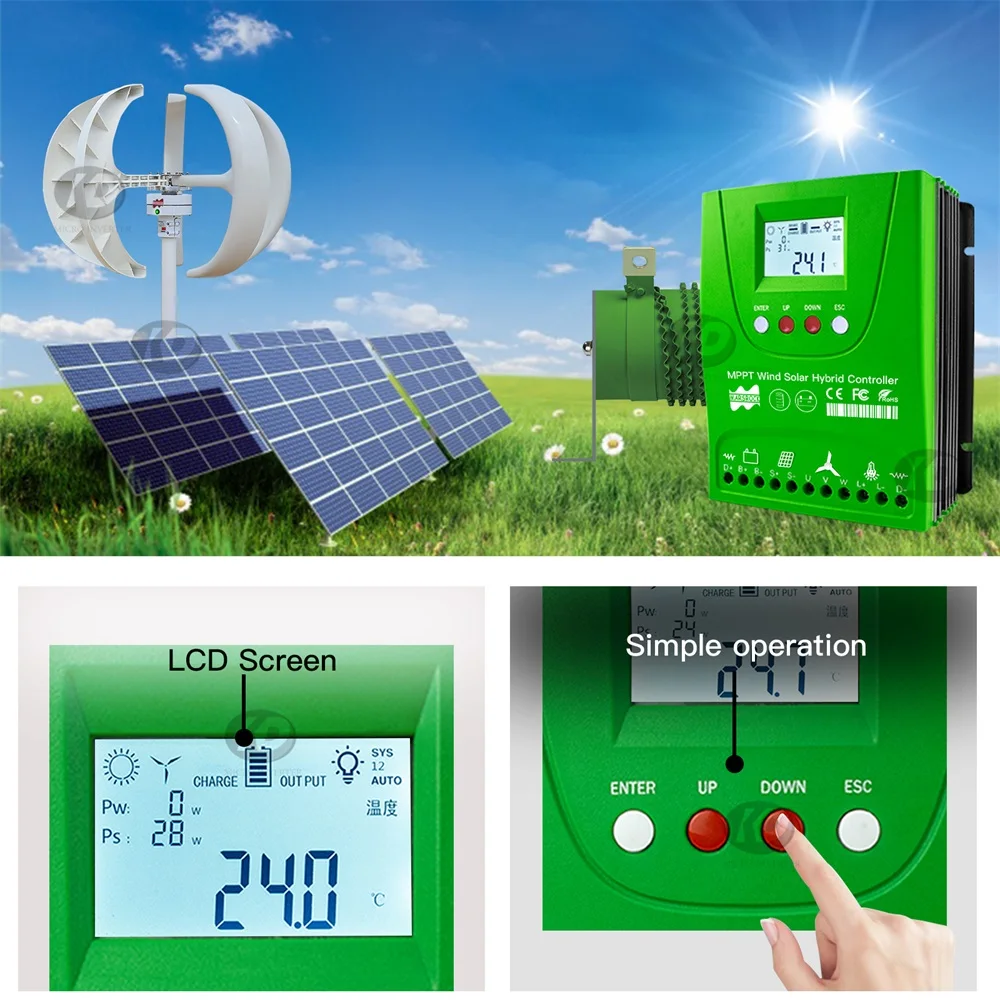

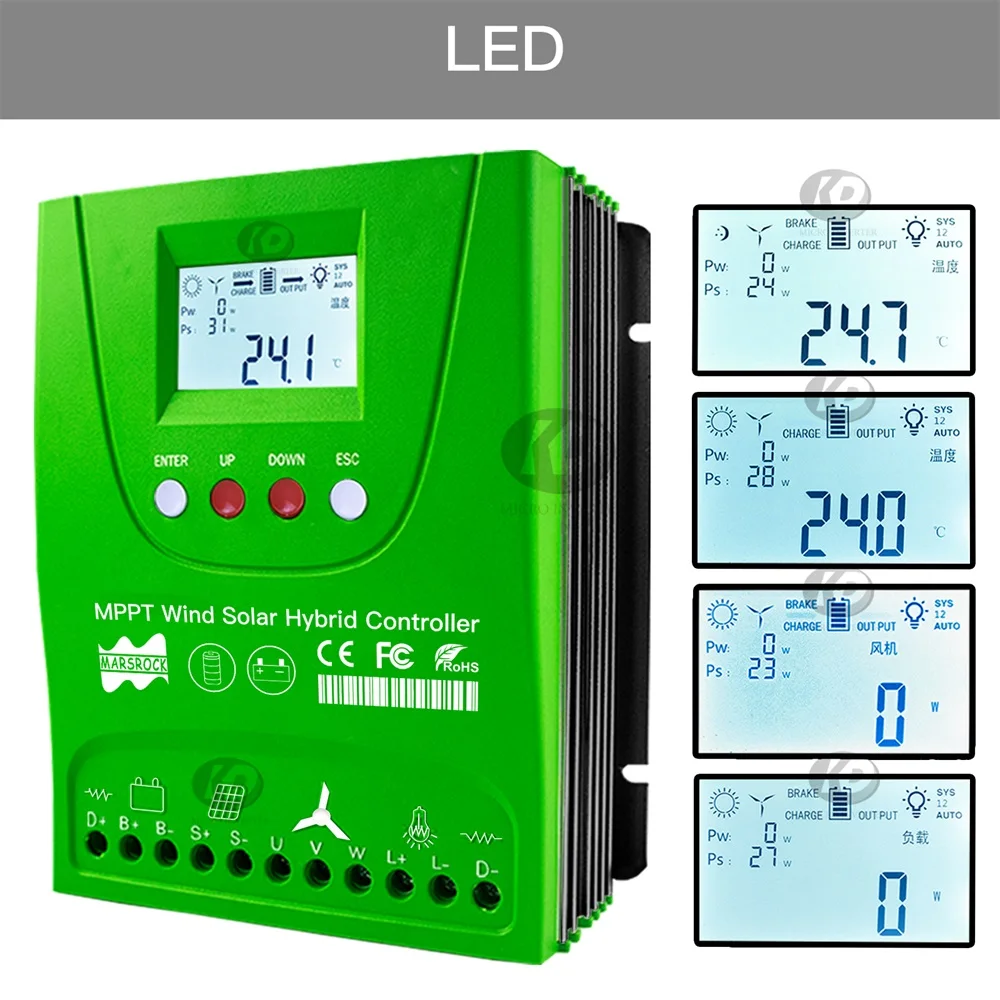

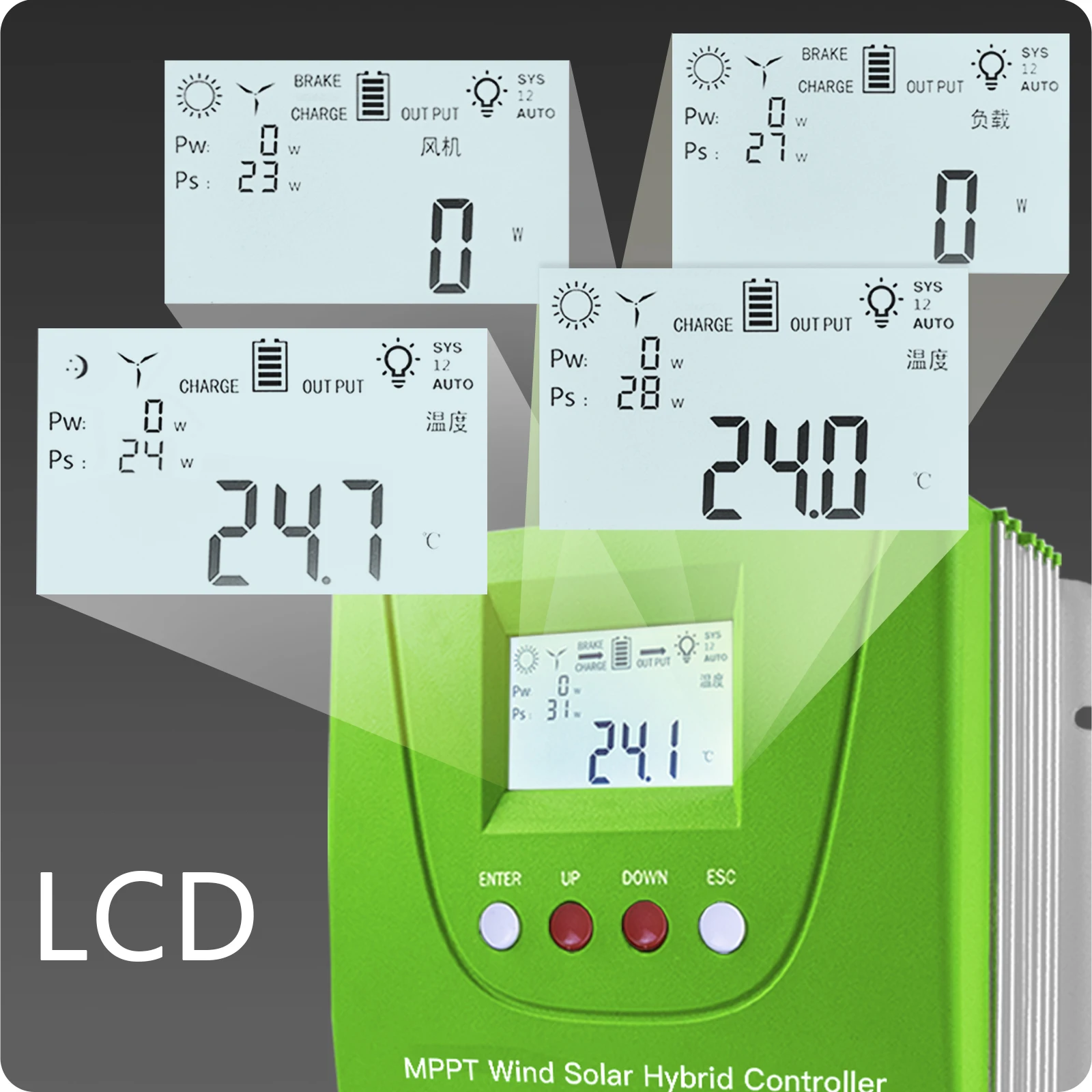

2）Large size LCD screen is convenient for parameter query and adjustment but low power consumption.

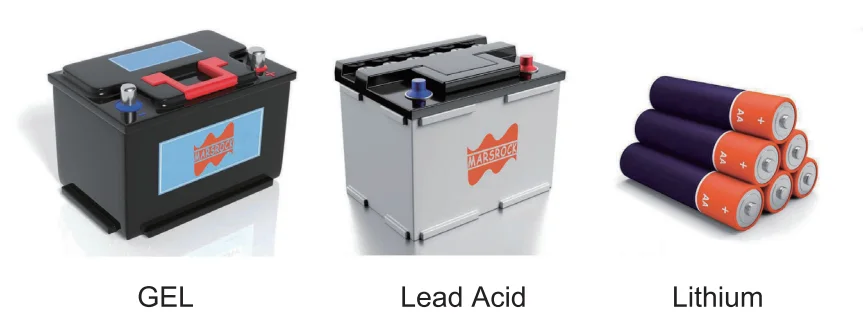

3Suitable for most batteries, more convenient and efficient



2. Battery Parameter



System Voltage

12V

24V

48V

(b0)Customer Type

FULL

Over Charge

14.7V

Adjustable

29.4V

Adjustable

58.8V

Adjustable

LOW

Over Discharge

10.2V

Adjustable

20.4V

Adjustable

40.8V

Adjustable

RLOW

Over Discharge Return

11.5V

Adjustable

23.0V

Adjustable

46.0V

Adjustable

Special Note: No one-key restore function, please do not modify preset parameters.



(b1)Lead acid battery

FULL

Over Charge

14.4V

Default

28.8V

Default

57.6V

Default

LOW

Over Discharge

10.2V

Default

20.4V

Default

40.8V

Default

RLOW

Over Discharge Return

11.5V

Default

23.0V

Default

46.0V

Default

(b2)Ternary lithium battery

FULL

Over Charge

12.6V

Default

25.2V

Default

50.4V

Default

LOW

Over Discharge

9.0V

Default

18.0V

Default

36.0V

Default

RLOW

Over Discharge Return

11.0V

Default

22.0V

Default

44.0V

Default

(b3)Lithium Iron Phosphate LiFePO4

FULL

Over Charge

14.4V

Default

28.8V

Default

57.6V

Default

LOW

Over Discharge

10.0V

Default

20.0V

Default

40.0V

Default

RLOW

Over Discharge Return

11.0V

Default

22.0V

Default

44.0V

Default





1. System Parameter






Model

1200W60

1600W80

2000W100

1600W80

2000W100

System Rated Voltage

12/24（Auto）

24/48V(Auto)

Wind Turbine

Rated Voltage

24VAC

48VAC

MPPT(Boost Up)

17VAC

34VAC

Rated Current

25A

33.3A

41.7A

16.7A

20.8A

Workable Power

0~600W

0~800W

0~1000W

0~800W

0~1000W

AC Rectify DC

33.6VDC

67.2VDC


Charge Current

17.9ADC

23.8ADC

29.8ADC

11.9ADC

14.9ADC

Brake

Start Voltage

30VAC(42VDC)

60VAC(84VDC)

Recover Voltage

27VAC

54VAC

Max Current

35ADC

35ADC

Solar Module

Voc

36-55.2VDC

72~105VDC

Vmp

30V-44VDC

60~88VDC

Charge Current

20A

26.7A

33.3A

13.3A

16.7A

Workable Power

0~600W

0~800W

0~1000W

0~800W

0~1000W

DC Load

Out Put Power

0~240W

0~480W

Rated Voltage

48VDC

Max Current

10A

Environment

Temperature

1) Working:-20℃～55℃; 2)Storage:-40℃～80℃

Humidity (°C)

10%～90% No condensation

Protection Grade

IP30

Others

Conversion Efficiency

﹥98%

Operation Mode

Default to streetlight mode

Weight

N.W: 3KGS/G.W: 4KGS

Packing Size

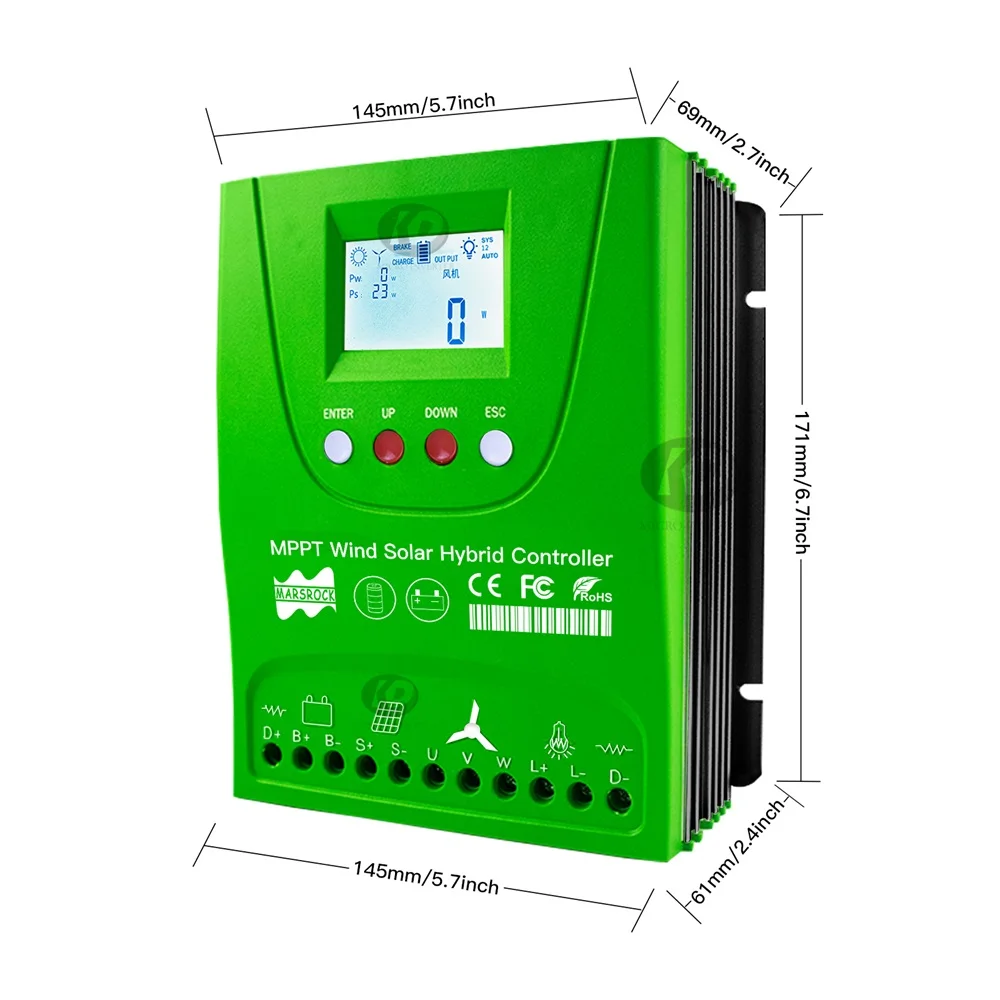

Product size：171*145*69mm/PK Size: 200*350*120mm
