Do you still worry about how to transfer diesel safely? Our diesel transfer pump is a comprehensive device designed specifically for extracting and transporting diesel. It combines efficient transfer technology with user-friendly design, aiming to meet the needs of diesel management in various industrial, commercial, and personal applications. It has become an indispensable auxiliary tool for various diesel power equipment due to its high efficiency, safety, and ease of use. Choosing the appropriate diesel transfer pump can significantly improve operational efficiency and ensure a stable and safe supply.

12V 45LKey Features

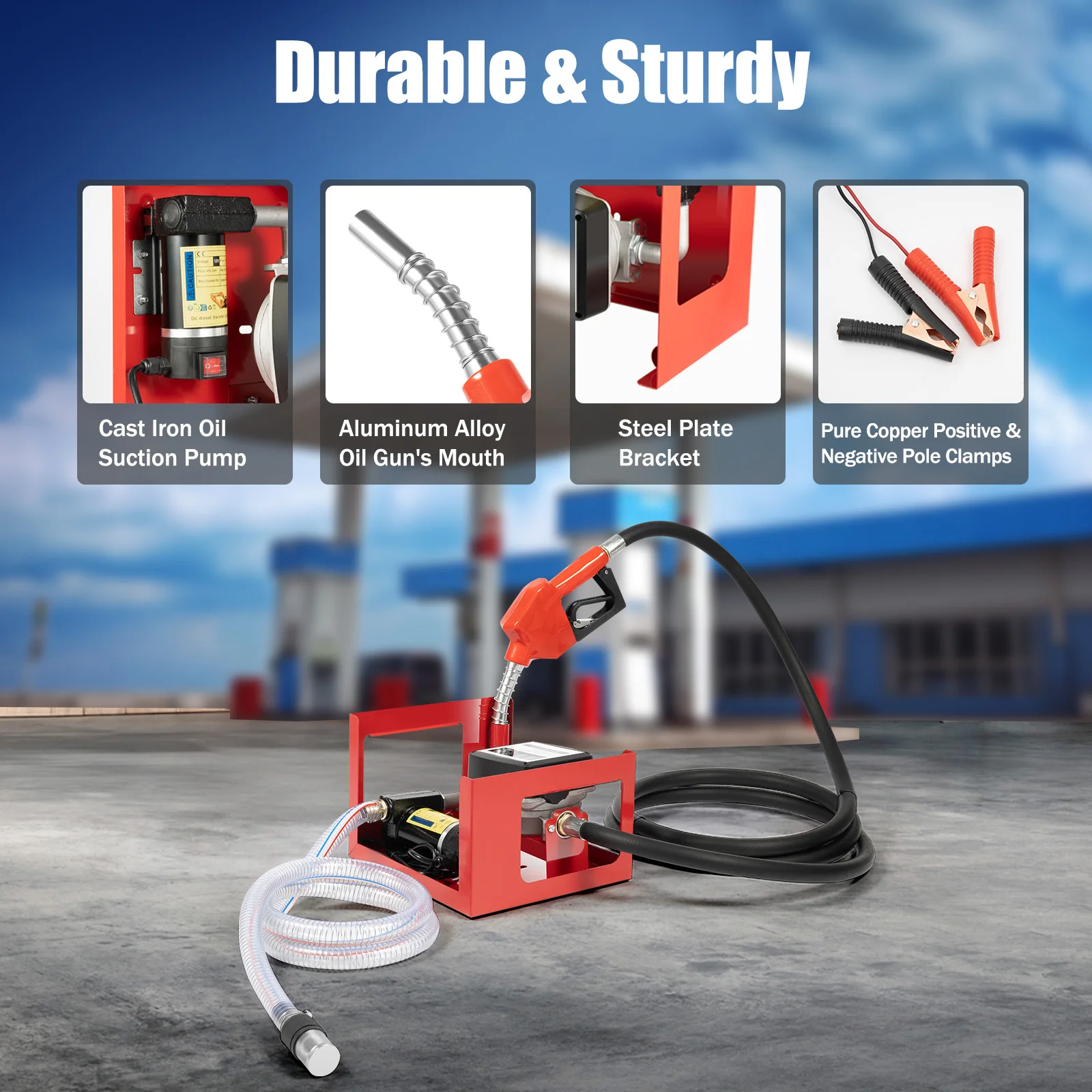

Durable & Sturdy: The cast iron oil suction pump, aluminum alloy oil gun's mouth, steel plate mounting bracket with spray paint, pure copper motor, and pure copper positive (red) and negative (black) pole clamps offer corrosion resistance, heat resistance, and wear resistance.

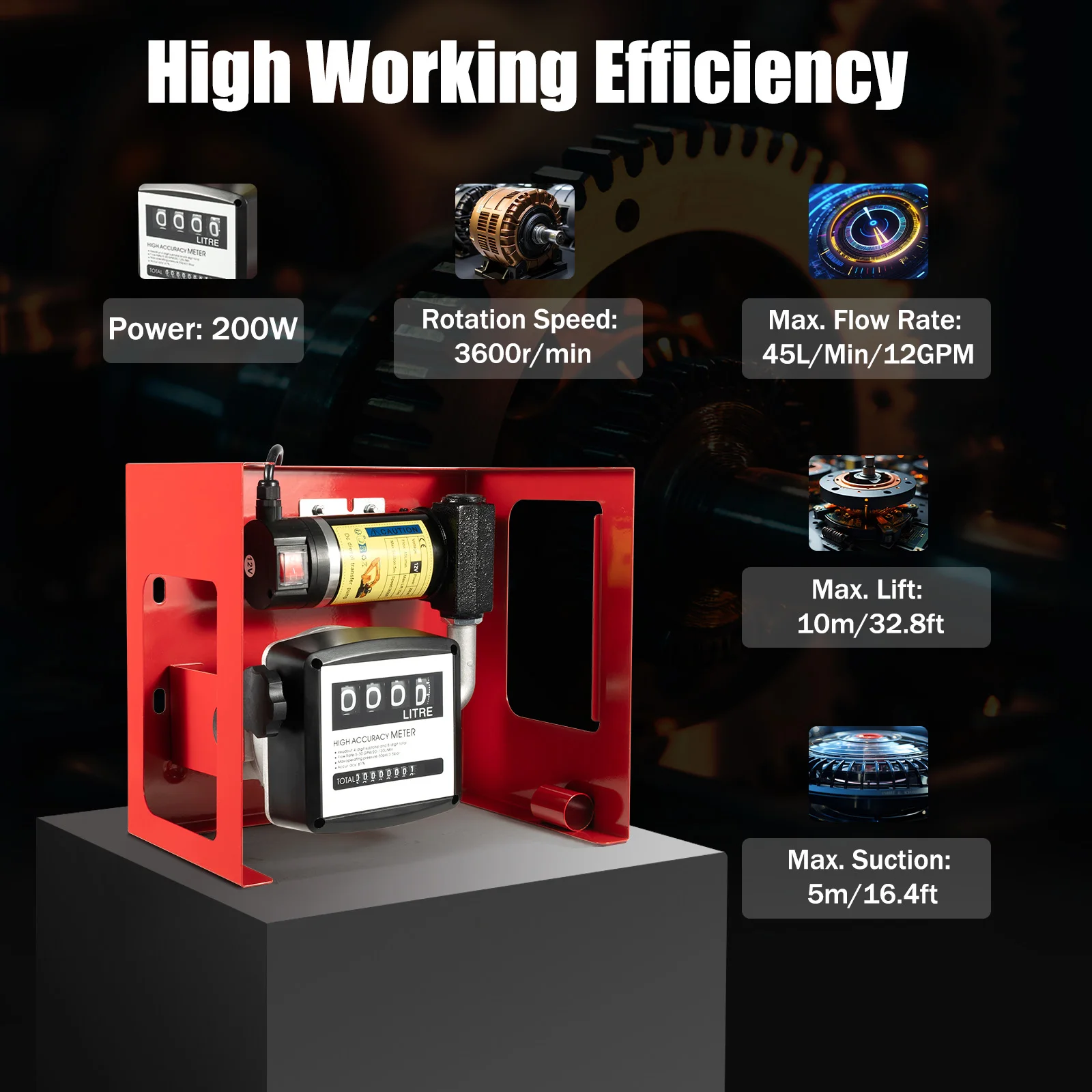

High Working Efficiency: It boasts a power of 200W, a max flow rate of 45L/Min, a max. lift of 32.8ft, a max. suction of 16.4ft, and a rotation speed of 3600r/min, providing you with strong working power and ensuring that your diesel transfer process can be completed quickly and easily.

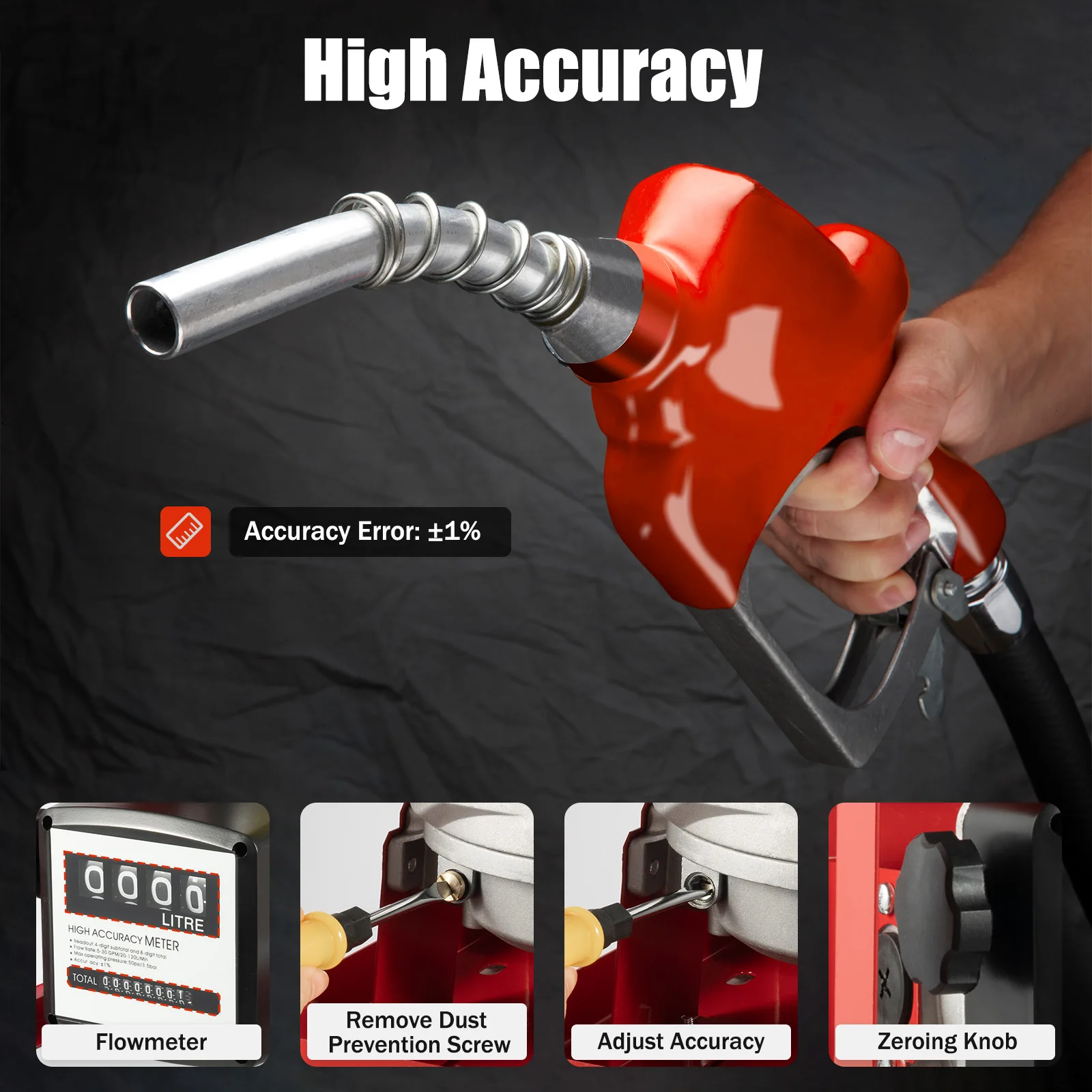

High Accuracy: The 4-digit subtotal and 8-digit total flowmeter with a mechanical gear structure can display the detailed usage volume (accuracy error: ±1%). It also supports manual zeroing by rotating the flower-shaped knob on one side.

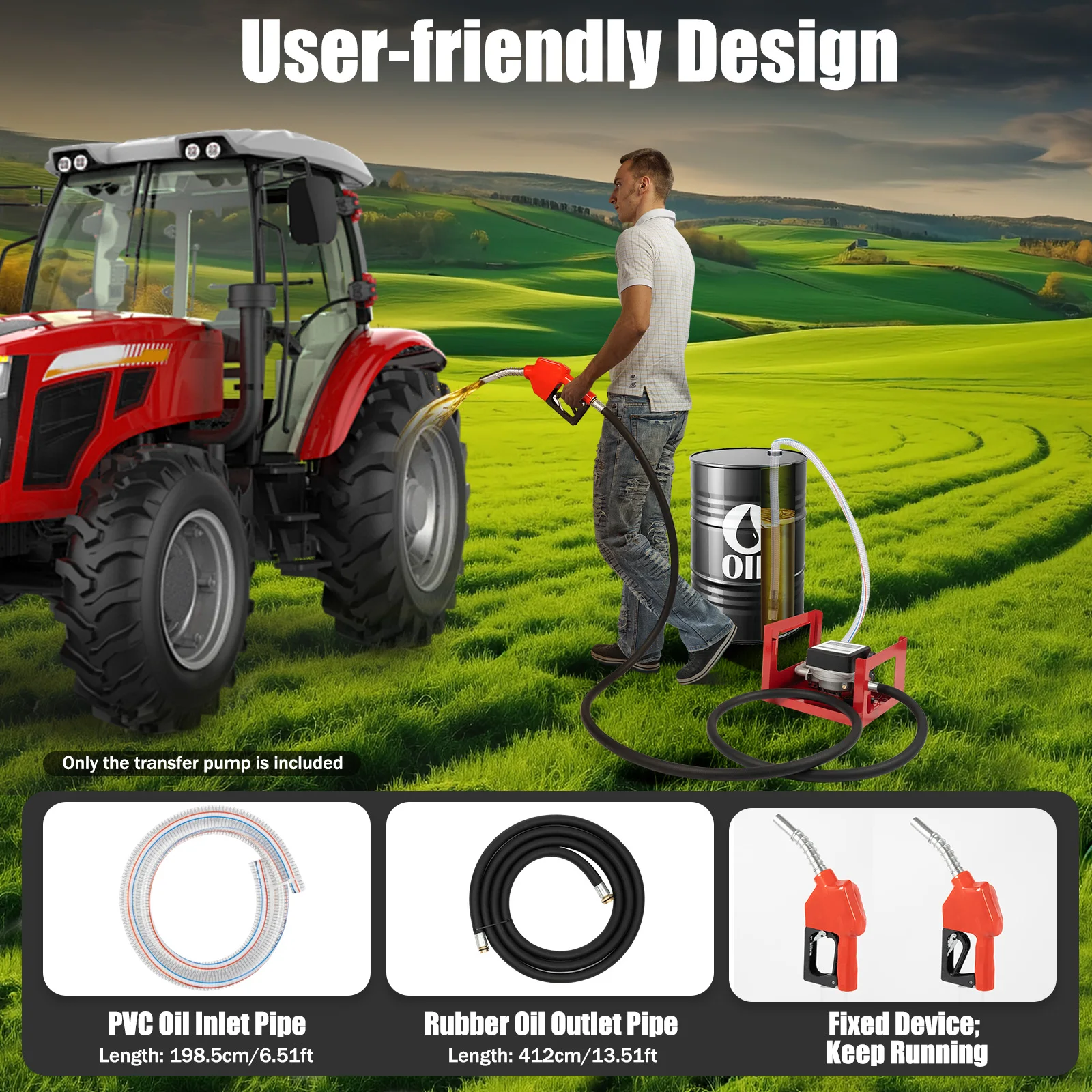

User-friendly Design: The 6.51-ft PVC oil inlet pipe with internal steel wire and the 13.51-ft rubber oil outlet pipe can easily realize long-distance diesel delivery without frequent movement. The oil gun comes with a fixed locking device, which can keep running without pressing the trigger with a hand all the time until refueling is complete, reducing hand fatigue.

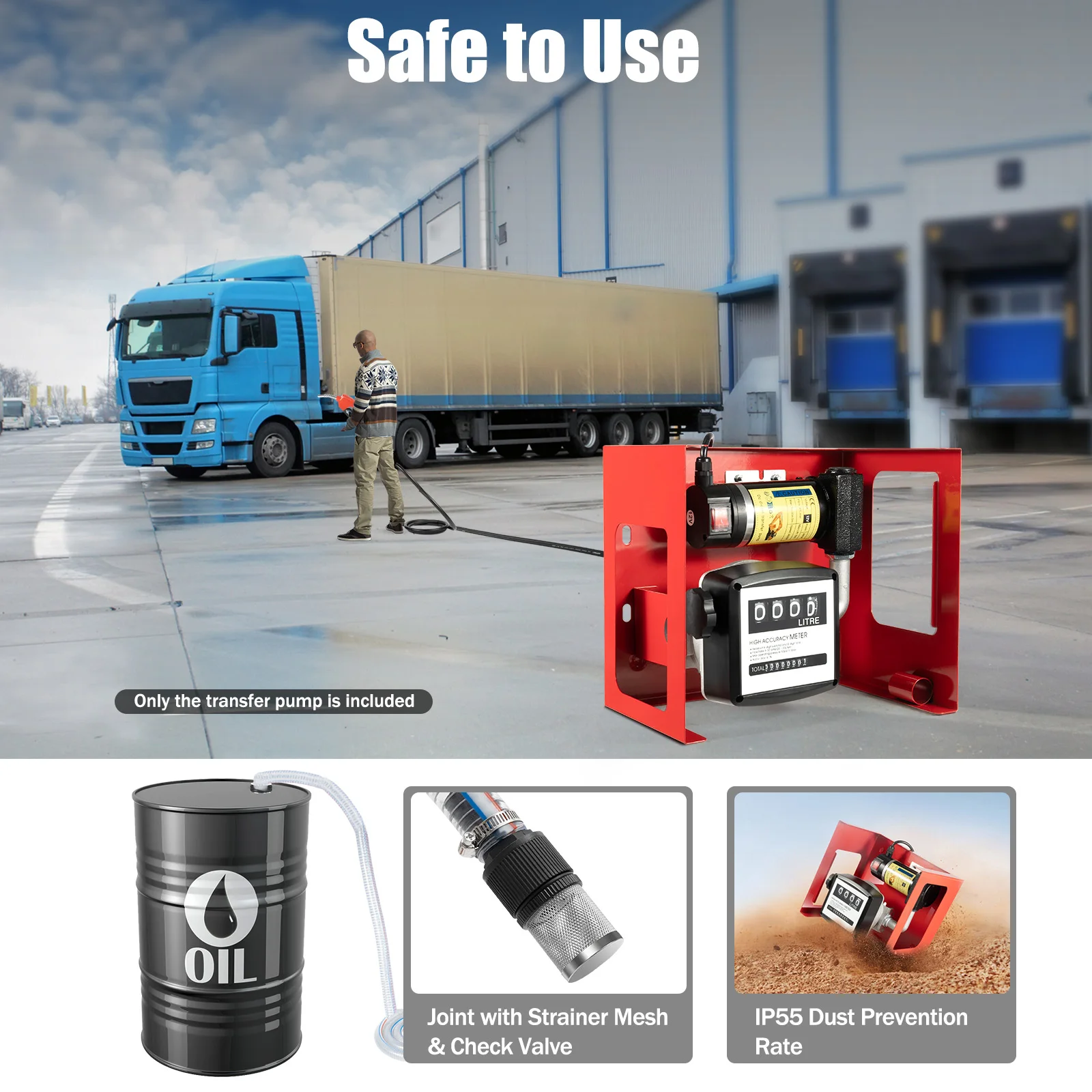

Safe to Use: The oil inlet pipe joint with strainer mesh and check valve effectively purifies diesel to prevent blockage and the risk of backflow. Also, the dustproof of IP55 can ensure machine safety during use and reduce the risk of accidents.

Compact & Portable: The bracket measures 13.38*12*9.44 inches with two large hollowed spaces on both sides, allowing you to take it to the place you need.

Complete Kit: The oil gun, oil inlet pipe, oil outlet pipe, and mounting bracket make it easy to pump the required diesel.

Customer Service: Communication is the best way to solve problems. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

230V50LKey Features

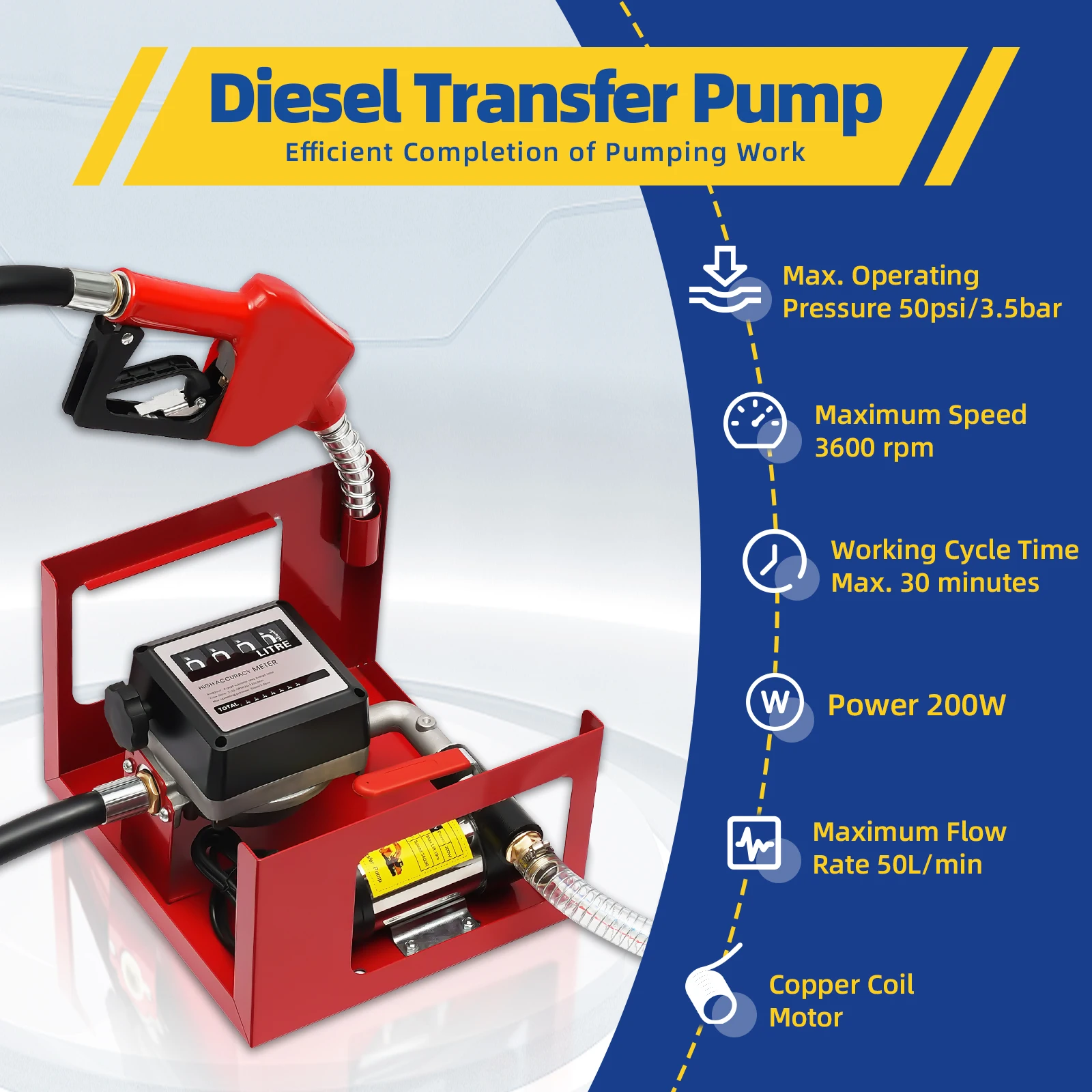

High Flow Rate: A copper coil motor with a power of 200W provides an ultra-strong maximum speed of 3600 rpm and a maximum flow rate of 50L/min, helping you quickly complete the task of pumping or delivering diesel.

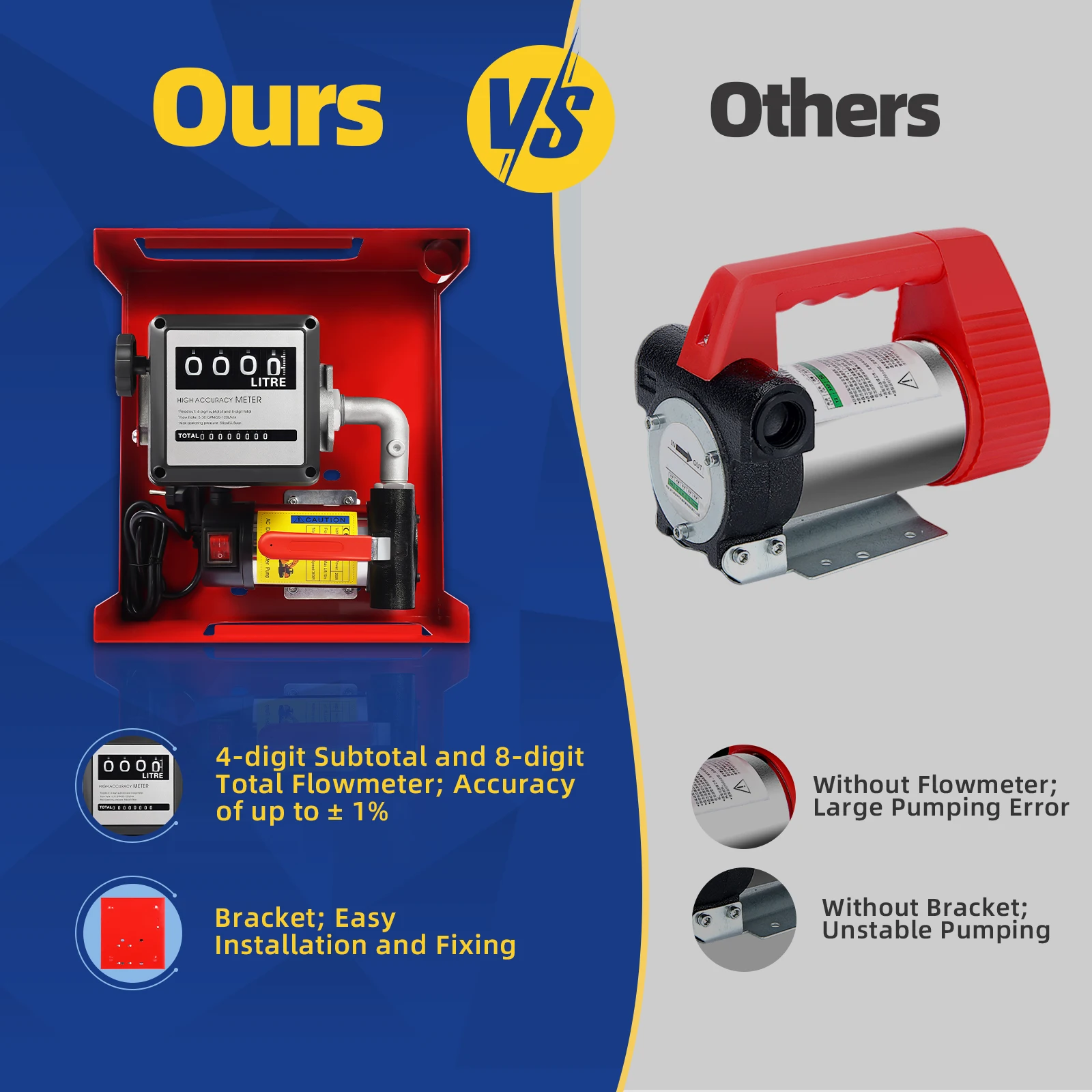

Accurate Measurement: The 4-digit subtotal and 8-digit total flowmeter with a mechanical gear structure can ensure a measurement accuracy of up to ± 1%. It also supports manual zeroing via a knob on one side for the next accurate measurement display.

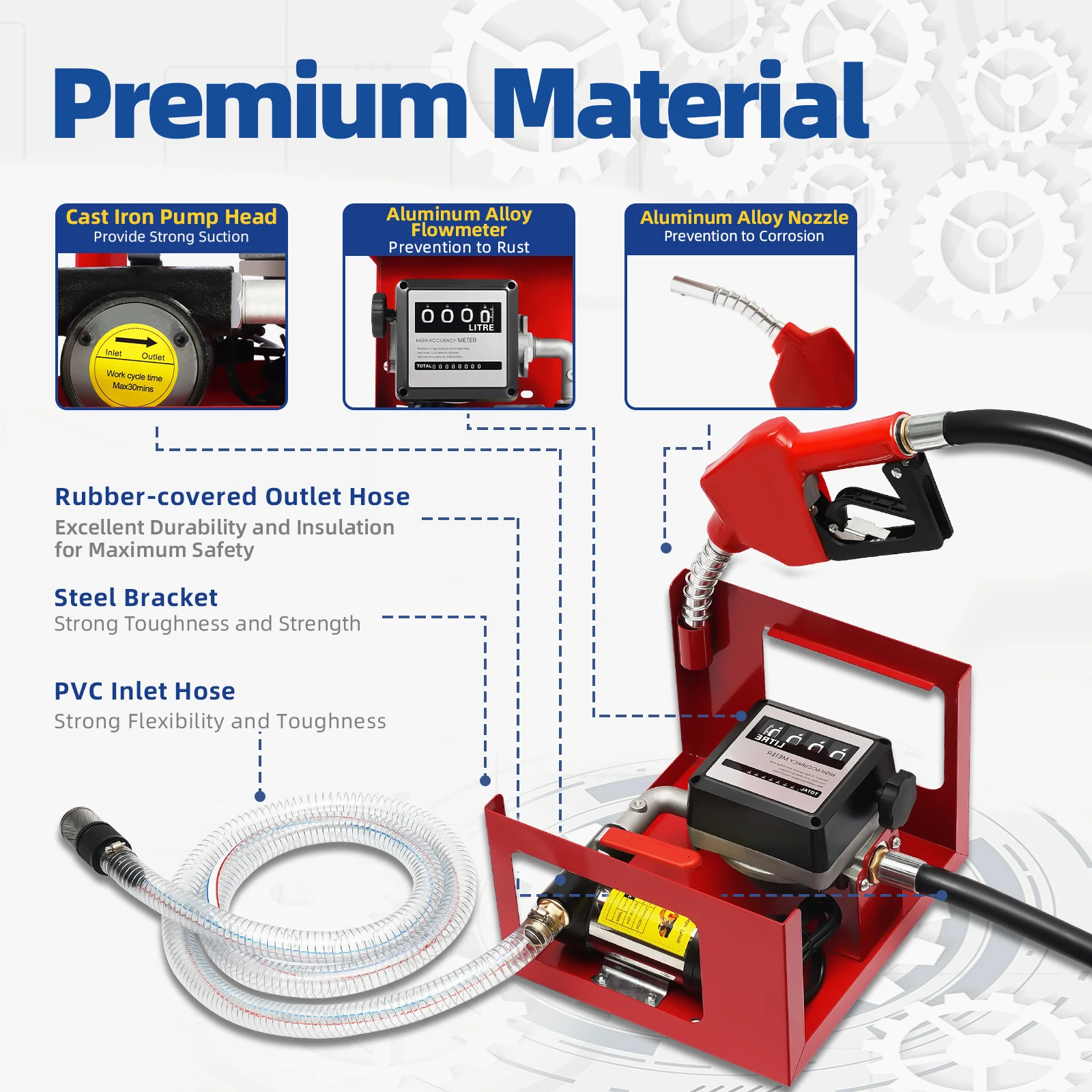

Durable and Sturdy: The cast iron pump head provides strong suction. The aluminum alloy flowmeter and steel bracket ensure strong toughness and strength, and perform well over a long period of time. PVC inlet hose has strong flexibility and tensile resistance and rubber-covered outlet hose provides excellent durability and insulation for maximum safety.

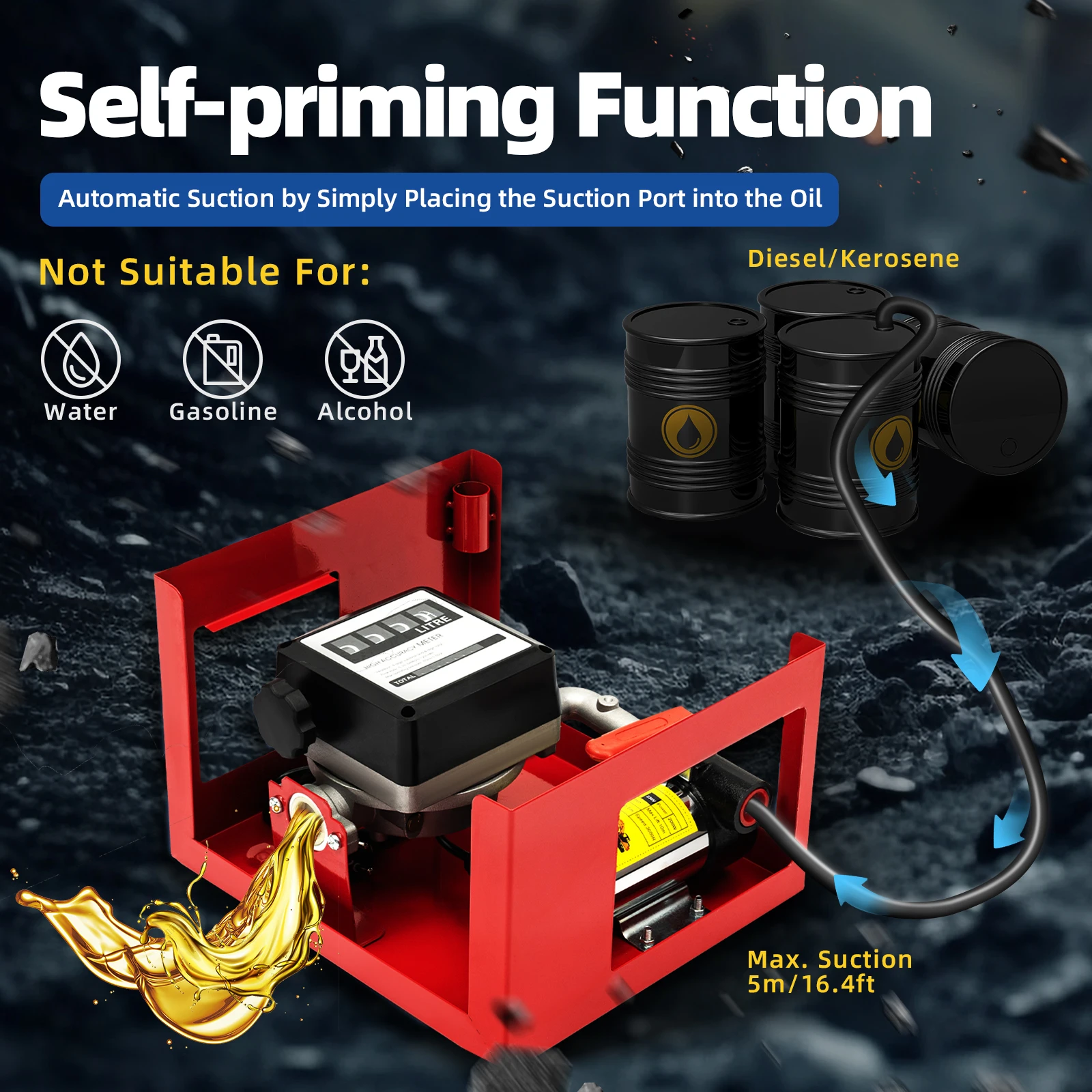

Convenient&Quick Operation: The oil gun and pump will stop automatically when filled, and the self-priming function allows for automatic suction of the oil by simply placing the suction port into the oil, saving you valuable time and energy.

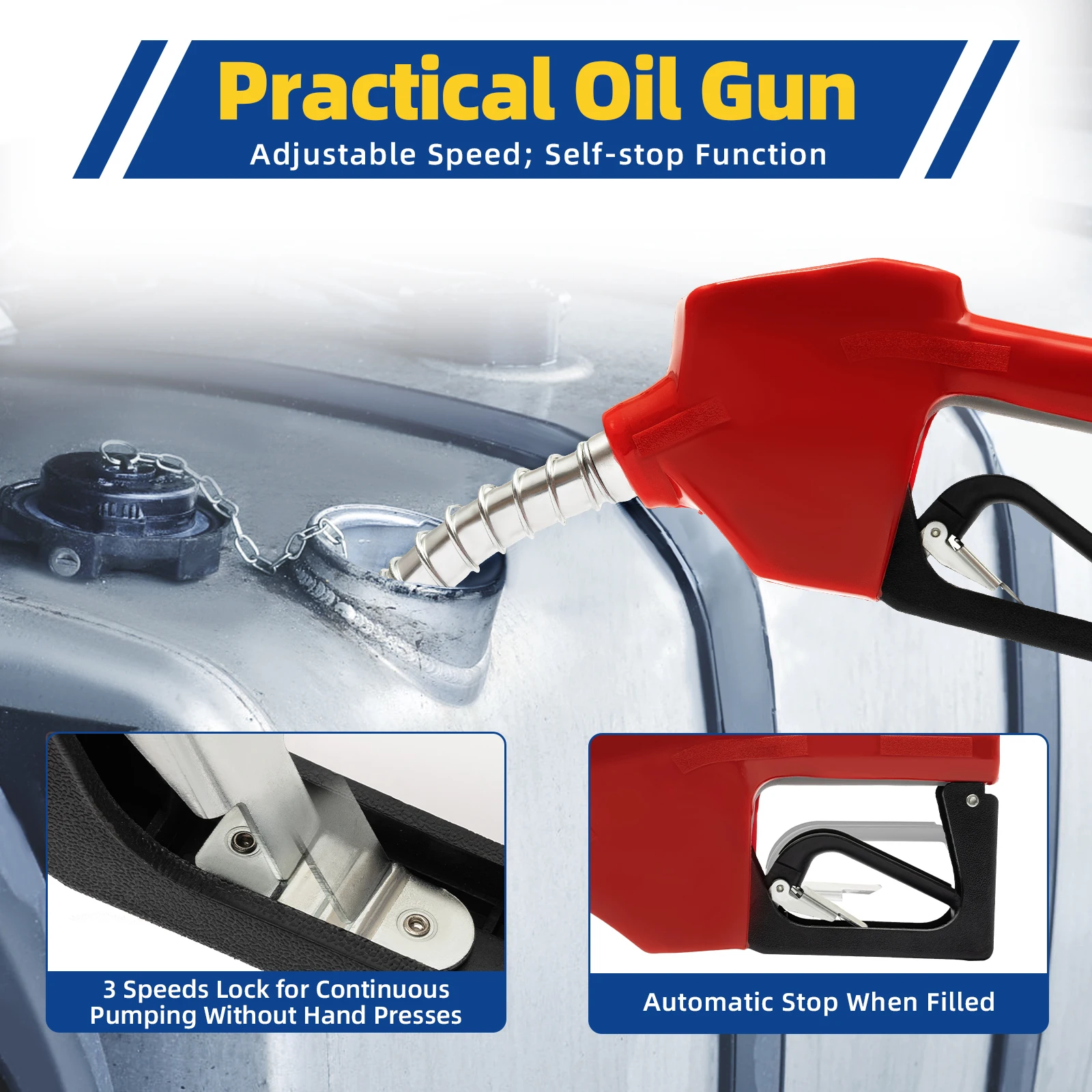

Adjustable Speed: Three gear locks near the oil gun trigger enable continuous diesel delivery at three different speed gears without having to hold the trigger with one hand, saving your energy and relieving hand fatigue.

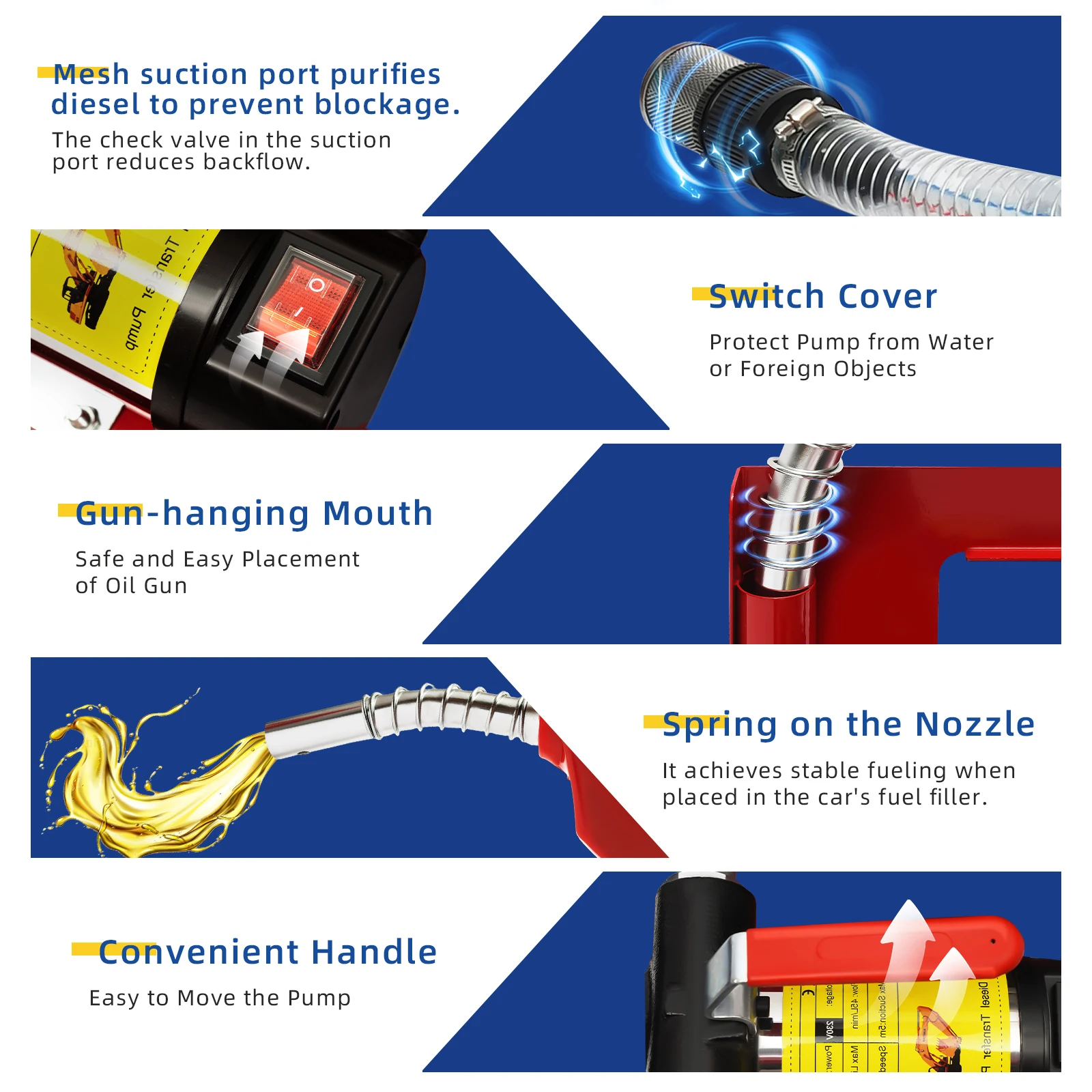

Rest Assured: The mesh suction port effectively purifies diesel to prevent blockage and the check valve in the suction port prevents the risk of backflow. The switch cover can protect the pump from water or foreign objects.

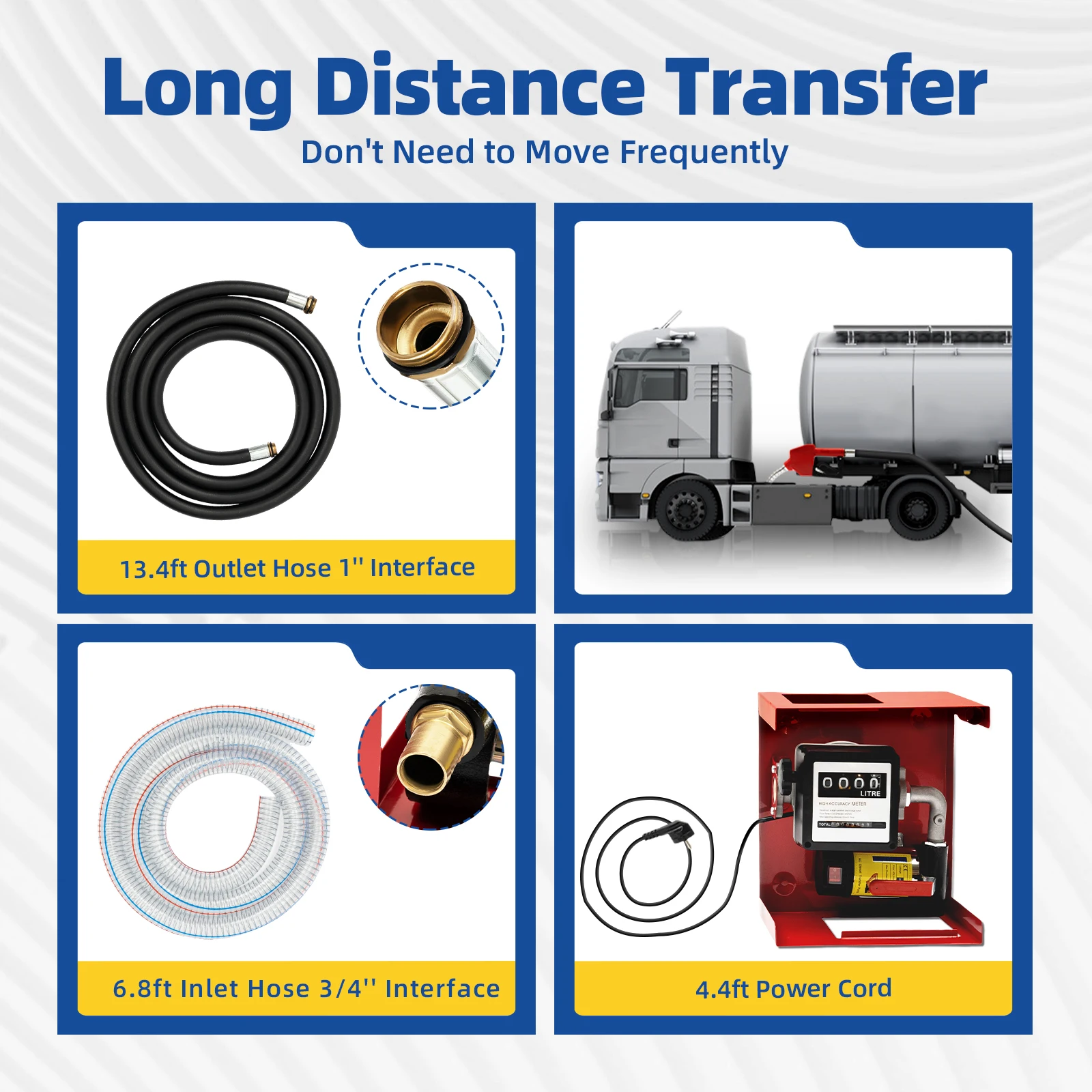

Long Distance Transfer: With an inlet pipe (6.8ft), an outlet pipe (13.4ft), and a power cord (4.4ft), it can easily realize long-distance diesel delivery without frequent movement.

Compact and Portable: It is small in size (13.4*12*8inch) and comes with an installation bracket that allows you to take it to the place you need and fix it to start pumping diesel.

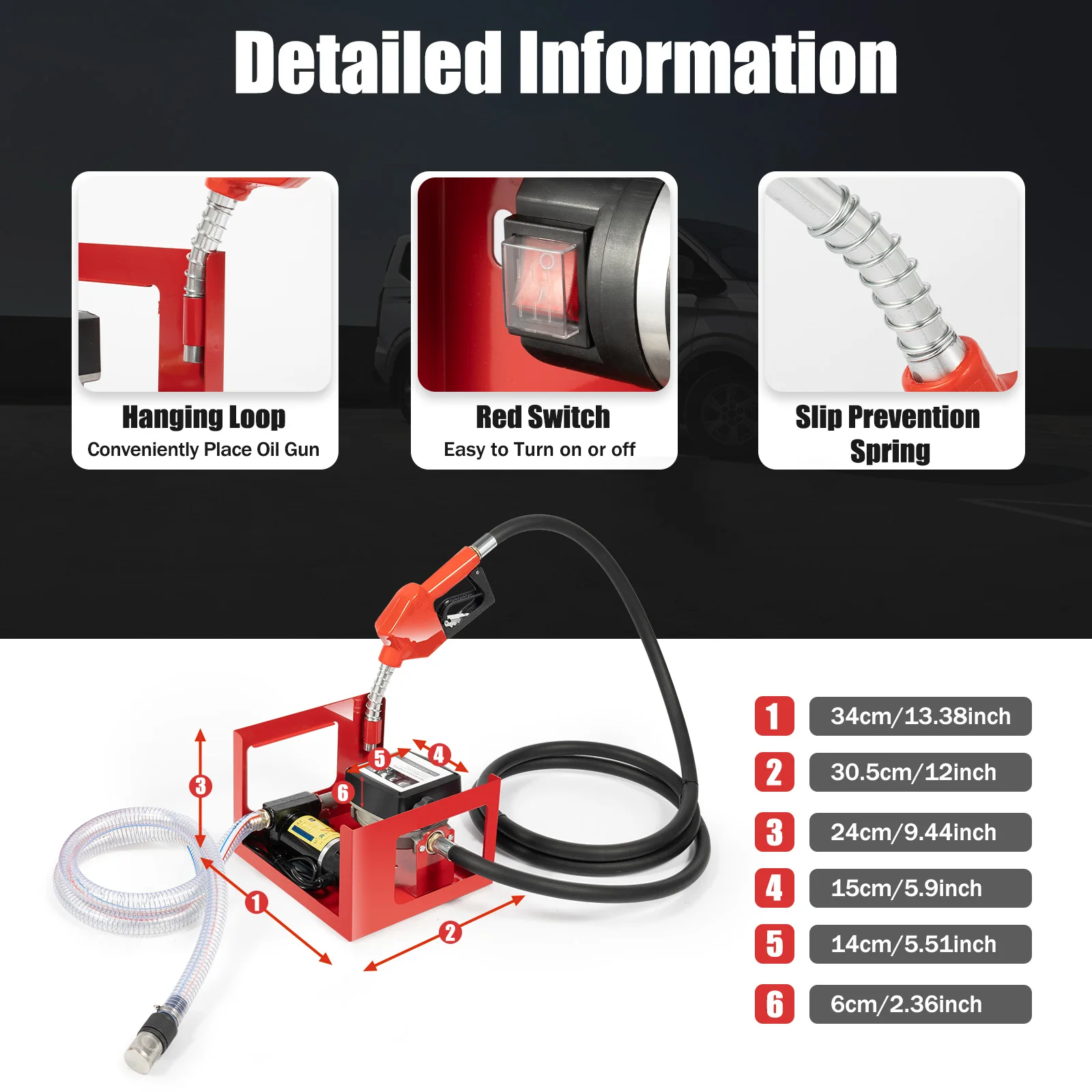

12V 45LDetails

Hanging Loop: It allows you to place the oil gun easily, saving space.

Red Switch: It can help you to turn on or off the oil suction pump easily when you use it or not.

Anti-slip Spring: It is on the oil gun mouth and can prevent the oil gun from slipping during use.

230V50LDetails

Gun-hanging Mouth: It allows you to safely and easily place the oil gun during use, ensuring your safety and maintaining its lifespan.

Fuel Gun Nozzle: The aluminum alloy nozzle is corrosion and rust-resistant, and the spring on the nozzle achieves stable fueling when placed in the car's fuel filler.

Convenient Handle: The sturdy long handle on the pump makes it easy to move the pump steadily to wherever refueling is needed for flexible use.

Application

It can be applied to pumping diesel or paraffin for automobiles, cargo ships, tractors, excavators, bulldozers, rollers, cement mixers, trucks, etc.

12V 45LSpecifications

Material: Cast Iron, Steel, Aluminum Alloy, PVC, Rubber, Pure Copper

Treatment: Spray Paint

Color: Red

Assembly Required: Yes

Instrument Unit: Liter

Readout: 4-digit Subtotal and 8-digit Total

Dustproof Rate: IP55

Power: 200W

Voltage: 12V

Accuracy Error: ± 1%

Rotation Speed: 3600r/min

Max. Flow Rate: 45L/Min/12GPM

Max. Lift: 10m/32.8ft

Max. Suction: 5m/16.4ft

Max. Operating Pressure: 50psi/3.5bar

Oil Inlet Interface: 3/4''

Oil Outlet Interface: 1''

Oil Inlet Pipe Length: 198.5cm/6.51ft

Oil Outlet Pipe Length: 412cm/13.51ft

Flowmeter Size: 15*14*6cm/5.9*5.51*2.36inch

Bracket Size: 34*30.5*24cm/13.38*12*9.44inch

Gross Weight: 12.85kg/28.32lbs

Net Weight: 11.85kg/26.12lbs

Package Size: 37*33*39cm/14.56*12.99*15.35inch

230V50LSpecifications

Material: Cast Iron, Steel, Aluminum Alloy, PVC, Rubber

Motor Type: Copper Wire Motor

Surface Treatment: Electroplating, Oxidation

Color: Red, Black

Instrument Unit: Liter

Readout: 4-digit Subtotal and 8-digit Total

Motor Power: 200W

Voltage: 230V

Max. Lift: 10m/32.8ft

Max. Suction: 5m/16.4ft

Accuracy: ± 1%

Speed: 3600rpm

Max. Flow Rate of Pump: 50L/min (1690.9oz/min)

Max. Operating Pressure: 50psi/3.5bar

Working Cycle Time: Max. 30 minutes

Inlet Pipe Diameter: 3/4''

Outlet Pipe Diameter: 1''

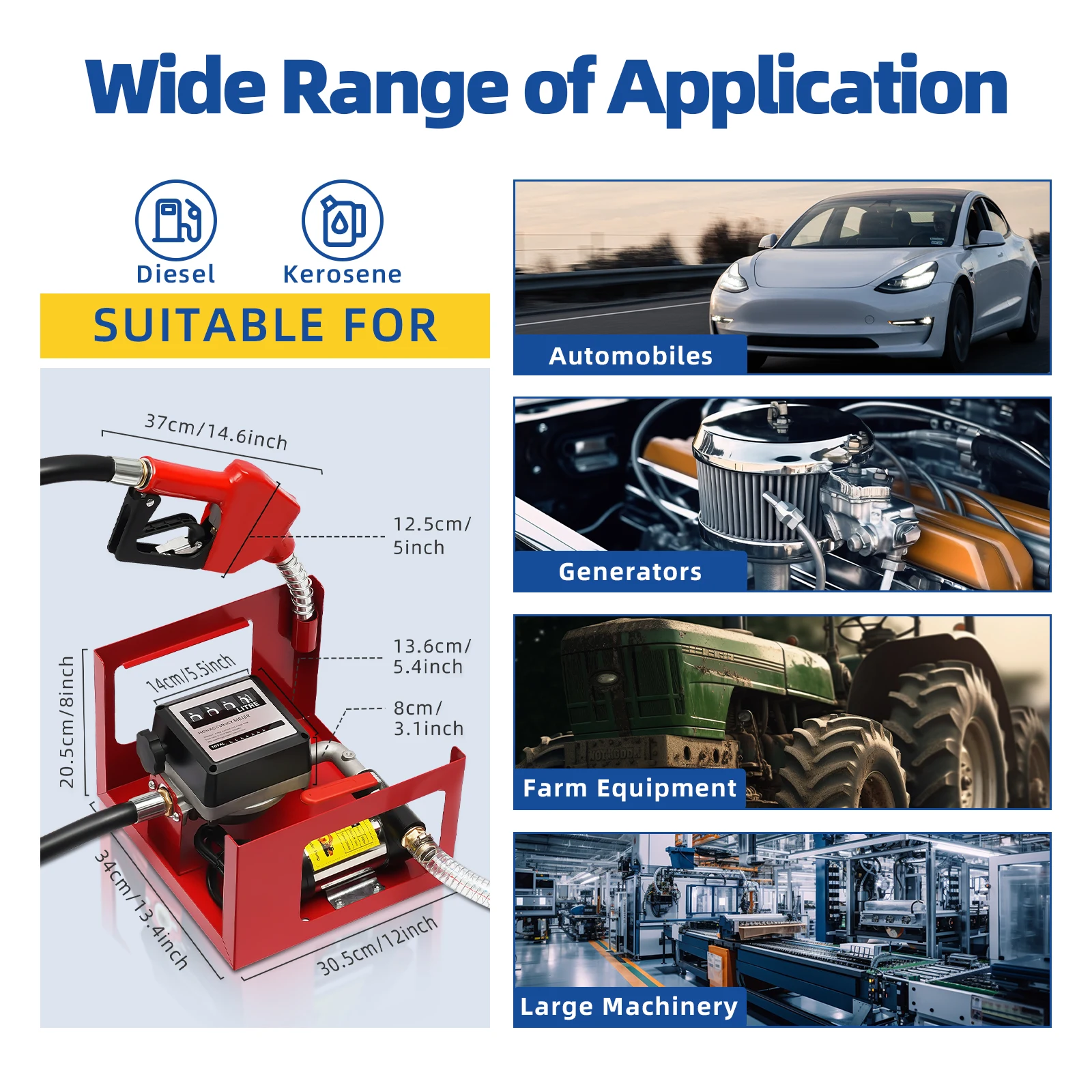

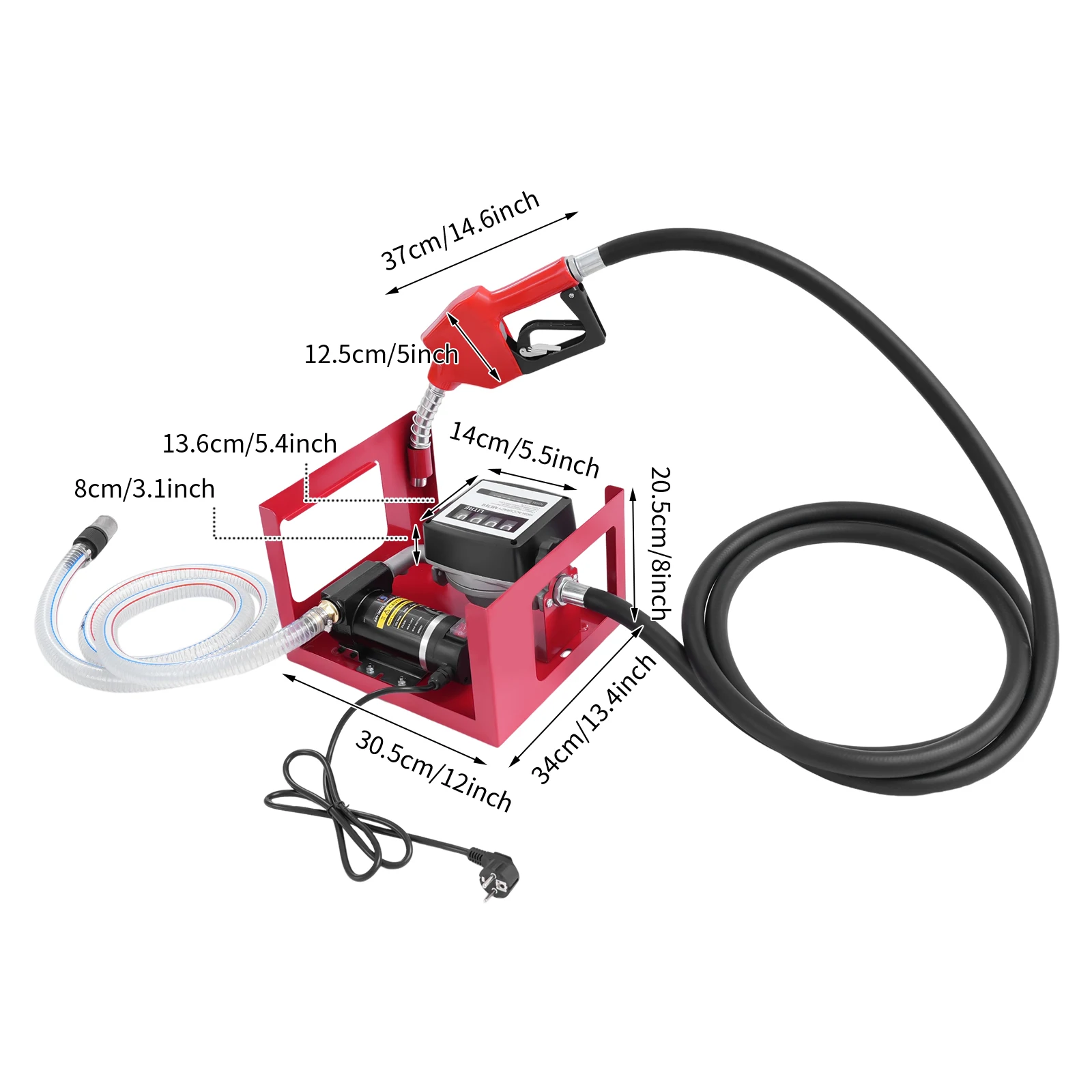

Flow Meter Size: 13.6*14*8cm/5.4*5.5*3.1inch

Oil Gun Size: 37*12.5cm/14.6*5inch

Inlet Pipe Length: 2.06m/6.8ft

Outlet Pipe Length: 4.07m/13.4ft

Power Cord Length: 1.33m/4.4ft

Bracket Size: 34*30.5*20.5cm/13.4*12*8inch

Package Size: 35.5*31.5*39cm/14*12.4*15.4inch

Gross Weight: 12.45kg/27.4lbs

Net Weight: 11.6kg/25.6lbs

Package Included

1*Diesel Transfer Pump

1*Oil Inlet Pipe

1*Oil Outlet Pipe

1*Oil Gun

1*English Manual

All Accessories for Assembly

12V 45LNotes

1. Please read the user manual carefully before use and pay special attention to the safety precautions included.

2. It can't be used for pumping petrol, alcohol, high viscosity oils, etc.

3. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

230V50LNotes

1. Please note that this product is not suitable for pumping water, petrol and alcohol.

2. Please carefully read the manual and strictly follow the precautions to have a better experience.

3. When it is first used, a small amount of diesel should be added to the pump head to increase suction. The oil inlet pipe should not leak in order to ensure suction lift.

4. Please protect the power socket of this product from water, rain, atmospheric media, and all other liquid sprays.

5. We recommend using this product between -30-40 °C, otherwise, it may cause serious damage to the components. It is recommended to fix this product in a well-ventilated area and avoid direct sunlight.

6. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
