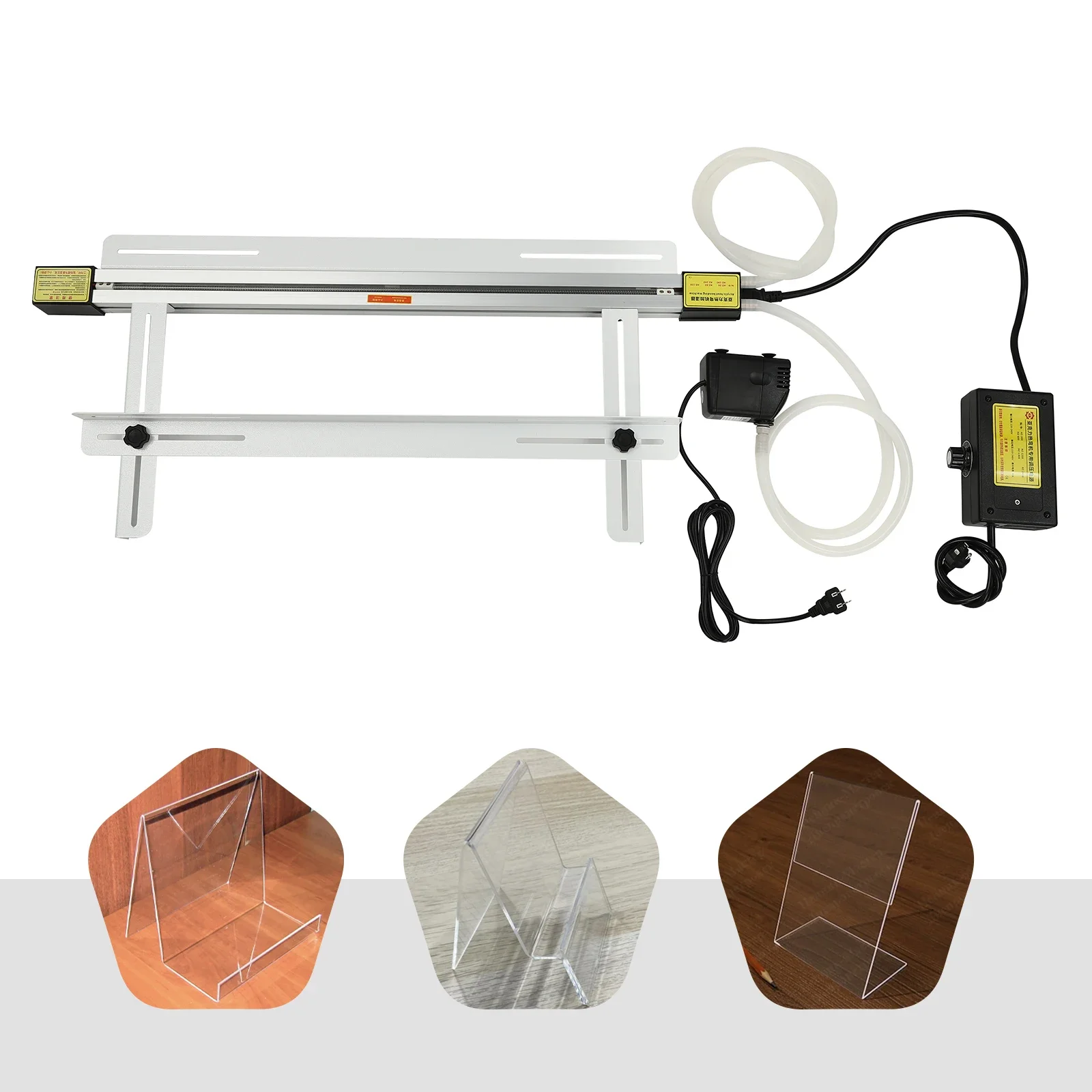

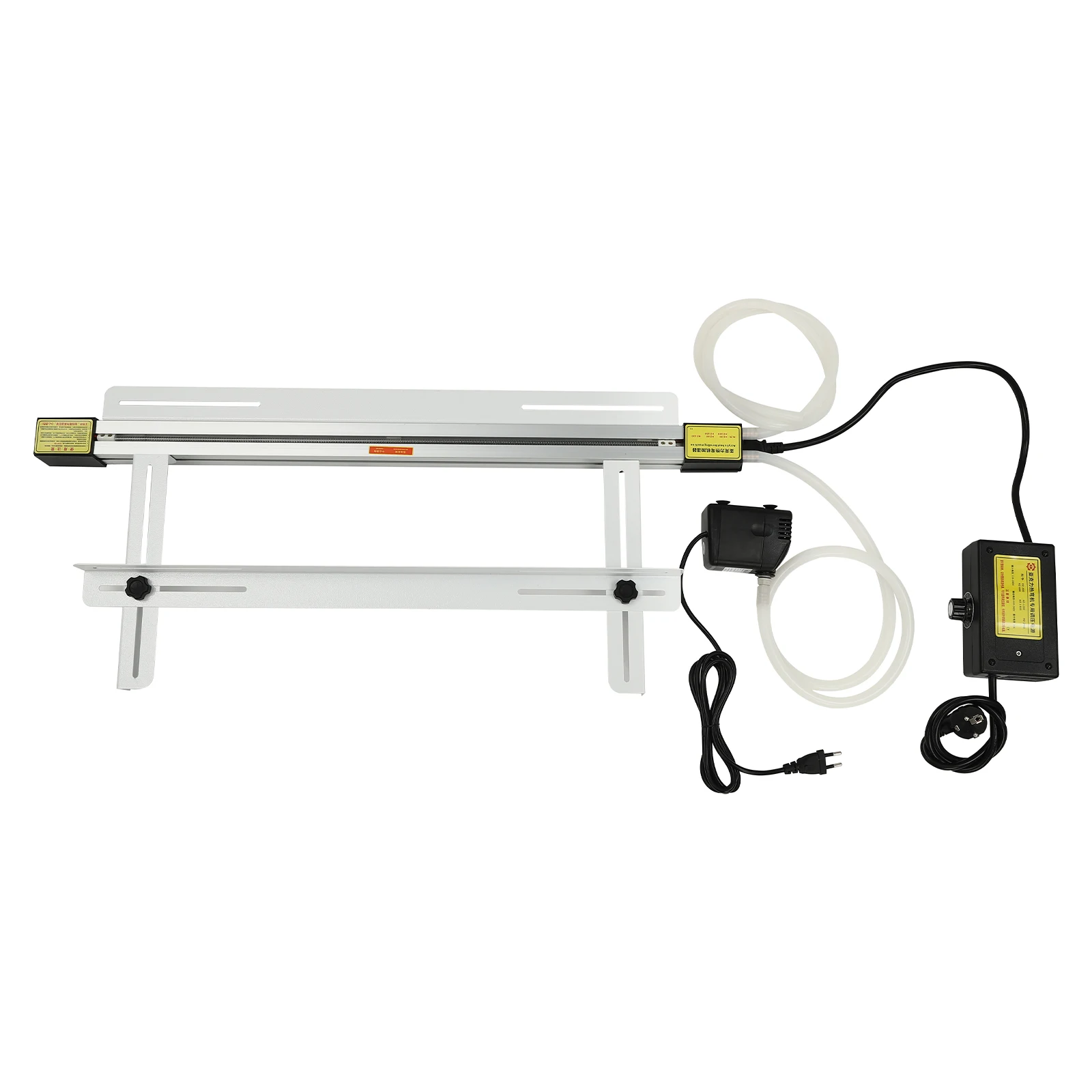

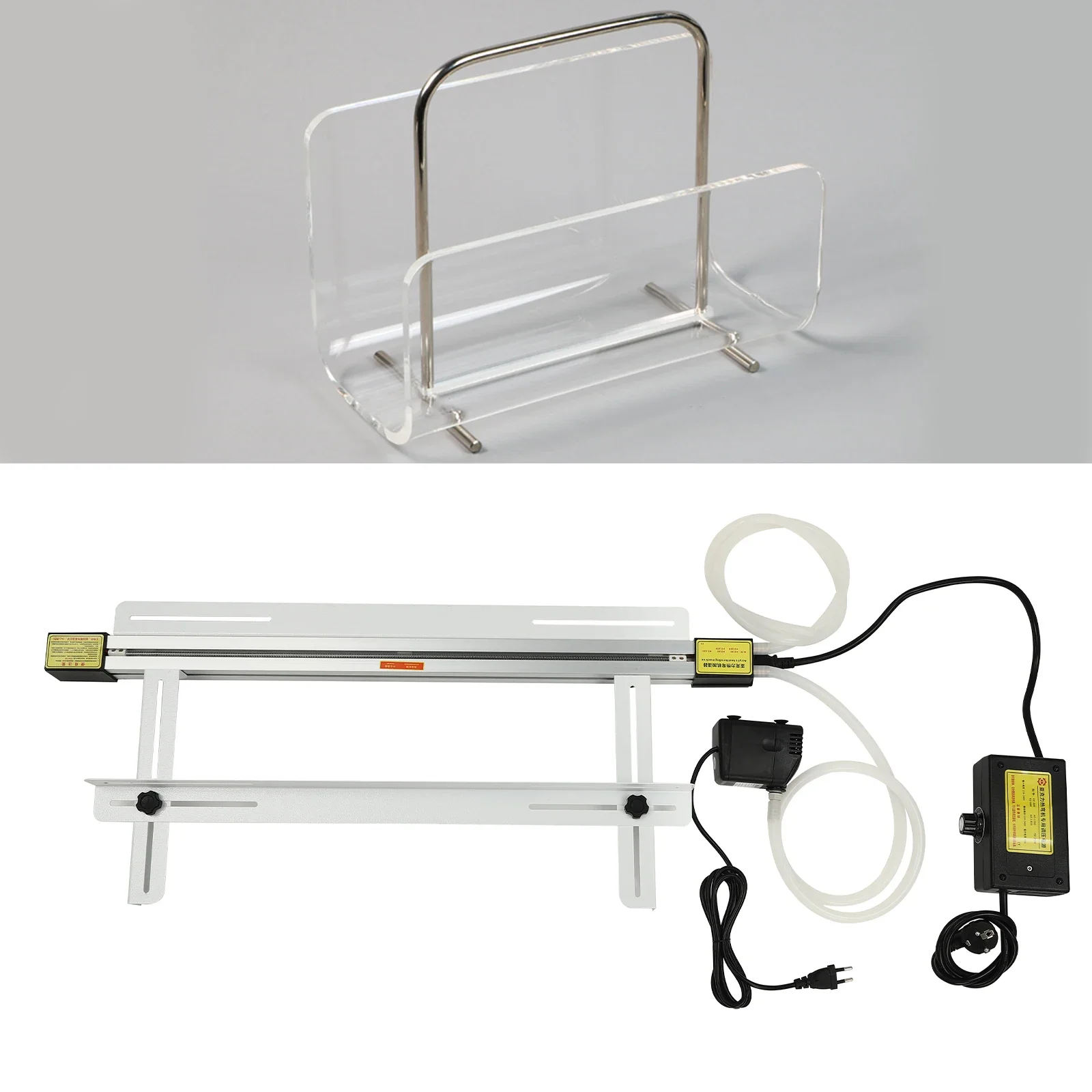

1000W Acrylic Heat Bending Machine White PVC Plastic Bender Adjustable Bracket and Temperature for Heat-shrinkable Materials

Specification

Color: White

Material: Aluminum Alloy, Electric Heating Wire

Plug Standard: US/EU Standard

Power: 1000W

Voltage: 110-240V

Maximum Current: 30A

Water Pump Voltage: 220-240V/50Hz

Power: 25W

Hmax: 2.0m/6.56ft

Qmax:1000L/264.17gal/H

Max Water Temperature: 35°C//95°F

Waterproof Grade: IPX8

Heating Thickness: 6mm

Adjustable Temperature: 0-100%(0-420°C)/32-752°F

Maximum Bending Width: 600mm/24inch

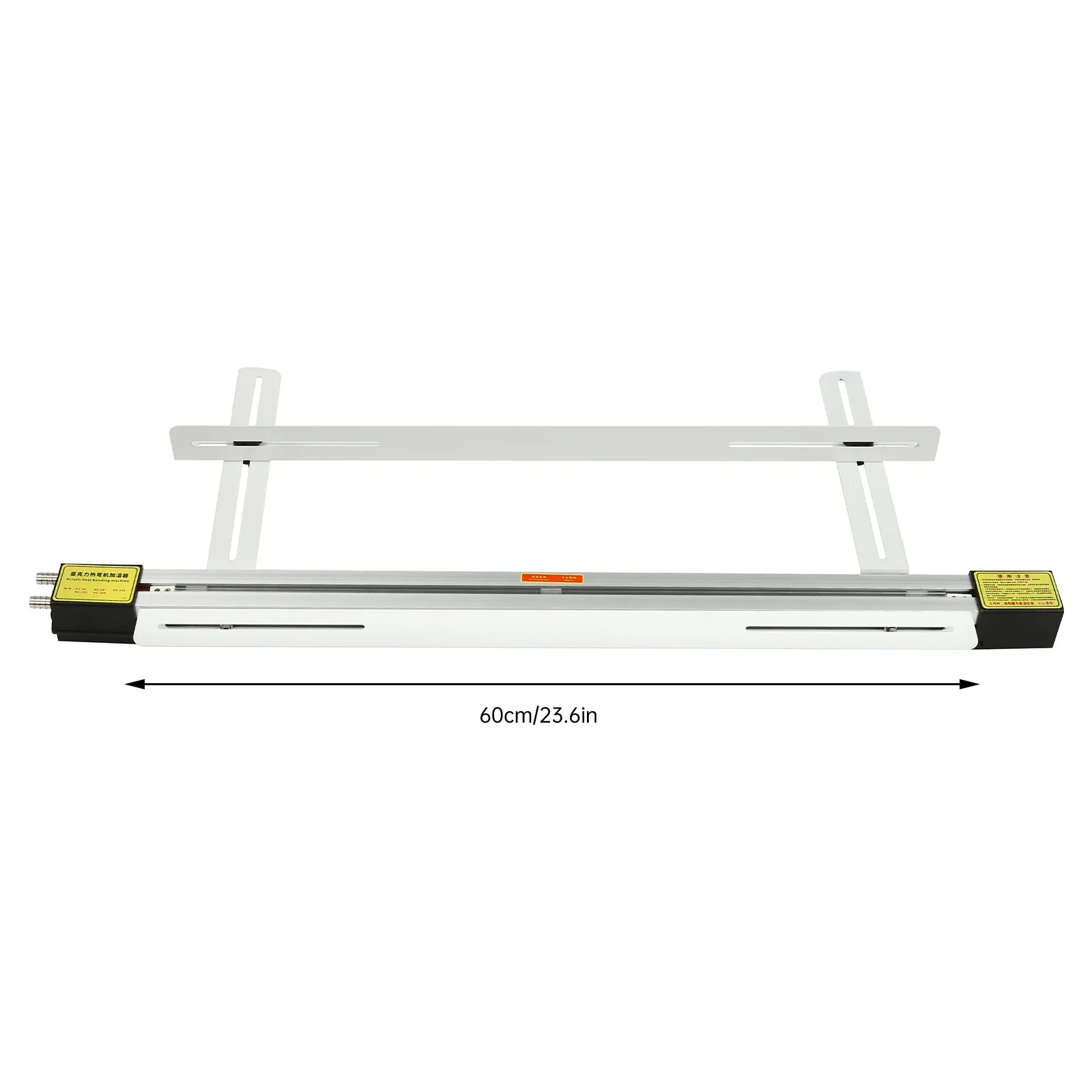

Length of Heating Part: 60cm/24inch

Adjustable Length of Bracket: 0-20cm/0-7.87inch

Adjustable Width of Bracket: 0-60cm/0-24inch

Package Size: 86*20*12cm/ 33.86*7.87*4.72inch

Gross Weight: 4.5kg/9.92lbs

Recommended Temperature for Some Regular Materials

Acrylic: 210℃/410°F

Perspex: 195℃/383°F

PVC sheet: 155℃/311°F

ABS: 190℃/374°F

PET: 160℃/320°F

Application

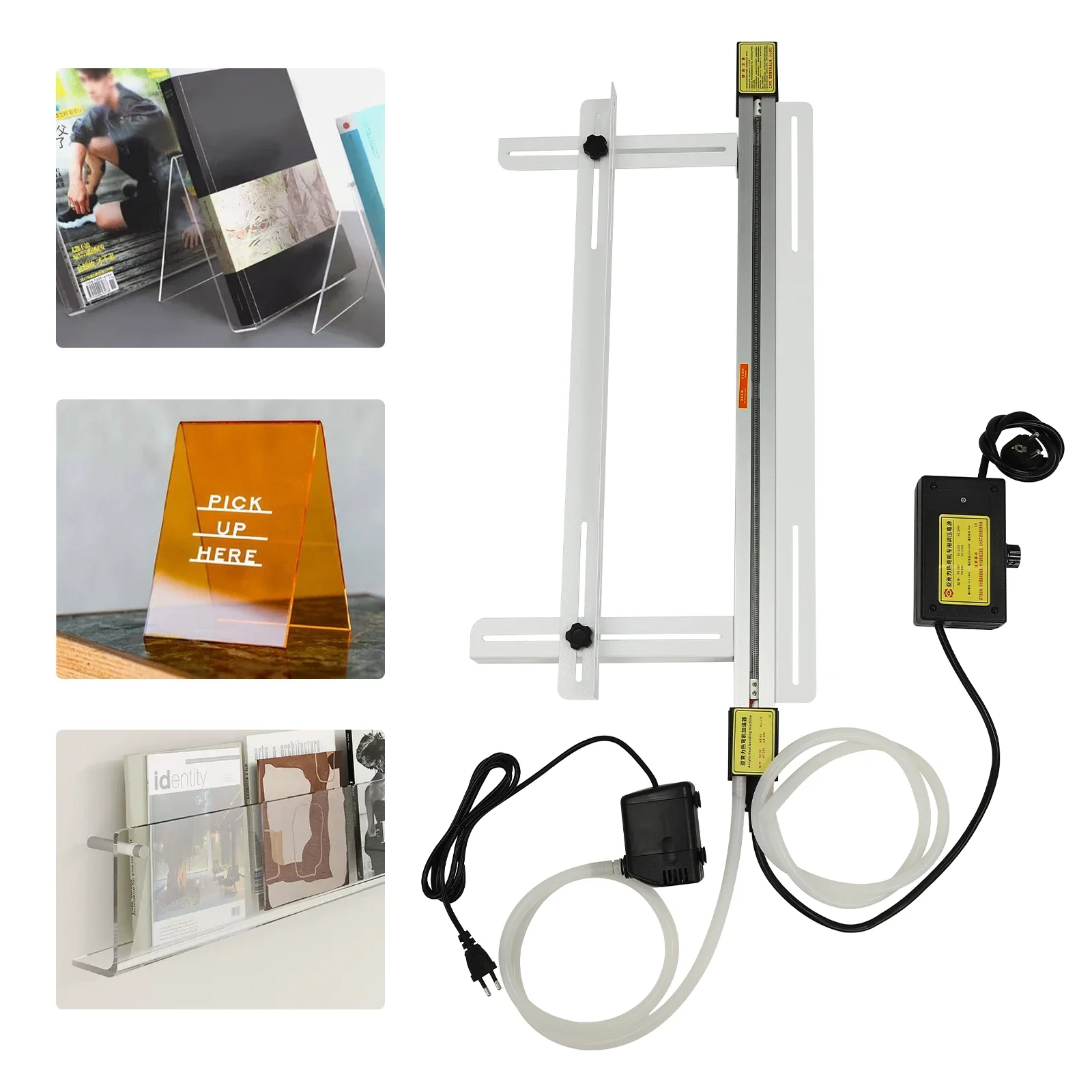

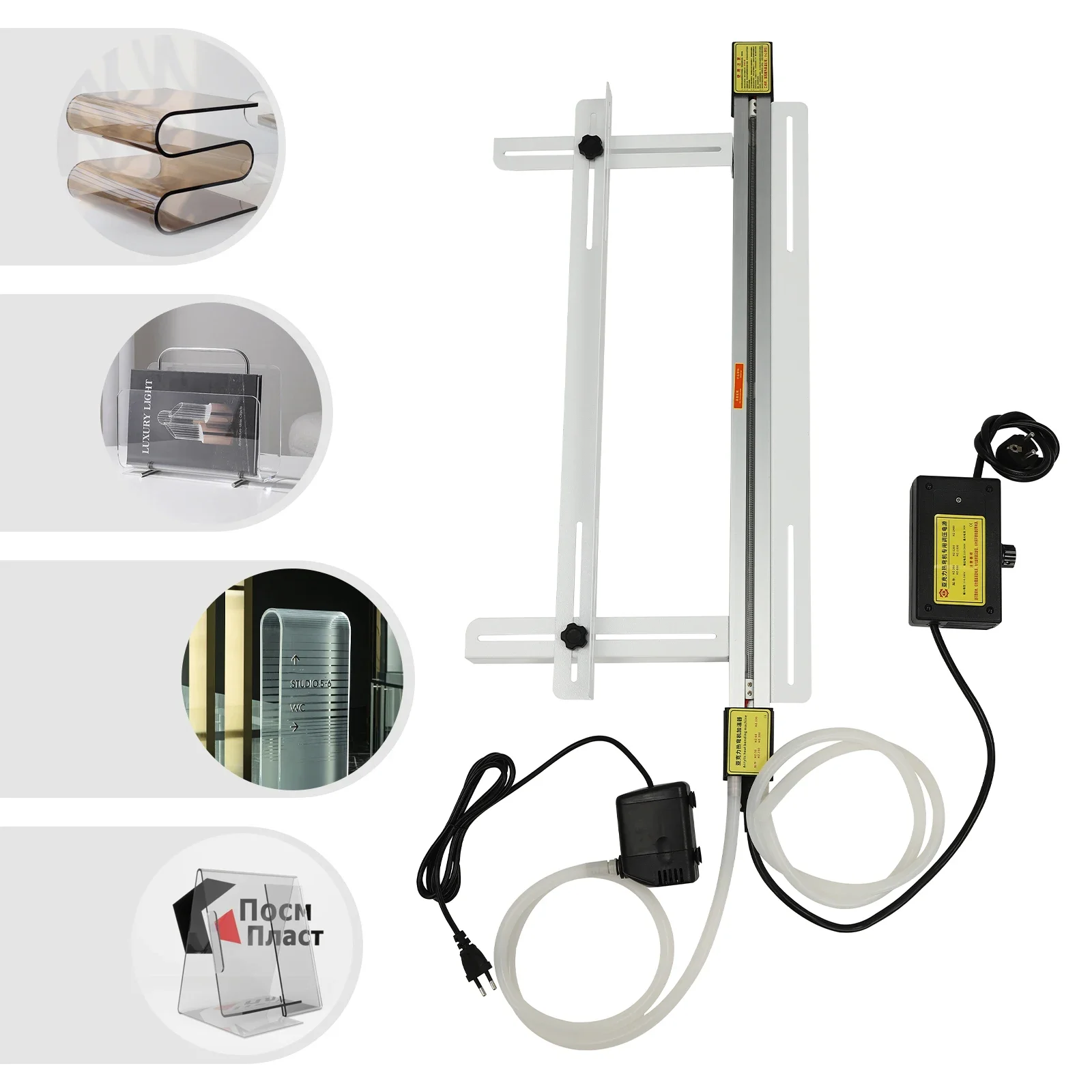

It is suitable for acrylic, plastic, plexiglass, PP, PVC, PC, PE, PS, and other heat-shrinkable materials. It can be widely used in decoration engineering, sign making, display cabinets, aquarium wrapping, lighting LED channel letters, bending supermarket shelves, curtain walls, large light boxes, acrylic plates, and plastic plates.

Details

Smooth Surface: The smooth surface can provide a comfortable touch, thus better protecting your safety.

Adjustable Bracket: It can be adjusted according to the size of the product that needs to be bent, facilitating the fixation of the product and ensuring the safety of the operation process.

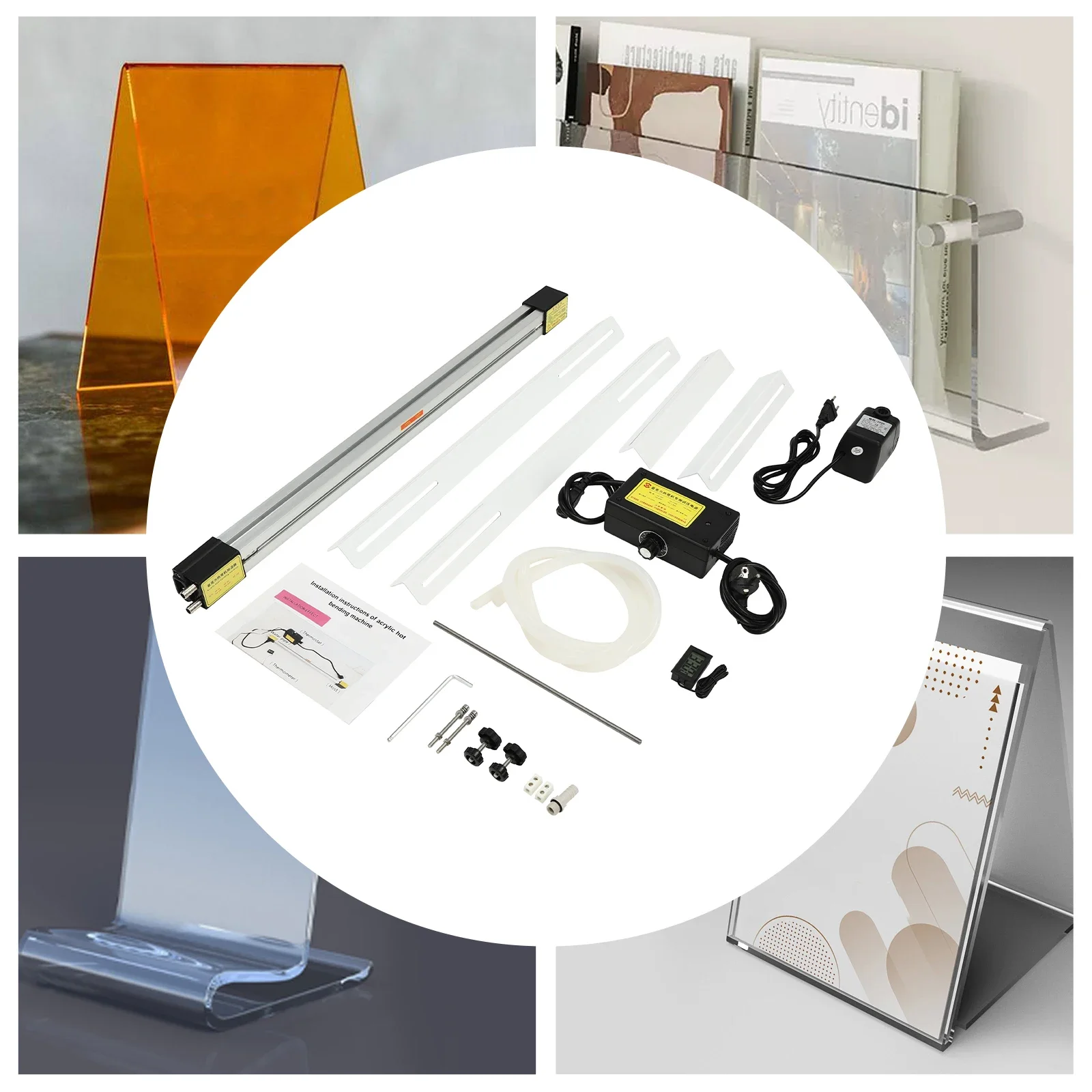

Package Included

1*Acrylic Heat Bending Machine

1*English Manual

1* Allen Key

1*Thermometer

1* Thermostat

1*Water Pump

All Accessories for Installation

Notes

1.Please read the manual carefully and pay attention to the safety precautions inside. The recommended temperature data is for reference only. Please make corresponding adjustments according to the actual situation and operating habits.

2.It should be placed in a dry, clean, ventilated position, and the operation of the machine placed in a horizontal position and smooth. Please keep away from. If the machine is not in use for a long time, please unplug the power cord.

3.For safety reasons, it should be connected to a reliable safety grounding device and the grounding device must have three feet connected to the ground. The heating process leads to high temperatures, so avoid contacting the heating area with fingers or skin.

4.If the thickness of the overheated product exceeds 6mm, two heaters can be used to heat up and down simultaneously, and multiple heaters can be combined with multiple bending points at once; If you bend thicker plates, slot and fold them, the corners will be more beautiful, and you can operate according to your own needs.

5.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
