10/20T Hydraulic Ram Cylinder Jack Low Profile Porta Power Ram Single-Acting Mini Jack Ram with CP-180 Hydraulic Hand Pump

This 10/20T short jack with a hydraulic pump can convert manual mechanical energy into hydraulic energy. They are made of high-end steel, and corrosion resistant, making the whole machine smooth and easy to clean. It can be used with hydraulic punches, hydraulic cutting machines, hydraulic cylinders, hydraulic tongs, etc. to perform various operations, such as lifting, bending, straightening, shearing, riveting, assembly, disassembly, etc.

Please note: 1. If you purchase the Only Lifting Jack specification, you will receive only 1 Lifting Jack. 2. If you purchase the 10T Pump specification, you will receive a 10T Manual Hydraulic Pump + Lifting Jack. 3. If you purchase the 20T Pump specification, you will receive a 20T Manual Hydraulic Pump + Lifting Jack.

How to Use

1.Connect the jack to the quick coupler of the hydraulic pump.

2.Turn the pressure relief valve on the hydraulic pump clockwise.

3.Press the handle up and down.

4.Stop working when the stroke is in place.

5.Turn the relief valve counterclockwise.

Only Manual Hydraulic Pump Specifications

Name: Manual Hydraulic Pump

Model: CP-180

Color: Orange

Material: Steel

Surface Treatment: Plastic Spraying

Condition: Brand New

Type: Manual

Oil Reserves: 350CC

Maximum Pressure: 70Mpa（700kg/ cm²）

Low-Pressure Speed: 2L/ s (0.44Gal/ s)

High-Pressure Speed: 0.2L/ s (0.044Gal/ s)

Tubing Connector: ZG3/8''

Pump Body Length: 33cm/ 13in

Pump Body Height: 11cm/ 4.3in

Handle Length: 34cm/ 13.4in

Hose Length: 1m/ 3.3ft

Package Size: 37.5*22.5*16cm/ 14.76*8.86*6.3in

Net Weight: 3.5kg/ 7.72lbs

Gross Weight: 4kg/ 8.82lbs

Package Included

1* Lifting Jack

1* 1m Hose

1* Handle

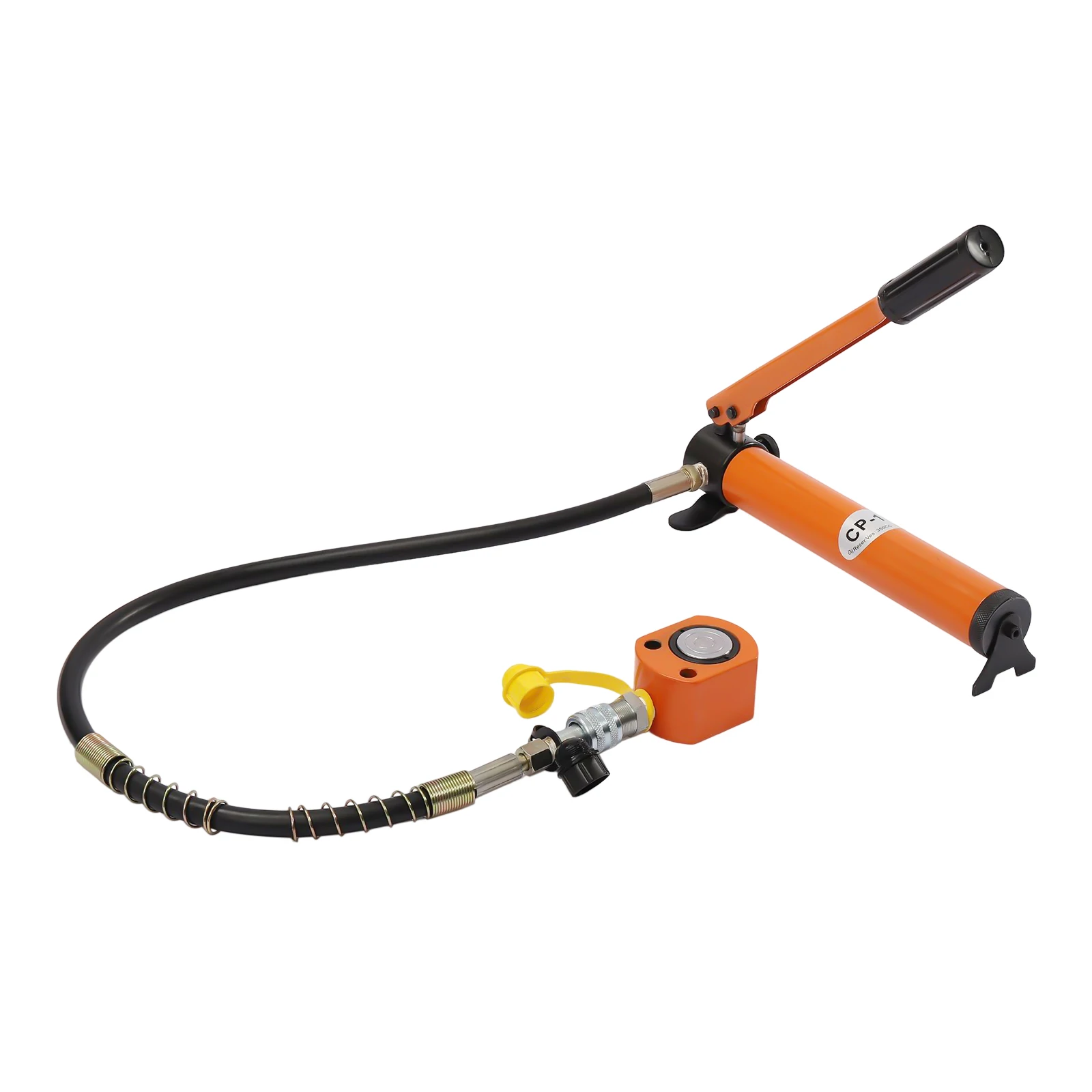

10T Manual Hydraulic Pump+Lifting Jack Specifications

Name: Manual Hydraulic Pump

Model: BSY-10 + CP-180

Color: Orange

Material: Steel

Surface Treatment: Plastic Spraying

Condition: Brand New

Type: Manual

Oil Reserves: 350CC

Maximum Pressure: 70Mpa（700kg/ cm²）

Low-Pressure Speed: 2L/ s (0.44Gal/ s)

High-Pressure Speed: 0.2L/ s (0.044Gal/ s)

Tubing Connector: ZG3/8''

Jack Tonnage: 10T/ 22046lbs

Jack Spindle Diameter: 38mm/ 1.5in

Inner Diameter of Jack Cylinder: 45mm/ 1.77in

Jack Stroke: 11mm/ 0.43in

Jack Extension Height: 64mm/ 2.52in

Pump Body Length: 33cm/ 13in

Pump Body Height: 11cm/ 4.3in

Handle Length: 34cm/ 13.4in

Tube Length: 1m/ 3.3ft

Lifting Jack Size: 8.3*6.5*5cm/ 3.3*2.6*2in

Package Size: 37.5*22.5*16cm/ 14.76*8.86*6.3in

Net Weight: 5kg/ 11.02lbs

Gross Weight: 5.8kg/ 12.79lbs

Package Included

1* Manual Hydraulic Pump

1* Lifting Jack

1* 1m Hose

1* Handle

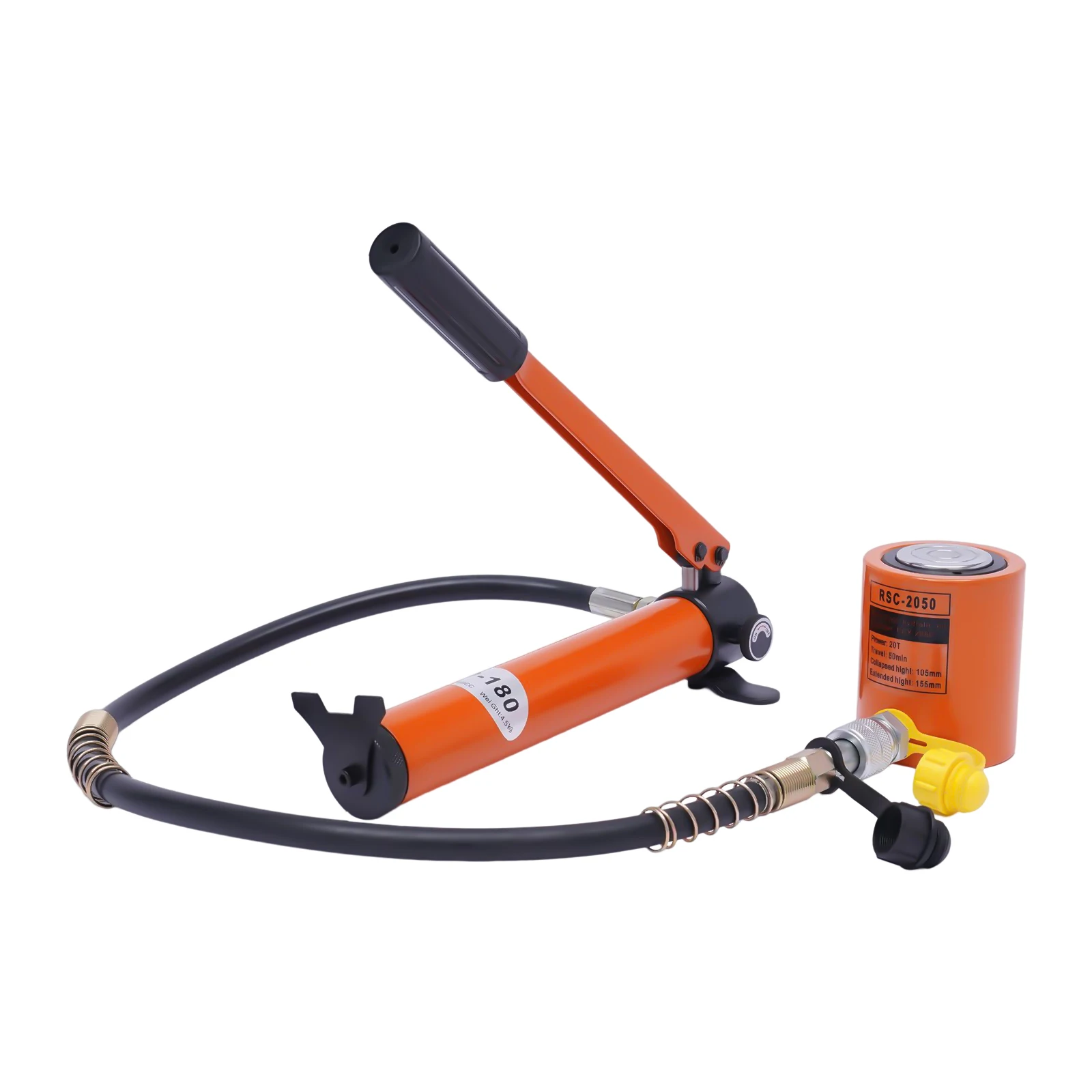

20T Manual Hydraulic Pump+Lifting Jack Specifications

Name: Manual Hydraulic Pump

Model: BSC-20 + CP-180

Color: Orange

Material: Steel

Surface Treatment: Plastic Spraying

Condition: Brand New

Type: Manual

Oil Reserves: 350CC

Maximum Pressure: 70Mpa（700kg/ cm²）

Low-Pressure Speed: 2L/ s (0.44Gal/ s)

High-Pressure Speed: 0.2L/ s (0.044Gal/ s)

Tubing Connector: ZG3/8''

Jack Tonnage: 20T/ 44092lbs

Jack Spindle Diameter: 50mm/ 1.97in

Jack Stroke: 50mm/ 1.97in

Jack Extension Height: 155mm/ 6.1in

Pump Body Length: 33cm/ 13in

Pump Body Height: 11cm/ 4.3in

Handle Length: 34cm/ 13.4in

Tube Length: 1m/ 3.3ft

Lifting Jack Size: 8.8*10.5cm/ 3.46*4.13in

Package Size: 37.5*22.5*16cm/ 14.76*8.86*6.3in

Net Weight: 7kg/ 15.43lbs

Gross Weight: 8.5kg/ 18.74lbs

Package Included

1* Manual Hydraulic Pump

1* Lifting Jack

1* 1m Hose

1* Handle

Key Features

User-friendly: The manual hydraulic pump has a long ergonomic operating handle for a smoother, more comfortable grip during use. Its thickened insulation feature also provides non-slip hand protection for long-term use.

Easy to Operate: Its structure is not complicated and does not require complicated installation and operation steps, so you can easily master it. As it is manual, it can continue to work without electricity, so it is very convenient to use.

Compact and Lightweight : Its proper size and weight allow it to follow you through various operations.

Durable Material: The item is made of steel, which is relatively strong and stable. It is also not easy to damage or rust under proper use and is very durable.

Smooth Surface: Its steel surface with plastic spraying can resist corrosion and does not rust. The smooth surface greatly reduces the friction between machines.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Steel Wire Joint Sheath: Its joint is equipped with steel wire protection, which can effectively avoid damage caused by excessive bending of the joint oil pipe so that it can be used for a long time.

Thickened Plunger: The thickened design of the plunger increases its wear resistance, which can effectively increase the service life of the manual hydraulic pump.

Dust Cover: The joints of the jack and hydraulic pump are equipped with a dust cover to prevent dust from entering and damaging them when not in use.

High-pressure Oil Pipe: It adopts a high-pressure oil pipe (1m/ 3.3ft) and attaches a quick joint（ZG3/8''）, which makes it convenient and fast for you to use.

Anti-slip Ring: The main shaft of the jack is designed with an anti-slip ring so that it has better anti-slip and wear resistance so that you can use it for a long time.

Stop Ring: A stop ring is designed between the main shaft and the housing to protect the main shaft from breakage and damage under load.

Chrome-plated Main Shaft: The main shaft of the jack has been chrome plated to make it smooth and not easy to jam the cylinder, thus extending its service life.

Notes

1.Please note that there is a pressure-reducing valve on the cylinder head, which should be loosened during use to avoid sealing the hydraulic cylinder.

2.Please note that the bearing surface needs to be hard and flat.

3.When using, please do not bias the load, and stop the operation immediately when you see the stop line.

4.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
