XTOOL KC501 Auto Key Programming Car Key Programmer All Key Lost Works With XTOOL X100PAD3 D8S D9S PRO Automotive Scanner

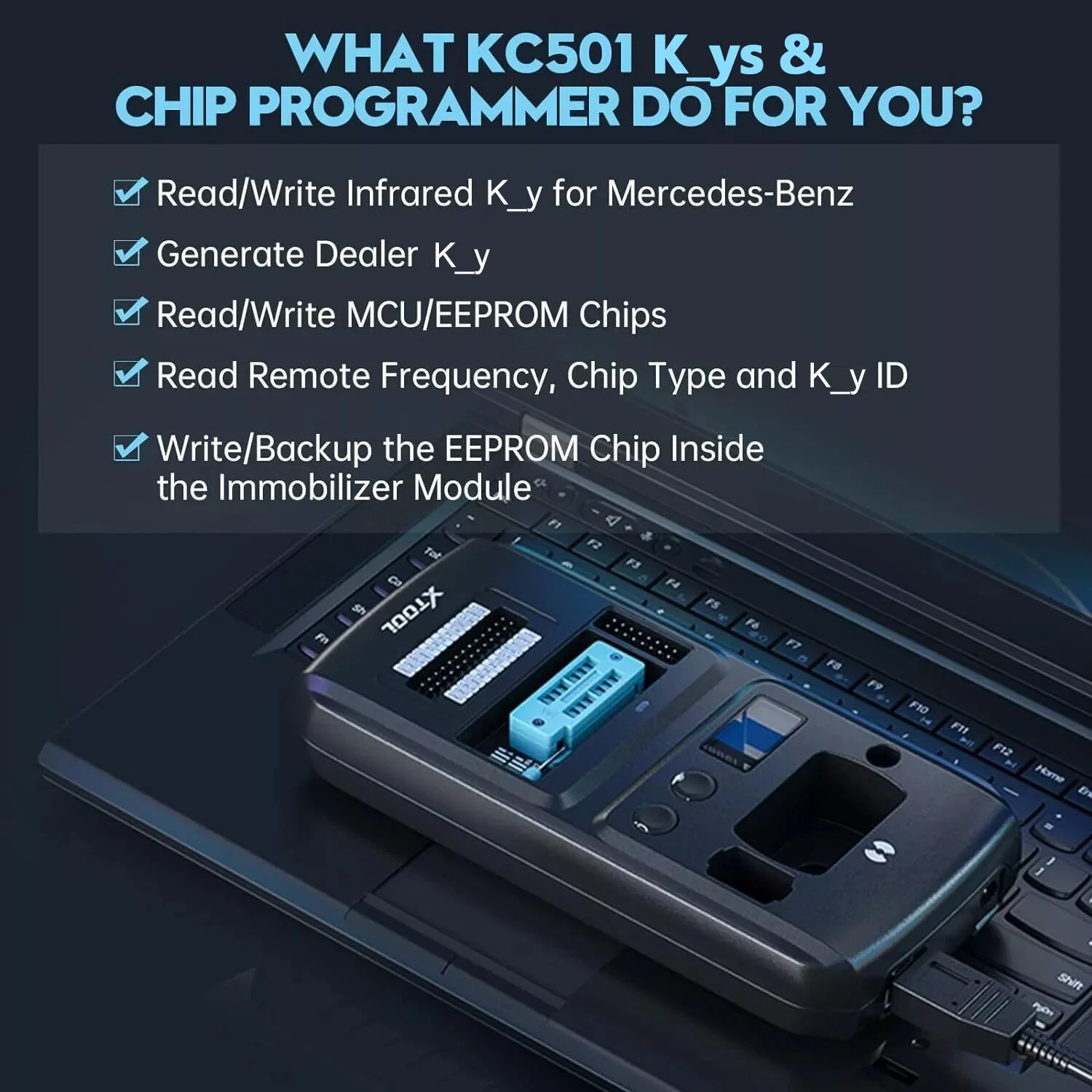

XTOOL KC501 Professional Key & Chip Programmer, Powerful in functions and fashionable in appearance, KC501 is a professional Key & chip programmer which can not only read,write keys and read key remote frequency, but also generate dealer keys. It support read and write MCU/EEPROM chips, reach and write Mercedes Infrared keys. Moreover, it support PC connection which brings you better user experience.

Why Choose XTOOL KC501 Key Programming Adapter?

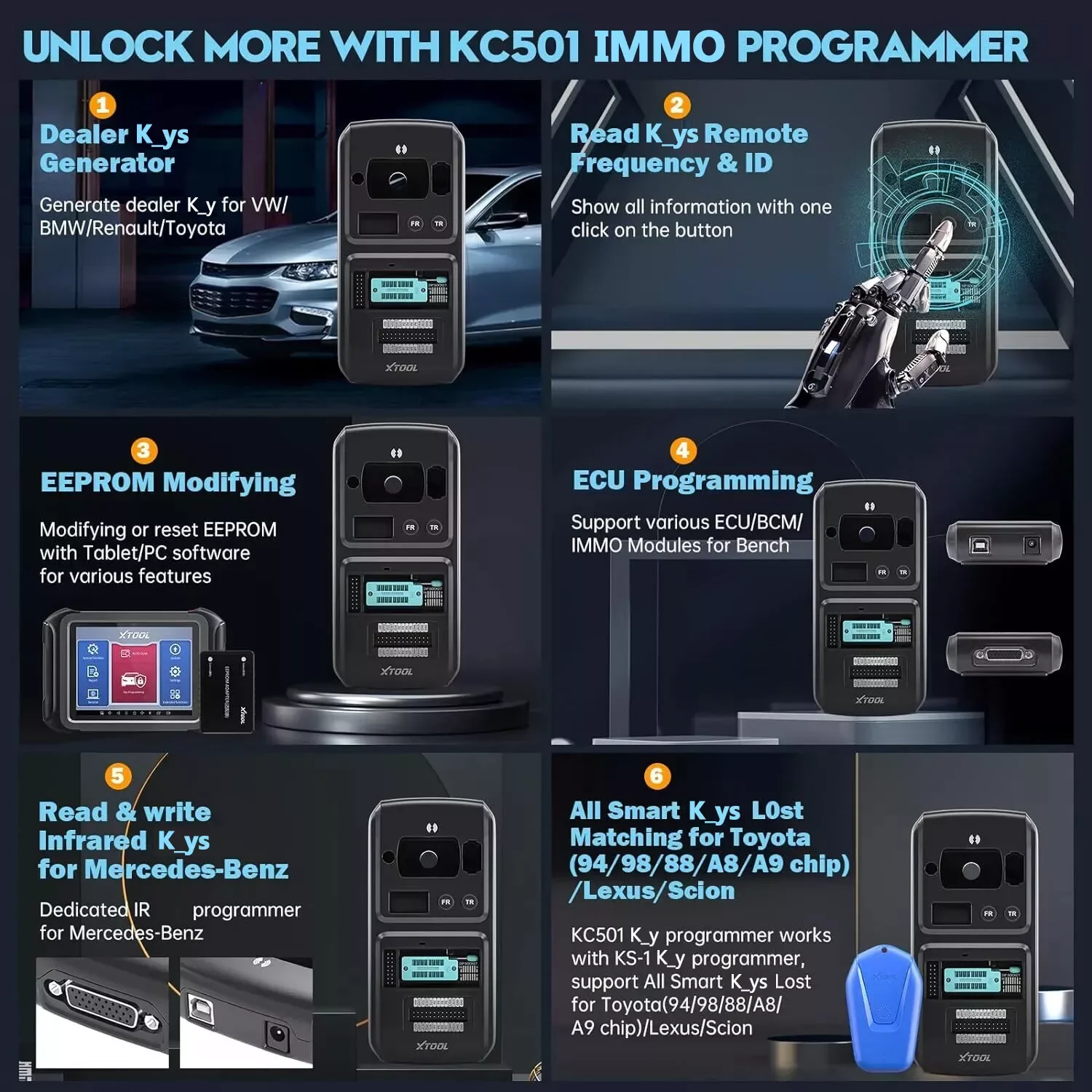

- Powerful IMMO & Key Programming

- Read Remote Control Frequency

- Perfect Match with XTOOL Advanced Devices

- Used with Windows PC/Laptops

➤Wide Car Coverage

Compatible with most 12V Petrol Sedans, SUVs, Minivans and Light Duty Trucks around the world, including the United States, Europe, Asia, Australia, etc.

➤Broad Applicable User

Car Owners, Auto Repair Students, DIY Enthusiasts, Auto Dealers, Home & Professional Mechanics, Technicians, Car Engineers, Garages, Workshops and Car Repair Shops.

➤Includes 5 Years Repair and Lifetime Technical Help

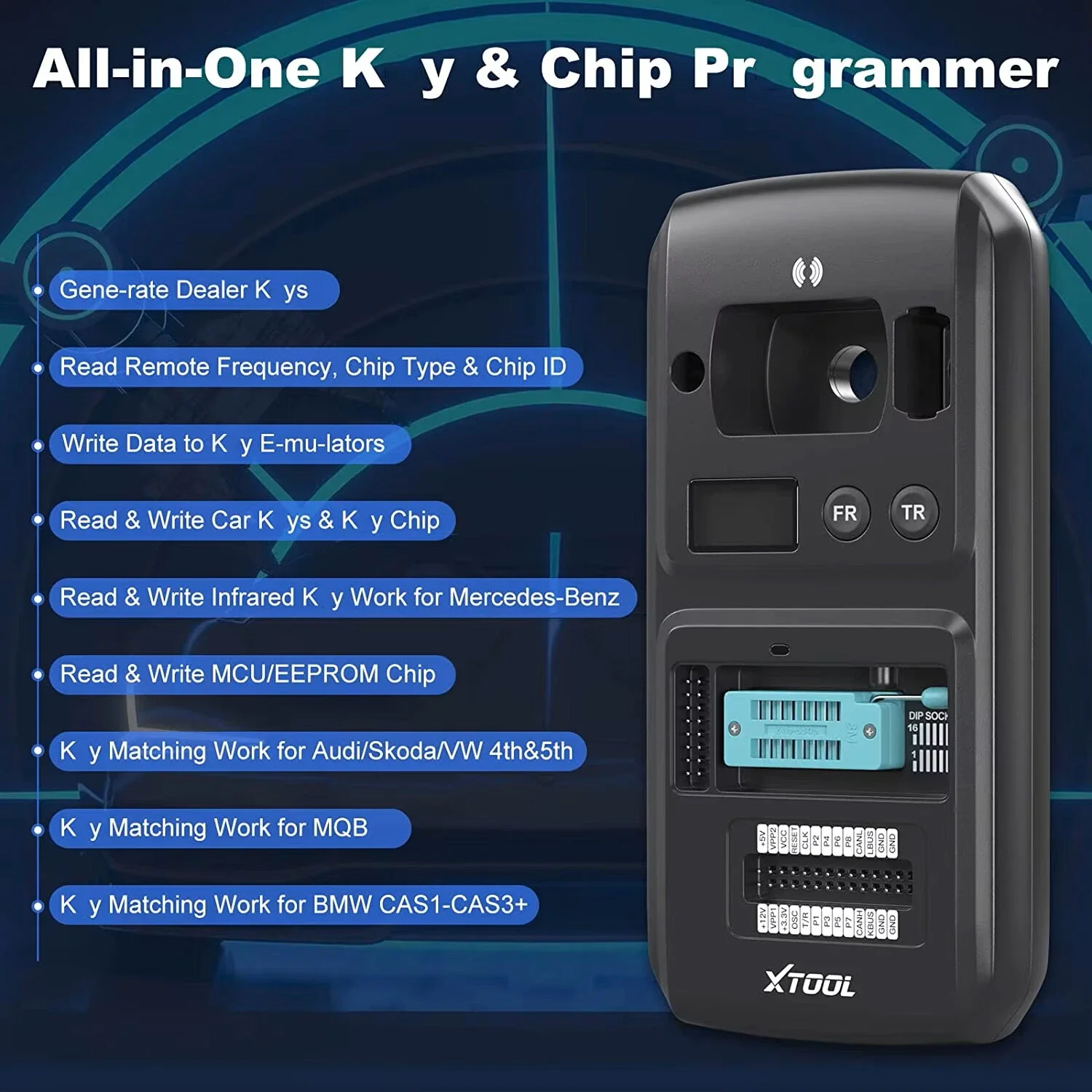

XTOOL KC501 Auto Key & Chip Programming Tool Upgrade of KC100

Key Matching for Audi/for Skoda/for VW 4th & 5th, for MQB and for BMW CAS1-CAS3++.

➤Read & Write MCU/ECU/EEPROM Chips.

➤Read Remote Control Frequency, Chip Type & Transponder ID.

Read & Write Infrared Keys for Mercedes Benz:

➤For A Series 2005-2013

➤For B Series 2005-2014

➤For C/For CLK Series 2006-2014 | For CLA Series 2006-2016

➤For E Series 2005-2015

➤For G Series -2015 | For GL/For GLS Series 2006-2014 | For GL/For GLK Series 2008-2015

➤For M/For ML Series 2006-2013

➤For R Series 2006-2017

➤For S Series 2006-2012 | For SLK/For GLC Series 2006-2016.

Note: Because functions are NOT universally compatible with all vehicles. To further check compatibility with the VIN number and the required functions.

XTOOL KC501 Key & Chip Programmer Compatible with X100 PAD3/X100 MAX/D8S/D8W/D9S/D9S Pro and more XTOOL Advanced Devices.

It also compatible with Windows PC/laptop for Windows 7 & Above Operating Systems.

Warm Tips

1. Please install "KC501 Studio" application on your PC/laptops first.

2. Please shut down all antivirus software when installing the "KC501 Studio" app.

Note: KC501 Can not Used Alone.

Steps to Connect XTOOL Wireless Tool to a Car:

1. Connect VCI and main cable with car’s OBD port, which is usually under the dashboard.

2. Turn on XTOOL Wireless Tool and pair BT with VCI.

3. Connect XTOOL Wireless Tool and KC501 with a USB cable. Then enter immobilization menu and follow the instructions on the XTOOL Wireless Tool.

Steps to Connect XTOOL Wired Tool to a Car:

1. Turn on XTOOL Wired Tool.

2. Connect car’s OBD port with wire. OBD port is usually under the dashboard.

3. Connect XTOOL Wired Tool and KC501 with a USB cable. Then enter immobilization menu and follow the instructions on the XTOOL Wired Tool.

Product Details

> Remote Control Transponder Induction Area: Used to read & write remote control transponder data.

> Transponder Slot: Place the transponder. Used to fix the transponder to read & write transponder data.

> Vehicle Key Slot: Place the vehicle key. Used to fix the vehicle key to read & write vehicle key data.

> Infrared Key Slot for Benz: Used to fix infrared key for Benz to read & write vehicle key data for Benz.

> Display Screen: Used to show remote frequency or transponder ID.

> Remote Frequency Button: Press this button to show remote frequency in the display screen

> Transponder ID Button: Press this button to show transponder ID in the display screen.

> Status Indicator LED: Indicate the current operating status.

> IC Card Induction Area: Used to read & write IC card data.

> Locker: Lock the EEPROM component transponder slot to ensure normal operation. Used to place EEPROM chip or socket to read & write EEPROM data.

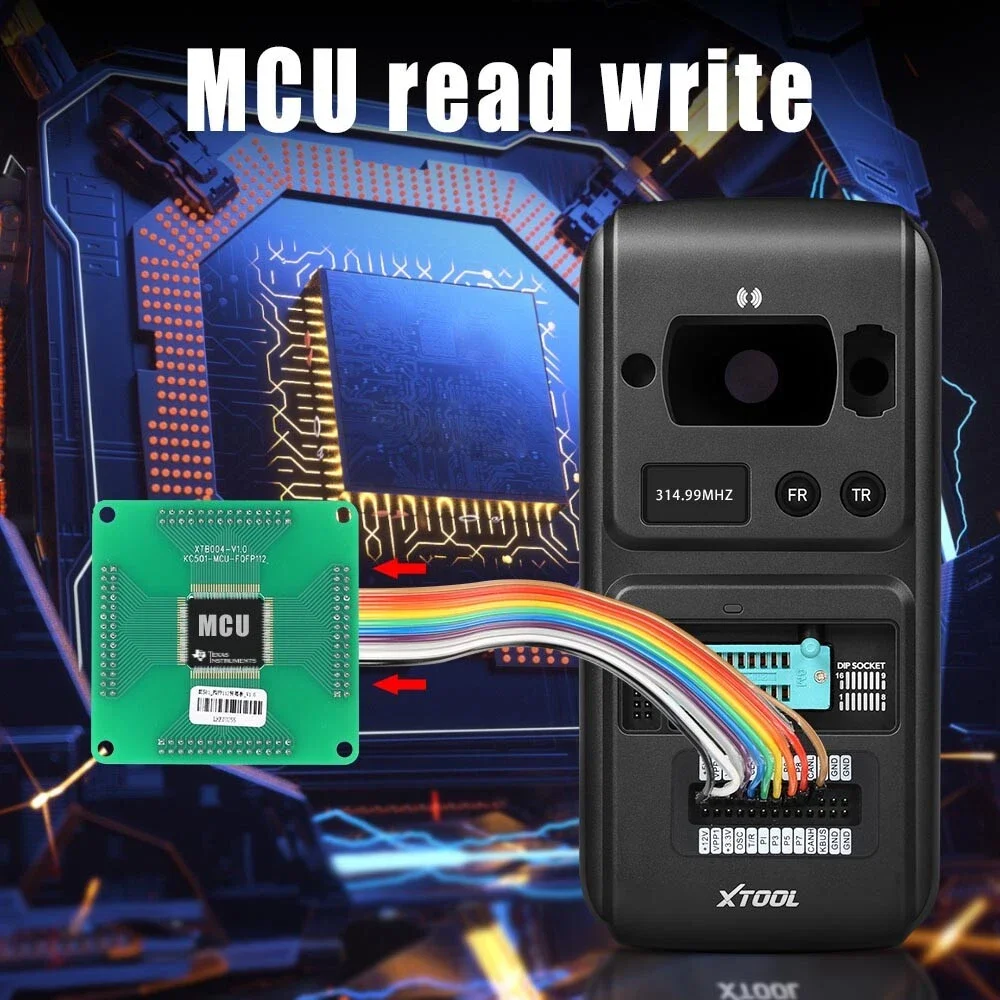

> Cross Signal Pins: Fix the MCU board, MCU spare cable or DIY signal interface. The Cross-shaped

signal pin is used to place MCU board, MCU spare cable or DIY signal cable to read & write MCU and

ECU chips.

> EEPROM Component Transponder Slot: Place the EEPROM plug-in transponder or EEPROM socket.

> USB-B Port: Provide data communication and 5V DC power supply.

> DC Port: Provide 12V DC power supply.

> DB 26-Pin Port: Connect with the infrared cable for Mercedes Benz, ECU cable, MCU cable, MC9S12 cable.

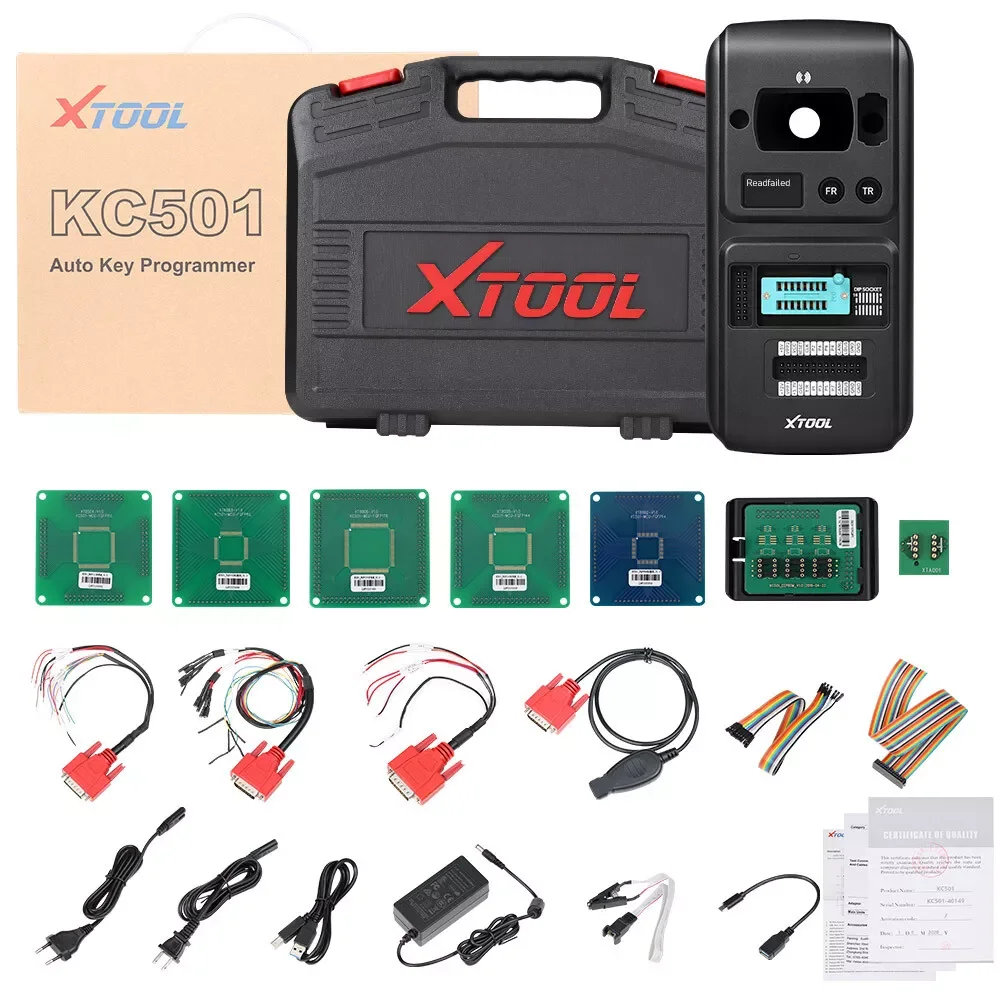

Useful Accessories

- PCBA EEPROM: Used to read & write EEPROM chip on bench.

- FQFP Boards: Weld microcontrollers on these boards to make jump wires more easily.

- IC EEPROM Chip Test Stand: EEPROM chip in place to read & write EEPROM chip on bench.

- Color Cable: connect to 26-Pin connector and used to jump wires for reading & writing data on modules.

- DuPont Cable: Separated cables for multi- purposes, like jumpers, read data, etc.

- IC Clip Cable: A chip clip to read & write EEPROM chip without sealing-off the chip from the module.

- IR Key Emulator for Benz: Used to Read/Collect EIS/EZS data on key programming process for Benz.

- XTA Cables: Wiring harnesses for ECU reading & writing.

Technical Parameter

Display: 0.96-in 128x64 Monochrome OLED Screen

Input Voltage: 5V (USB-B)/12V (DC)

Working Temperature: -10~50℃ (14~122℉)

Storage Temperature: -20~60℃ (-4~140℉)

Related Humidity: < 90%

Relative Humidity: 10%~90%
