Tongsheng TSDZ16 48V 1000W TSDZ8 48V 750W Middle Motor Bicycle Conversion Kit Torque Sensor Ebike Engine with 48V Batteries

TSDZ8 Motor

Note: The motor with gear sensor connector,does not include gear sensor.

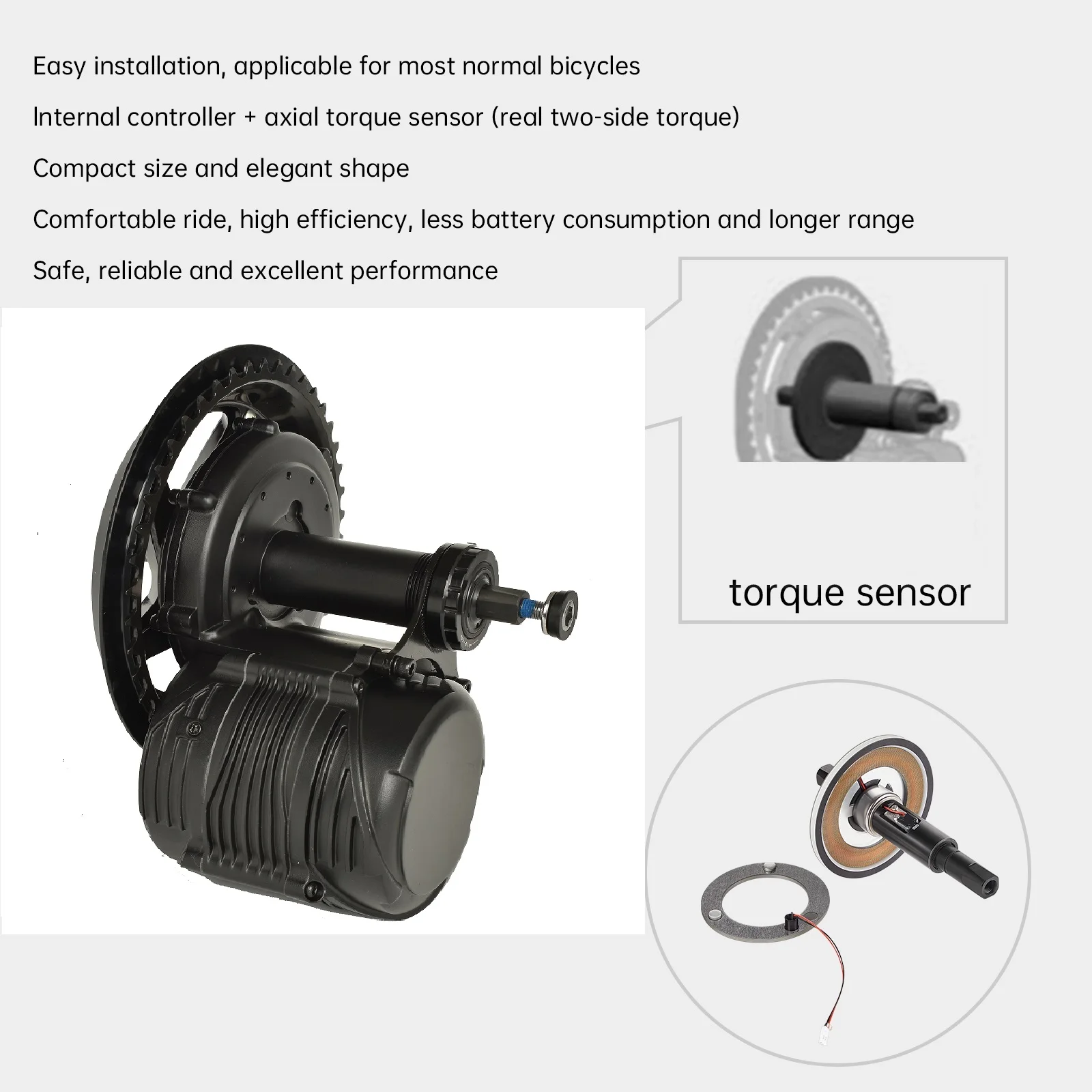

This Tongsheng mid drive motor with torque sensor is the cheapest and good torque sensor mid drive motor in china, you can feel the power from your foot to start the ebike,so you don't need use throttle to start the ebike

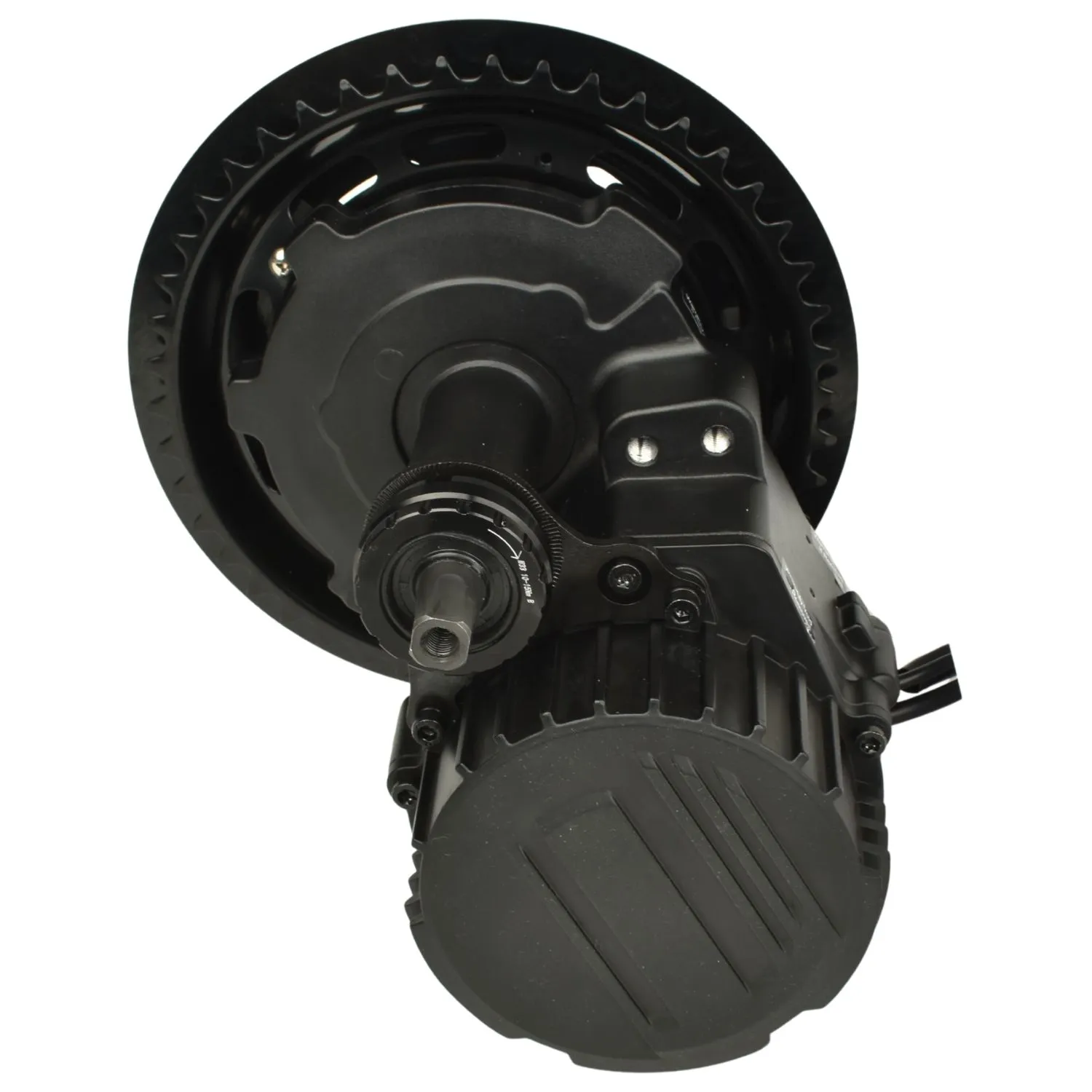

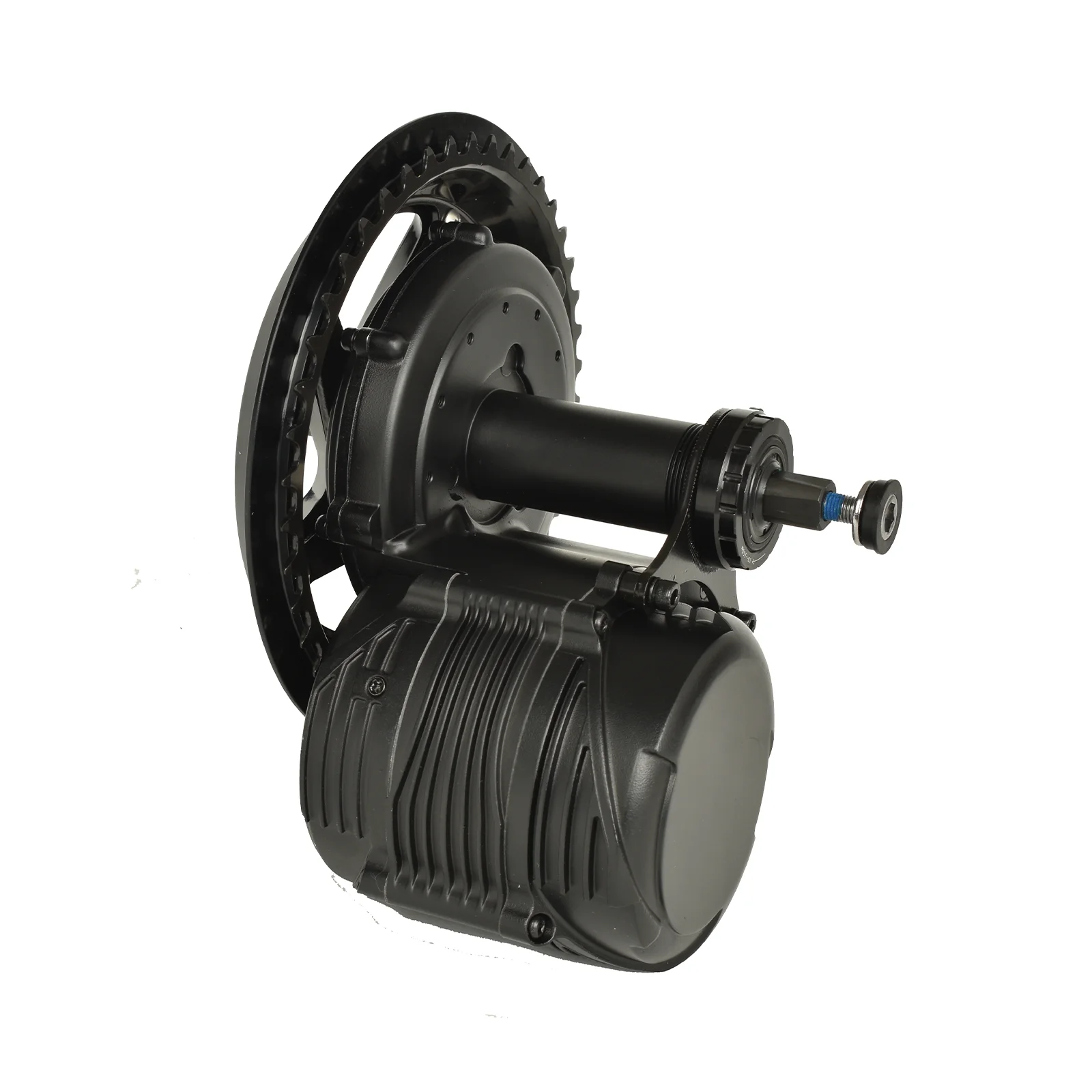

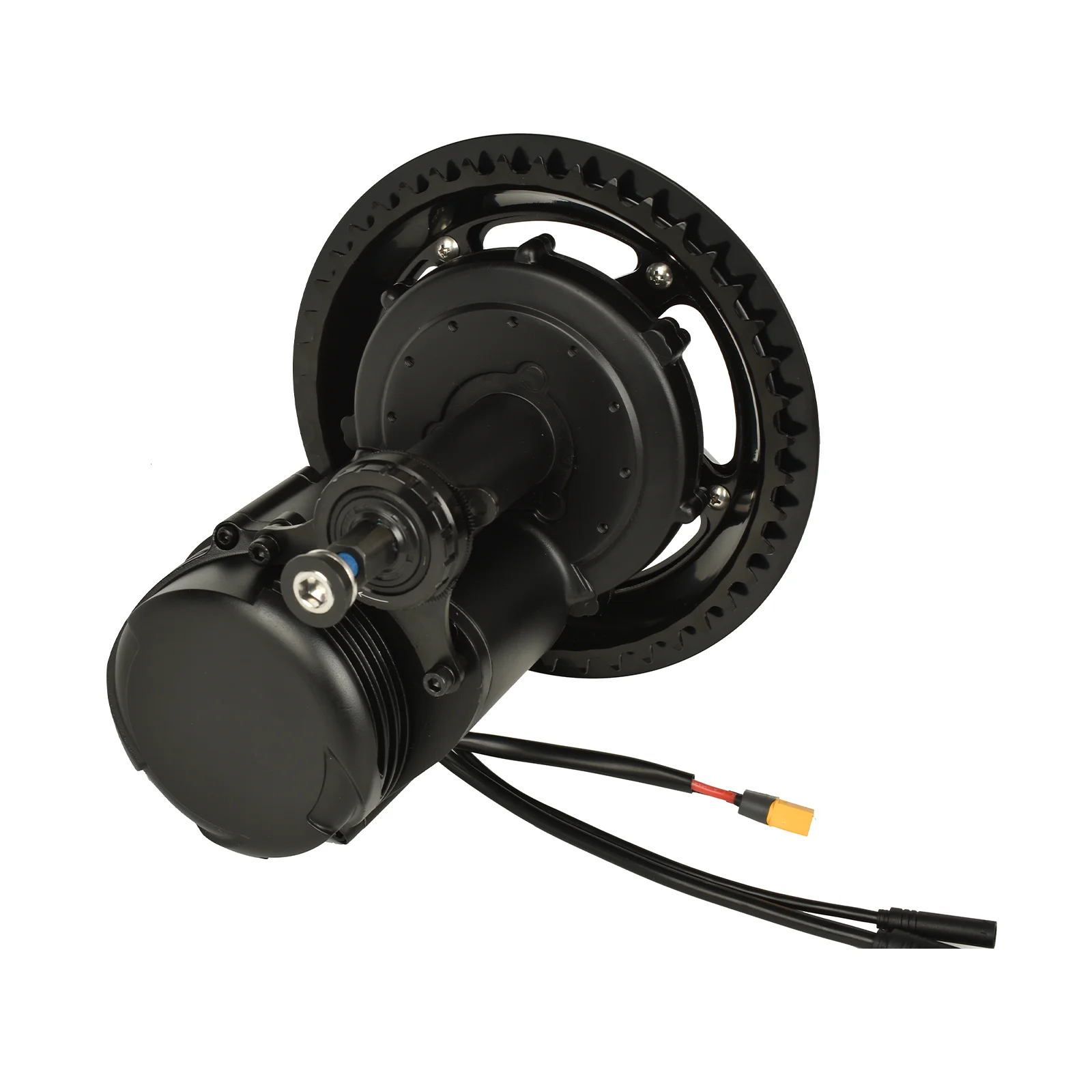

TSDZ8 electric bicycle central mid motor with torque sensor
Speed: 15Km/H-45Km/H    top speed 45km/H
44T chainring
48V 750W 23 amp controller

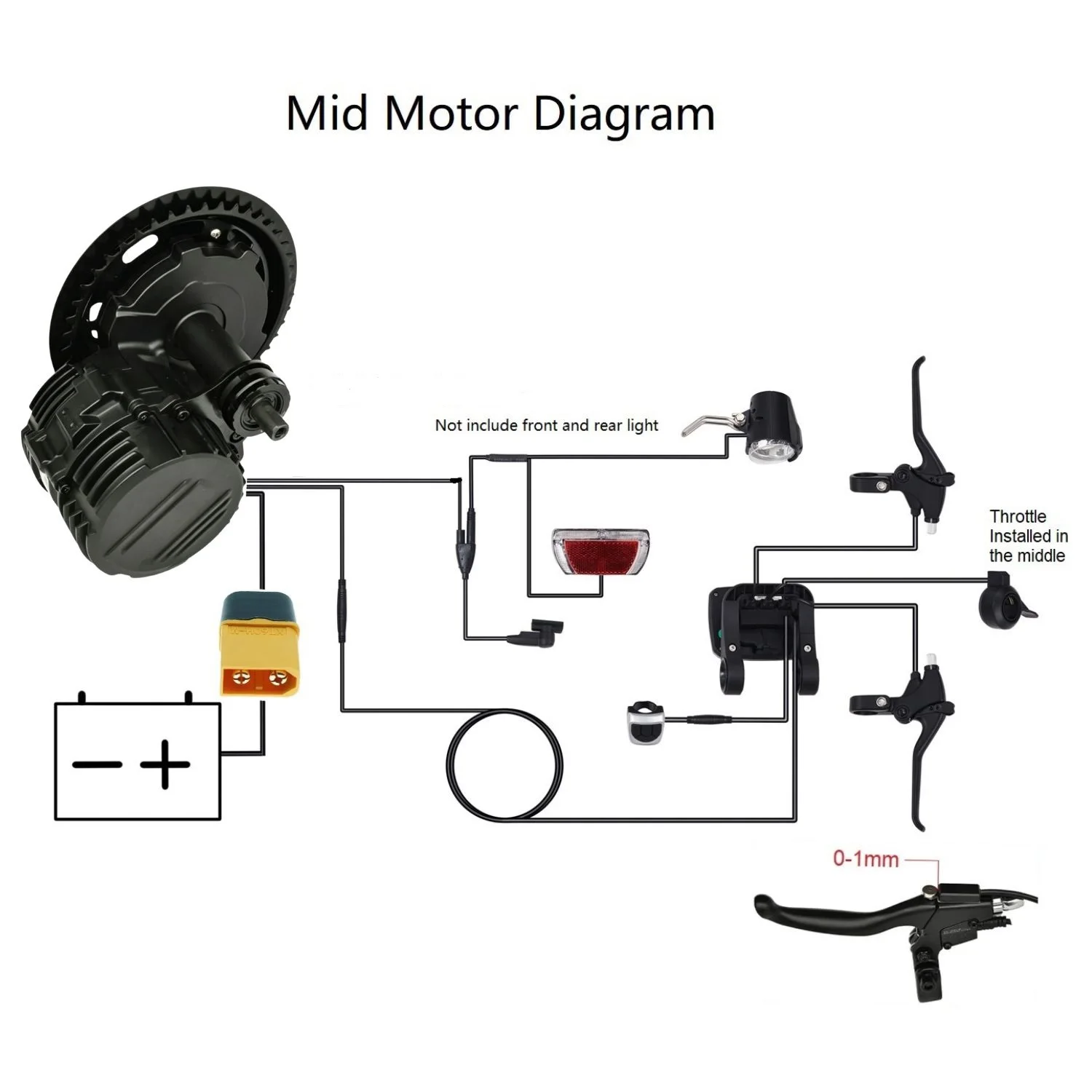

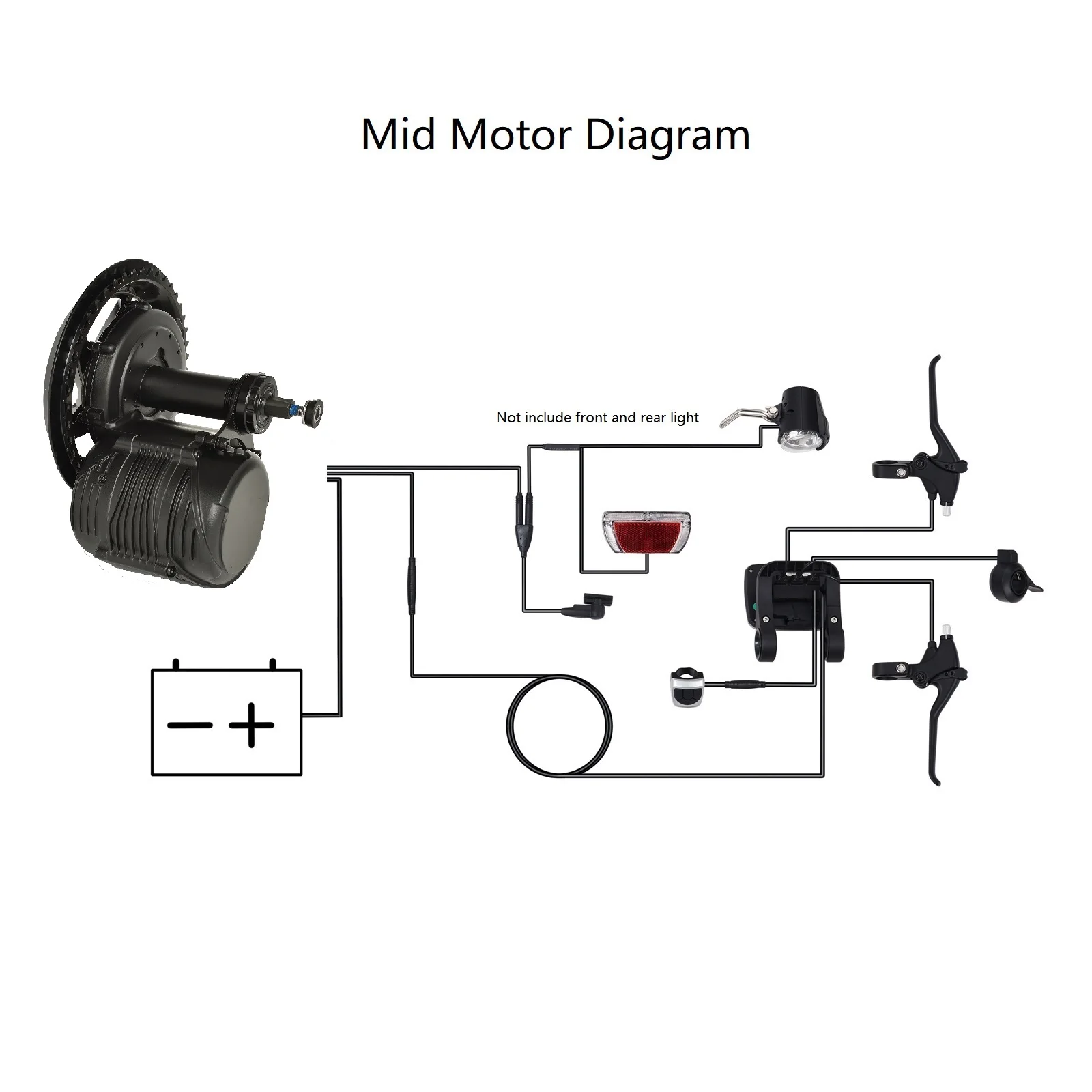

Special speed sensors, which are more robust, and include a split 'Y' adapter, to hook up a 6V 3W headlight, and 6V 3W taillight, which you can control from the display
Supports up to 48V max 54.6V input voltage,this motor cannot works on 52V max 58.4V input voltage
The motor have a freewheel and not for foot/coaster brake build
coaster brake function -----it is means If you bike don't have any brake lever, you must use the motor with coaster brake function, otherwise you can choose the motor have a freewheel

Special speed sensors, which are more robust, and include a split 'Y' adapter, to hook up a 6V 3W headlight, and 6V 3W taillight, which you can control from the display
The motor have a freewheel and not for foot/coaster brake build
coaster brake function -----it is means If you bike don't have any brake lever, you must use the motor with coaster brake function, otherwise you can choose the motor have a freewheel

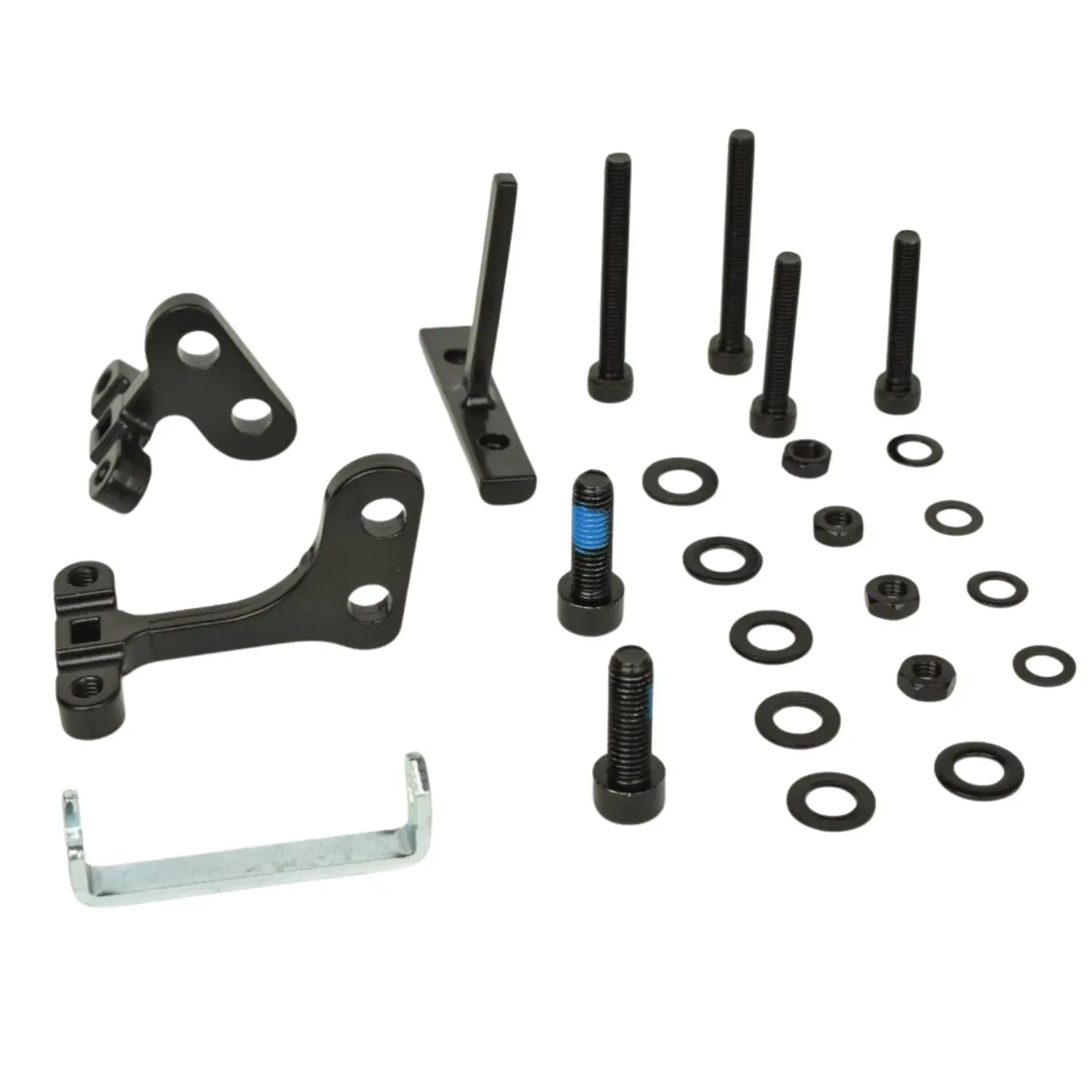

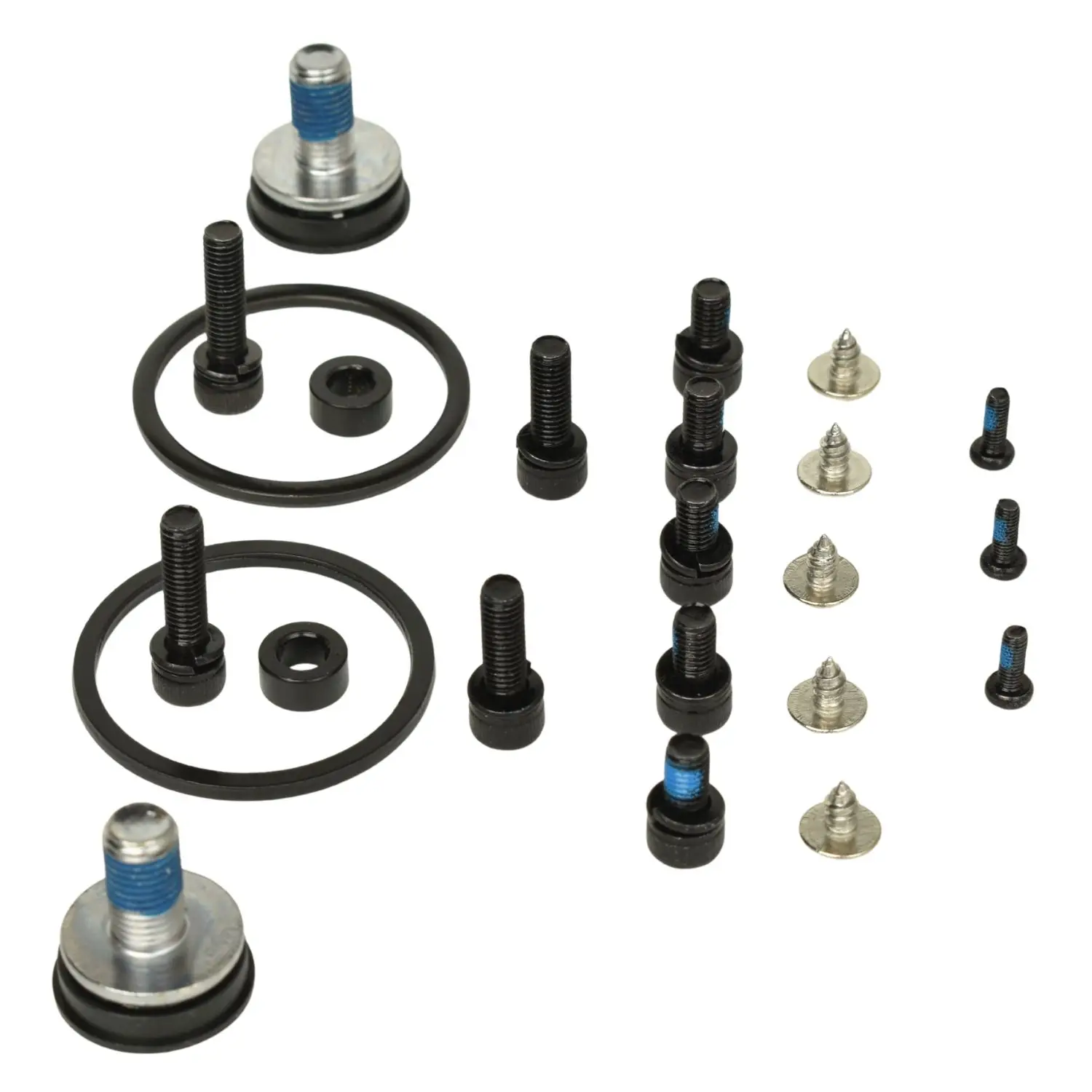

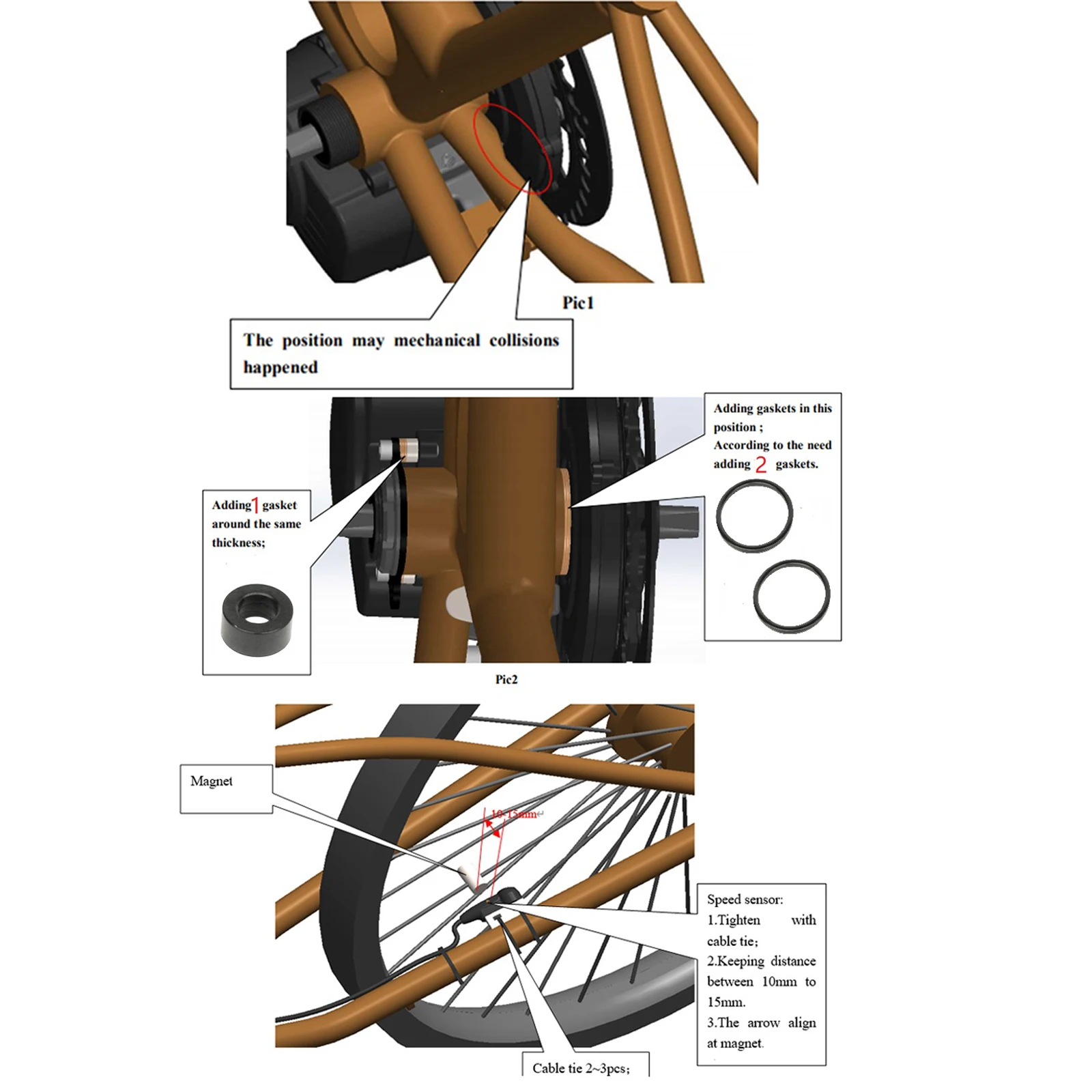

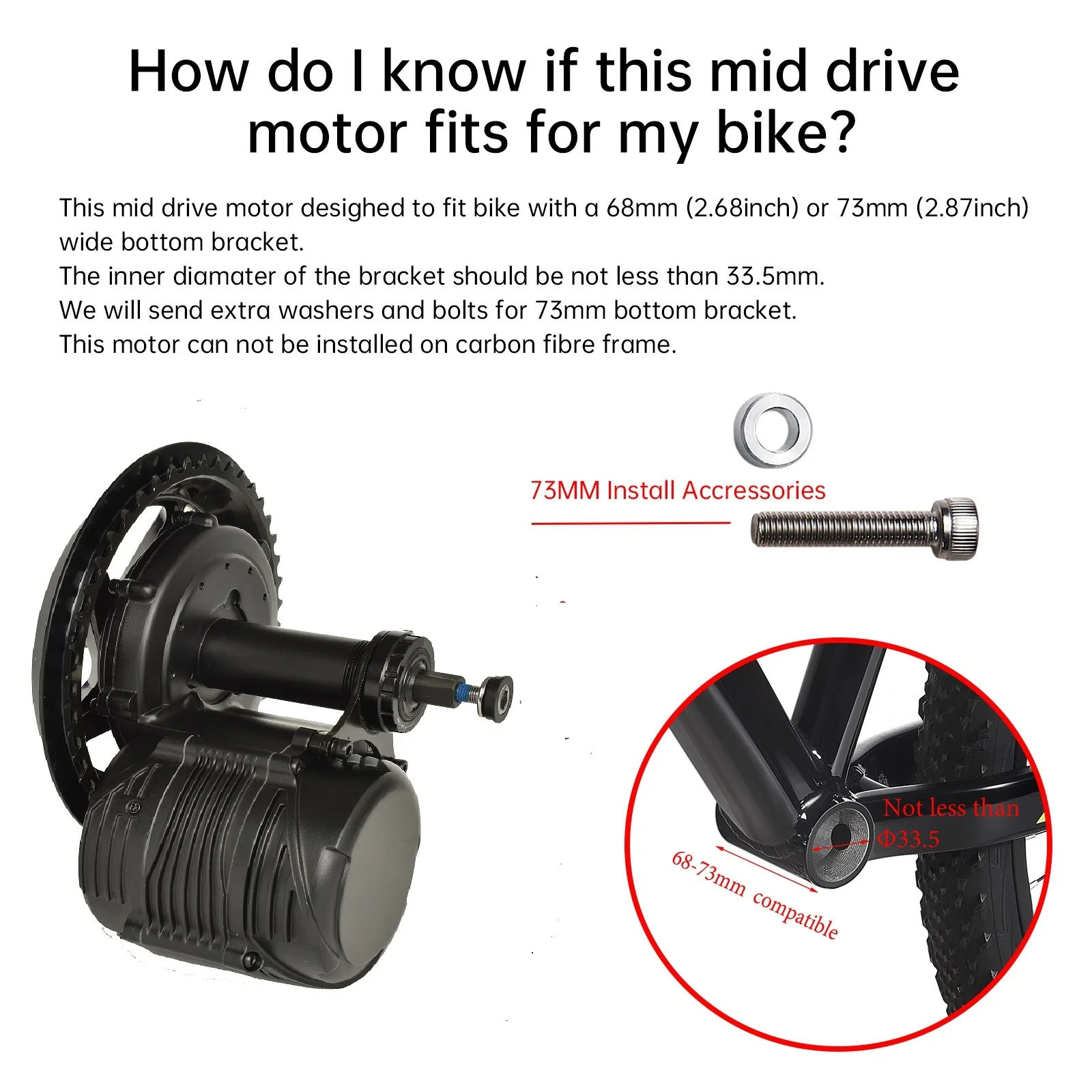

After installing the motor: If mechanical collisions happened between motor and frame, Add gaskets,We will send extra 2pcs 41*35*2.5mm gaskets.If you do not add gaskets, It is easy crack the shell and destroy torque sensor.

Speed sensor:Tighten with cable tie,Keeping distance between 10mm to 15mm,The arrow align at magnet.

After installing Note:
The motor does not work when the mid motor TSDZ8 is no-load;

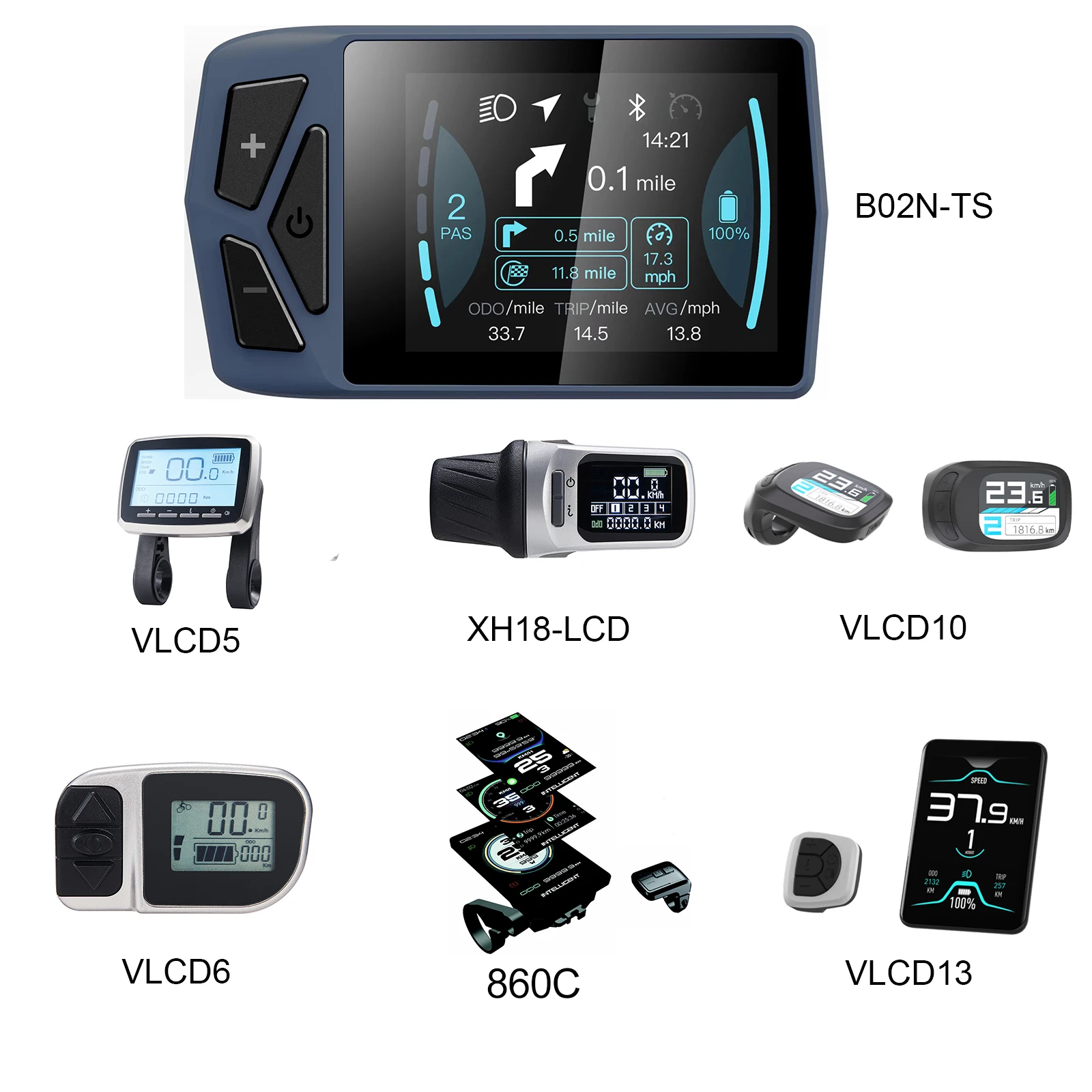

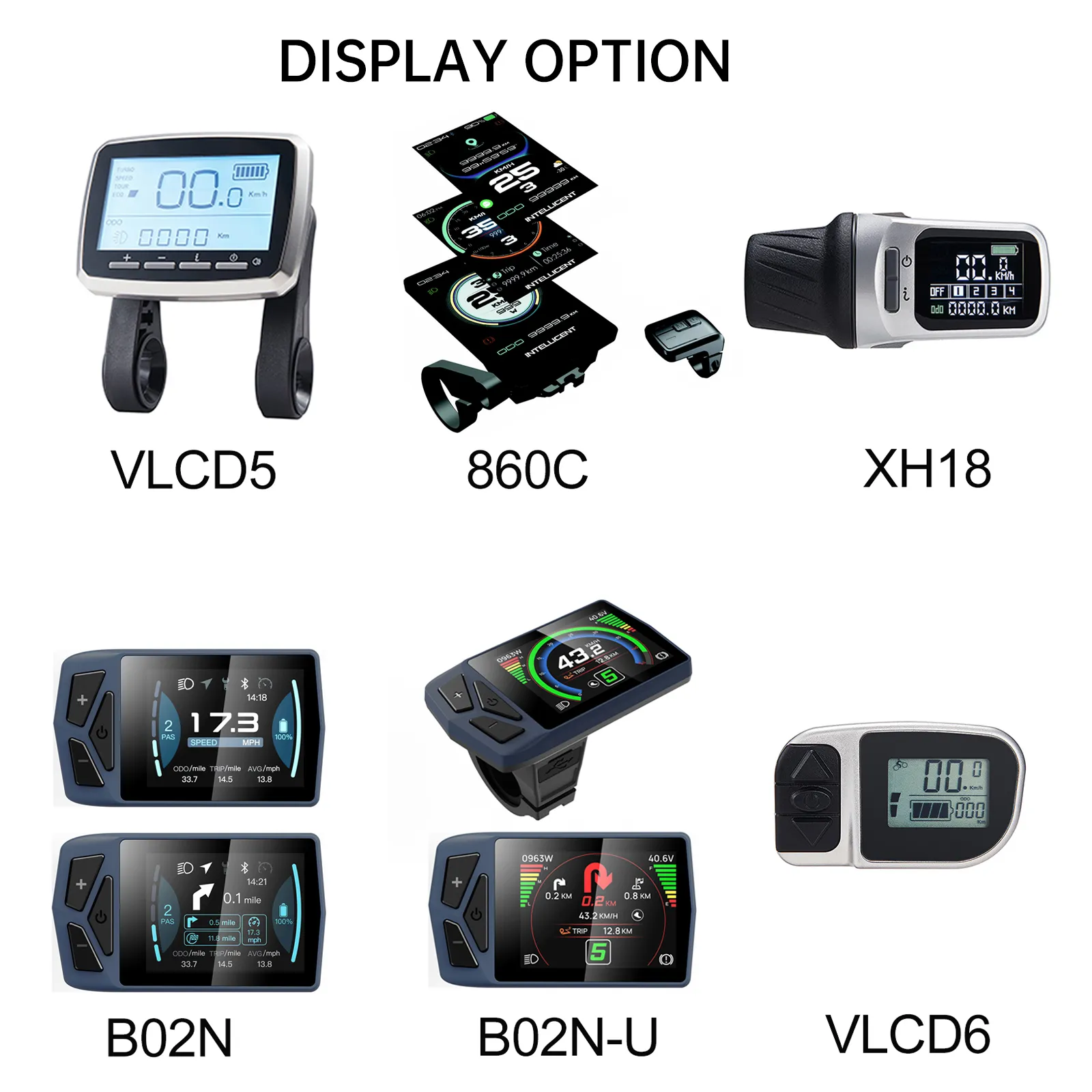

If the matching display’s model is XH18-LCD, rotating the throttle is only for Power assist shift.
Do not tough the pedals when turing on the display power.

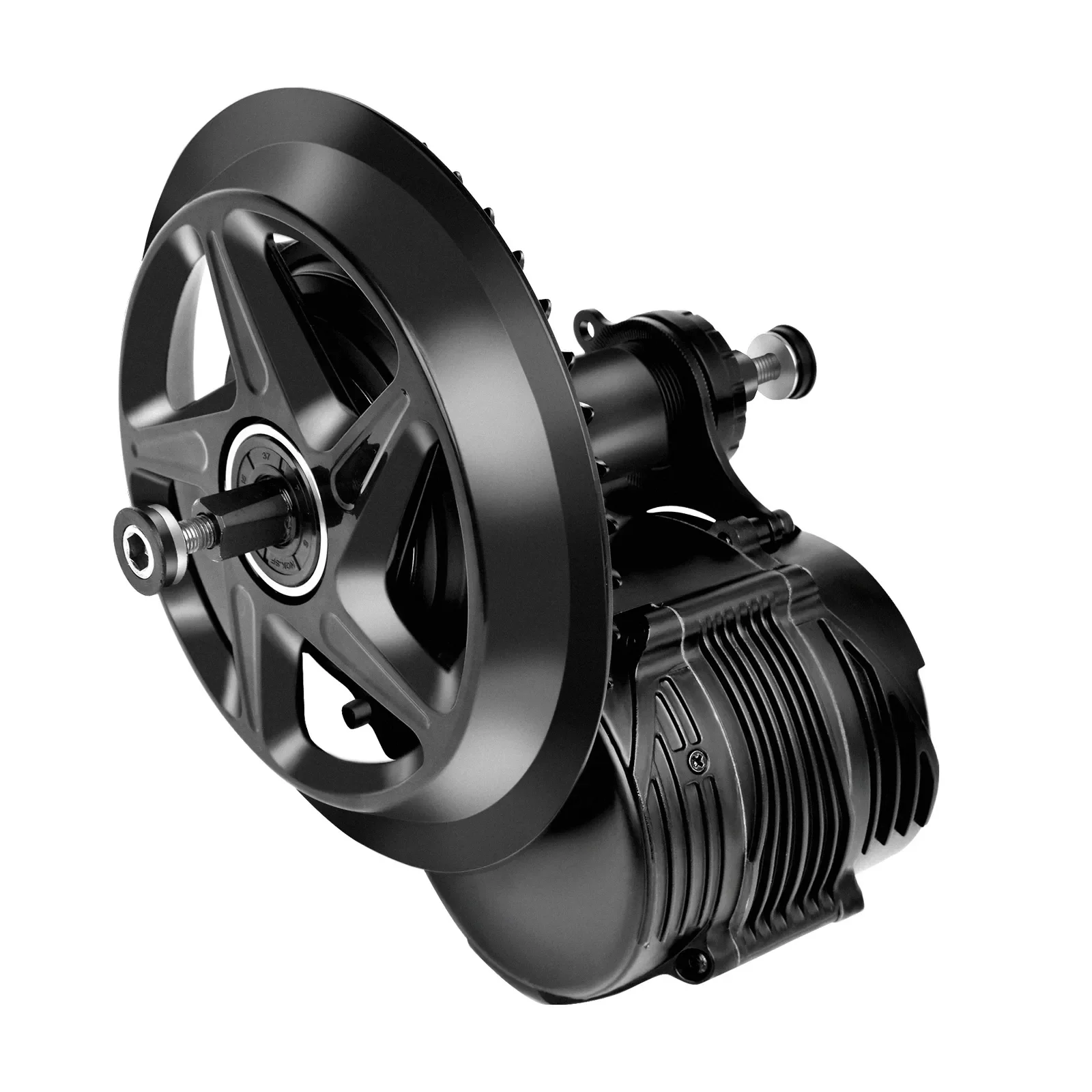

TSDZ16 Motor

Note:Motor without gear sensor connector,Factory has been updated motor, which was produced in March 2026

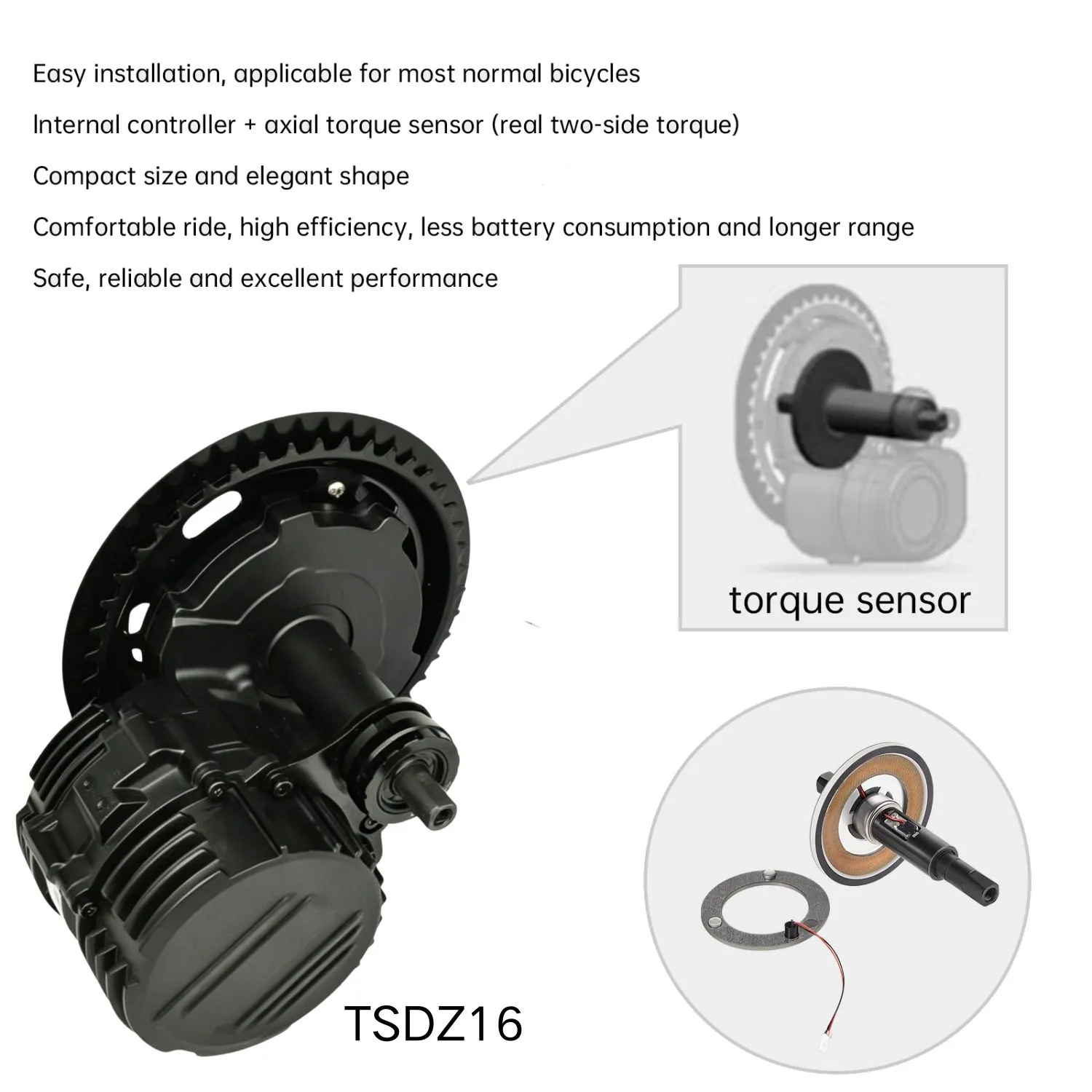

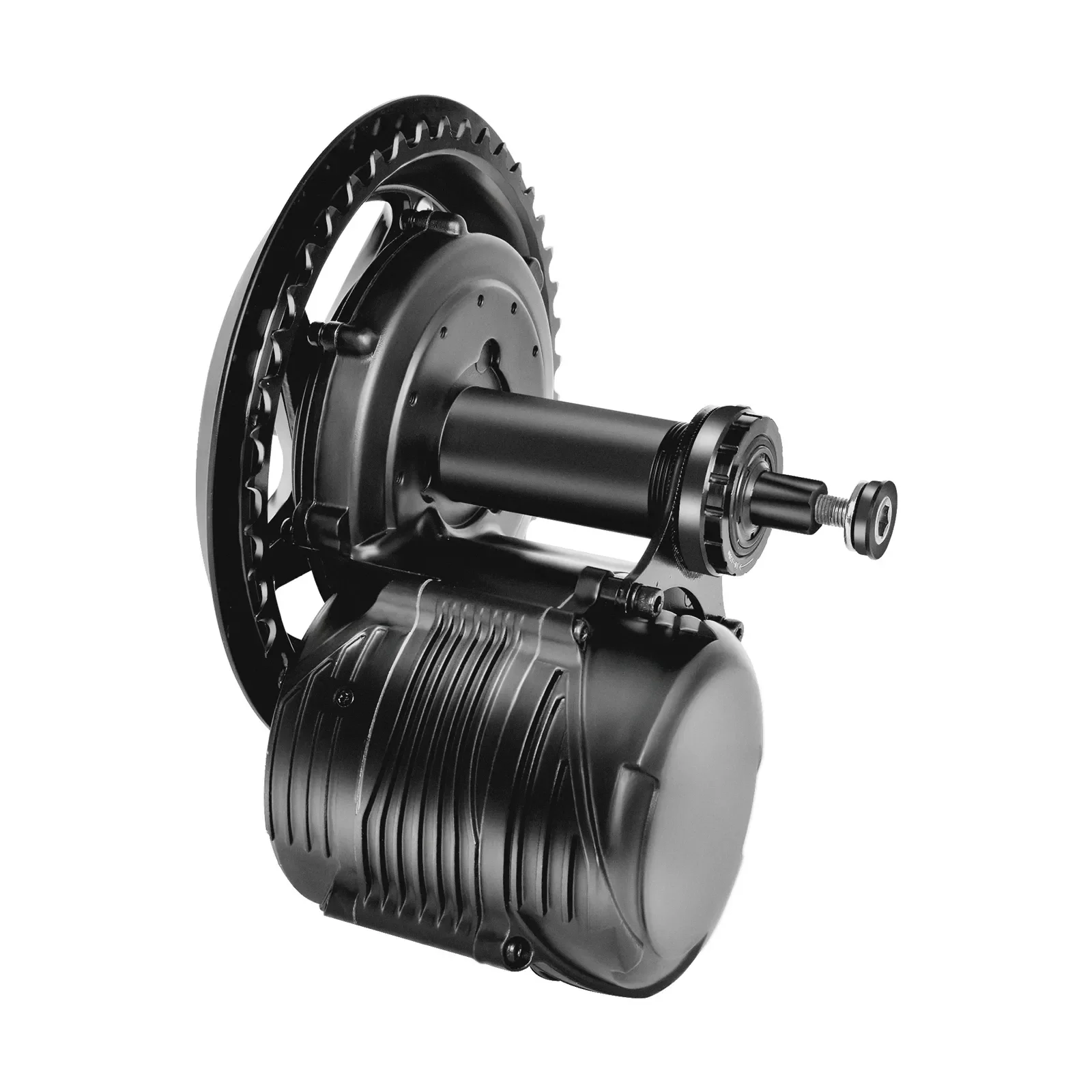

TSDZ16 tongsheng Mid Drive Motor Kit 48V 1000W electric bicycle Conversion Engine with torque sensor for ebike
This Tongsheng mid drive motor with torque sensor is the cheapest and good torque sensor mid drive motor in china, you can feel the power from your foot to start the ebike,so you don't need use throttle to start the ebike

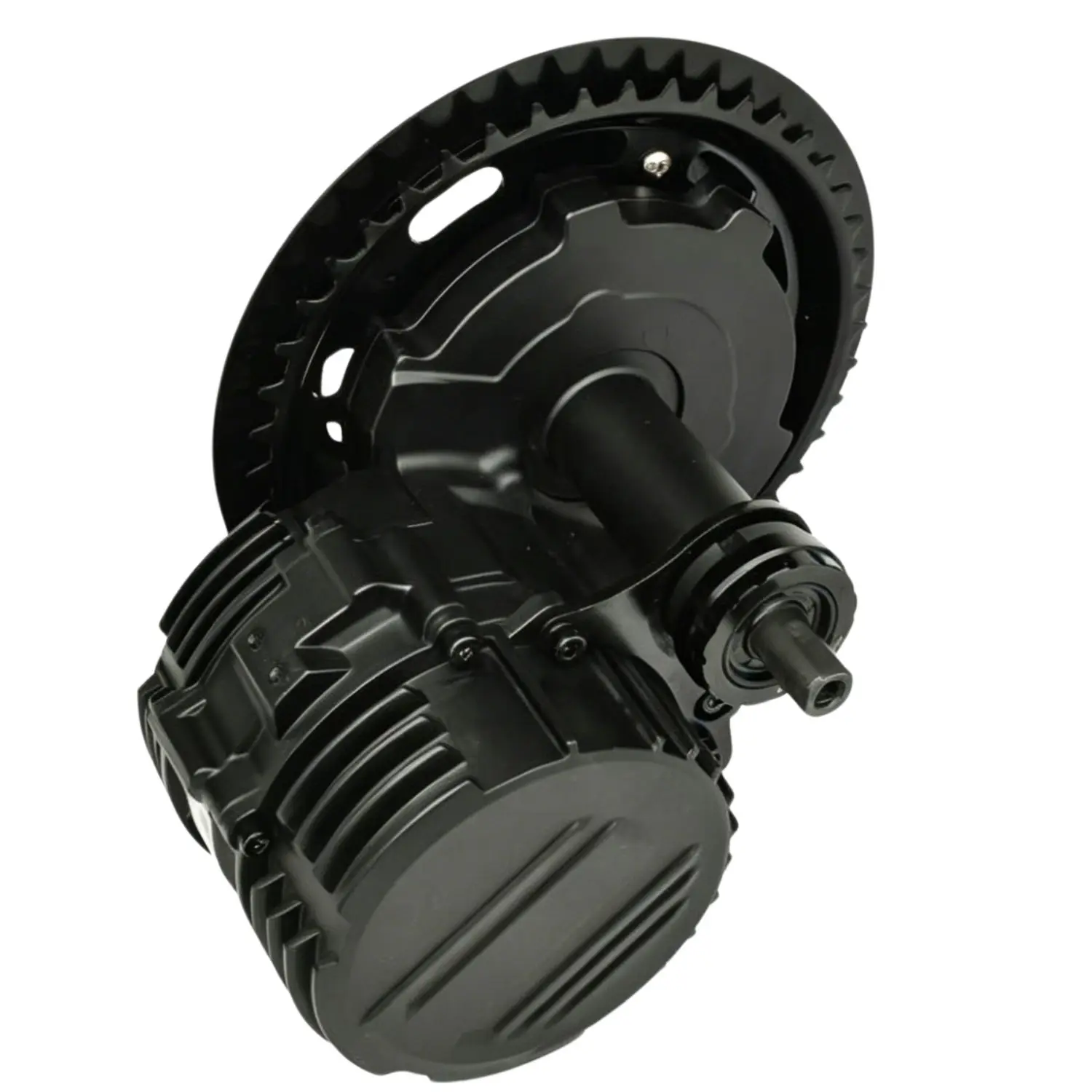

TSDZ16 electric bicycle central mid motor with torque sensor
Speed: 15Km/H-45Km/H    top speed 45km/H
46T chainring
48V 1000W  controller

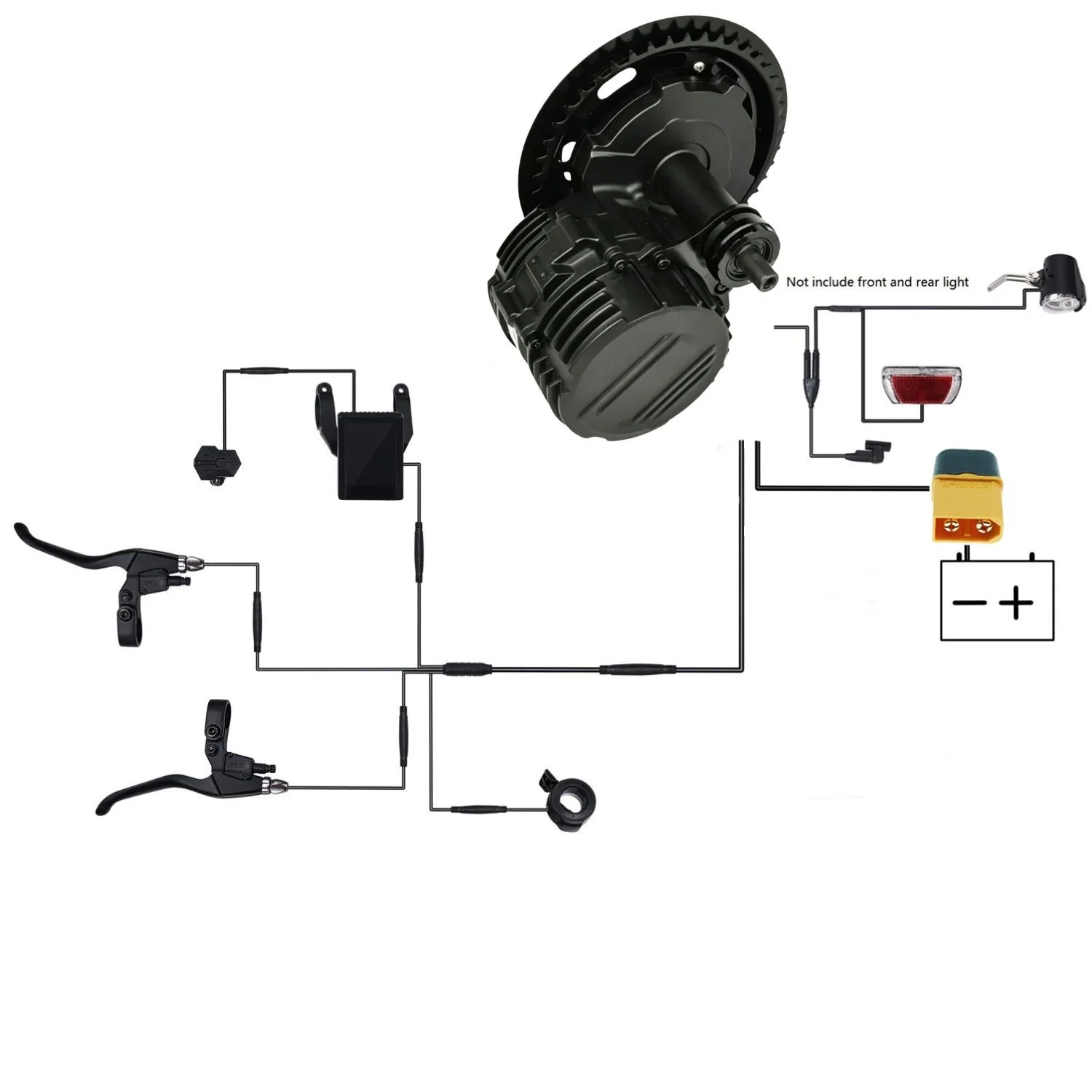

Special speed sensors, which are more robust, and include a split 'Y' adapter, to hook up a 6V 3W headlight, and 6V 3W taillight, which you can control from the display
Supports up to 48V max 54.6V input voltage,this motor cannot works on 52V max 58.4V input voltage
The motor have a freewheel and not for foot/coaster brake build
coaster brake function -----it is means If you bike don't have any brake lever, you must use the motor with coaster brake function, otherwise you can choose the motor have a freewheel

Special speed sensors, which are more robust, and include a split 'Y' adapter, to hook up a 6V 3W headlight, and 6V 3W taillight, which you can control from the display
The motor have a freewheel and not for foot/coaster brake build
coaster brake function -----it is means If you bike don't have any brake lever, you must use the motor with coaster brake function, otherwise you can choose the motor have a freewheel

After installing the motor: If mechanical collisions happened between motor and frame, Add gaskets,We will send extra 2pcs 41*35*2.5mm gaskets.If you do not add gaskets, It is easy crack the shell and destroy torque sensor.

Speed sensor:Tighten with cable tie,Keeping distance between 10mm to 15mm,The arrow align at magnet.

After installing Note:
The motor does not work when the mid motor TSDZ8 is no-load;
If the matching display’s model is XH18-LCD, rotating the throttle is only for Power assist shift.
Do not tough the pedals when turing on the display power.

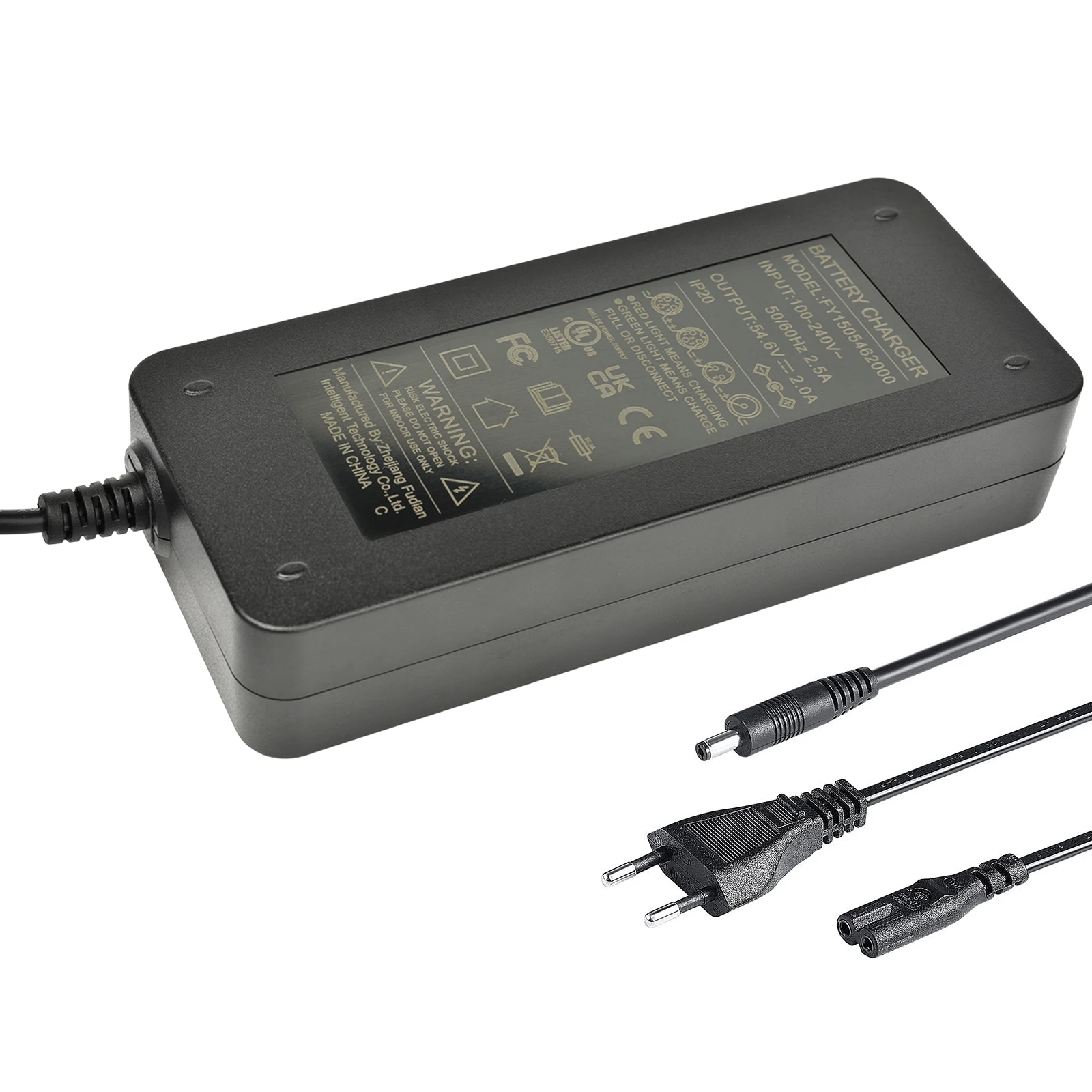

Charger for 48V battery

120W Lithium Ion Charger Specification
Input Voltage: 100-240V
Output Voltage: 54.6V (for 13 series Lithium Ion battery use)
Output Current: 2A
Charging Mode: CC-CV
Intelligent Charger
Super Powerful Charger 2A
Weight: 0.85g

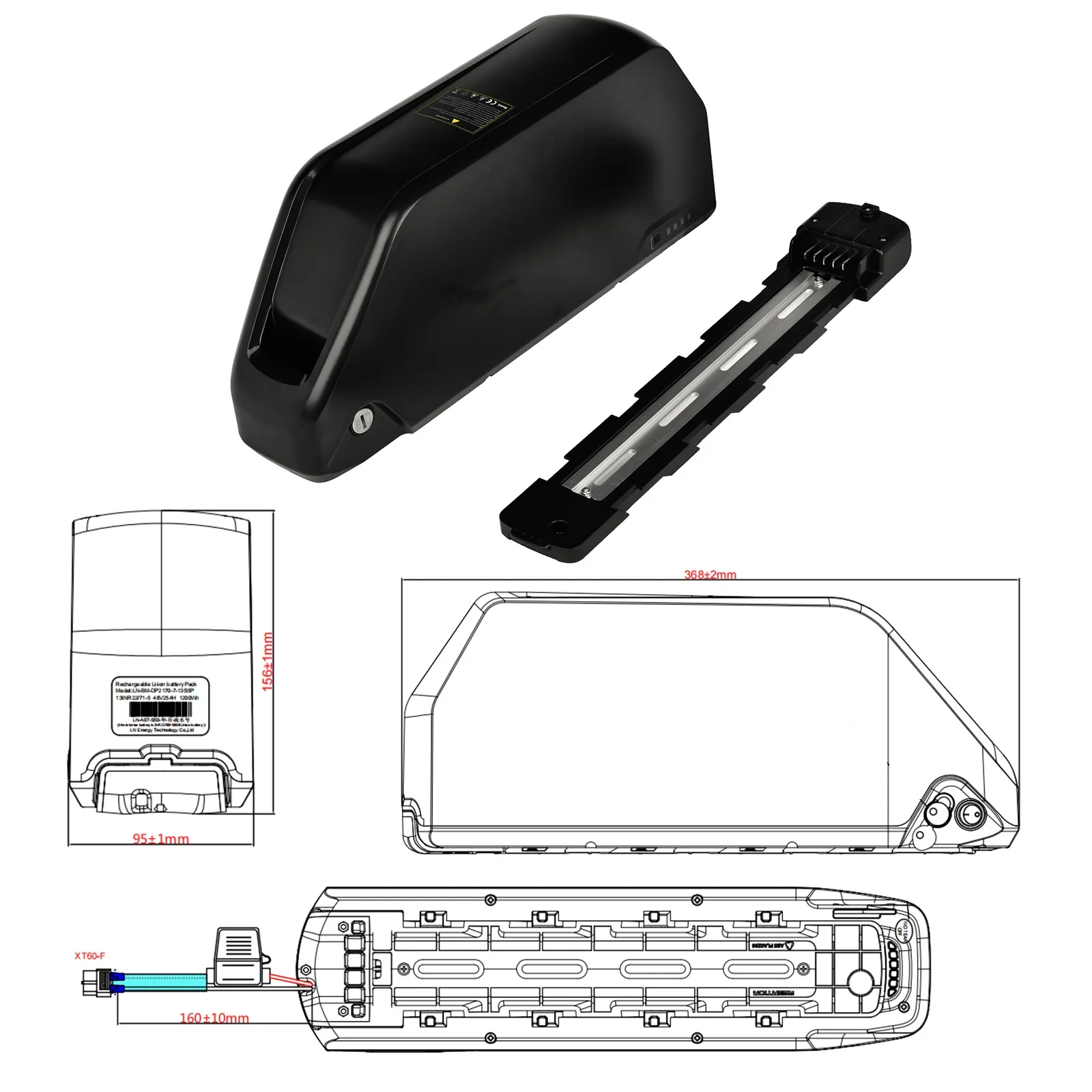

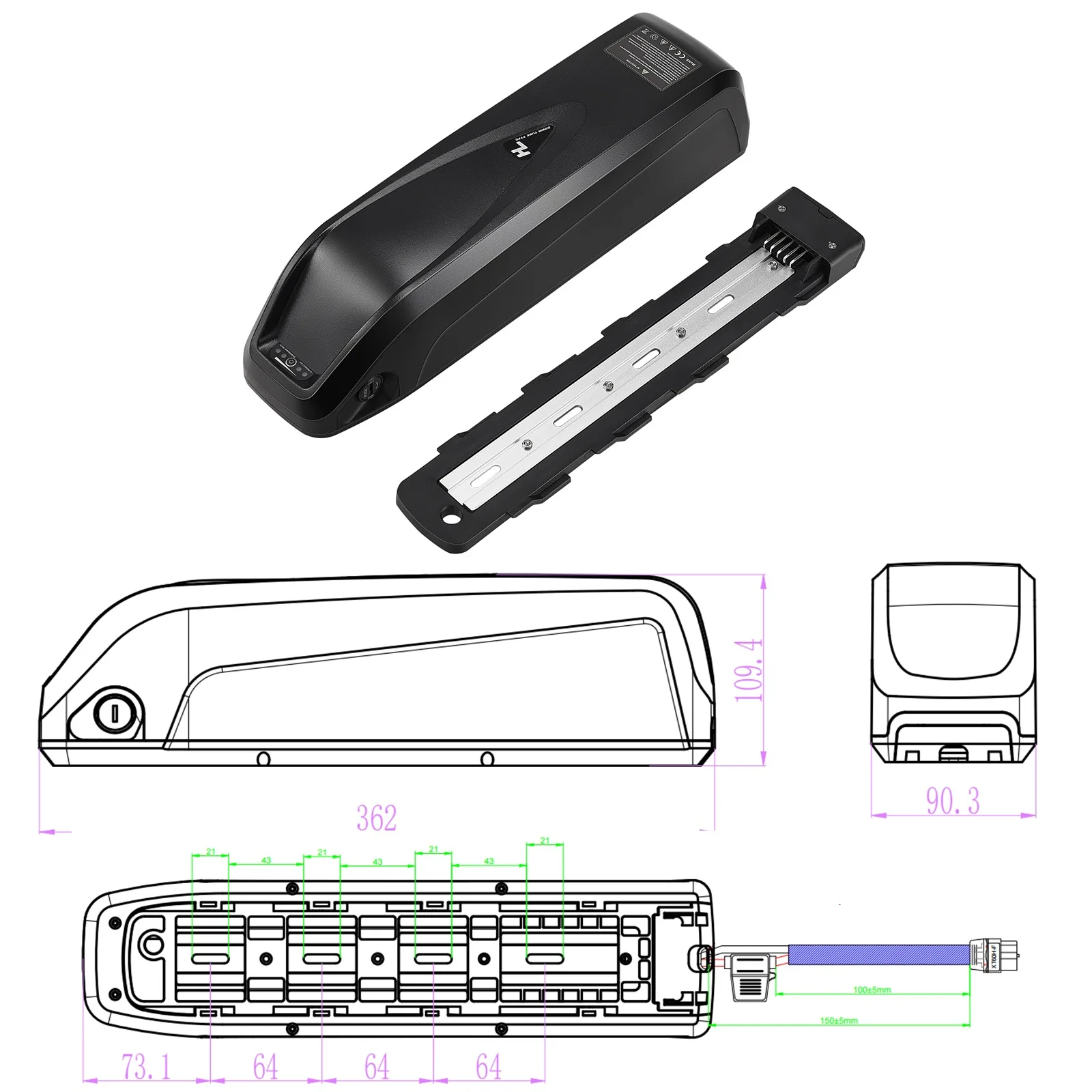

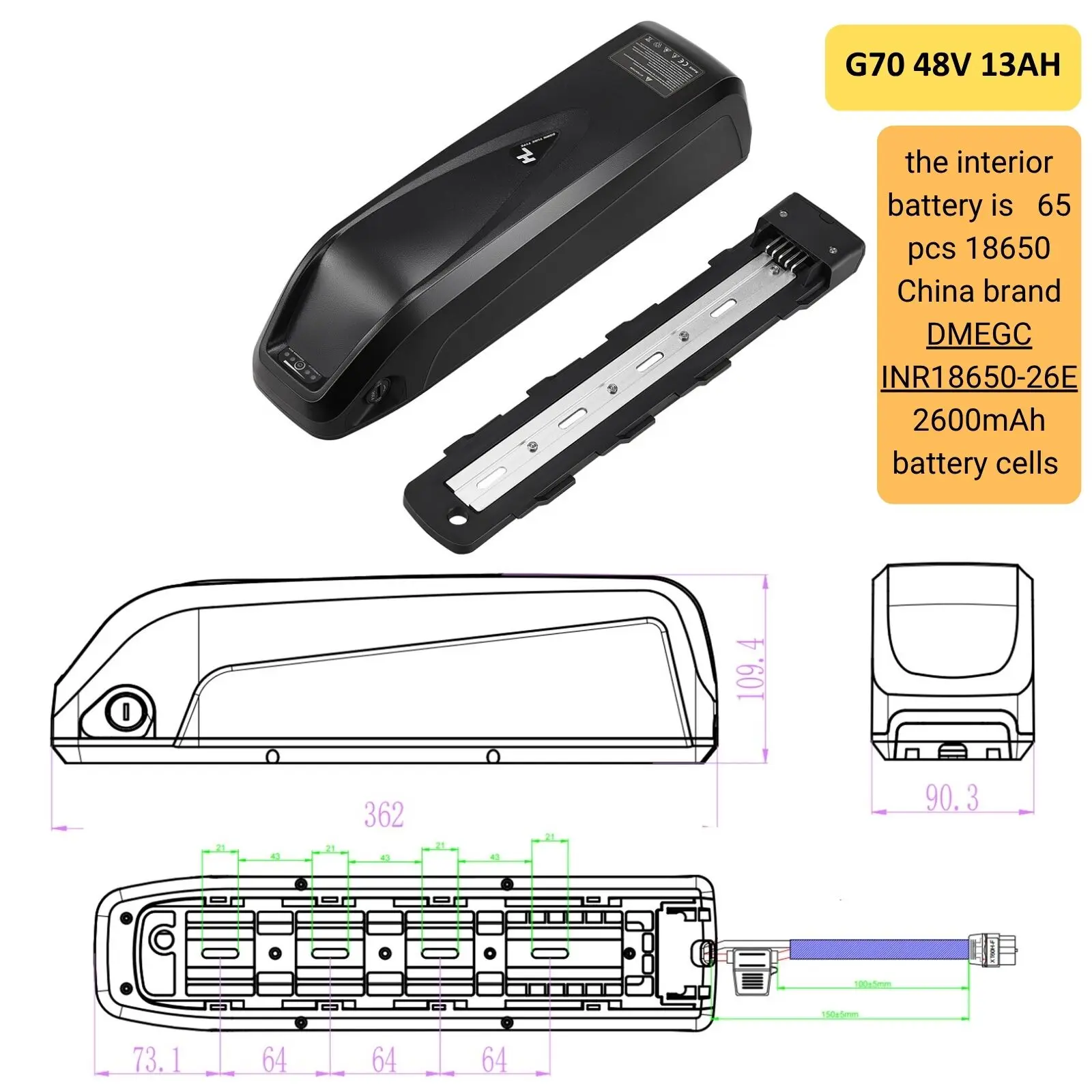

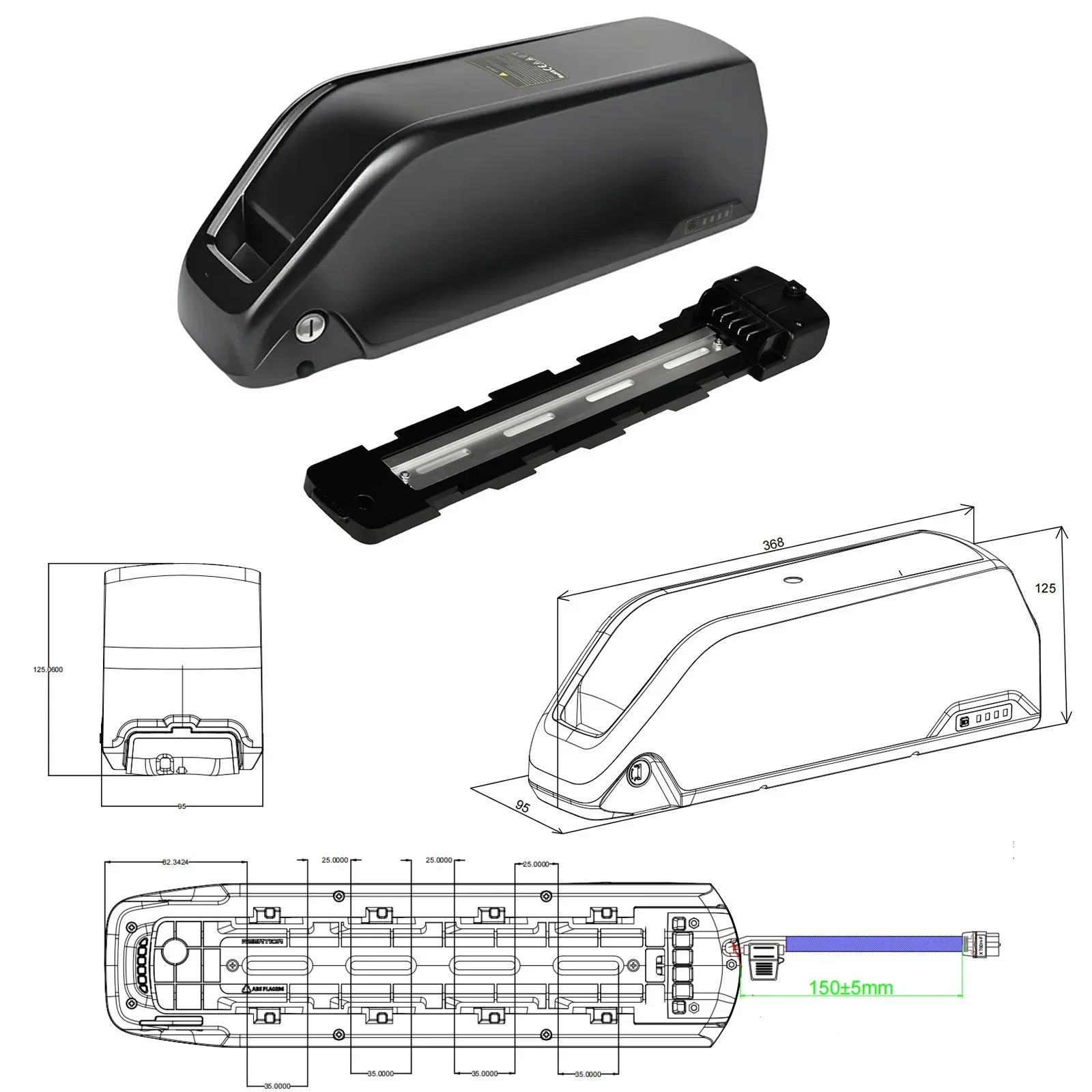

Packing list for battery

1 pc battery pack with BMS

1 pc charger

1 pc battery holder

3 pcs silicone gasket

Warranty

1 year (based on the purchase data): Free repair,buyer pay for return postage,

resend postage free,buyer should return to United Kingdom or France or China for repair.

Payment

The payment isn't included the remote fee. There will have extra cost if your address is belong to remote areas.



Return & Refund

After receiving the item,buyer should start a return within 7 days.Return postage will be paid by buyer.The return items must be in original conditions never used.Buyer can not return to sender address,we will provide local return address to buyer.



Feedback

Your satisfaction and positive feedback is very important for us, it will be very kind of you to leave us 5 stars feedback, if you have any problems, don`t hesitate tocontact us, we will do our best to serve with you.
