• Frequency Matching : With the frequency matching feature, you can easily communicate with other walkie talkies within the range of 5km-10km.

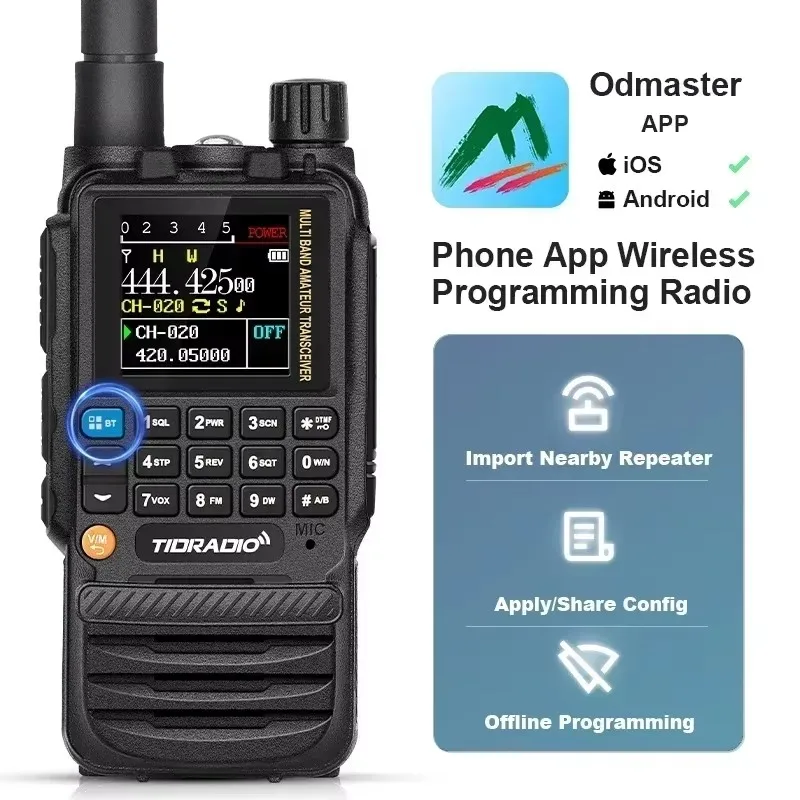

• Wireless programming via phone app : The TIDRADIO H3 can be programmed to customize your TIDRADIO H3 anytime, anywhere via the mobile app "Odmaster". The app also includes an automatic search function for nearby repeaters, which can be configured to your radio with a single click to increase the communication range, and there are many more features in the app for you to explore.

• USB Tpye-C Cable Charging & Programming: You can connect to a computer via an ordinary USB Tpye-C cable to perform programming and other operations without the need for a special programming cable, solving the trouble of not finding a programming cable. It also supports Tpye-C charging.Good news:In response to customer demand, this kit has a new charging cup from 1 January 2025, you can choose to charge with the safe and reliable charging cup or with the efficient and fast USB-C charging. Product List:1*TD-H3 Radio,1*TD-H3 Battery,1*USB Charge,1*Charging Cup,1*Antenna,1*Belt Clip,1*Manual,1*Hand Strap

	Product features
1	NOAA weather reception	25	DTMF
2	Fast linking	26	DTMF ANI
3	10 groups of voice encryption (scrambling)	27	High, medium and low power options
4	Large capacity battery/long standby time	28	Receive and transmit signaling are set separately
5	Lighting function	29	Multiple step frequencies
6	Reverse frequency operation function	30	Initialize the settings
7	Timeout timer	31	Channel storage
8	Transmits 1750 signals	32	Computer programmable
9	Frequency, channel mode conversion	33	Tone switch
10	199 channels	34	AM/FM air segment reception
11	Voice telegram	35	FM radio
12	Multi-segment transmit and receive	36	Digital signaling CTCSS/DCS
13	Automatic/manual emergency alarm	37	Tpye-C Cable Charging & Programming
14	Multiple scans	38	VOX voice-activated emission function
15	Difference frequency direction setting	39	Automatic signaling search
16	Difference frequency setting	40	Busy and banned
17	Wide and narrow band options	41	Channel number, channel frequency, channel name Multiple display methods
18	Squelch level setting	42	Channel scan added
19	Dual ptt	43	Large screen dot matrix LCD display
20	The backlight automatically turns off the selection time	44	Transit desk forwarding confirmation function
21	Cross-segment intercom function	45	Boot password protection
22	Wireless full machine replication	46	Frequency meter function
23	DTMF dialing	47	That is, the call channel
24	On-site programming	48.	Wireless programming via phone app

TIDRADIO H3 has a wireless programming function, anytime, anywhere in the mobile phone APP to achieve wireless programming.

Search & Share Repeaters

1.Amply the TX/RX signal

2.Compensate signal attenuation

3.Increased communication range

Quickly programme your radio from your mobile phone anytime, anywhere!

Step 1:Open Odmaster APP

Step 2: Connect the BT

Step 3: Program the radio

Inside the APP you can alsoImport Local Repeaters with One ClickUse the mobile app Odmaster to import local nearby repeaters with one click for longer transmission distance.In-App Sharing ConfigurationShare programming configurations within Odmaster to quickly share complex custom features, provided your other radios support wireless programming. (If this feature is not available you can purchase a Bluetooth frequency writer)

TIDRADIO H3 It can be programmed by connecting to a PC via a normal USB Tpye-C cable, solving the problem of not being able to find a programming cable.

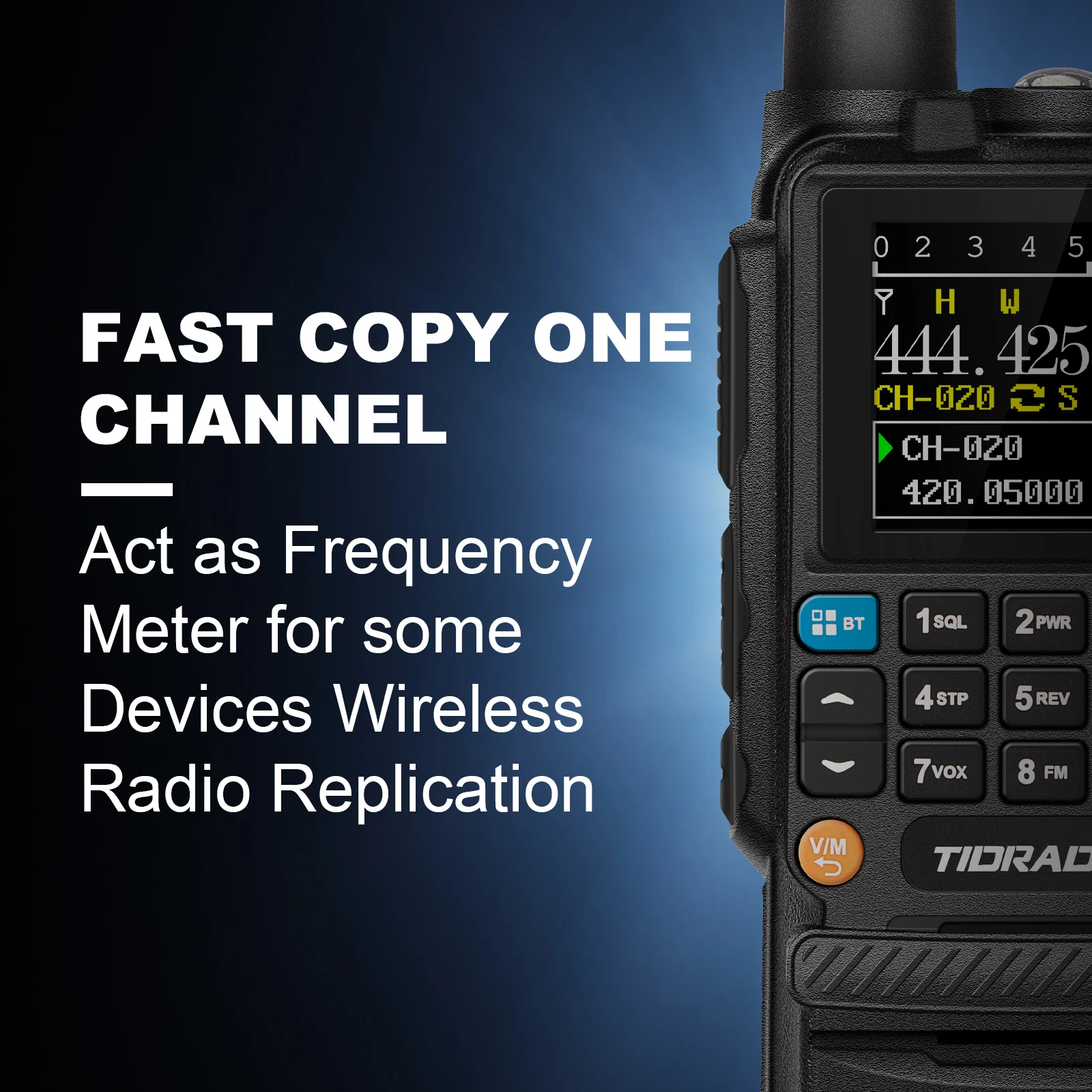

Fast Copy Frequency .

Fast Copy One Channel .

Act As Frequency Meter For Two-Way Radio & Some Other Devices .

Hold Down "1", Turn On Frequency Copy .

AM/FM Aviation Band Receiving .

Press and hold the * key and PTT key to turn on the powerBand version can be selectedHAM;GMRS;NORMAL

10-Group scrambler encryption for secure communications.

TIDRIDIO H3 radio is compact (102*51*30mm), sturdy, the unique feel of the pressure hand, rubber material dual PTT, high-quality touch at the same time to avoid accidental contact.

5W long range communication

High power/low power mode switching

NOOA weather reception .

10 Emergency Weather Channels .

Bring more convenience to your outdoor travel .

the Type-C port on the bottom of the battery supports Type-C charging!

Dual PTT

No longer need to switch channels like traditional single PTT. One is used for channel A to send information, and the other is used for channel B

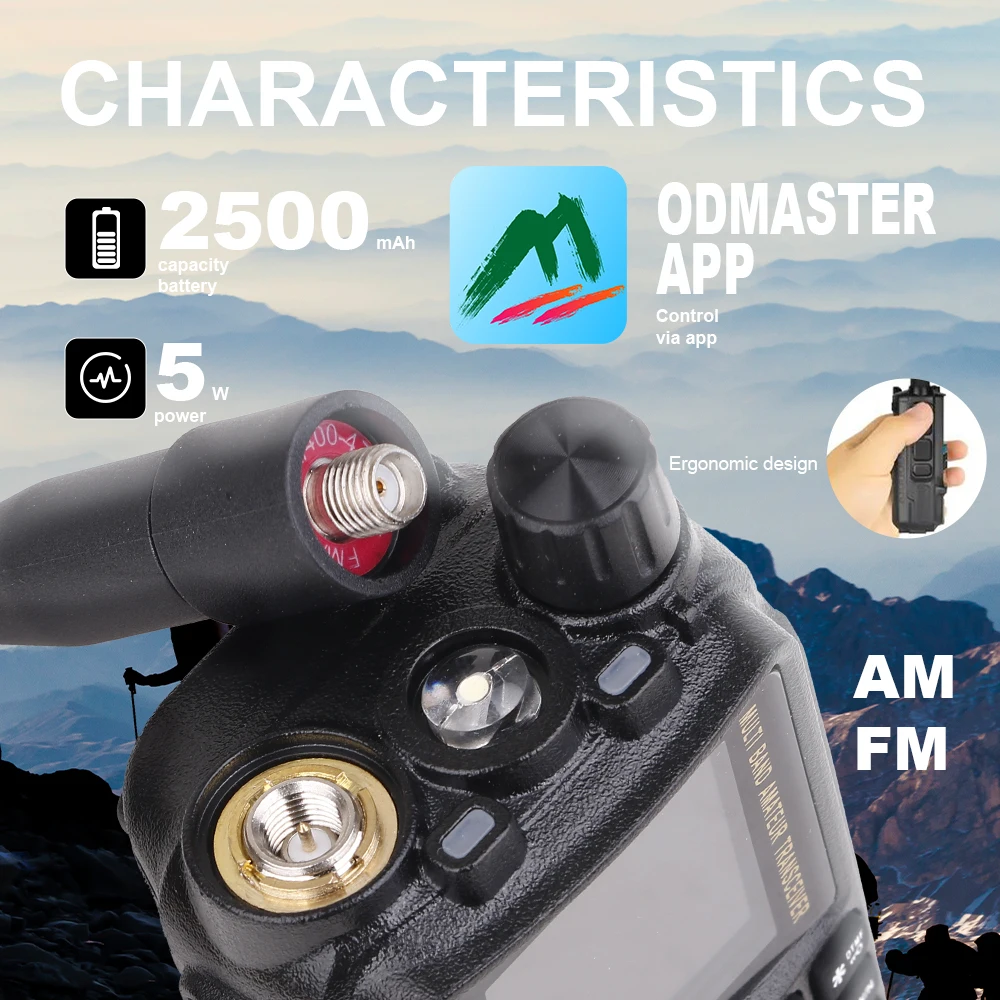

2500mAh battery

It can be fully charged in 3 hours

Can work continuously for 24 hours

The standby time exceeds 120 hours

In addition, TIDRADIO H3 also comes with many functions,Custom Side Keys, DTMF, Dual PTT .......

• Instruction manual PDF download address

https://tidodmaster.oss-us-west-1.aliyuncs.com/h3/H3-Ham%20Instruction%20Manual%20%28not%20updated%29%20-%20for%20reference%20only.pdf
