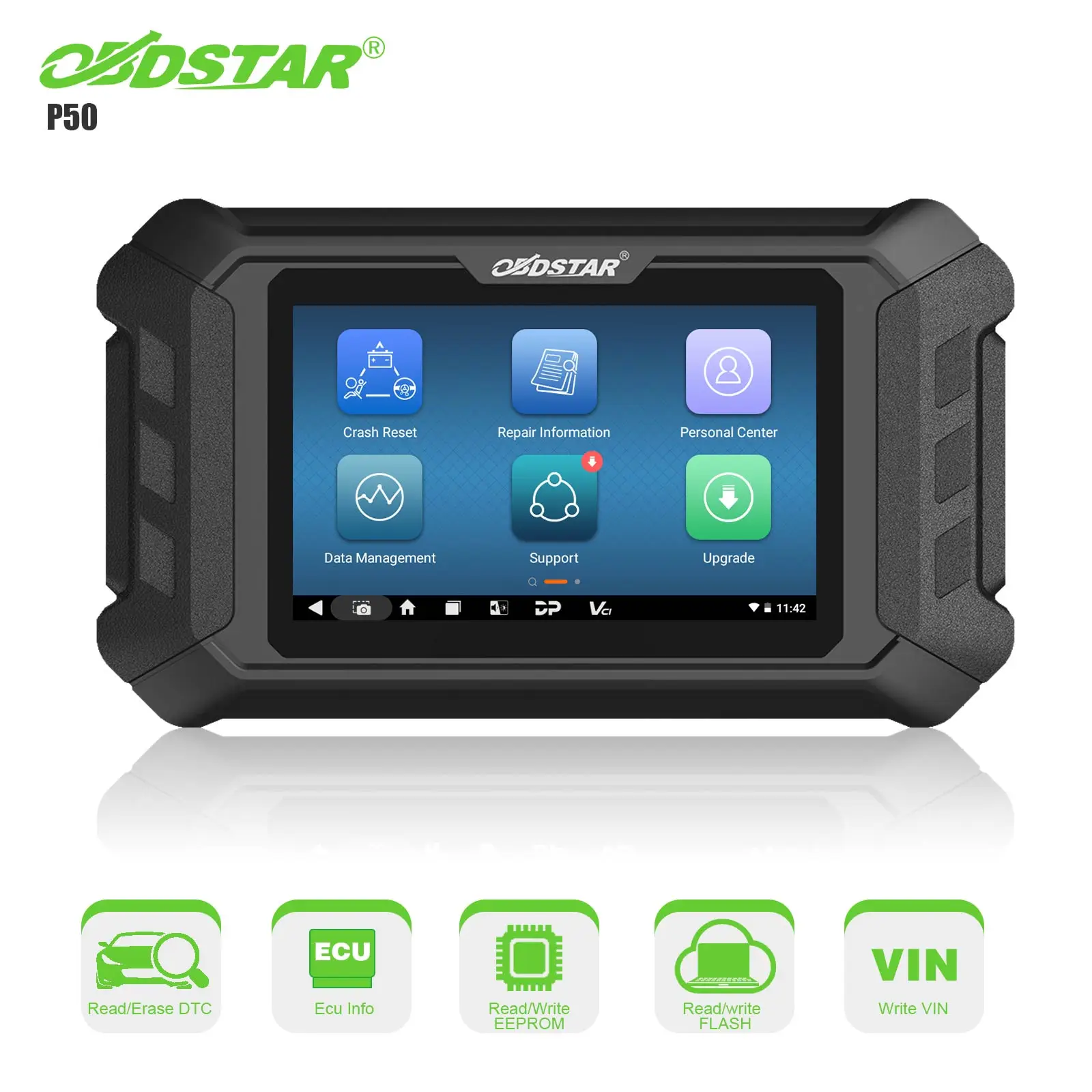

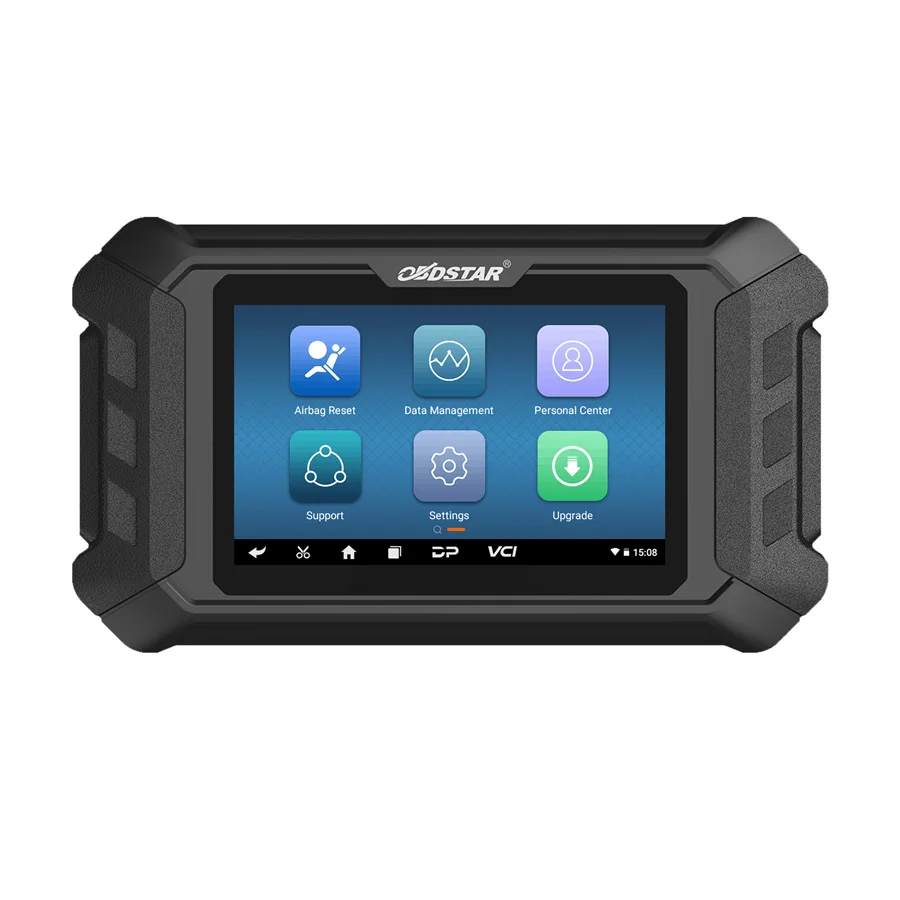

OBDSTAR P50 Airbag Reset + PINCODE Intelligent Airbag Reset Equipment Covers 92 Brands and Over 13200+ECU Part No.

OBDSTAR P50 Airbag Reset Intelligent Airbag Reset Equipment
Description:

OBDSTAR P50 is the new generation of intelligent airbag reset equipment. With powerful functions and wide coverage, it covers 92 brands and over 13200+ ECU part No., some MCU. OBDSTAR P50 is based on RK3128 quad-core processor, extremely fast and smooth; equipped with 5-inch capacitive touch sensitive screen.

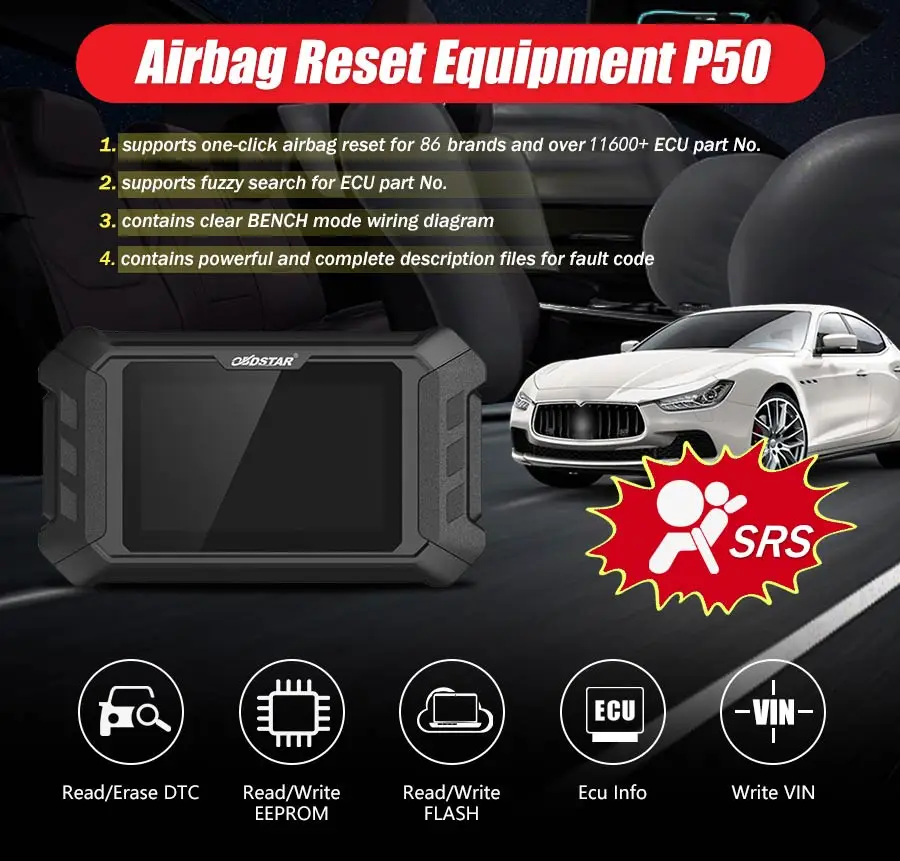

OBDSTAR P50 Functions:1. Support one-click airbag reset for  92 brands and over13200+ ECU part No.2. Support fuzzy search for ECU part No.3. Contain clear BENCH mode wiring diagram 4. Contain powerful and complete description files for fault code

5. P50 comes with P004 Adapter: P004 adapter is designed for ECU programming, reading or writing data in bench mode.
6. Supports battery reset(MVBM) function
7. Supports SAS reset function




Notice:
1. Language: English Only.

2. If you also need Cluster Calibration & Oil Light/ Service Reset Function, you can buy the OBDSTAR cluster Reset Oil Service Reset Function Authorization to get the same function as the OBDSTAR ODO Master.

3. OBDSTAR P50 with One Year Free Update Online, after one year, please click OBDSTAR P50 Update Service
Advanced Functions:
All by OBD or BENCHECU Info.Read DTCErase DTCRead EEPROMWrite EEPROMRead FLASHWrite FLASHErase CrashWrite VIN

P004 Adapter is designed for ECU programming, reading or writing data in bench mode. It has merits below:

1. Programming devices keep in normal communication no matter turn on or off 12V power button;
2. Turn on or off 120Ω resistance at any time for CANBUS ECU;
3. Support 6&14 and 3&11 CANBUS Protocol at the same time;

 4. Optional CANFD adaptor (Mainly used for models after 2020, such as for HYUNDAI/KIA, etc.);
5. Support GM Single CAN(GM SCAN);
6. Support K-line Protocol;
7. P004 jumper can connect with multiple wires at the same time, make wiring clearer and easier;
8. DB15 connector can communicate with any OBDII-16 I/O interface.

P50 Airbag Reset Latest Update Information:

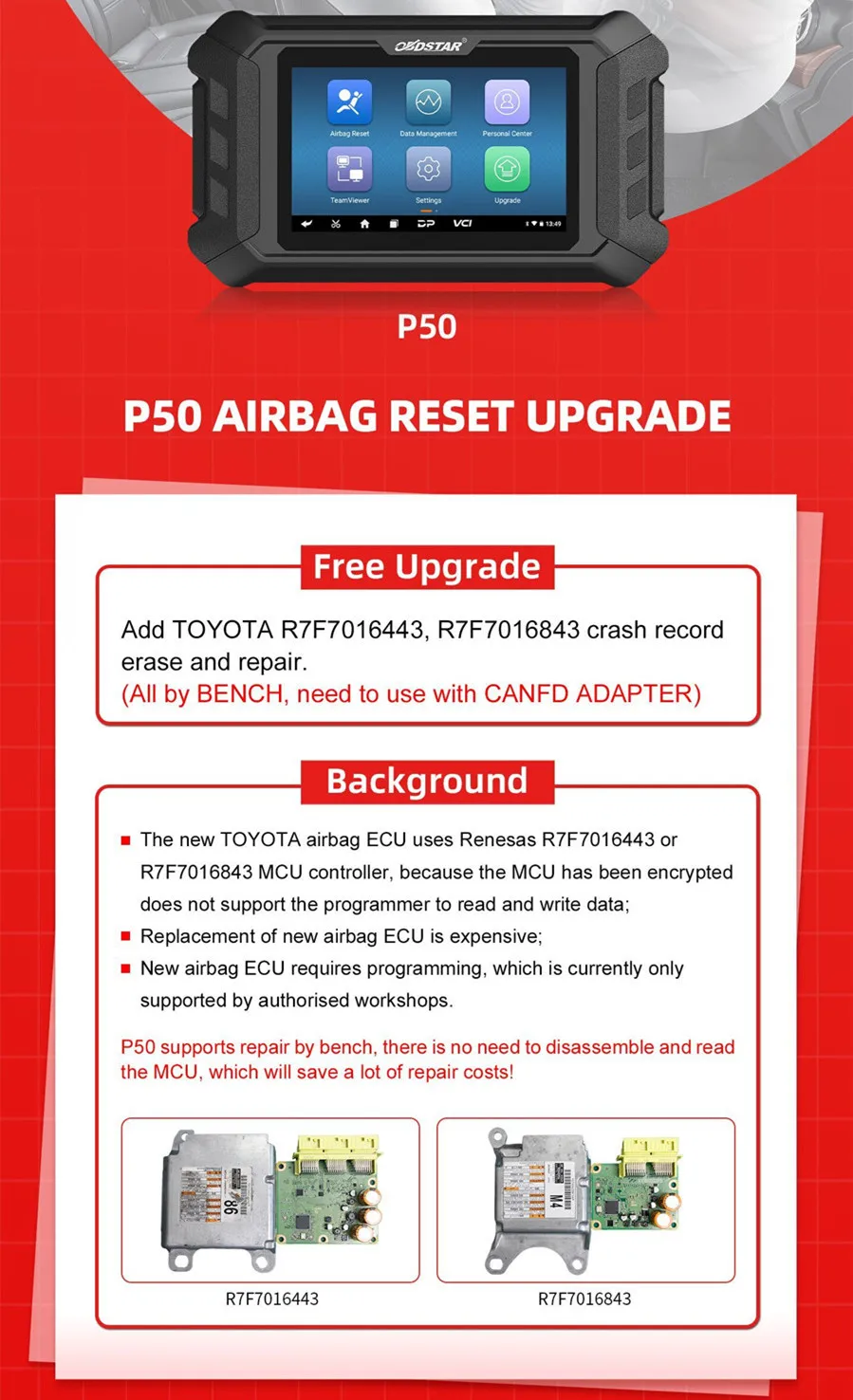

P50 Airbag Reset Upgrade
Add for  TOYOTA R7F7016443, R7F7016843 crash record erase and repair
(All by bench, need to use with CANFD Adapter)

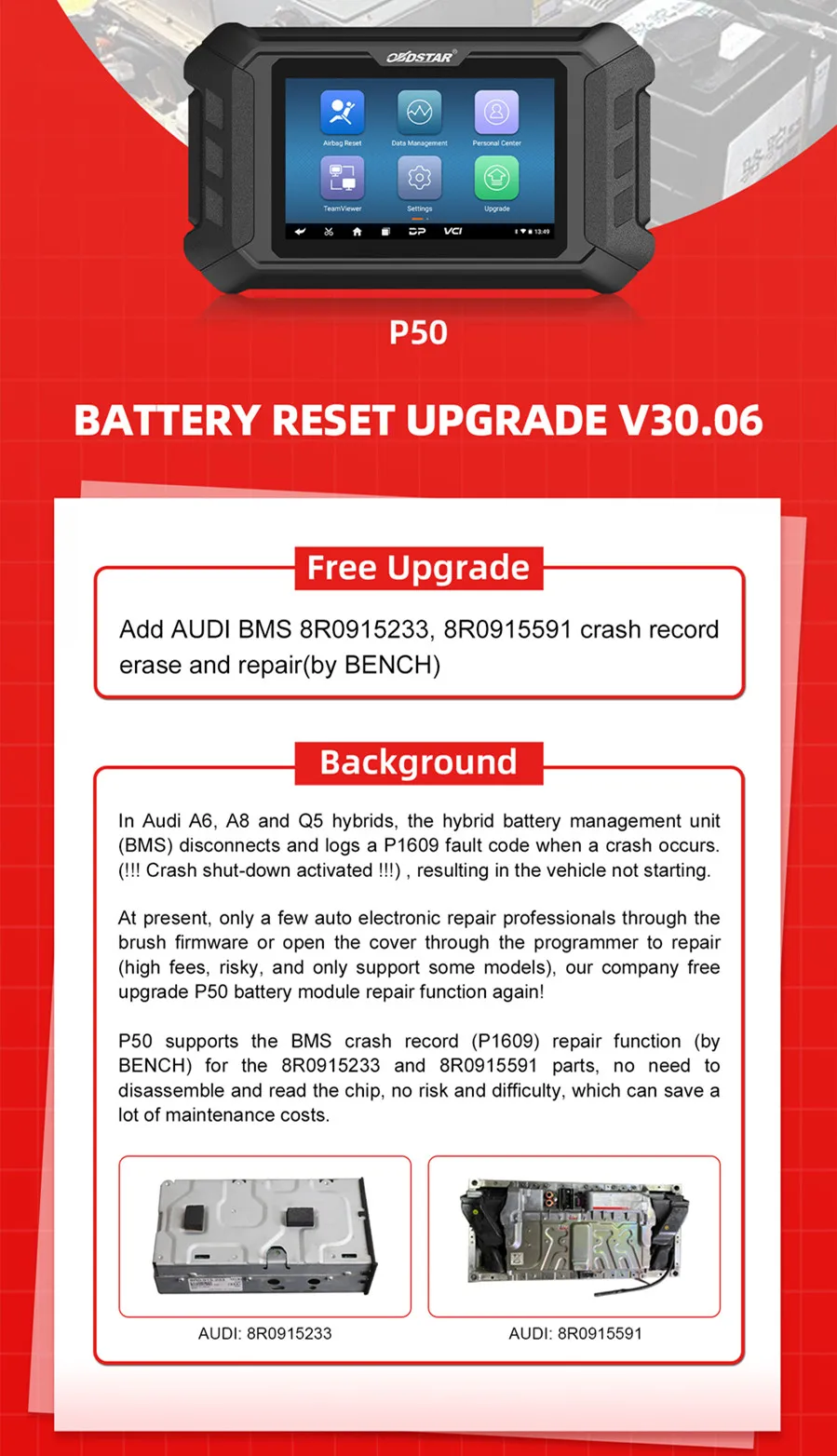

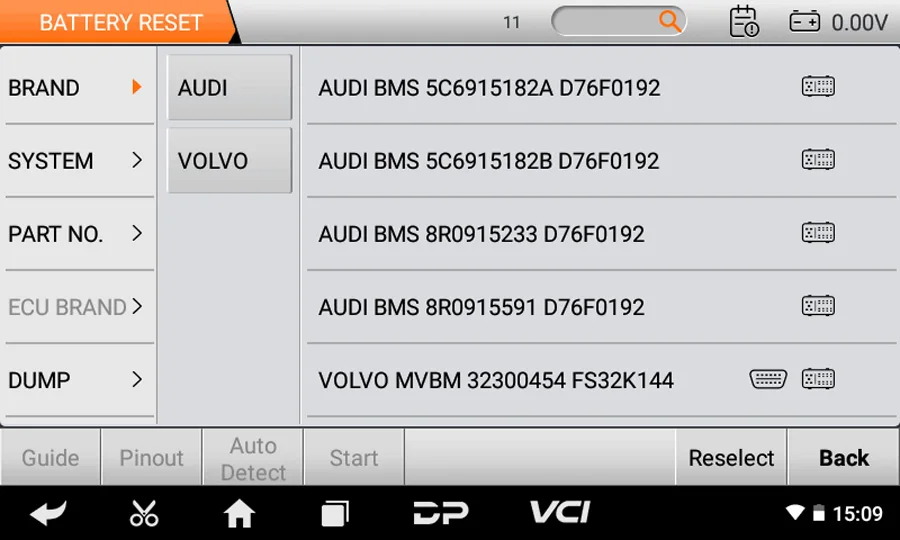

P50 BATTERY RESET UPGRADE V30.06
Add for AUDI BMS 8R0915233, 8R0915591 crash record erase and repair ( by BENCH )

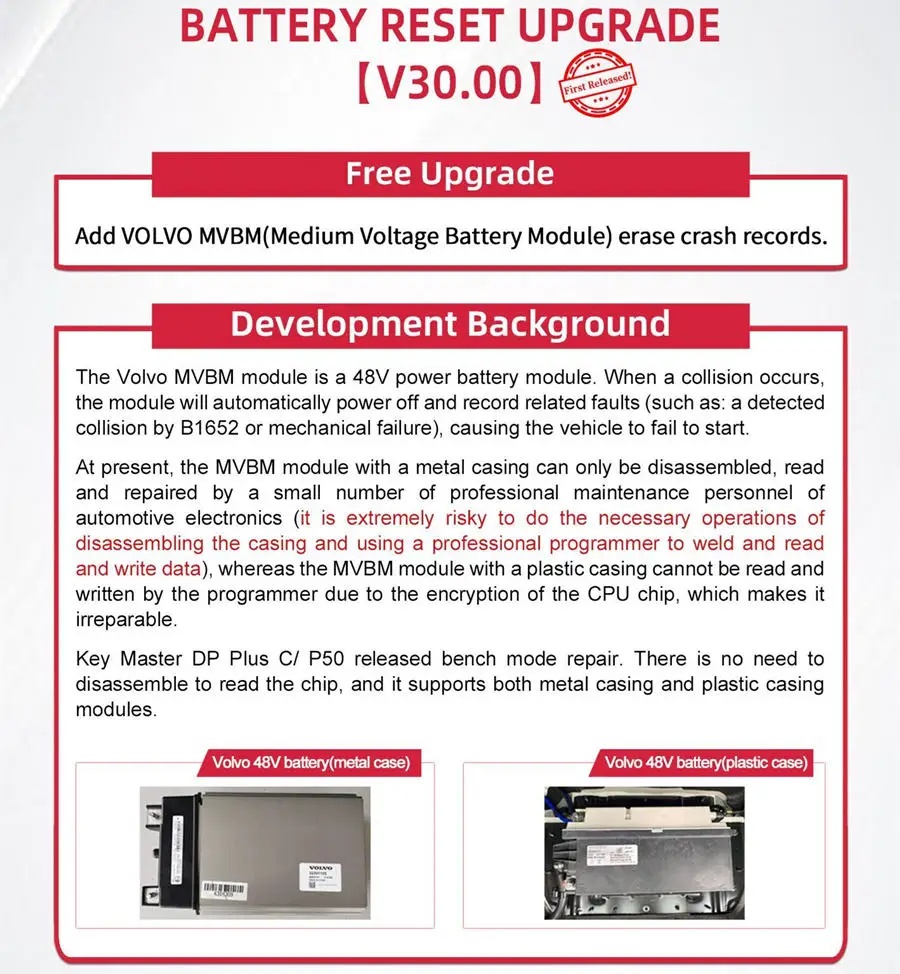

P50 BATTERY RESET UPGRADE V30.00:

Add for VOLVO MVBM(Medium Voltage Battery Module) erase crash records.

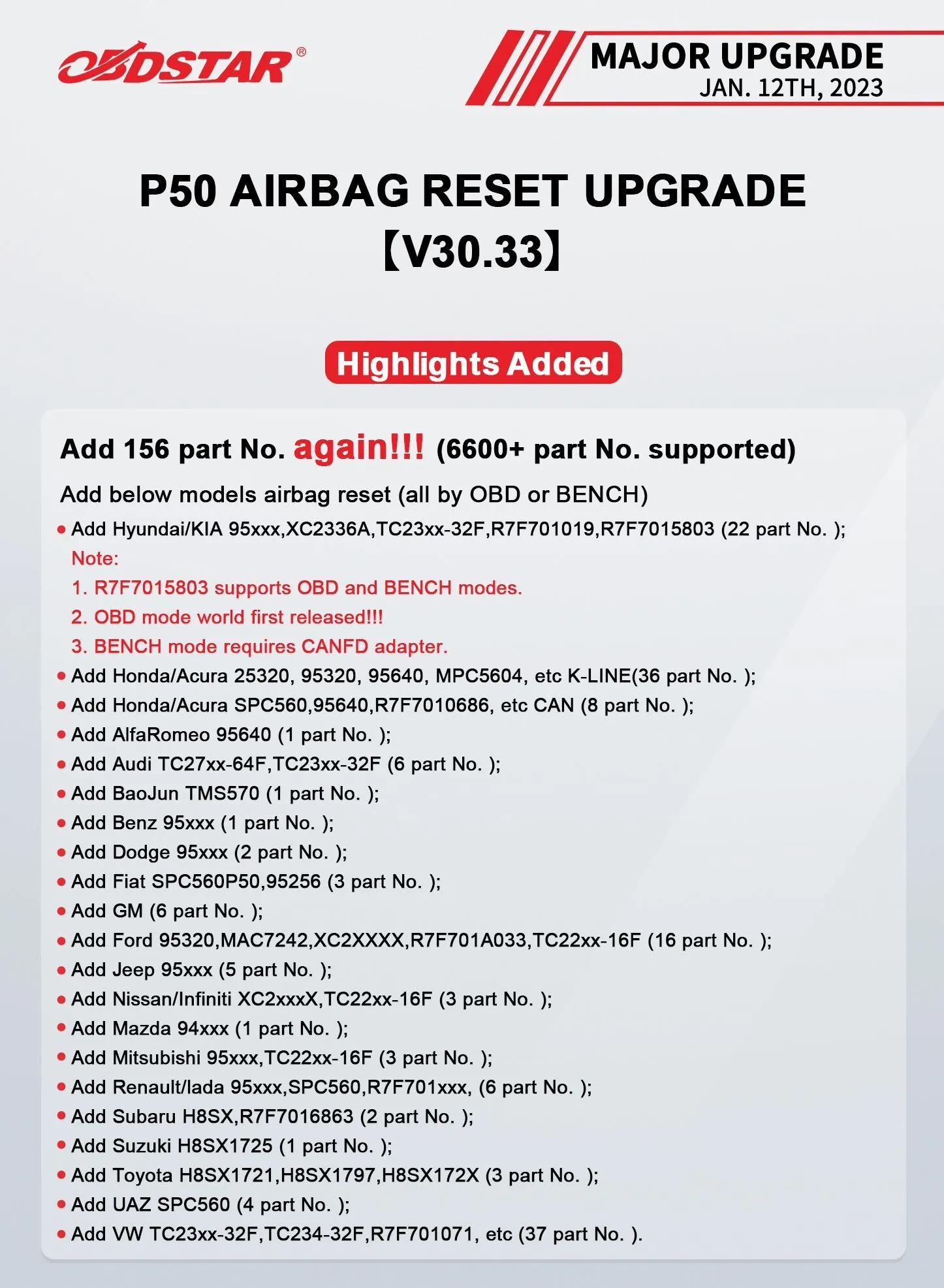

P50 Airbag Reset Upgrade V30.33:




Function Display:

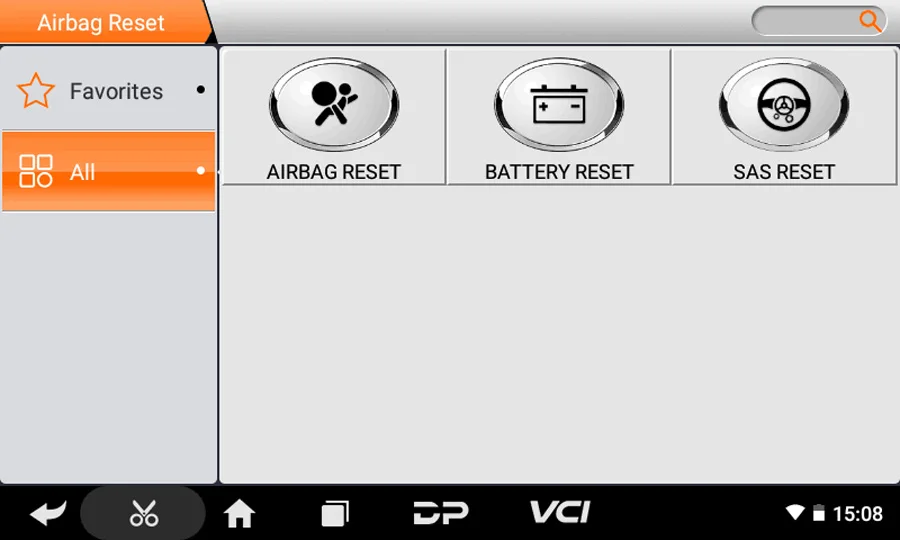

1. The main page after registration：

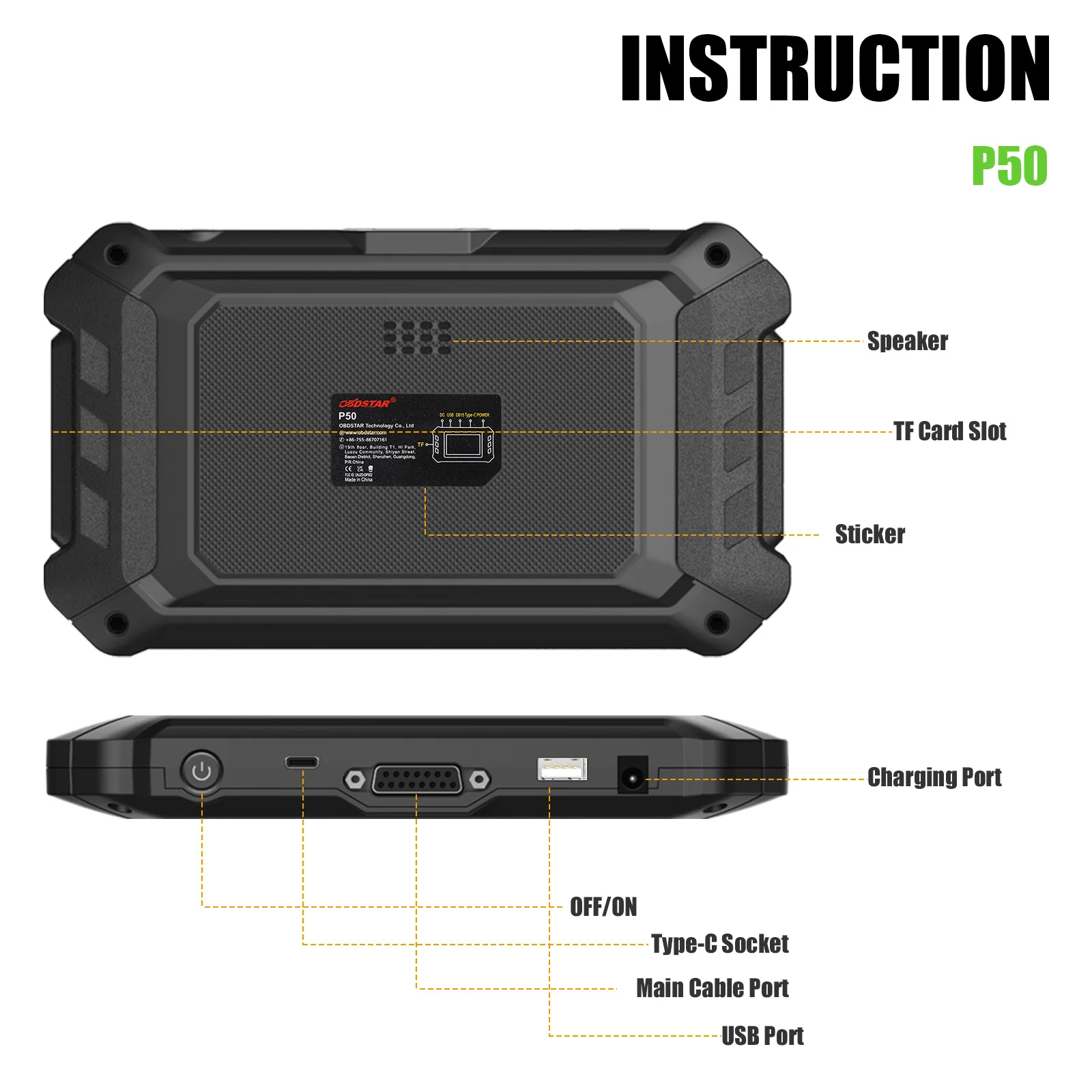

OBDSTAR P50 Specifications:

Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM cortex A7
Battery	2600mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
Storage capacity	16GB
LCD	5.0 inch
LCD resolution	800*480
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-20℃  ~  55℃(14℉  ~  131℉)
Storage temperature	-20℃  ~  70℃(-4℉  ~ 158℉)
Weight	About 700g
Dimension	198mm*115*mm*31mm

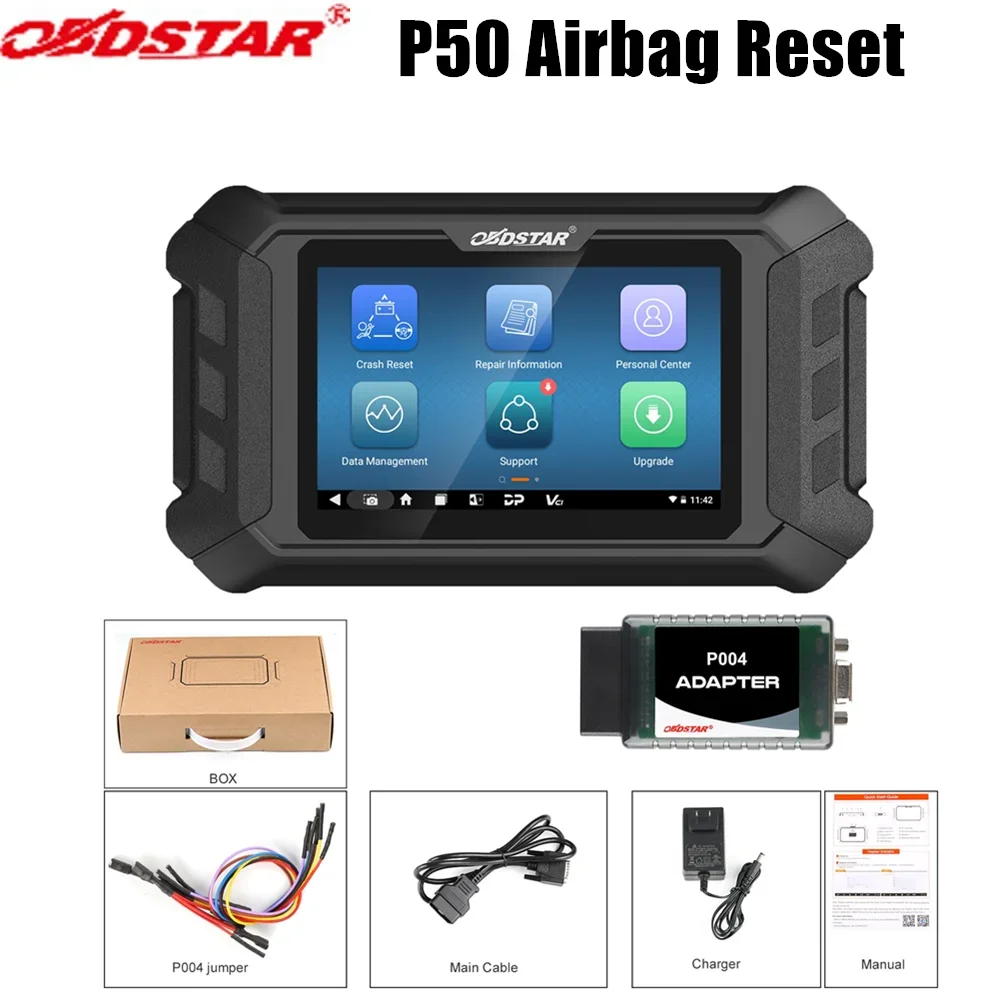

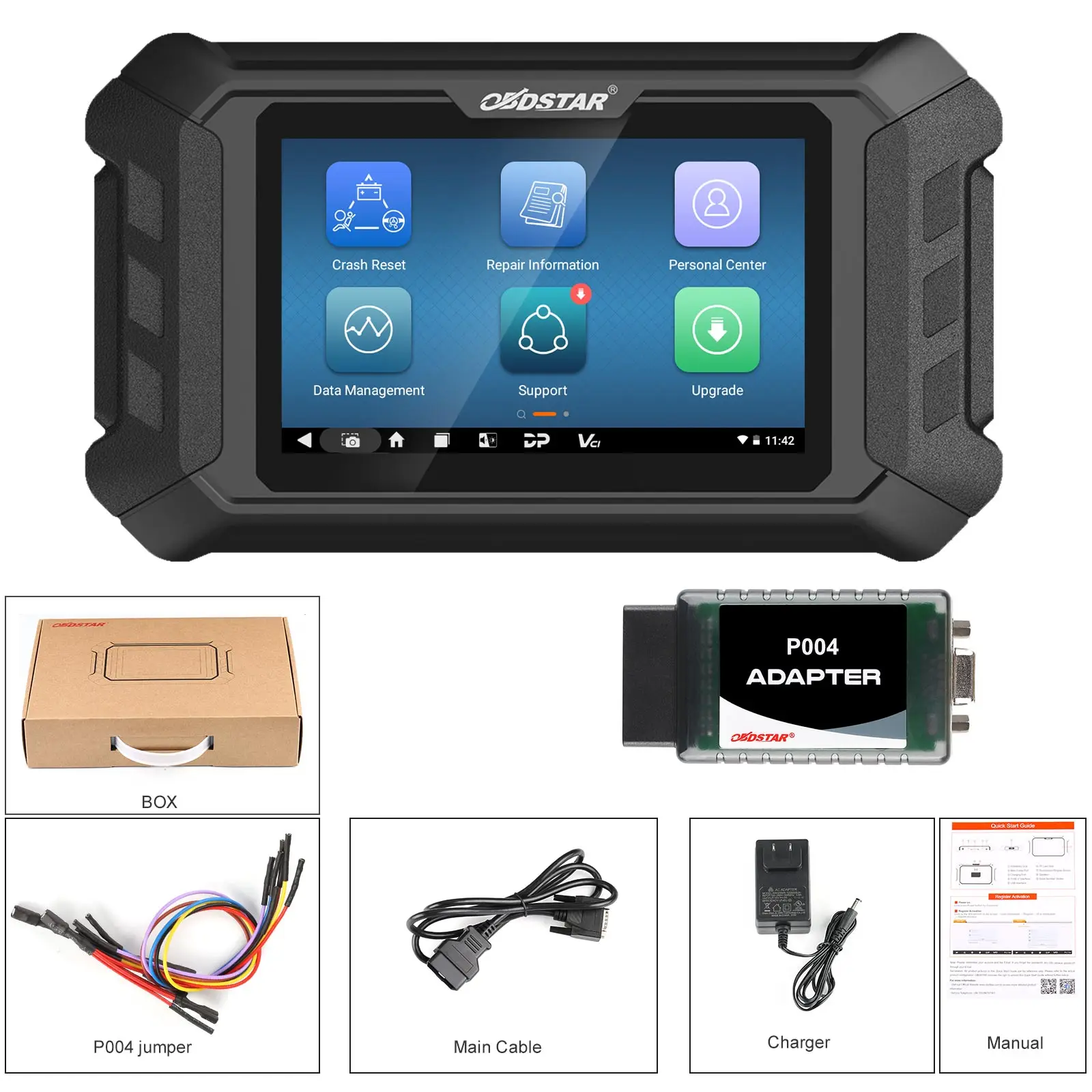

Package Includes:1pc x P50 Main Unit1pc x Main Cable1pc x P004 Adapter1pc x P004 Jumper1pc x 12V2A Charger
