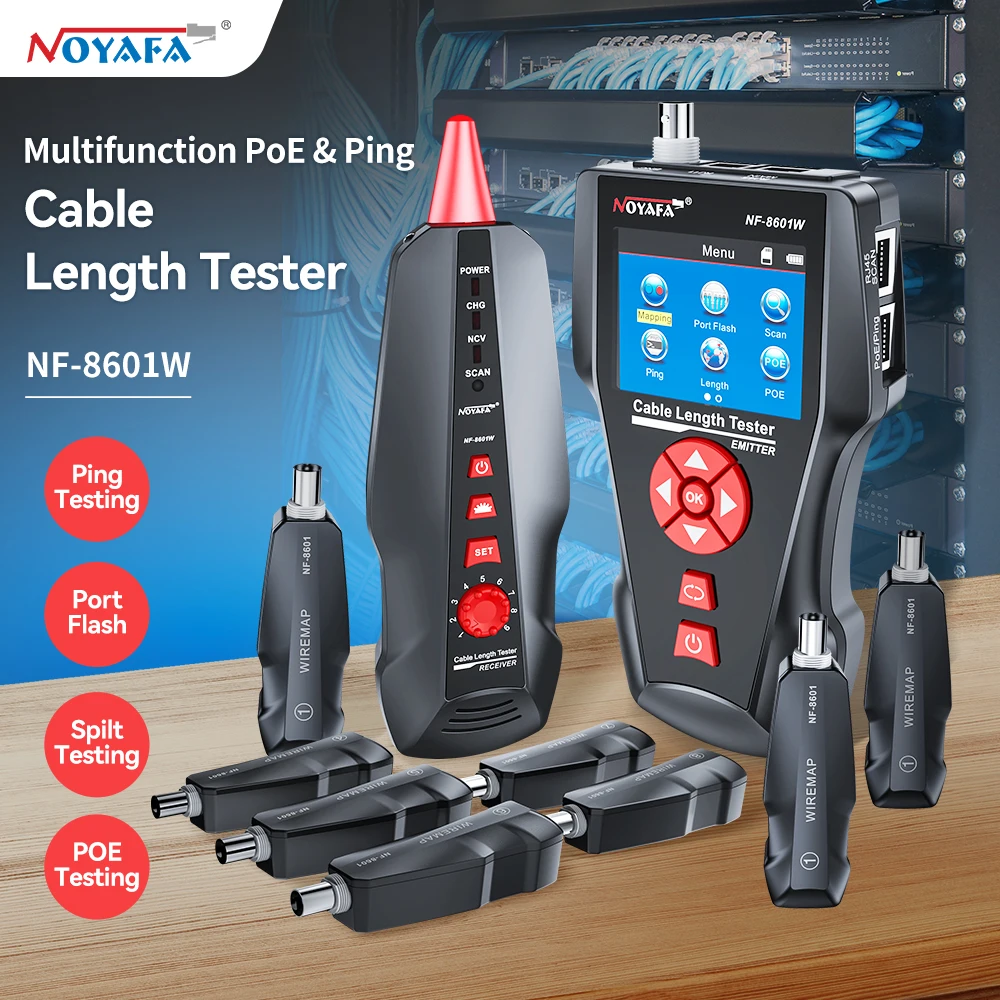

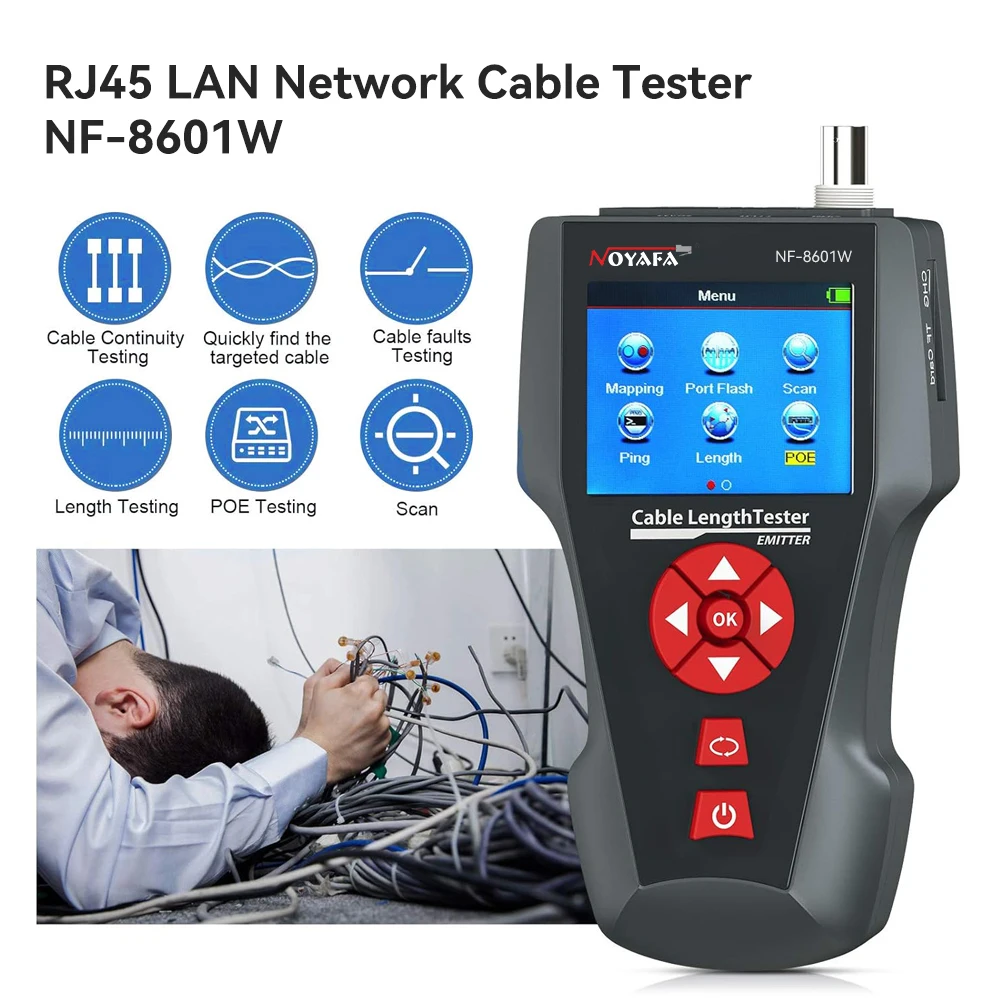

NOYAFA NF-8601W Network Cable Tester RJ45 RJ11 Cable Tracer PING Tester POE checker Multipurpose Cable Finder Network Tools

Product Description

1. 2.8 inches LCD Color screen ,Clear, intuitive and personalization.

2. 3.7V lithium battery power supply ,Convenient, durable, and durable.

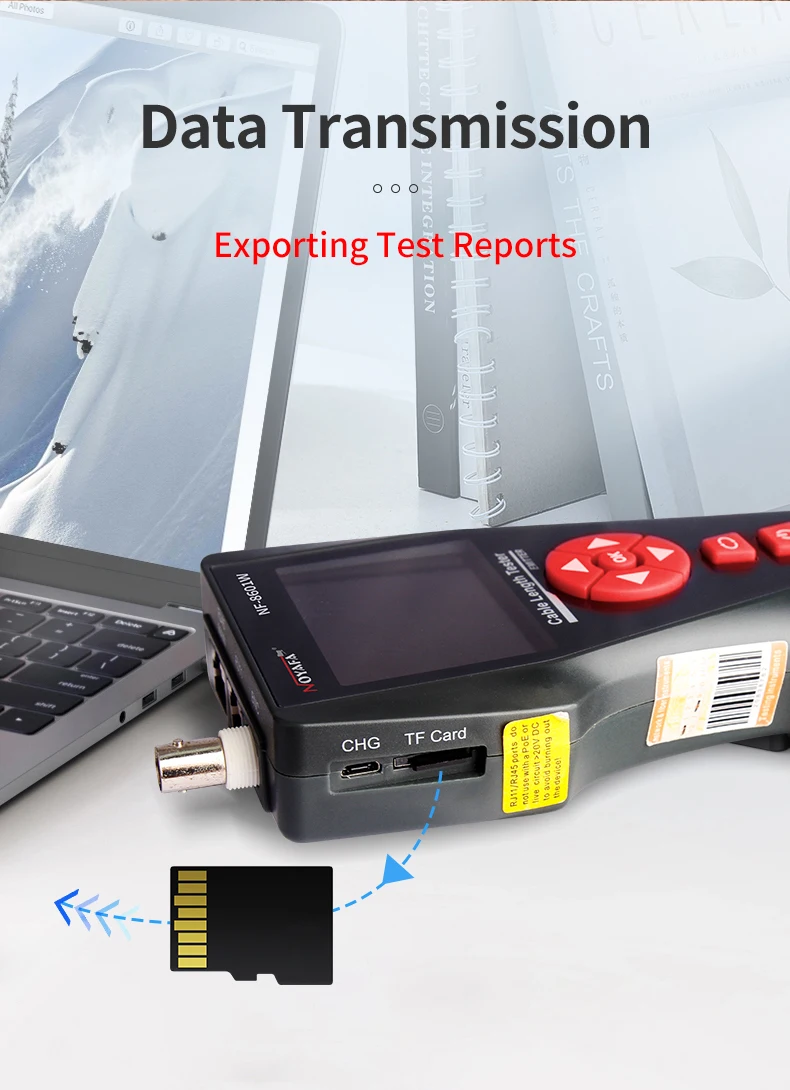

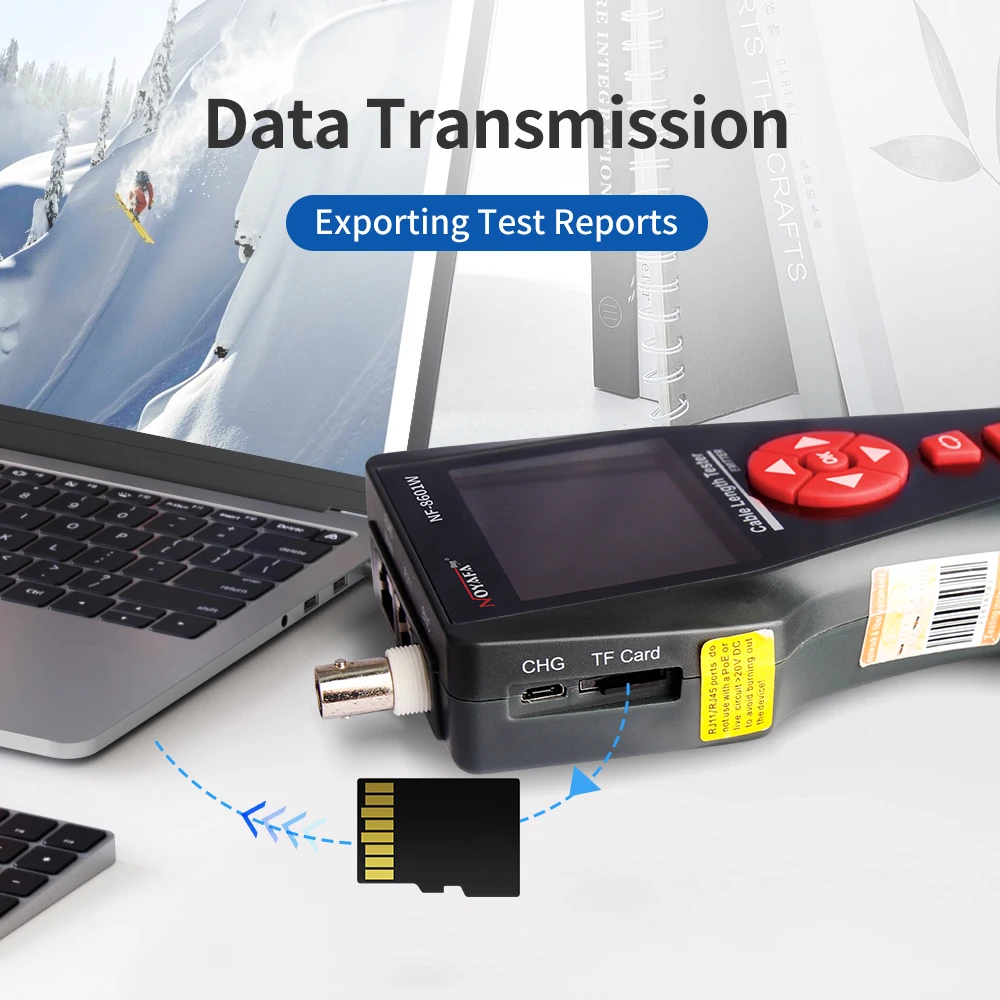

3. Tester can save and export 160 groups of data.

4. Three types of line hunting modes: Regular mode, POE mode, and High-power mode

1). Conventional Mode: accurate line hunting, with a detection range of about 3 cm, suitable for most scenarios, compatible with 100M and Gigabit switches, searching for 4-core, 8-core, category 5, category 6, telephone lines, etc.;

2). POE Mode: Used to load and hunt on the POE switch

3). High-power Mode: The maximum detection range can reach 0.5 meters. When the cable is very long, or the buried wire is deeply buried, the high-power mode can be used when the ordinary line finder cannot detect it

Product Features

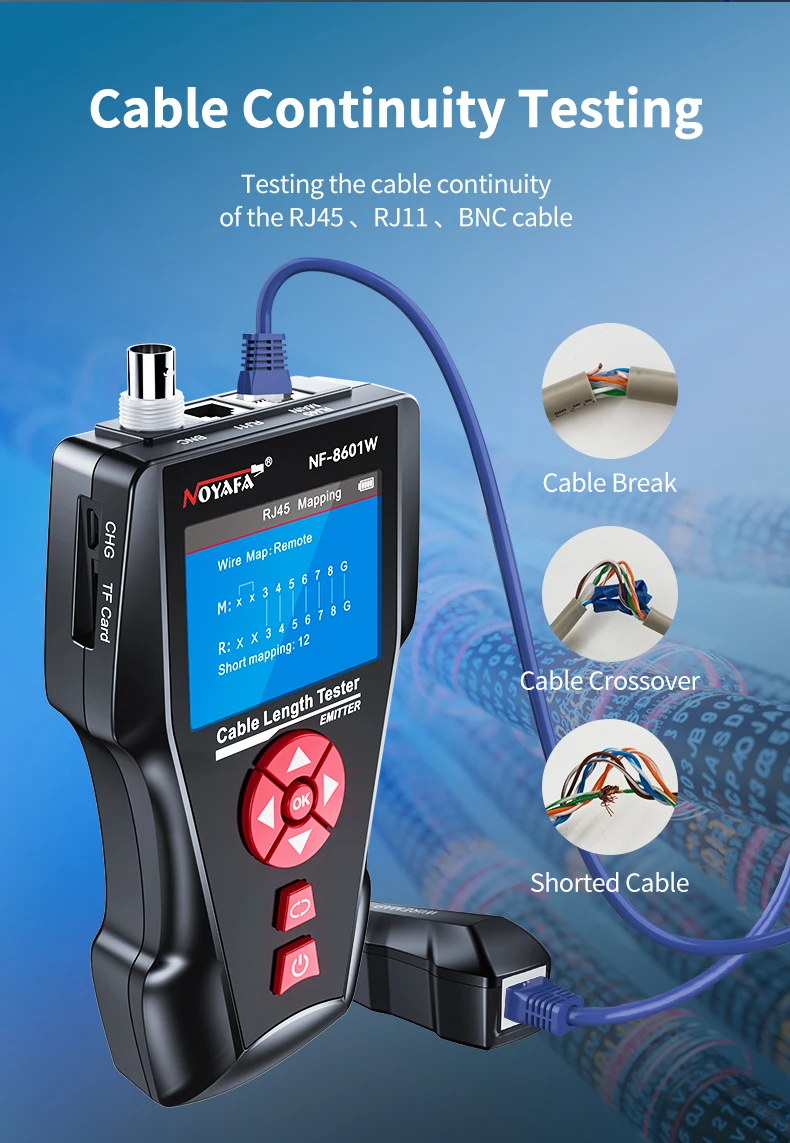

1. Testing RJ11, RJ45, BNC Cable for short circuit, open circuit, cross connection, etc.

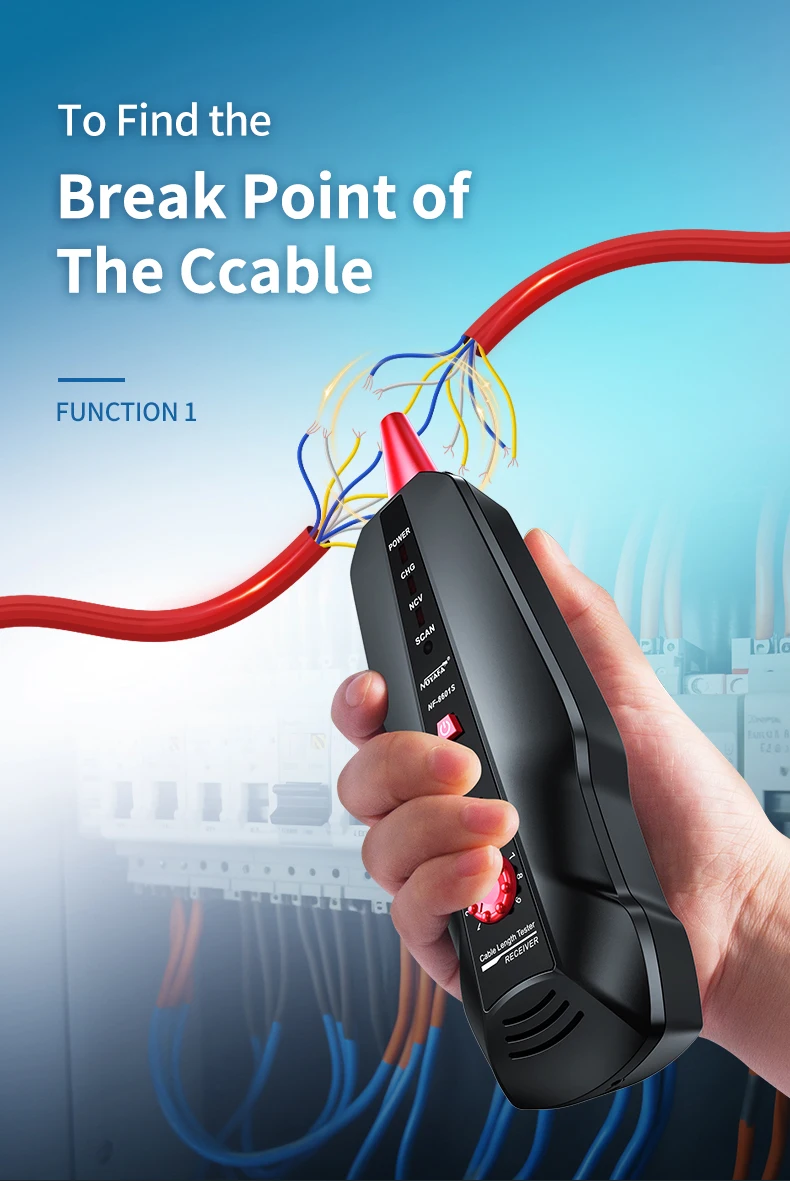

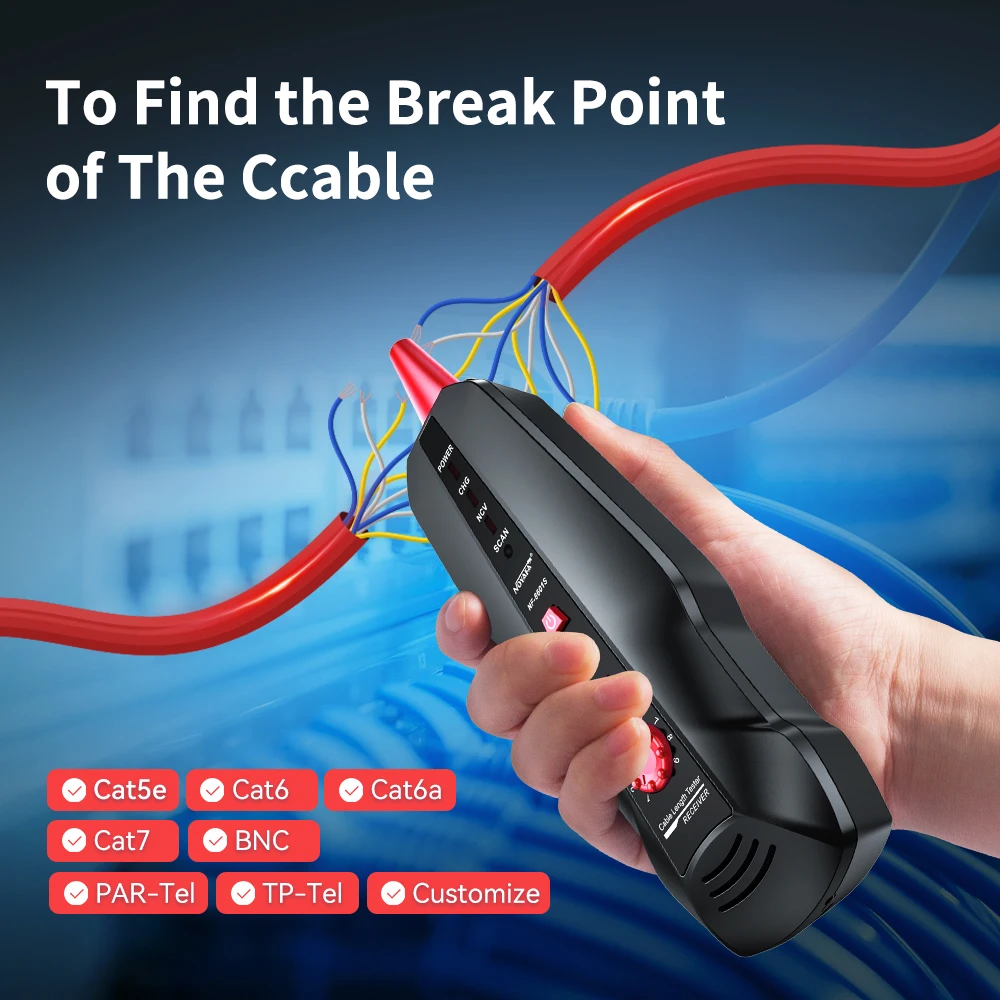

2. Test the location of the short circuit point of the network cable.

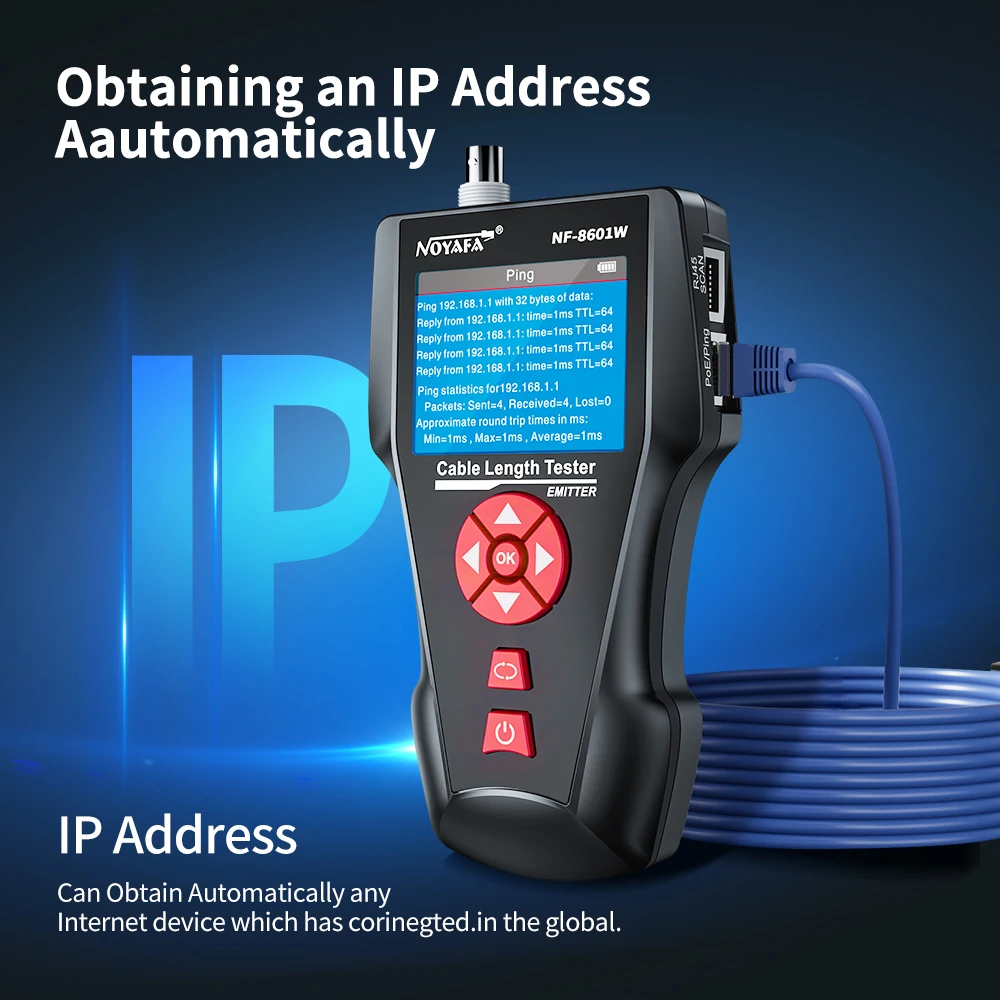

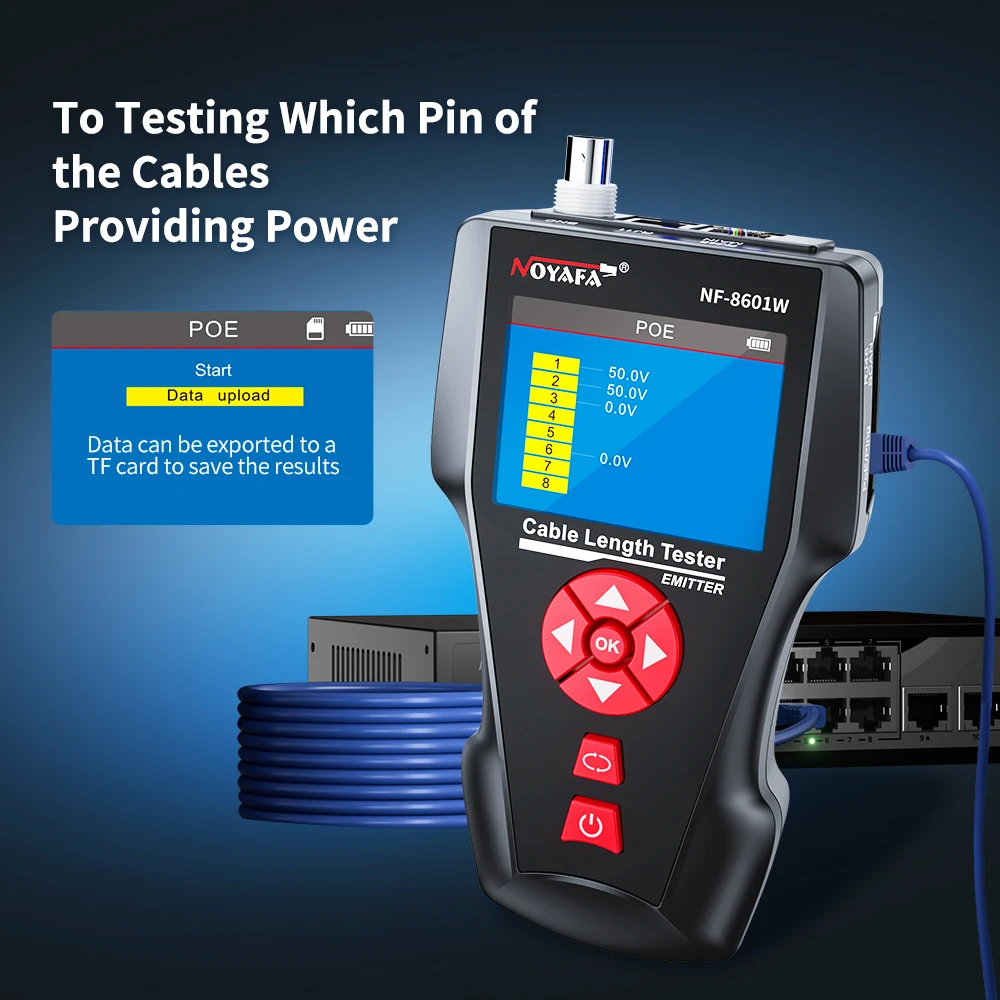

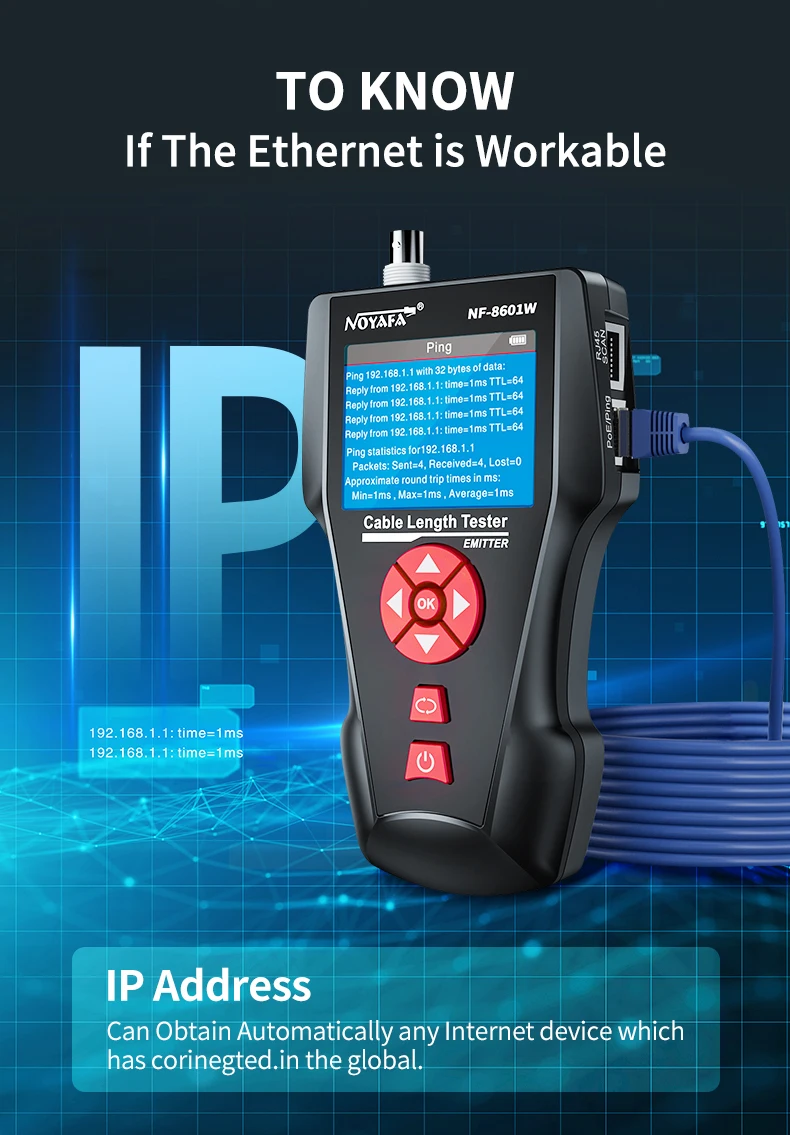

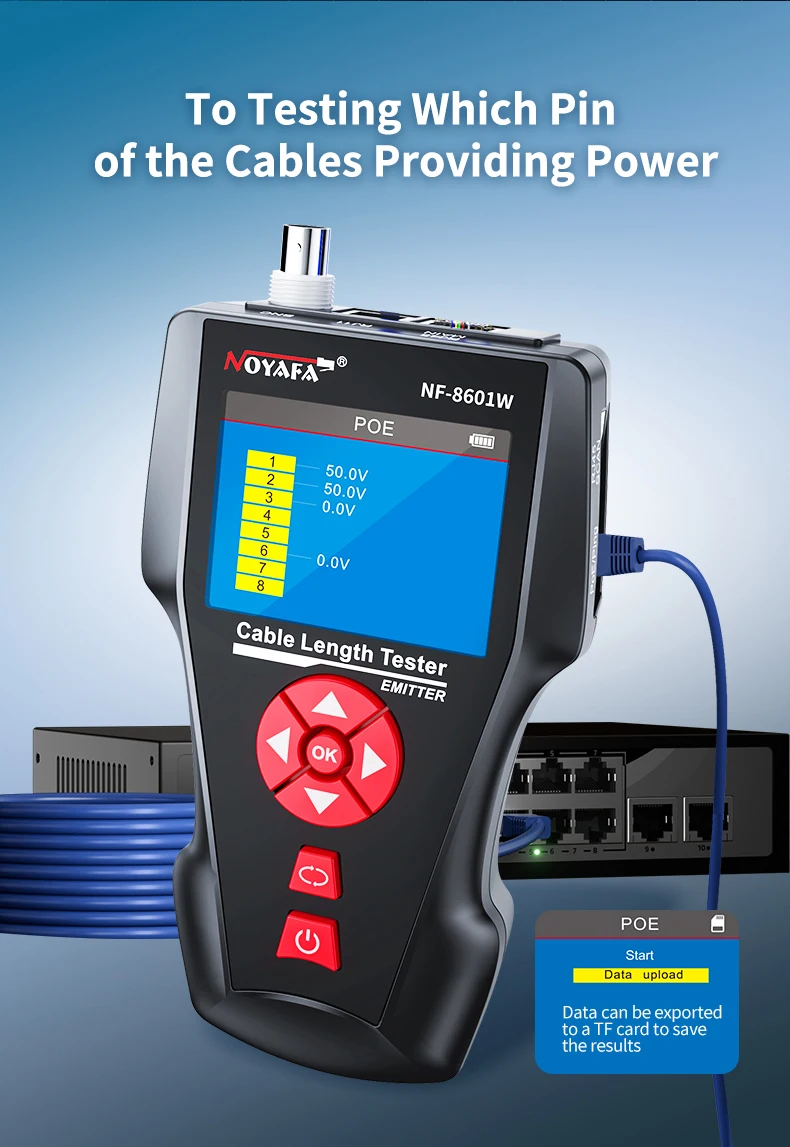

3. PoE / PING / Crosstalk testing.

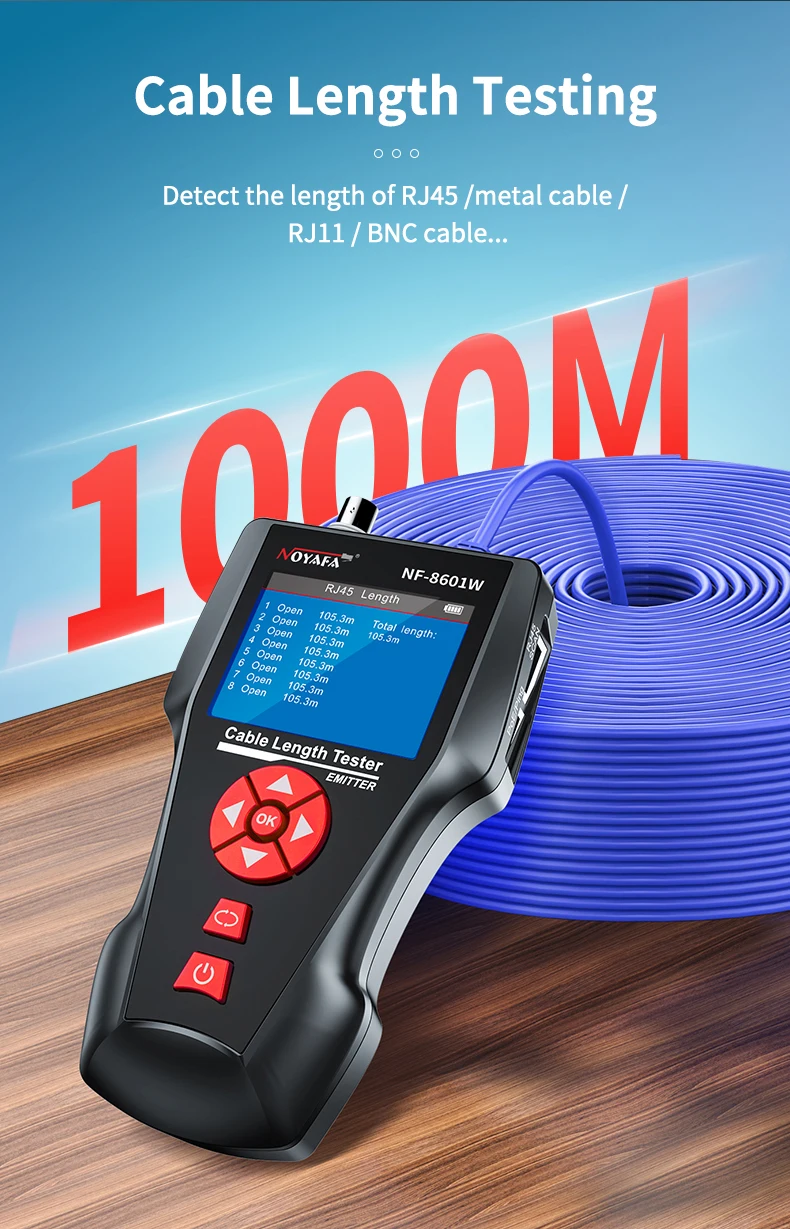

4. Measure the length of network cable, telephone cable, BNC cable accurately.

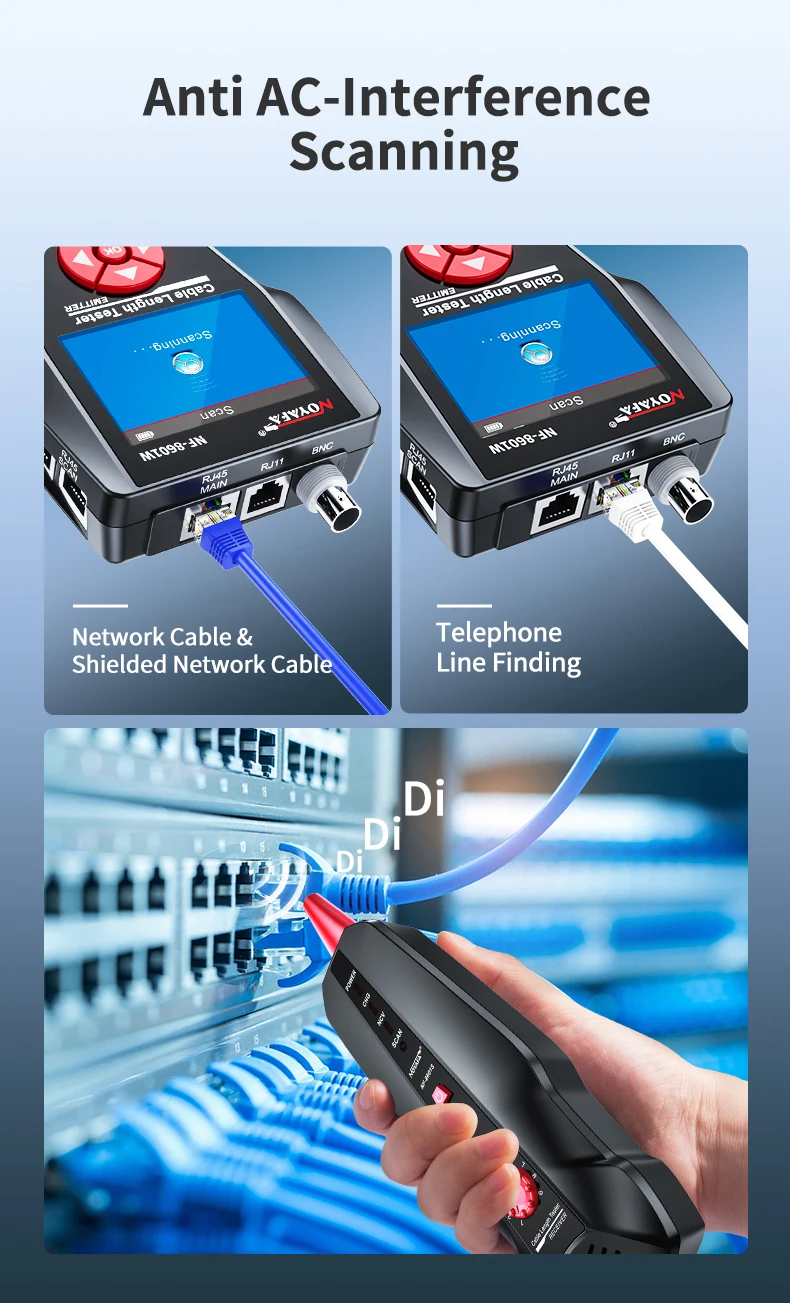

5. Trace targeted cable among lots of unknown cables ;

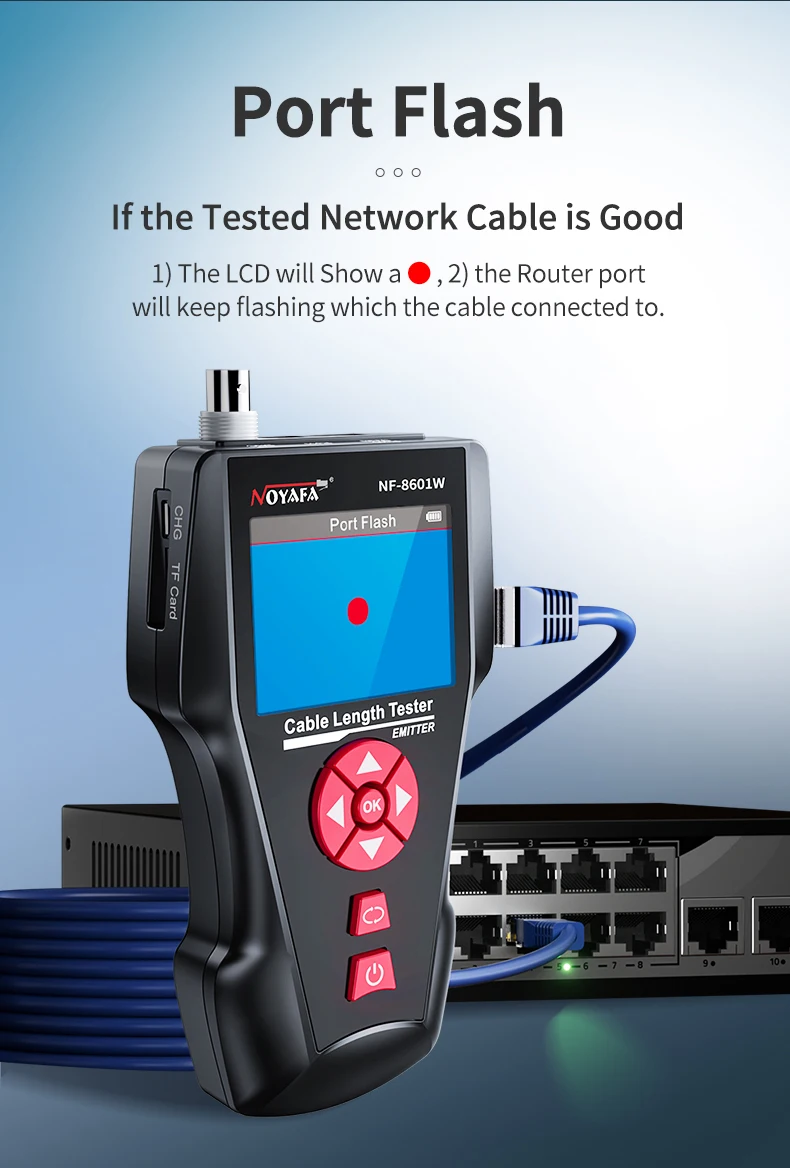

6. Port blink function help trace lan cable connected to swticher or router visually, no need of receiver.

7. Capable of scanning cable on PoE switch without damaging the device.

8. Voltage detecting function.

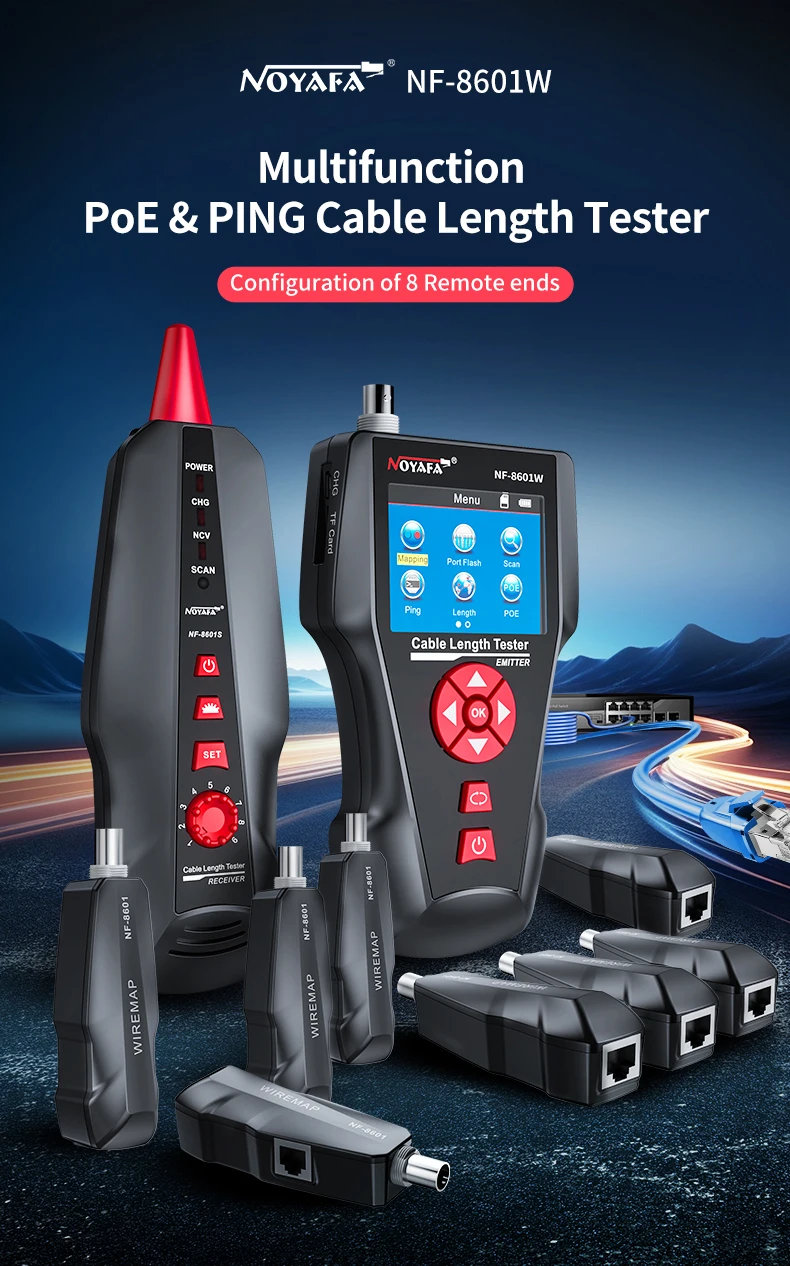

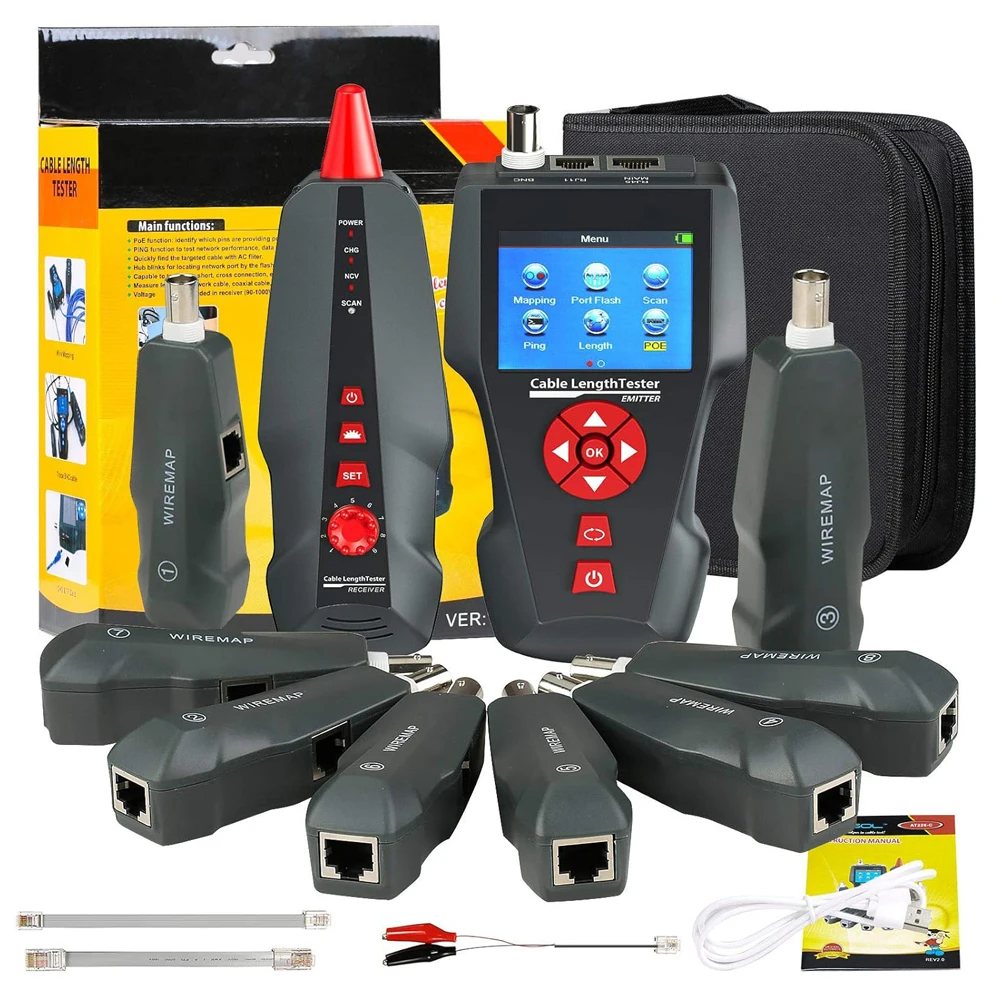

9. Including 8 remotes included , can improve work effiency.

Question & Answer

What is the difference between 8601W and 8601?

8601W has 8 remote adapters, 8601 has only one remote adapter, other functions and operations are the same.
