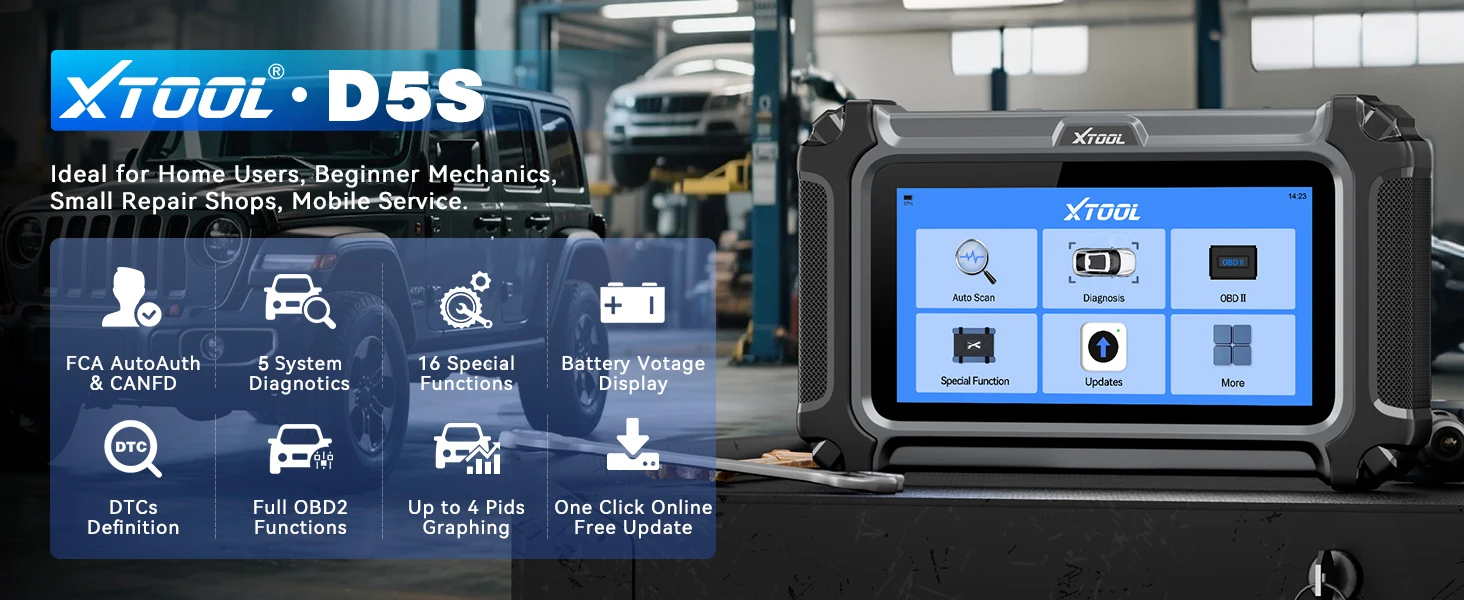

Newest XTOOL D5S OBD2 Scanner 5 System Diagnostic Tools 16+ Reset Code Reader CAN FD FCA Automotive Scanner Lifetime Free Update

XTOOL Global Store: France / USA / Mexico / Australia Local Store ,include VAT

1. The device defaults to English, Once you receive your device, please send us the serial number (S/N) to activate your preferred language. You can find S/N on the back cover of the device or in the system settings.

2. We are the France & European & USA & Mexico & Australia Official Global Store! 100% original products and brand new.

3. All goods will ship from your local warehouse. We pay for VAT, not need go through customs, The price is affordable.

4. 365 Days Free Replacement and provide lifetime technical support.

XTOOL D5S: More Efficient, Less Cost & Stay Ahead!

Built-in CAN FD new protocols

This XTOOL D5S OBD2 diagnosis scan tool work on newer vehicles 2020-now with CAN FD Protocols, adapters are not needed. CAN FD (Controller Area Network Flexible Data Rate) is a protocol for flexible data transfer rates in controller area networks. The CAN FD protocol is an extension and improvement of the traditional CAN protocol to meet the requirements of high-speed data transmission. Greatly save your time

Auto Auth For FCA

XTOOL D5S Automotive Scanner Supports FCA AutoAuth for Main FCA vehicles (Fit for Fiat for Chrysler, for Dodge, for Jeep, and etc.) after 2018. For modern FCA vehicles, making the diagnostics more secure. Applicable to FCA vehicles equipped with a security gateway module in 2018 and later, not need work with 12+8 FCA cable.

All Functions Lifetime Free Update and Use

XTOOL D5S Cost-Effective Scanner Tools Updated based on the star product XTOOL D5, D5S added more 6 reset service and more vehicles , Lifetime Free Software Update and Use, for in-depth inspection of Engine, Transmission, ABS, Airbag (SRS) ,EPB 5 Important Systems of 150+ global car brands. Making the scan tool more versatile and more professional in maintenance. XTOOL D5S With much higher update frequency than similar diagnostic car tools scanners for cars on the market. The renewal of software will bring you new features, wider vehicle coverage and more.

XTOOL D5S Multilingual Menu

D5S auto diagnostic scanner TIPS: English is default language, if you need other language, Simply provide us with your device's S/N. to Break down language barriers effortlessly with multilingual menu feature. Mechanics worldwide can navigate and operate their D5S Automotivo Car Diagnostic Tool in their preferred language, Support Korean, Polish, Portuguese, Arabic, Spanish, German, French, Italian, Finnish, Japanese, English, Vietnamese, Russian, Simplified Chinese

5 Main System Car Diagnostic Scanner

The XTOOL D5S Car Diagnostic Tools can access and scan 5 available modules includeing Transmission, Engine, EPB, ABS, SRS on 150+ Vehicles Makes & Models of American, European and Asian, to read and clear codes, view live data, retrieve ECU info and more. Some vehicles display 3/4 systems after connection because the EPB, Transmission and Engine of some vehicles are integrated into one. This scan tool ensures you can keep your vehicles in top condition, saving time and money!

Popular 16 Special Reset

XTOOL D5S Automotivo Scanner gives you the ability to use professional level relearn procedures to complete repairs or maintenance like: Control Unit Reset, EGR Learning, Tooth Information Learning, Battery Matching, Throttle Matching, Tire Pressure Reset, ABS Bleeding, Injector Coding, Gearbox Matching, Electronic Steering Matching, Window Initialization, Electronic Steering Matching, DPF and more to Fully meet your daily needs, double your business! ! All special function is lifetime free use and Continuous updates.

AUTO VIN & Scan Identification

XTOOL D5S AUTO VIN technology can identify vehicle make, model, and year information to shorten the vehicle navigation process! Once the system successfully obtains the VIN ( Vehicle Identification Number ) information of the currently identified vehicle, XTOOL D5S Car Diagnostic Scanner will continue scanning the vehicle systems. After the scanning is complete, a diagnostic report will be automatically generated and sent to your email box.

4-IN-1 Live Data Stream

XTOOL D5S car diagnostic scanner Support make Multi-PID Live Data Graphing IN 1 Screen, One screen can display 4 data stream, which is easy to navigate. help you view the instantaneous changes of the car's Transmission, Engine, EPB, ABS, SRS 5 main System. Allow you to record the live data stream and view the data of a certain point in a targeted manner, Help improve your diagnostic performance and get more orders.

DTC Library Lookup & Data Report

XTOOL D5S Automotive OBD Scanner Built-in DTC library for quick code definitions. Experience in-depth analysis with the D5S. support one click diagnostic record, diagnostic report, View detailed PIDs on various sensors, select, export Live Data records, and generate diagnostic reports. Share, print, or transfer to PC. Record and analyze your vehicle's performance over time.

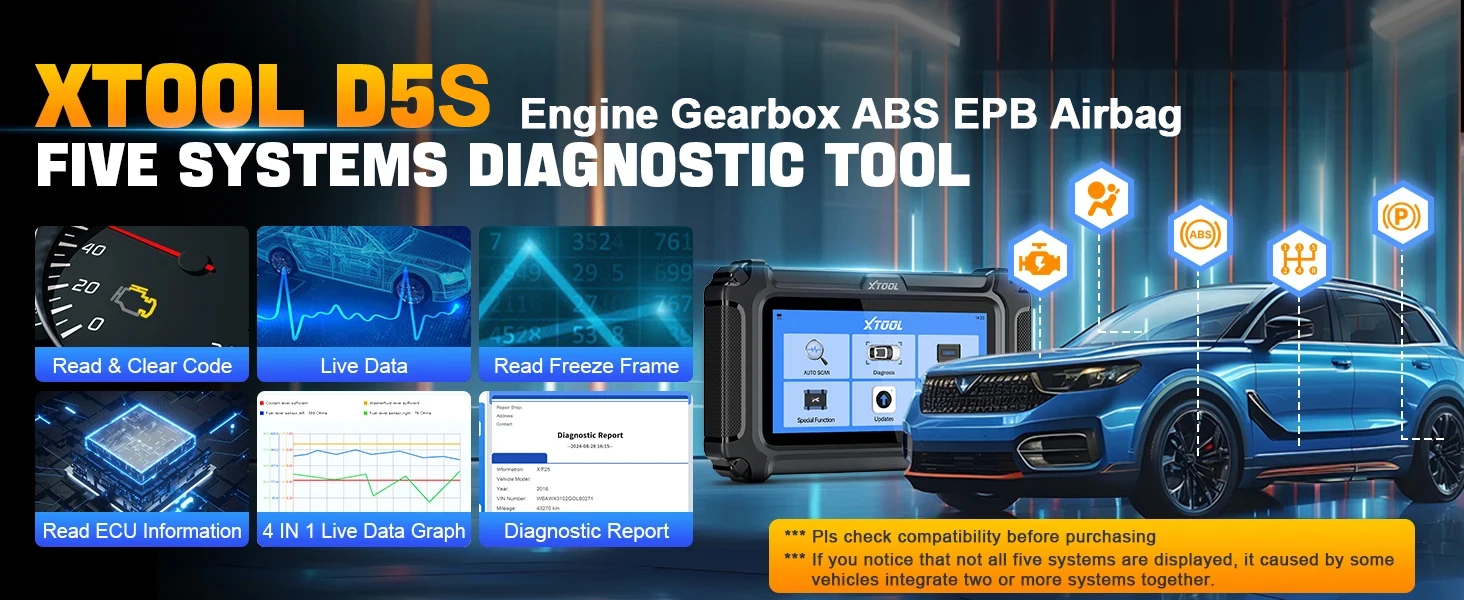

Engine, Gearbox, ABS, EPB, SRS 5 popular System

💥ABS System: XTOOL D5S Automotive OBD Scanner Can read & clear ABS DTCs, turn off the ABS WILs, and check the data graphing of speed of each wheel, ESP sensors data, Brake assist data, and CAN signals data, etc.

💥EPB System: Code Reader XTOOL D5S Support Activates the holding mechanism with a button and the brake pads are electrically applied to the rear wheels.to ensure safe vehicle control and operation.

💥SRS System Diagnostic: This XTOOL D5S Diagnostic Scanner supports supplementary restraint system (airbag) diagnosis for most domestic and imported vehicles. By reading the codes and google DTC definition helps to solve the issue. It helps remind you even if maintenance, solve security risks.

💥XTOOL D5S Support read and erase code, live data stream, stores and playbacks data stream, Display live data from the Transmission, Engine, ABS, EPB, Airbag 5 system to detect whether the car's speed and load match its transmission's output, helps to quick analysis and diagnosis, and turning off the system warning lights and etc.

💥Engine System Diagnostic: XTOOL D5S best obd2 scanner Read and clear check engine light code on most 1996 & update models. Real time data allows you to view vehicle sensor, switch and relay inputs in real time while the engine is running. The instantaneous change of real-time data information can quickly identify the problem of components, which is helpful to analyze the problem

16+ Free Reset Functions Lifetime Free

💥Throttle Relearn: Adjusts the throttle position to control the intake air volume, and indirectly control the fuel injection volume to reduce fuel consumption.

💥Oil Reset: When the oil service lamp lights up, you need to change the engine oil, then turn off the oil service light and reset the maintenance interval.

💥EPB (Electrical Park Brake) Reset: Resets the brake pad to maintain the safety and efficiency of the electronic brake system after replacing the brake pad.

💥ABS Bleeding: When the ABS contains air, it is necessary to bleed the brake system to get a firm brake pad.

💥ECU Control Unit Reset:The operation of restoring the parameters of the vehicle's electronic control unit (ECU) or other related systems to the factory default settings.

Application scenario: After the vehicle is repaired, the module needs to be initialized or the factory settings need to be restored so that the system can work normally

💥Injector Coding: Enter the new injector code into the ECU after replacing the injector, so that the cylinder can identify the new injector to reduce fuel emissions.

💥BMS (Battery Management System) Reset: Re-match the control module and motoring sensor for battery detecting more accurately, clear original low battery information, and prevent the related control module from detecting false information.

💥SAS (Steering Angle Sensor) Adjustment: The steering angle sensor is used to detect the rotation angle of the steering wheel. Performs steering angle sensor calibration and clears fault records.

💥TPMS (Tire Pressure Monitor System) Reset: When the tire pressure is insufficient, it is necessary to reset the tire pressure after replacing the tire or sensor, make your car recognize the new TPMS sensor.

💥DPF Regeneration: Clear PM from the DPF filter through oxidation or combustion to stabilize the filter performance. It is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode. Specially works for Diesel Particulate Filter system with DPF.

1. The exhaust back pressure sensor is replaced.

2. The PM trap is removed or replaced.

3. The fuel additive nozzle is removed or replaced.

4. The catalytic oxidizer is removed or replaced.

5. The DPF regeneration MlL is on and maintenance is performed.

6. The DPF regeneration control module is replaced.

💥also support: Gearbox Match, Suspension, Window Initialization, Headlight, EGR Relearn, Crank Sensor Relearn, and etc...

Please note different reset function supports different cars, also supports some cars, not for all cars, pls contact us check the detailed car list:

https://www.xtooltech.com/english/FunctionQuery.html

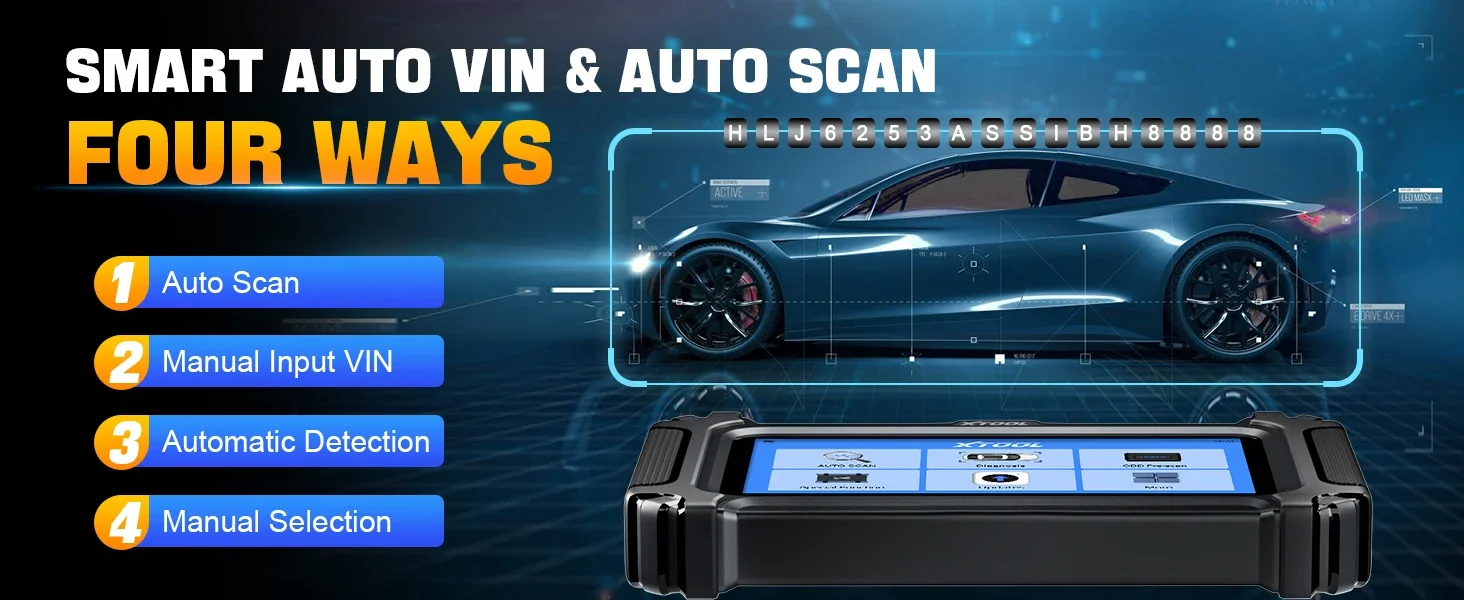

Auto VIN Scan Lifetime Free

AUTO VIN technology can identify vehicle make, model, and year information to shorten the vehicle navigation process

Once the system successfully obtains the VIN ( Vehicle Identification Number ) information of the currently identified vehicle, it will continue scanning the vehicle systems. After the scanning is complete, a diagnostic report will be

💥Note: For vehicles not supporting the Auto VIN Scan function, you may manually enter the vehicle VIN.

Reasons for not being able to scan automatically: It may be that the car is too new/old and is not in the VIN database, or the VIN is not a 17-digit VIN. Please provide the car's VIN and the device's S/N, and we will feedback to XTOOL to updated for you asap!

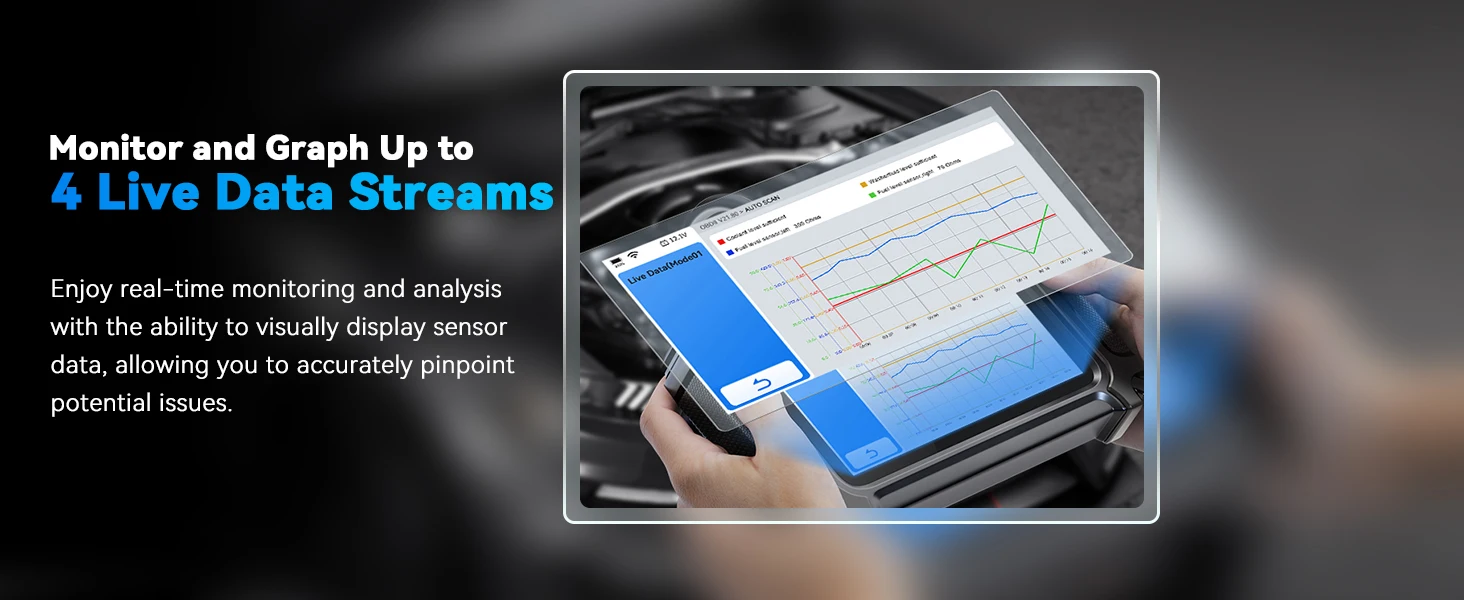

4 IN 1 Live Lata

XTOOL D5S automotive diagnostic scanner provides powerful data graphing capabilities. It can show up to 4 individual graphs and merge them all on the same screen for better comparison. It provides very detailed data stream data, Graphical data allows you to analyze the data changes of each module more clearly and easily, and it is easier to see the problems in it. A pull-down list of the data stream items will appears on the screen. Select the necessary items and the screen will display the waveforms corresponding to these items immediately.

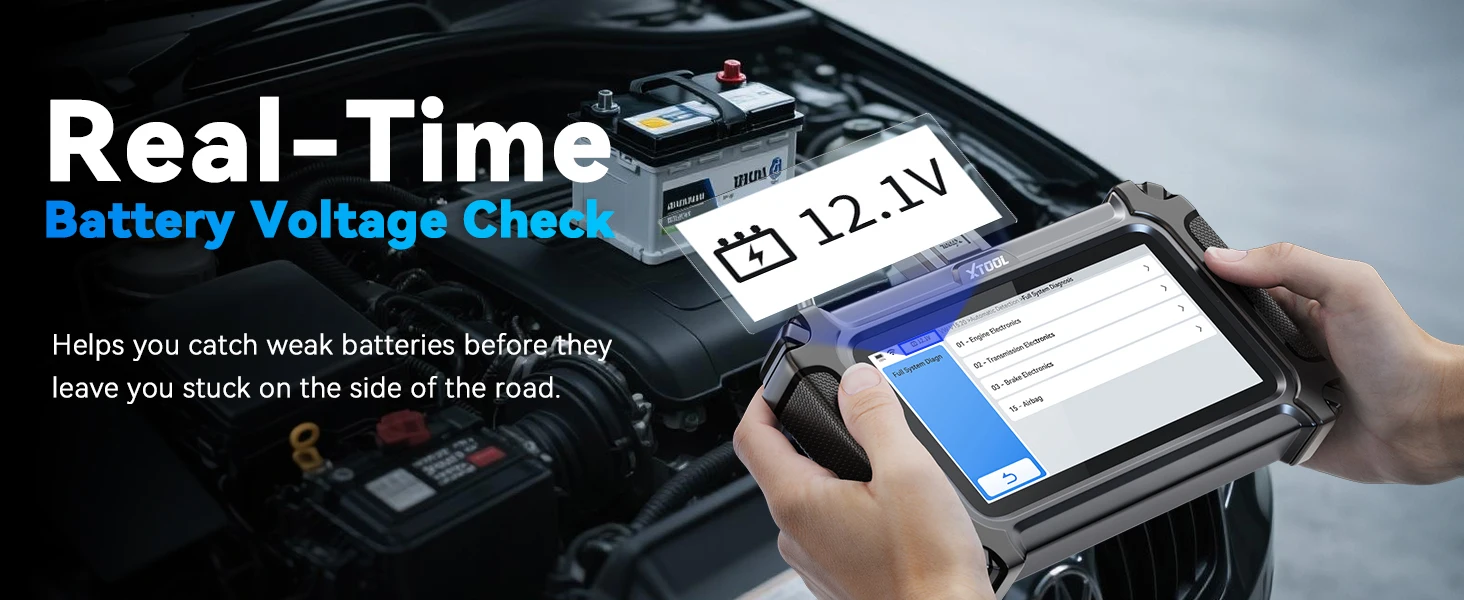

Real Time Battery Voltage Graphing

XTOOL D5S OBD2 Scanner can Check the battery status in real time and eliminate the most easily overlooked battery problems, Provide car owners with necessary battery maintenance and replacement suggestions to extend battery life.

Complete OBD2 functions

●Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

●Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.

●Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

●I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

●O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

●On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

●Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

●View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

●Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

●Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

DTC Library Lookup

XTOOL D5S built-in DTC library for quick code definitions. Adopts Auto-VIN technology that will automatically recognize vehicle information which you get the vehicle's make,model and year information more easily. Support scan Gearbox ABS EPB SRS Engine System and run diagnostics on the selected system. This function is compatible with newer vehicles.

PDF Diagnostic Report

XTOOL D5S auto diagnostic scan tool enables diagnostic tech or mechanics to generate history diagnostic reports for sharing with customers by printing it out or sending it to customers via PDF. Allows vehicle owners and service technicians to gain a clearer understanding of the problem and discuss repair options.

D5S Wide Vehicles Coverage

Robust vehicles compatibility is one of the most important considerations when choosing an automotive diagnostic scanner. XTOOL D5S Car Diagnostic Tool can work on 200+ car brands, 20,000+ cars globally 12V vehicles after 1996 with OBDII including sedans, light duty trucks, SUVs, Mini Vans. Work in the US (after 1996), Europe (after 2000), and Asia (after 2008).

Fit For America: Fit For Buick, Fit For Cadillac, Fit For Chevrolet, Fit For Chrysler, Fit For Dodge, Fit For Ford (USA), Fit For GM, Fit For Hummer, Fit For Jeep, Fit For Lincoln, Fit For Pontiac, Fit For Saturn.

Fit For Europe: Fit For Abarth, Fit For Alfa Romeo, Fit For AstonMartin, Fit For BENZ, Fit For BMW, Fit For Citroen, Fit For Dacia, Fit or Ferrari, Fit For Fiat, Fit For Ford (EU), Fit For GAZ, Fit For IZH, Fit For Jaguar, Fit For Lancia, Fit For Land Rover, Fit For Maybach, Fit For MINI, Fit For Opel, Fit For PAZ, Fit For Peugeot, Fit For Renault, Fit For Rolls-Royce, Fit For SAAB, Fit For Seat, Fit For Skoda, Fit For Smart, Fit For BENZ-TRANSPORTER, Fit For UAZ, Fit For Vauxhall, Fit For Volvo, Fit For VW

Fit For Asia: Fit For Acura, Fit For Daewoo, Fit For Honda, Fit For Hyundai, Fit For HyundaiCV, Fit For Infiniti, Fit For Isuzu, Fit For Kia, Fit For Lexus, Fit For Mazda, Fit For Mitsubishi, Fit For Nissan, Fit For Perodua, Fit For Proton, Fit For Renault Samsung, Fit For Scion, Fit For Ssangyong, Fit For Suzuki, Fit For Tlisuzu, For Toyota.

Fit For China: Fit For BAOJUN, Fit For BAIC MOTOR, Fit For SENOVA, Fit For BYD, Fit For CHANGAN, Fit For CREAT WALL, Fit For DFFG, Fit For AEOLUS, Fit For FORTHING, Fit For SOKON, Fit For EXEED, Fit For JAC, Fit For JETOUP, Fit For JMC, Fit For GEELY, Fit For CHERY, Fit For ROEWE, Fit For MAXUS, Fit For MG, Fit For SGMW.

Fit For Australia: Fit For Ford(AU), Holden

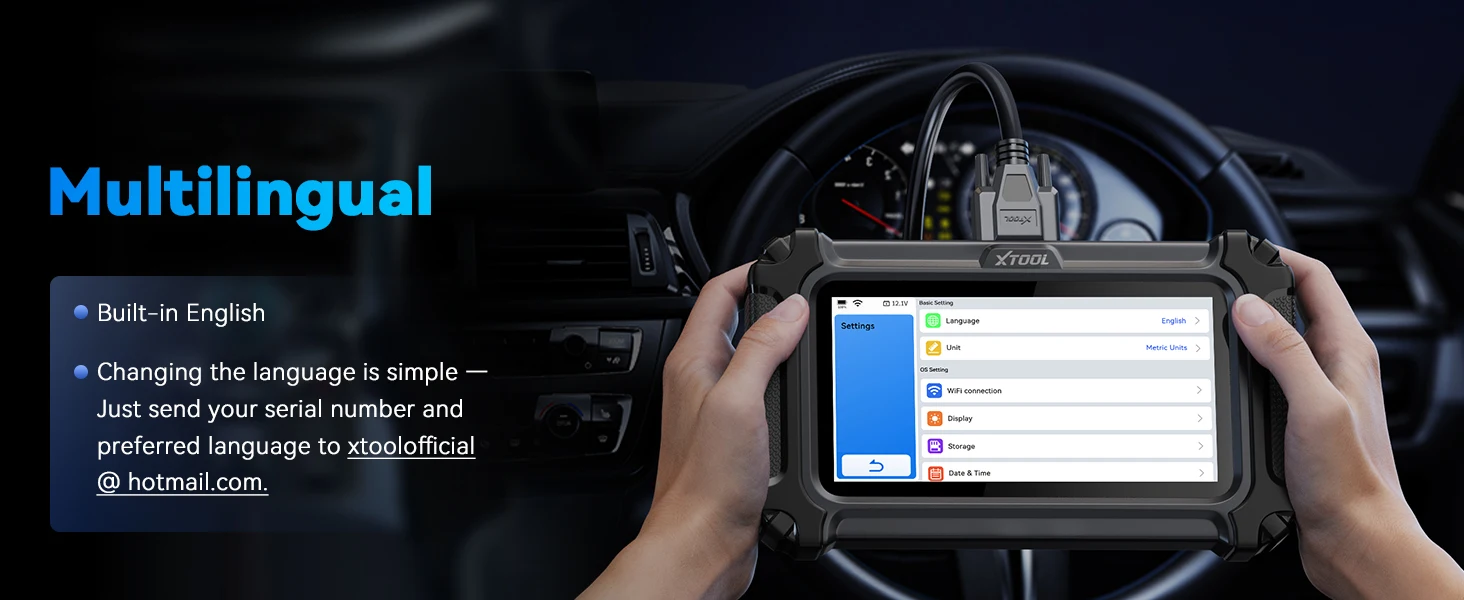

Multi-Language Supports

Before the equipment was shipped, the technical personnel only authorized English. After you receive the goods, please contact us to provide the serial number and update the language you need

XTOOL D5S Support English, Spanish, German, French, Italian, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Simplified Chinese and traditional Chines.

XTOOL D5S Hardware Configuration

Processor: Dual core 1.2GHz

Memory: 128M+32G

Display: 5.45 -inch capacitive touch screen

Battery: 3150mAH 3.6V Battery

Resolution: 1440×720P resolution

Protocol Compatibility: CANFD, FCA

XTOOL D5S Packing List

1. XTOOL D5S Tablet

2. Main Cable

3. Charging Cable

4. Packing List File

5. Quick User Guide
