KESS Online Red V2.80 V5.017 V2 KTAG 4LED V7.020 V2.25 No Token OBD2 Manager V7.020 OBD2 V2 ECU Programmer Scanner

With 3D Logo Sticker, Red EU Online PCB Board, Original LPC NXP Chip ,Buzzer and SD Card.

EU Online Version High Quality Red PCB Board Comes With Japanese Murata Filter.

100% Original Murata's filter from Japan ,not others SMT Electrical patches

Please Note, V2.80 will send via Download weblink only.

CD if no included V2.80 yet. V2.80 only works for V2 V5.017,no supports 4LED V7.020

Newest V2.25 software released for V7.020 Firmware. 4LED V7.020 works with V2.25 and V2.23.



FREE provide ECU software as gift(Link to download,please contact US):

ECM_Titanium_26100 + WinOLS V2.24

Note Tips

Please DON'T update the device online, it will damage the Unit and can not use any more .Please Close anti-virus program when run software.Power Adapter is US plug in the package.

KESS/KTAG Multi-Language

   What differences between KESS 5.017 and KTAG 7.020?If you mainly want to work for 24V truck and tractor , Ktag V7.020 is more suitable for you !1. Different Connection Way :For KESS V5.017,it can read ECU via OBD2 Cable Directly for most vehicles,easy to operate.For KTAG V7.020,it read ECU via TRICORE or BDM Or Other Mode with special cable, the software will guide you how to operate.2. Different Vehicle Coverage :For example: KESS 5.017 and Ktag v7.020 all can work For Most for Toyota Denso ECU Protocol,But just K-TAG 7.020 can work For Toyota Hilux kun26 very well !KTAG V7.020 can support much more truck/tractor/motorcycle than KESS V5.017 !

Item 1:

KESS V2 V5.017 Newest V2.53 EU Red PCB Online Version No Tokens Limited Add More Protocols

KESS V2 HW5.017 Features

1. Kess 5.017 With NEW K-Suite 2.53 with exactly 7400 Vehicles added. supports More 140 Protocols. KESS 5.017 support bike/car/truck/tractor!2.Online Version Kess V2 Firmware V5.017 Support Online Service and and it will not damage the hardware.No worry locked any more.3. No Token Limitation,no worry about tokens, you can use Kess V5.017 for lifetime
KESS EU Version Red PCB Board Advantage:1. The left upper corner and the lower right corner notch size is not the same2. With Japanese Murata Filter,More than  buzzer3. WFs = Infineon, BCR112 NPN Digital Transistor4. 27E = ON Semiconductor NUP2105LT1G5. 6DW = NXP BC817,215 NPN Bipolar Transistor6. A6c =MMUN2113LT1G / MMUN2113LT3G7. K5B = BC807-25-7-F PNP Bipolar Transistor

KESS V5.017 With NEW K-Suite 2.80 with exactly 7400 Vehicles added:

1. Online Version, can connect internet without damage .

2. Unlimited version, No token limitation, you can use all the time

3. Support universal Car / Truck / Tractor / Motorcycle , support 12V / 24V

4. Kess Firmware V5.017 cover all major brands and protocols including Line, KAN, EDC17 and MED17 and for Ford J1850.

5. KESS V5.017 can support cars/trucks/tractors/bikes! KESS supports vehicles accroding to engine. So V5.017 KESS can support new vehicles!

6. Kess V5.017can read and write ECU via OBD2 port directly, no need to disassemble ECU from the car, easy to use.

7. Multi-language available: English, German, Spanish, Italian, Portuguese, French.

8. Works on windows XP/7 32bits/8/10 64bits/11 64bits

KESS V5.017 Package List:1 x  KESS Main Unit1 x Tricore Module1 x TRICORE CABLE1 x OBD2 standard Cable1 x 144300KCAN1 x  K4 Cable1 x 14P600KCK41 x  UNIVERSAL Cable1 x 144300K2011 x USB Cable1 x CD Item 2:KTAG 7.020 Newest V2.25 EU Online Version Master Version Red PCB New 4LED No Tokens Limited Supports Full Protocols With GPT Cable for GPT Function
KTAG V7.020 New Added Features:1. Hardware version: V7.020  Software version: V2.25,Master Version ECU Tool2. No Tokens Limited, Unlimited Version3. Online Version,no need disconnect internet ,no worry locked4. Multi-Language available: Italian Deutsch English French Portuguese Spanish5. Computer requirements:XP/WIN7/WIN8/WIN106. Update:By CD or Download link only

Red PCB EU Online Version With NEW 4LED1. With Japanese Murata Filter2. 2.8x WFs = Infineon, BCR112 NPN Digital Transistor3. 3.7x 27E = ON Semiconductor NUP2105LT1G4. 4.8x 6DW = NXP BC817215 NPN Bipolar Transistor5. 5.3x A6c = MMUN2113LT1G / MMUN2113LT3G check your ktag PCB may already have 3 x A6c6. 6.2x K5B = BC807-25-7-F PNP Bipolar TransistorKTAG V7.020 Package List:1 x  KTAG Main Unit1 x  GPT Cable1 x 144300T 1041 x 144300T 1031 x 144300T 1011 x 144300T 1061 x 144300T 1021 x 144300T 1051 x 144300T 1003 x Chips Inside1 x Multi-Color Cable1 x USB Cable1 x 12V DC Power Adapter US Plug1 x CD



Q&A

Q: For SD Card ,some customer doubt it write 4GB but when display capacity is 120mb only ,why this happened?

A:Here is professional technical reply :

This SD card belongs to an encryption card and contains encrypted data. The encrypted content is hidden and invisible, so displaying 120 is a normal phenomenon. The product's features are not missing. So Do not worry about this . If customer mind,please coinsider twice before ordering,Thanks.

Q: When launch program shows "Connection not estabilished”?

A: Please check whether you install the KE-SS driver well in device manager

Buyer Feedback

Q: Program pop out messaage "checksum error"?

A1: please search the software" microsoft visual C++ 2005, 2008, 2010" on google, then install it on your computer, then it can solve this problem.

A2: Contact seller to get updated DLL file to replace dll files in installation file.

Q: Wake up error?

A: It may be a gasoline car, and the customer chooses a diesel car.

please check the connection with ECU and power supply.

And also try to uninstall the software and install it again.

If all is ok and still same error, please try a new sd card to replace.

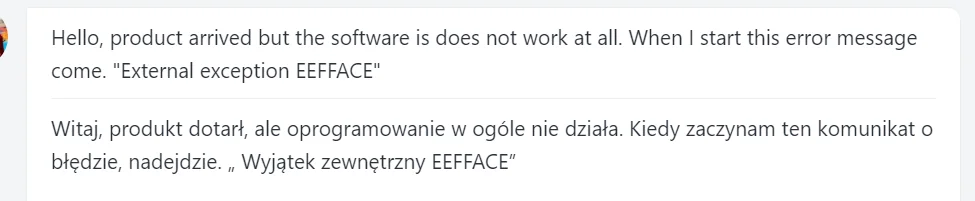

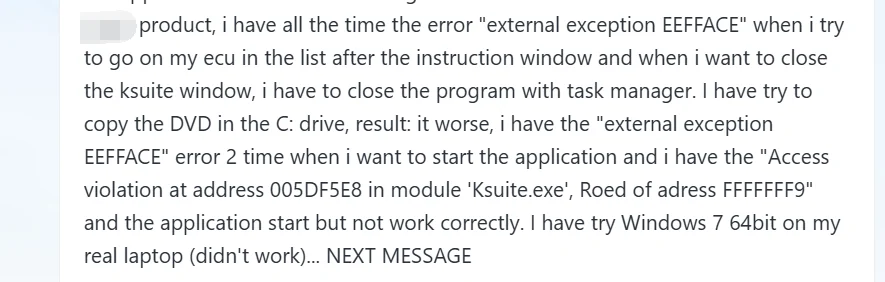

Q: External exception EEFFACE?

A: Please use our device and software only. if you use other software with this device or use other device with our software, it may cause this problem.

Please uninstall and delete software.

Paste the software to computer C:\ then run it.

Buyer Feedback and Fixed

1.

2.



Q: KESS or KTAG works before at first time and also have checked wires connection is correct,but now error connection,what could be the problem?

A: Please check if the cable is works correctly.

V2 V5.017 With 3D Logo Sticker

4LED V7.020 With 3D Logo Sticker
