K03 K03S Upgrade Turbo For Audi A3 A4 TT For VW Seat Skoda 1.8T K04-001 53049500001 Turbocharger Turbine

K04-001 Turbo Turbocharger for VW Golf Bora Sport Beetle Water & Oil Cooling

Application For

K04 model

for Audi A3 upgraded Engine FT 190 4EB/4EA/4EC 1999-2009

for Audi TT upgraded Engine FT 190 4EB/4EA/4EC 2001-2009

for Volkswagen BEETLE, Seat IBIZA upgraded Engine 4EB/4EA/4EC 1996-2009

Note: The Car Make with K03 Model as below Need modify the intake pipe(our K04 compressor inlet is bigger than K03 model）:

1. For Audi A3 with AGU, ALN, ARZ engine 110 KW, 150 PS 1996-2003

2. For Audi A3 with AUQ, ARZ, APP  engine 132 KW, 180 PS 1996-2003

3. For Audi TT with AUQ  engine 132 KW, 180 PS 1998-2006

4. For Seat Leon with AJQ; APP; ARY; AUQ engine  132 KW, 180 PS 1998-2006

5. For Skoda Octavia  AUQ engine 132 KW, 180 PS 2001–2005

6. For Volkswagen Golf/Bora/Jetta with AUQ, ARZ Engine 2000-2009

7. For  Volkswagen New Beetle with 1.8L-5V langs,along Engine 2000-05

*IMPORTANT NOTICE

1.This is an upgraded K04 turbo for K03-053 & K03 -052.Do not for K04-022.

2.K04 -001 turbo is different from K03-052 ＆ K03-053

（1）some modification are needed，compressor intake size is bigger than K03-052 or K03-053

K03-052 ＆K03-053 compressor intake size is 45mm

K04-001 compressor intake size is 48.7mm

（2）Silicone hose may need for K04-001 compressor intake connection.

3.Make sure your OE number is correct for K04-001,K03-052 and K03-053

OEM / Part Number

K04-001 part number/OE number

53049500001,5304-950-0001, 5304 950 0001,

53049887501,5304-988-7501, 5304 988 7501,

06A-145-705HP, 06A145705HP,

*IMPORTANT NOTICE

This is an upgraded K04 turbo for K03-053 & K03 -052 (few modification may need for K03-052)

K03-052 Part/OE number

53039700052,5303 970 0052,5303-970-0052,

53039880052,5303 988 0052,5303-988-0052,

53039880094,5303 988 0094,5303-988-0094,

06A145704T, 06A145713D, 06A145713DX, 06A145713DV, 06A145713F, 06A145713FX,8299299564, 8299299564,

K03-053 Part/OE number

53039880053,5303 970 0053,5303-970-0053,

53039880058,5303 988 0058,5303-988-0058,

06A145681H,06A145702P,06A145704S,

06A145713B,06A145713L,06A145713M,

Specification

Turbo Model: K04-001

Engine Model: 1.8L-5V

Engine Code: AJQ, APP, AUM, AUQ, ARY

Cooling Type: Water & Oil Cooled

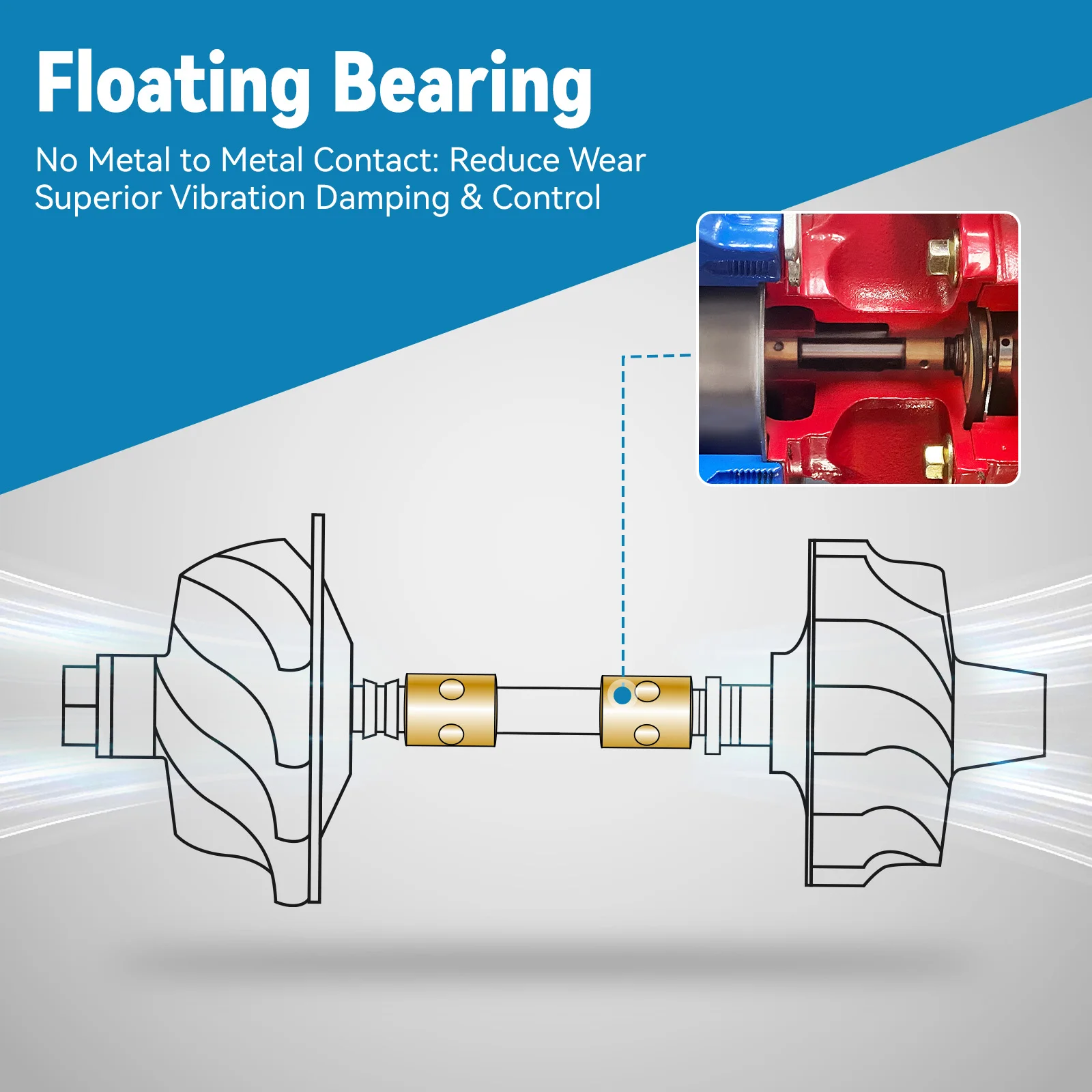

Bearing Type: Journal Bearing / Floating Bearing

Thrust bearings: 270 Degrees

Hosepower: 400HP

Turbo Type: Individual

Condition: Brand New

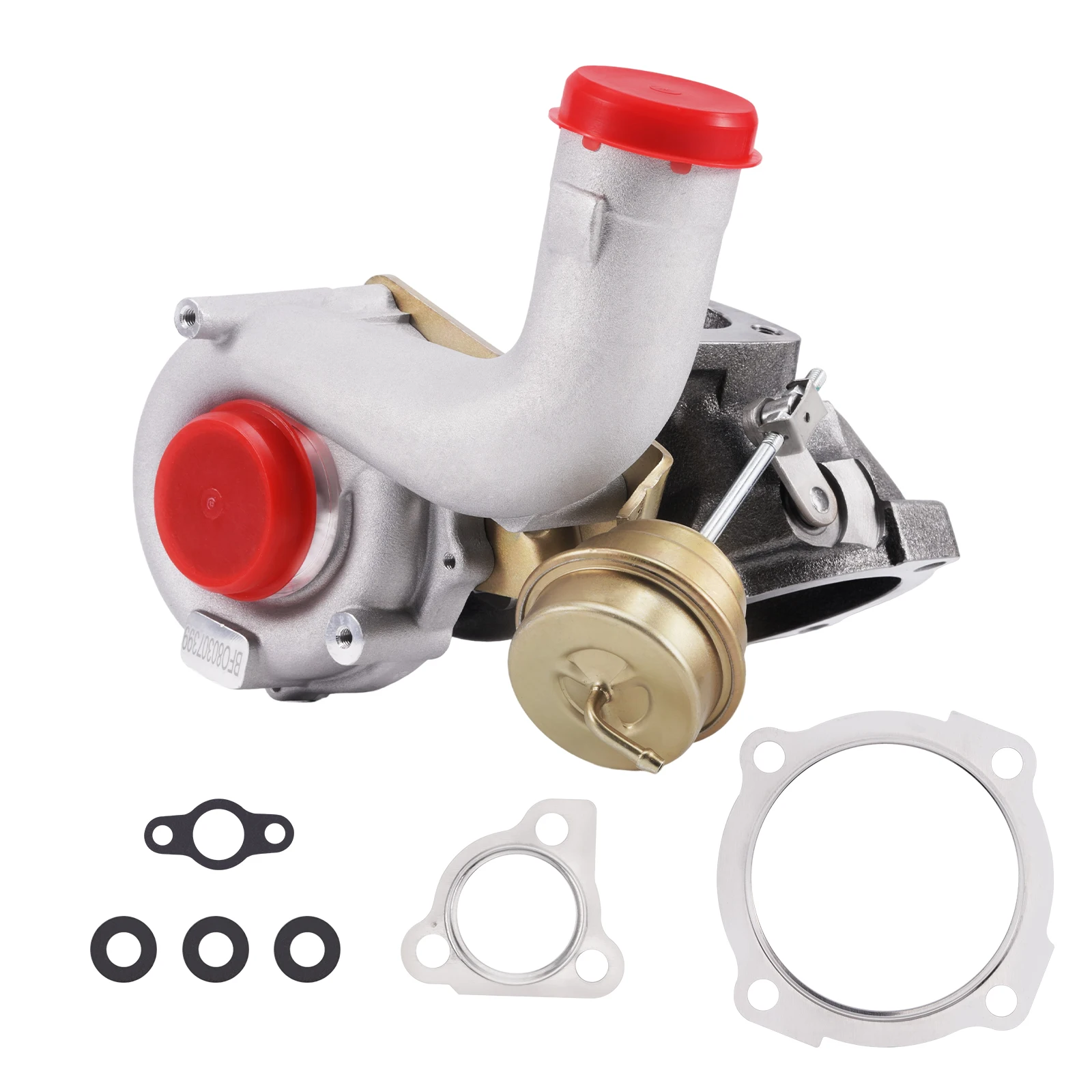

Accessories: You will receive the parts exactly as shown in the picture above.

Package Size:30 x 27 x 24cm

Package Weight: 6900g

Feture

* Product Material

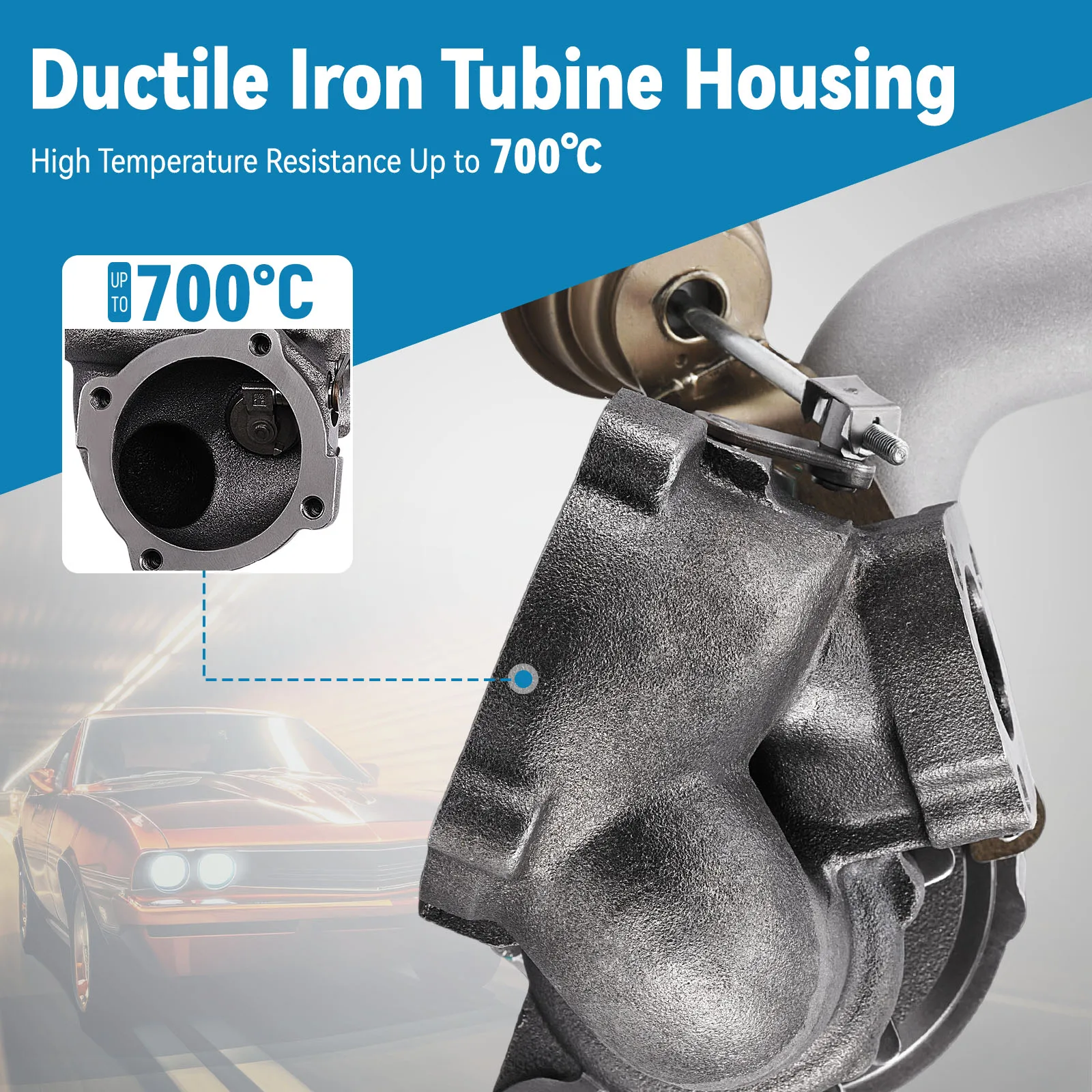

1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃

2. Steel turbine wheel：K418 alloy -  high  oxidation stability and resistance  up  to 900℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

* Product  Performance

1. OEM-quality and size with little modification

2. Rich experience in turbo production and own factory

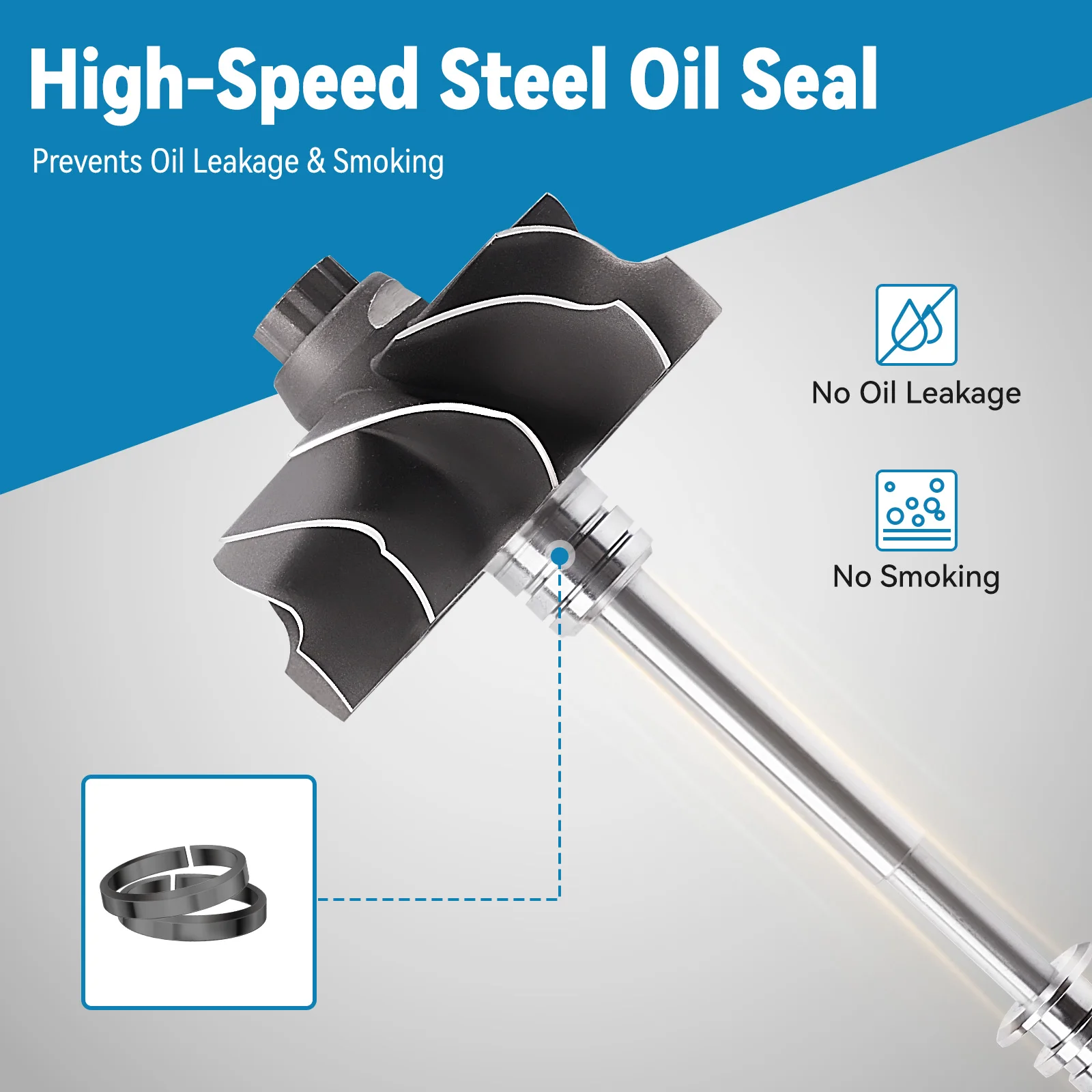

3. High-Speed oil seal ring and Precision clearance

* Technology Advantage

1. balancing Test by TURBOTECHNICS  VSR3

2. G3-min-Flow VNT Turbo testing

3.  Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
