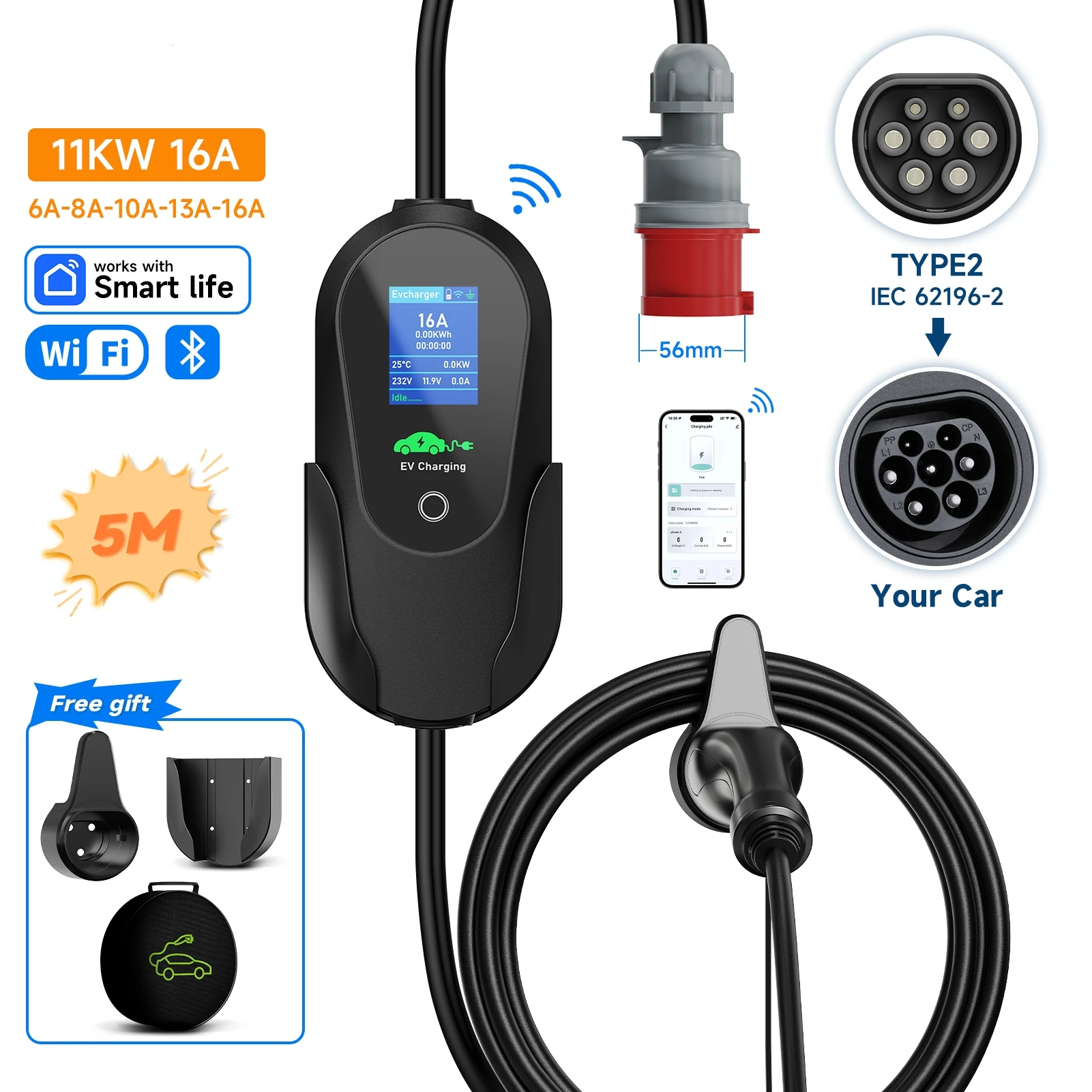

JNTAFEV 11kw Type 2 EV Charger 16A 3Phase Fast Charge Charger Wi-Fi APP Control EVSE Charging Box CEE Plug Vehicle Accessories

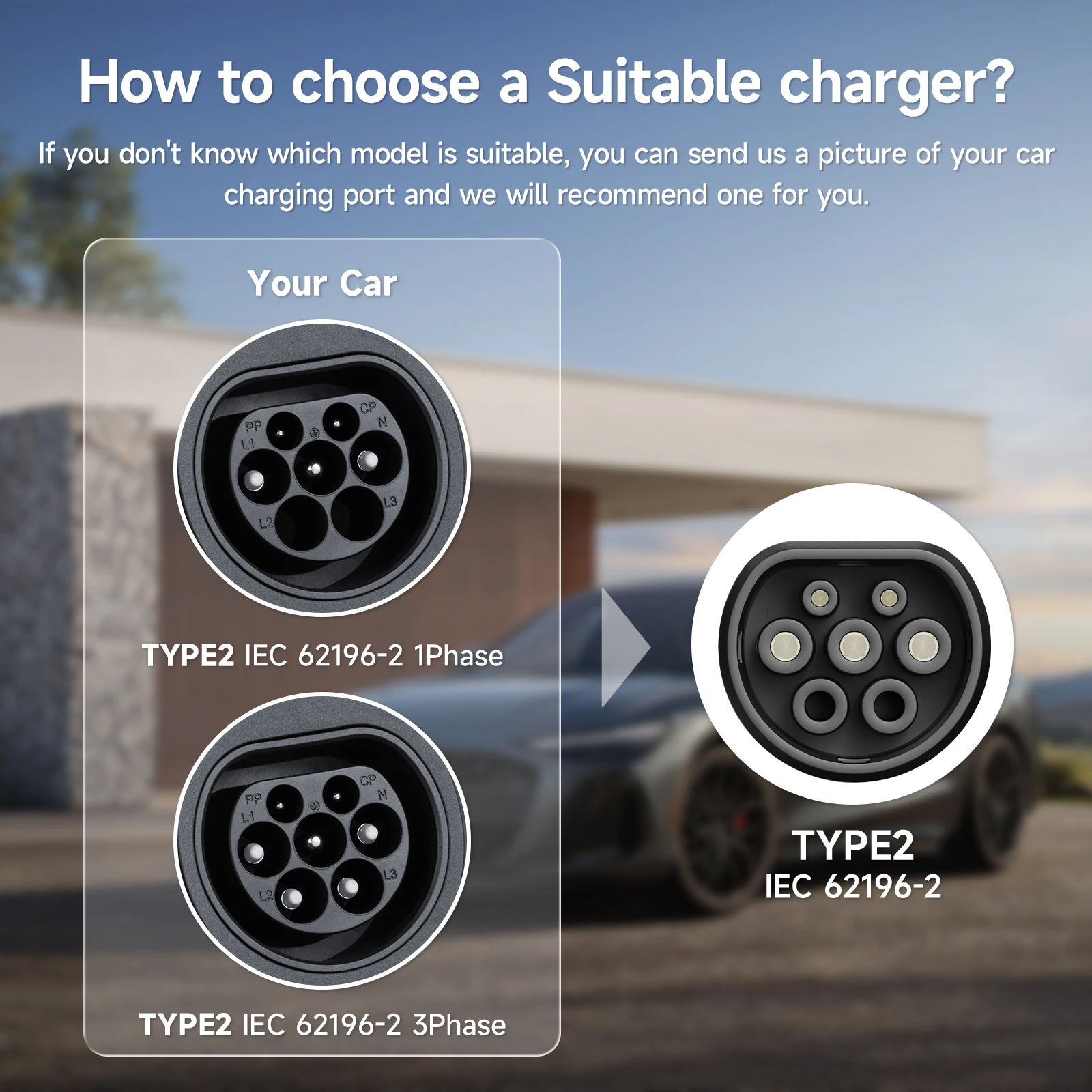

How to choose a suitable charger?

How to confirm if a vehicle has a Type2 7-pin connector, supports 3 phase AC charging, and has a rated power of 11 kW?

1. Check the label on the vehicle's charging port cover or consult the vehicle manual

2. ① Check if the in-vehicle charging settings include a “Three-Phase Charging” option

② Verify the manual specifies “3-phase AC charging”

3. Locate the “On-Board Charger” power rating in the vehicle specifications table

Specifications

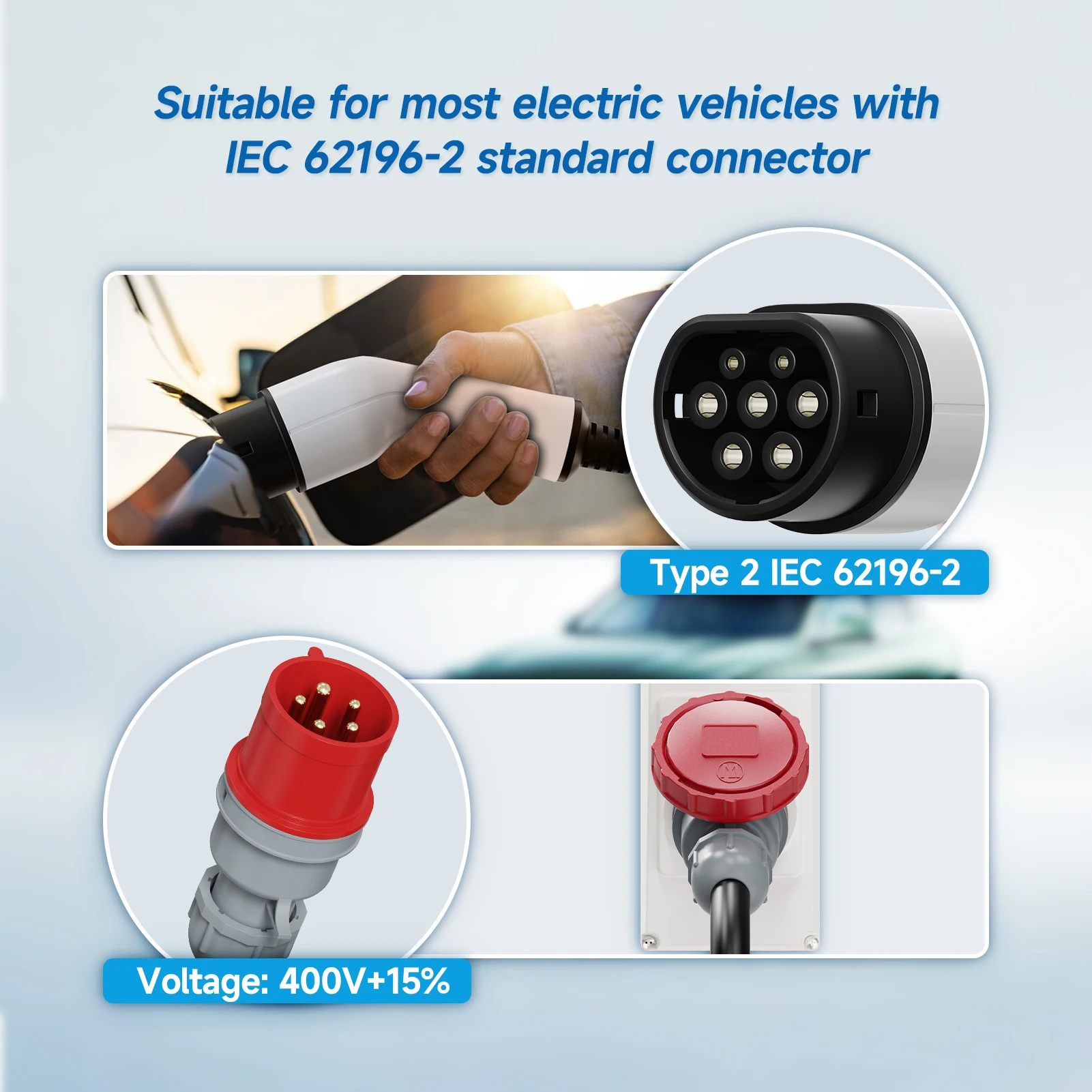

Charger Type: Type2 IEC62196-2

Power: 11KW

Phase: 3Phase

Charging Current: 6A/8A/10A/13A/16A adjustable

Voltage: 380V~440V

Cable Standards: 5G 2.5mm²+1×0.5mm²

Plug: CEE

Protection Degree: IP65

Operating Temperature: -30℃ ~ +50℃

Total Length: 5/10 meters

Charging Delay: Up to 15 hours

Current Memory: When you charge again, it will default to the last time setting current to charge, no need to manually adjust again, which is more convenient.

Overheat protection: When the internal temperature of the control box exceeds 85 °C, it enters overheat protection and stops charging. After the temperature drops to 65°C, it will resume charging

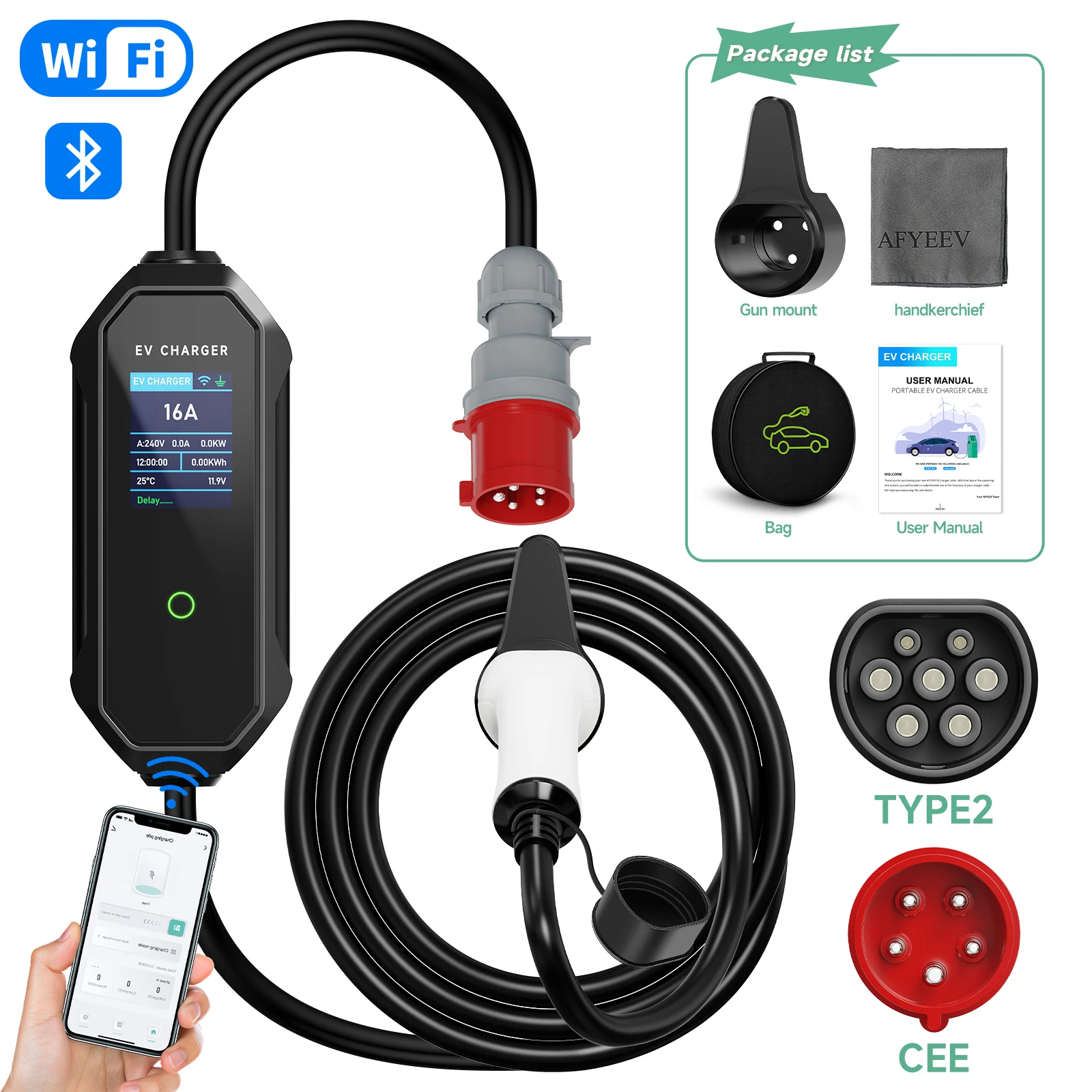

Package included

Portable ev charger*1

Hook*1

Towel*1

Storage bag*1

User manual*1

Features

【Faster Charging】:Charging Power max to 11KW, providing you with fast charging experience , charging 1 hour support to max 55 km driving.

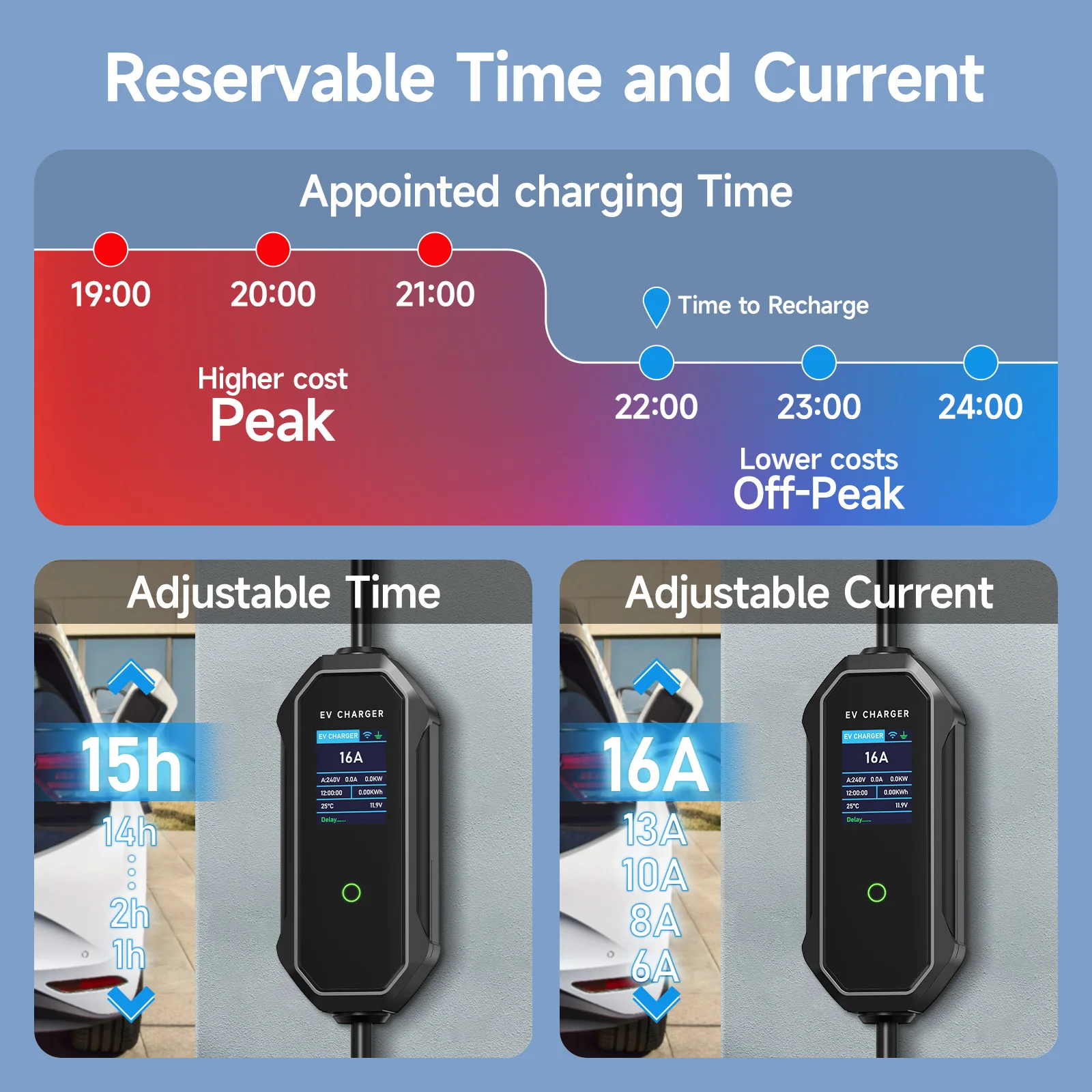

[Wi-Fi Smart APP, Real-time Monitor and Appoint the Charging Time] :Built-in smart APP(turn on the wifi and bluetooth when add your device), you need to connect under WIFI environment, which allows your vehicles to be charged during off-peak period by setting the charging time, save money on the electricity bills. And it allows to adjust charging current range, fully-charged notification or track the charging status.

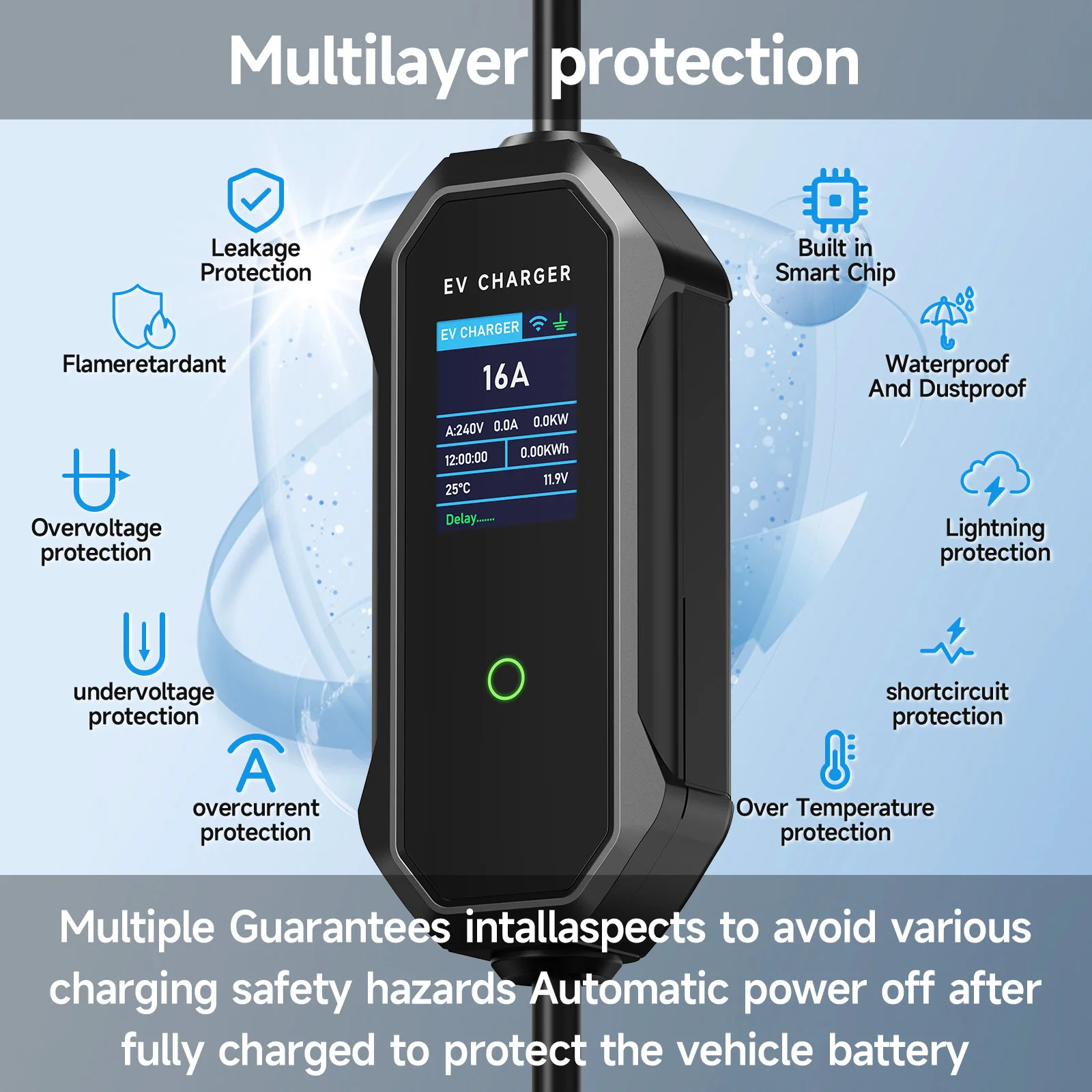

【Secure charging】:Our chargers have safety protection measures such as overcurrent protection, overvoltage protection, undervoltage protection, leakage protection ( TypeB AC30mA + DC6mA ) , and overheating protection, with a waterproof grade ofIP65.

【Long Service Life】:The charger adopts ePTFE (Waterproof Breathable Membrane) materials, which can automatically minimize the damage of control box due to different temperature and air pressure difference between inside and outside of heat expansion and cold contraction. The thickness of the shell has reached 3.5mm,which has superior compressive strength.

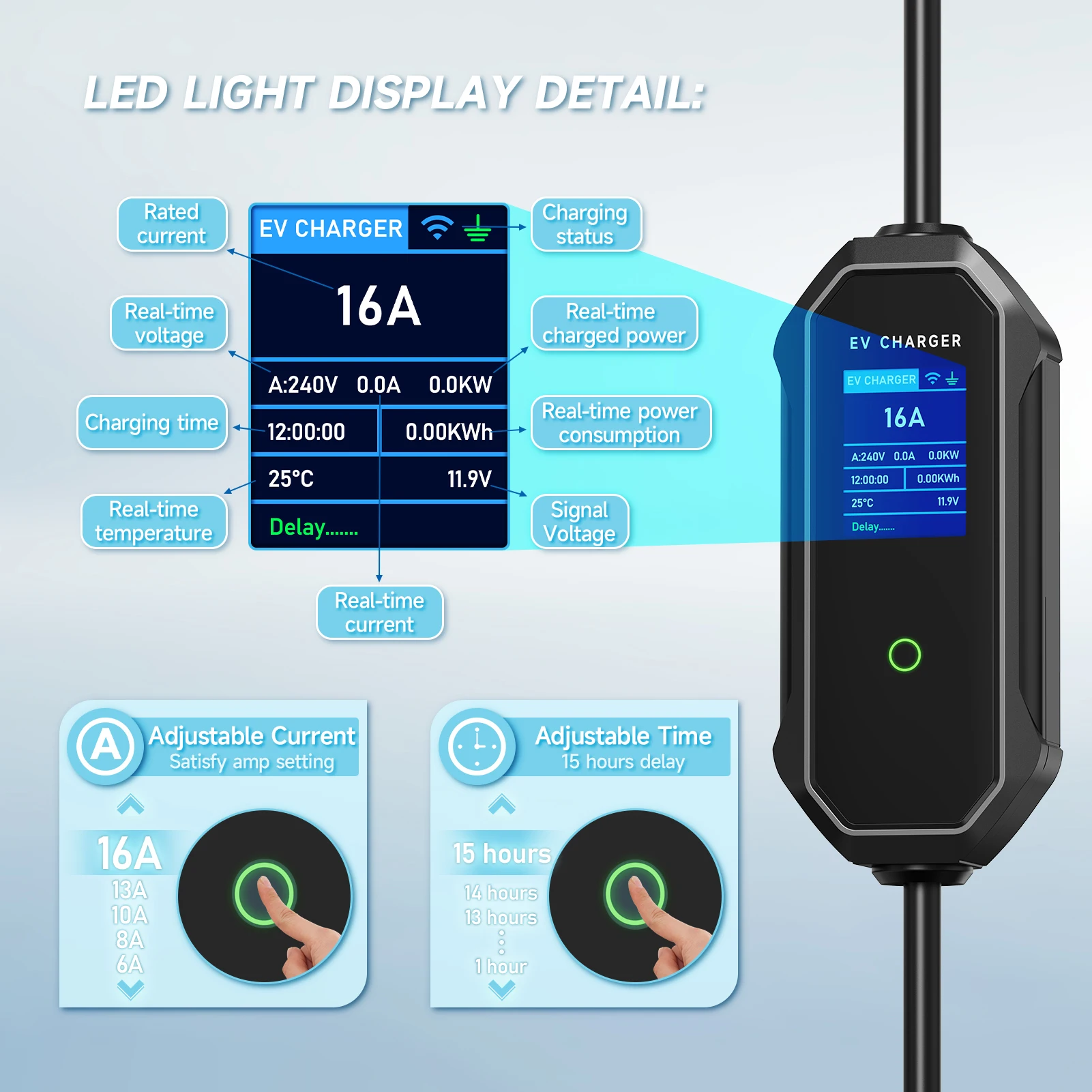

Control Box Function

Leakage protection

Overvoltage or low pressure protection

Overload protection

Lightning protection

Overheat protection

Charging Current adjustable
