For ANCHEER AM1908 AM001908 ADO A16 36V 8Ah Folding Electric Bicycle Battery DCH014 36V 7.8Ah 10.5Ah 14Ah EBike Battery

Stock Disponible: 79 unidades

SKU: 3256807717145411

Color
Cantidad
1

$274.27

Precio final con envío
Envío gratis

Desglose de costo

Precio del producto
$267.40
Fee de Servicio MiCyberCompras
$6.87
Costo de envío estimado
Gratis
Costo Final Garantizado:
$274.27

El impuesto, si aplica, se confirma en el checkout según tu dirección. Aquí ves producto, fee y envío.

  • Envío EE.UU.: USPS / UPS Ground.

  • Costo Visible: Sin sorpresas ocultas.

  • Tracking Real: Alertas por SMS/Email.

  • Pago Seguro: Cifrado por Stripe.

¿Por qué elegir MiCyberCompras?

Atributos del productoBrand Name: NONE, Origin: Mainland China, High-concerned chemical: none, Certification: CE, Certification: RoHS, Type: Lithium battery, Capacity: 10 - 20Ah, Voltage: 36v, Voltage: 36V optional, Capacity: 7.5-14Ah, Cells: Brand/ LG/ Panasonic 18650 3.7V Cells, BMS: 20A, Fit for Motors: 250W 300W 350W 400W 500W, Cycle Life: 800~1000 cycles, Warranty: 1 Year, Certificate: CE UL RoHS UN38.3 MSDS, Brand: Acepower, Battery Type: Built-in Folding E-Bike Battery
Tamaño del paquete460×170×160 mm
 For ANCHEER AM1908 AM001908 ADO A16 36V 8Ah Folding Electric Bicycle Battery DCH014 36V 7.8Ah 10.5Ah 14Ah EBike Battery

Current link is for item DCH-014

If need others model DCH-006, DCH-009, DCH-003, DCH011, or other similar style batteries, please contact us.


★★Attention!!!

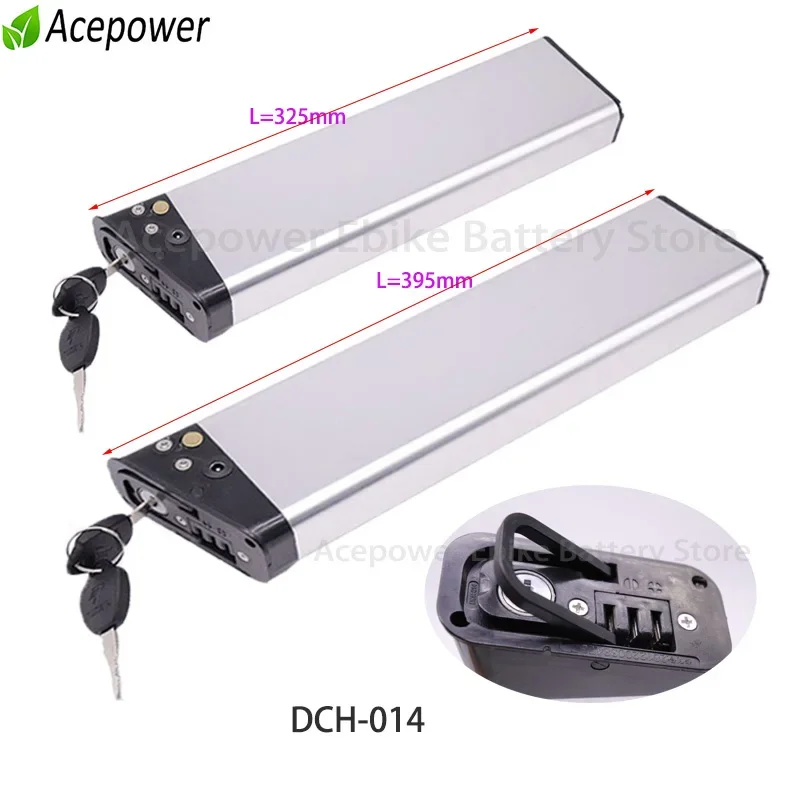

1. There are two versions of DCH-014 battery with different lengths, version A=length L325mm,

    version B=length L395mm, please pay attention to the size when purchasing.


2. If your original battery is L325mm, then you can only choose L325mm;

    If your original battery is L395mm, you can choose both two lengths



DCH-014    version A=length L325mm



DCH-014    version B=length L395mm


Battery     details



Battery Specification


DCH-014 version A=length L325mm


Battery Parameter

L325mm

36V 7.5Ah

L325mm

36V 9Ah

L325mm

36V 9.6Ah

L325mm

36V 10.2Ah

L325mm

36V 10.5Ah

Composed Type

10S 3P

Cells

Brand

2600mAh

Brand

3000mAh

Brand

3200mAh

Panasonic

3400mAh

SamsungLG 3500mAh

Battery Weight(appr.)

2kg

Battery Size(appr.)

40*88*325mm

Charging Time

3.5-4.5h

4.5-5h

4.5-5.5h

5-5.5h

5-6h



DCH-014 version B=length L395mm


Battery Parameter

L395mm

36V 10.4Ah

L395mm

36V 12Ah

L395mm

36V 12.8Ah

L395mm

36V 13.6Ah

L395mm

36V 14Ah

Composed Type

10S 4P

Cells

Brand

2600mAh

Brand

3000mAh

Brand

3200mAh

Panasonic

3400mAh

SamsungLG

3500mAh

Battery Weight(appr.)

2.5kg

Battery Size(appr.)

40*88*395mm

Charging Time

5-6h

6-7h

6.5-7h

7-8h

3A fast charger

5-6h



Common parameters：


DCH-014 L325mm/L395mm

Charging Cut-off Voltage

42V

Discharge Cut-off Voltage

30V

Charger

2A

BMS

20A

Fit for Motors

36V 200w 250w 350w 400w 450w 500w

（36V 0-500W motor)

Discharge Temperature

-20~65°C

Charging Temperature

0~45°C

Cycle Life

80% Capacity after 1000 cycles

Warranty

1 Year


Discharge Connectors

Discharge Connector

Below 7 kinds optional, you can leave "order note" to tell which kind do you need.

Without request, we will offer one kind of them by default, offer whole pairs to you.

"whole pairs, include one side for battery, another spare side for your controller", so that whatever what connectors on your controller side, you can use our whole pairs connectors to connect directly.



Packing List

Battery * 1

Charger * 1


Warranty

Product: Battery

12 Months Quality warranty

1. We provide 1 year warranty for all electric bike batteries.

2. Any battery with quality problem in one month we can return the money after you provide the proof.

3. After one month we can send BMS or cells to you for repair, or you can send it back local warehouse or us to repair as well.

4. All our electric bicycle batteries with high quality cells and BMS, made by skilled craftsmanship and they will be 100% strictly several times tested before shipping.

Condition

The warranty is not valid if the battery is entered water, or damaged by man-made, or used over-power/ over-voltage, or if it is damaged due to incorrect operation, or if it's over-warranty time.

Whenever has any problem (including above problem or over-warranty), you also can contact us to provide relative details and we will help or provide suggestion.


                                                     Tips

Payment & Delivery

1.  The payment isn't include remote fee, if your address belong to remote address, please contact with us about remote fees before you place order.

2. Battery can't be delivered to any Island address, please contact us for checking before you place order to Island address.

3. All batteries send by battery special channel, the tracking information will be updated once it finish customs clearance. Please kindly don't worry and help to wait more days if you can't track it.


Note

1. Each countries postal code is necessary to provide for international shipping, please make sure your city name and postal code are correct and matched. (including Ireland)

2. Korean customers need to provide your "individual customs pass number" or date of birth on order note as Korean recently rules.

3. Japanese customers need to provide Japanese address and contact information

Feedback

Your satisfaction and positive feedback is very important for us.

It will be very kind of you to leave us with 5 Stars feedback if you are satisfied with our items and services.

If you have any problems, don't hesitate to contact us, we will do our best to serve with you.



FAQ Q: What type of this electric bike battery?A: It is Li- ion battery,Chemical is Li(NiCoMn)O2. Q: What is the difference between li ion battery,NI-MH battery and Lead acid battery?A: E-bike Li-ion battery have longer cycle life,normal cycle life is 800-1000 times, and also with light weight,small size, No memory effect,Nontoxic, environmental friendly. Q: What's temperature range of charge and discharge?A: Charge Temperature: 0 to 45°C and Discharge Temperature: -20 to 65°C Q: What kind of cells used on this electric bicycle battery?A: Different capacity with different cells, we make the battery with original A grade Samsung,Panasonic,Sanyo,LG and high quality domestic cells,all can be customized as your requests. Q: Do your e-bike battery come with charger?A: All of our e-bike batteries come with charger.We have normal charger and fast charger.If you need fast charger please contact with us. Q: Do your electric bike batteries come with BMS?A: Yes, Our batteries all with SEIKO IC BMS, with stable performance.Which can protect the battery avoid short circuit,Overcharged,Over discharge and Over current. Q: Does your electric bicycle battery come with quality warranty?A: Yes, we provide 1 year warranty for all electric bicycle batteries. Q: What's your delivery time?A: Electric Bike Battery will be sent out within 7 days after confirmed order, shipping will cost 3-15 working days,it depends on quantity and which battery you need. Q: Can you provide OEM and ODM service?A: Yes, We are a professional Electric Bike Battery manufacturer which produce all kind of high quality E-bike Lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.  Lithium battery features Longer battery life, the life expectancy is two times that of lead-acid batteries.Rechargeable and no memory effect.The weight is more lighter.Smaller dimensions and can be customized.Safer and more environmentally friendly, No heavy metals and hazardous substances.BMS built-in IC chip will prevent battery pack over charge, over discharge, over-current,over-heat, short circuit .  Warnings Do not immerse the battery in water or seawater, keep the battery stands by in a cool dry surrounding.Does not use or leave the battery near a heat source as fire or heater.Use the battery charger specifically for that purpose when recharging.Do not reverse the position and negative terminals.Do not connect the battery electrodes to an electrical outlet.Do not discard the battery in fire or a heater.Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.Do not strike, trample or throw the battery.Do not directly solder the battery and pierce the battery with a nail or other sharp objects.
