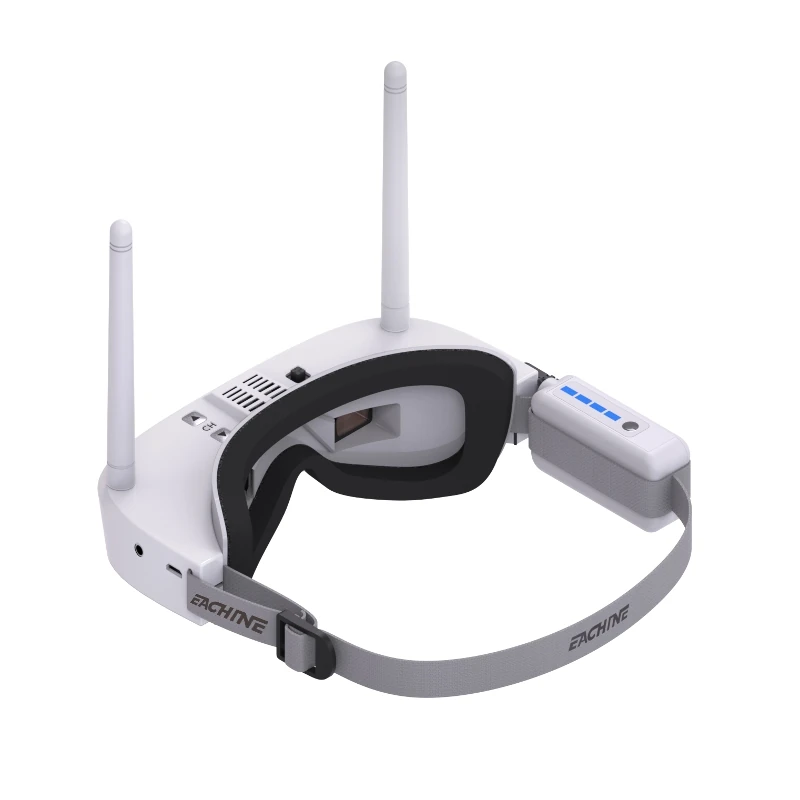

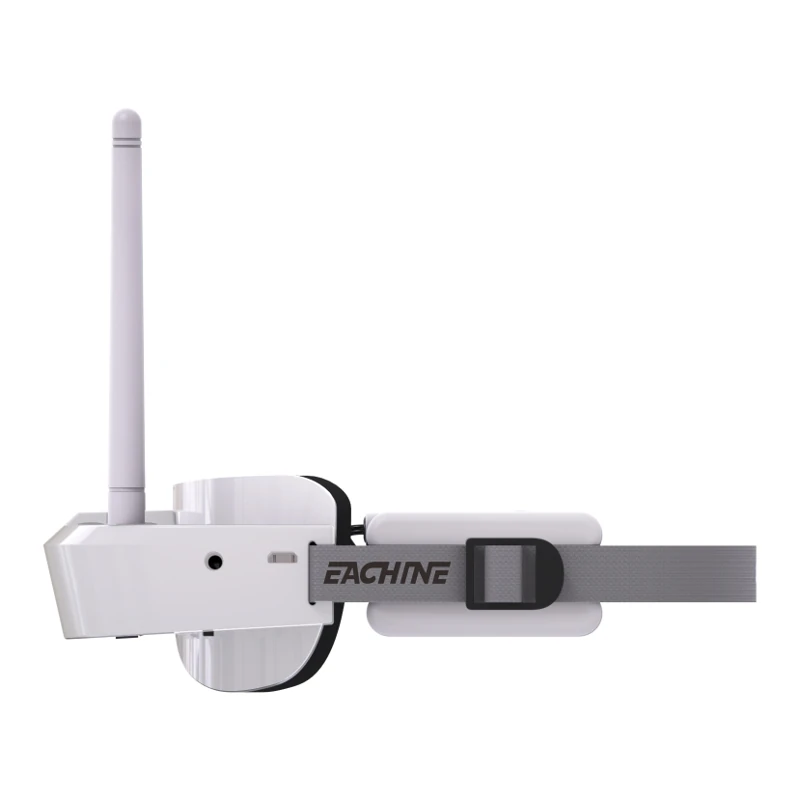

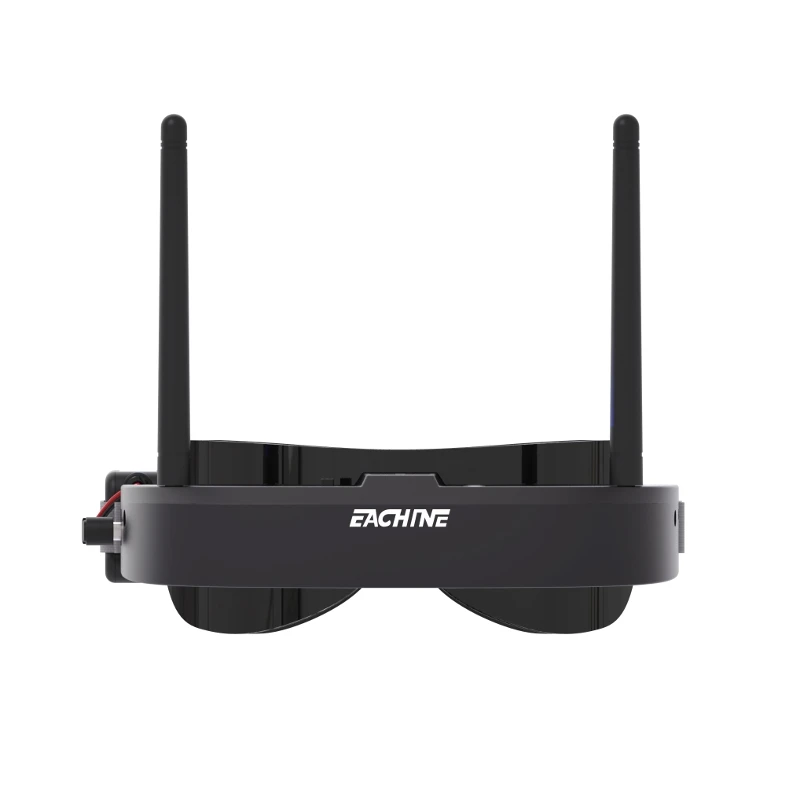

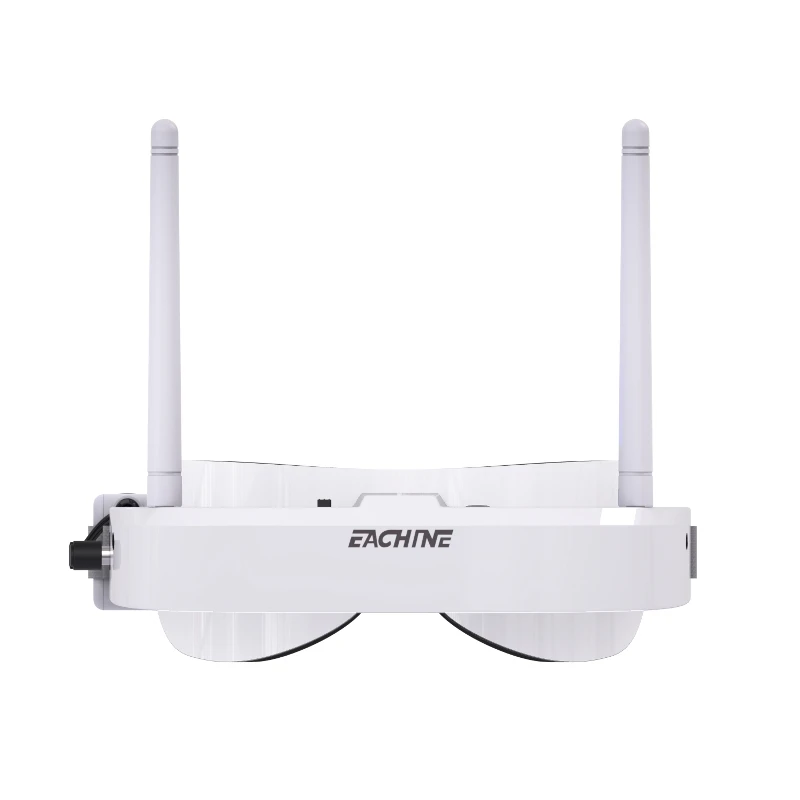

Eachine EV100 720*540 5.8G 72CH FPV Goggles With Dual Antennas Fan 18650 Battery Case For RC Drone

Stock Disponible: 21 unidades

SKU: 3256808347998857

Color
Cantidad
1

$176.32

Precio final con envío
Envío gratis

Desglose de costo

Precio del producto
$171.80
Fee de Servicio MiCyberCompras
$4.52
Costo de envío estimadoEntrega estimada: 2-11 días
$2.99Gratis
Costo Final Garantizado:
$176.32

El impuesto, si aplica, se confirma en el checkout según tu dirección. Aquí ves producto, fee y envío.

  • Envío EE.UU.: USPS / UPS Ground.

  • Costo Visible: Sin sorpresas ocultas.

  • Tracking Real: Alertas por SMS/Email.

  • Pago Seguro: Cifrado por Stripe.

¿Por qué elegir MiCyberCompras?

MaterialEVA
Atributos del productoBrand Name: EACHINE, High-concerned chemical: none, Is Electric: No battery, Is it battery/power supply: N, Is it charger/adapter: N, Origin: Mainland China, Is Batteries Included: No, Recommend Age: 14+y, Size: 165mm*76mm*30mm, For Vehicle Type: Airplanes, Use: Vehicles & Remote Control Toys, Certification: NONE, Tool Supplies: Battery, Quantity: 1 pcs, Technical parameters: KV1100, Model Number: EV100, Four-wheel Drive Attributes: Assemblage, Resolution: 720*540, FOV: 28° diagonal, IPD: 58-68mm, Ratio: 4:3
Tamaño del paquete240×140×80 mm

Note

The battery will be changed to an 18650 battery case to facilitate transport, and it doesn't have a balance plug for the DVR module, the DVR module should use another power supply, thank you for your understanding!

The receiver on EV100 Goggles doesn't receive audio. But the goggles support audio input, so you can hear the audio if input the video to goggles.


Description：

Brand Name: Eachine

Item Name: EV100

Size: 165mm*76mm*30mm

Weight : 221g(with battery 57g and antenna 13g)

Package Weight: 400g


Display

Resolution: 720*540

FOV: 28° diagonal

IPD: 58-68mm

Ratio: 4:3

Focal length adjusting: under 400 degrees of myopia and hyperopia 150 degrees


Specification

Frequency: 5.8G 5333Mhz-5945Mhz

Sensitivity : <=-93dB

Antenna Impedance: 50Ω

Antenna Gain: 3dBi

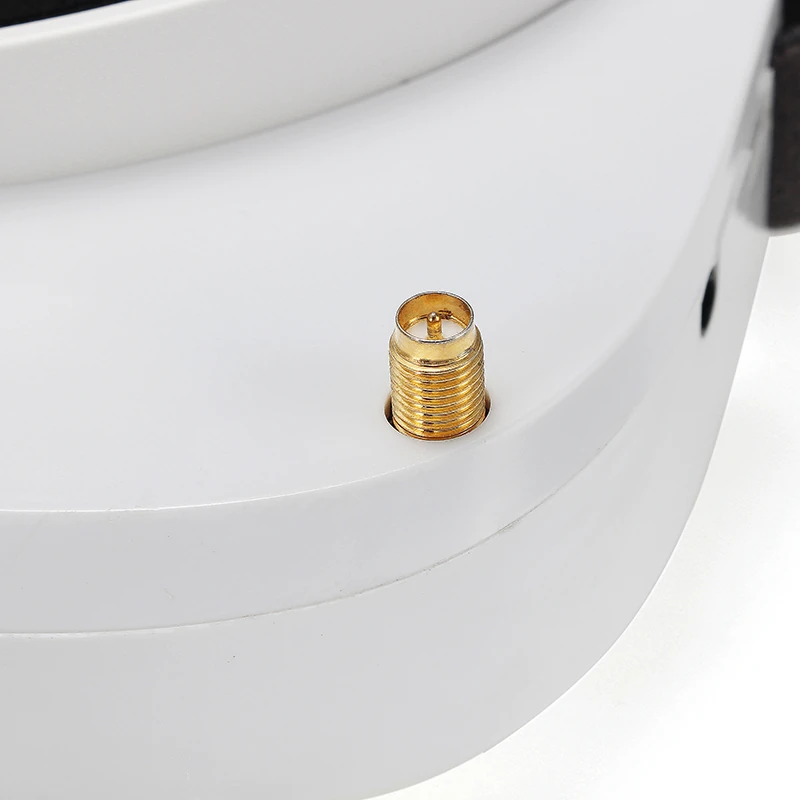

Antenna Connector: RP-SMA

Video Formate : NTSC/PAL

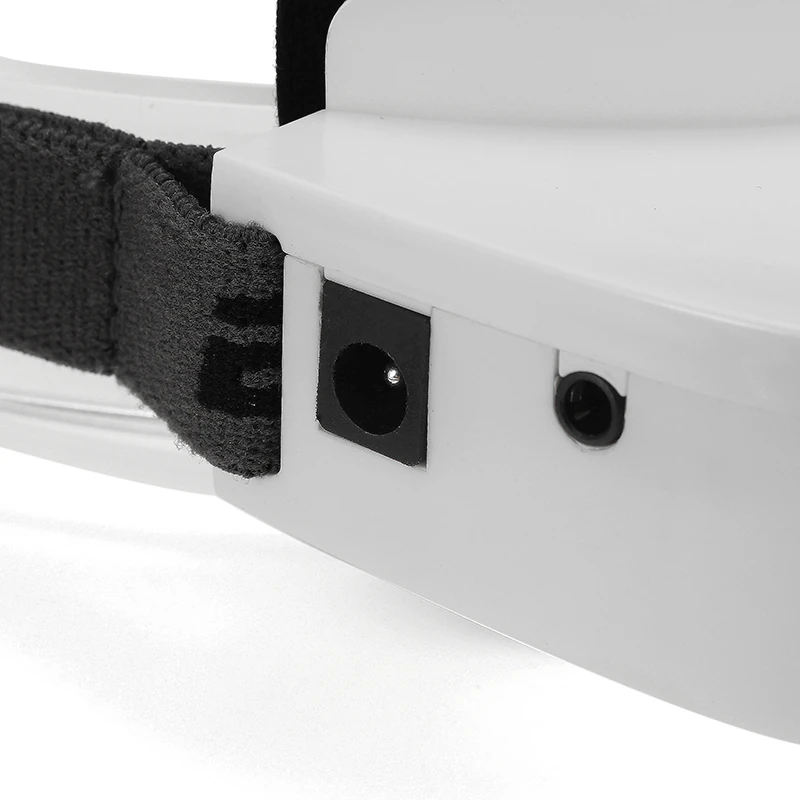

Support AV IN/OUT

Support Focal Length/Brightness/Contrast Adjustment

Suport Firmware Upgrading

Power Input: 7.4V

Low Voltage: 6.8V

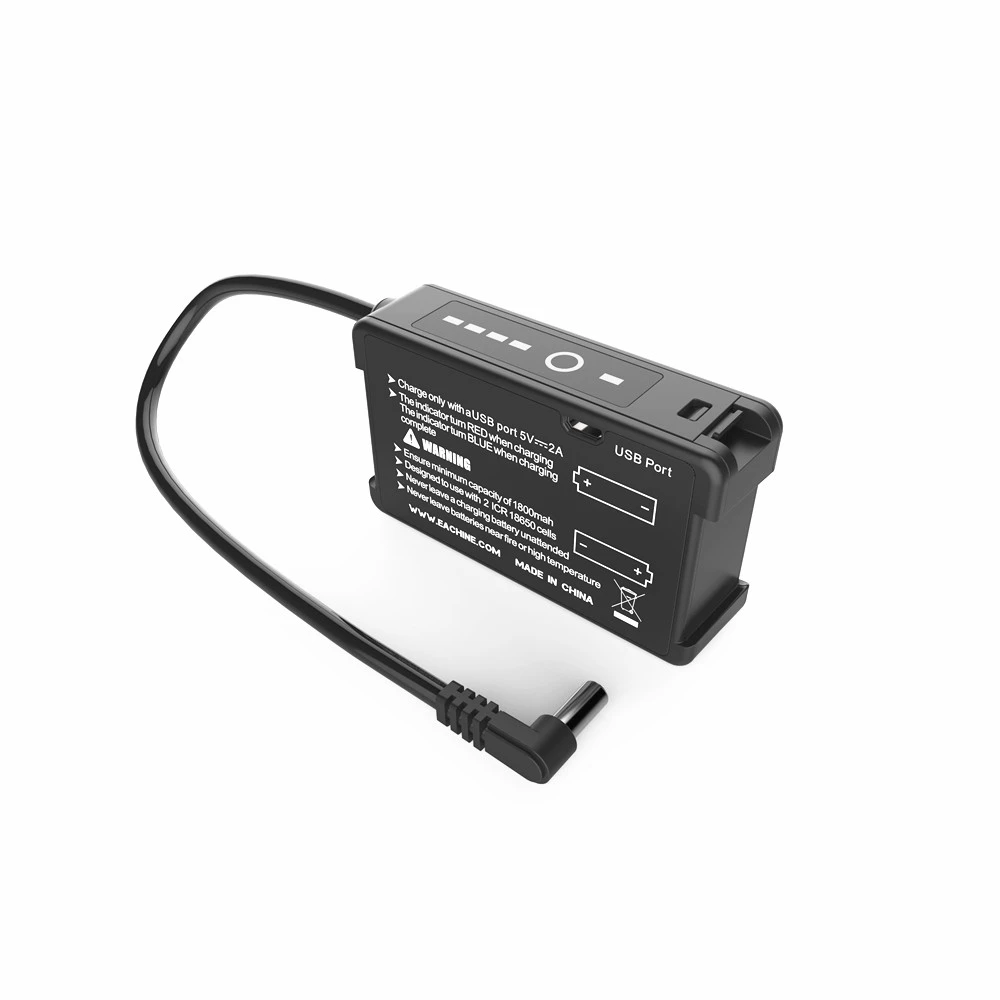

Battery: 18650 battery case

Charging : USB Cable(not included)

Working Temp. : -10℃-+40℃


Features ：

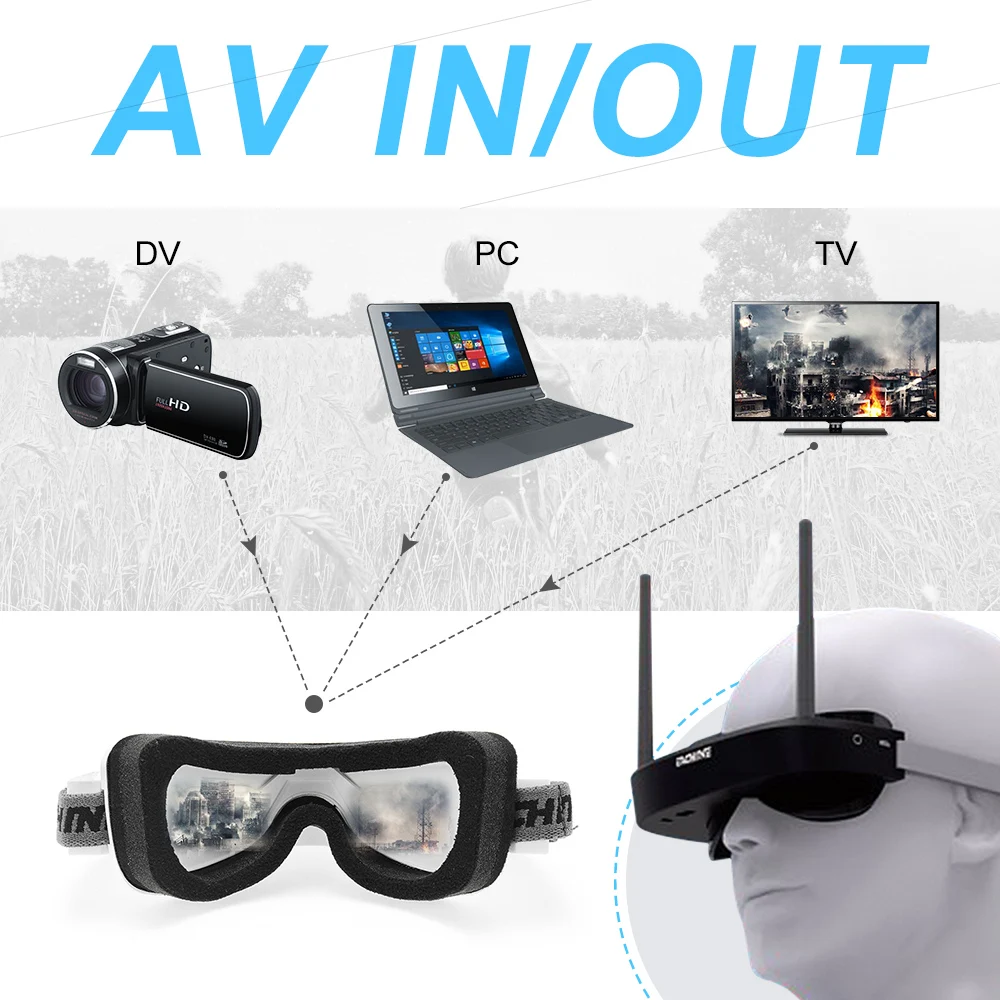

Support AV Input and Output( it doesn't support Audio in FPV mode, for the built-in receiver can't receive audio. But in AV-IN mode, the audio is available.)

Support External DVR module

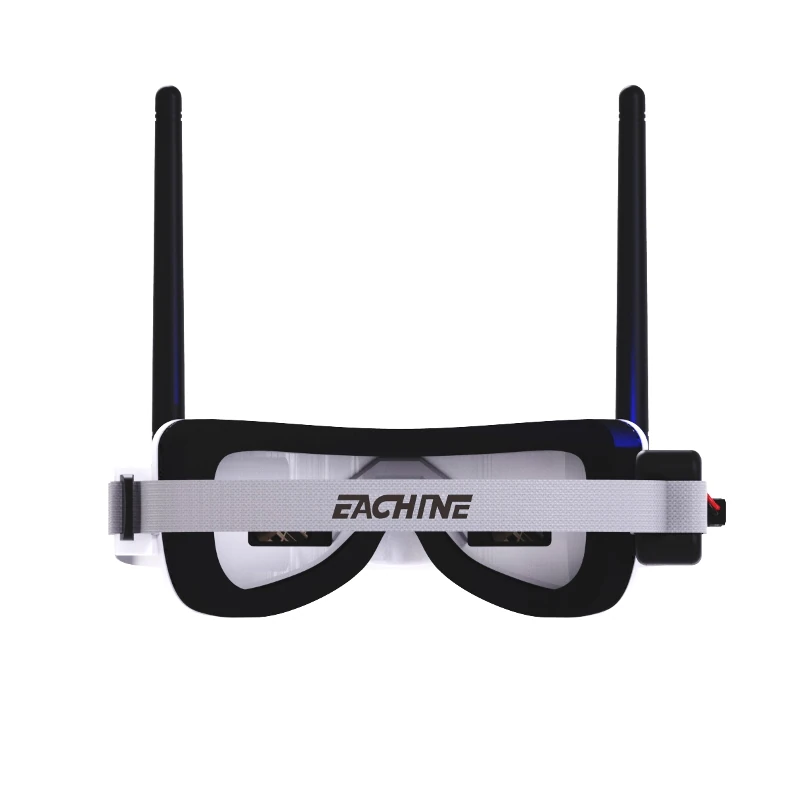

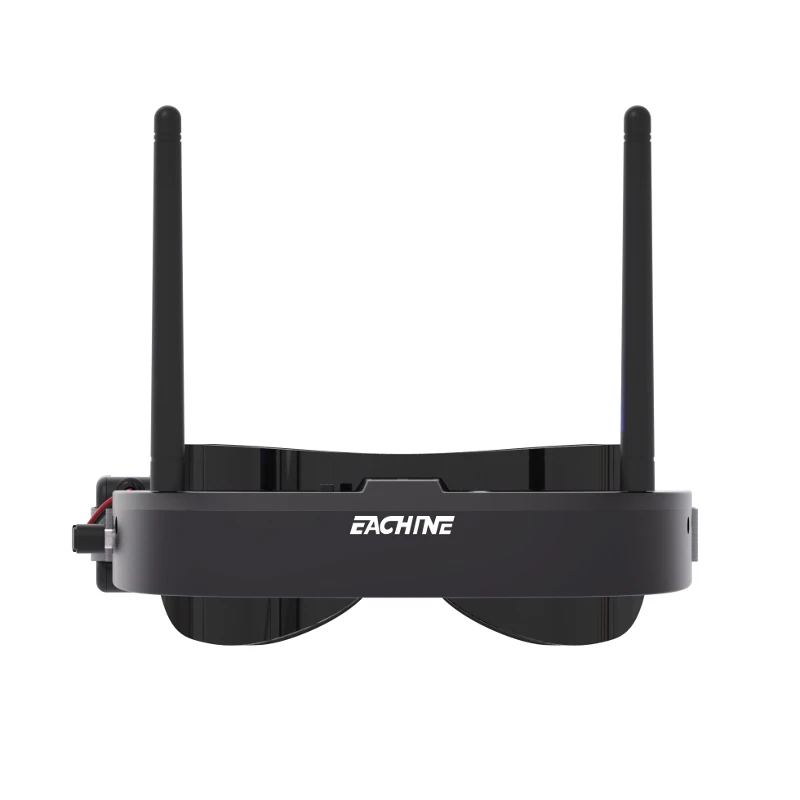

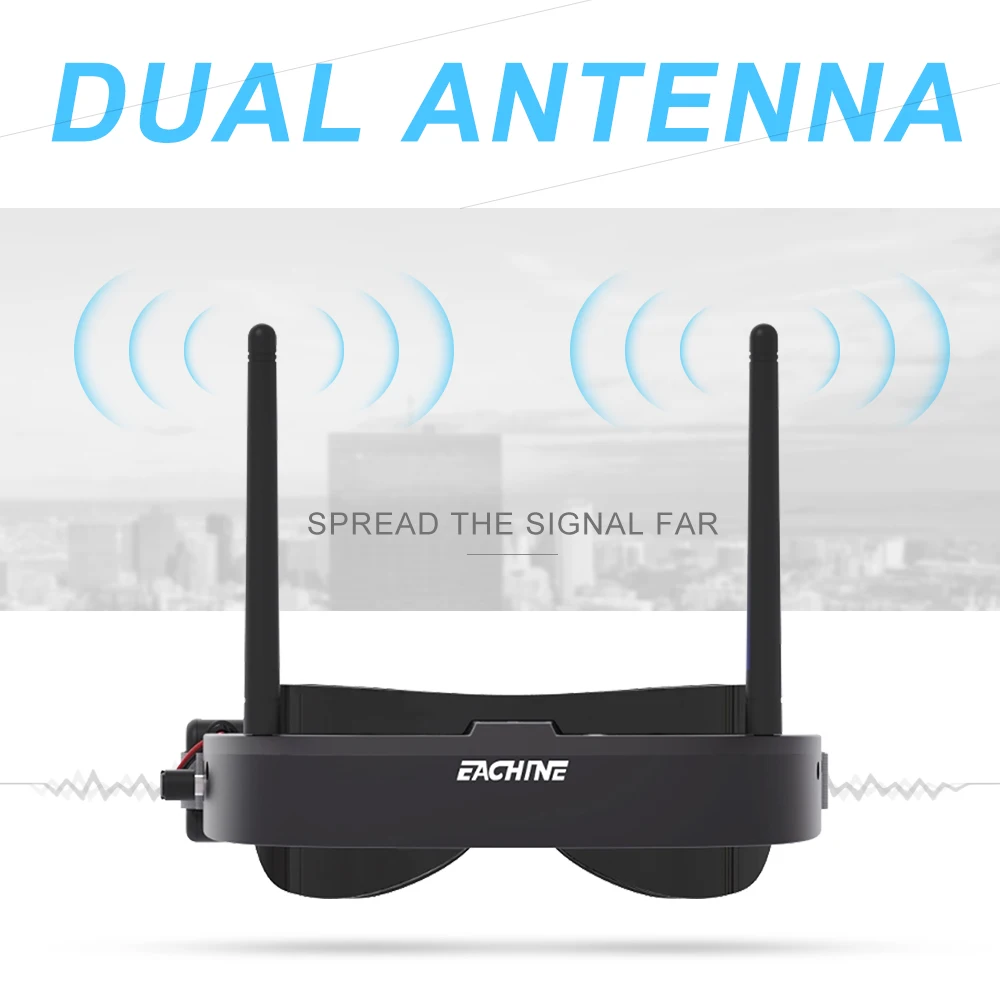

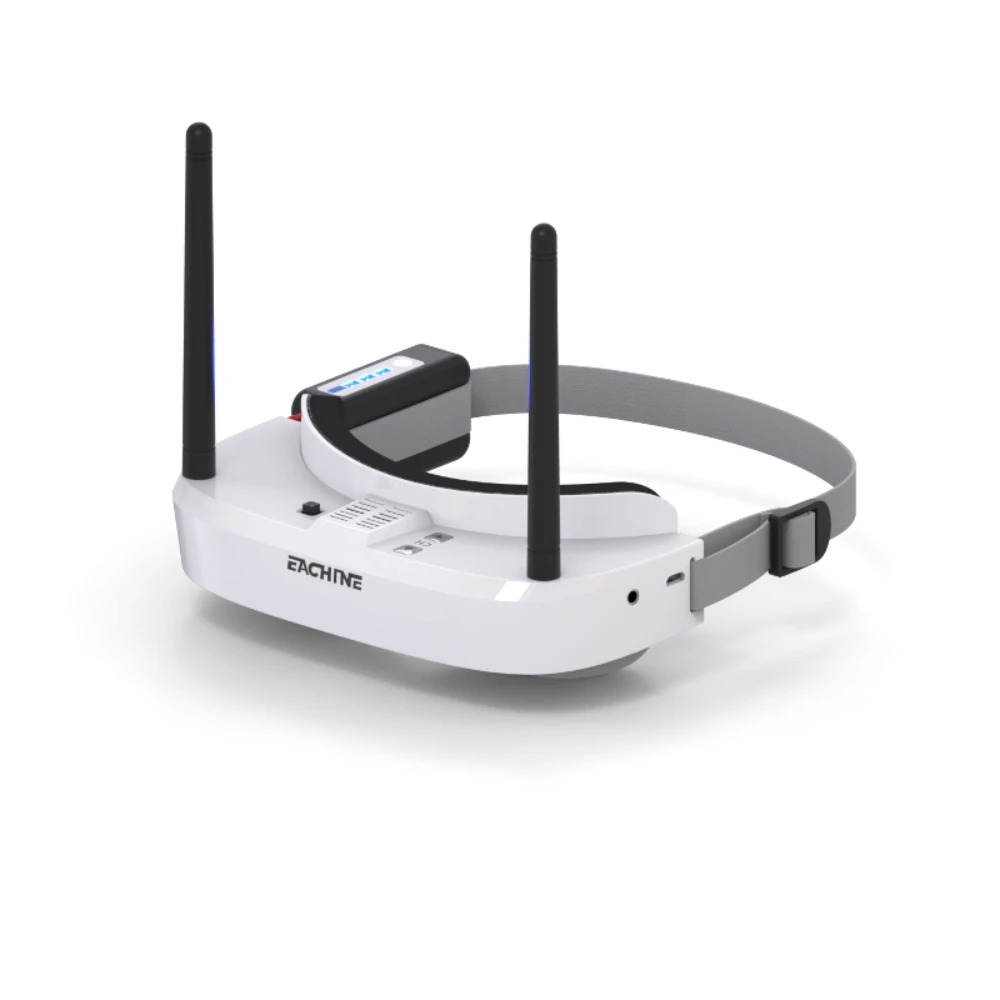

A single receiver with Dual Antennas enhances the reception and stable performance.

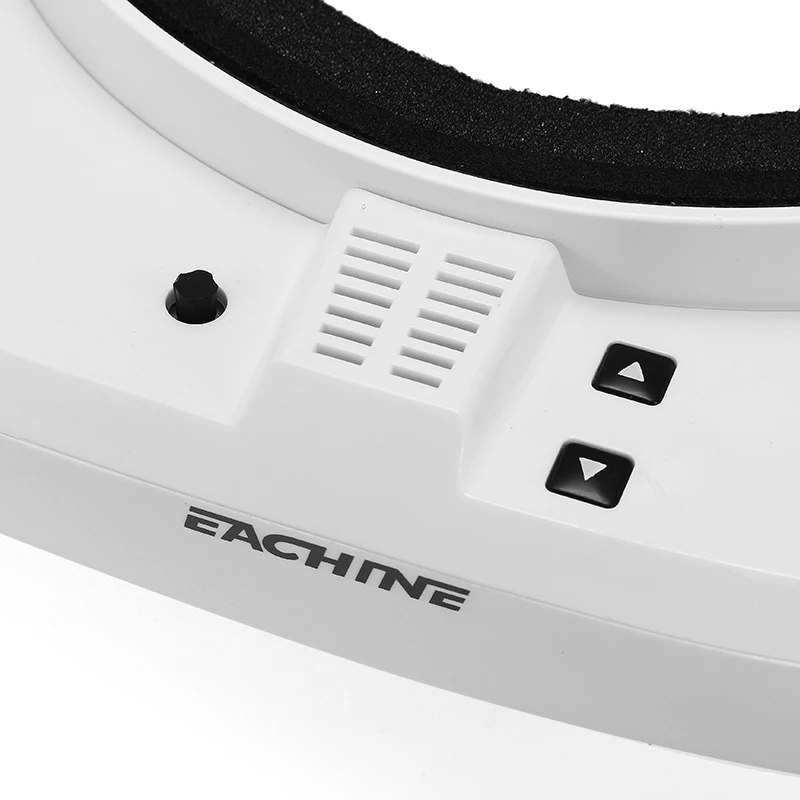

With Fan, can defog the glasses for a good visual experience.

Adjustable focal length allows pilots under 400-degree myopia to view directly via the naked eye

Adjustable IPD 58~68mm

The Auto Search function, can auto-search all frequencies and select the channel of the strongest signal.

Has 3 Racing Modes: 4/6/8 pilots. The 60-80MHz interval between adjacent channels greatly decreases interference.

Has Debug Mode, requires a corresponding VTX which supports pit mode and extra frequency 5300MHz


Recommended Parts（Not included）

FPV VTX: 5.8Ghz VTX

Tiny FPV Camera: 5.8Ghz Camera

Package Included：

1 x Eachine EV100 5.8G 72CH FPV Goggles

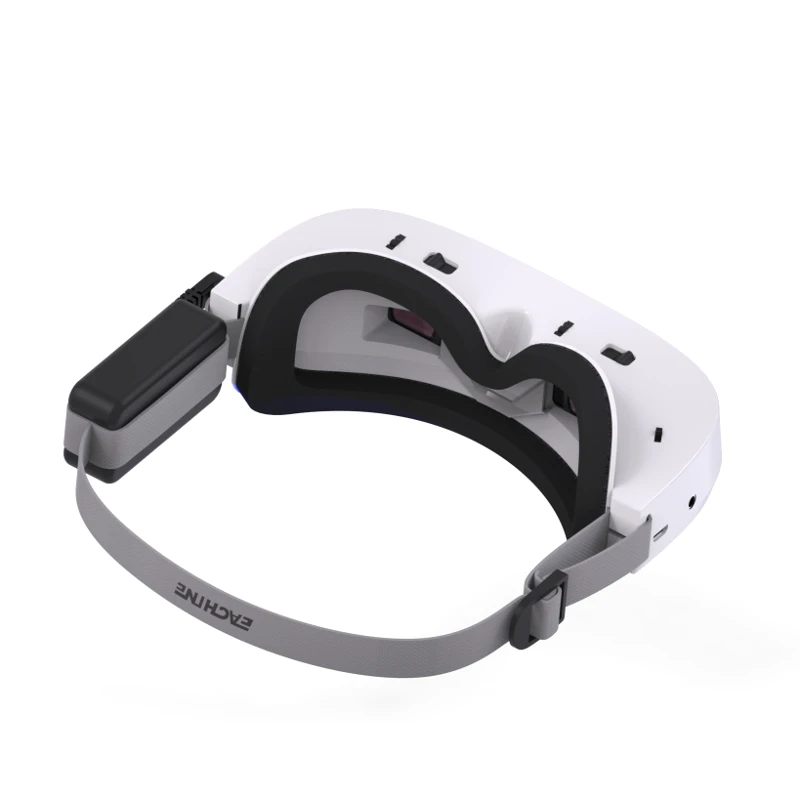

1 x 18650 Battery case

2 x RP-SMA 3dBi Antenna

1 x User Manual
