Autel PowerScan PS100 Auto Circuit Tester Diagnostic AVOmeter Test Tool Automotive OBD2 Scanner

PS100 Red and Black Color for choose

Autel PowerScan PS100:

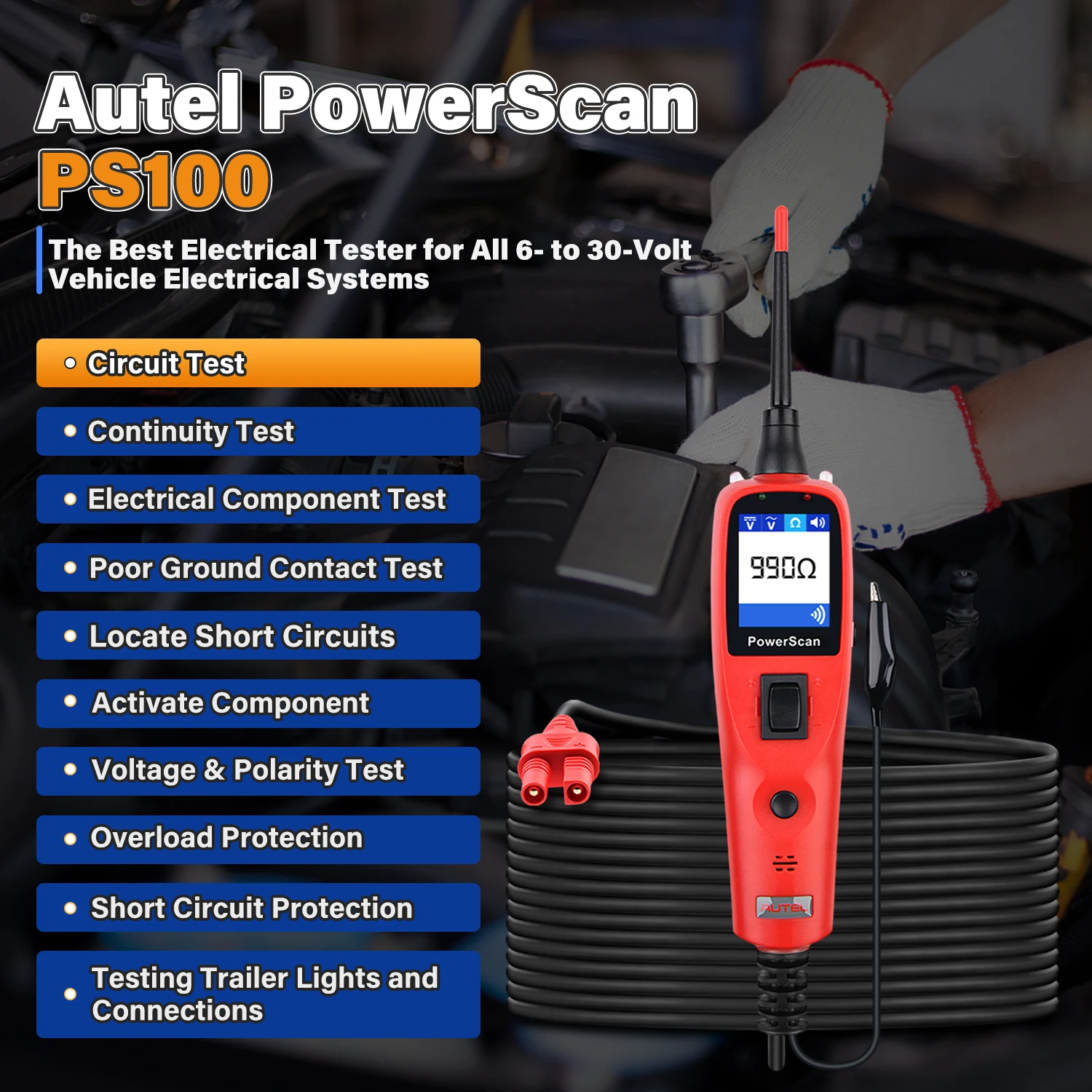

Featuring AVOmeter, test light, built-in flashlight, short circuit indicator, relay/component tester, continuity tester, and bad ground indicator, the PowerScan is truly the ultimate in power and affordability, allowing users to check circuitry in one single step. An absolute must for every technician looking for a fast and accurate solution to electrical system diagnostics.

Autel PowerScan PS100 Feature

• Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing, and component activation

• Easy to read AVOmeter allows you to read voltage, current, and resistance at the fingertip

• With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.

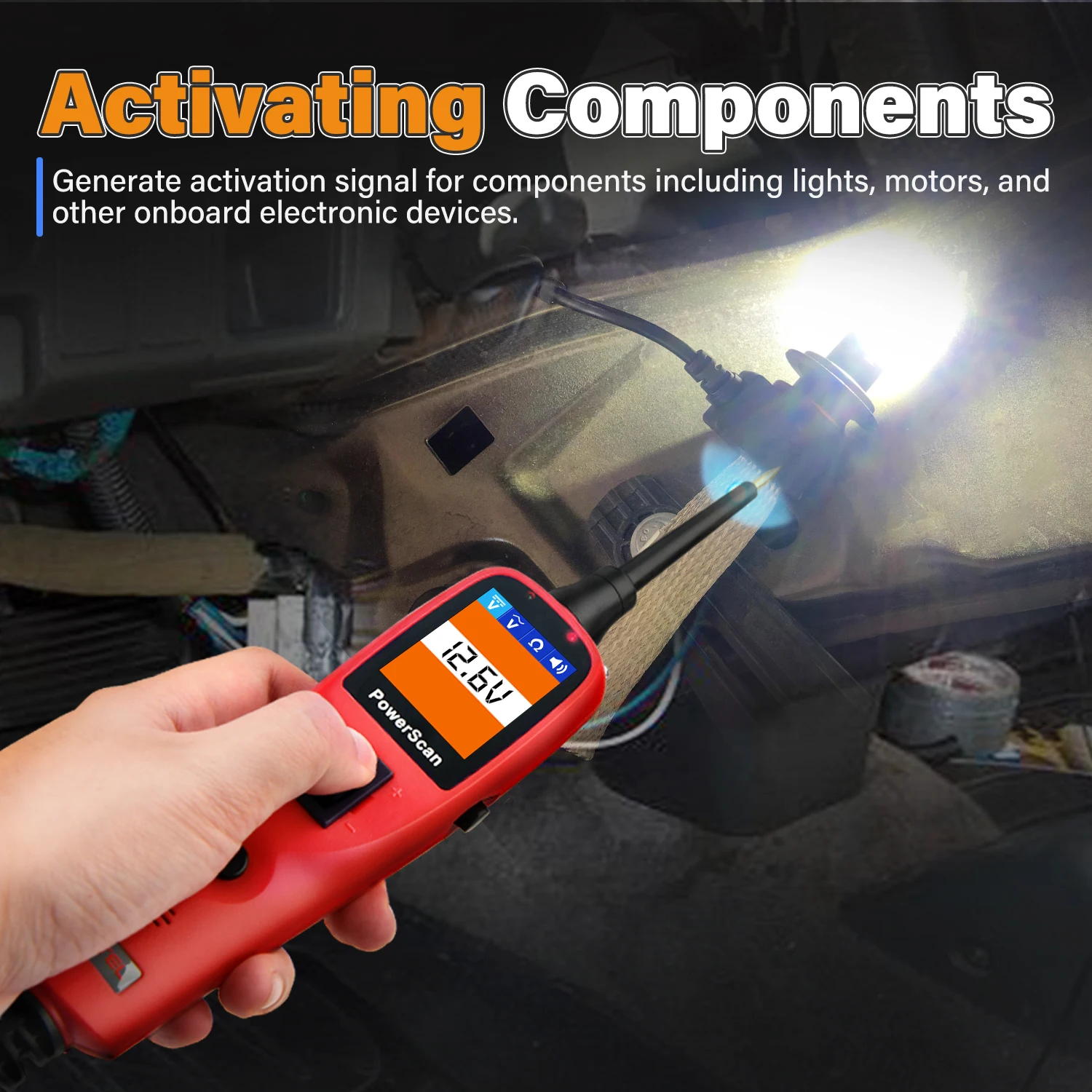

• Simultaneously use the hot lead and the ground lead to activate components right in your hand

• Instantly identifies positive, negative, and open circuits

• Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses

• Instantly checks the continuity of switches, relays, nd diodes

• Circuit breaker protected

• Built-in Flashlight enables you to work in the dark

• Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment

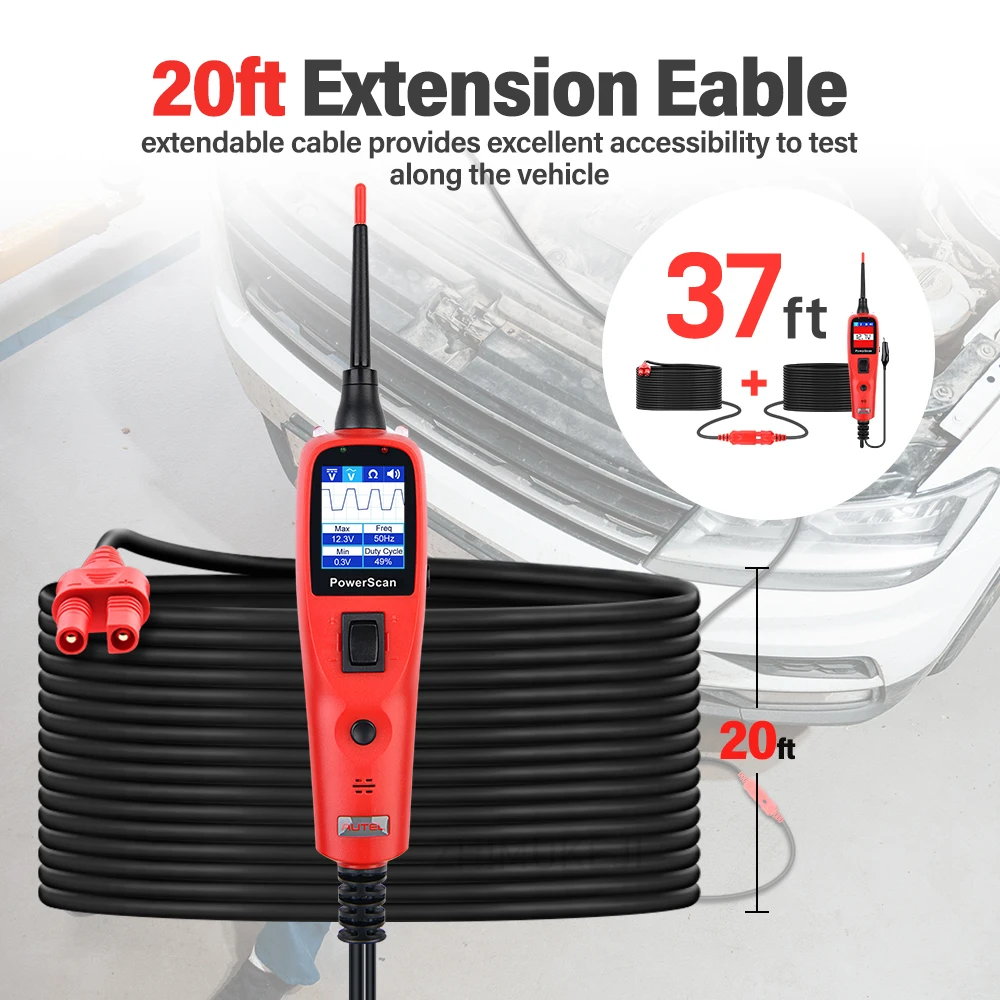

• 20ft (extendable) cable provides excellent accessibility to test along the vehicle

• Extremely easy to use and highly reliable

Autel PowerScan PS100 Work Mode

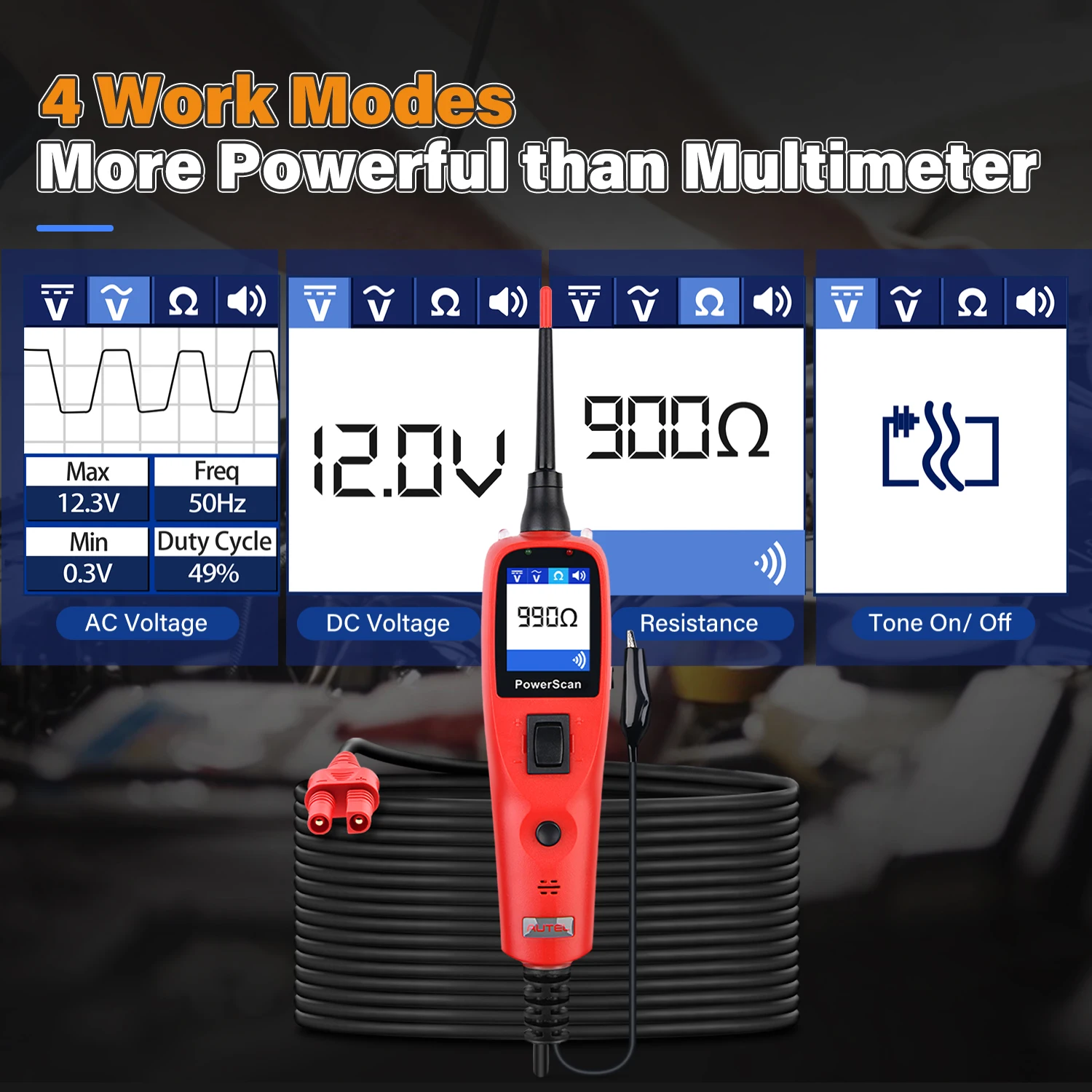

There are four modes to diagnose the electrical systems, which can be accessed by depressing the Mode Button and cycling through each one.

1. DC Voltage

Contact the probe tip to a circuit, then the LCD display will read the DC voltage with a resolution of 0.1 volt.

2. AC Voltage

Contact the probe tip to a circuit, then the LCD display will read the Max. voltage, the Min. voltage, frequency and duty cycle.

3. Resistance

Contact the probe tip to a circuit, then the LCD display will read the resistance between the tip and auxiliary ground lead.

4. Tone On/Off

Just do a quick press of the mode button to toggle the tone on or off. While quickly pressing (a quick press and release) the mode button, if a short high beep is heard, this means the audio tone is turned on. If a short low beep is heard, the audio tone is turned off.

Autel PowerScan PS100 Specifications

Display: TFT color display (160 x 128 dpi)

Operating Temperature: 0 to 60°C (32 to 140°F)

External Power: 12.0 or 24.0 V power is provided via the vehicle battery

Length x Width x Height: 26mm(4.96”) x 46.5mm(1.83”) x 35mm(1.38”)

NW: 0.105kg (0.23lb),GW: 0.726 kg(1.6lb)

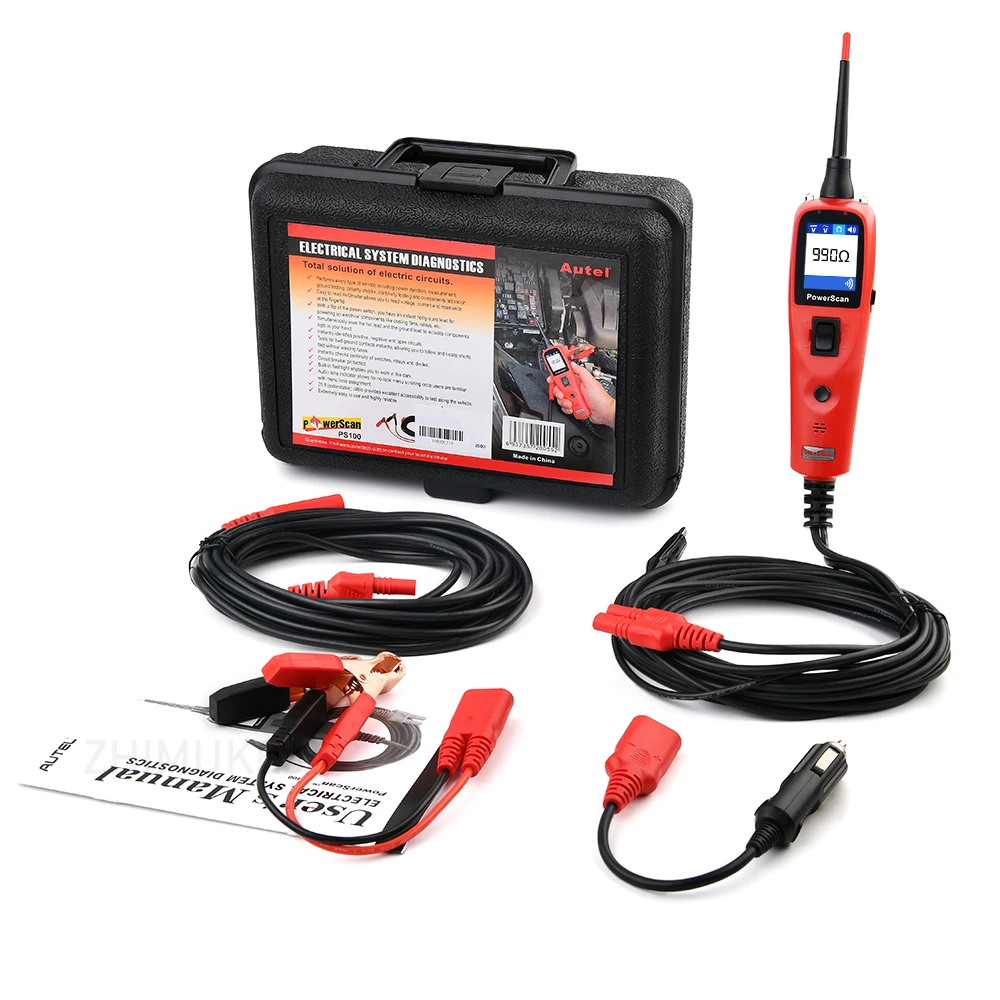

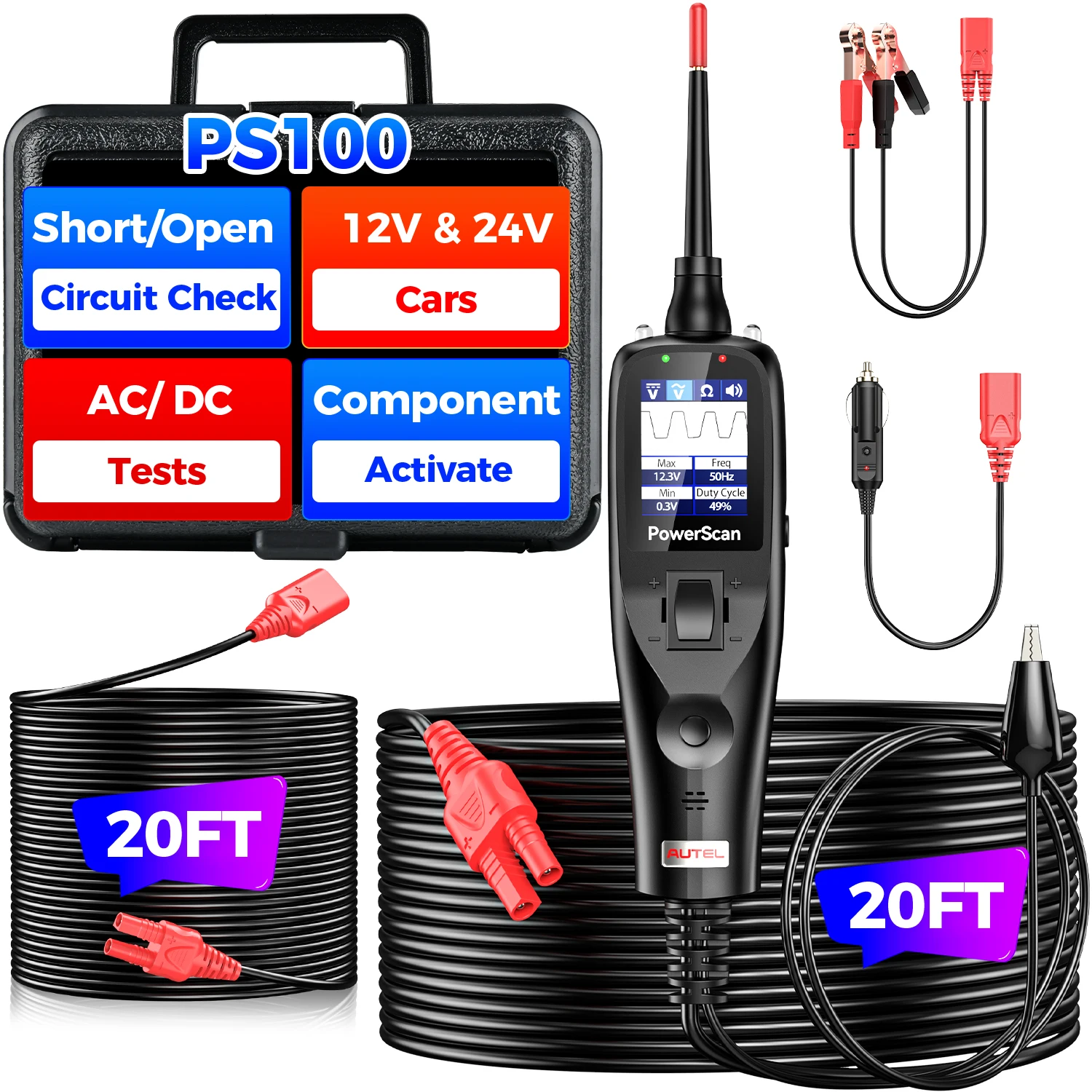

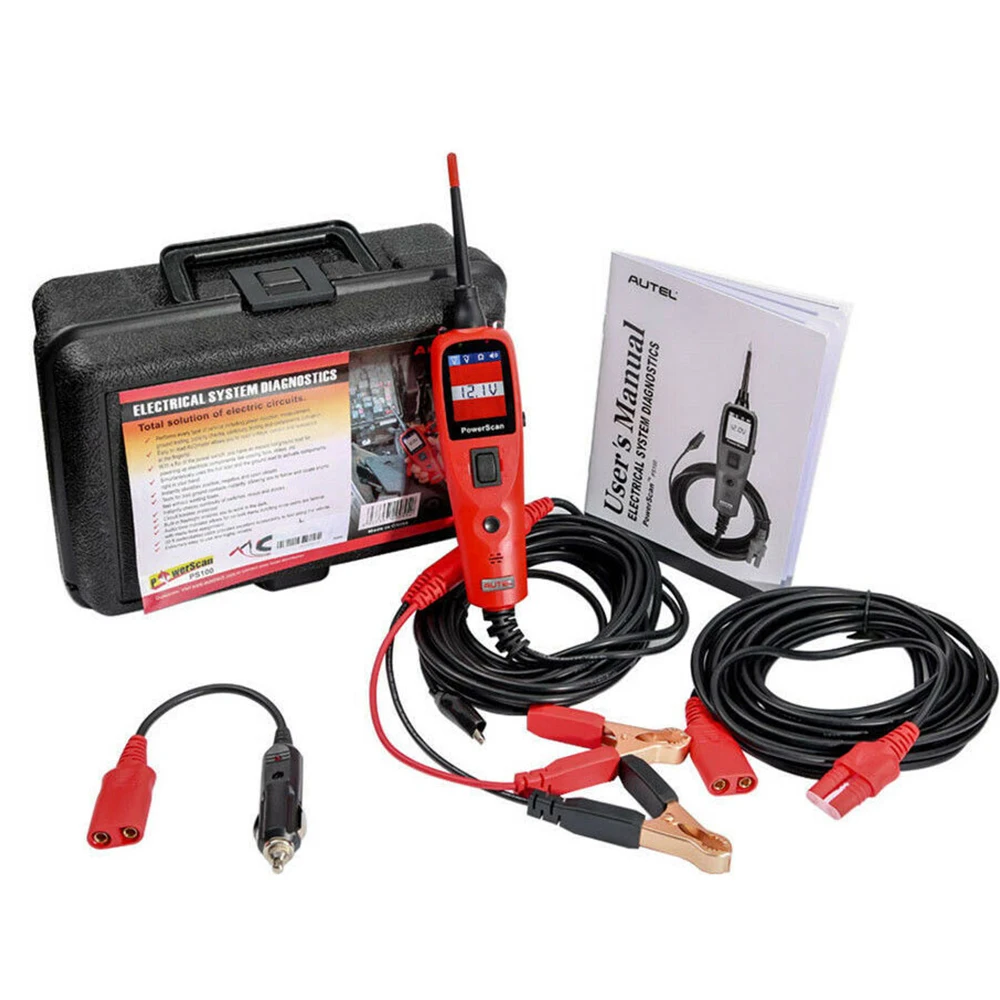

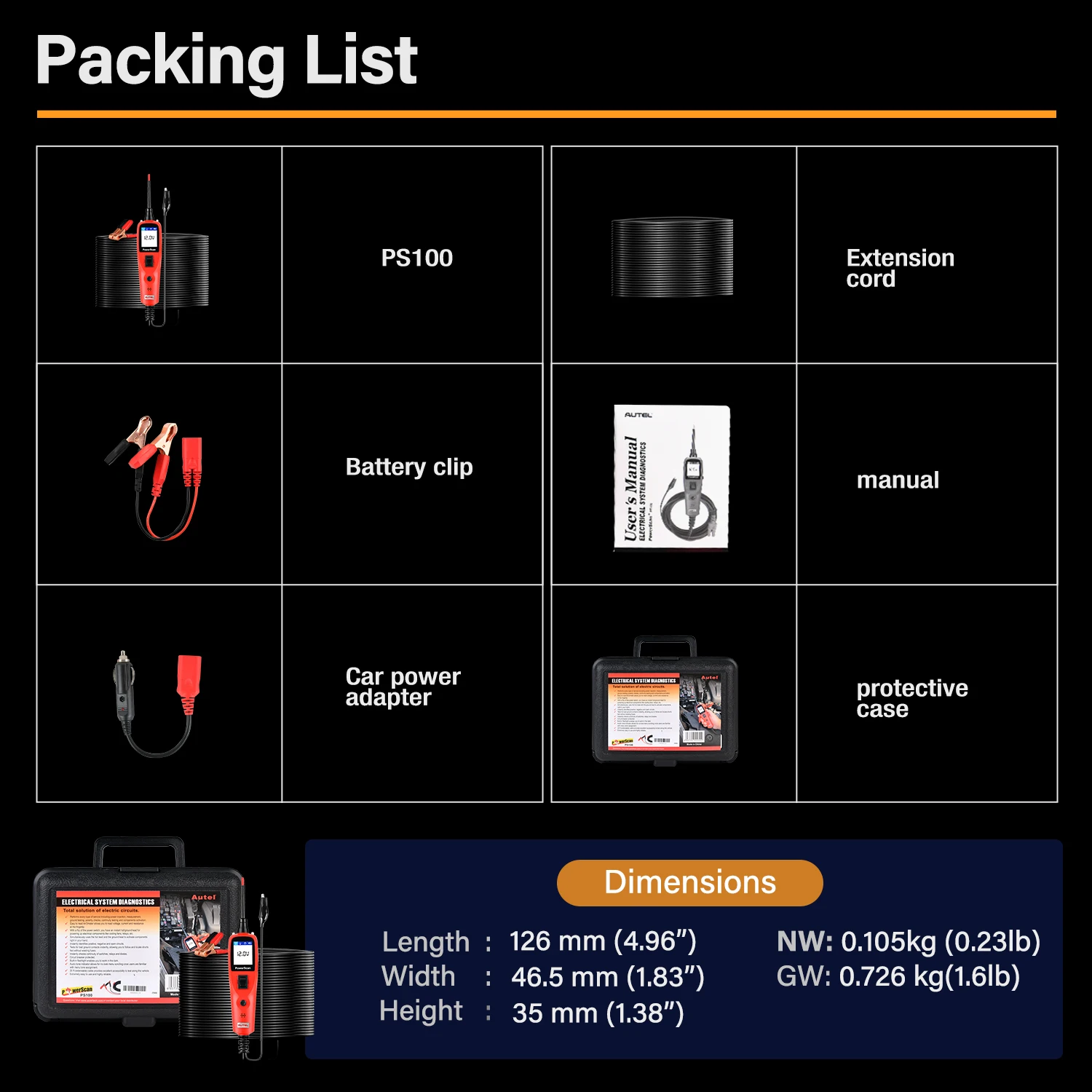

PS100 Package List

1 × PowerScan PS100

1 × Rugged blow molded case

1 × 20ft. extension cable

1 × Probe tip

1 × Battery hookup clips

1 × Cigarette lighter adapter

1 × User's Manual

Autel PS100 FAQ

1.Is the PowerScan Probe Tester computer and air bag safe?

The tool LED and LCD pull no more than 1 milliamp of current,therefore when using it as a test light or multimeter it is computer and airbag safe. However, pressing the power switch is a different story. When you press the switch forward, you are conducting full battery current to the tip of the probe. There is a nice safety feature built into the tool. Simply connect the extra ground lead to the tool and press the power switch forward until it trips the circuit breaker.This will prevent power from going to the tip but still allow you to use the tool as a multimeter. When you are away from computer components, simple press the reset button and you are ready to power up again.

2.Why do I have no power at the tip when I am pressing the power switch forward but the red LED is on?

The power switch goes through a lot. It is one of the few things that go wrong with the tool. The switch is a consumable that needs to be replaced on occasion. We have made it real simple to not only change it but also buy a new switch. The switch can be snapped out and replaced in seconds. You can buy switches from your Autel authorized tool supplier. The tool with the Rocker Switch slots makes it easy to replace a worn switch in the field without having to send it in for repair.
