700W Electric Soldering Hot Plate 200x200mm, Digital Preheating Plate 32-932℉ for PCB Repair BGA Soldering LED

Description

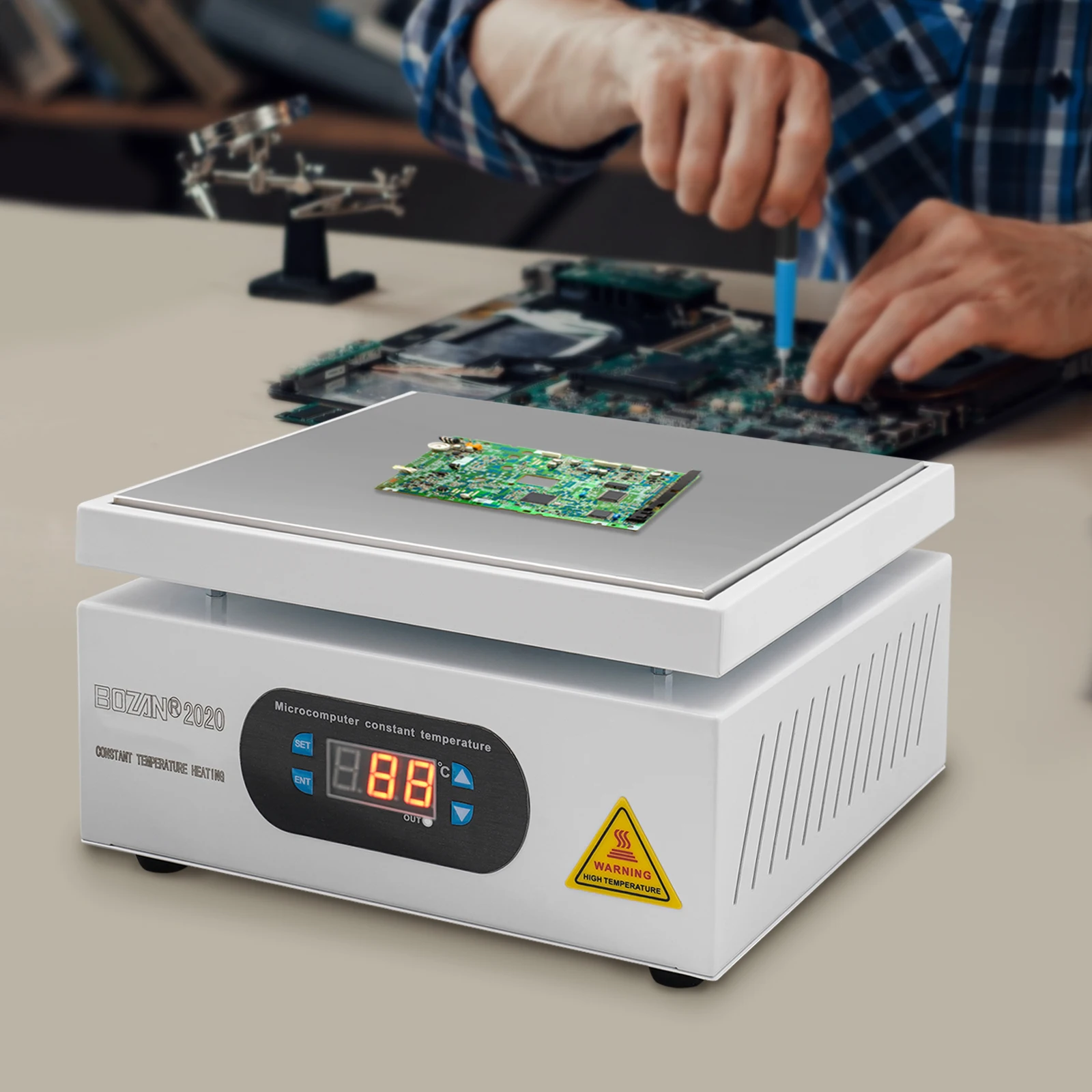

This microcomputer electric hot plate allows for fast, even, and stable heating, making your work more efficient. The product is made of aluminum alloy and metal plate, which is sturdy and durable while ensuring good heat conductivity. It is easy to operate and has a wide range of temperature adjustments and a 7.87*7.87-inch heat plate, making it widely available in different industries.

Application

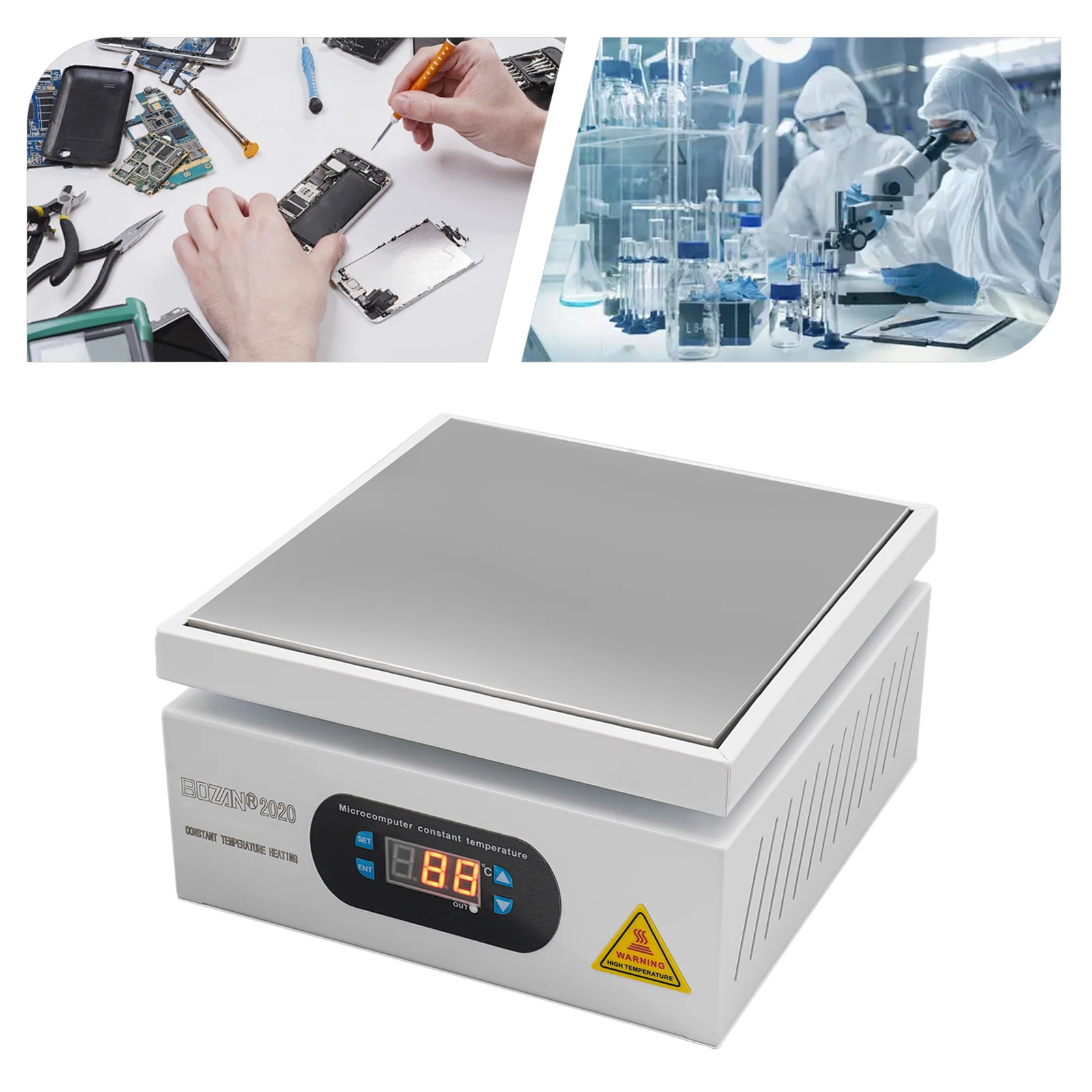

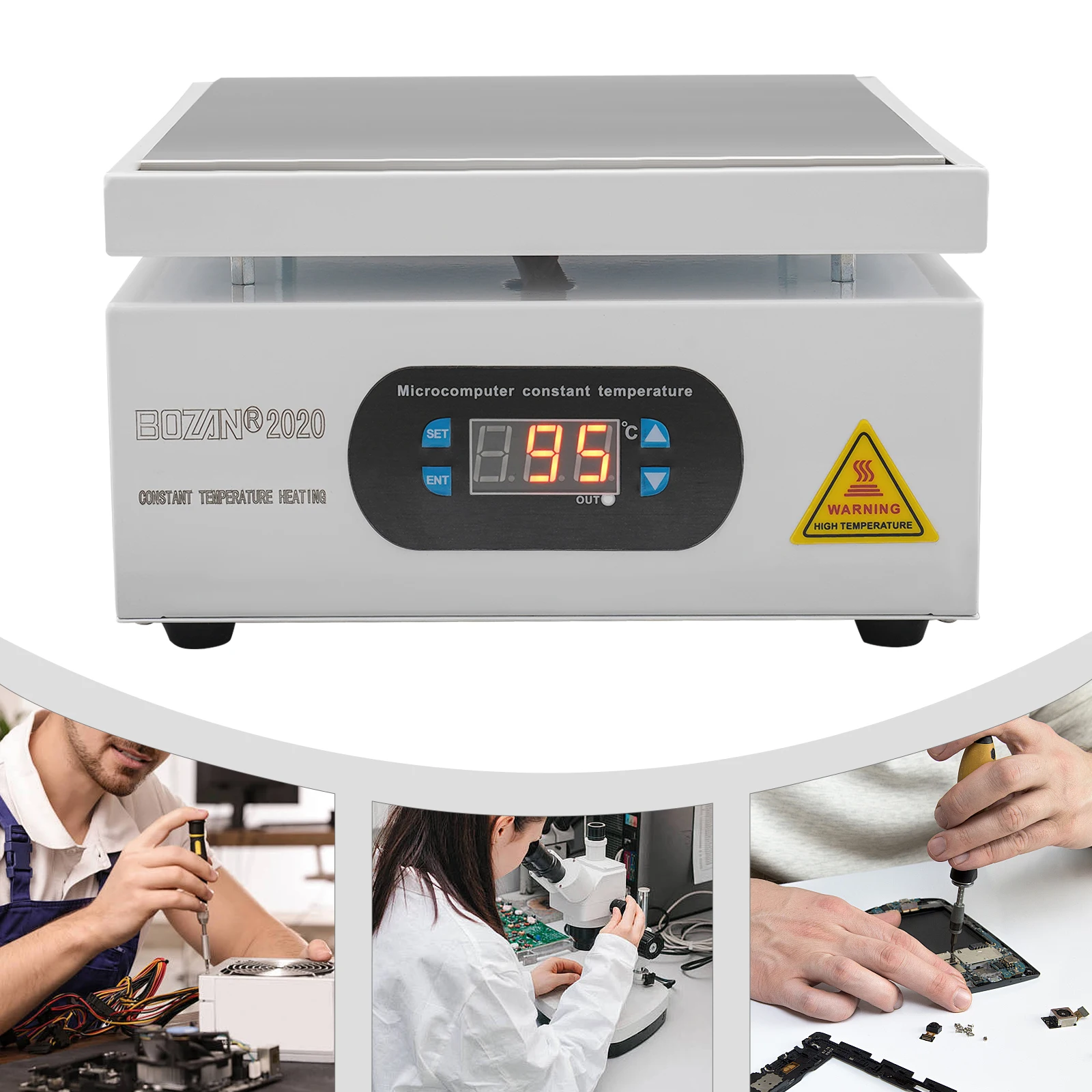

The products can be used for splitting, repairing cell phone screens, LED displays, component work, PCB dismantling, soldering work, component heating work, SMD rebuilding work, packaging box plastic sealing hot film work, etc.

Temperature Range (For Reference Only)

300-400°C/572-752℉: Pre-heating of mold cores and various metal materials

200-300°C/392-572℉: BGA ball welding

200-250°C/392-482℉: LED bead soldering, maintenance

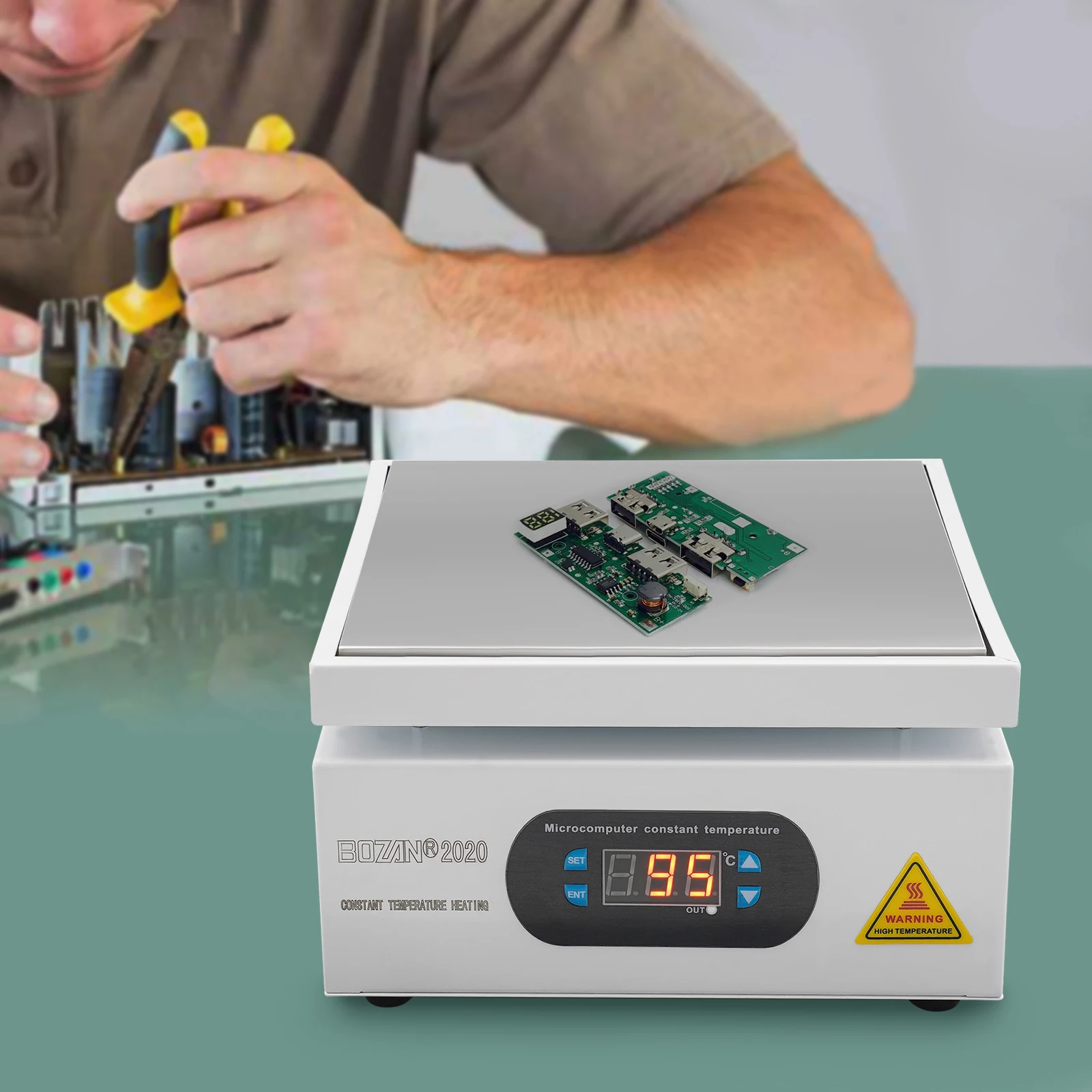

150-200°C/302-392℉: Preheating and repair for electronic circuit board

80-120°C/176-248℉: Remove cell phone screen

30-100°C/86-212℉: Heating laboratory reagents

30°C/86℉: Heating Medical Experiment, Cell Culture, and Liquid

Specifications

Color: White+Silver

Material: Metal Plate, Aluminum Alloy

Process: Wire Drawing, Spray Paint

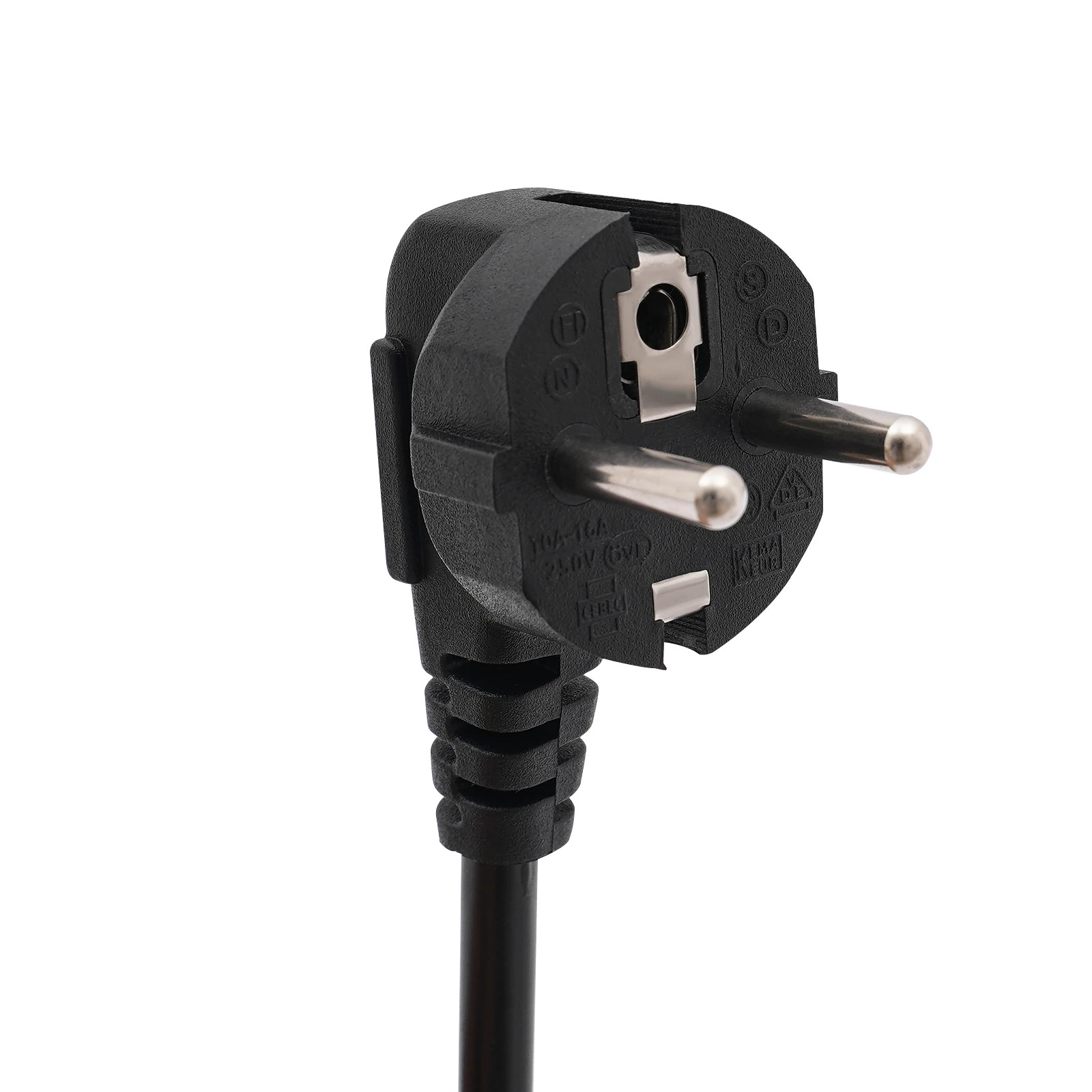

Plug Type: EU Standard

Power: 700W

Voltage: 220V

Power Cord Length: About 1.5m/4.92ft

Power Cord Diameter: About 6.7mm/0.26in

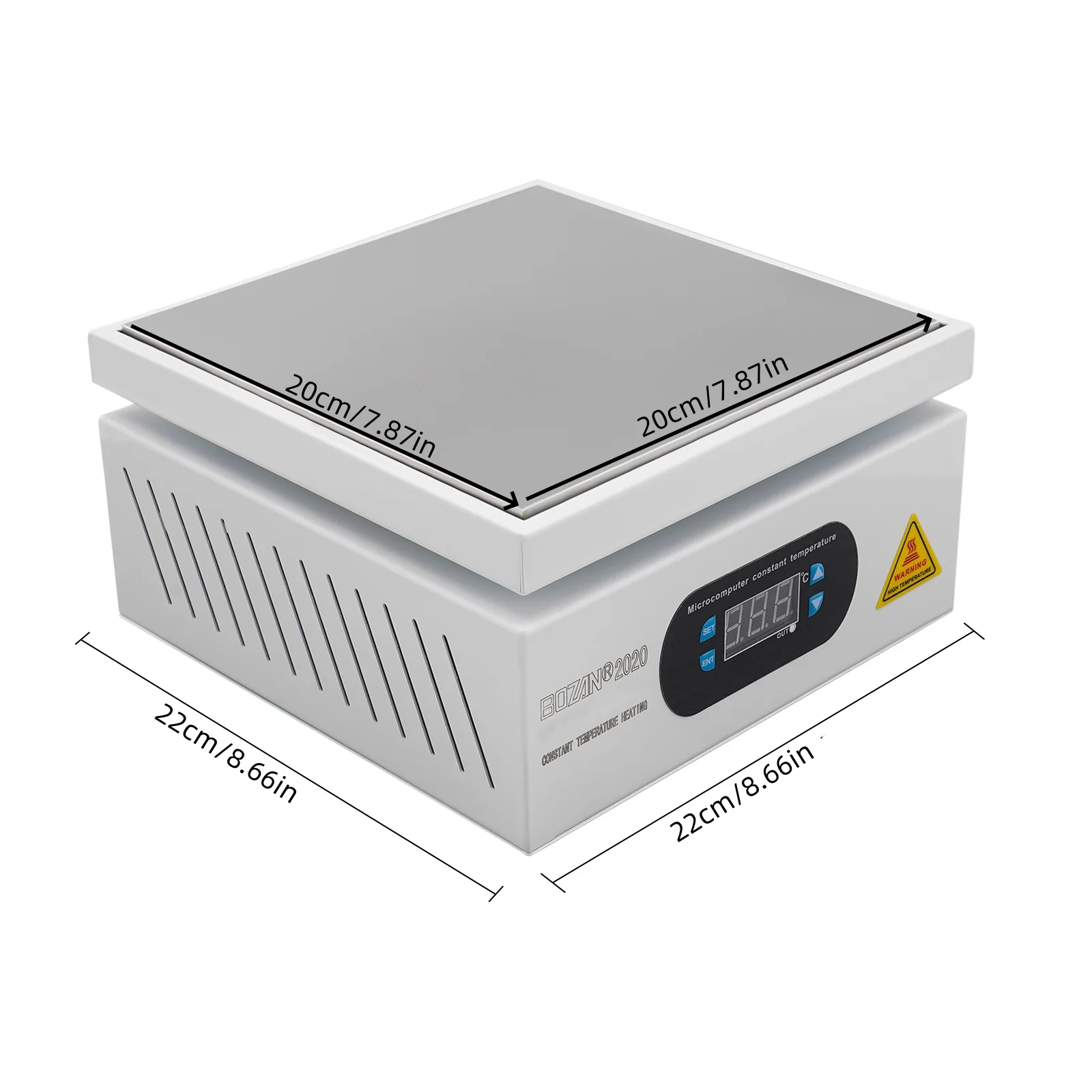

Heating Area: 20*20cm/7.87*7.87in

Adjustable Temperature Range: 0-500℃/32-932℉

Packaging Size: 26.5*26.5*18.5cm/10.43*10.43*7.28in

Gross Weight: 3.1kg/6.8lbs

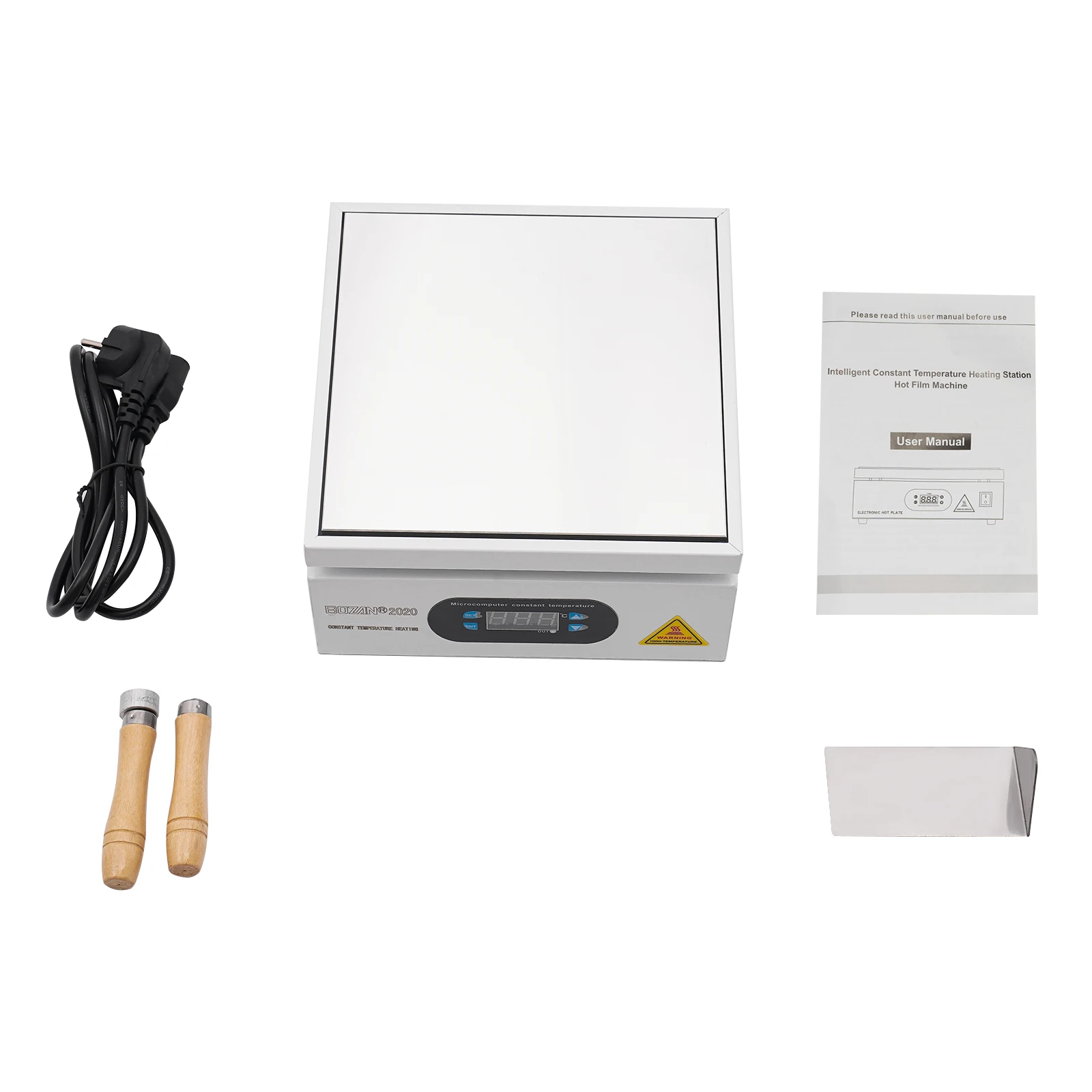

Package Included

1*Microcomputer Electric Hot Plate

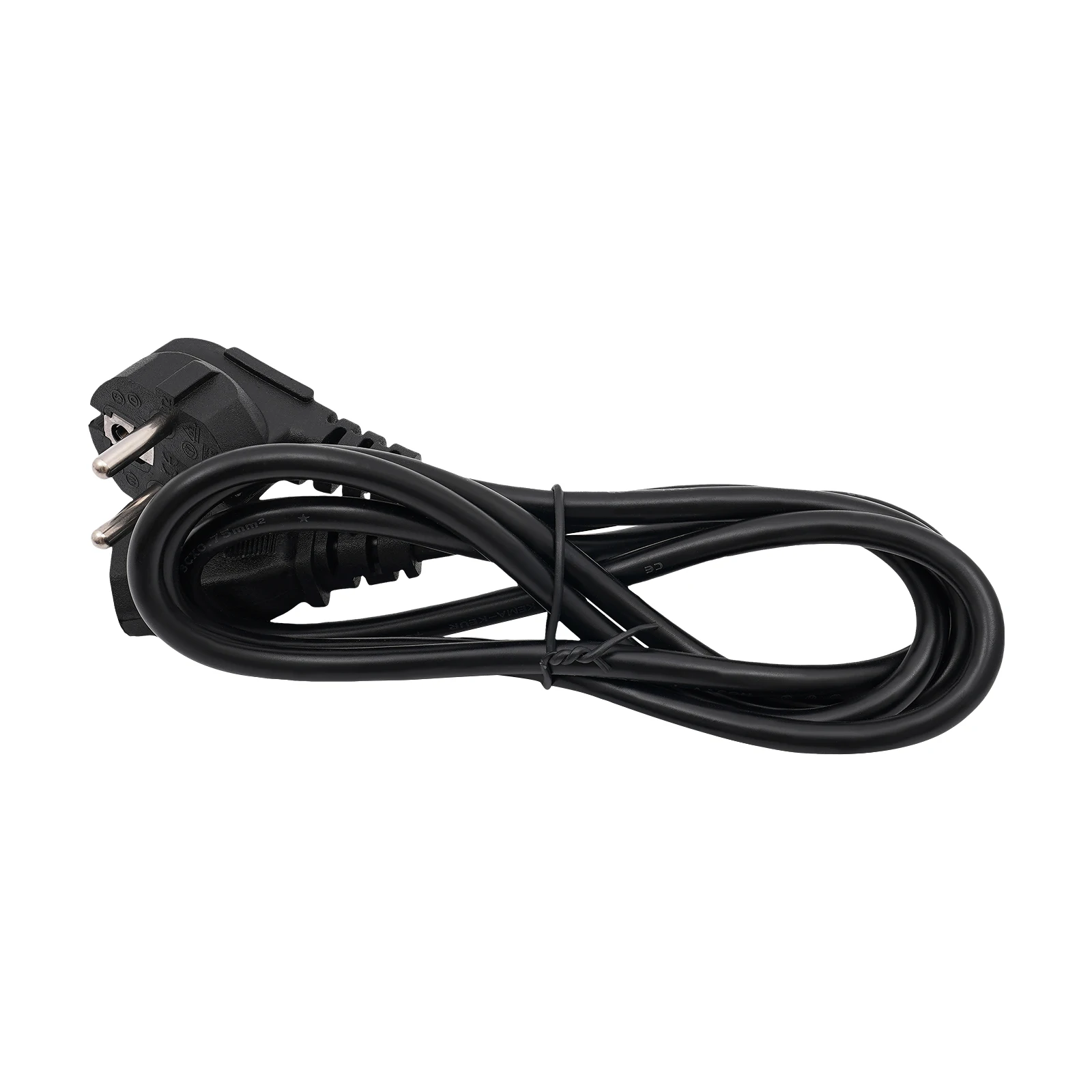

1*Power Cord

1*English Manual

Other Needed Accessories

Key Features

Sturdy and Durable: The product is mainly made of aluminum alloy and metal plate and adopted wire drawing and spray paint processes, making it not easy to corrode and deform so that it can bear high-tension use and has a long service life.

High Heating Efficiency: The 700W high power and aluminum alloy heating plate with high thermal conductivity can ensure that the heating plate and the workpiece are heated evenly and quickly to improve your working efficiency.

Multi-functions: The product comes with multiple functions to make your work easier, which include the menu-locking function, temperature correction, and the auto-tuning function.

Constant Temperature: The product adopts a microcomputer chip with low energy consumption, which can control the temperature intelligently and accurately for even, stable, and quick heating.

Simple Operation: It comes with a digital display that can show you the temperature so that you can easily and precisely control the temperature from 32-932℉ through the operation panel. In addition, the product also has a memory function. After saving the temperature, the next time the product starts it will automatically heat up to the last set temperature.

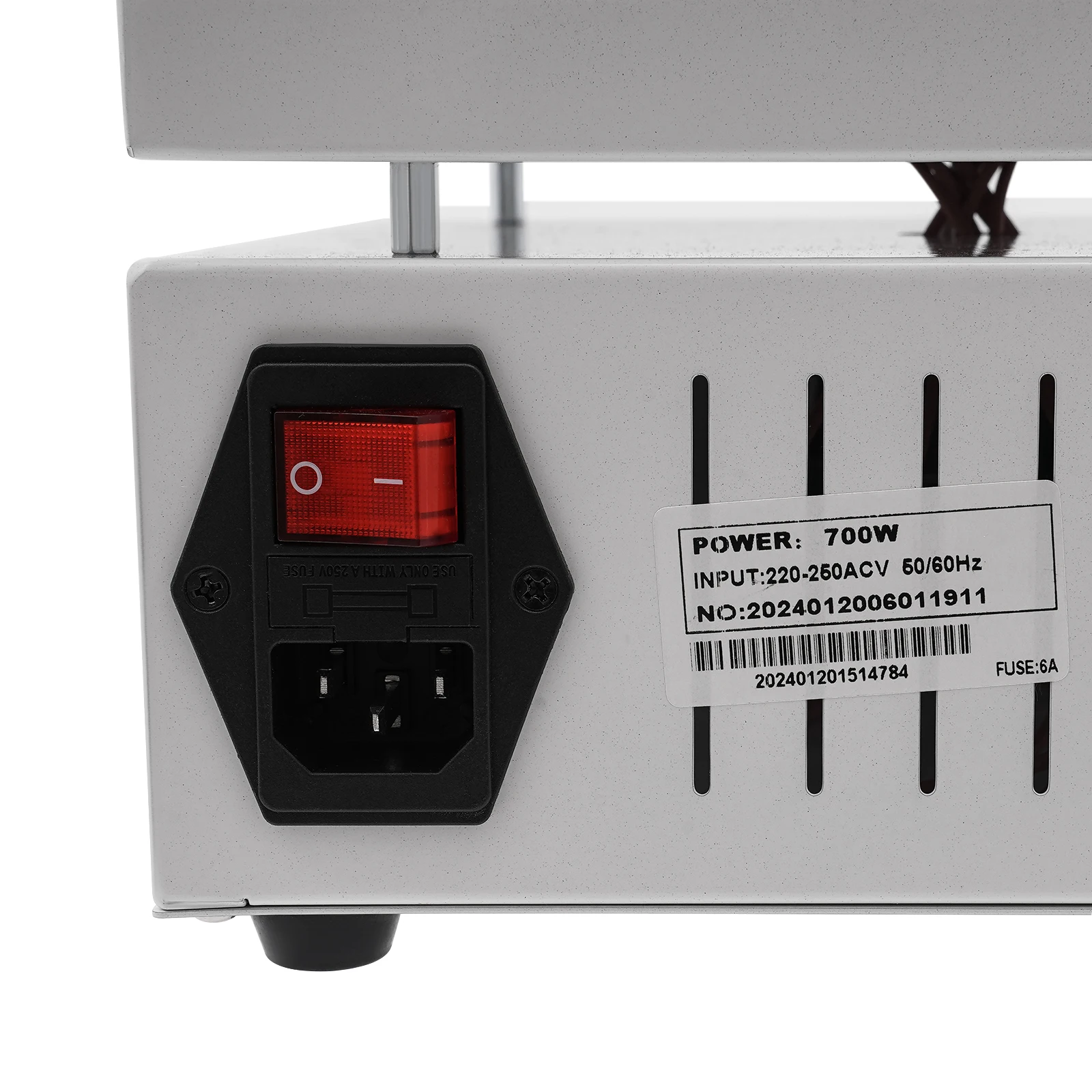

Safety Guarantee: The product is equipped with a three-prong power cord socket made of insulating material to avoid leakage of electricity. The fuse tube next to the socket helps avoid fire while protecting the circuit heater core and allowing for easy replacement.

Wide Compatibility: The 7.87*7.87-inch heating plate and 32-932℉ adjustable temperature make our products suitable for heat shrink film packaging, PCB removal, chemistry experiments, and other fields.

Protective Packaging: The pearl cotton can better protect your product during transportation so that it can be delivered to you completely to the greatest extent.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

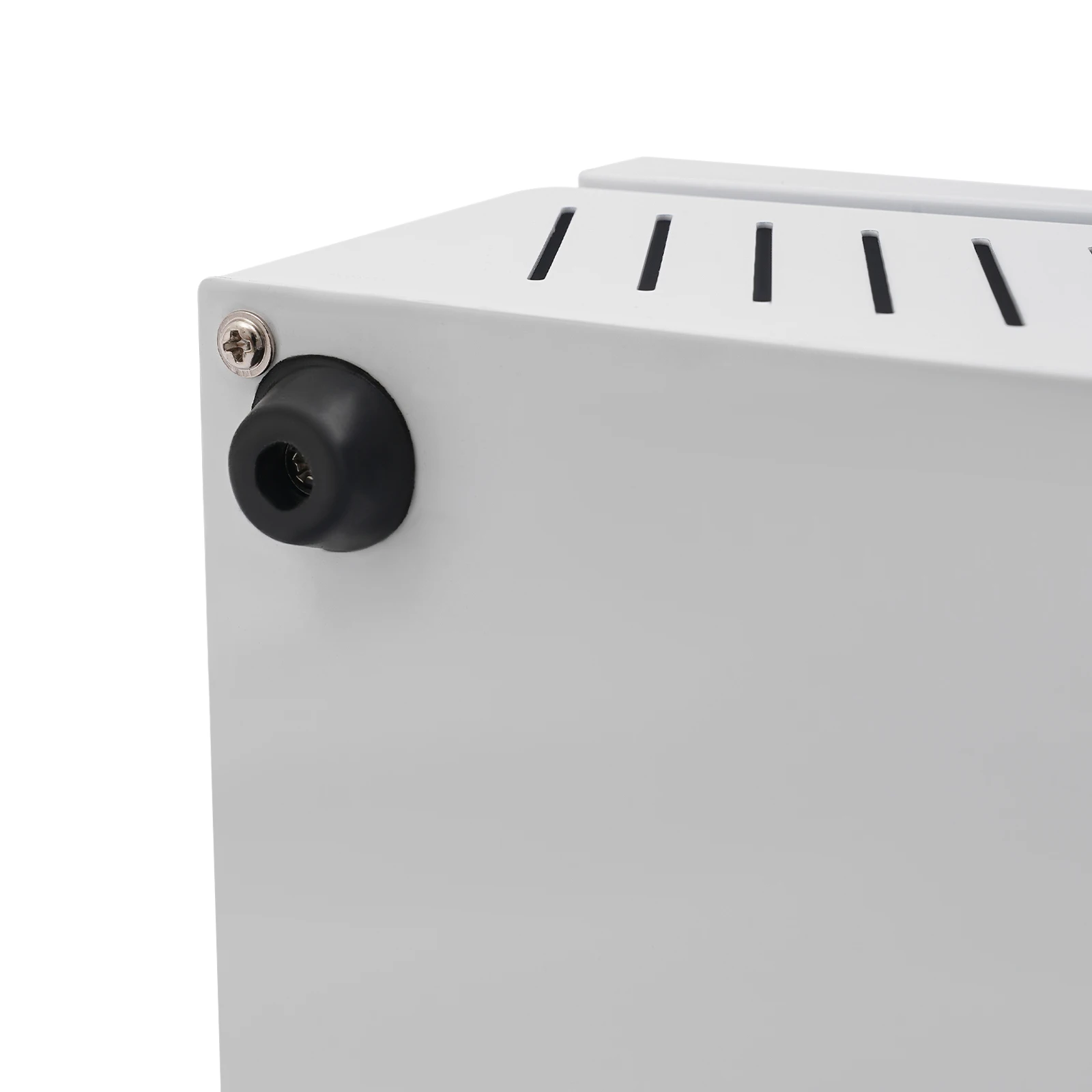

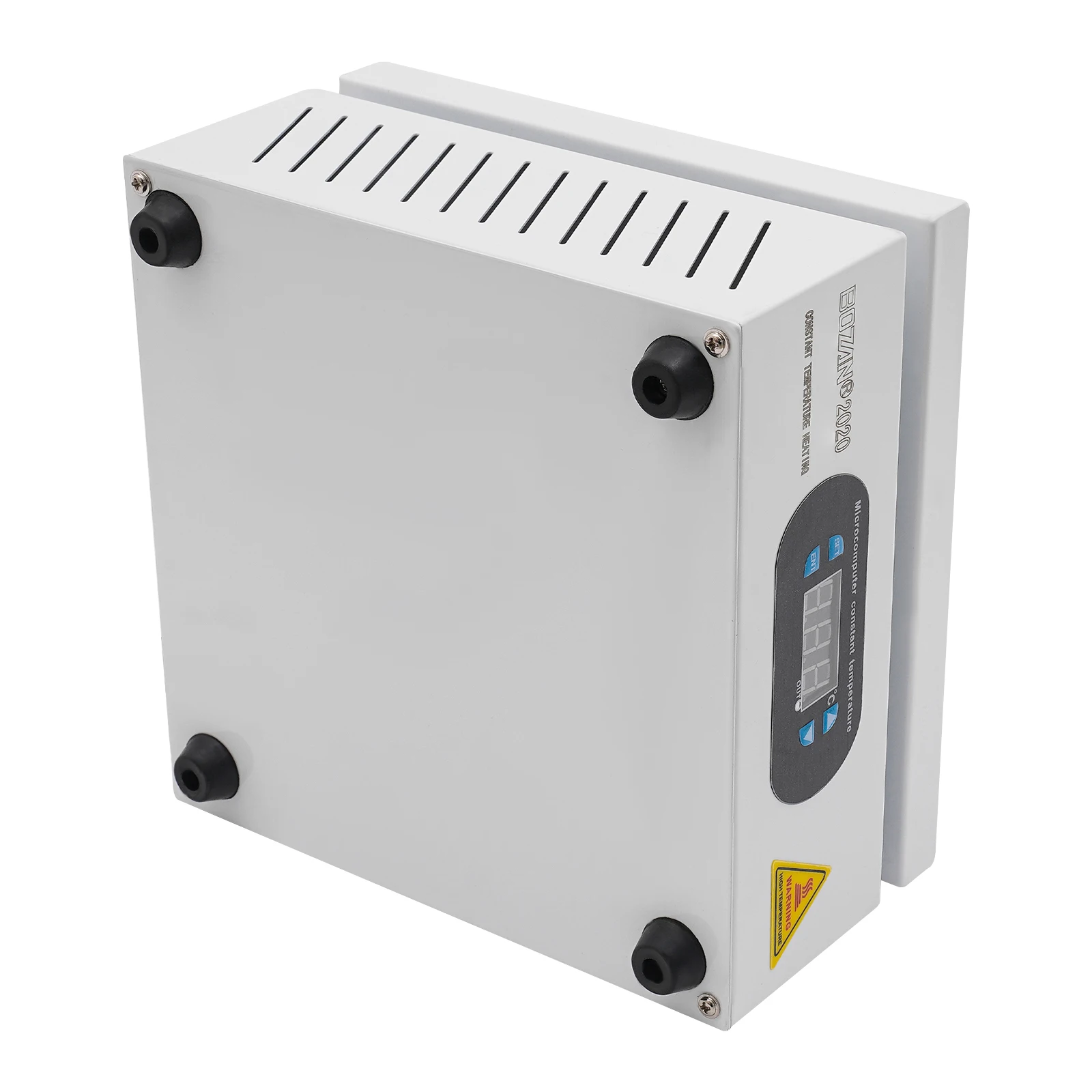

Non-slip Feet: They provide stable support to prevent the product from sliding during operation, and protect the countertop from scratches.

Heat Emission Holes: The heat-sink holes on the left and right sides allow air convection to promote heat dissipation and increase the service life of the heater.

Surrounding Edge Wrapping: The heating platform is designed with edges around it to prevent accidental contact and scalding during operation. This design also avoids slips or scratches.

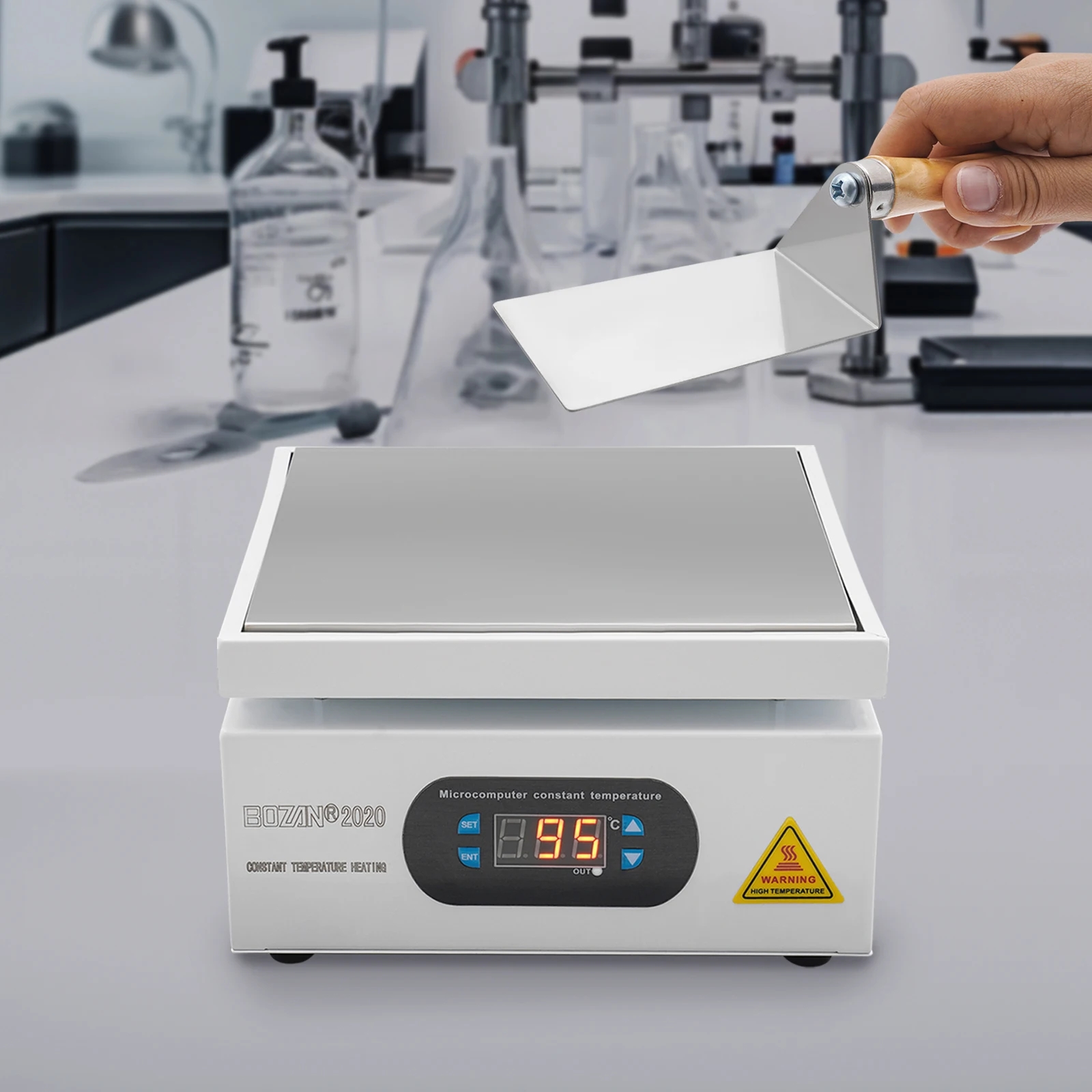

Tools for Shrinking Packaging: These tools can be used to press and secure film packages for heat-shrink packaging.

Notes

1. Please check the size carefully before ordering.

2. Please read the operating manual completely before use. And pay particular attention to the safety instructions included.

3. Please make sure the machine is well grounded before use. Please do not let the airflow blow directly onto the circuit board, otherwise, it will affect the heating of the heater.

4. Before use, please make sure that the ventilation window on the chassis of the thermostatic platform is not blocked by foreign objects, so as not to affect its heat dissipation effect. Please do not place the product in damp and corrosive places for use or storage.

5. Please make sure that the tabletop with the thermostatic platform is flat and not inclined to keep the aluminum heating platform level. Please also make sure that the desktop material must be heat-resistant.

6. The surface of the workpiece and the surrounding area are very hot during product operation, so please do not use the hot plate near flammable materials, and please take care not to allow yourself to be scalded or burned. If you need to move or touch the machine, please turn off the power and wait for the heating plate to cool down completely to room temperature.

7. To prolong the service life of the heating element and the machine, please do not use the machine for a long time under high temperatures (higher than 300℃/572℉). Under normal circumstances, the machine should not work continuously for more than 8 hours.

8. This machine is a high-temperature electrically heated product. Please disconnect the power supply if the machine is not in use to avoid danger and accidents.

9. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
