3KW Electric Brushless Motor Kit 48-72V Electric Bike Motorcycle E-Scooter Conversion Kits Controller Throttle

3KW Electric Brushless Motor Kit with Foot Pedal Accelerator & Forward/Backward Handlebars Electric Bike Motorcycle E-Scooter Conversion Kits Controller Throttle

👍Application：

It is suitable for scooters, electric motorcycles, dune buggies, go-karts, modified bicycles, mechanical equipment, etc

Efficiency Improvement: Compared to brush motors, brushless motors have higher energy efficiency (≥ 80％) and can convert more electrical energy into mechanical energy, which can extend the range and improve usage efficiencyBuilt to Last: The motor is made of high-quality aluminum casing with pure copper coils, which has high-temperature resistance, low noise, anti-corrosion and rust prevention, guaranteeing a long service lifeSafe to Use: It has an IP33 protection level, an E-class insulation level, and a design of locking power. Even in outdoor activities with slightly harsh environments, it can provide higher safety for youImpressive Performance: It adopts high power (3KW) that can provide a rated speed of 4900 rpm and a 6000 rpm no-load speed, as if weaving through a time and space tunnel intertwined with technology and speed, ideally interpreting the aesthetic of speedStrong Load Weight: It has a strong load weight (220.5-440.9lbs). Whether a professional athlete or a leisure sports enthusiast, it can provide you with a thrilling cycling experience

👍Specification：

Material: Aluminum, Rubber

Brushless Motor Type: Pure Copper Motor

Speed Gears: Low / Medium / High (After Connecting Three-speed Line)

Motor Voltage: 48-72V

Motor Efficiency: ≥ 80％

Power: 3KW

Assembly Required: Yes

No-load Current: ≤ 8.8A

Rated Current: ≤ 43A

No-load Speed: 6000rpm

Rated Speed: 4900rpm

Rated Torque: 5.4 N.m

Protection Grade: IP33

Insulation Grade: E

Load Weight: Approx. 100-200kg/220.5-440.9lbs

Foot Pedal Accelerator Size: 5.5*17.5*12.8cm/2.2*6.9*5in

Controller Size: 21.6*8.3*4.4cm/8.5*3.3*1.7in

Leg Distance: 12cm/4.7in

Leg Height: 1.5cm/0.6in

Interface Length: 3cm/1.2in

Motor Size(φ*L): 10.2*13.2cm/4*5.2in

Package Size: 39*35*25.5cm/15.4*13.8*10in

Net Weight: 6.45kg/14.2lbs

Gross Weight: 7.7kg/17lbs

👍Details：

Heat Dissipation Holes: These holes on both sides of the motor can avoid overheating during operation without burning

Diamond-shaped Pattern: The pattern on the handlebars can effectively enhance its friction, making the grip more comfortable and firmer

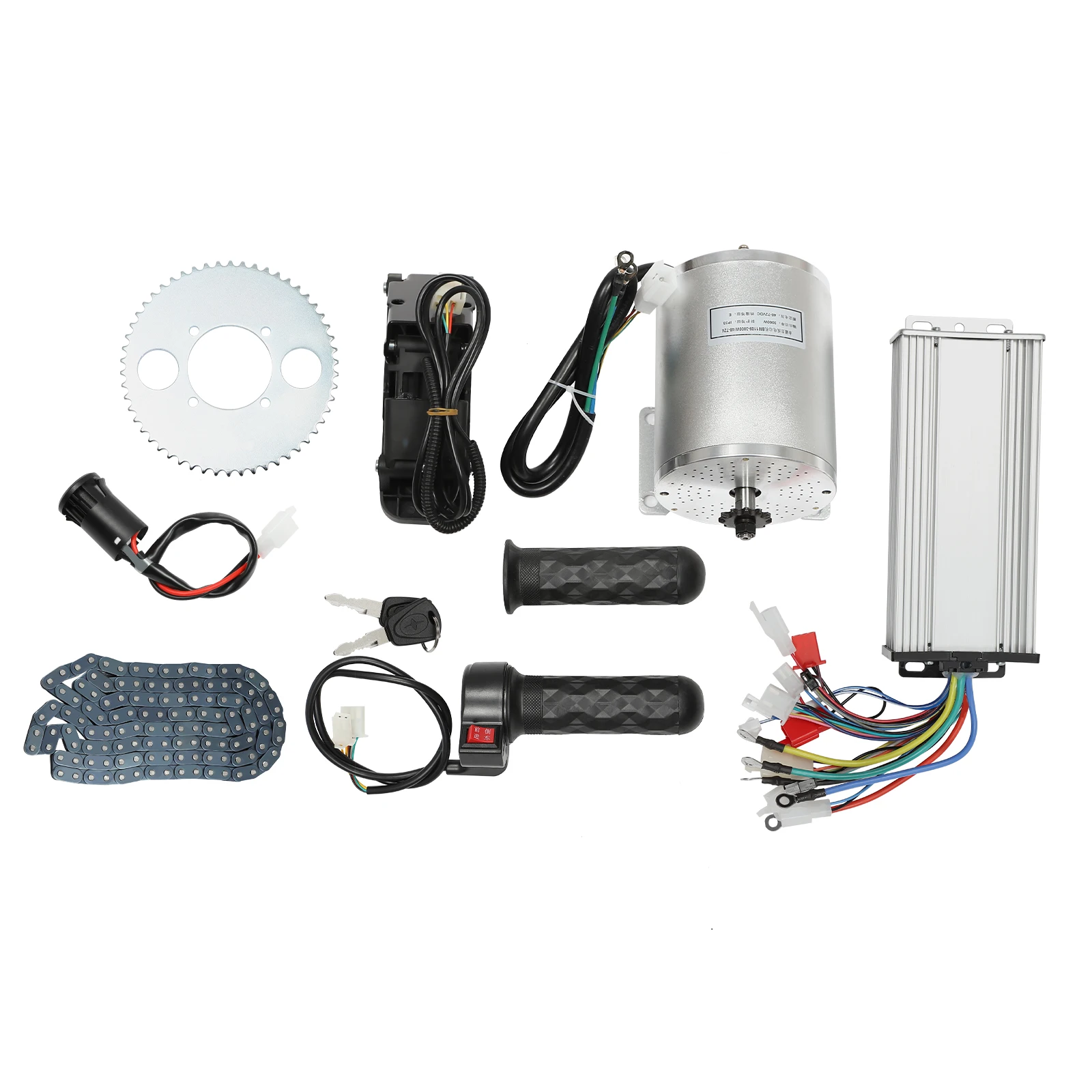

👍Package Included：

1* Brushless Motor

1* Controller

1* Foot Pedal Accelerator

1* Electric Door Lock

1* Chain

1* Chain Disk

1 Pair* Lock Keys

1 Set* Forward/Backward Handlebars

Other Accessories for Installation

👍Notes：

1.Please note that the motor speed will be determined based on the load weight and other factors

2.When connecting the controller to the wires, please make sure to connect the correct color to it. Otherwise, the controller may be damaged

3.Please do not let the motor run in reverse for a long time, as this will shorten its service life

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering
