370W/550W/750W Heavy-Duty Sliding Gate Opener with Electric Automatic Motor, 6m Rack & Remote Control Kit – Ultimate Convenience

Description

Because of the 370W/550W/750W power, this door opener has strong starting and pulling power. This door opener is designed for heavy loads, so it can fit doors up to 1322lbs/2645.55lbs/3968.32lbs. Its running is more stable than normal sports. Because of these remotes, you can open the door remotely. It is suitable for stainless steel doors, iron doors, copper doors, solid wood doors, etc.

Application

It is suitable for stainless steel doors, iron doors, bronze doors, solid wood doors, etc.

6* Rack doesn't include in the product

Our product package does not include 6 tracks, if you need, you can buy them additionally

Specification

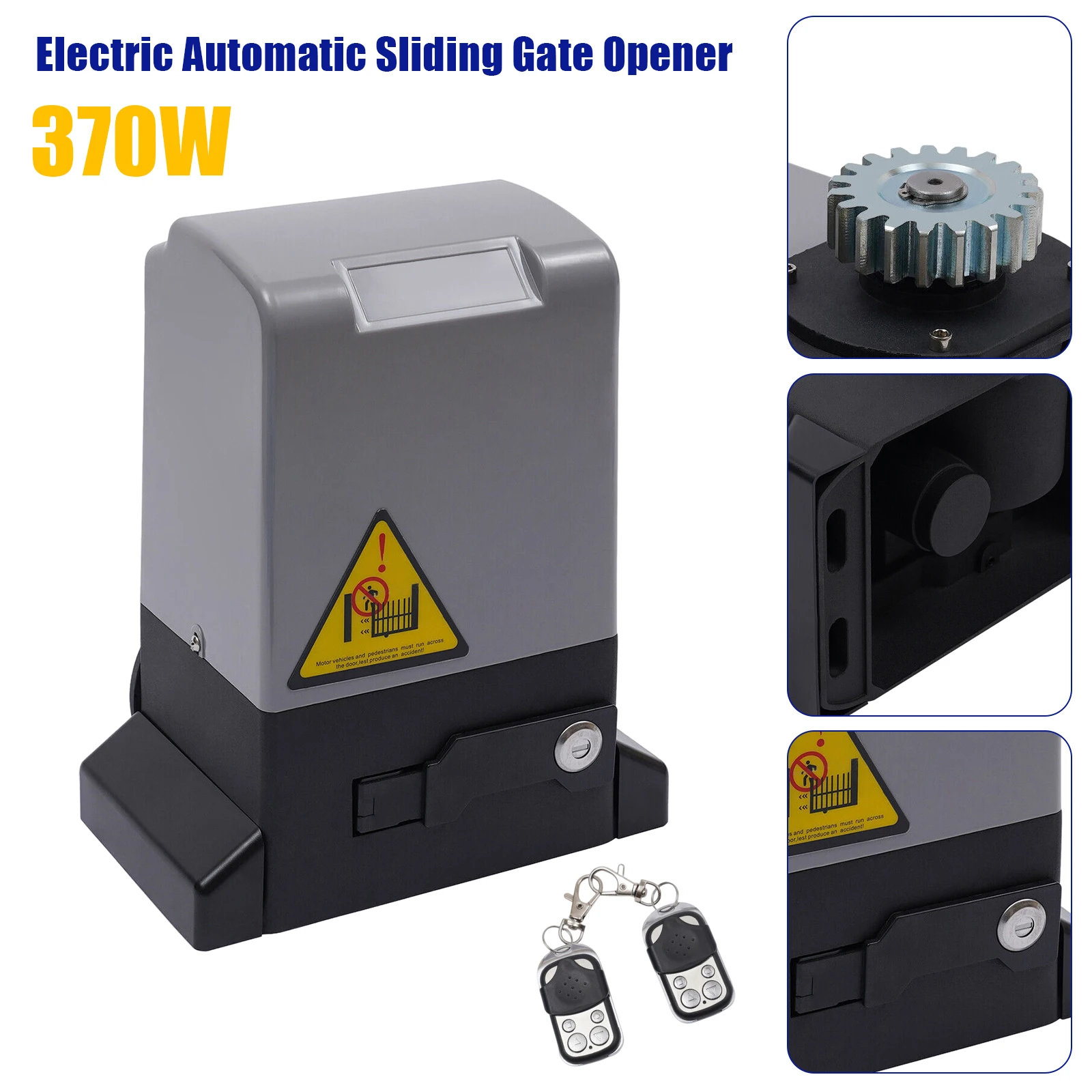

370w

Material: Aluminum Alloy & Metal & Plastic

Voltage: 220V/110V

Plug: European standard/US standard

Frequency: 50Hz

Operating Current: 3A

Rated Power: 370W

Motor Speed: 1400r/min

Output Torque: Approx. 18Nm

Movement Speed: Approx. 12m/min

Operating Temperature: -25℃ to +55℃

Load Capacity (Max): 600kg/1322lbs

Water Resistance: IP44

Gross Weight: About 12.75kg/28lbs

Product Size: 33.5*15.5*27cm/13.2*6.1*10.6inch

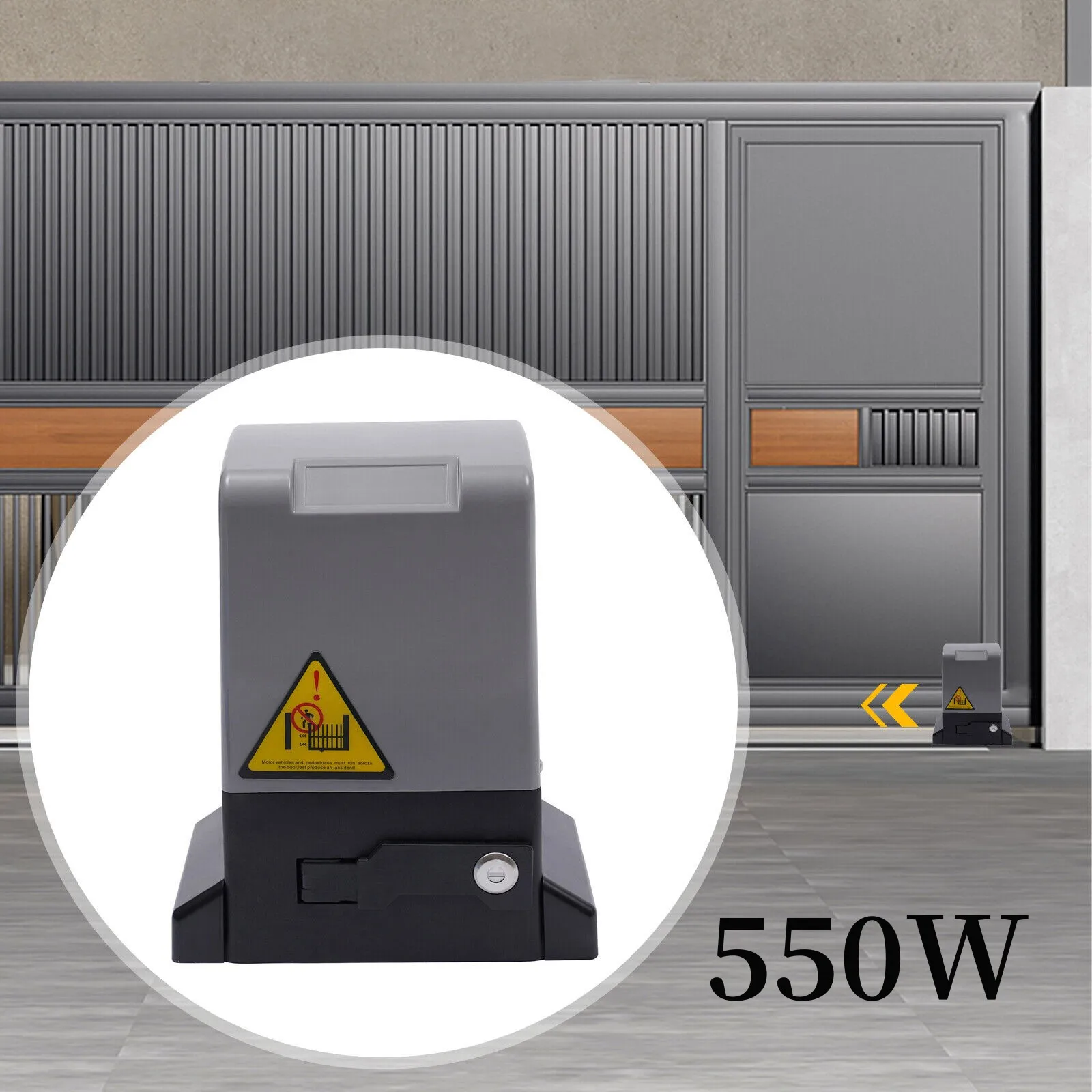

550w

Model: DW-550

Material: ABS+Aluminum

Suitable for Door Weight: ≤1200kg/2645.55lbs

Suitable for Door Width: 2-12mm/0.0787-0.472in

Latch Strength: Adjustable

Limit Mode: Spring Switch

Voltage: 220V/110V

Plug: European standard/US standard

Working Power: 550w

Working Temperature: -250C-+550C

Running Speed: 12m(472.44in）/min

Protection Class: IP44 (Outdoor Waterproof)

Product Size: 32*26*39cm/12.6*10.24*15.35in

Net Weight: About 12.5kg/27.56lbs

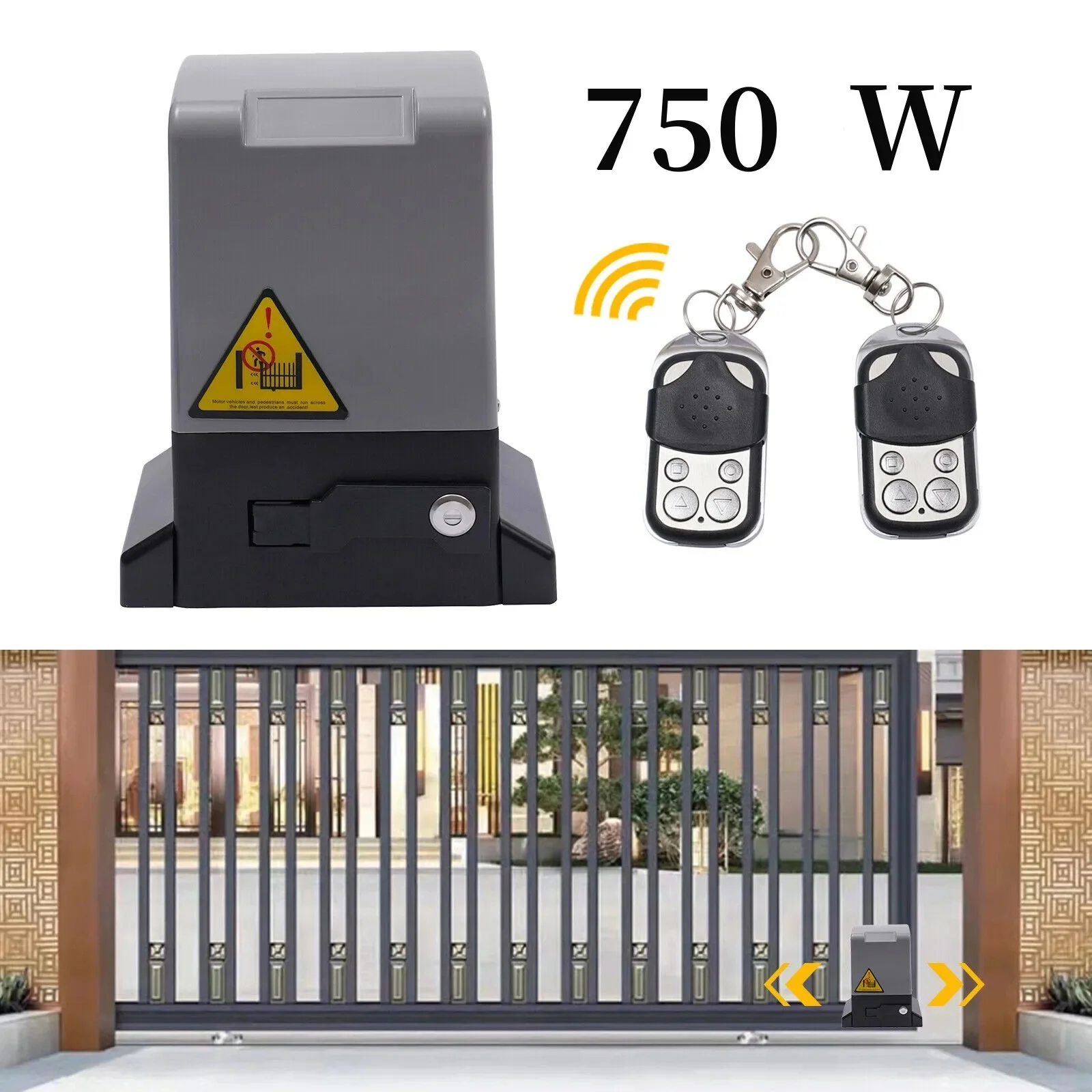

750w

Motor Speed: 1400r/minOutput Torque: 36NMOperating Speed: 12m/minWorking Environment: - 25℃~+70℃Waterproof Grade: IP44Maximum Application Weight: 1800kgMotor Size: Approx. 27.4 * 19.8 * 33cm / 10.8 * 7.8 * 13.0inchPackage Weight: Approx. 17kgCondition: 100% Brand NewMaterial: Metal

Voltage: 220V/110V

Plug: European standard/US standard

Working Current: 3APower: 750W

Package Included

370w

1x Gate Opener

2x Keys

2x Infrared Sensors

2x Remote Controls

Other Accessories

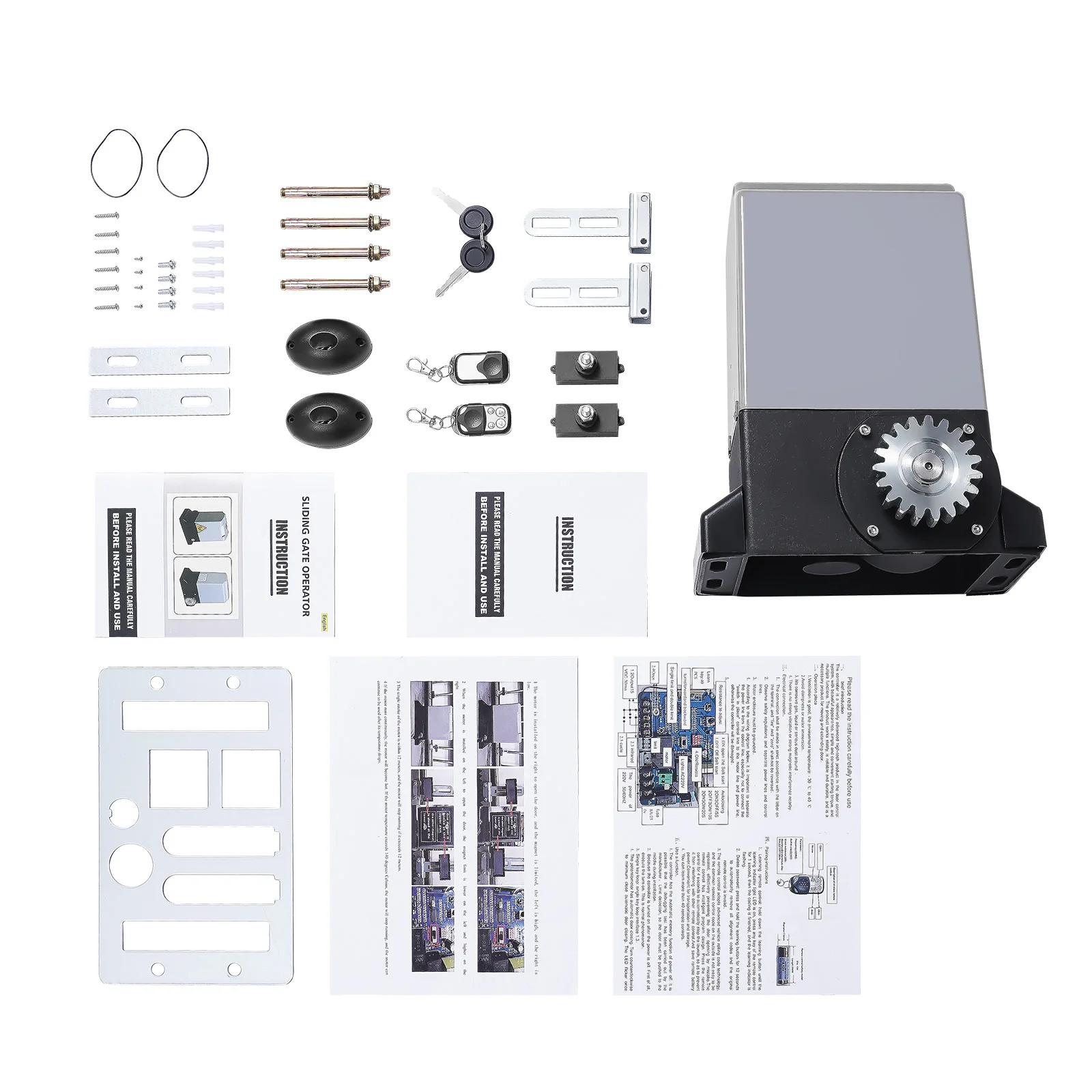

550w

1*Door Opener

1*Fixed Base Plate

2*Limiting Brackets

2*Metal Remote Controls

2*Limiting Magnets

2*Manual Clutch Keys

2*Infrared Sensors

2* Base Fixing Pieces

4*Pull the Screws

1*English Manual

Other Accessories for Assembly

750w

4 * Mounting Screws for Limiter3 * Mounting Plates4 * Install Screws2 * Remote Control2 * Stopper Support1 * Motor2 * Screw Kits2 * Limiters2 * Clutch Keys

6* Rack （Additional purchases not included in the product)）

Color: Silver

Material: Steel

Process: Galvanizing

Assembly Required: Yes

Mount Type: Door Mounted

Number of Pieces: 6

Module: 4

Hole Spacing: 450mm/17.72in

Screw Specification: 8 * 25mm/0.315 * 0.98in

Product Length: 1m/3.28ft

Product Height: 30mm/1.18in

Product Thickness: 12mm/0.47in

2x Remote Controls （Additional purchases ）

Specification

Frequency: 433MHZ

Built-in Chip: EV-1527

Shock Resistance: 330k

Materials: ABS+Iron+Alaminium Alloy

Product Size: 5.5*3.05*1.38cm/2.17*1.2*0.543inch

Battery Model: 27A 12V(Not Included)

NOTE

1.Germany Shipped Euro Plug 220V

2.United States Shipped US Plug 110V

3.The products in this link all exclude 6M rack. Please select as needed

4.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
