2 Piece Car Trailer Ramp Height Adjustable Ramp Hoist, Loader Ramp Set Lifting Platform (Grey)

Product Information

Item Code W3020S00006

Product Type Combo Item

Main Color Grey

Main Material Steel

Product Dimensions

Assembled length (cm) 114.00

Assembly width (CM) 33.00

Assembly Height (CM) 29.70

Weight (kg) 20.00

Package Size

Sub-Item 1: W3020P240689 Package Quantity: 2118*35.5*32.3cm 21.25kg

Product Features

[Durability] - Supports up to 2000 kg, ideal for most cars, safe and reliable for regular maintenance

[Versatility] - Load capacity 2000 kg and tyre width up to 245mm, whichimproving safety when working under the vehicle.

[Adjustable] - Height adjustable ramp from 290 to 397mm, for numerous cars as well as small vans, cars, trailers, etc.

[Robustness] - Made of high-quality materials, offers durability and reliability even in intensive use

[Hydraulic system] - lifting and lowering by hydraulic cylinder with safety / over pressure valve - ideal for repairs and maintenance on cars and cars.

Description

2x Car ramp height adjustable

If hobbyists in their own garage do not have room for a professional lifting platform, or the floor is not suitable for Mount, it is worth while to put on this ramp with hydraulic car lift. This car ramp does not need to be fixed or anchored, but is used precisely where it is needed. It can then be stored in a space-saving way, for example in the garage or in the basement.

Compatible with a variety of vehicles

The platform with a size of 397 × 290mm ensures a safe position of the vehicle. The base area of 1140 × 330mm gives the ramp a solid position.

Load capacity of 2000 kg

With hydraulic lift with safety/over pressure valve

Maximum security

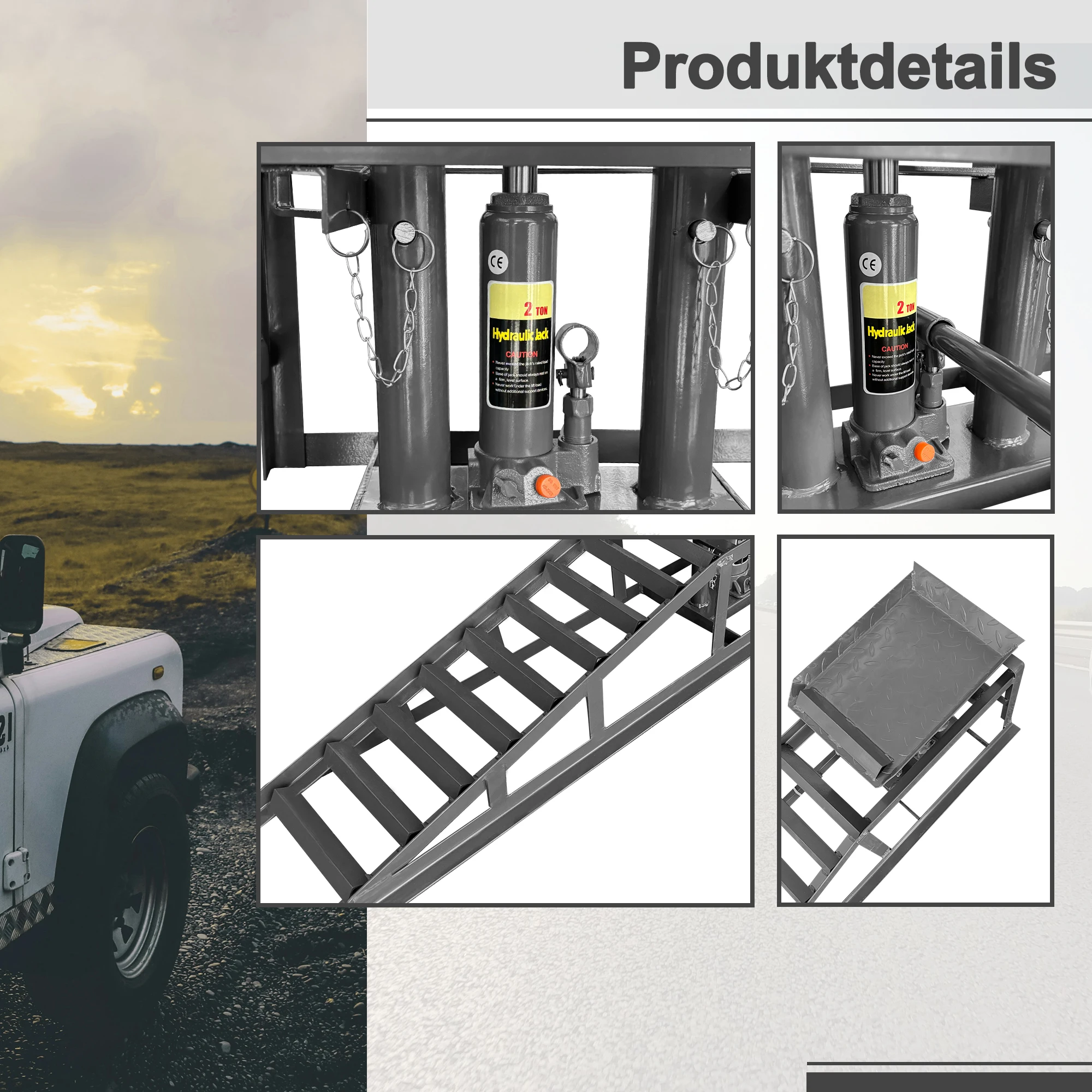

The platform can be fixed with two safety bolts. Attached to the frame construction, they are not lose.

Equipment

Robust ramp for safe work on the vehicle

Height adjustable ramp from 290 - 397mm for numerous cars

Stable Steel Construction (max. load capacity 2 T)

With hydraulic lift with safety/over pressure valve

Security bolts for securing the lift vehicle

Drive width up to 255mm, drive height 290mm

Ideal for underfloor maintenance and assembly

Technical data

Load capacity Max. 2000 kg

Starting position 290mm

Drive width up to 255mm

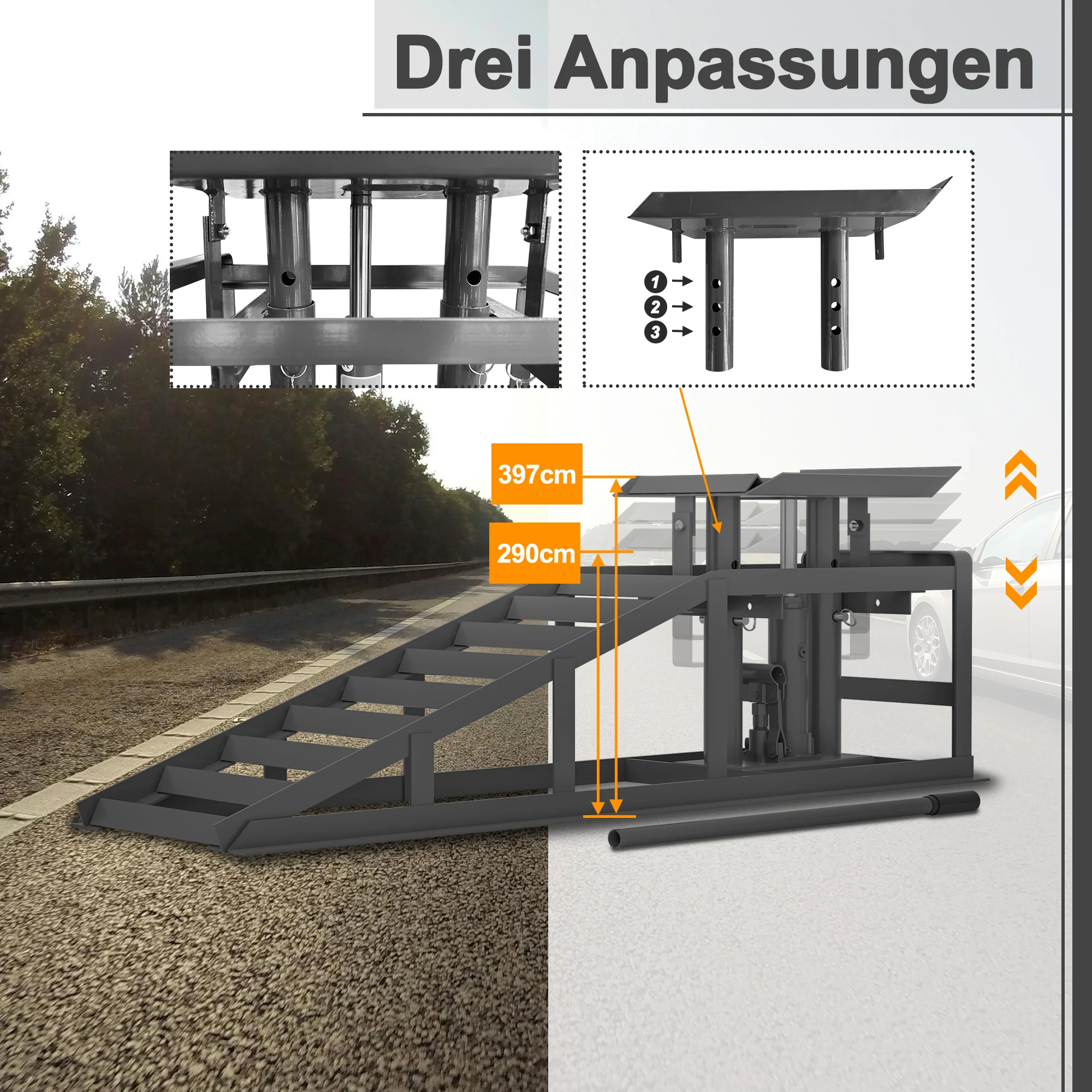

Height adjustable from 290 - 397mm

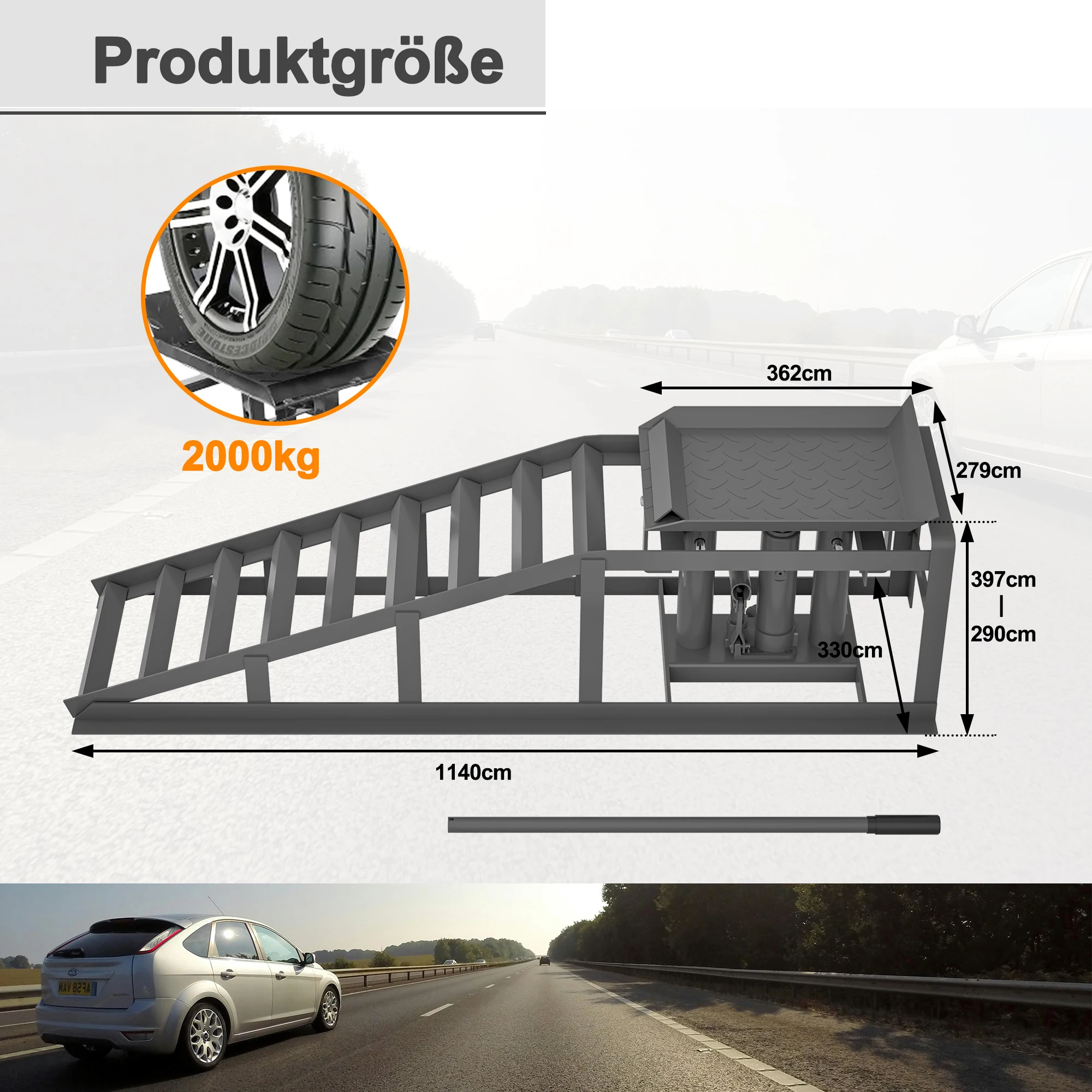

Dimensions 1140x330x297mm

Platform size 362x277mm

Material Steel

Color Grey

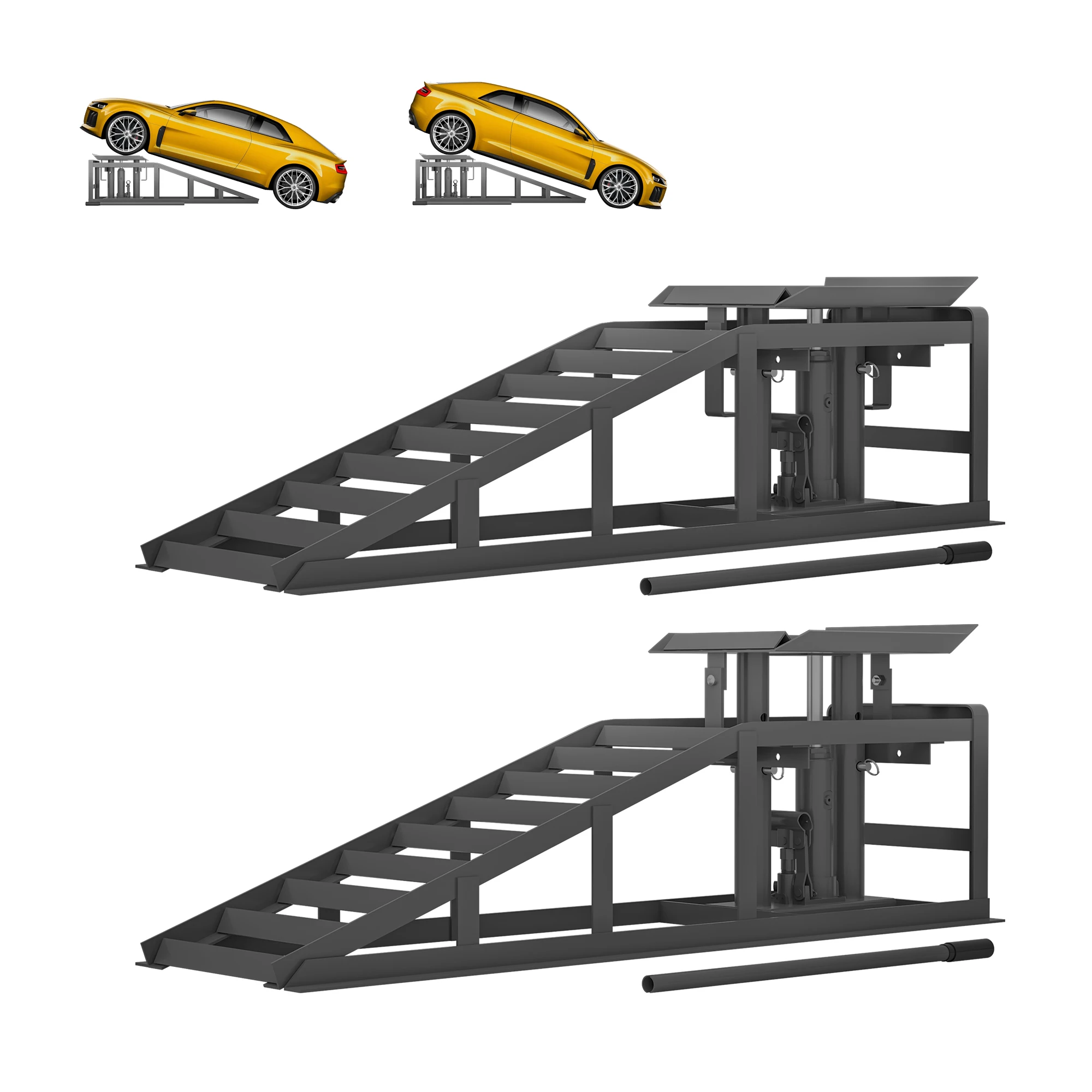

2x ramp, 2x hydraulic lift, pump lever, 1x manual
