12.8V 100Ah Lithium Iron Phosphate Battery

Product Features:

1) Made of Class A prismatic cells

2) Professional 100A battery management system

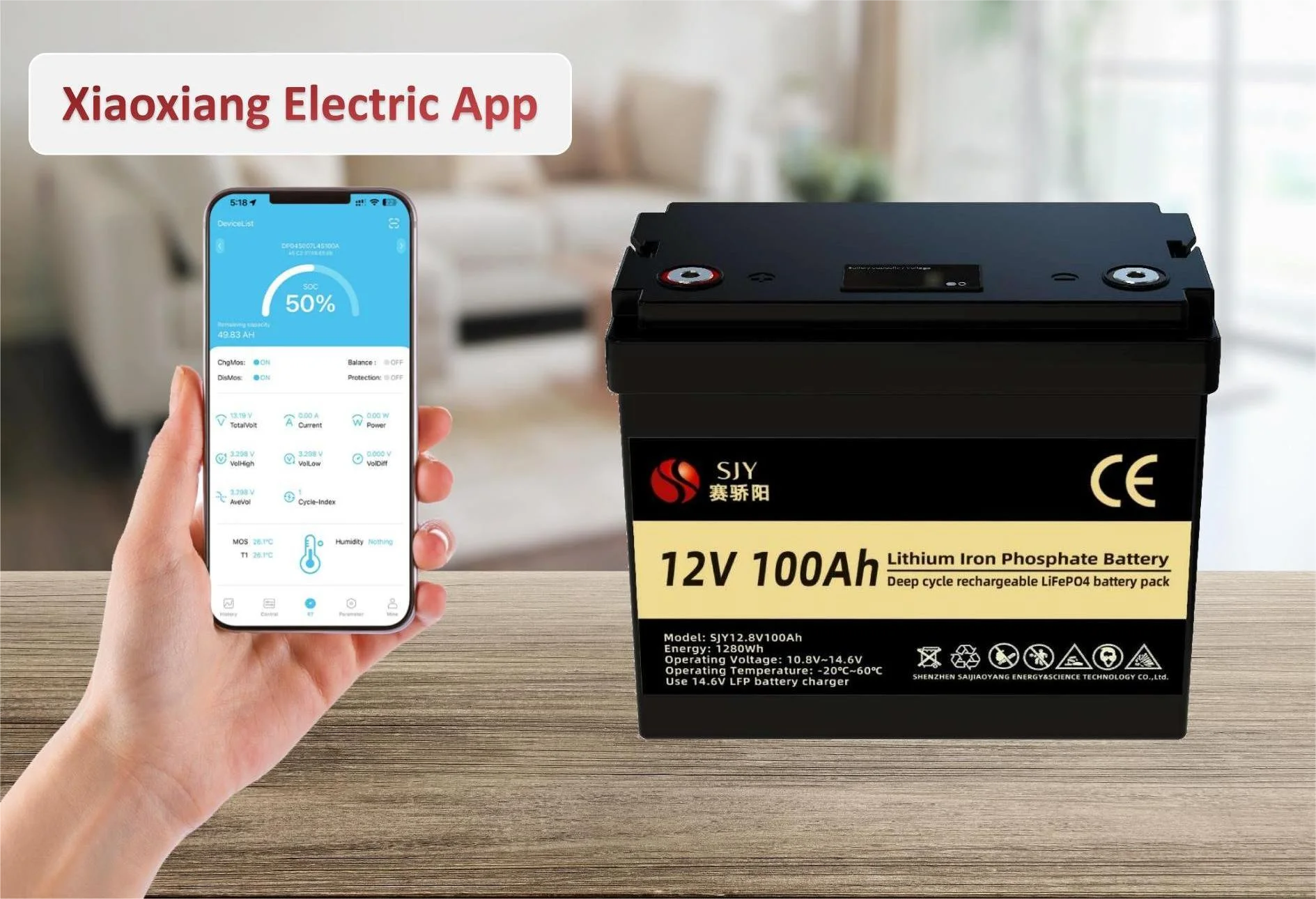

3) Bluetooth functionality

4) 1A active equalizer

5) Coulomb meter (LCD)

6) Removable battery housing

Battery Specifications

Rated Capacity (0.2C): 100 Ah / 1280 Wh

Lifespan: Over 6000 cycles at 80% Depth of Discharge

Rated Voltage: 12.8 V

Charging Voltage: 14.6 V

Depth of Discharge (DoD): 100%

Standard Charge Current: 10~30 A

Charging Time: Approximately 3~9 hours

Maximum Continuous Charge Current: 50 A

Maximum Continuous Discharge Current: 100 A

Peak Discharge Current: 200 A (Duration: Less than 2 seconds)

Operating Temperatures: Charging 0°C~50°C (32°F~122°F)

Discharging -20°C~60°C (-4°F~140°F)

Storage -10°C~50°C (14°F~122°F)

Impedance: ≤ 20 mΩ

Brand: SaiJiaoYang

Dimensions: 260*167*210 mm (10.24*6.57*8.27 in)

Weight: 9.5 kg (20.94 lbs)

A 14.6V 10A charger is optional.

"12V100Ah-Bluetooth-C" will come with a charger.

Please confirm that your order includes a charger.

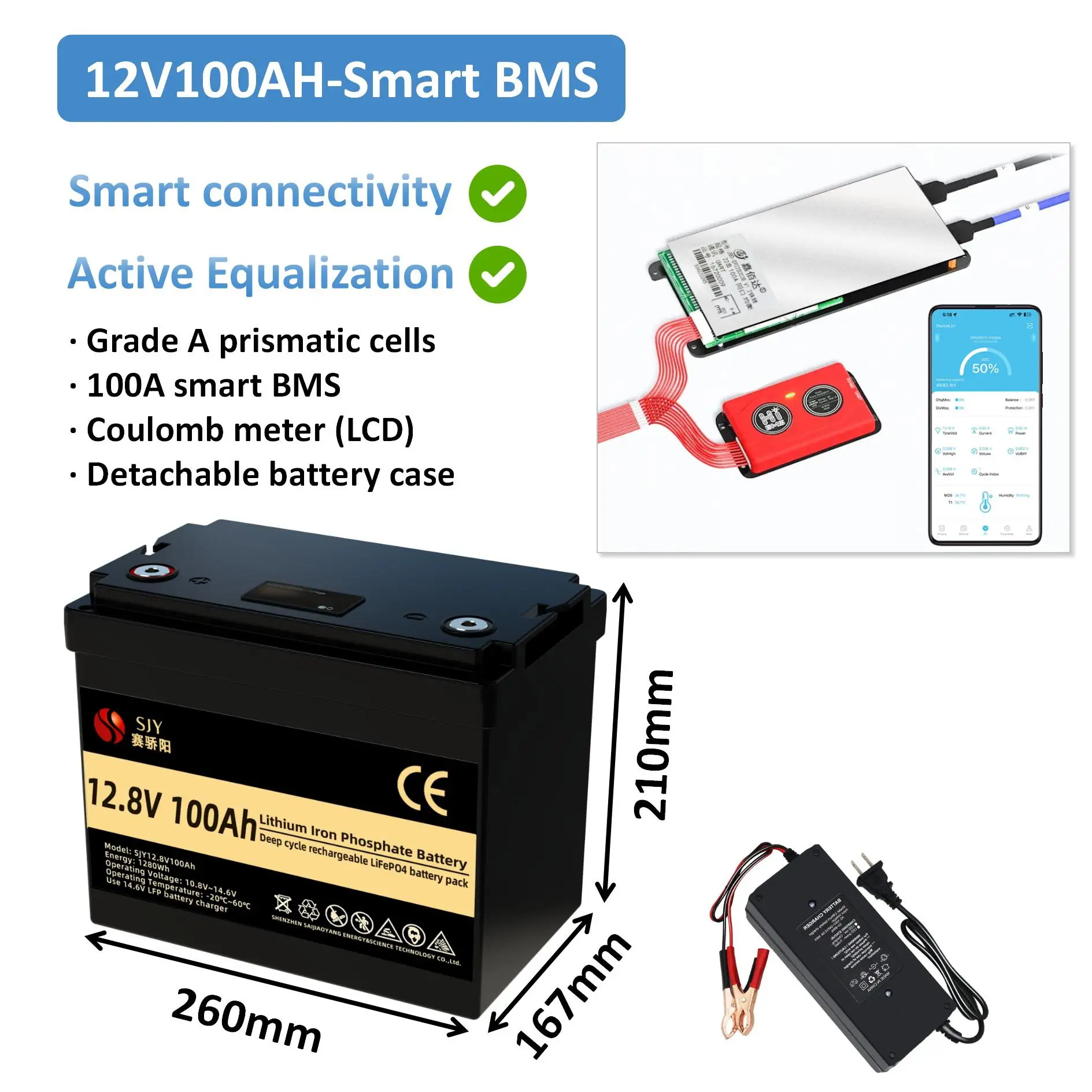

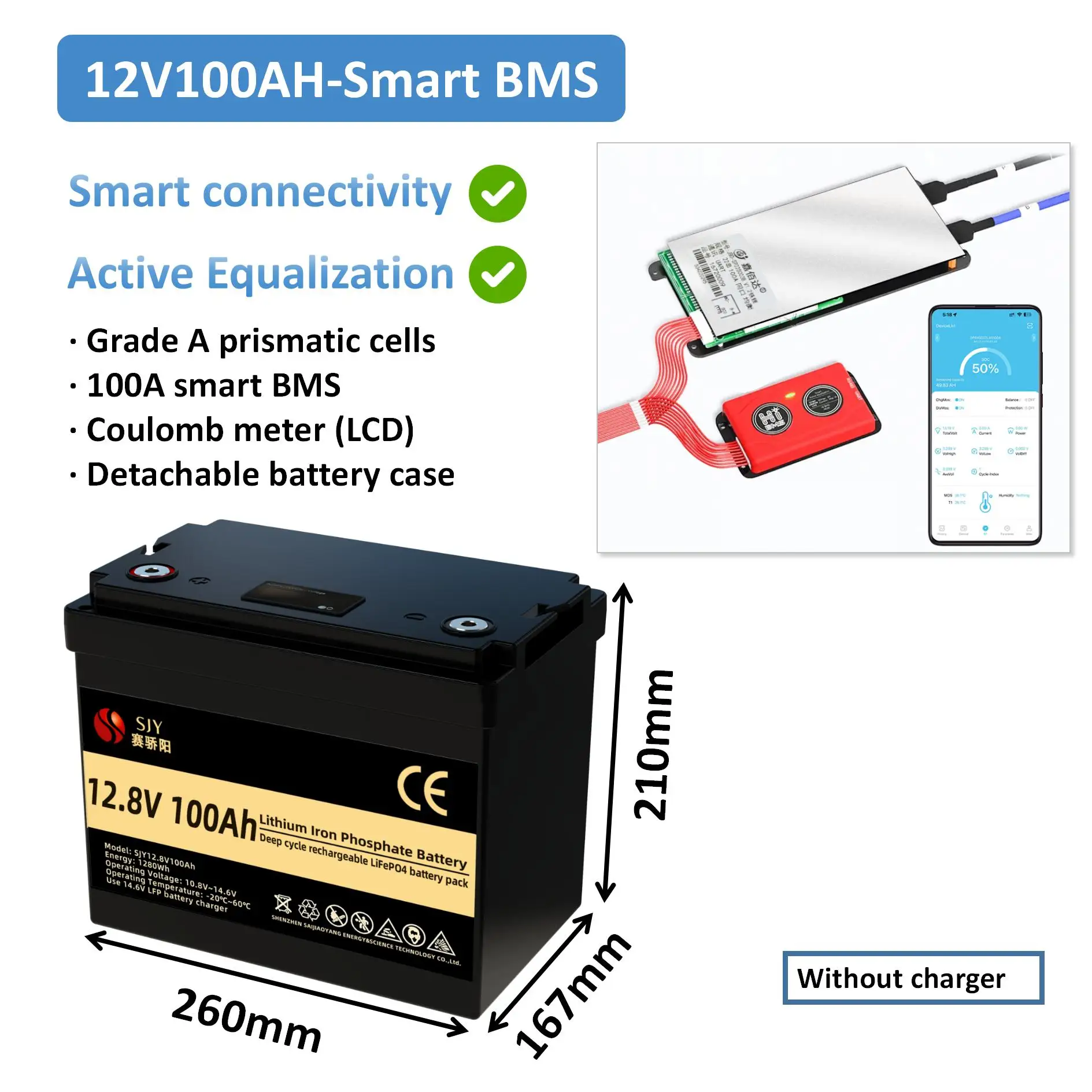

Battery version of the "Smart BMS"
12V100AH - Smart BMS

Our Advantage

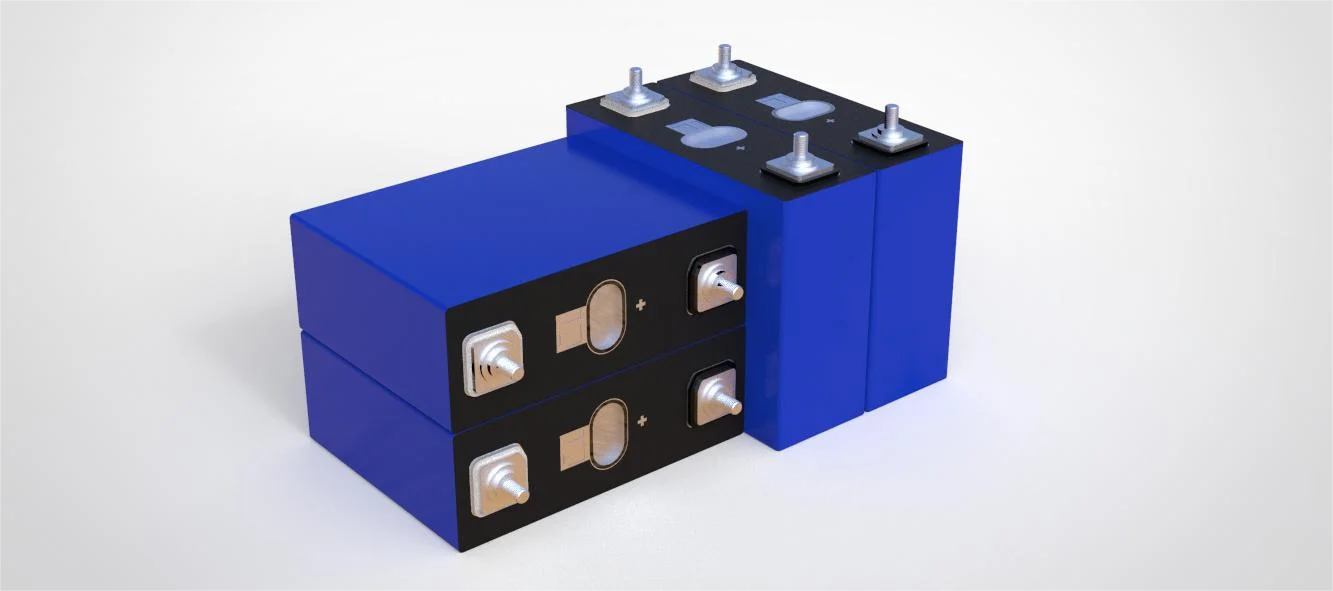

1) Use of 4 LiFePO4 Prismatic Cells

Use Class A prismatic LiFePO4 cells!

Prismatic cell advantages:

Longer lifespan

High safety

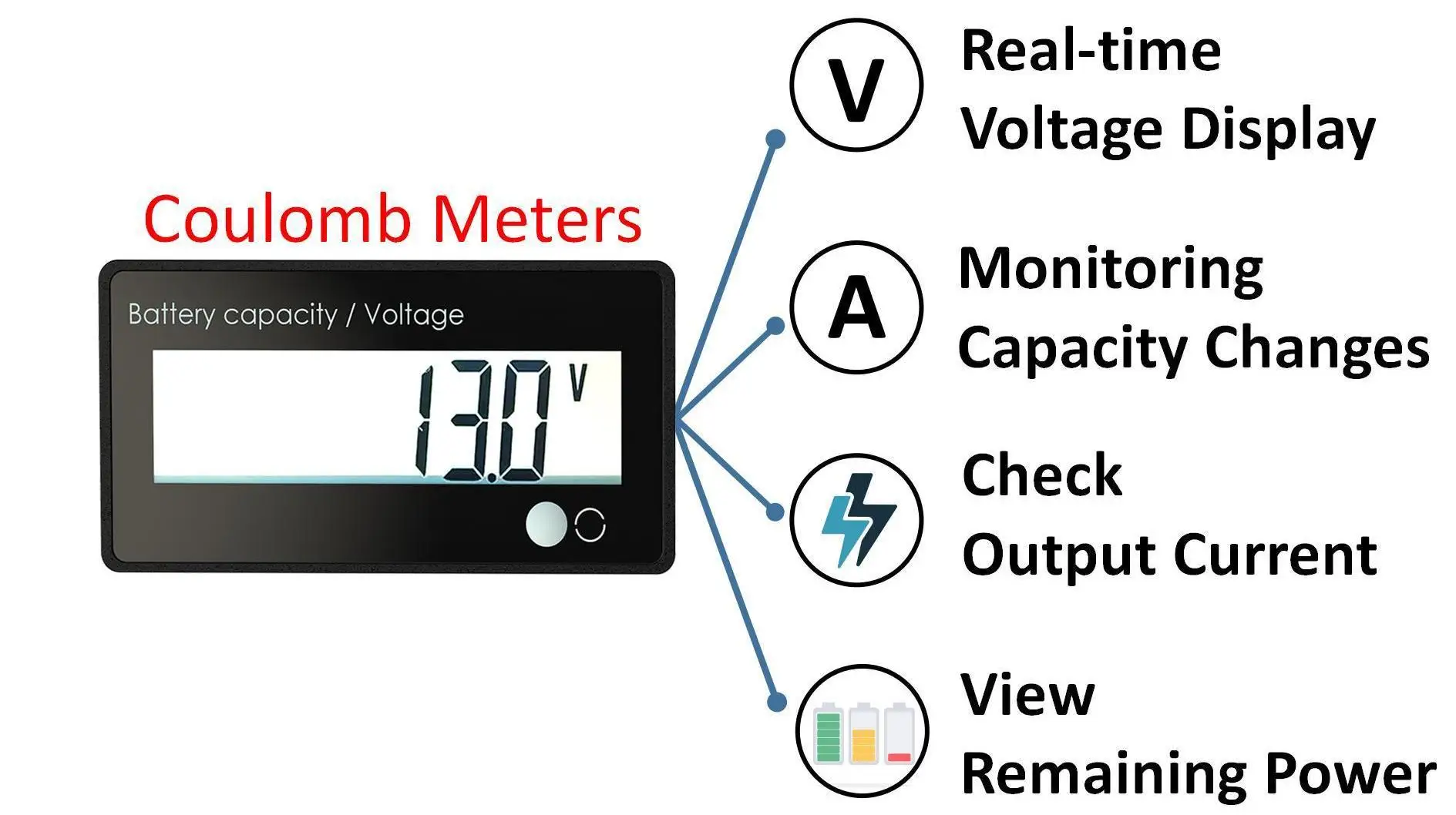

2) Professional electricity meters

The LCD displays four pieces of battery information:

a) Voltage

b) Capacity

c) Percentage of remaining battery charge

d) Real-time current

3) Professional 100A BMS

a) BMS protection function

b) 100A continuous discharge current

c) Balancing function

d) Supports series or parallel battery connections

Application scenario

This 12V 100Ah battery is ideal for indoor and outdoor applications, offering a great upgrade from gel, AGM, or lead-acid batteries. Thanks to its high-energy-density prismatic LiFePO4 cells, it's smaller and lighter (only 9.5 kg). This design is ideal for campers, caravans, solar systems, watercraft, home energy storage, and off-grid installations.

Key points

【10-Year Lifespan and Delivery】SaiJiaoYang LiFePO4 batteries offer an impressive lifespan of over 6,000 cycles and up to 10 years of reliable use, far exceeding lead-acid batteries, which typically only offer 200-500 cycles and last about 3 years.

【Wide Application and Versatility】They are ideal for a wide range of applications. Whether you're powering an outboard motor for fishing trips, equipping your all-terrain vehicle, using them in a kayak or boat, running an electric pontoon boat, integrating them with solar panels, or relying on them for camping, RV appliances like refrigerators, freezers, and microwaves, or even model jets and RC airplanes, these batteries perform exceptionally well. They're also an excellent choice for remote work in the field, providing reliable power wherever you are.

【Lightweight and Efficient】The SaiJiaoYang LiFePO4 battery weighs just 9.5 kg (20.9 lbs), which is only 1/3 the weight of lead-acid batteries. Unlike lead-acid batteries, our battery has no memory effect and offers longer runtime. Its flat discharge curve maintains above 12.8 V to 95%* of capacity, ensuring stable power output.

【100-Amp BMS Protection】 Equipped with a 100-amp battery management system (BMS), our LiFePO4 battery offers robust protection against common faults. It effectively prevents overcharging, overdischarging, overcurrent, short circuits, and high temperature issues, ensuring reliable and long-lasting operation.

【Upgradable Capacity】For applications requiring higher power, our LiFePO4 battery supports both parallel and series connections. It can be easily scaled to a 4S (series) or 4P (parallel) configuration, reaching a maximum capacity of 400Ah or a maximum voltage of 48V (51.2V). This flexibility makes it an ideal choice for a variety of energy needs, from small-scale installations to large-scale energy storage.
